Industrivej 3-9
DK-9460 Brovst
Tel.: +45 98 23 60 88
Fax: +45 98 23 61 44

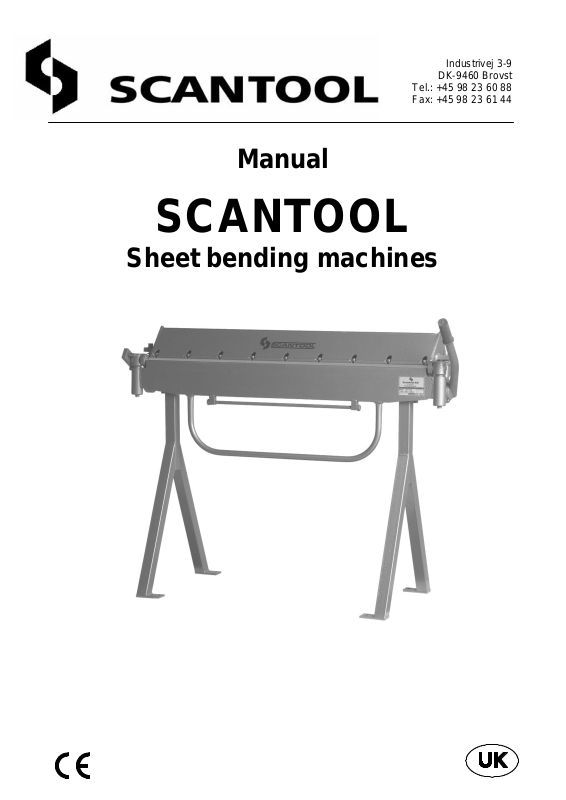

Manual
SCANTOOL
Sheet bending machines
EU declaration of conformity
hereby declares that
SCANTOOL Sheet bending machine are manufactured in accordance with the
provisions of the COUNCIL DIRECTIVE of 22 June 1998 (98/37/EC) – The Machinery
Directive (order no. 561 of 25 June 1994 with subsequent amendments)
Also on accordance with:
The council directive of 19 February 1973 (73/23/EEC) – The Low Voltage Directive – with
later amendments (order no. 797 of 30 August 1994)
And
The council directive of 3 May 1989 (89/336/EEC) – The EMC Directive – with later
amendments (Danish National Telecom Agency ministerial order no. 796 of 5 December
1991 with subsequent amendments)
SCANTOOL A/S
Industrivej 3-9
9460 Brovst
Denmark
Website: www.scantool.com
Tlf: +45 98 23 60 88
Fax: +45 98 23 61 44
2
Preface
This manual is covering SCANTOOL SCS, SCB, SCA and SCST sheet bending
machines. Therefore there will be description of some parts which are not a part of
all machines. But as the operation of the various models are alike we have
decided to make one manual covering all the models. Below you can se the
various models illustrated with the type description.
3
Table Of Contents
1.0 TRANSPORT & HANDLING 5
1.1 TRANSPORT 5
1.2 HANDLING 5
1.3 PLACING 5
2.0 USER’S GUIDE 6
2.1 OPERATION 6
2.2 SAFETY PRECAUTIONS 7
2.3 MAINTENANCE 7
3.0 SPARE PARTS LIST 8
3.1 EXPLODED DRAWING OF MODEL SCB & SCA 8
3.2 SPARE PARTS LIST FOR SHEET BENDING MACHINE MODEL SCB & SCA 9
3.3 EXPLODED DRAWING OF MODEL SCS & SCST 10
4.0 TECHNICAL DATA 11
4.1 TECHNICAL SPECIFICATIONS 11
4.2 GUARANTEE 12
4
1.0 Transport & handling
1.1 Transport
SCANTOOL sheet bending machine is delivered on a pallet or on transportation
feet. The bending machine is wrapped in protective wrapping.
1.2 Handling
SCANTOOL bending machine can easily be moved on the pallet or the
transportation feet it is delivered/equipped on or with.
1.3 Placing
Placing of the bending machine must take place on a firm and level ground. If a
model has fittings on the legs you can use these to fasten the bending machine to
the floor.
Fig.: 2.1
Important that this machine is bolted to the floor.
Before the machine is bolted to the floor the machine it is necessary to level out
the machine. It can be necessary to make adjustment with distance pieces
underneath the machine if the floor is not in level. The adjustment is necessary to
avoid the machine for twisting and then pull uneven.
5
2.0 User’s guide
2.1 Operation
As mentioned earlier the operation of the bending machines is alike no matter
which model and type you have got. Please note that the machines have various
max limits of how mush they can bend due to their construction. This does not
change the fact that the operation and the settings are alike for all the models.
Before start operating the bending machine loosen the adjustable bending stop
(A) by loosening the bolt (B). Now tilt the bending member (C) to the wanted
angle. Before inserting the plate into the machine lift the sheet holder (D) by lifting
the handle (E) in top position. When the sheet is placed correctly in the machine
the handle (E) is lowered to hold on to the sheet. Do the bending operation by
tilting the bending member (C) to the wanted angle. The bending stop can be
preset in the wanted angle and this way you are sure go get the same bending
angle on all the sheets.
It may be necessary to adjust to the various sheet thickness’ by loosening or
tightening the adjustment bolts (F) equal in both sides of the bending machine.
To be able to take advantage of the many possibilities the SCANTOOL sheet
bending machine offers (see fig.: 2.2), it may be necessary to dismount one or
some of the segments in the top member (of the machines which are equipped
with these).
Fig.: 2.2
6
2.2 Safety precautions
When using and maintaining the machine the following safety precautions must be kept in
order to prevent personal and material damage:
The machine should only be operated by personnel who are familiar with the safety rules
and precautions connected to the machine.
Operator must wear gloves and safety footwear suitable for working with steel plates.
When operating the sheet bending machine it is important that the operator makes
absolutely sure that no-one have their fingers cut off when lowering the top member and
activating the bending member.
The SCANTOOL sheet bending machine is constructed for operation with the equipment it
is delivered with. Therefor we do not recommend to make any technical changes on the
machine as well as not using any technical equipment which is not approved for the
SCANTOOL sheet bending machine.
Watch your back when operating the machine.
Do keep the work area clean and tidy as mess invite accidents.
2.3 Maintenance
The sheet bending machine does not need any particular maintenance.
Those models which are equipped with lubrication nipples, must be lubricated whenever
necessary.
It may be necessary to readjust the bending member (C) (see fig.: 2.3) by
tightening/loosening the adjustment screws at both sides of the machine and by tightening
the presettings (G) on the member.
Fig.: 2.3
7
3.0 Spare parts list
3.1 Exploded drawing of model SCB & SCA
Fig.: 3.1
8
3.2 Spare parts list for sheet bending machine model SCB & SCA
No.
Description
1 Bolt M12x60 0203001 0203001 0203001 0203001 0203001 0203001
2 Disc ø20x2,75 0203002 0203002 0203002 0203002 0203002 0203002
3 Conical spring 0203003 0203003 0203003 0203003 0203003 0203003
4 Screw M8x16 CH 0203004 0203004 0203004 0203004 0203004 0203004
5 Top member 0203125 0203126 0203127 0203125 0203126 0203127
6 Distance piece
f/nose member
7 Nose member 0203108 0203109 0203110 0203112 0203113 0203114
8 Extension shaft - - - 0203008 0203008 0203008
9 Screw M8x16 UH - - - 0203009 0203009 0203009
10 Screw M10x30 UH 0203010 0203010 0203010 0203010 0203010 0203010
11 Nut M10 0516637 0516637 0516637 0516637 0516637 0516637
12 Nylon bearings
ø25x35
13 Holder f/bending
member
14 Rotational ball f/top
member
15 Nylon bearings
ø64x25
16 Pipe split ø6x70 0203016 0203016 0203016 0203016 0203016 0203016
17 Arm for plate hold 0203017 0203017 0203017 0203017 0203017 0203017
18 Handle 0110029 0110029 0110029 0110029 0110029 0110029
19 Lower member 0203119 0203120 0203121 0203119 0203120 0203121
20 Nut M12 0411612 0411612 0411612 0411612 0411612 0411612
21 Screw M10x55 CH 0203021 0203021 0203021 0203021 0203021 0203021
22 Bending member 0203130 0203131 0203132 0203130 0203131 0203132
23 Bolt M10x40 CH 0042447 0042447 0042447 0042447 0042447 0042447
24 Stop for bending
member
25 Bending shaft 0203134 0203135 0203135 0203134 0203135 0203135
26 Lock ring ø64 0203026 0203026 0203026 0203026 0203026 0203026
27 Clamping bolt 0203137 0203138 0203139 0203137 0203138 0203139
28 Legs for machine 0203028 0203028 0203028 0203028 0203028 0203028
29 Screw M10x16 CH 0203029 0203029 0203029 0203029 0203029 0203029
0203012 0203012 0203012 0203012 0203012 0203012
0203013 0203013 0203013 0203013 0203013 0203013
0203014 0203014 0203014 0203014 0203014 0203014
0203015 0203015 0203015 0203015 0203015 0203015
0203024 0203024 0203024 0203024 0203024 0203024
Model SCB Model SCST
660 1050 1300 660 1050 1300
- - - 0203104 0203105 0203106
Ordering number
9
3.3 Exploded drawing of model SCS & SCST
Fig.: 3.2
10
4.0 Technical data
4.1 Technical specifications
All measures are in mm or kg
Item no. Model Work length Max. sheet dim.
540 72 1600 SCB 660 652 660x1,8 850 1070 510 50
540 72 1700 SCB 1050 1045 1053x1,2 1240 1070 510 80
540 72 1900 SCB 1300 1295 1303x1,2 1470 1070 510 91
540 72 1000 SCA 660 652 660x2,0 850 1050 510 47
540 72 1100 SCA 1050 1045 1053x1,2 1240 1050 510 77
540 72 1300 SCA 1300 1295 1303x1,2 1470 1050 510 88
540 72 3000 SCS 660 652 660x1,5 840 1060 510 60
540 72 3200 SCS 1050 1045 1045x1,2 1240 1060 510 90
540 72 3600 SCS 1300 1295 1300x1,2 1470 1060 510 101
540 72 3100 SCST 660 652 660x1,5 840 1060 510 64
540 72 3300 SCST 1050 1045 1045x1,2 1240 1060 510 94
540 72 3700 SCST 1300 1295 1300x1,2 1470 1060 510 105
A B C Weight
Fig.: 4.2
11
4.2 Guarantee
If within 2 year of purchase this machine supplied by SCANTOOL A/S
becomes defective due to faulty materials or workmanship we guarantee to
repair or replace the machine or defective part or parts free of charge
provided that:
1. The product is returned complete to one of our Service Branches or
Official Service Agents.
2. The product has not been misused or carelessly handled and in particular has
not been used in a manner contrary to the operating instructions.
3. Repairs have not been made or attempted by other than our own Service Staff
or the staff of our Official Service Agents.
4. Documentary proof of purchase date is produced when the goods are handed
in or sent for repair.
5. Wear parts are not covered by the warranty
12
