USER MANUAL

Contents

02 CONTENTS
03 INFORMATION
04 FRONT PANEL OVERVIEW
04 REAR PANEL OVERVIEW
06 GETTING STARTED / SETUP
08 NETWORK
09 SETTINGS
10 INTERNET RADIO PORTAL
12 INTERNET RADIO MODE
15 MUSIC PLAYER MODE
17 FM / AUX SETTINGS
19 SPECIFICATIONS

4

2

Information

Congratulations on your new radio.

Please take a moment to read this manual.

Safety instructions

Please store this instruction manual for future
reference.

• Place the unit on a solid surface

4

Enjoy

Unplug the radio in following cases:

• Foreign objects or liquids has penetrated
the radio

• Do not expose Scansonic R4 to high
humidity, direct sunlight, dirt, heavy vibration
or extreme temperatures.

• Do not open the cabinet. Only qualified
technicians are allowed to clean this
Scansonic radios internal parts.

• If service or repair is required, this must also
be done be qualified technicians.

• Use a duster or a slightly damp, soft and
non-fluffy rag to clean the cabinet. Do not
use corrosive or strong cleaning agents.

• Make sure no liquids or moisture penetrates
the radio during the cleaning. Unplug the
radio before cleaning it.

Disclaimer

Despite our best efforts we cannot guarantee that the technical data indicated are correct, complete
and updated. We, Scansonic, reserve the right to make technical changes without notice.

• The radio cannot be operated properly.

• The cabinet has be damaged.

• The mains plug or the mains cable is
defective.

• If the radio is not to be used for a long time.

3

Front panel

Rear panel

0302 04 05 06 07

13

01

14

12

4

08

09

11 10

15

16

17

18

19

20

21 22

4

4

01 Display OLED display is showing all information on the radio
02 Speaker 3” fullrange loudspeaker
03 Alarm Alarm control and settings
04 Snooze Press to snooze 5 minutes
05 Sleep Sleep timer control and settings
06 Mode Press to select Internet, Music Player, FM radio or AUX input
07 Back Press to enter main menu or come back to previous submenu
08 Preset 1-3 Press and hold for setting station as preset1
09 Menu Go to radio menu
10 Selection knob Turn clockwise to scroll to next item, turn counter clockwise to scroll to

previous item. Press briefly to confirm selection. In FM mode, turn clock
wise to tune down and turn counter clockwise to tune up. Press and
hold for autotune.

11 Power/dimmer Press and hold to turn on or switch off radio. To dim the light in the

display press button, there are 7 steps.

12 Info Each time you press Info , another set of information is displayed, cyc

ling through name/description, genre/location, reliability, codec/sampling
rate, playback buffer and today’s date.

13 Volume- Press to decrease volume
14 Volume+ Press to increase the volume

15 Keylock Kensington lock to prevent from theft
16 Ethernet connection Connect Ethernet cable (RJ45) to this input for wired internet connection.
17 Aux in Connect a stereo or mono audio source ( like iPod, MP3-player, TV or

CD-player ) to this stereo input. Use 3,5mm jack to connect devices to
the radio.

18 Line out This radio can be used as a separate stereotuner by connecting it to an

stereoamplifier. Use 3,5mm jack to connect the radio to amplifier

19 Headphones Connect a separate stereoheadset to this input to listen to the radio with

headset. Inserting a headset will turn off the main speaker

20 12v DC Use this input to the Scansonic R4 DC power supply
21 Antenna The radio comes with a telescope antenna. To improve FM reception,

adjust the antenna for best reception. The telescope antenna can be
detached with the tool included in the giftbox so a coaxial antenna cable
or outdoor antenna can be connected to this connector

20 Porttube Bass reflex porttube for better sound quality

5

4



Getting started / setup

Although the Scansonic R4 is sophisticated, getting started is simple. To play FM radio, all you need is a
power source (a 100-240 V mains supply).

For Music Player mode, you need either a USB stick with music files or a wired/wireless Ethernet
network and a UPnP music server (e.g. a PC).

For Internet-connected modes such as Internet radio or Pandora, you also need a broadband Internet
connection.

01 Place Scansonic R4 on a suitable shelf or table and plug it in to a power outlet.

02 To receive broadcast radio (FM), extend the telescopic antenna.

03 Press and hold Standby to power on.

SETUP WIZARD

When Scansonic R4 is started for the first time, it runs through a setup wizard to configure settings for
date/time and network. Once this has finished, the system is ready to use in most modes.

Note: To change these settings later, select Menu > System settings >.
To run the setup wizard again, select Menu > System settings >
Setup wizard.

Select Yes to start the setup wizard.

Note: If you want to use a wired network, bypass the setup wizard.

If you choose No, the next screen asks if you would like to run the
wizard next time Scansonic R4 is started. The system then starts without configuring time/date and
network settings and enters the Main Menu.

Note: If power is removed while the wizard is in progress, the wizard will run again next time Scansonic
R4 is started.

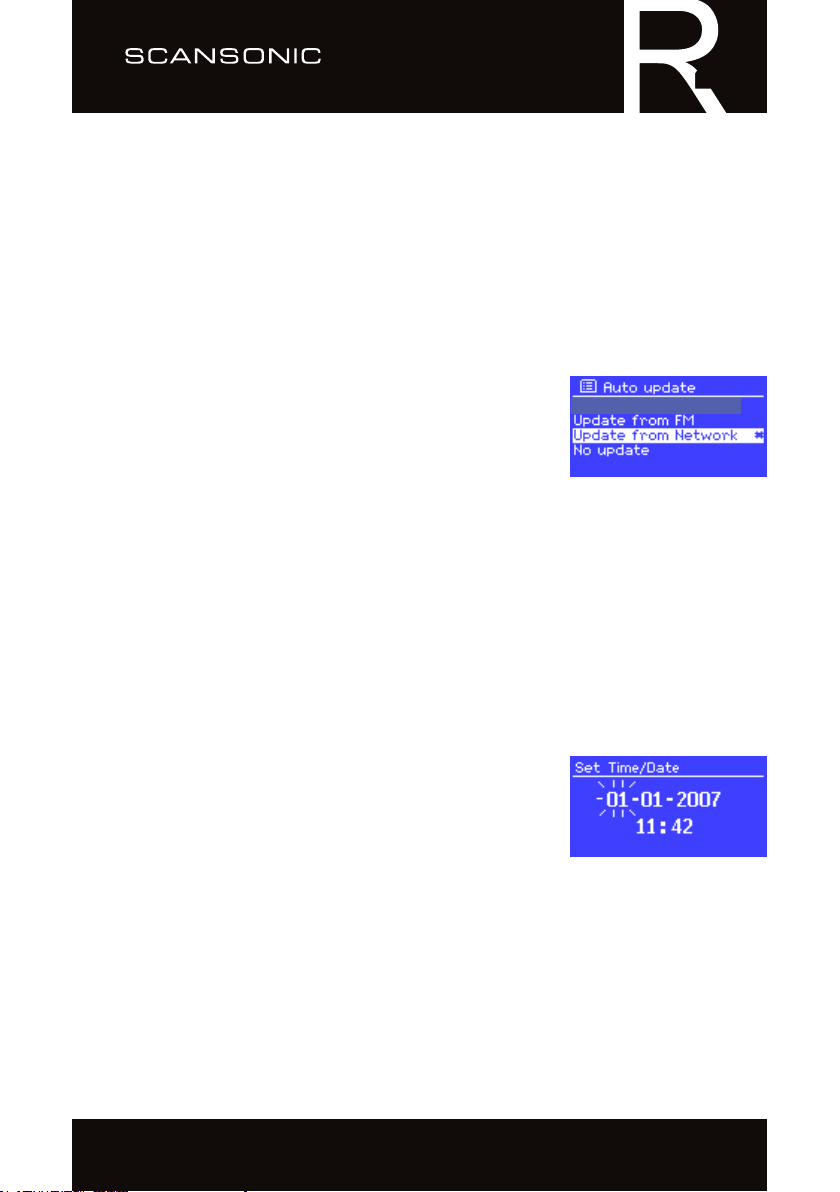

12 / 24 hour display

To change between 12 and 24 hour display, select Set 12 / 24 hour and then select your preference.
