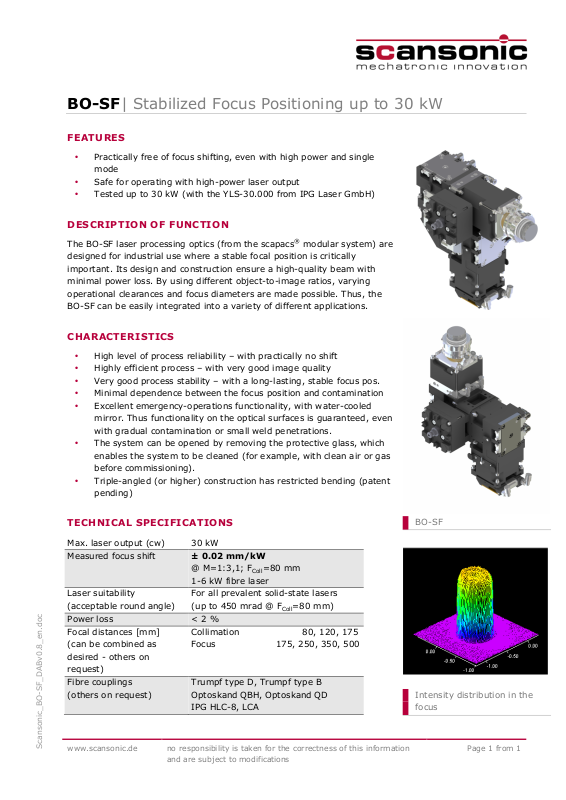

Scansonic BO-SF User Manual

BO-SF | Stabilized Focus Positioning up to 30 kW

FEATURES

• Practically free of focus shifting, even with high power and single

mode

• Safe for operating with high-power laser output

• Tested up to 30 kW (with the YLS-30.000 from IPG Laser GmbH)

DESCRIPTION OF FUNCTION

The BO-SF laser processing optics (from the scapacs®modular system) are
designed for industrial use where a stable focal position is critically
important. Its design and construction ensure a high-quality beam with
minimal power loss. By using different object-to-image ratios, varying
operational clearances and focus diameters are made possible. Thus, the
BO-SF can be easily integrated into a variety of different applications.

CHARACTERISTICS

• High level of process reliability – with practically no shift

• Highly efficient process – with very good image quality

• Very good process stability – with a long-lasting, stable focus pos.

• Minimal dependence between the focus position and contamination

• Excellent emergency-operations functionality, with water-cooled

mirror. Thus functionality on the optical surfaces is guaranteed, even
with gradual contamination or small weld penetrations.

• The system can be opened by removing the protective glass, which

enables the system to be cleaned (for example, with clean air or gas
before commissioning).

• Triple-angled (or higher) construction has restricted bending (patent

pending)

TECHNICAL SPECIFICATIONS

Max. laser output (cw) 30 kW
Measured focus shift ± 0.02 mm/kW

@ M=1:3,1; F

1-6 kW fibre laser
Laser suitability
(acceptable round angle)
Power loss < 2 %
Focal distances [mm]
(can be combined as
desired - others on
request)
Fibre couplings
(others on request)

Scansonic_BO-SF_DABv0.8_en.doc

www.scansonic.de no responsibility is taken for the correctness of this information

For all prevalent solid-state lasers

(up to 450 mrad @ F

Collimation 80, 120, 175

Focus 175, 250, 350, 500

Trumpf type D, Trumpf type B

Optoskand QBH, Optoskand QD

IPG HLC-8, LCA

and are subject to modifications

=80 mm

Coll

=80 mm)

Coll

BO-SF

Intensity distribution in the
focus
