Thank you for purchasing our pressure meter.
This product is manufactured in accordance with our strict standards for
quality in design, components, and workmanship to fulfill our vision:
“To be the leading company in high quality self-contained
products”
Scan-Sense AS reserves the right to make improvements or alterations
to their products without incurring any responsibility to make the same
improvements or alterations to products previously sold.
© Scan-Sense AS.
All rights reserved. No part of this publications may be reproduced,
stored in a retrieval system, or transmitted in any form by any means,
electronic, mechanical, photocopying, recording, or otherwise without
the prior permission of Scan-Sense AS.
All efforts have been made to ensure the accuracy of this handbook.
We at Scan-Sense AS are always striving to improve our products and
handbooks, therefore we would greatly appreciate being informed of
any errors found in our product or its handbook. The above
notwithstanding, Scan-Sense AS can assume no responsibility for any
errors in this handbook or the consequences.
Symbol used to identify an action that can cause personal
injury or damage to equipment.
Always release internal pressure at connectors before
disconnecting.
Uncontrolled release of high pressure can result in
personal injury and damage to equipment.
Scan-Sense AS
Bekkeveien 163
N-3173 Vear,
Norway
Document prepared by B&C ENTERPRISES AS, Kongsberg, Norway
Phone: + 47 33 36 30 00
Fax: + 47 33 36 30 01
Email: post@scansense.no
www.scansense.no
Table Of Contents
1 DESCRIPTION OF THE PM305 AND PC705 ........................................ 1
1.1 CALIBRATION LABEL ....................................................................... 1
1.2 CERTIFICATION ................................................................................ 1
1.3 WARRANTY ....................................................................................... 2
1.4 CONVENTIONS USED IN THIS DOCUMENT ..................................2
1.5 SAFETY PRECAUTIONS ..................................................................2
1.6 BATTERY CHARGING INFORMATION ............................................ 3
1.7 PM305/PC705 NOT OPERATING/FAILED ....................................... 3
2 CONTROLS AND INDICATORS ............................................................ 3
2.1 DISPLAY, CONTROLS AND CONNECTIONS.................................. 3
2.2 BATTERY CHARGER ........................................................................ 4
2.3 RS232 COMMUNICATION ................................................................4
2.4 SWITCH TEST ................................................................................... 4
2.5 VOLTAGE........................................................................................... 4
2.6 GROUND............................................................................................ 4
2.7 CURRENT .......................................................................................... 4
2.8 EXTERNAL SENSOR ........................................................................5
3 OPERATION MENUS AND INPUT SETUP ........................................... 5
3.1 OPERATION CONTROLS ................................................................. 6
3.2 INPUT SETUP.................................................................................... 6
3.2.1 Measurement unit ..............................................................................................6
3.2.2 Sensor input.......................................................................................................7
3.2.3 Sensor range .....................................................................................................7
3.2.4 Filtering.............................................................................................................. 7
3.2.5 Number of digits................................................................................................. 7
3.2.6 Reference input ................................................................................................. 7
3.3 SETTINGS ......................................................................................... 8
3.3.1 Main view type ................................................................................................... 8
3.3.2 Backlight brightness........................................................................................... 8
3.3.3 Backlight timeout................................................................................................8
3.3.4 LCD contrast...................................................................................................... 9
3.4 INFORMATION ..................................................................................9
3.4.1 Reference details............................................................................................... 9
3.4.2 Software information .......................................................................................... 9
3.5 HISTORY LOG ................................................................................... 9
3.5.1 Enter sensor name.............................................................................................9
3.5.2 View stored sensors......................................................................................... 10
3.5.3 Delete one sensor............................................................................................ 10
3.5.4 Delete all.......................................................................................................... 10
4 GETTING STARTED............................................................................. 10
Document PM305/PC705 instruction & safety manual
i
5 SPECIFICATIONS OF PM305/PC705.................................................. 11
6 LTP1, LOW PRESSURE HAND PUMP................................................ 13
6.1 LTP1 CONTROLS AND ORIENTATION ......................................... 13
6.2 OPERATION OF THE LTP1. ........................................................... 14
6.3 LTP1 FAULT INVESTIGATION ....................................................... 15
7 TP1, HAND HELD PRESSURE TEST SYSTEM .................................. 16
7.1 TP1 CONTROLS AND ORIENTATION ........................................... 16
7.2 OPERATION OF THE TP1 ..............................................................17
7.3 TP1 FAULT INVESTIGATION ......................................................... 18
8 HTP1, HYDRAULIC HAND HELD PRESSURE TEST SYSTEM......... 18
8.1 HPT1 CONTROLS AND ORIENTATION......................................... 19
8.2 OPERATION OF THE HTP1............................................................ 20
9 PV411 PNEUMATIC/HYDRAULIC HAND-PUMP SYSTEM ................ 21
9.1 PV411 CONTROLS AND ORIENTATION .......................................22
9.2 PV411 PNEUMATIC OPERATION .................................................. 23
9.2.1 Pneumatic-selector valve and scissor-action handles limit-adjuster of
9.2.2 Pneumatic Operation of the PV411.................................................................. 23
the PV411........................................................................................................ 23
9.3 PV411 HYDRAULIC OPERATION .................................................. 25
9.3.1 Setting pressure relief valve of the PV411........................................................ 25
9.3.2 Hydraulic Operation of the PV411.................................................................... 26
9.4 PV411 FAULT INVESTIGATION .....................................................29
10 PC705, HYDRAULIC HAND-HELD PRESSURE TEST SYSTEM....... 30
10.1 PC705 CONTROLS AND ORIENTATION ....................................... 30
10.2 OPERATION OF THE PC705 .......................................................... 31
11 PM310L/301H AND PC705 ACCESSORIES .......................................32

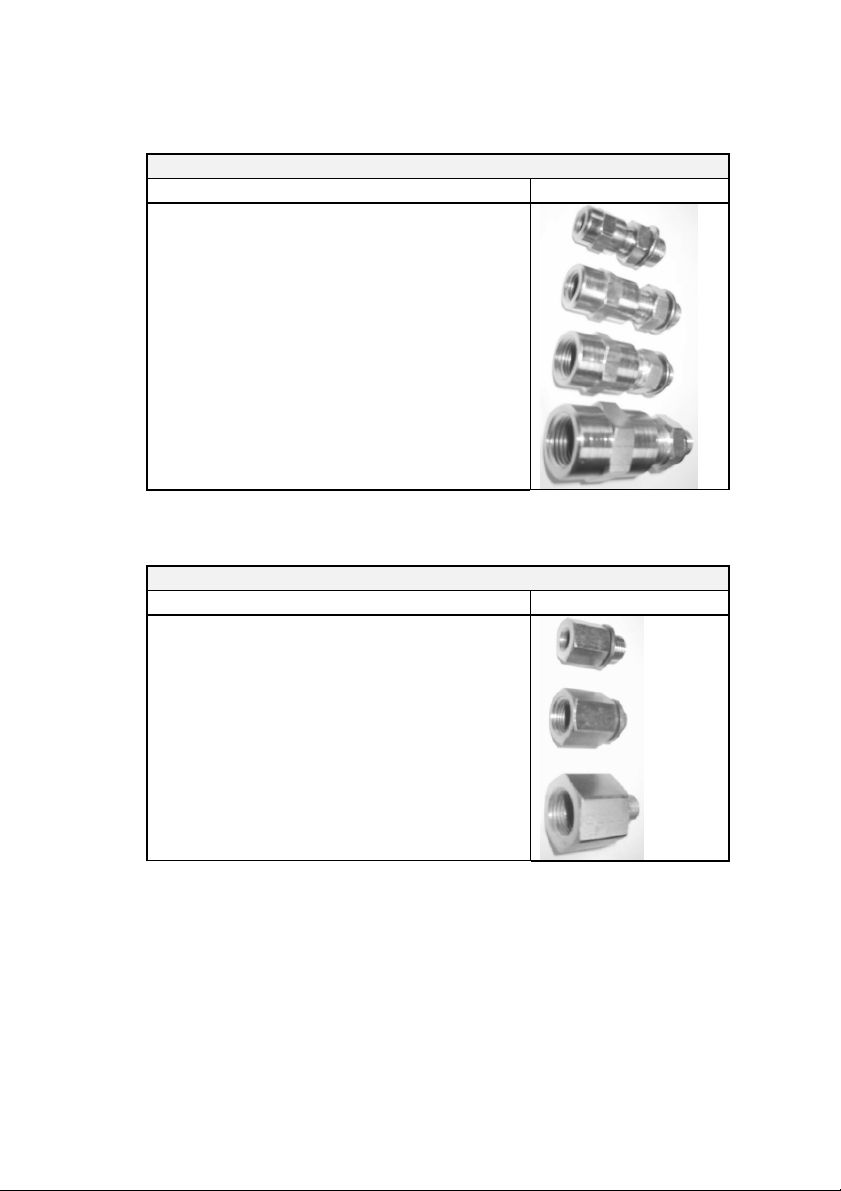

11.1 ADAPTERS FOR THE ITEM UNDER TEST ................................... 32
12 REPLACING FUSE IN THE PM305 AND PC705................................. 33
12.1 FAULT FINDING TO DETERMINE IF THE FUSE HAS BLOWN .... 33
12.2 PM305, INSTRUCTIONS FOR REPLACING THE FUSE
OR BATTERY .................................................................................. 34
12.3 PC705, INSTRUCTIONS FOR REPLACING THE FUSE
OR BATTERY .................................................................................. 35

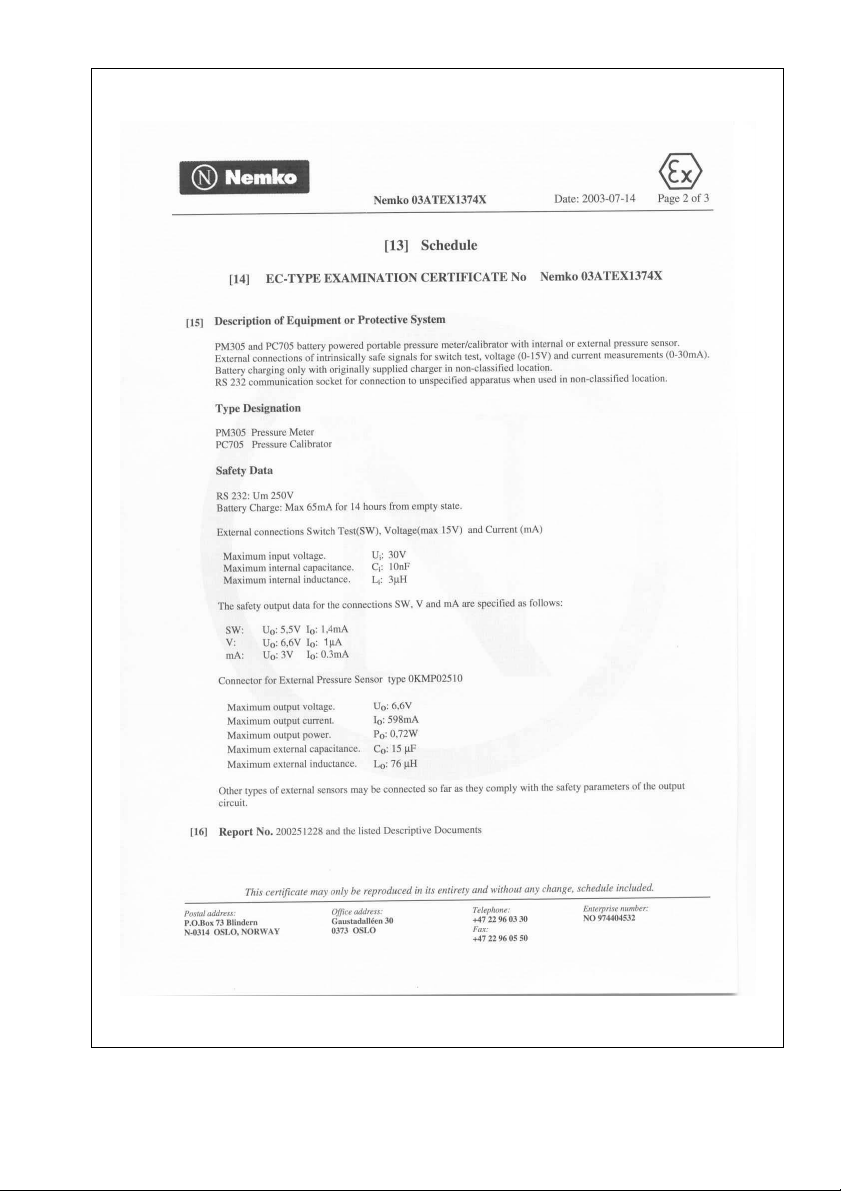

13 CERTIFICATES .................................................................................... 37
Document PM305/PC705 instruction & safety manual
ii
1 DESCRIPTION OF THE PM305 AND PC705
The PM305 and PC705 Pressure Calibrator series are designed as
self-contained, portable pressure meters that have been calibrated to
precision pressure equipment traceable to national standards.
Each unit is marked with:
•
Certificate Number
•
Safety code and gas
group
•
Calibration certificate
•
Serial number
•
Production year
•
Pressure range.
1.1 CALIBRATION LABEL
Scan-Sense AS certifies that this product meets published
specifications at the time of shipment from the factory. Scan-Sense AS
further certifies that its calibration measurements are traceable to
accredited international standards. Each pressure calibrator has a
calibrated label showing the last date of calibration and the date when
the next calibration is due. Calibration is scheduled annually, unless
you believe the unit to be defective, whereupon the unit will be
calibrated after repair and receive a new label showing the date
calibrated and the new calibration-due date. Check the calibrated label
to ensure the Pressure Meter Calibrator has a valid calibration date
before using the unit. Calibration must be done by Scan-Sense AS
or a certified supplier/service center.

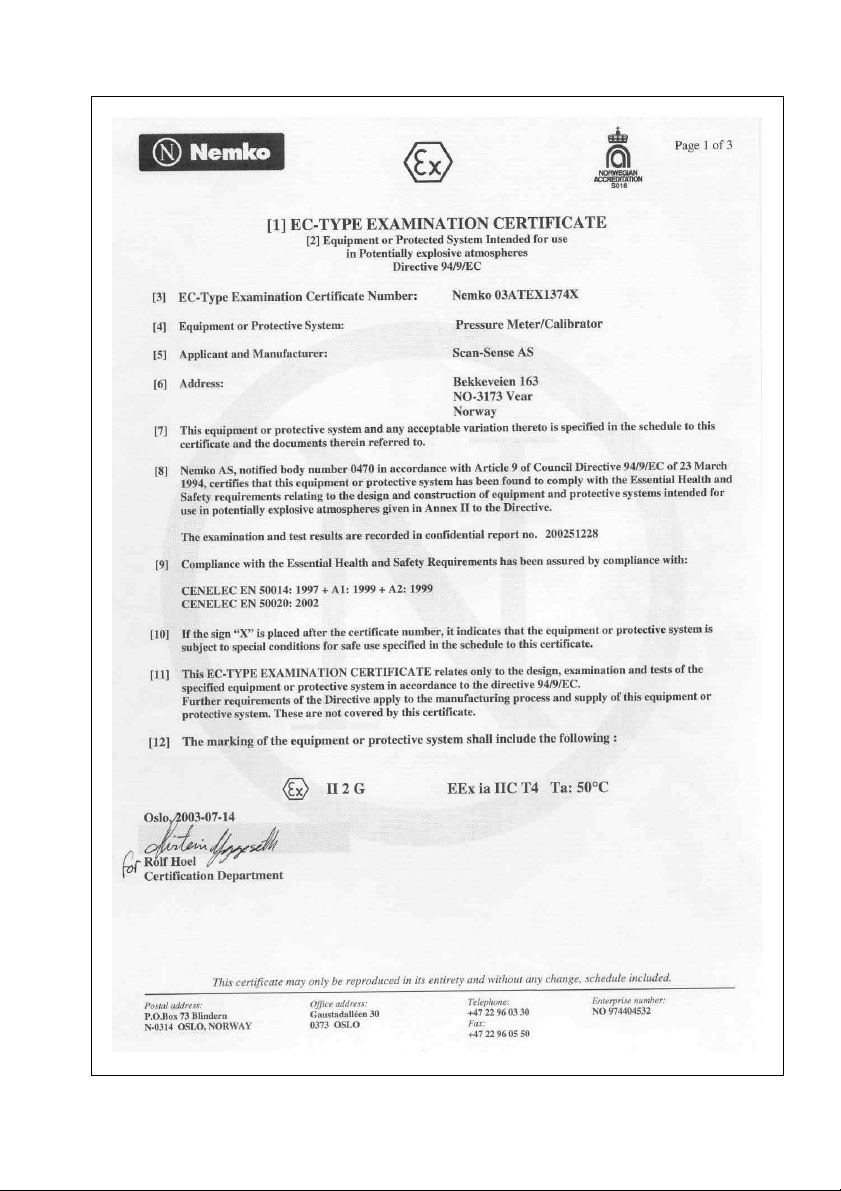

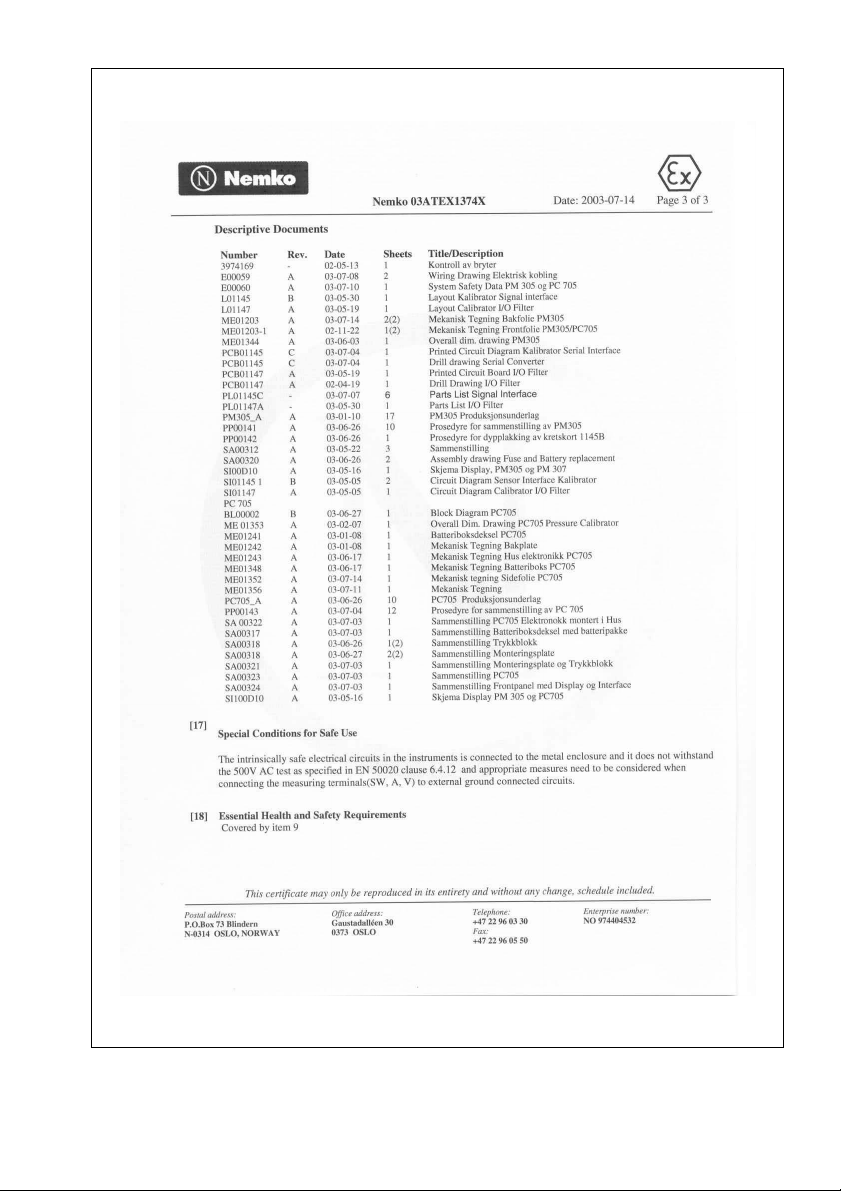

1.2 CERTIFICATION
Scan-Sense AS certifies that the PM305 and PC705 comply with its
published list of specifications at the time it was manufactured. ScanSense AS also certifies that its calibration measurements are traceable
to Norwegian Accreditation and to the calibration facilities of other
International Standards Organization (ISO) members. Scan-Sense AS
confirms that the PM305 and PC705 complies with the following
standards:
EMC 89/336/EEC as amended by EC Directive
92/31/Eec and the European Low Voltage Directive
73/25/EEC, amended by 93/68/EEC. To ensure
compliance, please use screened/shielded serial
communication leads (RS232).
Document PM305/PC705 instruction & safety manual
1
1.3 WARRANTY
This product is guaranteed free from defects in material and
workmanship for one (1) year from the date of shipment. During this
warranty period, Scan-Sense AS will, at its option, either repair or
replace the PM305 and PC705 should it prove to be defective. The
product must be returned to a service facility designated by ScanSense AS for warranty service or repair. The foregoing warranty will not
apply to defects resulting from improper maintenance by the purchaser,
purchaser-supplied software or interfacing, unauthorized modification or
misuse, operation exceeding the environmental specifications for the
PM305 and PC705, or improper site preparation. No other warranty is
expressed or implied by Scan-Sense AS, and Scan-Sense AS shall not
be liable for any direct, indirect, special, incidental or consequential
damages, whether based on contract, tort, or any other legal theory.
1.4 CONVENTIONS USED IN THIS DOCUMENT
We have provided this section of the Handbook to help you identify
noteworthy symbols, terms and conventions used in this handbook.
Look for the following:
Symbol used to
identify an action that
can cause personal
injury or damage to
equipment.
Conformité
Européenne
Terms and definitions:
We define calibration as being
able to compare the ability of
the equipment to perform to a
known standard. Pressure
calibration provides a means of
quantifying uncertainties in
pressure measurement in order
to optimize sensor and/or
system accuracy.
1.5 SAFETY PRECAUTIONS
Following these safety precautions should ensure safe operation of the
pressure meter and your personnel safety. Be careful when working in
hazardous areas as any electrical spark could result in an atmospheric
explosion/fire.
•••• Do not use the instrument at ambient temperatures above 50°C.
•••• Do not connect to RS232 port in hazardous area.
•••• Do not apply voltage to the CURRENT input terminal.
•••• Do not remove the rear panel.
•••• Connect only Scan-Sense manufactured sensors to the External
Sensor connector.
Document PM305/PC705 instruction & safety manual
2
1.6 BATTERY CHARGING INFORMATION
•••• Do not charge battery in hazardous areas.
•••• Use only the battery charger supplied by Scan-Sense AS
From a completely discharged condition, battery-charging time is about
14 hours, at a maximum charging current of 65mA.
When the battery is charged, it will provide power for about 35 hours of
continuous operation if the display back-light is defined as OFF, (and
with no RS232 connection).
In safe areas, the Pressure Meter Calibrator can be operated with all
Inputs and Outputs, and with the battery charger connected. The
Battery Charging time will increase depending on connections and
display back-light settings.
1.7 PM305/PC705 NOT OPERATING/FAILED
Repairs must be done by manufacturer or supplier certified for
service/repair of intrinsically safe equipment. Replacement batteries
and fuses must be obtained from the manufacturer.
Manufacture address:
Scan-Sense AS
Bekkeveien 163
N-3173 Vear, Norway
Phone: + 47 33 36 30 00
Fax: + 47 33 36 30 01
Email: post@scansense.no
2 CONTROLS AND INDICATORS
2.1 DISPLAY, CONTROLS AND CONNECTIONS
ON/OFF button
Power on or off control
CANCEL
Used to cancel an action and to
move to the previous menu level.
Display
Shows the available menu
selections or values.
MENU SELECTION
Allows selection of menu item to read,
change or define information, or to
select the next level of sub-menu.
move UP the menu.
move DOWN the menu.
Document PM305/PC705 instruction & safety manual
3
Input Terminals
SW Switch test VVoltage Gnd Ground (common)
mA Current B.c.
DO NOT charge battery or connect to RS232 in a hazardous area.
Battery
charger
RS232
serial
communication
2.2 BATTERY CHARGER
Connection for the Battery Charger provided by Scan-Sense AS. In
safe areas, the Pressure Meter Calibrator can be operated with all
Inputs and Outputs, and with the battery charger connected. The
Battery-charging time will increase depending on connections and
display back-light settings.
2.3 RS232 COMMUNICATION
Serial RS232 connection for interfacing the PM305 or PC705 to allow
menu definition, logging, etc. via PC or other computer-based device
with software from Scan-Sense AS.
2.4 SWITCH TEST
Input connection for indicating when the switch changes state (open-toclosed or closed-to-open).
2.5 VOLTAGE
Input connection for voltage measurement.
2.6 GROUND
Reference ground for the pressure meter. Use in conjunction with the
SWITCH-TEST, VOLTAGE, and CURRENT input connectors.
2.7 CURRENT
Do not apply voltage to the current input terminal. Applied
voltage can cause the internal fuse to blow. If the fuse blows,

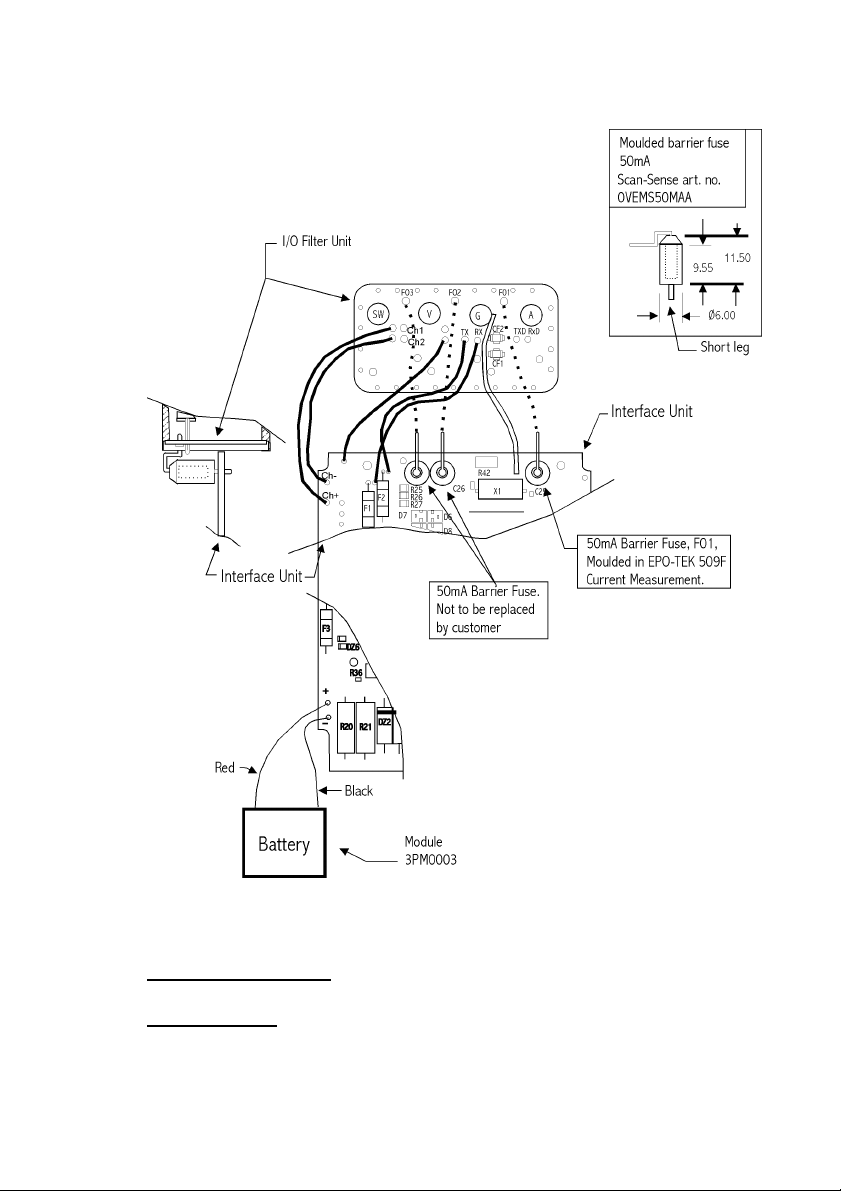

refer to Chapter 12 Replacing fuse in the PM305 and PC705.
Input connection for current measurement.
Document PM305/PC705 instruction & safety manual
4
2.8 EXTERNAL SENSOR
Connect only reference sensors
manufactured by Scan-Sense AS to the
External Sensor connector.
Always replace the cap/cover when
not in use and power OFF the unit before
connecting the external reference sensor.
Contact Scan-Sense AS for available
external reference sensors.
ONLY connect
sensors provided by
Scan-Sense AS
ENTERNAL
SENSOR connector
3 OPERATION MENUS AND INPUT SETUP
The menus are organized in levels, with each level leading to lowerlevels of information or available selections.
At power-up, the display will INITIALIZE and restore previously defined
and saved values.
To VIEW the menus, press the MENU SELECTION button. The
following headings in this chapter describe the menus and sub-menus.
Main menu Sub-menus
Input setup Measurement unit
Sensor input
Sensor range
Filtering
Number of digits
Reference input
Settings Main menu type
Backlight brightness
Backlight timeout
LCD contrast
Information Reference details
Software information
Document PM305/PC705 instruction & safety manual
5
3.1 OPERATION CONTROLS
Menu interaction controls
ON/OFF button
Power on or off control
CANCEL
Used to cancel an action and to
move to the previous menu level.
Display
Shows the available menu
selections or values.
MENU SELECTION
Allows selection of menu item to read,
change or define information, or to
select the next level of sub-menu.
move UP the menu.
move DOWN the menu.
3.2 INPUT SETUP
This menu group allows you to configure, select and set up all
reference and external reference sensor information.
3.2.1 Measurement unit
You can select the desired measurement unit in this sub-menu. When
you enter this sub-menu, the active unit will be shown as selected. The
selected new unit will be applied to both the internal and external
reference. It is possible to change from bar to any other unit. The bar
value is multiplied with the respective constant. Press the CANCEL
button to return to the previous menu without changing the value:
• bar
• kPa (kN/m
• MPa (MN/m
• atm 1E5/1.01325E5
• psi (lbf/in
• at (kgf/cm
• torr (mmHg) at 0°C 1E5/1.33322368421E2
• mHg at 0°C 1E5/1.33322368421E5
• inHg at 32°F 1E5/3.38638815789E3
• cmH
• mH
2
• inH
2
2
)1E5/1E3
2
)1E5/1E6
2
) 1E5/6.89475729317E3
2
) 1E5/9.80665E4
O at 4°C 1E5/9.80638E1
2
O at 4°C 1E5/9.80638E3
O at 39.2°F 1E5/2.4908891E2
Document PM305/PC705 instruction & safety manual
6
3.2.2 Sensor input
You can select the desired external reference sensor input signal-type
in this sub-menu. When you enter this sub-menu, the active unit will be
shown as selected. Possible sensor inputs are:
• 0-15 V
• 0-100 mV
• 0-30 mA
3.2.3 Sensor range
You can use this sub-screen to set up how the external reference
sensor input electrical signal should be converted to pressure. To do
this, you set a low and high electrical value equal to a low and highpressure value. It is possible to edit both electrical and pressure values.
3.2.4 Filtering
You can select delay between each time the sensor and reference is
sampled and updated in this sub-menu. When you enter this sub-menu,
the active unit will be shown as selected. (The respective constant is
the number of samples needed to take an average): Possible filter
settings are:
• Fast 2
• Medium 5
• Accurate 10
3.2.5 Number of digits
In this sub-menu, you can select the numbers of the digits you want to
view on the sensors and references. When you enter this sub-menu,
the active unit will be shown as selected. Possible selections are:
• 3 numbers
• 4 numbers
• 5 numbers
3.2.6 Reference input
You can select the reference input in this sub-menu. When you enter
this sub-menu, the active unit will be shown as selected. Possible
selections are:
Automatic (use the external reference if it is present during power-
k
up, otherwise use the internal reference)
Internal (use the internal reference)
k
External (use the external reference)
k
Document PM305/PC705 instruction & safety manual
7
3.3 SETTINGS
This menu group allows you to configure the PM305/PC705 device
settings that do not affect the sensor or the reference.
3.3.1 Main view type
You can select how the Main Menu will look from this sub-menu. When
you enter this sub-menu, the active unit will be shown as selected. The
illustration below shows the LCD with explanations and possible
selections:
Normal
Error in unit Sensor value
Ref value (in unit) Sensor value (in unit)
Measurement unit MENU Sw:OFF
Min and max
Maximum in unit Measurement unit Maximum in unit
Ref value (in unit) Sensor value (in unit)
Minimum in unit MENU Minimum in unit
Switch and leak
Reading per hour/minute/day OFF:---
Ref value (in unit) Sensor value (in unit)
Measurement unit MENU ON:---
(in mA or Volts)
❚
❙
❘
battery
❚
❙
❘
battery
❚
❙
❘
battery
3.3.2 Backlight brightness
You can adjust the brightness of the LCD back-light in this sub-menu.
The hardware supports 8 different levels. High back-light brightness
can severely reduce battery discharge time.
3.3.3 Backlight timeout
You can select back-light timeout in this sub-menu. When you enter this
sub-menu, the active unit will be shown as selected. Possible
selections are:
• Always off (no battery used for back-light)
• 2 seconds
• 5 seconds
• 10 seconds
• 20 seconds
• 1 minute
• Always on (battery used to provide back-light)
Document PM305/PC705 instruction & safety manual
8
Selecting “Always on” as the backlight timeout will severely consume
battery power.
3.3.4 LCD contrast
You can adjust the contrast of the LCD in this sub-menu. High LCD
contrast will slightly consume battery power.
3.4 INFORMATION
You can view the PM305/PC705 information in this menu group.
3.4.1 Reference details
This tells you information about the reference you have selected (refer
to "Input setup" and "reference input" chapters). The following
information is shown:
• Serial number
• Sensor pressure range
• Calibration date
3.4.2 Software information
There are two software items with related information. The first one (to
the left on each line) refers to the main micro-controller in the
PM305/PC705, which controls the external RS-232 port, the LCD and
user input. The second (to the right on each line) refers to the internal
sensor reference ADC micro-controller. The following Information is
shown:
• Baud rate (communication speed)
• Communication protocol addresses
• Software versions
3.5 HISTORY LOG
This menu group allows you to store, view and delete log information in
the PM305/PC705. The stored log-information is sensor name, related
input setup, switch-state and pressure values for reference and sensor.
It is possible to store up to 30 groups of information ("connected" to a
“sensor name”), and up to 10 pressure points (reference, sensor and
switch-state).
3.5.1 Enter sensor name
You must enter a sensor name before you can log information. Both
alphabetical and numeric characters are available, and up to 8
characters can be used in a sensor name. When you have configured
Document PM305/PC705 instruction & safety manual
9
the input setup and entered the sensor name, pressing the Log Button
when in Main view will store information to the history log. A specific
input setup is connected to each sensor name, and if this input setup is
modified after the information is logged, a new sensor name is required.
3.5.2 View stored sensors
Select this menu-item to view logged sensor names, connected input
setup, switch-state and pressure values.
3.5.3 Delete one sensor
This menu item allows you to select one sensor name for removal from
the history log. All information connected to this sensor-name will be
removed.
3.5.4 Delete all
All history-log information will be removed if this menu item is selected.
You will be prompted to ensure that this is not done accidentally.
4 GETTING STARTED
This section contains a description of the PM305/PC705 operator
control and connection points to help you to get started quickly.
Operation controls and connections
Very little operator interaction is required to begin a calibration. The
main operator interaction is via the unit’s buttons and display, or via a
(local) PC or other remote computer. Communication with the PC is via
the unit’s RS232 serial port connector. To begin a calibration, you
must:
1. Connect the external reference sensor (if it is to be used)
2. Connect the meter or sensor to be tested. Refer to Chapters 6
through 10 for information about the type of pump being used.
3. Power the unit ON.
4. Configure the sensor to be tested.
5. Connect the sensor leads to the appropriate input connector.
Refer to Chapters 6 through 10 for information.
6. Set the pressure using the pressure pump (HTP1, LPT1, etc.).
7. End of procedure.
Document PM305/PC705 instruction & safety manual
10
5 SPECIFICATIONS OF PM305/PC705
Accuracy
mA input 0–30mA (± 0.03% FS.)**
V input 0–15VDC (± 0.05% FS.)**
** Ambient temperature 25°C, temperature effects: ± 0.008%/°C.
History log 30 sensors, 10 points each
Operating temperature
(ambient)
Process temperature –20 to +80°C
Pressure overload FS x 1.5
Wetted parts Hastelloy C-22
Housing Anodized aluminum
Operating time on batteries Approximately 35 hours
Functions
Engineering unit
EEx / IS certification
ATEXproduction notification
PM305, PM310L, PM310H
Pressure ranges
Pressure media
Overall dimensions 92 x 105 x 33 mm (w-h-d)
± 0.03% FS (10–40°C), temperature
effects: 0.001% of reading/°C
0 to +50°C
Programmable: Input mA/mV/V/Switch
Test, Range, Conversion, Engineering
Units, Filter.
Min/Max/Tare, History Log,
Internal/External Sensor, Battery
Indicator, Leak Test, Selectable
Language (optional), Remote Operation
(optional).
Bar, kPa, Mpa, atm, psi (lb/in²), at
(kgf/cm²), torr, mHg at 0°C, inHg at
32°F, cmH
Exe ia IIC T4
1374X
NEMKO 02ATEX445Q ATEX according
to directive 94/9/EC
PM305: –0.8 to 1200 Bar
PM310L: –0.8 to 60 Bar
PM310H: 0 to 700 Bar
PM310L: All liquids/gas compatible with
wetted parts alloy.
PM310H: Oil or distillate water
O at 4°C, inH2O at 39.2°C
2
, NEMKO 02ATEX
Document PM305/PC705 instruction & safety manual
11
Weight
PM310L: 1.4 kg
PM310H: 3.6 kg
PC705
Pressure range 0 to 700 Bar
Pressure media Oil
Overall dimensions 345 x 160 x 180 mm (w-h-d)
Weight 8.1 kg
Maximum input rating
Input Range Absolute maximum Unit
Pressure 0 - 20 30 Bar
Pressure 0 - 40 60 Bar
Pressure 0 - 80 120 Bar
Pressure 0 -150 225 Bar
Pressure 0 - 300 450 Bar
Pressure 0 - 600 900 Bar
Pressure 0 - 1200 1800 Bar
Voltage 0 - 15 19 VDC
Current * 0 - 30 40 mADC
* Input is protected by 50 mA fuse
Scan-Sense AS
Bekkeveien 163 Phone: + 47 33 36 30 00
N-3173 Vear
Norway Fax: + 47 33 36 30 01
Web/internet www.scansense.no
e-mail: post@scansense.no
PM305: 650 g
When returning a product, please provide the following information,
1. Product name
2. Serial number
3. Details of defect/work to be undertaken
4. Operating conditions
5. Tell us if the product has been in contact with anything hazardous
or toxic and the relevant COSHH references and precautions to be
taken when handling.
Document PM305/PC705 instruction & safety manual
12
6 LTP1, LOW PRESSURE HAND PUMP
Provides low pressure of 1 to 3 bar.
Always release the internal pressure at the connectors before
disconnecting. Uncontrolled release of high pressure can result in
personal injury and damage to equipment.
Do not connect LTP1 to external pressure source!

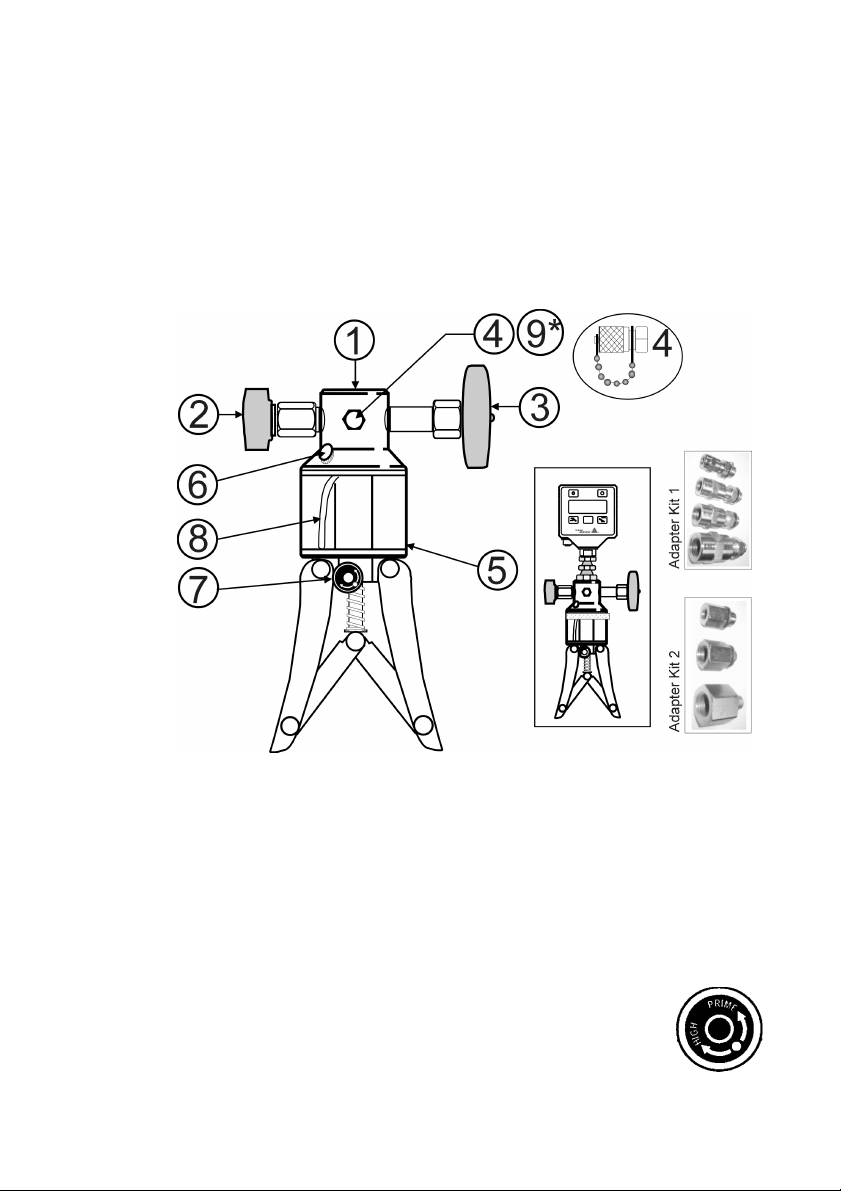

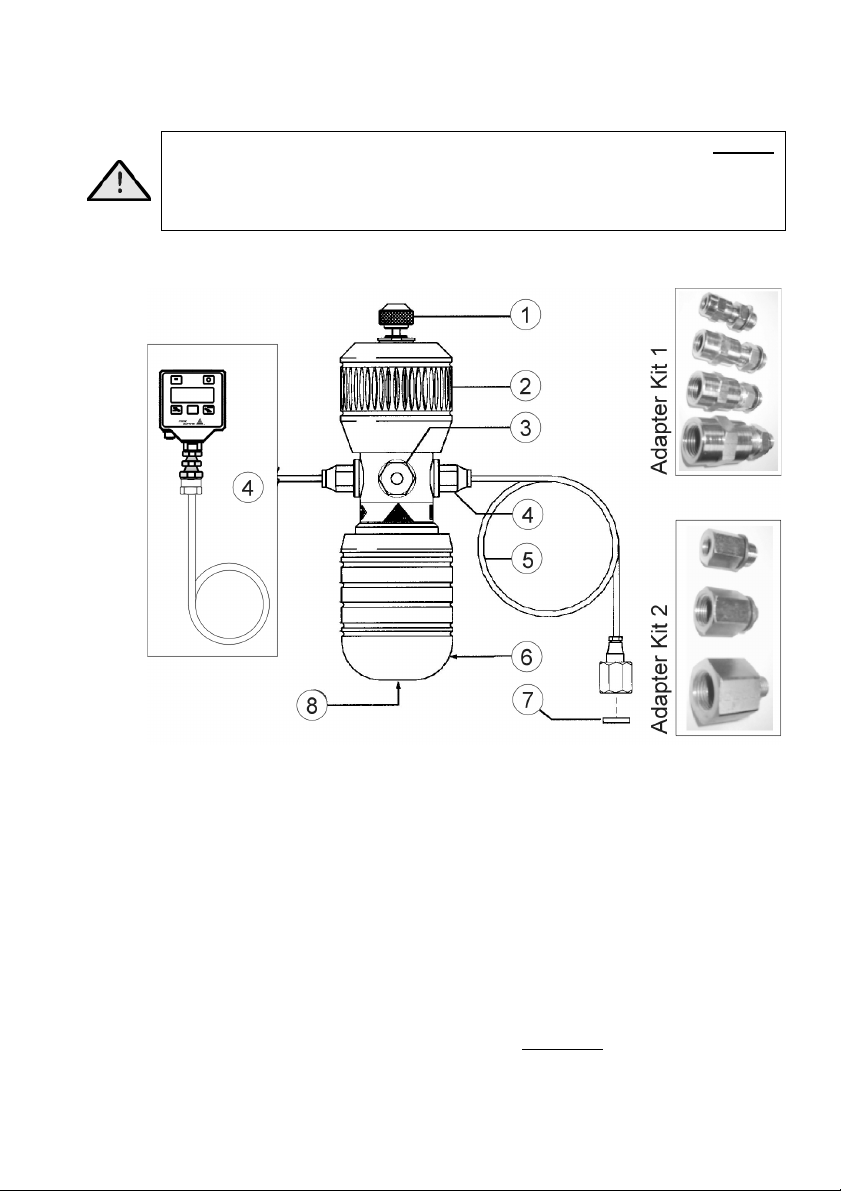

6.1 LTP1 CONTROLS AND ORIENTATION
Drawing key:
Pressure-release valve.
➀
Fine-adjustment control.
➁
Pressure or Vacuum selector.
➂
Two push-fit connectors to accept 4mm OD hoses to item under
➃
test and PM305 (master instrument).
Pressure port: ¼-inch BSP female connector to suit adapters/item
➄
under test.
Pump handle.
➅
Nylon seals (see seal kit provided). DO NOT use PTFE tape for
➆
sealing with parallel threads.
Document PM305/PC705 instruction & safety manual
13
Pressure-relief valve.
➇
RELEASE VALVE
the system. The rate of pressure reduction is dependent upon the
degree of rotation when operating the valve. Minimal force is required
to seal the system.
FINE-ADJUSTMENT CONTROL
be fine adjusted by turning the fine-adjustment valve either in or out to
increase or decrease the pressure.
Do not wind the fine-adjustment valve ➁➁➁➁ any further when the top
of the pump body is visible.
Can be used to reduce or release pressure in
➀➀➀➀
➁➁➁➁
IMPORTANT
The generated pressure can
PRESSURE/VACUUM SELECTION
indicated on the label to engage the desired mode. Ensure that the
release valve ➀ is fully closed (clockwise motion) prior to pumping.
PRESSURE PORTS
the connectors ➃ until resistance is felt. To remove the hoses, press
the collar “in” on the connector while pulling on the hose.

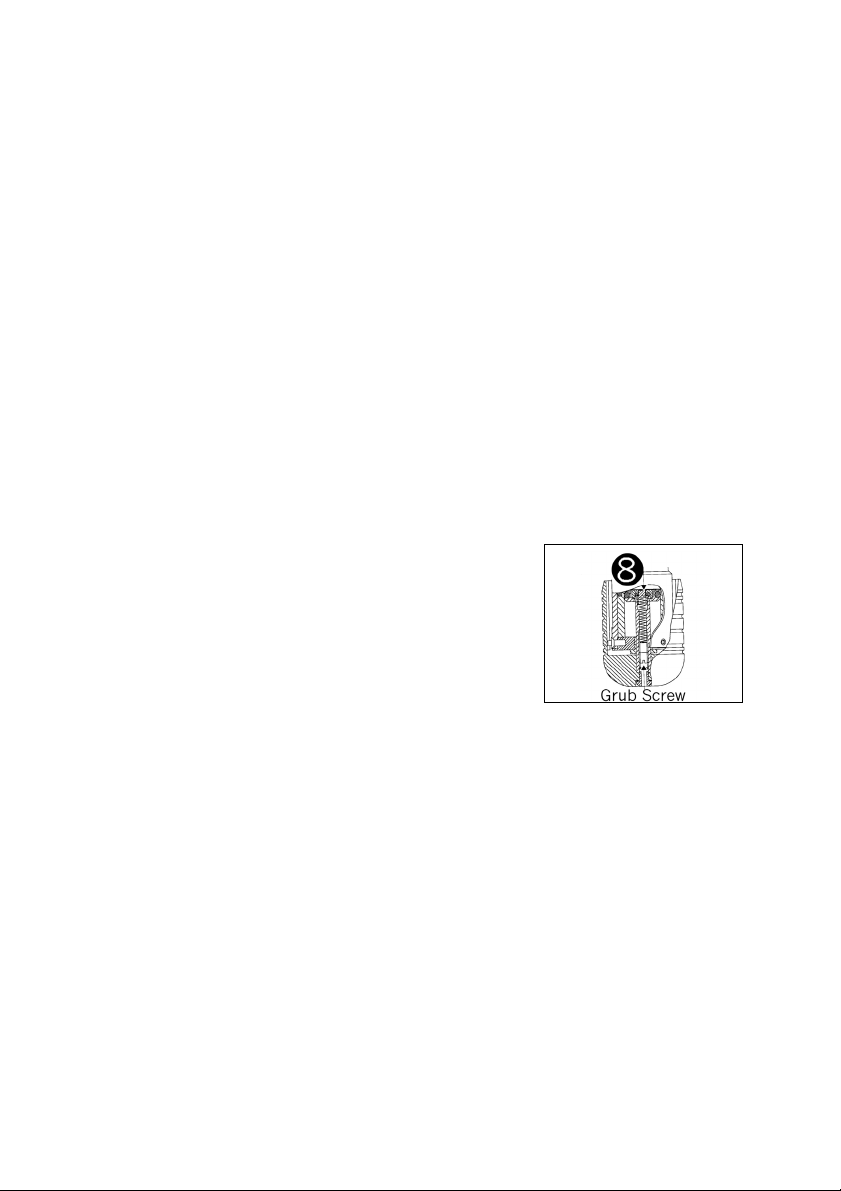

PRESSURE RELIEF VALVE
The maximum output pressure can be set
using the pressure relief valve ➇ located
inside the main piston, and is accessed via
the handle-retaining “Grub Screw”.
If the system has not been used for a period of time, it may be difficult
to operate on the first stroke.
Seal replacement: Depending on the frequency of use, the main piston
seal (and others) may need replacing. Replacement seals and
instructions for fitting are contained in the seal kit (LTPK1).
The hoses ➄ are fitted by pushing them into
➃➃➃➃
➇➇➇➇
Press the selector ➂ as
➂➂➂➂
6.2 OPERATION OF THE LTP1.
Refer to the orientation drawing to locate the controls.
1. Choose the correct adapters and seals and connect to the
pressure port ④ at one end of the flexible hoses ⑤.
2. Choose the correct adapters and seals and connect the item under
test to the pressure port at the end of the second flexible hose ⑤
Ensure seals are fitted and adapters tightened to a maximum
torque of 15Nm.
Document PM305/PC705 instruction & safety manual
14
3. Screw the fine-adjustment valve ➁ fully clockwise.
4. Screw the fine-adjustment valve ➁ counter-clockwise 4 to 6 full
turns.
5. Screw the pressure-release valve ➀ fully clockwise, tightening to
ensure a good seal.
6. Using a small screwdriver, adjust the pressure-relief valve ➇ to set
the desired maximum output pressure. Turn the “Grub Screw”
located in the main piston clockwise to increase or counterclockwise to decrease the pressure setting.
7. Operate the handle ➅ until the pressure is close to that which is
finally required.
8. Wind the fine-adjustment valve ② “in” to increase pressure or “out”
to decrease pressure until the required pressure is reached. After
increasing the pressure, it may take up to 30 seconds for the
pressure to settle due to thermodynamic effects, setting of seals or
expansion of the flexible hose.
STOP unscrewing the fine-adjustment valve ➁ when
the top of the pump body becomes visible!
9. Reductions in pressure can also be achieved by careful use of the
pressure-release valve ➀.
10. Vacuum is achieved using the above procedure and having the
changeover valve ➂ pushed completely towards the vacuum
position.
11. End of operation procedure.
6.3 LTP1 FAULT INVESTIGATION
In the event that the system appears to lose pressure, check the
connections to ensure that they are tight and the seals are good.
Replace poor seals and repeat the operation. When testing for leaks
you may notice that air is drawn in or expelled from around the
changeover valve ➂, this is normal and should not be a cause for
concern
Connection to the handheld test system is sealed with “o”-ring or
bonded seals and should not leak. The pipe or body connection can be
checked but should not be tightened more than 2 Nm.
DO NOT attempt to tighten the other fittings to the test system as this
can cause damage to the sealed joints!
Document PM305/PC705 instruction & safety manual
15
7 TP1, HAND HELD PRESSURE TEST SYSTEM
Provides pneumatic pressure of 1 to 40 bar.
Always release internal pressure at connectors before
disconnecting. Uncontrolled release of high pressure can result in
personal injury and damage to equipment.
Do not connect TP1 to external pressure source!

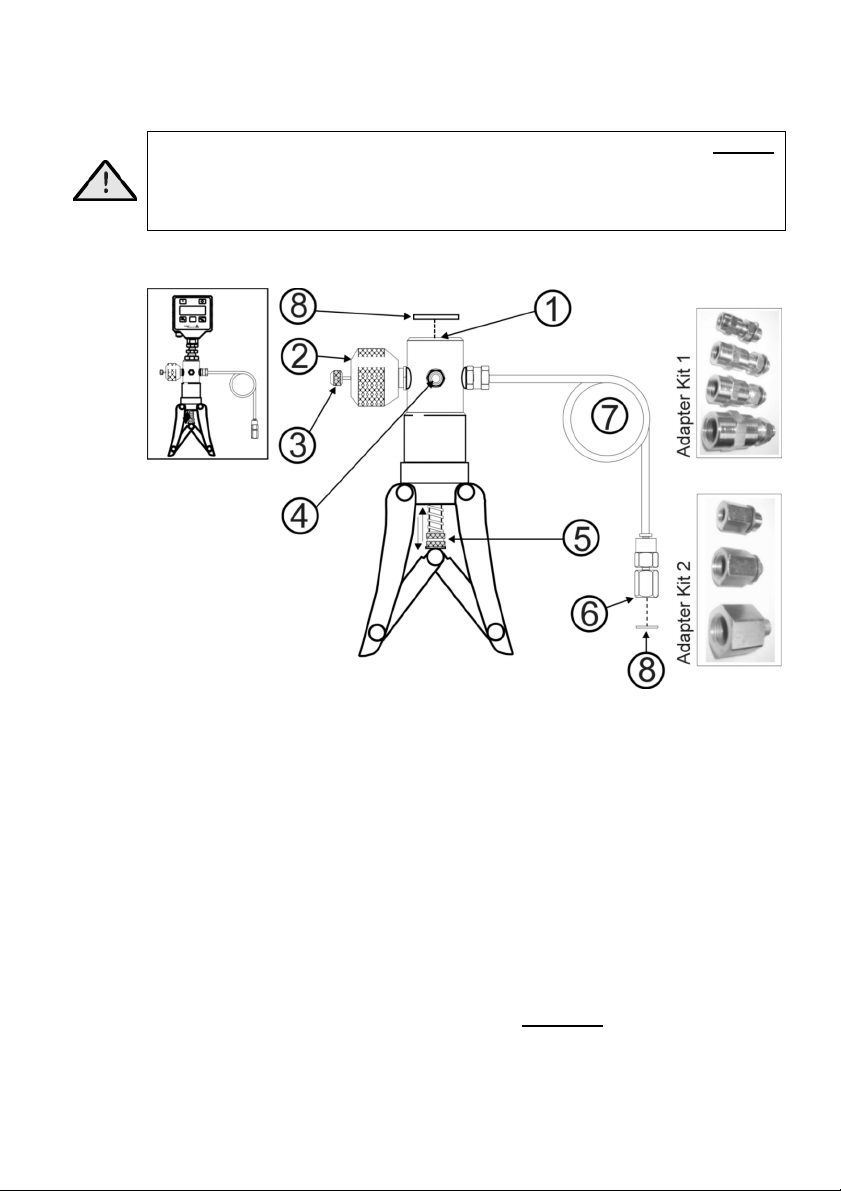

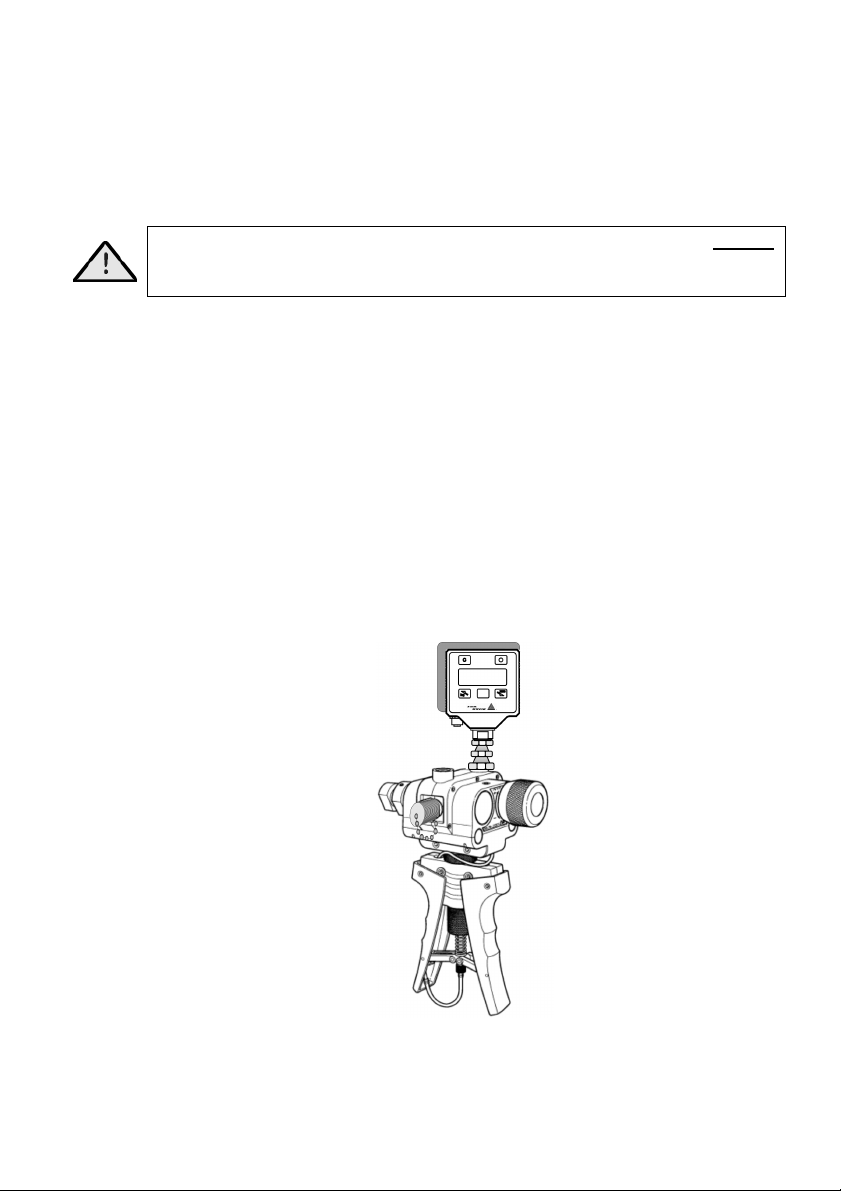

7.1 TP1 CONTROLS AND ORIENTATION
Drawing key:
3/8-inch to ¼-inch BSP swivel connector for PM305 (master
➀
instrument).
Fine-adjustment valve (volume control).
➁
Pressure-release valve
➂
Pressure or Vacuum selector.
➃
Adjustable stroke for varying maximum pressure output.
➄
Pressure port: ¼-inch BSP female connector to suit adapters/item
➅
under test.
Flexible hose to item under test.
➆
Nylon seals (see seal kit provided). DO NOT use PTFE tape for
➇
sealing with parallel threads.
Document PM305/PC705 instruction & safety manual
16
RELEASE VALVE
the system. The rate of pressure reduction is dependent upon the
degree of rotation when operating the valve. Minimal force is required
to seal the system.
VOLUME CONTROL
by turning the fine-adjustment valve either clockwise or counterclockwise to increase or decrease the pressure accordingly.
IMPORTANT
Under no circumstances should the fine-adjust
valve ➁ be wound back beyond the read-line
indicator on the body. Should this occur, then the
pressure must be released from the system before
attempting to re-engage the fine-adjustment valve.
Can be used to reduce or release pressure in
➂➂➂➂
The generated pressure can be fine-adjusted
➁➁➁➁
OVER PRESSURE PROTECTION
output pressure of the system, turn the nuts to increase or decrease the
stroke length.
PRESSURE/VACUUM SELECTION
indicated on the label to engage the desired mode. Ensure that the
release valve ➂ is fully closed (use a clockwise motion) prior to
pumping.
If the system has not been used for a period of time, it may be difficult
to operate on the first stroke. The cylinder has been lightly greased at
assembly, but if additional lubrication is ever required, apply a minimal
amount to the inside of the cylinder. Access is via the three retaining
screws located under the black collar.
Seal replacement: Depending on the frequency of use, the main piston
seal (and others) may need replacing. Replacement seals and
instructions for fitting are contained in the seal kit (TPK1).
To adjust the maximum
➄➄➄➄
Press the selector ➃ as
➃➃➃➃
7.2 OPERATION OF THE TP1
Refer to the orientation drawing to locate the controls.
1. Choose the correct adapters and seals and connect item under
test to pressure port ⑥ at the end of the flexible hose ➆. Ensure
seals are fitted and adapters tightened to a maximum torque of
15Nm.
2. Screw the fine-adjustment valve ➁ fully clockwise.
3. Screw the fine-adjustment valve ➁ counter-clockwise 4 to 6 full
turns.
Document PM305/PC705 instruction & safety manual
17
4. Screw the pressure-release valve ➂ fully clockwise, tightening to
ensure a good seal.
5. Operate handles until the pressure is close to that which is finally
required. Ensure handles are fully squeezed together on each
stroke to achieve maximum pressure output.
6. Wind the fine-adjustment valve ② (clockwise to increase pressure
or counter-clockwise to decrease pressure) until the required
pressure is reached. After increasing the pressure, it may take up
to 1 minute for the pressure to settle due to thermodynamic
effects, setting of seals or expansion of the flexible hose.
NEVER screw the fine-adjustment valve ➁ beyond
the red line indicator!
7. Reductions in pressure can also be achieved by careful use of the
pressure release valve ➂.
8. Vacuum is achieved using the above procedure and having the
changeover valve ➃ pushed completely towards the vacuum
position.
9. End of operation procedure.
7.3 TP1 FAULT INVESTIGATION
In event that the system appears to lose pressure, check the
connections to ensure they are tight and the seals are good. Replace
poor seals and repeat the operation. When testing for leaks you may
be notice that air is drawn in or expelled from around the changeover
valve ➃, this is normal and should not be a cause for concern
Connection to the handheld test system is sealed with “o”-ring or
bonded seals and should not leak. The pipe or body connection can be
checked but should not be tightened more than 2 Nm.
DO NOT attempt to tighten the other fittings to the test system as this
can cause damage to the sealed joints!
8 HTP1, HYDRAULIC HAND HELD PRESSURE TEST
SYSTEM
Provides hydraulic pressure of 0 to 700 bar
Always release the internal pressure at the connectors before
disconnecting. Uncontrolled release of high pressure can result in
personal injury and damage to equipment. Excessive pressure can
crack or break the fluid reservoir case!
Document PM305/PC705 instruction & safety manual
18
Reservoir fluid level: If the fluid level in the reservoir falls considerably
during use, a partial vacuum may be created in the reservoir that can
affect the performance of the pump. To avoid this, simply allow air to
enter the reservoir by partly unscrewing the filling plug.
Seal replacement: Depending on the frequency of use, the main piston
seal (and others) may need replacing. Replacement seals and
instructions for fitting are contained in the seal kit (HTPK1).
8.1 HPT1 CONTROLS AND ORIENTATION
Drawing key:
3/8-inch to ¼-inch BSP swivel connector for PM305 (master
➀
instrument).
Pressure-release valve.
➁
Fine control
➂
Pressure port: M16 x 1.5 mm quick connector for flexible hose to
➃
switch adapters or item under test.
100cc reservoir. Fluid level to maximum fill marker.
➄
Reserve-filling plug.
➅
Prime/High pressure selector.
➆
Document PM305/PC705 instruction & safety manual
19
Fluid-inlet tube.
➇
Rear port: for Pressure Relief Valve ONLY. DO NOT use for any
➈
other purpose.
8.2 OPERATION OF THE HTP1
Refer to the orientation drawing to locate the controls.
1. Remove the filling plug ⑥ and fill the reservoir ⑤ to 6mm level with
the recommended fluid and replace the filling plug.
2. Connect the instrument under test to the flexible hose/gauge
adapter and attach to the pump via the quick-fit connection ④.
3. Adjust the fine control ③ to mid-travel.
4. Ensure that the pressure-release valve ② is open (turn fully
clockwise, then one turn counter-clockwise). Fully squeeze the
handles “in” and turn the selector ⑦ to the “prime” position.
5. Operate the handles several times to expel air from the pump
(ensure that the fluid-inlet tube ⑧ remains immersed in fluid at all
times).
6. Close the release valve ② fully clockwise.
7. Prime the system by squeezing the handles together and then
releasing them, to allow the oil to enter the pump cylinder. Repeat
as necessary until the system is fully primed and low pressure is
indicated on either the master or test instrument.
8. With the handles fully squeezed “in” select the “high” pressure
position on the selector ⑦ and operate the handles to generate
approximate pressure. Note: Smaller handle strokes enable
easier pressure generation at high pressures.
9. Adjust pressure to the required value using the fine control ③.
Note that the pressure will fall slightly, immediately after pressure
generation due to the thermodynamic effect but will stabilize after a
short time.
DO NOT EXCEED the maximum operating pressure indicated
on the pump label! Fluid reservoir can crack or break if excess
pressure applied.
10. To totally release pressure from the system, turn the release valve
② one turn counterclockwise and select the “prime” position on the
selector ⑦ after first squeezing the handles fully “in”. Note:
Careful use of the release valve ② and fine control ③ enables a
controlled release of pressure, essential for calibration purposes.
11. End of operation procedure.
Document PM305/PC705 instruction & safety manual
20
9 PV411 PNEUMATIC/HYDRAULIC HAND-PUMP SYSTEM
Pressure ranges (maximum safe working pressure is 700 bar):
Provides pneumatic pressure of 0 to 60 bar
k
0 to –0.95 bar (near vacuum)
k
Provides hydraulic pressure of 0 to 700 bar
k
Always release the internal pressure at the connectors before
disconnecting. Uncontrolled release of high pressure can result in
personal injury and damage to the equipment.
Reservoir-fluid level: If the fluid level in the reservoir falls considerably
during use, a partial vacuum may be created in the reservoir that can
affect the performance of the pump. To avoid this, simply allow air to
enter the reservoir by partly unscrewing the filling plug. Hydraulic fluids
must be compatible with stainless steel, anodized aluminum, nitrile
rubber, PTFE, polypropylene, delrin, acrylic and nylon. Hydraulic fluid
must have a maximum viscosity of 150 cSt at 40°C. Other fluids that
can be used are de-mineralized water or mineral-based oils (SAE 40W,
ISO viscosity grade 150).
Seal replacement: Depending on frequency of use, the main piston
seal (and others) may need replacing. Replacement seals and
instructions for fitting are contained in the seal kit (PV411K1).
Document PM305/PC705 instruction & safety manual
21
9.1 PV411 CONTROLS AND ORIENTATION
PV411, drawing key 1
Drawing key 1:
➀
Inlet (reservoir) port
➁
¼-inch to ¼-inch BSP connector for PM305 (master instrument)
➂
Volume adjuster
➃
Limit adjuster
➄
Scissor-action handles
➅
Pressure port: M16 x 1.5 mm quick connector for flexible hose to
suit adapters and item under test.
➆
Selector valve
➇
Pressure-relief valve
Document PM305/PC705 instruction & safety manual
22
9.2 PV411 PNEUMATIC OPERATION
9.2.1 Pneumatic-selector valve and scissor-action handles limitadjuster of the PV411
Selector valve
Pressure
Turn the selector valve fully clockwise
(“in”) position.
Vacuum
Turn the selector valve fully counterclockwise (“out”) position.
Vent
Slowly turn the selector valve to the
center position.
Scissor-action handles limit-adjuster
Turning the limit adjuster ➃ clockwise reduces the stroke of the
scissor-action handles ➄. Turning the limit adjuster ➃ counter-
clockwise increases the stroke.
For maximum pneumatic pressure generation, turn the limit adjuster
fully counter-clockwise.
9.2.2 Pneumatic Operation of the PV411
As a pneumatic pump, selector valve ➆ vents the system to
atmosphere, between selection of pressure and vacuum. Operating the
scissor-action handles ➄ provides the pumping stroke for generating
pressure. A volume adjuster ➂ allows small adjustments of the system
pressure.
➆
In pressure mode, air/fluid is drawn through the inlet port ➀ on top of
the pump and forced out through the two outlet ports (➁ and ➅). In
vacuum mode, the air/fluid flow is reversed as air/fluid is drawn in
through the top and rear outlet ports (➁ and ➅) and expelled through
the inlet port ➀.
Volume adjuster
Low pressure _ With the selector valve ➆ set to vent (“open”), turn the
volume adjuster fully counter-clockwise to the “out”
Document PM305/PC705 instruction & safety manual
23
position. Turn the selector valve fully clockwise to the
“in” position to select pressure. Turn the volume
adjuster ➂ clockwise to generate pressure.
High pressure _ Turn the volume adjuster ➂ to the mid-position. In this
position, fine adjustments of the generated pressure
can be made. Using the scissor-action handles ➄,
generate the approximate pressure; then turn the
volume adjuster ➂ clockwise to the “in” position to
increase the pressure or turn the volume adjuster ➂
counter-clockwise to the “out” position to decrease
the pressure.
Vacuum ______ Turn the selector valve ➆ fully counter-clockwise to
the “out” position. Turn the volume adjuster to the
mid-position. In this position, fine adjustments of the
generated vacuum can be made. Using the scissor-
action handles ➄, generate the approximate pressure;
then turn the volume adjuster ➂ clockwise to the “in”
position to increase the pressure or turn the volume
adjuster ➂ counter-clockwise to the “out” position to
decrease the pressure.
Refer to the orientation drawing to locate the controls.
Pressure
1. Connect the PV411 to the item under test using the hoses, pipes
and adapters.
2. Turn the selector valve ➆ fully clockwise to the “in” position.
3. Operate the scissor-action handles ➄ to generate the approximate
pressure, allowing time for thermal stabilization.
4. If necessary, use the volume adjuster ➂ to adjust to the required
pressure.
5. After attaining the required pressure, operate the scissor-action
handles ➄ to generate a higher pressure. Alternatively, vent
pressure to atmosphere by slowly turning the selector valve ➆
counter-clockwise to the center position.
6. End of procedure. Depressurize the pump and disconnect from
the pipes and equipment.
Vacuum
1. Connect the PV411 to the item under test using the hoses, pipes
and adapters.
2. Turn the selector valve ➆ fully counter-clockwise to the “out”
position.
Document PM305/PC705 instruction & safety manual
24
3. Operate the scissor-action handles ➄ to generate the approximate
vacuum, allowing time for thermal stabilization.
4. If necessary, use the volume adjuster ➂ to adjust to the required
vacuum.
5. After attaining the required vacuum, operate the scissor-action
handles ➄ to generate more vacuum. Alternatively, vent vacuum to
atmosphere by slowly turning the selector valve ➆ counter-
clockwise to the center position.
6. End of procedure. Depressurize the pump and disconnect from
the pipes and equipment.
9.3 PV411 HYDRAULIC OPERATION
9.3.1 Setting pressure relief valve of the PV411
The pressure relief valve (PRV) can be set at pressures from 30 to 700
bar.
Do not exceed 700 bar as this can .damage the internal seals of
the PRV and the PV411
If the system pressure exceeds the set pressure, the PRV opens and
vents fluid through the inlet port to the reservoir. When system
pressure decreases below the set pressure, the PRV closes.
Drawing key 3:
➀
PRV locking screw (quantity 2).
➁
PRV locknut (with left-hand thread).
➂
PRV adjusting nut (with left-hand thread)
PRV, drawing key 3
Refer to the orientation drawing PRV411 drawing key 1 and PRV
drawing key 3 to locate the controls.
1. Connect a suitable pressure indicator to either outlet port ➁ or ➅
(see PRV411, drawing key 1). Fit a blank to the unused port.
2. Squeeze the scissor-handles ➄ together to increase pressure until
the relief valve operates.
3. Loosen the two PRV locking screws ➀.
4. Loosen the locking nut ➁ by turning it clockwise.
5. Set the relief pressure by turning the PRV adjusting nut ➂.
Turn counter-clockwise to increase pressure.
Turn clockwise to decrease pressure.
Document PM305/PC705 instruction & safety manual
25
6. After setting the PRV, hold the adjusting nut ➂ in position and
tighten the locking nut ➁. Remember that the locking nut has a left-
hand thread.
7. Check operation of the PRV. If necessary, reset the PRV.
8. Secure the locking nut ➁ by tightening the two locking screws ➀.
9. End of procedure.
9.3.2 Hydraulic Operation of the PV411
As a hydraulic pump, selector valve ➆ vents the system to the
reservoir, between selections of pressure and vacuum (using a priming
process). The volume adjuster ➂generates the required system
pressure. To complete the hydraulic circuit, the fluid reservoir (see
drawing key 2) is screwed into the inlet port ➀ (marked RESERVOIR)
on top of the hand-pump. A pressure relief valve ➇ can be adjusted to
set the pressure between 30 and 70 bar. Operating the scissor-action
handles ➄ provides the pumping stroke for generating pressure. A
volume adjuster ➂ allows small adjustments of the system pressure.
The fluid-reservoir body (see drawing key 2) is transparent acrylic to
provide a clear view of the contents. The reservoir can be removed
from the pump without the need to empty the fluid (a self-sealing
connection prevents leakage). The spring-loaded reservoir cover ➁
seals under atmospheric pressure conditions but, in the event of
inadvertent pressurization, it will vent excess internal pressure
harmlessly. Ensure that the O-ring ➂ is fitted to the inlet pot to prevent
leakage. Screw the reservoir clockwise into the inlet port marked
RESERVOIR.
Drawing key 2:
➀
Reservoir-cover locknut.
➁
Reservoir-cover.
➂
O-ring.
➃
Bleed hole.
Do not mix hydraulic fluids.
k
Use only compatible fluids.
k
Fit only appropriate seals.
k
Damage can be caused if equipment
k
connected to this pump is contaminated.
Avoid particulate contamination.
After use, the pump should be
k
considered contaminated with hydraulic
fluid.
Reservoir, drawing key 2
Document PM305/PC705 instruction & safety manual
26
Filling the reservoir
Unscrew the reservoir cover lock ➀ and remove the reservoir cover ➁.
Using clean recommended fluid, fill the reservoir to approximately 2/3
full. Refit the reservoir cover ➁ and re-tighten the reservoir locknut ➀.
Connect the required pipes and equipment to the outlet ports.
Document PM305/PC705 instruction & safety manual
27
Priming the system
There are two methods for priming the system:
Vacuum priming to extract the air or
k
Pre-filing the system.
k
1. If air remains in the system, full pressure cannot be achieved
because the air in the fluid will compress. Air must be removed
from the system fluid.
2. Both priming methods require the pump to be held in the vertical
position to keep the reservoir bleed hole
Do not allow air to enter the system through the bleed hole
Vacuum priming
This method should not be used with vacuum-sensitive equipment.
1. Connect the PV411 to the item under test using the hoses, pipes
and adaptors.
2. Turn the selector valve ➆ fully counter-clockwise to the “out”
position.
3. Operate the scissor-action handles ➄ until bubbles stop appearing
in the reservoir (this generates the vacuum in the system).
4. Turn the selector valve ➆ fully clockwise to the “in” position (this
action releases the vacuum and rapidly fills the system with fluid
from the reservoir).
5. End of procedure. The pump and connected system are ready for
use.
➃
submerged in the fluid.
➃
.
Pre-filling the system
1. Connect the PV411 to the item under test using the hoses, pipes
and adaptors.
2. Turn the selector valve ➆ fully clockwise to the “in” position.
3. Loosen the reservoir-cover lock ➀ to open the reservoir cover ➁
and allow atmospheric pressure into the top of the reservoir.
4. Open the bleed valve on the unit under test.
5. Carefully operate the scissor-action handles ➄ to fill the system.
Stop pumping when fluid comes out of the bleed valve.
6. Close the bleed valve on the unit under test.
7. If necessary, top-up the reservoir to the 2/3 full level.
8. Refit and secure (tighten) the reservoir cover ➁ and re-tighten the
reservoir locknut ➀.
9. End of procedure. The pump and connected system are ready for
use.
Document PM305/PC705 instruction & safety manual
28
Hydraulic Operation of the PV411
Refer to the orientation drawing to locate the controls.
1. Connect the PV411 to the item under test using the hoses, pipes
and adaptors.
2. Open the selector valve ➆ by 1 turn counter-clockwise to the “in”
position.
3. Screw the volume adjuster ➂ fully counter-clockwise to the “out”
position.
4. Close the selector valve ➆.
5. Operate the scissors-action handles ➄ to generate the initial
pressure.
6. Turn the volume adjuster ➂ clockwise to generate the required
pressure. Allow time for thermal stabilization.
7. To reduce pressure, turn the volume adjuster ➂ counter-clockwise
(the “out” position) to the required pressure.
8. After completion, turn the volume adjuster ➂ counter-clockwise
(the “out” position) and the selector valve ➆ to the center position
to depressurize the pump.
9. End of procedure. Depressurize the pump and disconnect from
the pipes and equipment.
9.4 PV411 FAULT INVESTIGATION
If the system pressure reduces, check the following:
Refer to the orientation drawing PV411 drawing key 1 to locate the
controls.
1. Check that the selector valve ➆ is in the correct position and
properly tightened.
2. Allow sufficient time after generating pressure for the temperature
to stabilize. The larger the system volume, the longer the time for
thermal stability.
3. Check for leaks between the pump and the equipment under test
and the adaptors, flexible pipe and connections. Tighten any
loose joints and replace any seals that are worn or damaged.
4. In hydraulic mode, if the volume adjuster can be wound fully in, but
maximum pressure cannot be achieved, there is probably air
trapped in the system. Re-prime and repeat.
5. Check the Pressure-Relief Valve ➇ pressure setting.
If, for any reason, a fault occurs within the pump, it is recommended
that the equipment be returned to Scan-Sense AS.
Document PM305/PC705 instruction & safety manual
29
10 PC705, HYDRAULIC HAND-HELD PRESSURE TEST
SYSTEM
Provides hydraulic pressure of 0 to 700 bar
Always release the internal pressure at connectors before
disconnecting. Uncontrolled release of high pressure can result
in personal injury and damage to the equipment.
Reservoir-fluid level: If the fluid level in the reservoir falls considerably
during use, a partial vacuum may be created in the reservoir that can
affect the pump performance. To avoid this, simply allow air to enter the
reservoir by partly unscrewing the filling plug.
Seal replacement: Depending on frequency of use, the main piston
seal (and others) may need replacing. Replacement seals and
instructions for fitting are contained in the seal kit (PC705K1).

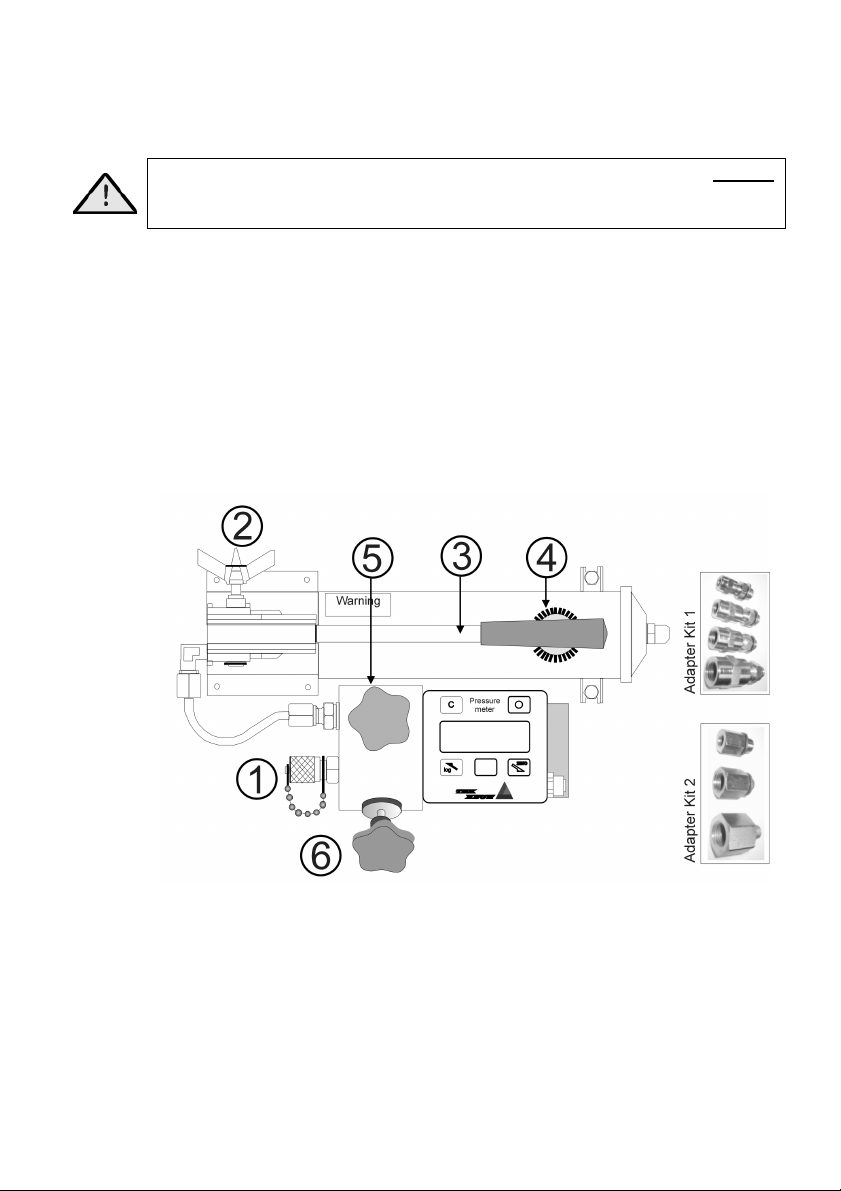

10.1 PC705 CONTROLS AND ORIENTATION
Drawing key:
➀
Pressure port: M16 x 1.5 mm quick connector for flexible hose to
adapters and item under test.
➁
Pressure release valve
➂
Pump handle.
➃
Filling cap
➄
Main pressure valve
Document PM305/PC705 instruction & safety manual
30
➅
Fine-adjustment valve (volume control).
10.2 OPERATION OF THE PC705
Refer to the orientation drawing to locate the controls.
1. Lift the pump handle ➂. Remove the filling plug ➃ and fill the
reservoir to 6mm level with the recommended fluid. Replace the
filling plug.
2. Connect the instrument under test to the flexible hose/gauge
adapter and attach it to the pump via the quick-fit connection ➀.
3. Adjust the main-pressure valve ➄ and fine-adjustment valve ➅ to
mid-travel.
4. Ensure that the pressure-release valve ➁ is open (turn fully
clockwise, then one turn counter-clockwise).
5. Operate the pump handle ➂ several times to expel air from the
pump.
6. Close the pressure-release valve ➁ fully clockwise.
7. Prime the system by pumping the handle to allow the oil to enter
the pump cylinder. Repeat as necessary until the system is fully
primed and low pressure is indicated on either the master or the
test instrument.
8. Close the main-pressure valve ➄.
9. Adjust the pressure to the required value using the fine-adjustment
valve ➅. Note: The pressure will fall slightly, immediately after
pressure generation due to the thermodynamic effect but will
stabilize after a short time.
DO NOT EXCEED the maximum operating pressure
indicated on the pump label!
10. To totally release pressure from the system, turn the pressurerelease valve ➁ and the main-pressure valve ➄ one turn
counterclockwise (the pump handle ➂ can be operated without
pressure resistance). Note: Careful use of the release valve ➁,
main-pressure valve ➄ and fine-adjustment valve ➅ enables a
controlled release of pressure, essential for calibration purposes.
11. End of operation procedure.
Document PM305/PC705 instruction & safety manual
31
11 PM310L/301H AND PC705 ACCESSORIES
11.1 ADAPTERS FOR THE ITEM UNDER TEST
Adapter kit 1, ¼-inch BSP to NPT Female, Carbon Steel
Description drawing
1/4" BSP male – 1/8" NPT female
1/4" BSP male – 1/4" NPT female
1/4" BSP male – 3/8" NPT female
1/4" BSP male – 1/2" NPT female
Adapter kit 2, ¼-inch BSP to BSP Female, Carbon Steel
Description drawing
1/4" BSP male –- 1/8" BSP female
1/4" BSP male – 3/8" BSP female
1/4" BSP male – 1/2" BSP female
Document PM305/PC705 instruction & safety manual
32
Adapter kit 4 BSP-BSP Swivel, Carbon Steel
1/4" BSP male – 3/8" BSP male for 3PPM40050 and 3PPM70150
for LPT1 and TP1.
Adapter kit 4C BSP-BSP Swivel, Carbon Steel
1/4" BSP male – 1/4" BSP male for 5PV-411
For HTP1, PV411 and PC705; connects to M16 x1.5mm quick connect
at pump and to item with M16 x 1.5mm with ¼” BSP.
12 REPLACING FUSE IN THE PM305 AND PC705
12.1 FAULT FINDING TO DETERMINE IF THE FUSE HAS
BLOWN
To determine if the fuse has blown, use a
multimeter and measure the resistance
between GND and A input. The resistance
must be less than (>) 25 Ohms. Use a
multimeter with a test voltage less than
2.5VDC (otherwise, the internal 2.7V
protecting diodes may cause a faulty
Ohm/resistance measurement).
When ordering spare parts, always include the serial number of the
faulty instrument. Battery and fuses must be obtained from ScanSense AS or a certified supplier/service center.
Document PM305/PC705 instruction & safety manual
33
12.2 PM305, INSTRUCTIONS FOR REPLACING THE FUSE
OR BATTERY
If needed, request original drawing no. SA00320; Title Assembly
drawing, Fuse and Battery replacement.
Replacing Fuse F01.
Remove Fuse,
1. Unscrew 4 screws in the back-panel and remove panel carefully.
2 wires from battery are connected.
Document PM305/PC705 instruction & safety manual
34
2. The fuse is now accessible. The fuse is mounted between I/O
Filter Unit and Interface Unit.
3. Locate the fuse, then pull out the fuse-leg from the I/O Filter Unit
first, and from the Interface Unit second.
New Fuse
4. First, push the short end of the fuse down into the socket on the
Interface Unit. Then, with the help of a plier, insert the other end
into the socket on the I/O Filter Unit. Now check that fuse’s leg is
not too close to the back-panel. The distance must be at least
2.5mm,. If this is OK, the back-panel can be remounted and
secured with the 4 screws.
Replacing the Battery
1. Unscrew 4 screws in the back-panel and remove panel carefully.
2 wires, red and black, from battery are connected.
2. Disconnect wires. A soldering iron is needed.
3. Remove the 4 screws holding the battery pack to the back panel.
Lift off the old battery and replace it with a new one. Secure the
new battery with the 4 screws.
4. With help of the soldering iron, solder the black wire in its right
place, i.e. “–“, on the PC Board. Do the same with the red wire, “+”.
5. Remount the back panel and secure with 4 screws.
If needed, follow instructions for charging.
12.3 PC705, INSTRUCTIONS FOR REPLACING THE FUSE
OR BATTERY
Document PM305/PC705 instruction & safety manual
35
If needed, request original drawing no. SA00325; Title Assembly
drawing, Fuse and Battery replacement.
Replacing Fuse F01.
Remove Fuse,
1. Unscrew 4 screws in the side-panel and remove panel carefully.
2 wires from battery are connected.
2. The fuse is now accessible. The fuse is marked with 50mA and
plugged between 2 black wires.
3. Locate the fuse. Then, pull out the fuse-legs from the wires (the 2
wires are supplied with a small connector).
New Fuse
4. Connect the new fuse to the 2 wires and put the wires back into
the housing. When everything is OK, the side-panel can be
remounted and secured with the 4 screws.
Replacing the Battery
1. Unscrew 4 screws in the side-panel and remove panel carefully.
2 wires, red and black, from battery are connected.
2. Disconnect wires. Mini connector.
3. Remove the 4 screws holding the battery pack to the side-panel.
Lift off the old battery and replace it with a new. Secure the new
battery with the 4 screws.
4. Connect the battery.
5. Remount the back panel and secure with 4 screws.
If needed, follow instructions for charging.
Document PM305/PC705 instruction & safety manual
36
13 CERTIFICATES
Document PM305/PC705 instruction & safety manual
37
Document PM305/PC705 instruction & safety manual
38
The end.
Document PM305/PC705 instruction & safety manual
39
Loading...
