Scandyna The dock Brochure

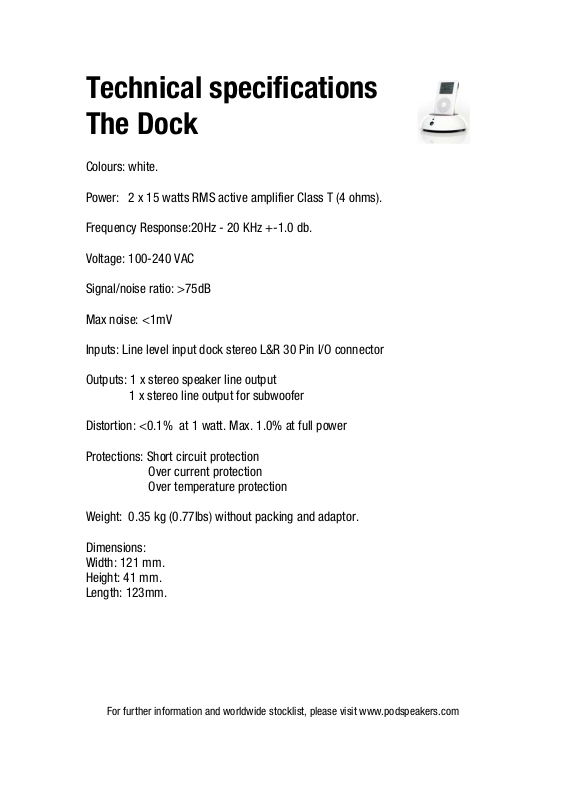

Technical specifications
The Dock

Colours: white.

Power: 2 x 15 watts RMS active amplifier Class T (4 ohms).

Frequency Response:20Hz - 20 KHz +-1.0 db.

Voltage: 100-240 VAC

Signal/noise ratio: >75dB

Max noise: <1mV

Inputs: Line level input dock stereo L&R 30 Pin I/O connector

Outputs: 1 x stereo speaker line output
1 x stereo line output for subwoofer

Distortion: <0.1% at 1 watt. Max. 1.0% at full power

Protections: Short circuit protection
Over current protection
Over temperature protection

Weight: 0.35 kg (0.77lbs) without packing and adaptor.

Dimensions:
Width: 121 mm.
Height: 41 mm.
Length: 123mm.

For further information and worldwide stocklist, please visit www.podspeakers.com
