SCAN DSA 12 Assembly And Instruction Manual
ASSEMBLY- AND INSTRUCTIONS MANUAL
Scan DSA 12
SCAN A/S - DK-5492 VISSENBJERG
Congratulations on your new Scan built-in stove
You have purchased a product by one of Europe’s leading manufacturer’s of wood-burning stoves, and we are sure that you will have years of plea-
sure with your purchase. To make the best possible use of your built- in stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your built-in stove.
Product registration number
Please indicate the product registration number at any enquiry
GB
CONTENTS2
Table of contents
Technical data .............................................................................................. 3
Installation
Safety
Technical dimensions and data
Dimension sketch for Scan DSA 12
Type plate
Additional accessories
Product registration number
Assembly ....................................................................................................... 6
Dismantling
Load-bearing foundation
Floor plate
Convection air
Distance to furniture
Installation in connection with flammable materials
Positioning near non-flammable materials
Trims and doors
Existing chimney and pre-fabricated element chimney
Connection between stove and steel chimney
Requirements for chimney
Adjustable supporting legs
Door lock
Fresh air intake
Closed combustion system
Fitting of accessories ................................................................................ 12
Fitting the convection adaptors
Instruction for use ..................................................................................... 13
CB technique
Lower baffle plate
Primary air
Secondary air
Ash drawer
Instructions for heating .......................................................................... 14
Lighting
Handling fuel
Maintenance .............................................................................................. 16
Troubleshooting ........................................................................................ 18
TECHNICAL DATA
3
Installation
The house owner is responsible for ensuring that all necessary national and local safety measures are observed during installation and
fitting and also responsible for observing the fitting and operating
instructions detailed in this manual.
When you install any kind of fireplace or stove, you must inform the
local authorities. You are also responsible for calling in a chimney
sweep to inspect and authorize the installation.
To ensure best-possible functionality and safety for your installation,
we advise you to call a professional fitter. Our Scan Dealer will be able
to recommend a qualified fitter in your area. For information on Scan
Dealers, please go to www.scan.dk.
Safety
Any changes made to the product by the dealer, installer or user
could result in the product and safety functions not functioning
as intended. The same applies to the fitting of accessories or extra
equipment not supplied by Scan A/S. This could also be the case if
parts that are necessary for the operation and safety of the stove are
dismantled or removed.
Technical data and dimensions
Materials: steel plate, cast iron, galvanised sheet, skamol
Surface treatment: Senotherm
Max. wood length: 45 cm
Flue outlet: Top
Weight: 210 kg
Connecting piece internal diameter: 175 mm
Connecting piece external diameter: 179 mm
Approval type: Intermittent fuelling
Test in compliance with EN 13229
CO Emission at 13% O2: 0,09% 1142 mg/Nm3
Dust @ 13% O2: 31 mg/Nm
3
Nox @ 13% O2: 101 mg/Nm
3
Efficiency: 80%
Nominel output: 9 kW
Chimney temperature EN 13229: 213 °C
Temperature in connecting piece: 280 °C
Amount of smoke: 9,5 g/sek
Sub-pressure EN 13229: 12 Pa
Recommended sub-pressure in connecting piece: 16-20 Pa
Required combustion air supply: 25,9 Nm3/h
Fuel: Wood
Fuel consumption: 2,8 Kg/h
Amount of fuel: 2,3 kg
Intermittent fuelling means normal use of a woodstove. In other
words, you should let the fire die down until only the embers are left,
before refuelling.
The Scan DSA 12 was build in compliance with the homologized product type specified in the Assembly- and Instructions Manual provided with the product.
The DoP declaration of conformity is available from scan.dk
TECHNICAL DATA4
460
840
274**
900
989
793 220
323
676
616
939
889*
230
Dimension sketch for Scan DSA 12
* Height to the begin ning of the flue pipe
at top outlet
** Centre for inlet of external
combustion air bottom
TECHNICAL DATA
5
Product registration number
All wood-burning stoves are provided with a product registration
number.
Please make a note of this number on the front page as you will
always have to state it when contacting your dealer or Scan A/S.
Product registration number
Type plate
All Scan wood-burning stoves are fitted with a type plate, that specifies the approval standards and the distance to flammable materials.
Scan DSA 12
Insert fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13229 EC no. 90085600
Wood
Intermittent
EUR
Norway
Austria
Classification
Intermittent
Klasse 2
Certificate/Standard
EN 13229
SINTEF 110-0327
15 a B-VG
Approved by
RWE Power AG
SINTEF - NBL
RWE Power AG
Dust at 13% O2: 31 mg/Nm³
Flue gas temperature: 280°C
Nominal heat output: 9 kW
Efficiency: 80%
Angaben für Österreich
Wärmeleistungsbereich: 3,9 - 9,7 kW
Brennstoffwärmeleistung: 12 kW
Zulässige Brennstoffe: Scheitholz
Prüfbericht:
FSPS-Wa 1929-A
Scan A/S DK 5492 Vissenbjerg
Minimum distance to heat insulation:
Side: 40 mm - Top: 200 mm - Bottom: 0 mm
Minimum insulation:
Side: 100 mm - Top: 120 mm - Bottom: 60 mm
CO emission at 13% O2:
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 01-2012
0,09% 1142 mg/Nm³
Schweiz
Germany
LRV 11
BStV 1
VKF Nr. 20991
FSPS-Wa 1929-EN
RWE Power AG
RWE Power AG
Additional accessories

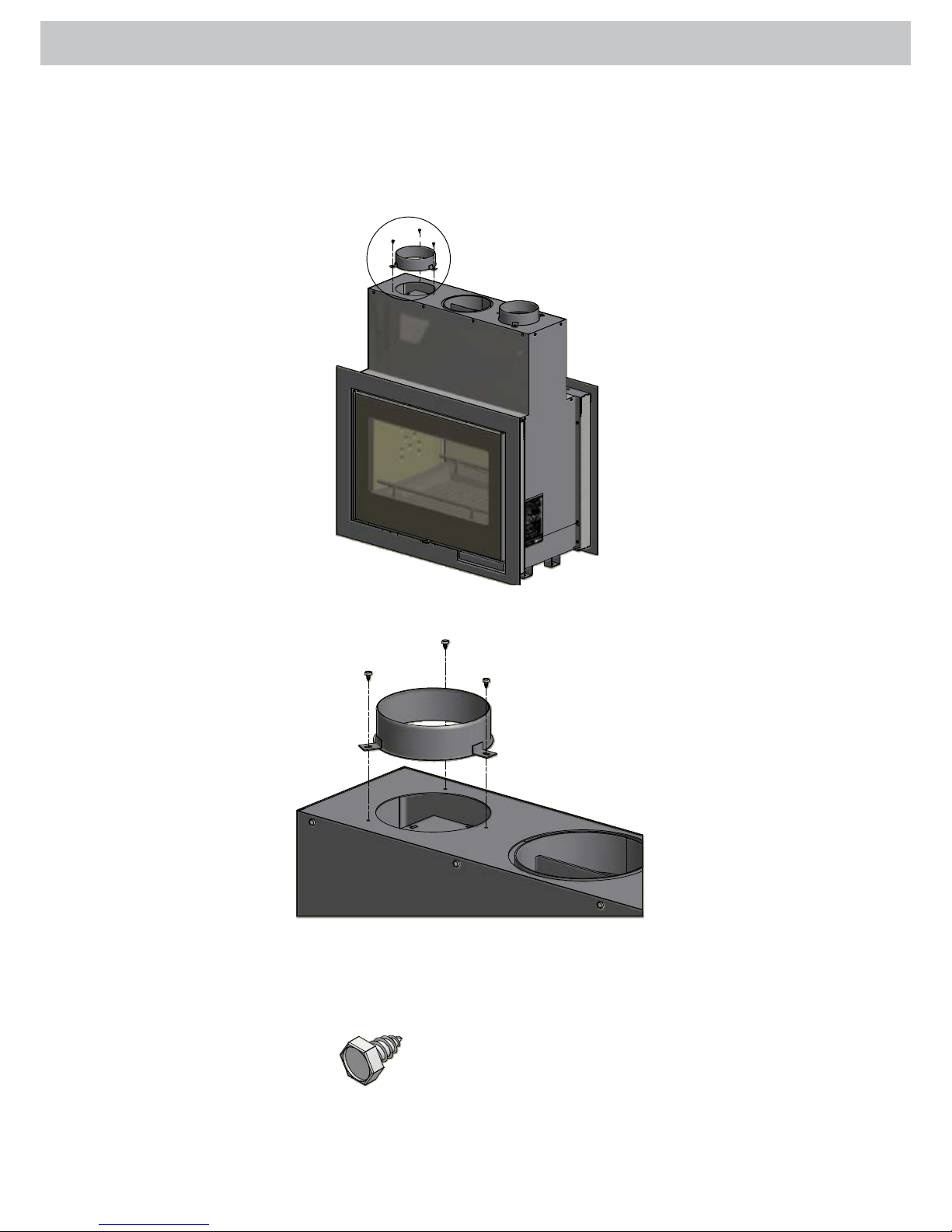

• Convection adaptors Ø149 mm
ASSEMBLY
6
B
B
Dismantling
The Scan DSA 12 is supplied attached to a pallet. It is recommended
that you remove both doors and trims before unscrewing the stove
from the pallet. This makes it easier to install the stove.
To remove the doors:
Loosen the pointed screw, remove the screw and spring and lift off
the door.
Pointed screw Screw and spring
9 x flange nuts M5, which are
removed
C
C
Removing the trims:
Remove the flange nuts and lift off the trims.
Important! If you have chosen to fit the built-in stove with convection
adaptors, go to page 12
