SCAN DSA 11 Assembly And Instruction Manual
Congratulations on your new Scan insert
You have purchased a product by one of Europe’s leading manufacturer’s of wood-burning stoves, and we are sure that you will have years of plea-
sure with your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your stove.
Scan DSA 11
ASSEMBLY- AND INSTRUCTIONS MANUAL
SCAN A/S - DK-5492 VISSENBJERG
2 CONTENTS
Table of contents
Technical data……………………………………………..............……………………….. 3
Installation
Certifi cate of testing
Technical dimensions and data
Dimensioned drawing for Scan DSA 11
Product registration number
Additional accessories
Type plate
Loose parts
Service kit
Fitting……………………………………………………….................…………………….... 6
Remove packaging
Flush fi tting in connection with fl ammable materials
Positioning near non-fl ammable materials
Distance from furniture
Load-bearing base
Floor plate
Existing chimney and pre-fabricated element chimney
Connecting the insert to a steel chimney
Chimney requirements

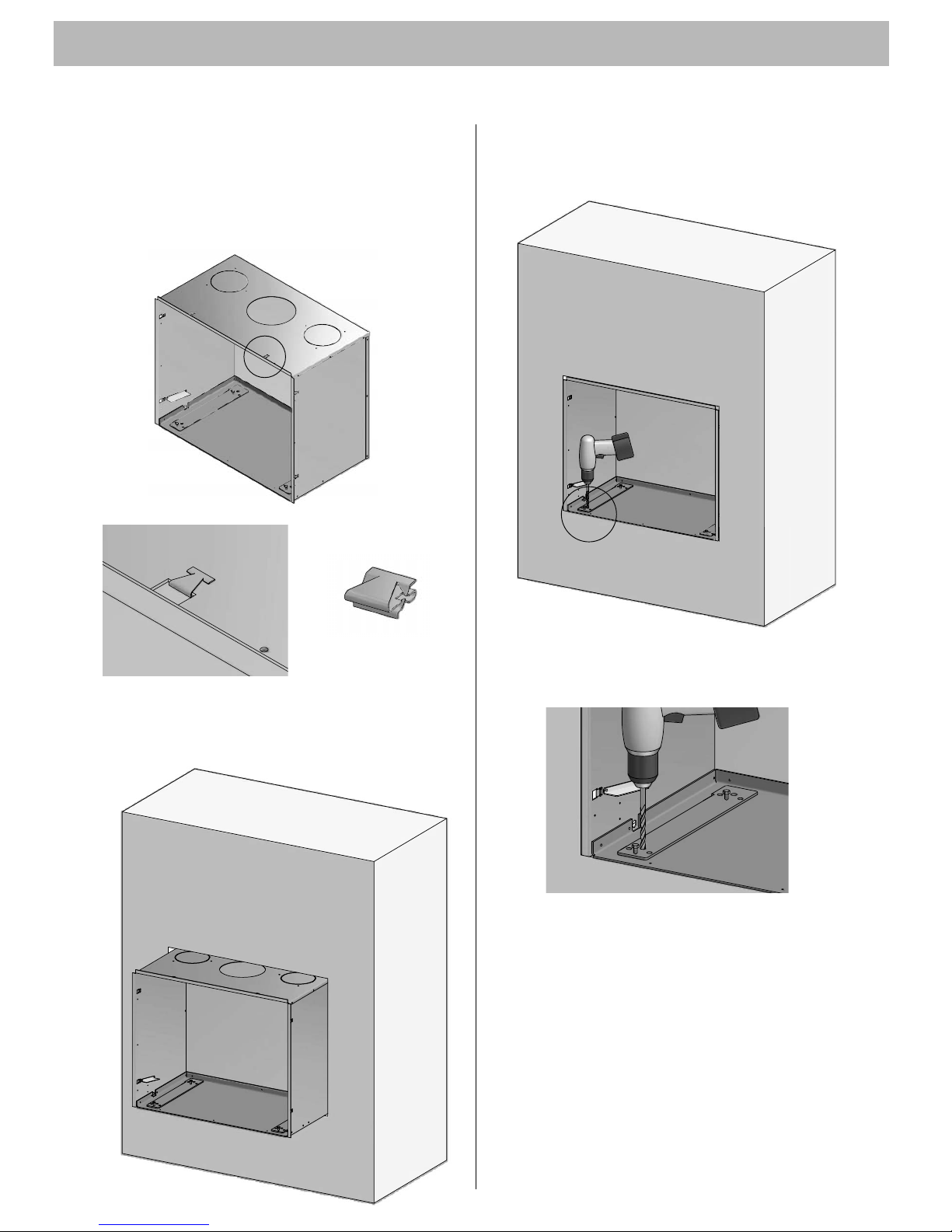

Fitting the cassette and insert
Fitting the fl ue connection piece
Fitting of accessories ……………………………………………...........……………. 14
Fitting the convection connection pieces

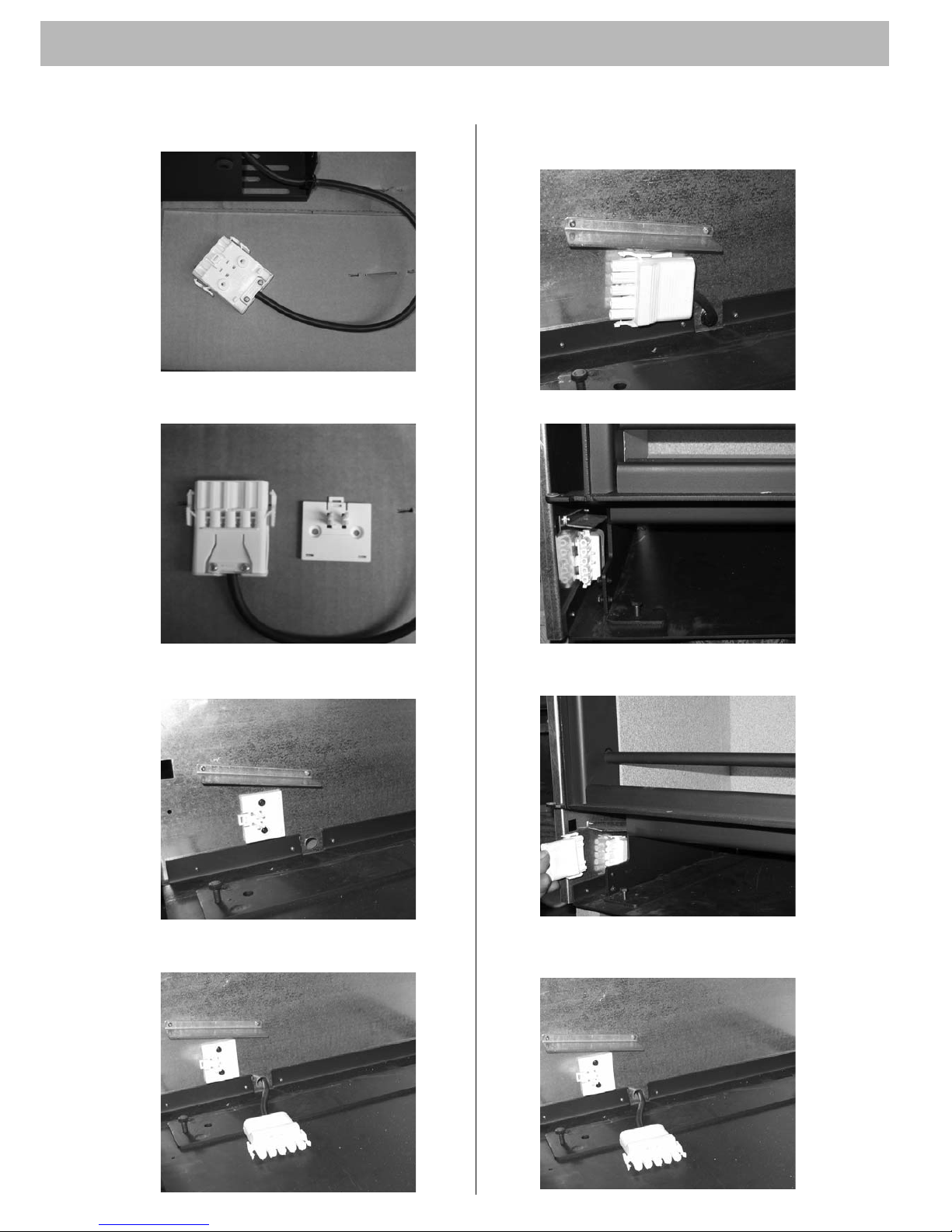

Fitting the fan
User manual ……………………………………………………………................……… 18
CB technique
Primary air
Secondary air
Smoke defl ector plates
Heating instructions ……………………………………………..........…………….. 19
Lighting
Handling fuel
Maintenance …………………………………………………………..............…………. 21
Troubleshooting ………………………………………………………...........………… 22
3
Installation
The house owner is responsible for ensuring that all necessary national and local safety measures are observed during installation and
fitting and also responsible for observing the fitting and operating
instructions detailed in this manual.
When you install any kind of fireplace or stove, you must inform the
local authorities. You are also responsible for calling in a chimney
sweep to inspect and authorize the installation.
To ensure best-possible functionality and safety for your installation,
we advise you to call a professional fitter. Our Scan Dealer will be
able to recommend a qualified fitter in your area. For information on
Scan Dealers, please go to www.scan.dk.
Technical data and dimensions
Test in compliance with EN 13229
CO Emission at 13% O2: 0,16% 1654 mg/Nm
3
Dust @ 13% O2: 66 mg/Nm
3
Efficiency: 70%
Rated heat load: 10 kW
Chimney temperature: 371 °C
Flue outlet flow: 10,1 g/sek
Vacuum EN 13229: 12 Pa
Recommended vacuum in flue connection piece: 16-20 Pa
Combustion air requirement: 22,8 Nm3/h
Fuel: Wood
Fuel consumption: 3 Kg/h
Amount of fuel: 2,5 kg
Weight: 100 kg
Flue connection piece internal diameter: 175 mm
Flue connection piece external diameter: 179 mm
Approval type: Intermittent fuelling
Intermittent fuelling means normal use of a woodstove. In other
words, you should let the fire die down until only the embers are left,
before refuelling.
The Scan DSA 11 was build in compliance with the homologized product type specified in the Assembly- and Instructions Manual provided with the product.
The EC declaration of conformity is available from www.scan.dk
TECHNICAL DATA
4 TECHNICAL DATA
6
5
6
730
1
6
6
4
2
0
5
9
0
6
4
0
468
794
1
4
3
113
Dimensioned drawing for Scan DSA 11
5
Product registration number
Take the insert out of the cassette and read the product registration
number and make a note of it below. This number must be kept safe
in case you need to contact us.
Product registration number
A
Type plate
All Scan wood-burning stoves are fitted with a type plate, that
specifies the approval standards and the distance to flammable
materials.
Sca
n DSA 1
1
I
nsert fired by solid fue
l
Standar
d:
Fuel type:
Operation type
:
The appliance can be operated in a shared flue
.
C
ountr
y
E
N 13229 EC no. 9008460
0
Wood
Inte
rmittent
EU
R
Classificatio
n
Inte
rmittent
Ce
rtificate/Standar
d
EN 13229
App
roved
by
pp y
Teknologisk
Institut
g
D
ust CO emission at 13% O2: 66 mg/Nm
³
F
lue gas temperature: 371
°C
N
ominal heat output: 10
kW
Efficiency: 70%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to
hea
t in
sulation:
Side: 50 mm - Back: 50 mm - Top: 300 mm - Bottom: 100 m
m
M
inimum insulation: see assem
bly
- and instructions manua
l
Side, Back, Top, Bottom: 50/10
0
C
O emission at 13% O2:
Foll
ow assembly- and instructions manual.
U
se only recommended fuels.
M
ontage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 09-2009
S
can
A/S DK
5492 Vissenbjer
g
0
,16% 1654 mg/Nm
³
Write the insert’s product registration number here:
A
Additional accessories
• Fan
• Convection connection pieces Ø149 mm
TECHNICAL DATA
Service kit
The service kit contains the following:
•
Fitting for flue connection piece (not used on Scan DSA 11)
• Gasket (not used on Scan DSA 11)
• Safety fitting (not used on Scan DSA 11)
• Plastic plugs for transport safety hole at the bottom of
the stove (not used on Scan DSA 11)
• Various tools
• Glove
• Fire starters for first lighting
Loose parts
In the insert’s combustion chamber you will find the following loose
parts:
•
Service kit
• Flue connection piece
• Gasket for flue connection piece
• Bag containing loose parts:
• 6 x clips
•
4 x rawl plugs
• 4 x Torx screws M6X50
• 4 x washers Ø8 / Ø16x1.5
• 5 x Allen screws M6x10
• Torx key
6 ASSEMBLY
B
B
To remove the door:
Loosen the Pointed screw, remove the rivet and lift the door off.
Pointed screw
Rivet
Removing the packaging
Scan DSA 11 is delivered secured to a pallet. To remove the packaging,
please see below:
Screws to be
removed
C
C
Pull the insert out of the cassette.
Remove the two screws securing the cassette to the pallet.
7
A-A
B-B
C-C
A
A
BB
CC
3
0
0
1
0
0
1
00
50
3
4
0
50
3
0
0
Distance to furniture:
1500 mm
But please check to avoid furniture or other furnishings being dried
out due to being too close to the stove.
ASSEMBLY
Minimum 300 mm distance
to flammable materials
Area for
convection air out:
500 cm
2
Area for
convection air in:
350 cm
2
Flammable materials
Flammable materials
Flammable materials
Flammable materials
If the floor contains flammable
materials the height above the
floor must be at least 340 mm.
Installation in connection with flammable material
100 mm gas concrete / 50 mm Rockwool Firebatt slab with aluminium coating
Positioning near non-flammable materials
When positioning near a non-flammable wall/structure, the distance
must be at least 10 mm.
Load-bearing base
You must ensure that the base the stove is to be installed on is loadbearing with the strength to support the weight of the stove and the
chimney, if necessary. If you are unsure about the strength of the base,
contact a specialist before carrying out the installation.
A front plate of non-flammable material can, for example, be a 10
mm cemented plate
Flammable materials
Flammable materials
8 ASSEMBLY
Floor plate
The national and local building regulations must be followed regarding the size of a non-flammable base which is to cover the floor in
front of the insert.
Your local Scan dealer can give guidance on the rules concerning the
protection of flammable material around the stove.
The floor plate’s function is to protect flooring and flammable material against any embers.
A floor plate can be made of steel or glass, however clinker tiles, natural stone or similar materials can also be used.
Existing chimney and pre-fabricated element
chimney
If you intend to connect your stove to an existing chimney, it makes
sense to contact an authorised Scan dealer, or a local chimney sweep
for advice. These experts will also let you know if your flue needs
renovating.
When connecting a pre-fabricated element chimney, follow the
manufacturer’s connection instructions for the relevant chimney
type.
Connection between stove and steel chimney
Your Scan dealer, or local chimney sweep, can advise you on choosing
a make and type of steel chimney. This ensures that the chimney will
match your wood-burning stove. We recommend that the chimney’s
length from the top of the stove should be no less than 4.5 metres.
Some weather or installation conditions might require another
length.
Choosing the wrong length or diameter of steel chimney could
impair functionality.
Always observe the chimney vendor‘s instructions precisely.
Requirements for chimney
The chimney must be labelled T400 and G for soot testing.
If the chimney is installed as an extension of the stove and has a
length of at least 4.5 metres, a 6" chimney can be used.
If the stove is installed with elbow pipes or other bends in the chimney, a 7" chimney can be used.
