Scag SWZ36-14KH, SWZ48-14KH, SWZ48-14KA, SWZ36-14KA User Manual
Specifications and Main Features
- Models: SWZ-20KHE, SWZ248-14KN, SWZ248-14KA, SWZ-14KN, SWZ36-14KH, SWZ-14KA, SWZ36-14KA
- Engine Options: 20HP, 18HP, 14HP Kohler and Kawasaki
- Cutting Deck Sizes: 61, 52, 48, 36 and 72(degrees)
- Heights: Adjustable
- Turn Radius: Zero
- Pump Type: Dump valve pump
- Volume: Based on the design
- Latches: Neutral latches, blade engagement interlock switches
- Loading: 15 - drive wheels and 25-fractor wheels
Frequently Asked Questions
Q: The models can be equipped with which type of engines?
A: The models in the mower can be fitted with 14HP, kawasaki or 14HP, 18HP Kohler or 20HP Kohler engines.
Q: What is the distance between the blades in lengths?
A: The length distance to the blades ranges from 36 to 72:52,46,61.
Q: Do you have a motor cutting adjuster height?
A: Yes, the adjustments can be made in Letting spacers on blade mounting bolts or re-positioning the cutter deck white measuring it with the engine deck.

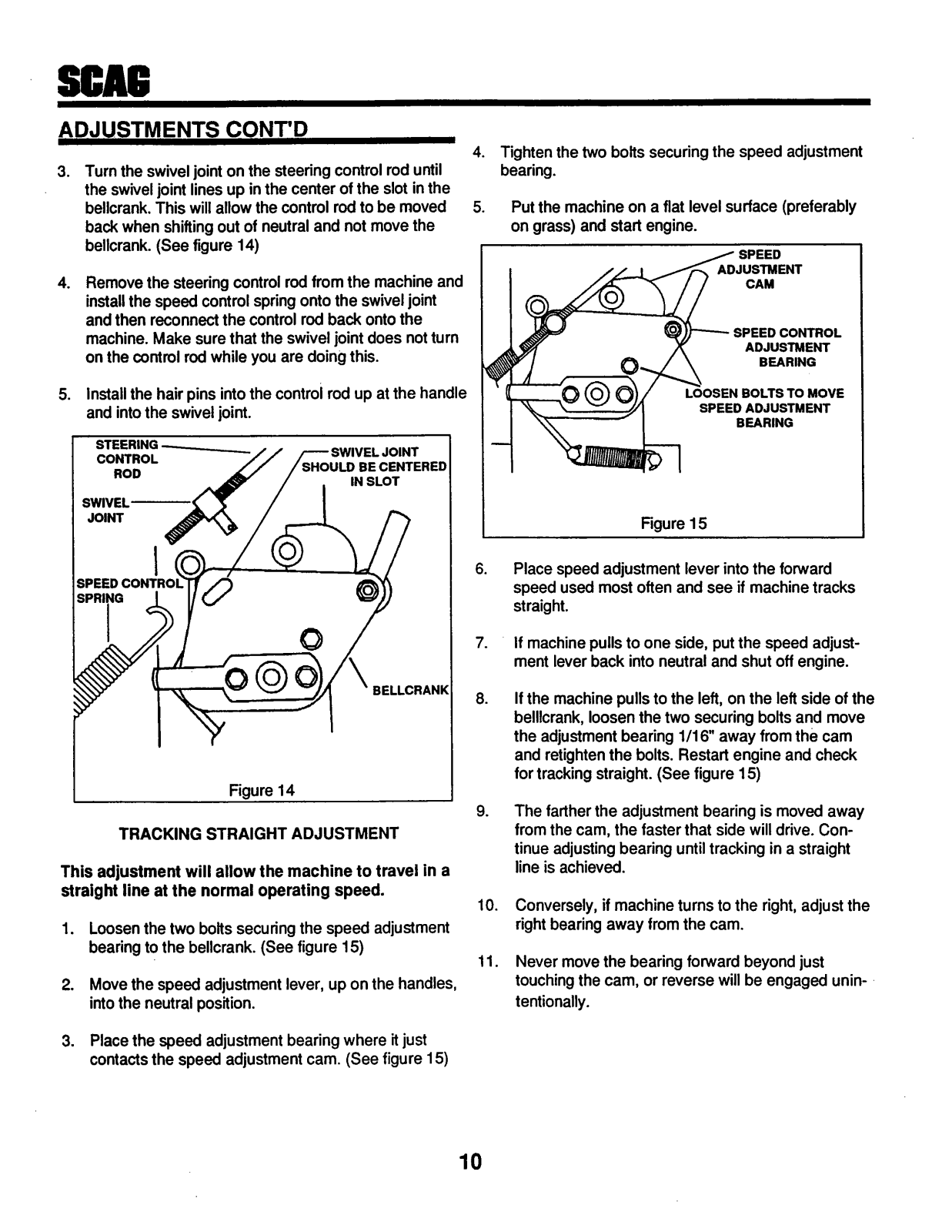

Q: Which actions should I take if the mower doesn't come back to its original position after moving?
A: It would be wise to rotate the speed control bearing to fix the issue of the machine not being able to properly carry out straight movements.
Q: How frequently do I service the mower?
A: Periodic servicing should be carried out after every fourty hours of usage or after every two hundred hours of use depending on the month. This includes but is not limited to servicing of the tires, changing of the engine oil and the replacement of the filter.
Q: Tell me the safety mechanism integrated in the mower.
A: The mower contains safety mechanisms like the neutral latches, interlocks and engagement switches to prevent any undesired form of operation being performed with the device.
