Scag SW36-14BV, SW48-14BV, SW-14KH, SWM-61, SW-18KH User Manual
...Specifications and Main Features
- Designations: SW32-13KA, SW-14KA, SW36-13KA, SW-14KH, SW36-13KH, SW-16BV, SW48-14KA, SW-18KH, SW48-14KH, SW-18KHE
- Patent No.: 4,885,903
- Provided Engines: Kohler 12.5 HP, Kohler 14 HP, Kawasaki 12.5 HP, Kawasaki 14 HP
- Engine Model Designations: PS-1256, CV12.5T PS-1413, FB460-ES05, FC420V

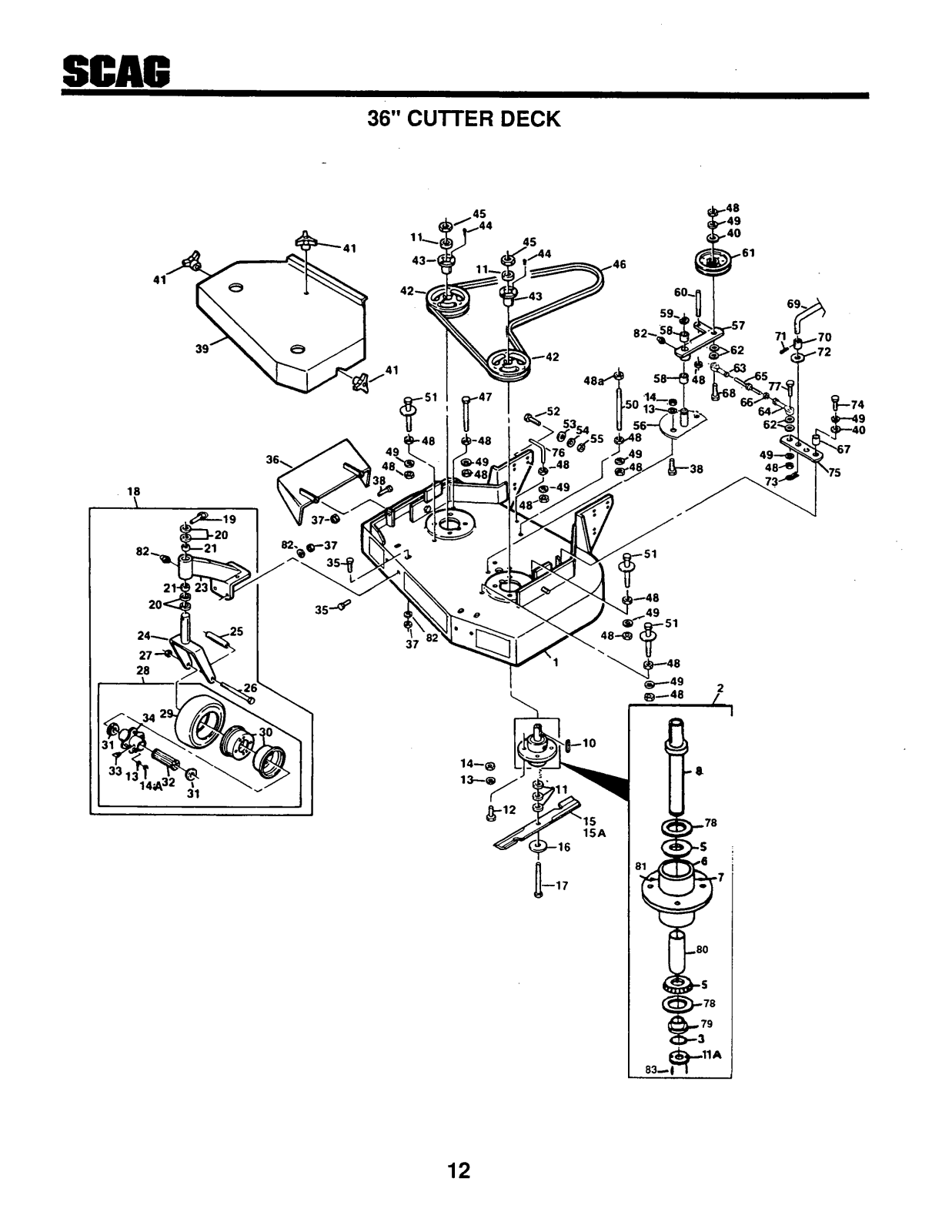

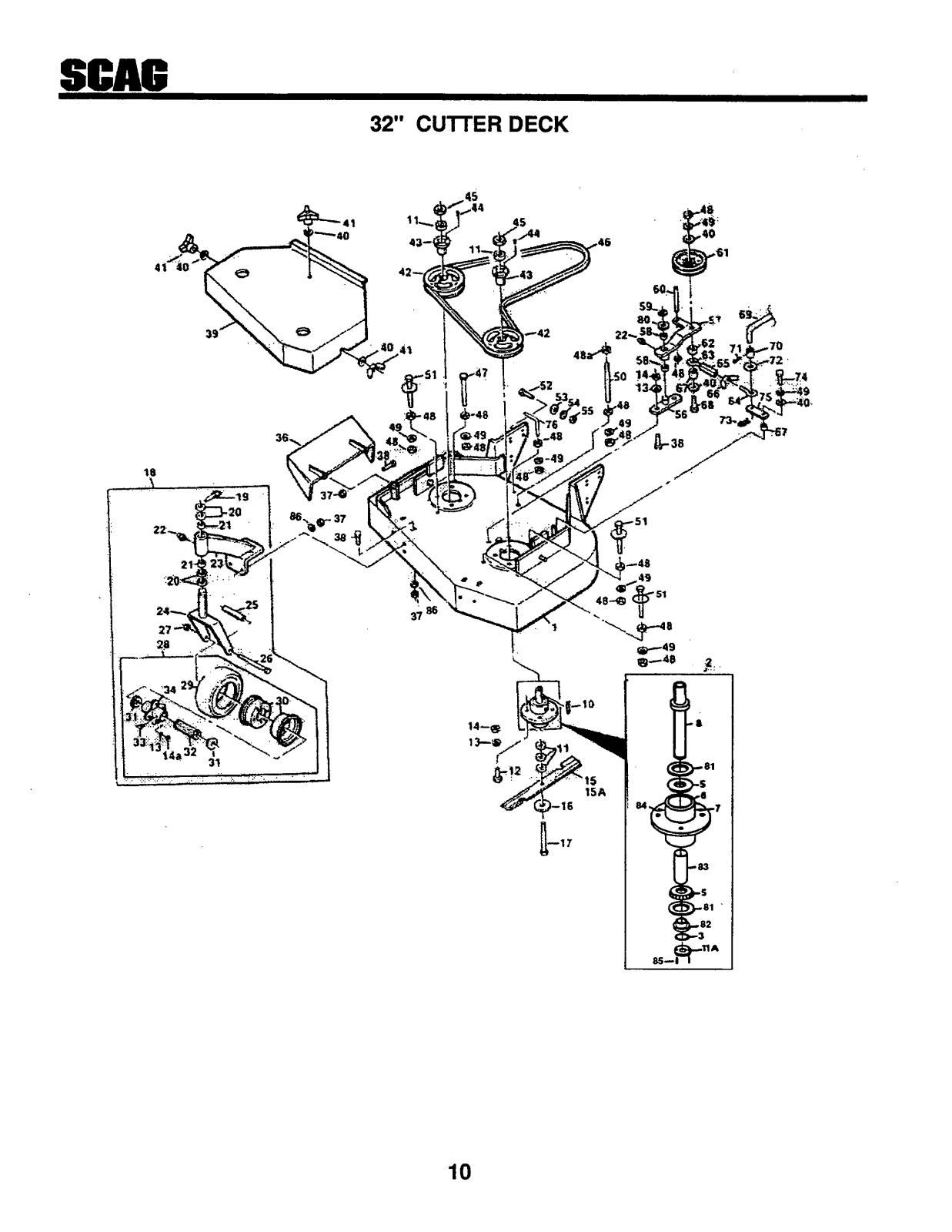

- Dimensions of Cutter Decks: 32”, 36”, 48”, 52”, 61”, and 72” are available
- Drive Wheel Tire Inflation Pressure: 15psi
- Caster Wheel Tire Inflation Pressure: 25psi
- Blades: The cutter deck configuration determines size
- Gear Transmission: Peerless 700-026 Model

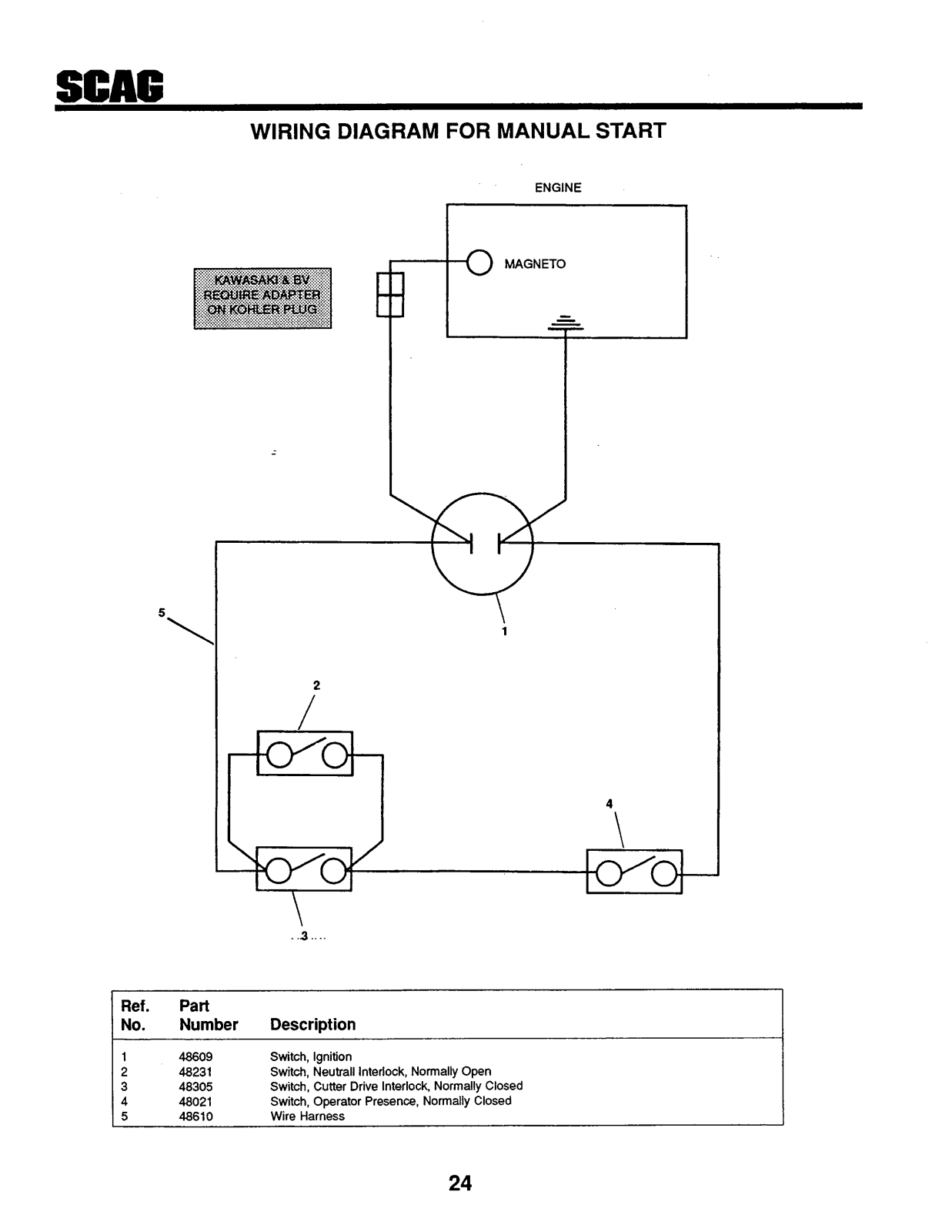

- Safety Features: Control of operator presence, neutral interlock switch, cutter drive interlock switch
Frequently Asked Questions
- Q: Which petrol is suitable for placing on the mower?
A: It is advisable to fill the fuel tank firstly with gasoline before starting the engine.
- Q: In which ways can the cutting height be changed if needed?
A: Adjusting the position of the cutter deck in relation to the engine deck provides a means to change the cutting height, as does altering the protrusion of the blades which are determined by the spacing placed on the blade mounting bolts.
- Q: What are the necessary steps that a user must take to ensure that the mower functions optimally?
A: Hardware tightness, tire pressure, oil level, and lubrication of moving parts all require regular inspections to ensure optimal mower performance.
- Q: How long is the warranty of the shredder and which segments of the shredder does it cover?
A: There is a one-year warranty that covers the frame, deck, and other structural components, while wear items have a 90-day warranty.
- Q: What are the minimum age restrictions on mow utilising the mower?
A: Children should not be using the machine under hand, and a machine operator should be an adult, of course after receiving instructions.
