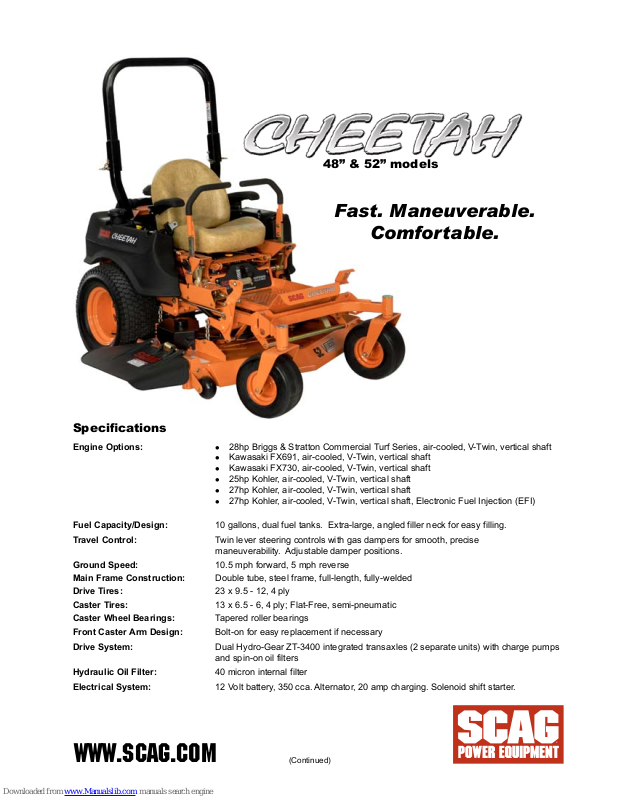

48” & 52” models
Fast. Maneuverable.
Comfortable.
Specications
Engine Options: 28hp Briggs & Stratton Commercial Turf Series, air-cooled, V-Twin, vertical shaft
Kawasaki FX691, air-cooled, V-Twin, vertical shaft
Kawasaki FX730, air-cooled, V-Twin, vertical shaft
25hp Kohler, air-cooled, V-Twin, vertical shaft
27hp Kohler, air-cooled, V-Twin, vertical shaft
27hp Kohler, air-cooled, V-Twin, vertical shaft, Electronic Fuel Injection (EFI)
Fuel Capacity/Design: 10 gallons, dual fuel tanks. Extra-large, angled filler neck for easy filling.
Travel Control: Twin lever steering controls with gas dampers for smooth, precise
maneuverability. Adjustable damper positions.
Ground Speed: 10.5 mph forward, 5 mph reverse
Main Frame Construction:
Drive Tires:
Caster Tires:
Caster Wheel Bearings:
Front Caster Arm Design: Bolt-on for easy replacement if necessary
Drive System: Dual Hydro-Gear ZT-3400 integrated transaxles (2 separate units) with charge pumps
and spin-on oil filters
Hydraulic Oil Filter: 40 micron internal filter
Electrical System: 12 Volt battery, 350 cca. Alternator, 20 amp charging. Solenoid shift starter.
Double tube, steel frame, full-length, fully-welded
23 x 9.5 - 12, 4 ply
13 x 6.5 - 6, 4 ply; Flat-Free, semi-pneumatic
Tapered roller bearings
WWW.SCAG.COM
(Continued)
Page 2
®
Belts: Kevlar cord. Self-adjusting, spring-loaded, self-tightening
Drive/Load Pulleys: Split-steel design -- stronger and lighter weight than cast-iron
Instrument Panel : Ammeter, key switch, throttle, manual choke, BBC switch, digital SmartSense hour
meter
Operator Suspension System: Isolates the entire operator station from the effects of rough terrain.
Coil-over shock provides effective suspension action right where it's needed, and
only where it's needed for a smooth ride.
Thick-cushioned, bolstered seat, fully adjustable, with adjustable, folding arm rests.
3-Position adjustable deck lift foot pedal allows for easy deck lift for all operators
PTO - Electric Clutch:
Cutter Decks:
Cutter Deck Construction: Tri-Plate, welded: 7-gauge top, 7 gauge skirts, 10 gauge & 11 gauge
reinforcement plates.
Cutter Deck Drive: Belt-driven -- straight alignment for increased reliability & longevity
Number of Anti-Scalp Wheels: 48": 3 wheels in 3 positions
52": 3 wheels in 3 positions
Cutter Deck Spindles: Scag Heavy-Duty Spindles w/cast-iron housing & tapered roller bearings,
backed by 3-year limited warranty
Cutter Deck Height Adjustment: Foot pedal lift (3-position adjustable) with self-locking mechanism at transport position
Cutting Range: 1.5” to 5” in 1/4” increments
Number of Cutter Blades: 3 Marbain blades
Total Length: 81.75"
Total Width (with discharge chute in mowing position):
48" models: 61.25"
52" models: 65.25"
Total Width (with discharge chute in transport position):
48" models: 49.75"
52" models: 53.75"
Height (with ROPS): 67”
Height (with ROPS folded): 48”
Weight (with ROPS): 48" models: 1075 lbs.
52" models: 1080 lbs.
Warranty: 2 Yr. Commercial Mower Warranty—Parts & labor.
3 Yr. / 500 Hour Non-Commercial Mower Warranty—Parts & labor.
3 Yr. Deck Warranty—First & second years parts & labor; third year parts.
3 Yr. Spindle Warranty—First & second years parts & labor; third year parts.
2 Yr. Engine Warranty—Minimum two-year warranty covered directly
through the individual engine manufacturer.
Ogura GT3.5 - 250 ft lb; adjustable air-gap
48” & 52” Velocity Plus decks. Floating, adjustable, anti-scalping design.
All specifications subject to change without
notice. Actual ground speeds may vary.
