- 1 -
2Mega-Pxiel/3X Optical Zoom/OSD Menu
SDI Output/AIO Camera
INSTRUCTION MANUAL
V1.0
Warning：Please read this manual carefully before installation and use!
- 2 -
1、SAFETY TIPS：
Installation must be operated by qualified professionals！
Laypeople are forbidden to open this camera!
2、POINTS FOR ATTENTION：
1. Keep the camera away from damp or rainy places, and install strictly as per the
manual.
2. To avoid damage, please do not operate with power on.
3. Please do not disassemble or make modification on the camera without permission.
4. For connection guidance, please refer to the connection diagram in this manual.
5. This camera is required to be used under stated voltage/humidity/temperature range.
6. Please do not make the camera directly shoot at highlight or sunshine.
7. Right of final explanation for this manual is reserved by the manufacturer.
3、CHARACTERISTICS：
This model is a 2Mega-Pxiel 1080P Full HD Camera, 3X Optical Zoom,,DC IRIS and ICR
technology ,OSD Menu inside can, which makes the camera more convenient to use,
characteristics as below:
Omnivision 1/2.7’’ CMOS Sensor OV2715.
Pixel Array:Video 2M.
1080p/30,720p/60 Resolution
Chinese and English OSD
3X Optical Zoom
Picture Effects:Freeze/B&W/Negative/Mirror/Flip/Mute
Motion Detection Function
Internal IR-CUT
DC12V Power
Explosion-proof enclosure
- 3 -
4、FUNCTION：

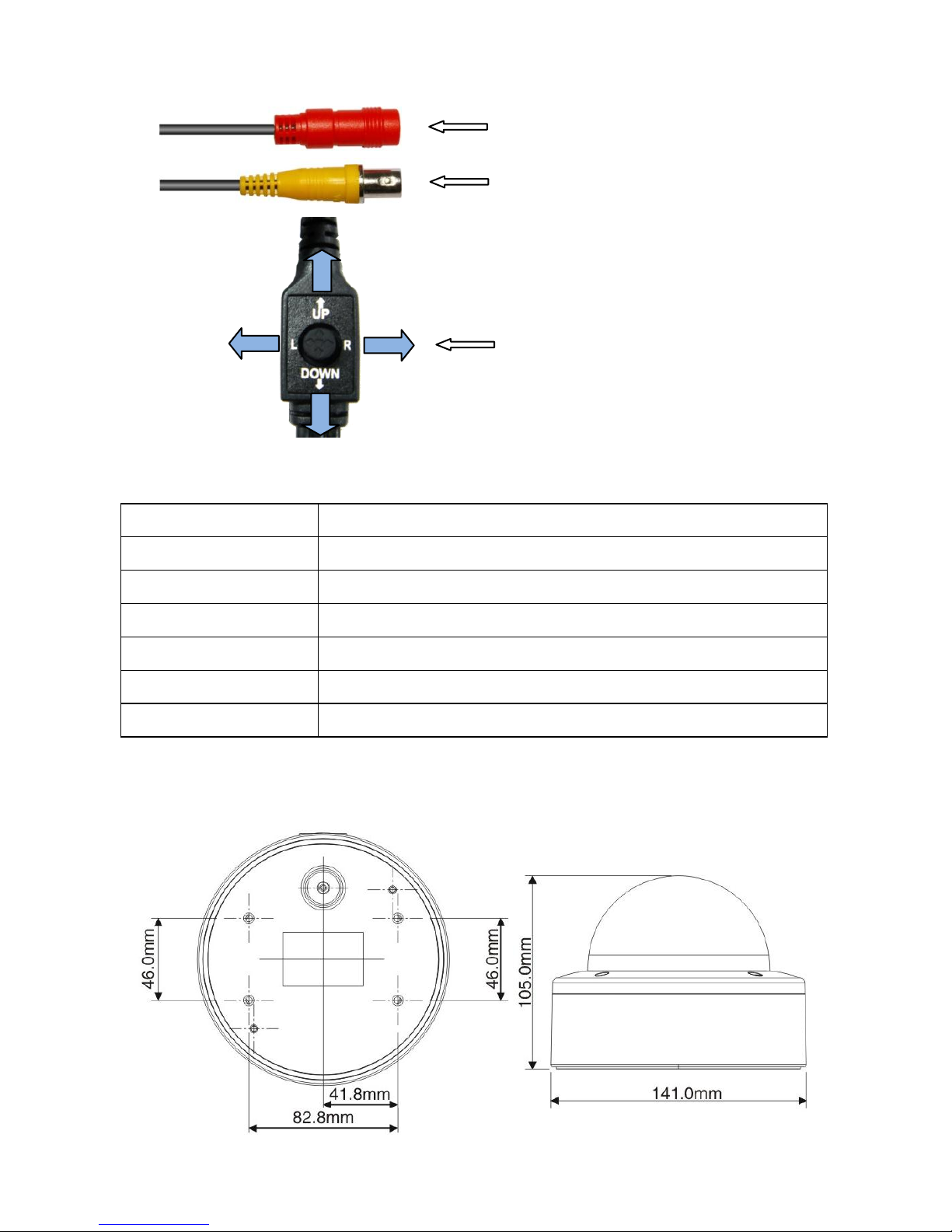

FIGURE1：Camera cable connection schemes
Call OSD menu
Press MENU function table control key
OSD menu up
Press UP function table control key
OSD menu down
Press DOWN function table control key
Enter submenu
Press RIGHT function table control key
Return superior menu
Operate OSD to EXIT and press LEFT function table control key
Zoom Control
Press LEFT&RIGHT function table control key
Focus Control
Press UP&DOWN function table control key
FIGURE2：Camera control
5、DIMENSION：
Unit:mm
DC12V POWER INPUT
VIDEO OUTPUT
OSD MENU CONTROL
- 4 -
6、MENU OPERATION：
FOCUS
ONEPUSH AF / MANNAL
IMAGE EFFECT
FREEZE / B&W/NEGATIVE / MIRROR / FLIP / MUTE (ON/OFF OPTIONAL)
DAY/NIGHT
MODE AUTO/COLOR/B&W/EXT
SWITCH DELAY 5 (1-15 OPTIONAL)
D-N LEVEL 4 (1-10 OPTIONAL)
MOTION DETECTION
DETECTION OFF（ON/OFF OPTIONAL)
THRESHOLD 15（5-40 OPTIONAL)
RE-ALARM INTERVAL 20（5-40 OPTIONAL)
TRACKING DISPLAY ON （ON/OFF OPTIONAL)
BLOCK DISPLAY OFF（ON/OFF OPTIONAL)
FRAME SETUP FRAME NO。 ：0（0-3 OPTIONAL)
DETECTION ：ON（ON/OFF OPTIONAL)
HORIZONTAL START ：0（0-29 OPTIONAL)
VERTICAL START ：0（0-29 OPTIONAL)
HORIZONTAL STOP ：30（1-30 OPTIONAL)
VERTICAL STOP ：30（1-30 OPTIONAL)
EXPOSURE AREA
FULL / CENTRAL / SPOT
VIDEO OUT
NTSC / PAL
IMAGE SIZE
1080p30 720p/60
WHITE BALANCE
CLOUDY / TUNG STEN / FLUORESCENT / DAYLIGHT / AUTO
SATURATION
MORE / NORMAL / LESS
- 5 -
ADVANCED FUNCTION
BLC : OFF(OFF/LESS/NORMAL/MORE OPTIONAL)
EXPOSURE SHUTTER :AUTO（AUTO;1/50;1/250;1/500;1/700;1/1000;1/2500
OPTIONAL）
LANGUAGE
ENGLISH / TRADITIONAL CHINESE / SIMPLIFIED CHINESE
SYSTEM
SYSTEM VERSION:V0.2.16
MCU VERSION:V5
CAMERA INFORMATION
TITLE
DISPLAY :ON/OFF
CAMERA ID :X(0-255 OPTIONAL)
ID DISPLAY:OFF(ON/OFF OPTIONAL)
RESET
SET
- 6 -
7、PARAMETERS：
Model
Image Sensor
Omnivision 1/2.7’’ CMOS Sensor OV2715
Pixel Array
Video 2M
DSP
Ambarella A2i(Full HD)
Resolution
1080p/30,720p/60
Video Output
1080p/30,720p/60
Video Output Mode
Digital:HD-SDI
S/N Ratio
<50dB
Min.Illumination
12 Lux ( F1.8) With 50 IRE
1.0 Lux ICR ON( F1.8) With 50 IRE
Optical Zoom
3X Optical Zoom/F1.2(W)~F2.7(T)/f=2.8mm(W)~9mm(T)
Horizontal View Angle
115.2°(Wide)~37.1°(Tele)
Focus Mode
OnePush/Mannal focus
Focus Length
10cm~infinite(Wide),1m~infinite(Tele)
Exposure Mode
AUTO
Picture Effects
Freeze / B&W/Negative / Mirror / Flip/ Mute
Picture Freeze
ON/OFF
White Balance
Auto/Cloudy/Tungsten/Fluorescent/Daylight(Color temperature:2000~9500k)
BLC
Off/Less/Normal/More Selectable
Motion Detection
ON/OFF Selectable(Area:4)
Exposure Area
FULL/CENTER/SPOT
D/N Mode
COLOR/B&W/EXT/AUTO
Mirror
ON/OFF(horizontal&vertical)
OSD Language
English / Traditional Chinese / Simplified Chinese
Power Supply
（12VDC）±0.5V
Power Consumption
3.8W
Size
Φ141X105（H）mm
Storage Temperature
-20℃~60℃
Operation Temperature
0℃~50℃
Humidity Range
20%~90% RH
Weight
970g
- 7 -
8、REDUCTION PARAMETERS：
FOCUS
ONEPUSH AF
IMAGE EFFECT
FREEZE / B&W/NEGATIVE / MIRROR / FLIP / MUTE (OFF)
DAY/NIGHT
MODE AUTO
SWITCH DELAY 5
D-N LEVEL 4
MOTION DETECTION
DETECTION OFF
THRESHOLD 15
RE-ALARM INTERVAL 20
TRACKING DISPLAY ON
BLOCK DISPLAY OFF
FRAME SETUP FRAME NO. ：0
DETECTION ：ON
HORIZONTAL START ：0
VERTICAL START ：0
HORIZONTAL STOP ：30
VERTICAL STOP ：30
EXPOSURE AREA
CENTRAL
VIDEO OUT
PAL
IMAGE SIZE
1080p25
WHITE BALANCE
AUTO
SATURATION
NORMAL
- 8 -
ADVANCED FUNCTION
BLC : OFF
EXPOSURE SHUTTER :AUTO
LANGUAGE
SIMPLIFIED CHINESE
SYSTEM
SYSTEM VERSION:V0.2.16
MCU VERSION:V5
CAMERA INFORMATION
TITLE
DISPLAY : OFF
CAMERA ID :1
ID DISPLAY : OFF
RESET
SET
