Connecting your phone
Plug one end of the supplied telephone line cord into the line jack. Then plug the other end
into telephone line jack. Plug in the AC power adapter into a power outlet and the plug the
other end into 9VDC jack.

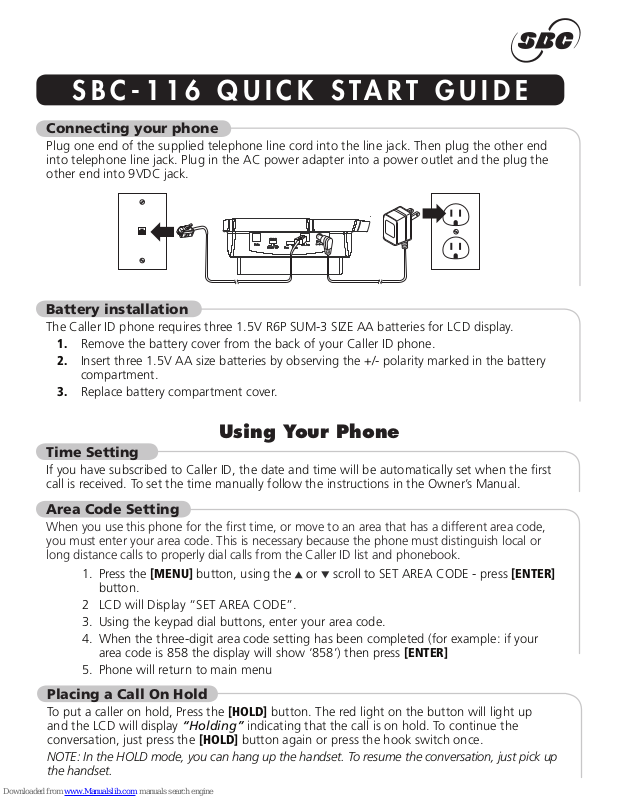

S B C - 1 1 6 Q U I C K S TA R T G U I D E
Battery installation
The Caller ID phone requires three 1.5V R6P SUM-3 SIZE AA batteries for LCD display.
1. Remove the battery cover from the back of your Caller ID phone.
2. Insert three 1.5V AA size batteries by observing the +/- polarity marked in the battery
compartment.
3. Replace battery compartment cover.
Using Your Phone
Time Setting
If you have subscribed to Caller ID, the date and time will be automatically set when the first
call is received. To set the time manually follow the instructions in the Owner’s Manual.
Area Code Setting
When you use this phone for the first time, or move to an area that has a different area code,
you must enter your area code. This is necessary because the phone must distinguish local or
long distance calls to properly dial calls from the Caller ID list and phonebook.
1. Press the [MENU] button, using the or scroll to SET AREA CODE - press [ENTER]
button.
2 LCD will Display “SET AREA CODE”.
3. Using the keypad dial buttons, enter your area code.
4. When the three-digit area code setting has been completed (for example: if your
area code is 858 the display will show ‘858’) then press [ENTER]
5. Phone will return to main menu
Placing a Call On Hold
To put a caller on hold, Press the [HOLD] button. The red light on the button will light up
and the LCD will display “Holding” indicating that the call is on hold. To continue the
conversation, just press the [HOLD] button again or press the hook switch once.
NOTE: In the HOLD mode, you can hang up the handset. To resume the conversation, just pick up
the handset.
Mute Function
Pressing the [MUTE] button turns off the telephones microphone so that the other party
cannot hear you, but you can hear them. Pressing the [MUTE] button again restores
connection to the microphone so the other party can again hear you. The LCD will display
“MUTE” while the function is active.
Phone Book Function
You can store 70 numbers and names in the phone book, refer to the “FUNCTION
OPERATIONS”, under the “PHONEBOOK” in the Owner’s Manual for details.
