SBC PCD2.M4160, PCD2.M4560 User Manual

Document 27-648 │ Edition ENG05 │ 2018-05-16

Manual

PCD2.M4160, PCD2.M4560

User Manual

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4x60

Contents

0-1

0

0 Content

0.1 Document History .................................................................................. 0-3

0.2 Trademarks ........................................................................................... 0-3

1 Graphical Overview

2 Important notes

2.1 Prerequisites ......................................................................................... 2-1

2.2 Instructions for connecting Saia PCD® controllers to the internet ......... 2-1

3 Versions overview

4 System overview

4.1 X1 – USB Device .................................................................................. 4-1

4.2 X2 – Isolated RS-485 / MPI ................................................................... 4-2

4.3 X3 – I/O Extension port ......................................................................... 4-2

4.4 X4 – Power supply / S-Bus / Watchdog ................................................ 4-2

4.5 X5 – Communication port Slot ‘A’ .......................................................... 4-3

4.6 X6 / X7 – Dual Ethernet (Switch) .......................................................... 4-3

4.7 X8 – Digital interruptive inputs .............................................................. 4-3

4.8 X9 – Communication port Slot ‘C’ ......................................................... 4-3

4.9 M1 – Memory Slot ................................................................................. 4-4

4.10 BAT – Battery module slot ..................................................................... 4-4

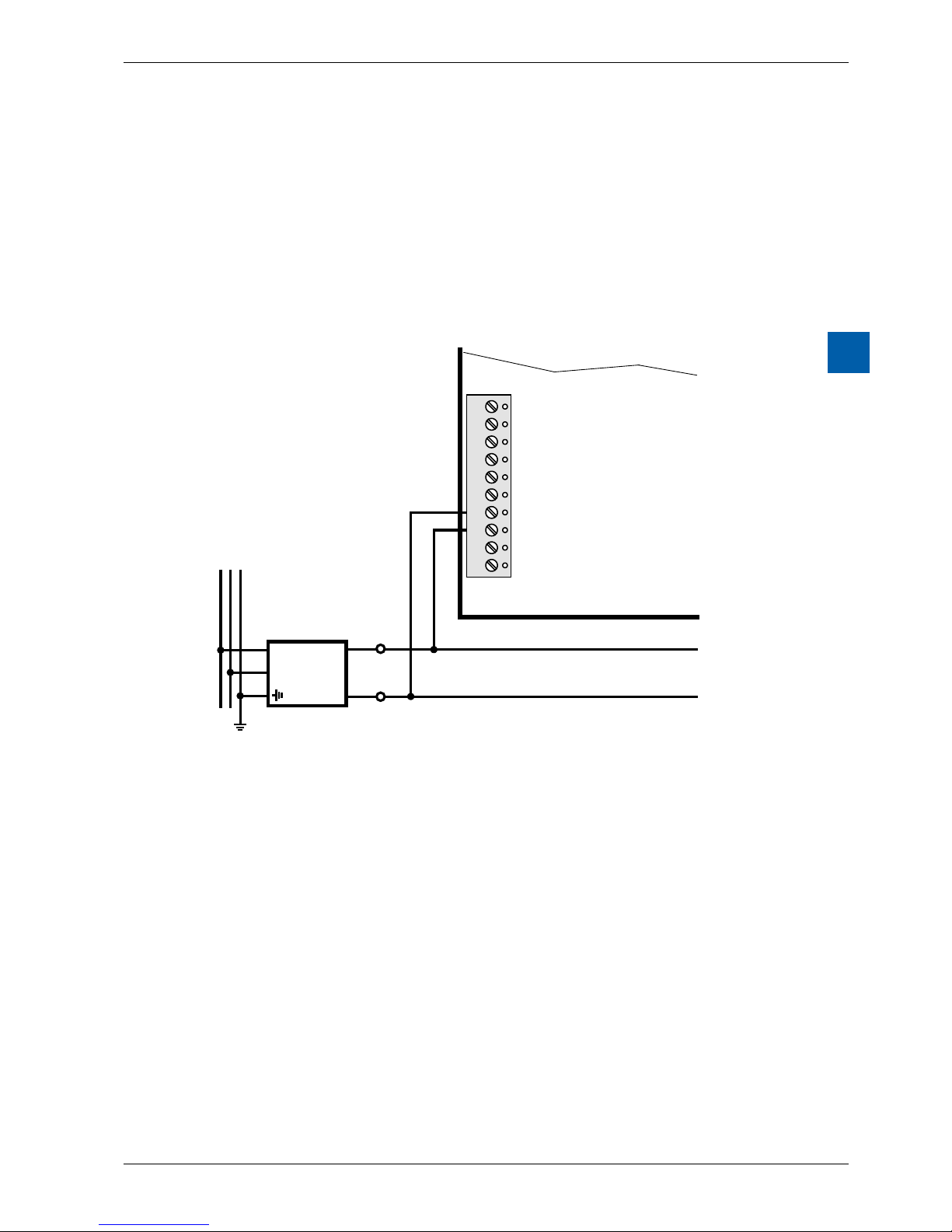

5 Power supply

6 LED behaviour

7 Run / Stop button

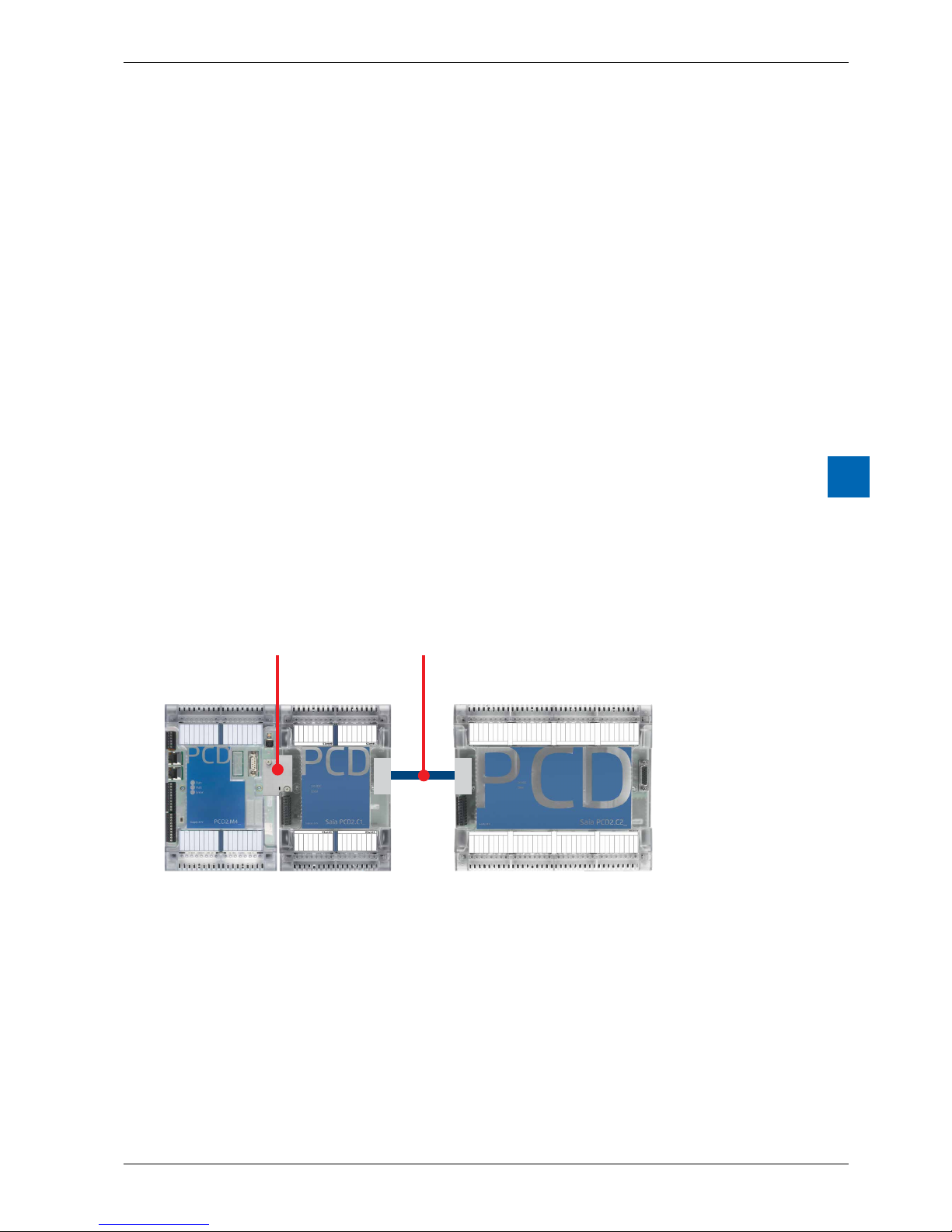

8 I/O Bus slots and I/O extension port

8.1 PCD2.M4160 ......................................................................................... 8-1

8.2 PCD2.M4560 ......................................................................................... 8-1

9 Data retention, Real time clock and battery module slot

9.1 Usage of optional battery module ......................................................... 9-1

9.2 User program data ................................................................................ 9-1

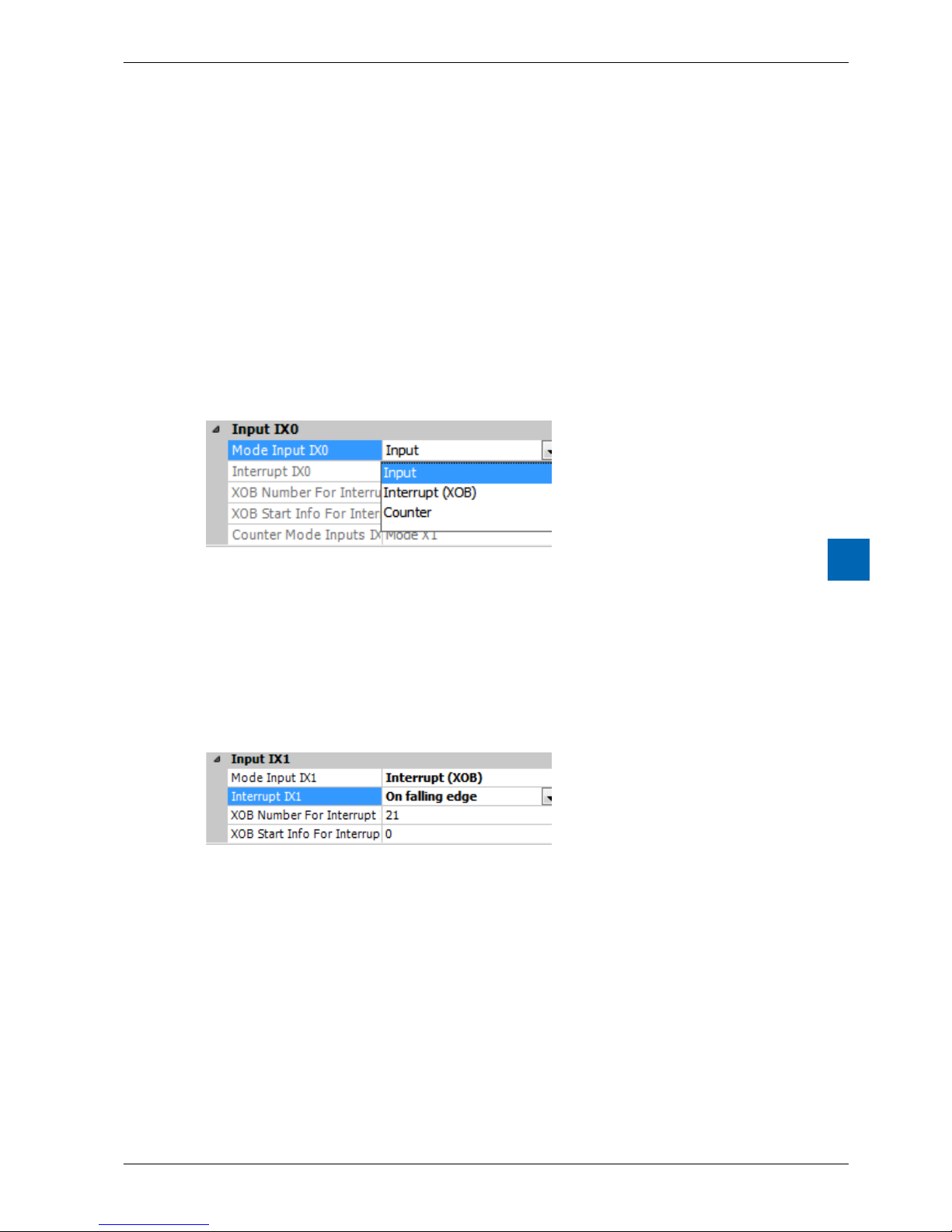

10 Digital interruptive inputs

10.1 Usage in normal digital inputs ............................................................... 10-1

10.2 Interruptive inputs .................................................................................. 10-1

10.3 Onboard Counter .................................................................................. 10-2

10.3.1 Introduction ........................................................................................... 10-2

10.3.2 Function Description ............................................................................. 10-3

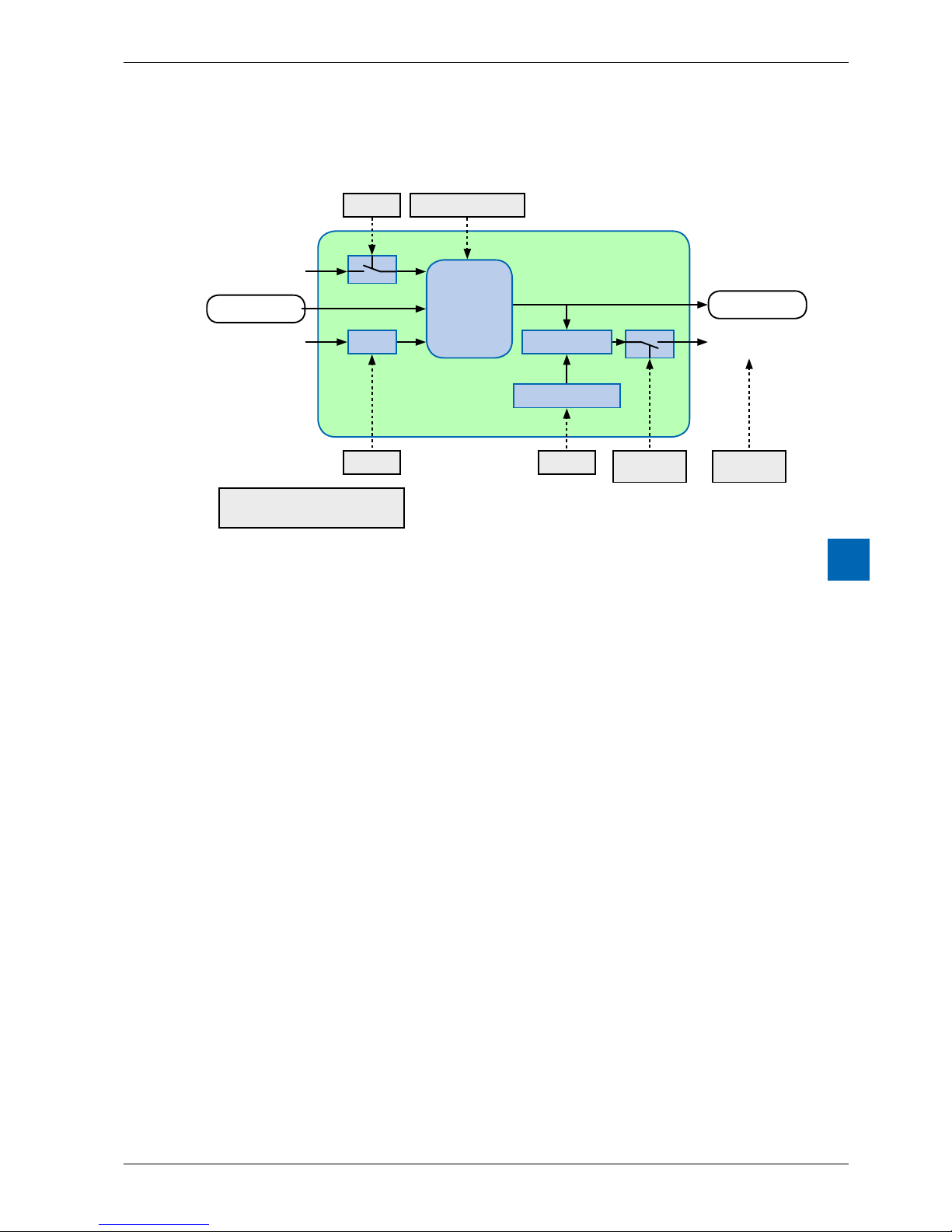

10.3.2.1 Function Block Diagram ........................................................................ 10-3

10.3.2.2 Function Description ............................................................................. 10-3

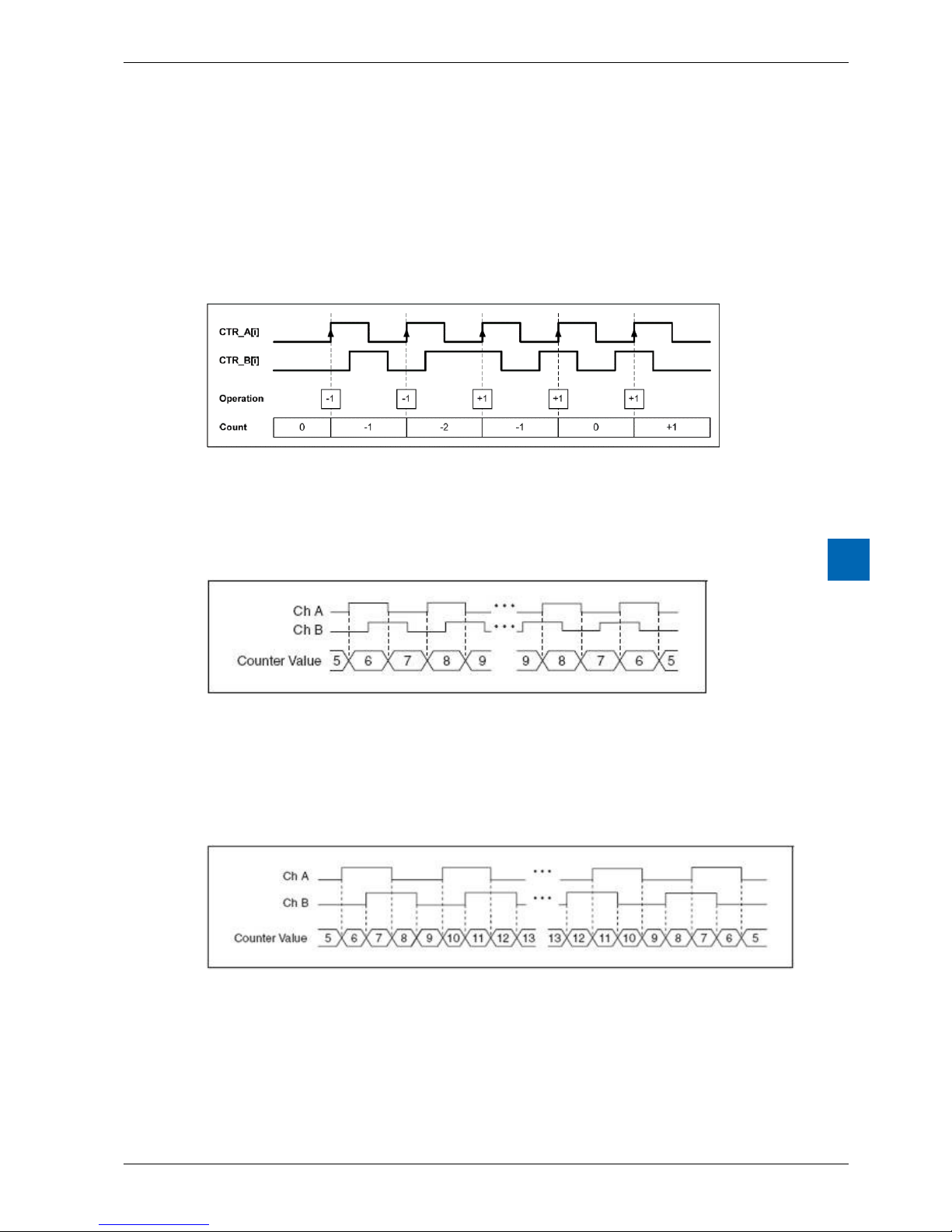

10.3.2.3 Counter Mode Description .................................................................... 10-4

10.3.2.4 System Function Parameters ................................................................ 10-5

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4x60

Contents

0-2

0

11 Watchdog relay

12 Communication ports

12.1 Baudrates .............................................................................................. 12-1

12.2 Slot A (Port #1) terminal block X5 ........................................................ 12-2

12.2.1 RS-485/RS-422

PCD7.F110S Serial Interface Module .............................................. 12-3

12.2.2 RS-232 up to 115 kBit/s, suitable for Modem Connection

PCD7.F121S Serial Interface Module .............................................. 12-4

12.2.3 RS-485 electrical isolation

PCD7.F150S Serial Interface Module .............................................. 12-5

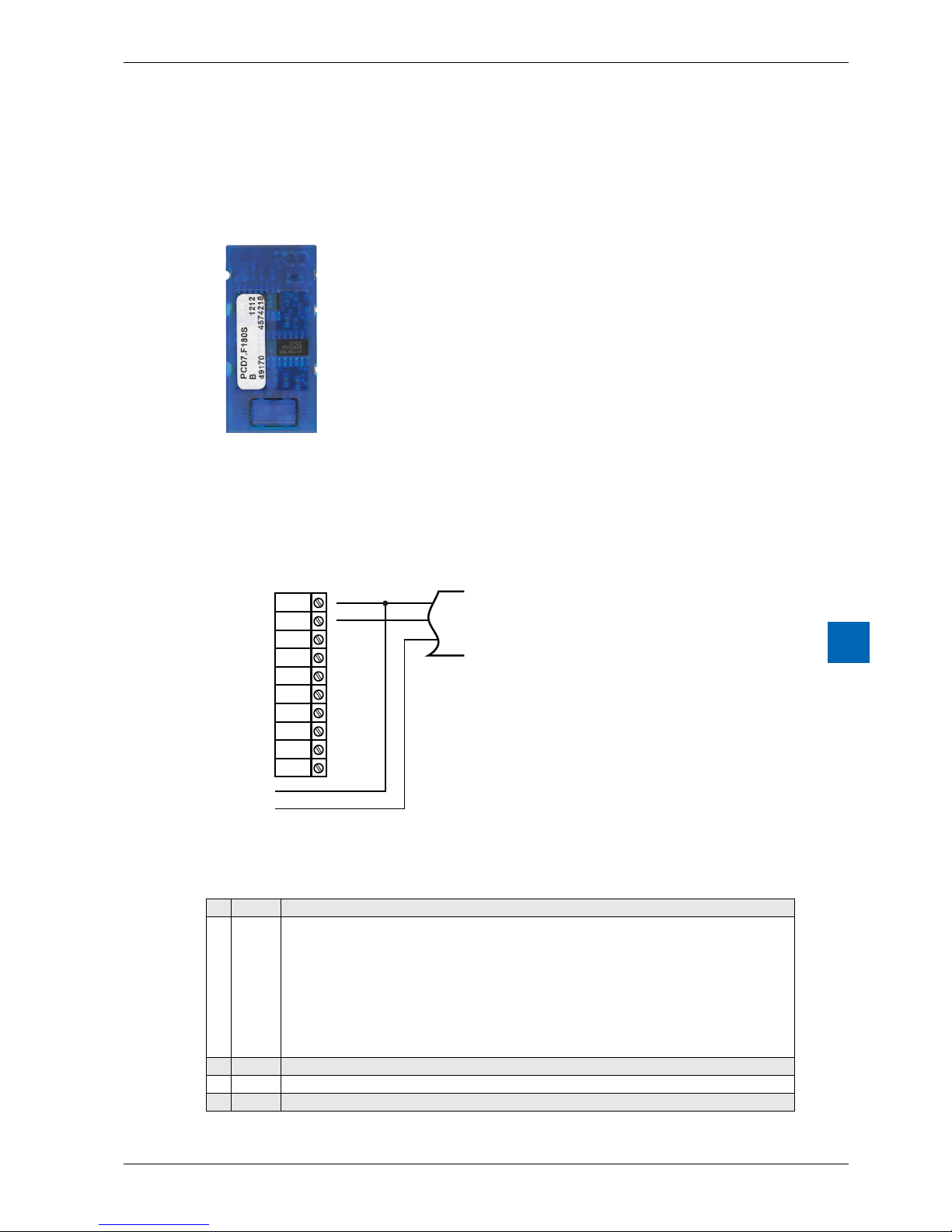

12.2.4 Belimo MP-Bus

PCD7.F180S Serial Interface Module .............................................. 12-6

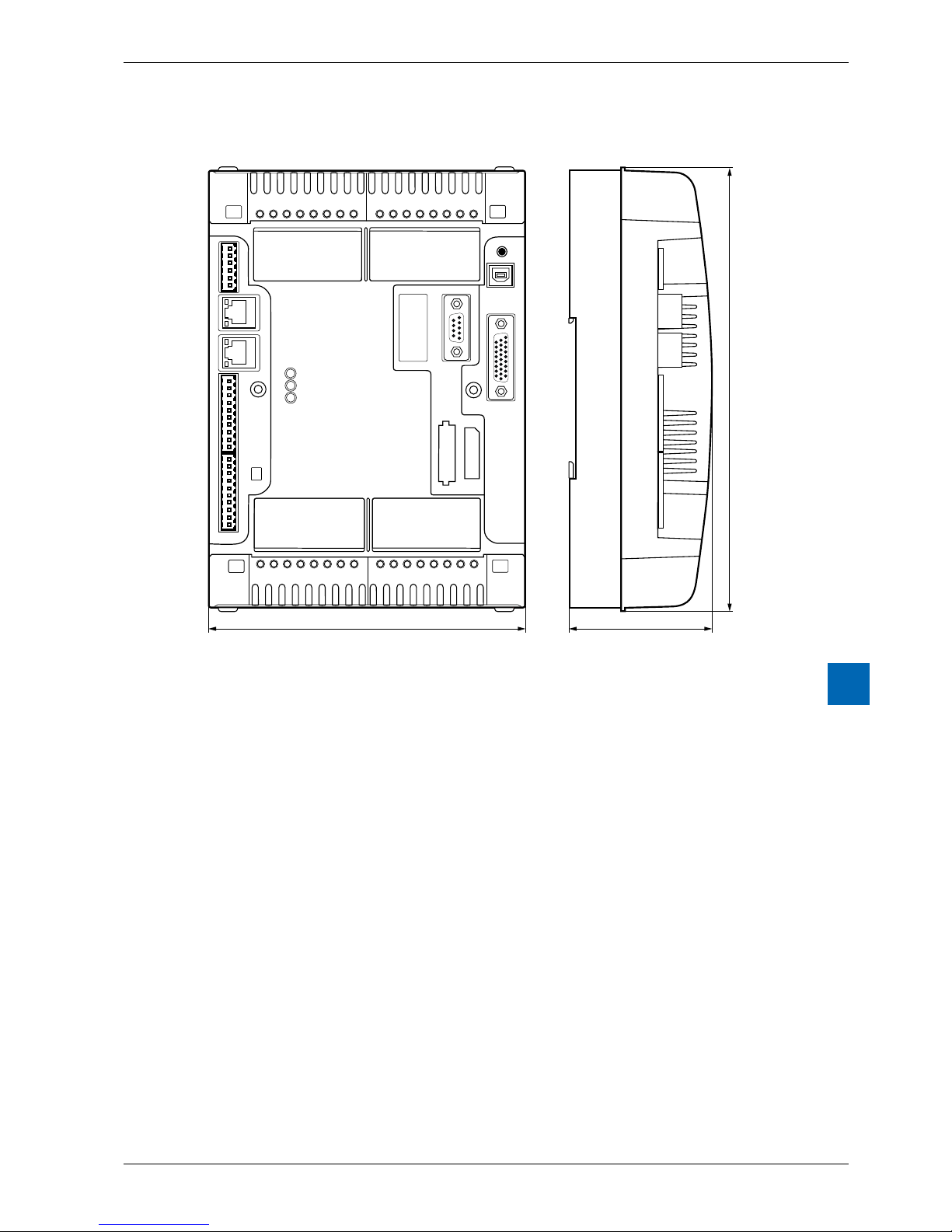

13 Dimensions

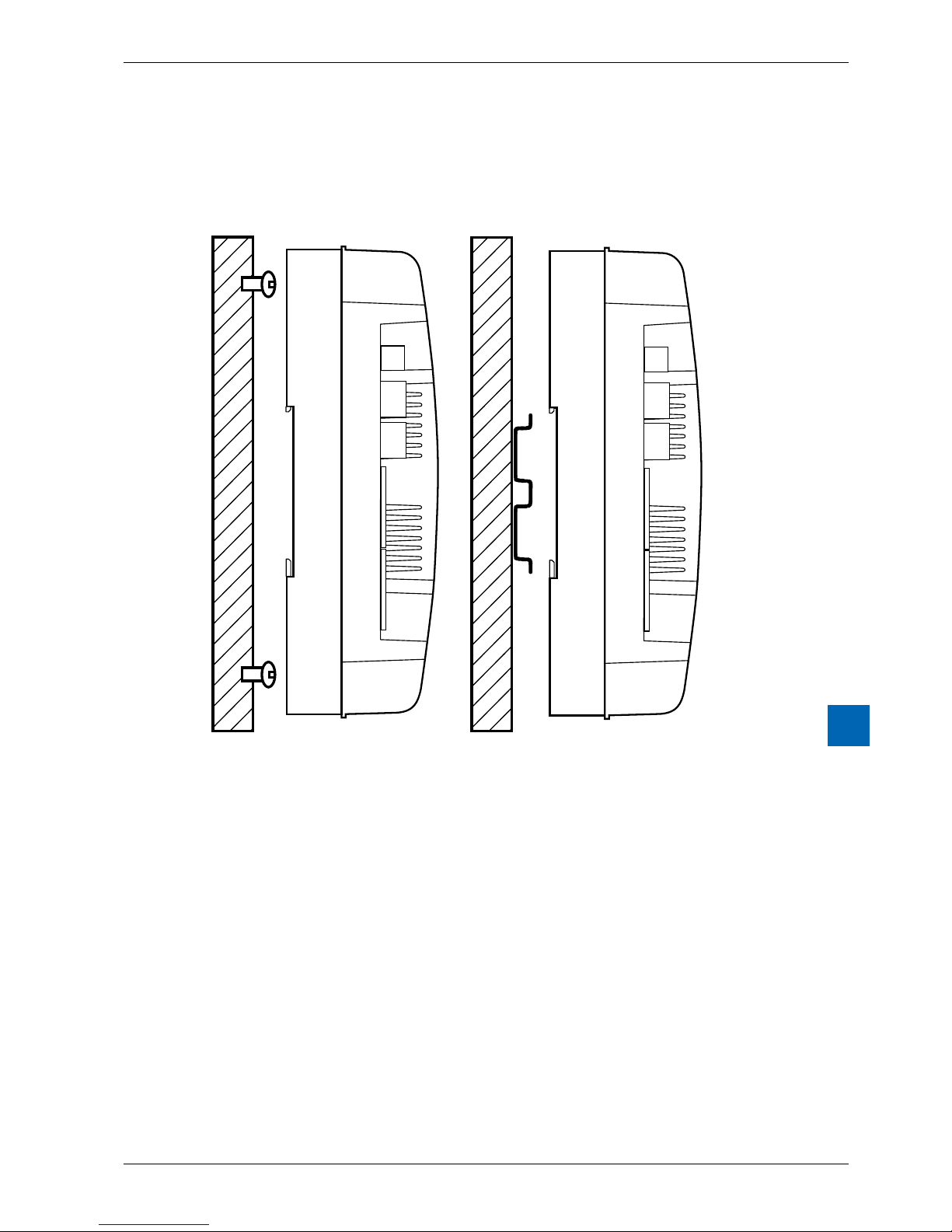

14 Mounting

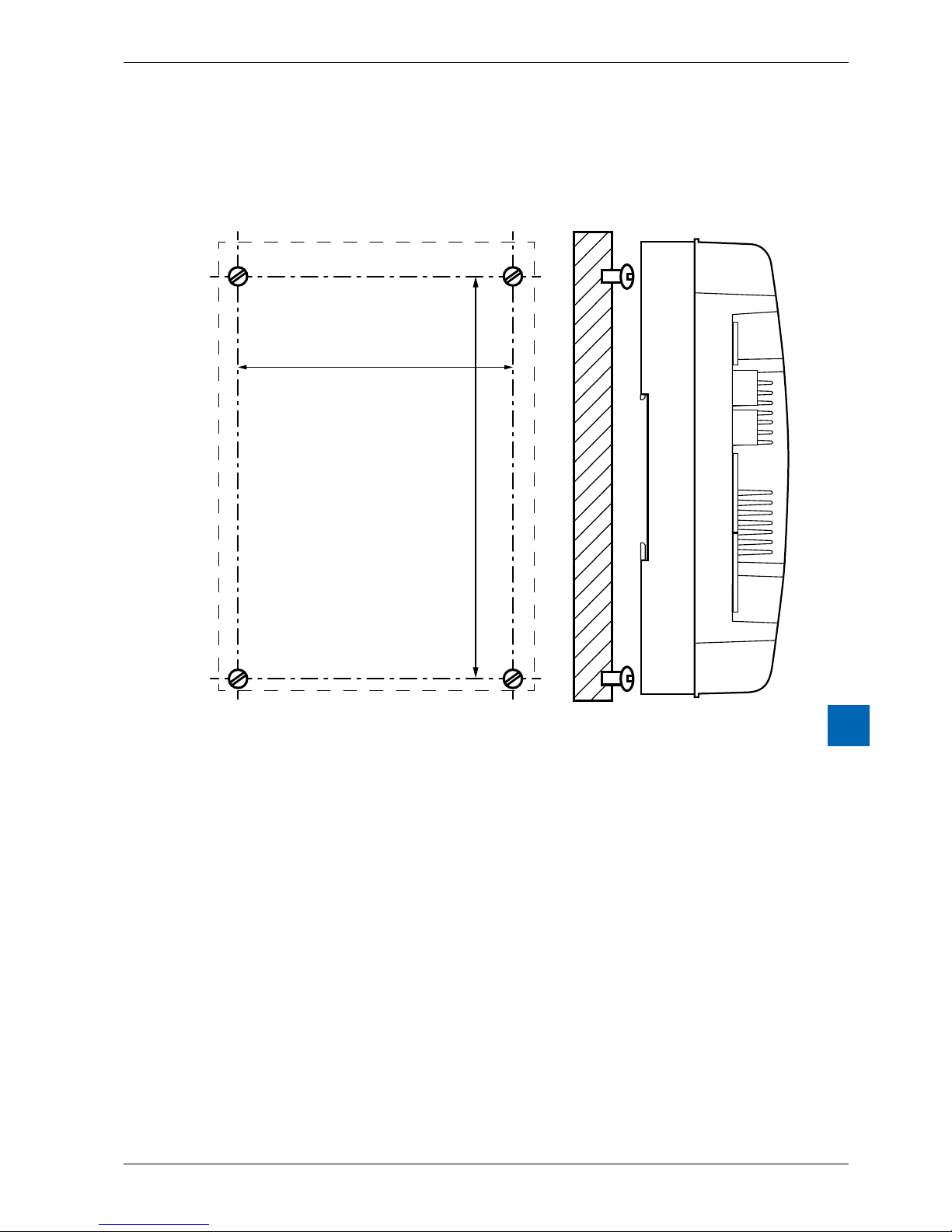

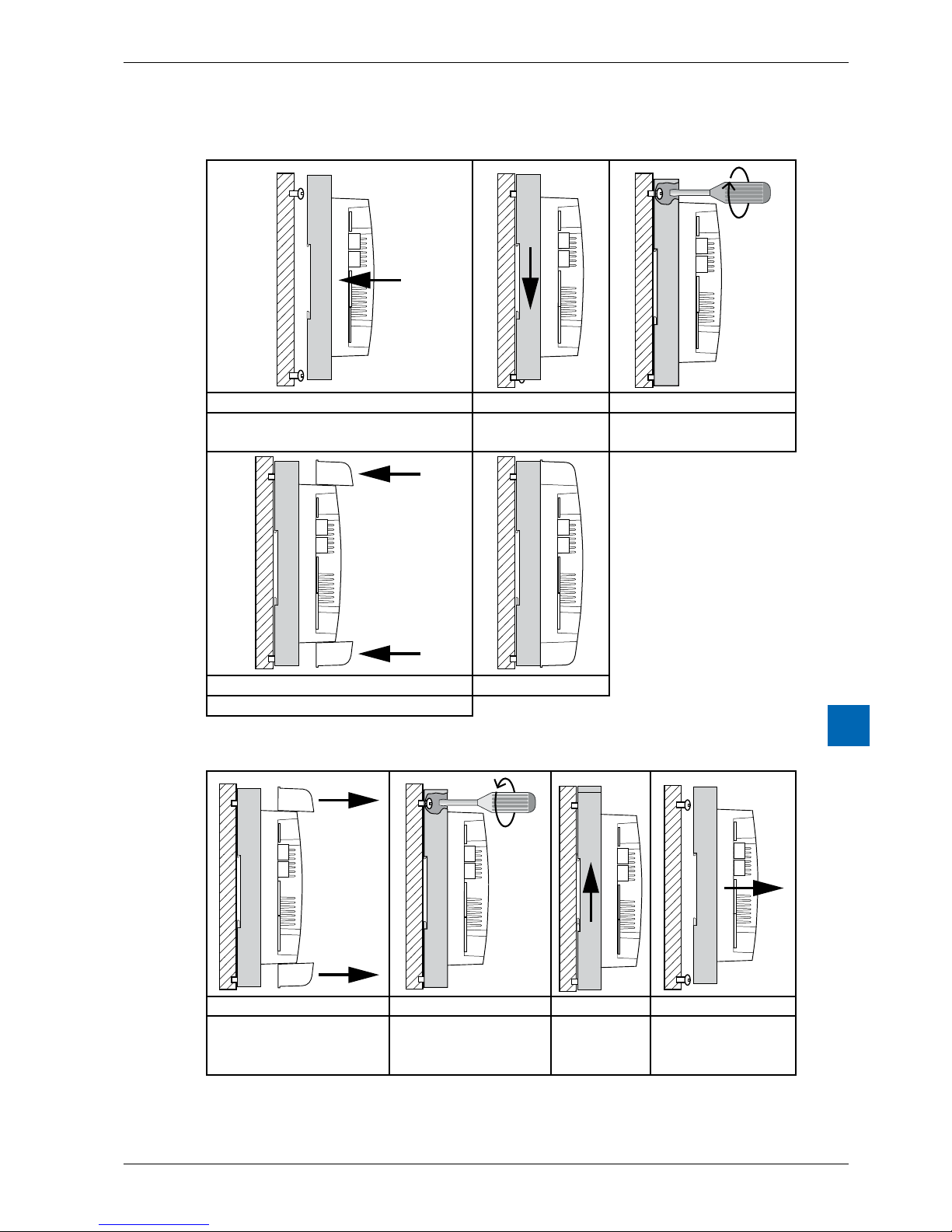

14.1 Mounting with screws ............................................................................ 14-2

14.1.1 Mounting the PCD2.M4x60: .................................................................. 14-3

14.1.2 Dismounting the PCD2.M4x60: ............................................................. 14-3

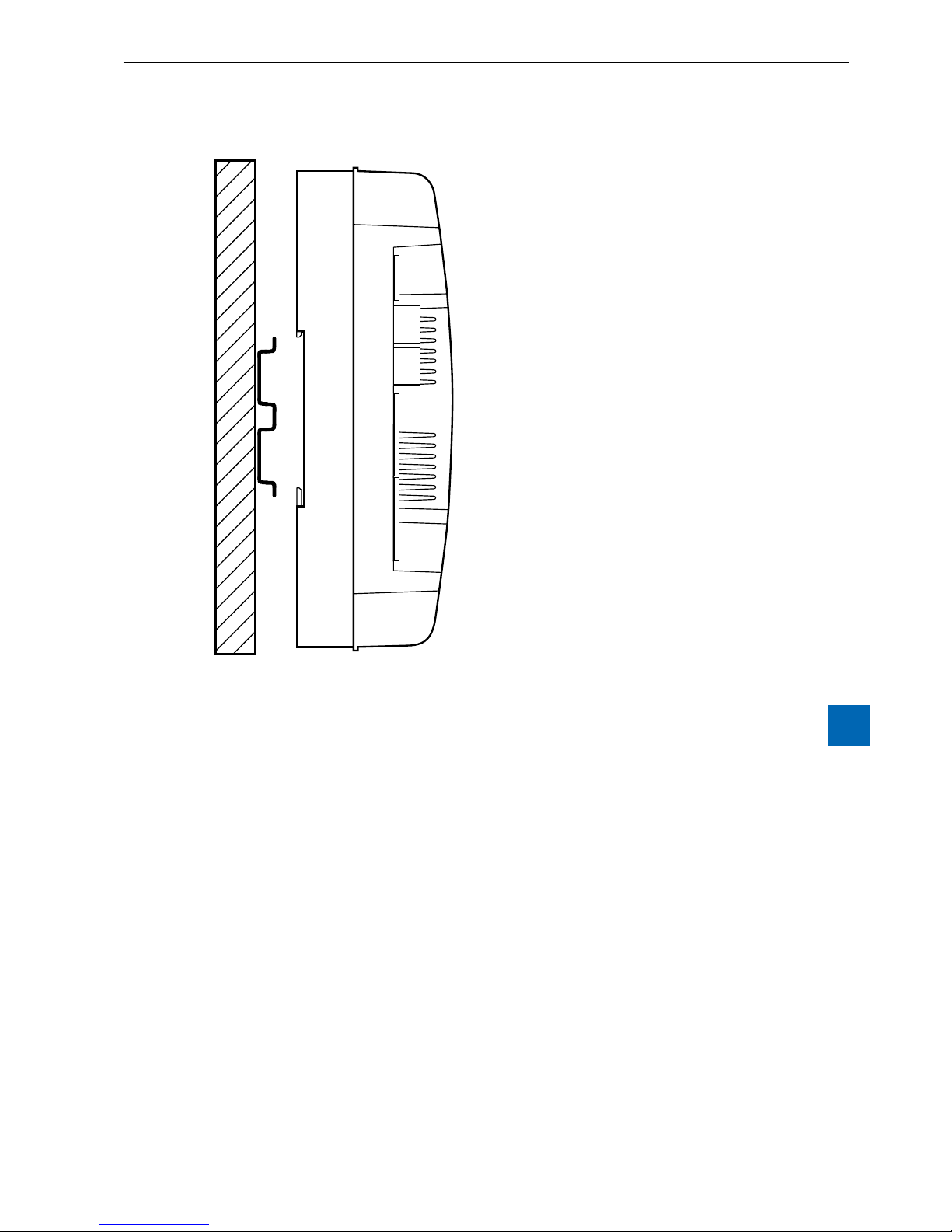

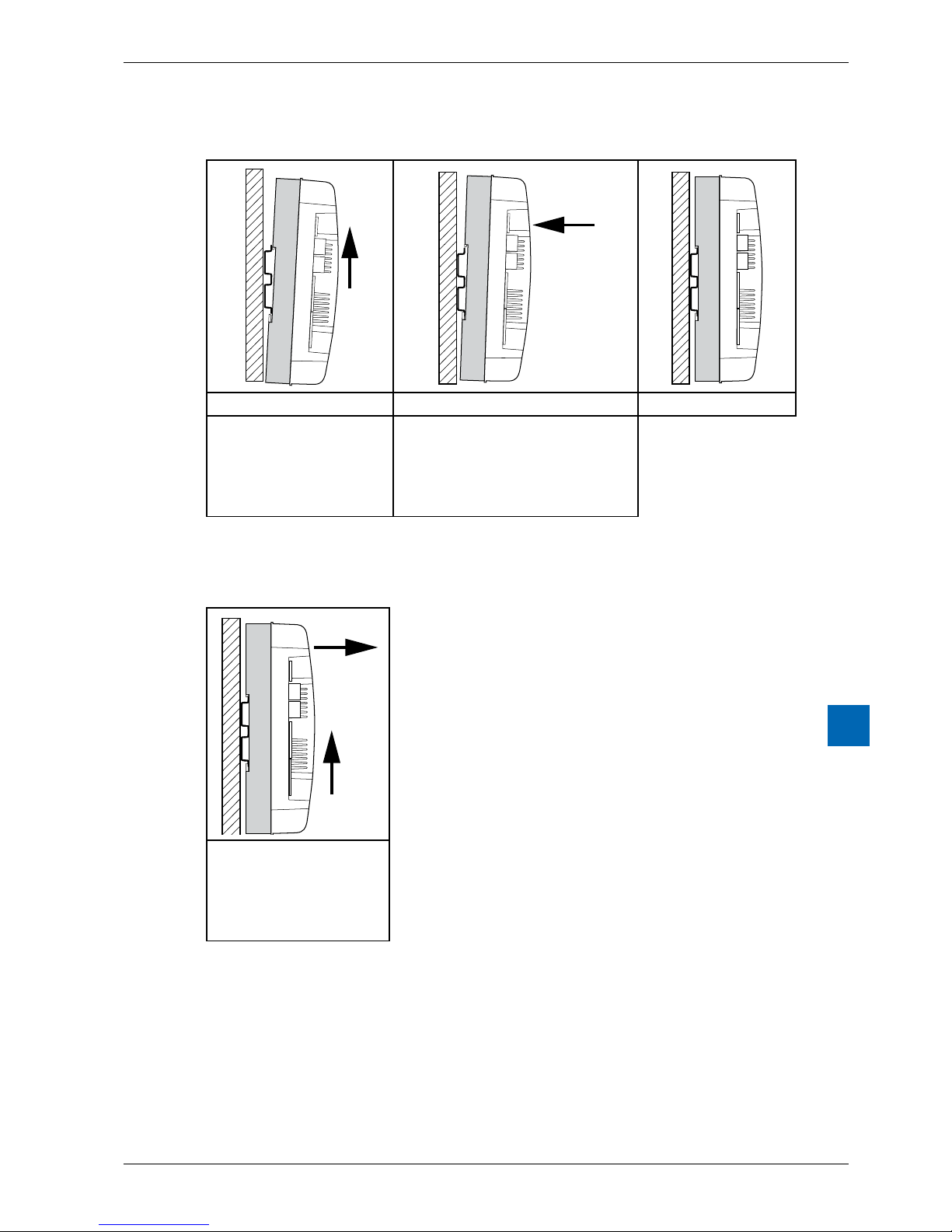

14.2 DIN rail mounting ................................................................................. 14-4

14.2.1 Mounting the PCD2.M4x60: .................................................................. 14-5

14.2.2 Dismounting the PCD2.M4x60: ............................................................. 14-5

A Annex

A.1 Icons ...................................................................................................... A-1

A.2 Contact .................................................................................................. A-2

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4x60

Contents

0-3

0

0.1 Document History

Version Changes Published Comments

ENG01 2015-10-20 2015-10-26 First edition
ENG02 2016-08-17 2016-08-17 - Power supply

- Mounting with screws and DIN-rails
ENG03 2016-09-01 2016-09-02 - New pictures for mounting with screws
ENG04 2016-12-12 - - Restrictions on communication port

Slot ‘A’
ENG04 2017-03-08 2017-03-08 - Chap. 10.3 Module internal counter - new
ENG05 2018-05-16 2018-05-16 - “ambient conditions” added in 3.2

0.2 Trademarks

Saia PCD® is a registered trademark of Saia-Burgess Controls AG.

Technical changes are subject to the state of technology.

Saia-Burgess Controls AG, 2018. © All rights reserved.

Published in Switzerland

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4x60

Graphical overview

1-1

1

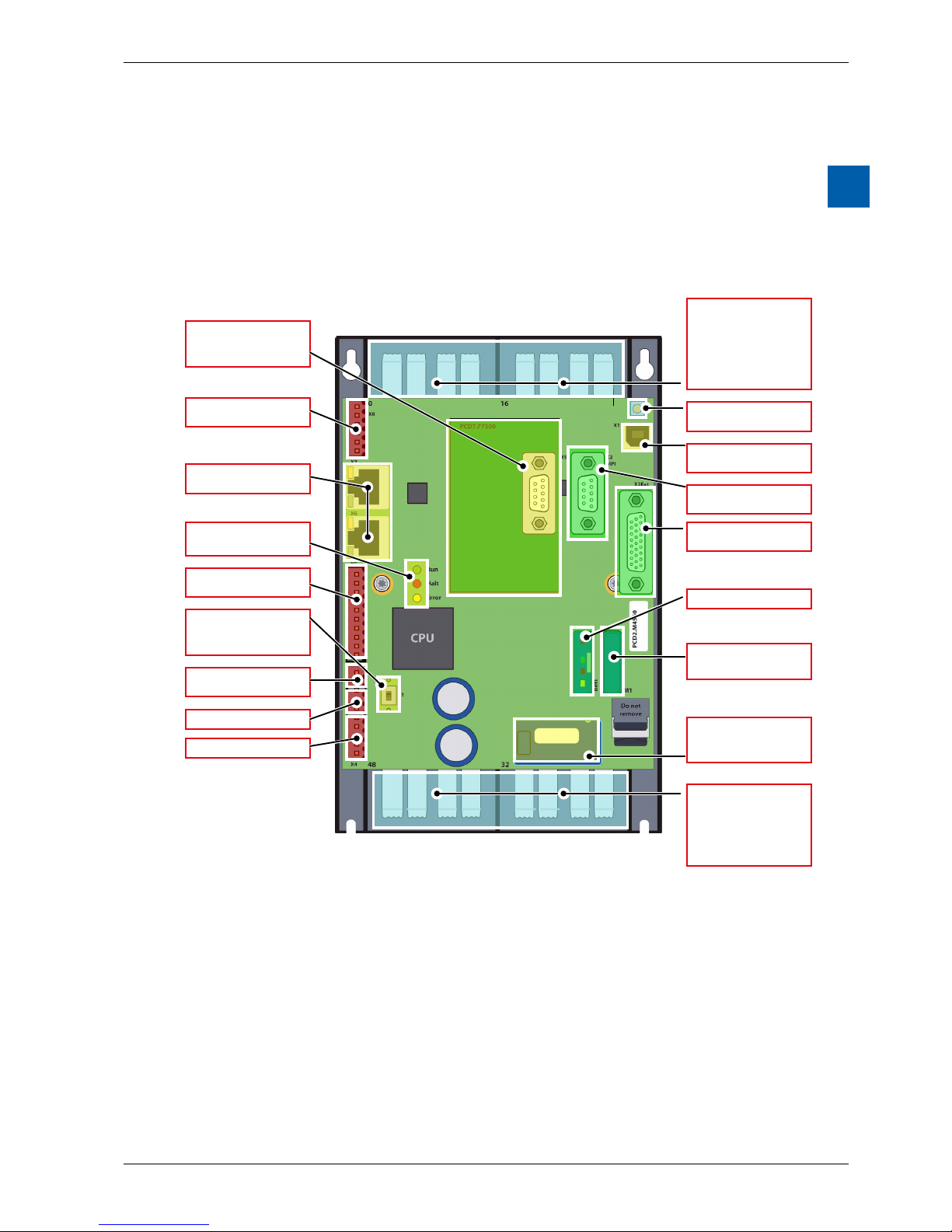

1 Graphical Overview

The graphical overview shows some of the main topics covered in the Operating
Manual of the PCD2.M4160 and PCD2.M4560.

By clicking on the highlighted components and/or connections, you can jump
directly to the corresponding chapter in the document.
The numbers separated by dots indicate the relevant chapter numbers.

SlotA

Slot for memory
module Ch9.2

Terminating
resistance (RS-485)
Ch4.2

Battery Ch9.1

Slot, optional for
communication
Ch12.2

Supply voltage Ch5

Watchdog Ch11

On-board RS-485
interface Ch4.4

USB/PGU
connection Ch4.1

RUN/STOP button
Ch7

Slot A connection
terminal Ch4.5

Ethernet connection
(2 port switch) Ch4.6

Operation LEDs
Ch6

2 free slots with SPI
(faster serial bus)
for IO modules or
communications
modules
Ch8

Communication
port ‘C’
Ch4.8

Interrupt Input
Ch10

Isolated RS-485 /
MPI Ch4.2

I/O Extension port
Ch8

2 free slots with SPI
(faster serial bus)
for IO modules or
communications
modules Ch8

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Important notes

2-1

2

2 Important notes

2.1 Prerequisites

The PCD2.M4x60 must be used with the PG5 Suite v2.2.050 or higher.

2.2 Instructions for connecting Saia PCD® controllers to the internet

When Saia PCD controllers are connected directly to the internet, they are
also a potential target of cyber attacks. For secure operation, appropriate pro­tective measures must always be taken.
PCD controllers include simple, built-in protection features. However, secure
operation on the internet is only ensured if external routers are used with a

rewall and encrypted VPN connections.

For more information, please refer to our support site:

www.sbc-support.com/security

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

General Technical Details

Versions overview

3-1

3

3 Versions overview

PCD2.M4160 PCD2.M4560

Number of onboard digital inputs 4 digital inputs

(24 V, congurable: Normal, Interrupt, Counter)

Number of digital inputs/outputs in the base unit 64

Or I/O module slots in the base unit 4

Number of digital inputs/outputs with
PCD2.C1000/PCD2.C2000 module holders

– 1023

or I/O module slots – 60

Processing times [μs] Bit-Operation 0.1…0.8 μs

Word-Operation 0.3 μs

Real-time clock (RTC) Yes

Supercap to support the real-time clock > 10 days

Slot for optional battery module
Order article number: 4 639 4898 0

Yes, to support the real-time clock for > 3 years

Onboard memory

Program memory, DB/TEXT (Flash) 512kByte 2MByte

Working memory, DB/TEXT (RAM) 128Kbyte 1Mbyte

Flash memory (S-RIO, Konguration und

Backup)

128Mbyte 128Mbyte

User ash le system (INTFLASH) 8Mbyte 128MByte

Data backup with FRAM technology (the data will
remain when system is unpowered)

for R, F, DB, TEXT for R, F, DB, TEXT

Onboard communication interfaces

USB 1.1 <= 12Mbit/s

Ethernet, 2 Port Switch 10/100 MBit/s, fullduplex, autosensing/crossing

RS-485 on terminal block (Port 0) <= 115.2 kbit/s

RS-485 free protocol on D-Sub connector (Port 2)
or

RS-485 Probus DP Slave, Pro-S-Net D-Sub

connector (Port 10)

No <= 115.2 kBit/s

<= 1.5 Mbit/s

(galv. sep.)

Optional communication interfaces

PCD2.F2xxx Module for RS-232, RS-422,
RS-485, BACnet® MS/TP, Belimo MP-Bus, DALI
und M-Bus

I/O slot 0..1 2 Modules I/O Slot 0..3 4 Mod-

ules

Slot A for PCD7.F1xxx Module yes
Slot C for Probus Module PCD7.F7500 (Port 8) No yes

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

General Technical Details

Versions overview

3-2

3

Ambient conditions

Ambient temperature With assembly on a vertical surface with verti-

cally aligned terminals: 0…+55 °C

For all other installation positions, a reduced
temperature range of 0…+40 °C applies

Storage temperature –25…+85 °C

Relative humidity 10…95 % without condensation

General specications

Supply voltages
(in accordance with EN/IEC 61131-2)

24 VDC –20/+25% max. incl. 5% ripple ±15%

Power consumption Typ. 15 W with 64 I/O
Load capacity 5 V/ +V intern max. 800 mA/250 mA

Order details

PCD2.M4160 PCD2 processor unit with Ethernet-TCP/IP,

512 kB program memory, 64 I/O

PCD2.M4560 PCD2 processor unit with Ethernet-TCP/IP,

2 MB program memory, 1023 I/O

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

On-board

System overview

4-1

4

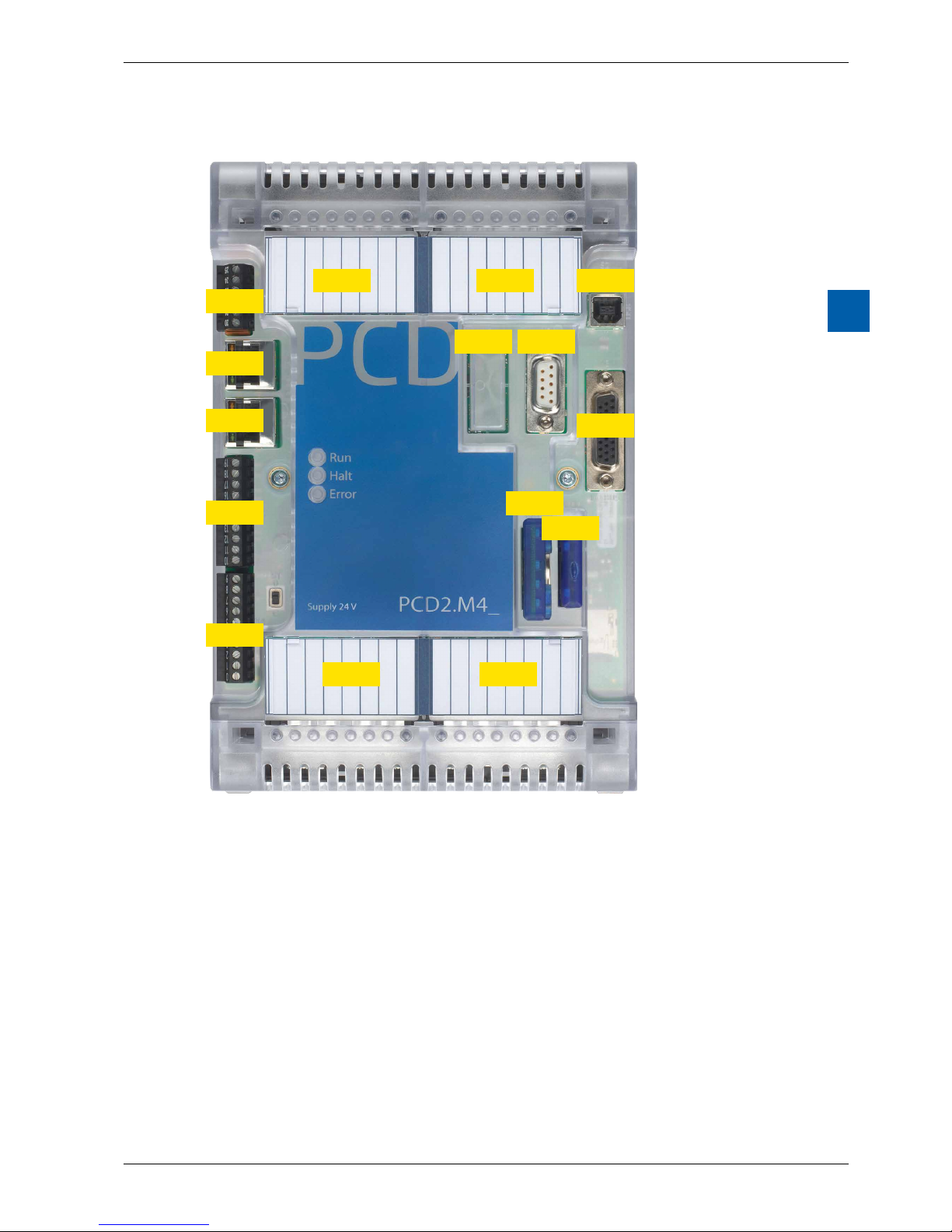

4 System overview

X6

I/O 0 I/O 1

X2

X1

X9

X3

BAT

M1

I/O 3 I/O 2

X7

X5

X4

X8

PCD2.M4560

4.1 X1 – USB Device

USB device 1.1 on type ‘B’ connector.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

On-board

System overview

4-2

4

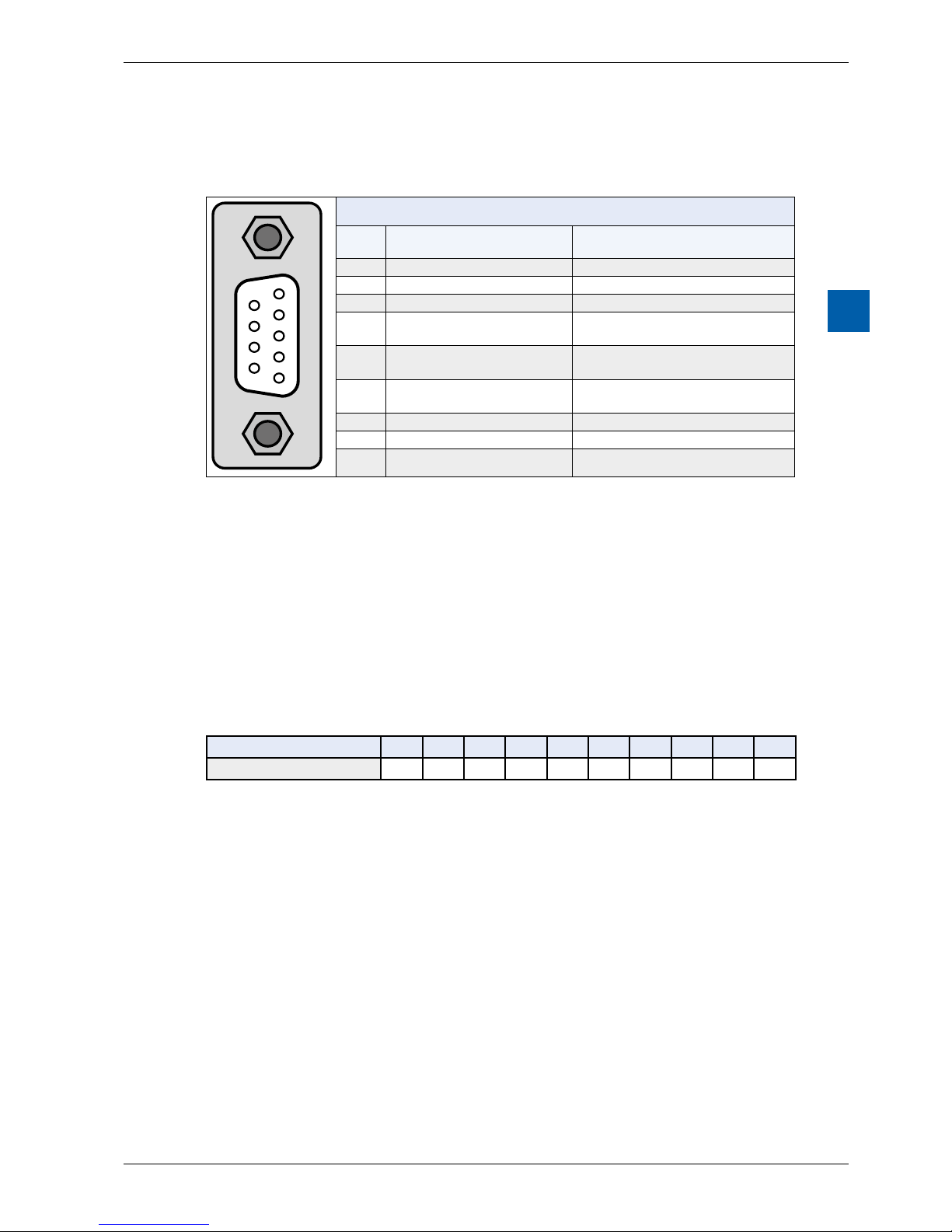

4.2 X2 – Isolated RS-485 / MPI

SUBD 9p connector

9

6

1

5

S-Net / MPI / RS-485

D-Sub

pin

signal Explanation

1 PGND GND
2 GND 0 V of 24 V supply
3 RxD/TxD-P1) B (red) Receive / transmit data positive
4 RTS/CNTR-P Control signal for repeater

(direction control)

5 SGND1) Date communication potential

(earth to 5 V)

6 +5V

1)

Supply voltage to P line termination

resistors

7 MPI24V Output voltage plus 24 V
8 RxD/TxD-N1) A (green) Receive/send data negative
9 not used

4.3 X3 – I/O Extension port

SUBD 26p for I/O Bus extension cables.

Only the I/O extensions with integrated power supply are compatible
(PCD2.C1000, PCD2.C2000,..)

4.4 X4 – Power supply / S-Bus / Watchdog

Connector inscription 9 8 7 6 5 4 3 2 1 0

Signal D /D – WD WD – – + + +

Details of the power supply are in Chapter 5 (power supply).

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

On-board

System overview

4-3

4

4.5 X5 – Communication port Slot ‘A’

PCD7.F121S

1)2)3)

PCD7.F110S PCD7.F180S PCD7.F150S PCD7.W600

3)4)

RS-232 RS-485 RS-422 Belimo RS-485, isol. 4xAO (0..+10 V)

10 PGND PGND PGND PGND PGND PGND
11 TxD Rx-Tx Tx MP Rx-Tx A0+
12 RxD /Rx-/Tx /Tx „MFT“ /Rx-/Tx A0-
13 RTS Rx „IN“ A1+
14 CTS /Rx A1-
15 PGND PGND PGND PGND PGND PGND
16 DTR

2)

RTS A2+

17 DSR

2)

/RTS A2-

18 COM CTS SGND* A3+
19 DCD

1)

/CTS A3-

* SGND is signal return for Rx-Tx-/Rx-/Tx signals and is isolated from PGND.

4) The plug-in module PCD7.W600 (4 analogue outputs) is described in the manual 27-634_ENG.

Please refer to the PCD7.F1xxS module descriptions in chapter 12 Communica­tion Ports.

Note HW version Restrictions

1) rev. A The signal "DCD" for modem communication is not supported.

2) rev. B - Issue with "DTR" signal, RS-232 full protocoll with handshake on DTR-DSR-

signals not supported.

- Modems are supported (without DTR signal).

3) rev. C

and higher

- RS-232 full protocoll issue is corrected.

- Modems and PCD7.W600 are fully supported.

4.6 X6 / X7 – Dual Ethernet (Switch)

Dual Ethernet port with integrated switch 10/100M.

4.7 X8 – Digital interruptive inputs

Four digital inputs congurable interruptive functions.

Connector inscription 25 24 23 22 21 20

Signal DI_IX3 DI_IX2 DI_IX1 DI_IX0 – –

4.8 X9 – Communication port Slot ‘C’

A hole is foreseen in the housing for the SUBD connector of module PCD2.F7500.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

On-board

System overview

4-4

4

4.9 M1 – Memory Slot

Slot for memory modules like PCD7.R610 for example.

4.10 BAT – Battery module slot

Slot for PCD3 battery module.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Power supply

5-1

5

5 Power supply

Supply voltage: 24 VDC -20% .. +25%

Power consumption: Typically 15 W

Capacity of internal 5V / V+ bus: 800 mA / 250 mA

Connection terminals

+

–

PCD2.M4x60

–

/D

D

+

WD

–

–

+

+

L

N

L N

X4

8

6

9

1

0

5

4

3

2

7

WD

Controller

24 VDC

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

LED behaviour

6

6-1

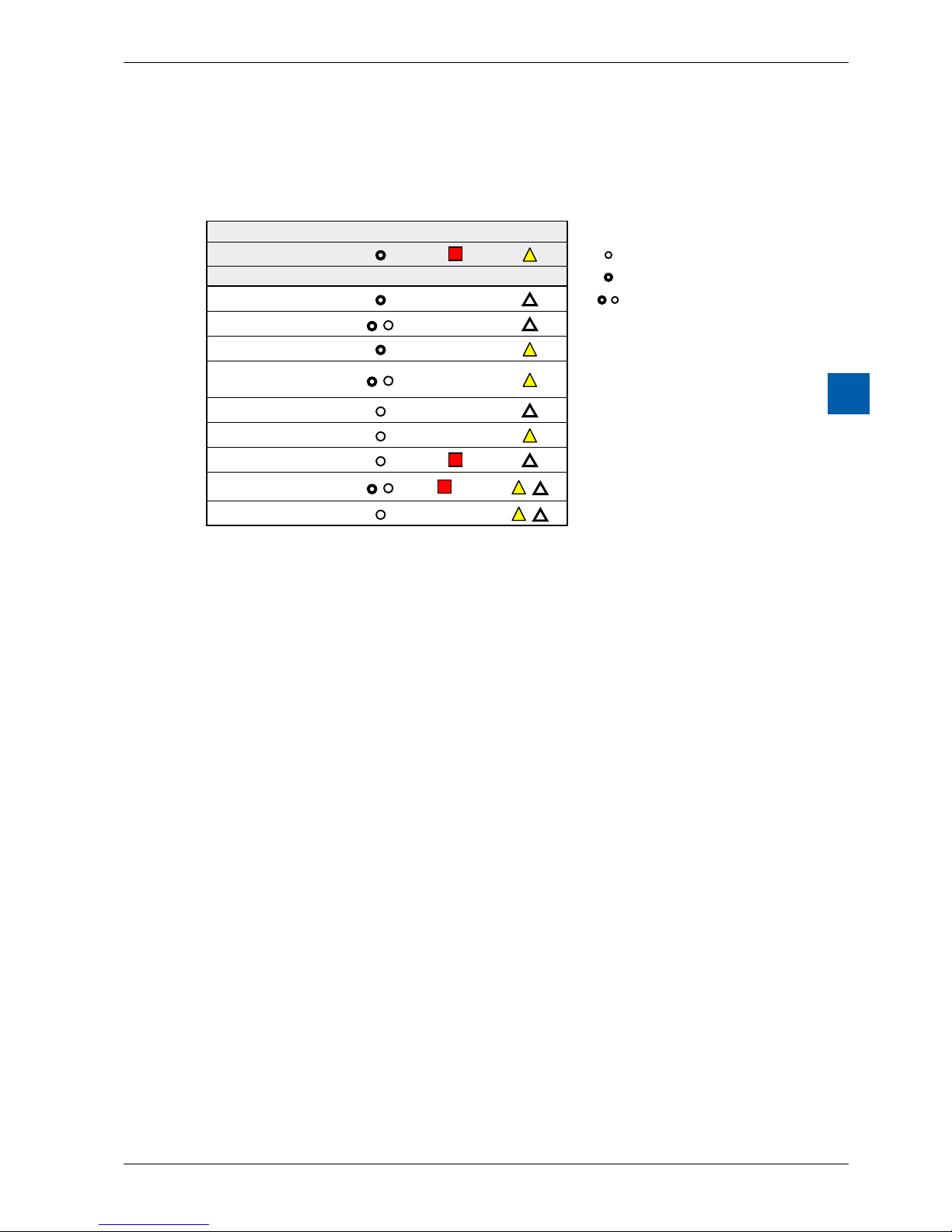

6 LED behaviour

Three LEDs (green, red and yellow) show the possible operating statuses of the
CPU as set out in the following table:

Meaning Run Stop Error(s)

Key:

Form

●

LED off

Colour green red yellow ● LED on

Run

●



●/ LED blinks

Run conditional

●/



Run with error

●



Run conditional
with errors

●/



Stop



Stop with errors



Halt

System diagnostics

●/

/

/

Battery fault



/

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Requirements │ General Information

Run / Stop button

7-1

7

7 Run / Stop button

A push button is placed near the USB connector (X1).

The operating mode can be changed during operation or during power-up.

If the button is pressed in Run mode for longer than ½ second and less than
3 seconds, the controller switches to Stop mode and vice versa.

If the button is pressed for longer than 3 seconds, the last saved user program is

loaded from the ash memory.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4160 | PCD2.M4560

I/O Bus slots and I/O extension port

8-1

8

8 I/O Bus slots and I/O extension port

8.1 PCD2.M4160

Four I/O Slots available in the PCD, addresses from 0 to 63.

The communication modules (PCD2.Fxxx) or memory modules (PCD2.Rxxxx) can
be connected in slots 0 or 1, but not in slots 2 or 3.

8.2 PCD2.M4560

Four I/O Slots available in the PCD, addresses from 0 to 63.

The communication modules (PCD2.Fxxx) or memory modules (PCD2.Rxxxx) can
be connected in the four I/O slots of the PCD.

The extensions PCD2.C1000 or PCD2.C2000 can be chained up to address 1023
(including the 64 addresses available in the PCD itself. That means 64 I/O mod­ules can be connected to the system.

PCD2.M4560

PCD2.C1000 PCD2.C2000

Direct plug
connection

Cable

connection

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4160 | PCD2.M4560

Data retention

9-1

9

9 Data retention, Real time clock and battery module slot

9.1 Usage of optional battery module

The slot for the PCD3 battery module will be unused for the most of applications.
This option will be used only for customers they need to keep the real time clock
up to date when the system stays unpowered more than 10 days.

For an unpowered duration up to 10 days, the real time clock stays alive by a
super-capacitor.

9.2 User program data

The user program medias (registers, ags, etc.) are stored in a non-volatile memo­ry. That means the information is not lost when the system is unpowered and even
if the system has no battery module plugged.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

IX0 and IX1

Interrupts

10-1

10

10 Digital interruptive inputs

Digital inputs respecting standard IEC 61131-2:

Voltage input lower than 5V is considered as state “low” and voltage higher than
15V is considered as state “high”.

Maximum input voltage = 30V.

10.1 Usage in normal digital inputs

To use the digital inputs as normal inputs, choose the mode “Input” in the device

congurator.

10.2 Interruptive inputs

To use the digital inputs as interruptive inputs, choose the mode “Interrupt”. The
interrupts can be triggered on rising edge, falling edge or both.

A XOB is called when an interrupt is detected. The XOB number is congured by

default at XOB 20 for input 0 up to XOB23 for Input 3.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

IX0 and IX1

Interrupts

10-2

10

10.3 Onboard Counter

10.3.1 Introduction

The four Interrupt Inputs can be used as two independent On board Counters.
This On board Counter is counting independent of the CPU Cycle.

On the PCD1.M22_ the Onboard Interrupts and the Onboard Counter are using the same
Inputs. These Functions can’t be used in parallel.

The onboard Counter is able to count bidirectional.

The Overow handling is congurable. If a congurable reference Value is

reached, it is possible to call a Process Alarm XOB.

The max counter Frequency is limited to 1 kHz.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

IX0 and IX1

Interrupts

10-3

10

10.3.2 Function Description

10.3.2.1 Function Block Diagram

Counter

Input IX1

Input IX0 Call XOB

PAD 6500

Start

*(–1) Comparator

Reference value

Count/Rotate

DIR DIR

XOB

Number

XOB

Info

PED 6500

Clock

Clock/Direction

Congurable Parameters

with SFC Call

10.3.2.2 Function Description

To congure, to start and stop the Onboard Counter there exist a system call
(BOARDCNT). For the conguration and to start the Counter only a single call of

the system call is necessary. The Counter value can be read with a direct periph-

ery access on address 65’000 / 65004. The Value of the Counter can be set at any

time with a direct periphery write access to address 65’000 (Counter 0) or 65004
(Counter1).

● On a startup, the Counter is preset to 0.

● If the PCD goes to halt the counter is stopped.

● To change the Counter Parameter, the counter must be stopped.

ROTATE: In the Rotate Mode the counter counts up to the Reference Value

(Parameter Ref) and starts then from 0. Or it counts down to 0 and starts with the

Reference Value. In “normal” Mode theCountingRangeis from 0 to 0xFFFF'FFFF.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

IX0 and IX1

Interrupts

10-4

10

10.3.2.3 Counter Mode Description

The Counter Mode is confugured in the IO-Conguration (On Board IO’s Inputs /

Interrupts / Counter / Watchdog )

X1 Encoding

In this mode, the counter is set on every positive edge of A and counts up or down
depending on the B state.

X2 Encoding

The same behavior holds for X2 encoding except the counter increments or decre­ments on each edge of channel A, depending on which channel leads the other.
Each cycle results in two increments or decrements, as shown in Figure.

X4 Encoding

The counter increments or decrements similarly on each edge of channels A and
B for X4 encoding. Whether the counter increments or decrements depends on
which channel leads the other. Each cycle results in four increments or decre­ments, as shown in Figure.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

IX0 and IX1

Interrupts

10-5

10

10.3.2.4 System Function Parameters

With the System Function Library Number 17 Function Number 1 it is possible to

start / stop and Congure the OnBoard Counter. The following table displays the

Parameters

Parameter Declaration Type Range Description

COUNT_NUM Input R

K
Wert

0 0: Counter 0

1: Counter 1

START/STOP Input F TRUE / FALSE Start or Stop the Counter

CONT Input F TRUE / FALSE True: Continuous counting

False: Counting until the ref value is reached

ROTATE Input F TRUE / FALSE True: Overow handling,

see description Rotate

False: No Overow handling

DIR Input F TRUE / FALSE Only in Mode X0 and X1

True: Input IX0 is inverted
False: Input IX0 is not inverted

REF_OUT Input F TRUE / FALSE This Functionality is not supported

(set Always to FALSE)

PULSE_OUT Input F TRUE / FALSE This Functionality is not supported

(set Always to FALSE)

REF Input R

K
Wert

xxx

1)

Maximum Value or Reference Value

XOB_NBR Input R

K
Wert

0
32…63

0: No XOB call if Counter Value is

equal Ref Value

32…63: XOB is called if the Counter

reaches the Ref Value

XOB_INFO Input R

K
Wert

YYYY

2)

This Value can be read in the XOB local data.

RET_VAL Output R ZZZZ

3)

Error and status message:
0: Counter started
1: Counter already running

(called when START=TRUE)

-2: COUNT_NUM is invalid (0)

-3: XOB_NBR is invalid

-4: Counter Inputs are congured as Interrupts

-5: Conguration with COUNT = TRUE,

ROTATE=TRUE, and REF = 0

REF_REACHED Output F TRUE / FALSE This Flag is set if the Ref Value was reached.

The Flag will be reset after the call.

1) 4 Byte Range from 0x0000'0000 to 0xFFFF'FFFF.

2) 2 Byte Range from 0x0000 to 0xFFFF.

3) Integer Range from -32768 to +32767.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Watchdog

11-1

11

11 Watchdog relay

PCD2.M4_ CPUs have a hardware watchdog as standard equipment. The watch­dog relay is at Pins 5 and 6 at Plug X4.

Technical data

Number of outputs 1× relay switching contact
Function Watchdog function or user output (selectable)
Max. voltage 48VAC or VDC
Switching capacity 1A (with DC switch-on voltage, a freewheeling diode should be con-

nected in parallel to the load)

Functional description

As soon as the watchdog relay is called at the address O 255 by a switch on/

o󰀨 frequency of < 200ms (or other value congured in device congurator), the
relay contact closes. It remains closed until the pulse time exceeds the congured

value.

Example of an instruction list (IL) sequence:

Label Command Operand Comment

COB 0 ; or 1 … 15

0

STL WD_Flag ; invert the help ag

OUT WD_Flag

OUT O 255 ; Output 255 blinking

ECOB

With this code the watchdog triggers even for (continuous) loops that are due to
programming. Regarding user program cycle time, please note the following:

With cycle times longer than 200 ms, the code sequence must be repeated
multiple times in the user program in order to prevent the watchdog triggering
during RUN.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-1

12

12 Communication ports

12.1 Baudrates

Baudrate Port 0

RS485 on

board

Port 1

Slot ‘A’

Isolated RS485

Port 2 Port 10

free protocol

S-Bus

Pro S-Net

110 X X – –

300 X X – –

600 X X – –

1’200 X X X –

2’400 X X X –

4’800 X X X –

9’600 X X X –

19’200 X X X –

38’400 X X X –

57’600 X X X –

93’750 – – – X

115’200 X X X -

187’500 – – – X

500’000 – – – X

1’500’000 – – – X

Slot ‘C’ (port 8) is dedicated to the module Probus-DP Master PCD7.F7500.

Please refer to user manual of PCD2.M5.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-2

12

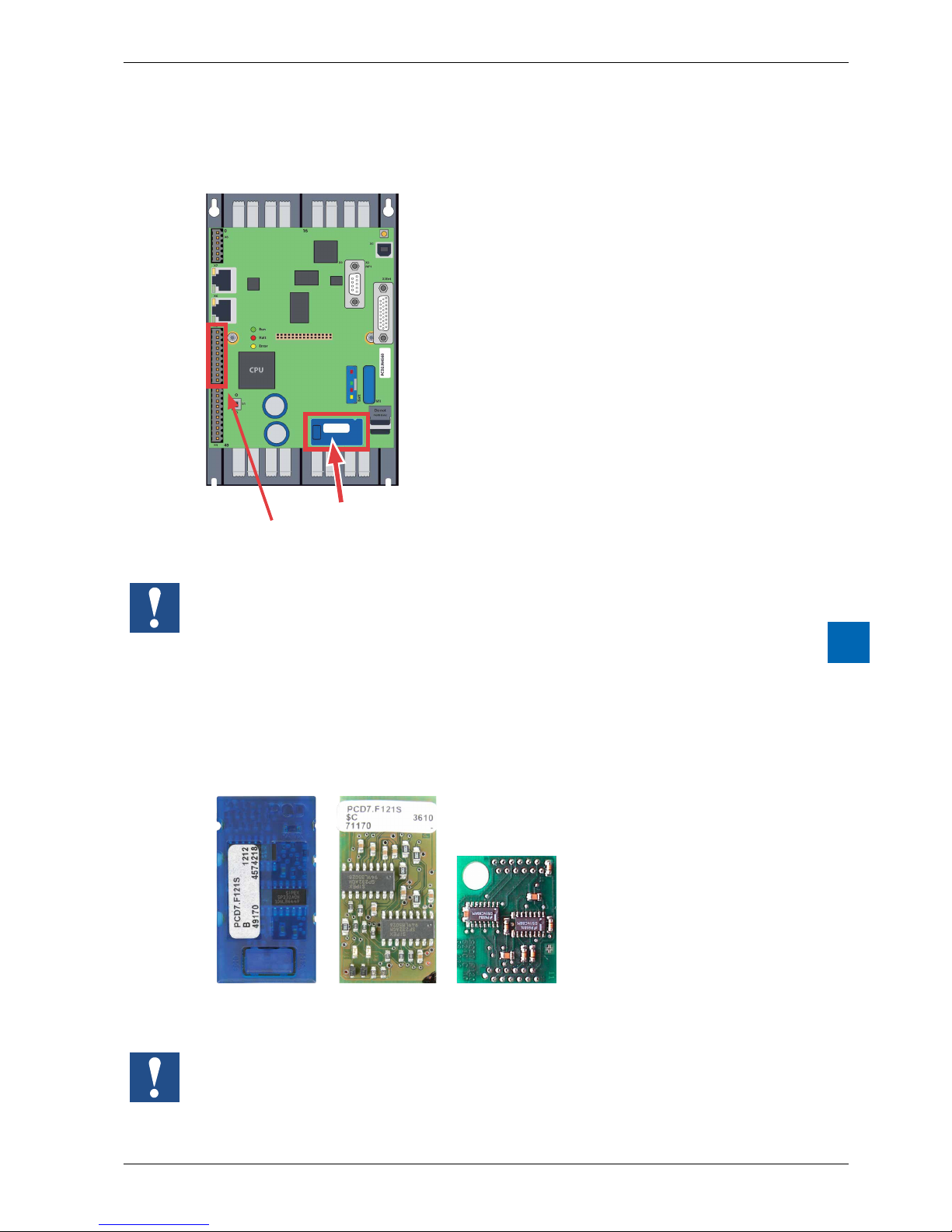

12.2 Slot A (Port #1) terminal block X5

Only PCD7.F1xxs modules are supported on the PCD2.M4x60.

Slot A
Terminal block X2 (connection terminals for Slot A)

Older interface modules without “S” at the end of the product designation
(e.g. PCD7.F110) are not compatible with PCD2.M4x60.

Overview of the interface types:

PCD7.F1xxS

with housing,

2012 or later

PCD7.F1xxS

previous design

PCD7.F1xx not

compatible with

PCD1.M2_

Important: PCD7.F1xxS devices with hardware version A are not compatible with
earlier PCDs (PCD1.M1xx/PCD2.M1xx/PCD2.M48x/PCS1) from NT- based PCD
systems.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-3

12

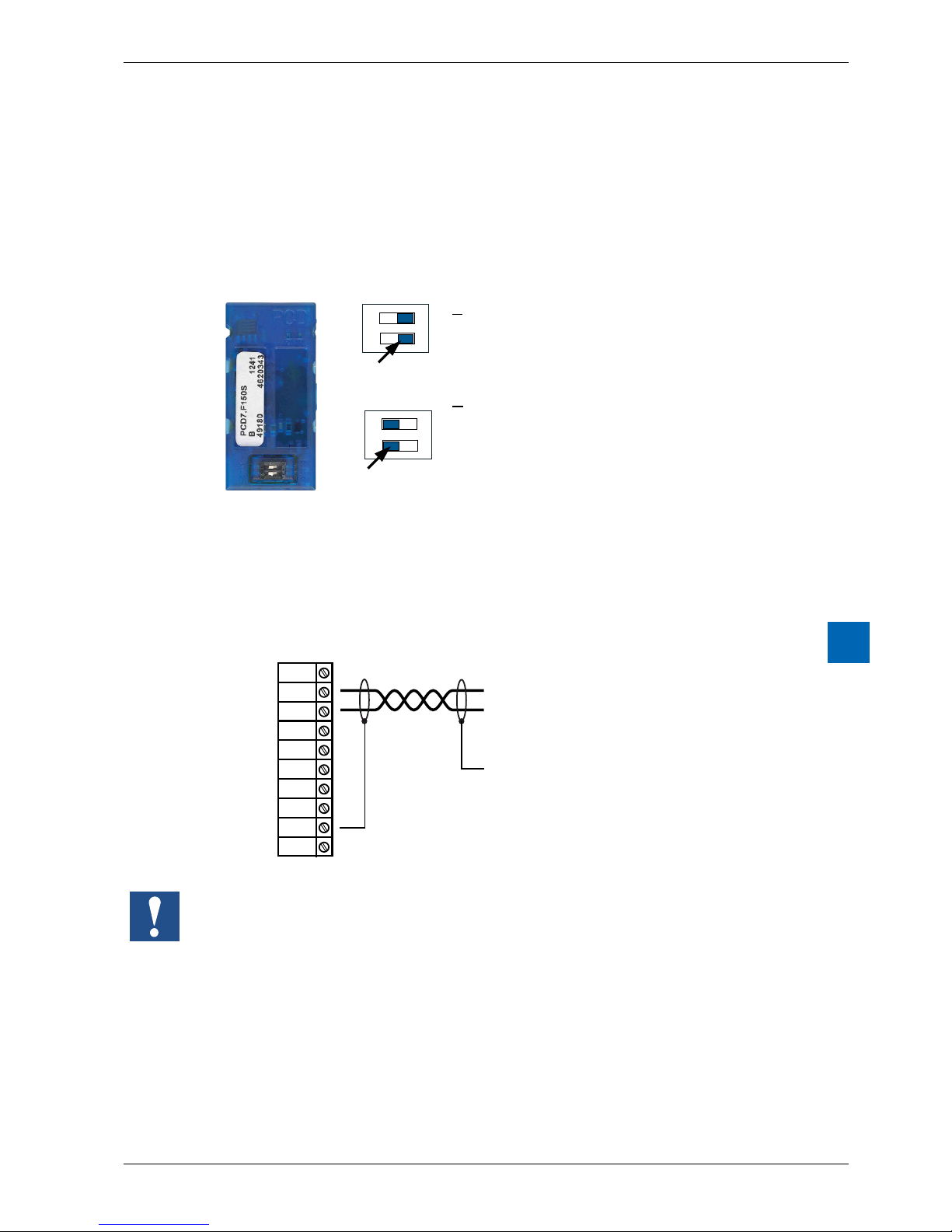

12.2.1 RS-485/RS-422
PCD7.F110S Serial Interface Module

Termination resistors can be connected (CLOSED) or disconnected (OPEN) with
slide switchs.

PCD7.F110S RS-485 termination

Slide

1 2

ON

C

O

Close, terminated,
closed

Slide

1 2

ON

C

O

Open,
not terminated,
open (factory
setting)

Plug assignment:

RS-485

Bus cable

PCD2.M4x60

Terminal Block

X5

peripheral

Strands twisted and shielded

RX - TX

/RX - /TX

PGND

RX - TX

/RX - /TX

PGND

PGND

10
11

12
13
14
15
16
17
18
19

Strands twisted and shielded

RS422

Bus cable

PCD2.M4x60

Terminal Block

X5

peripheral

(DTE)

10
11

12
13
14
15
16
17
18
19

PGND

TX

/TX

PGND

PGND

RX

/RX

RTS

/RTS

CTS

/CTS

TX

/TX

PGND

RX

/RX

RTS

/RTS

CTS

/CTS

For more details see the Manual 26-740 “Installation components for RS-485 Net­works”.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-4

12

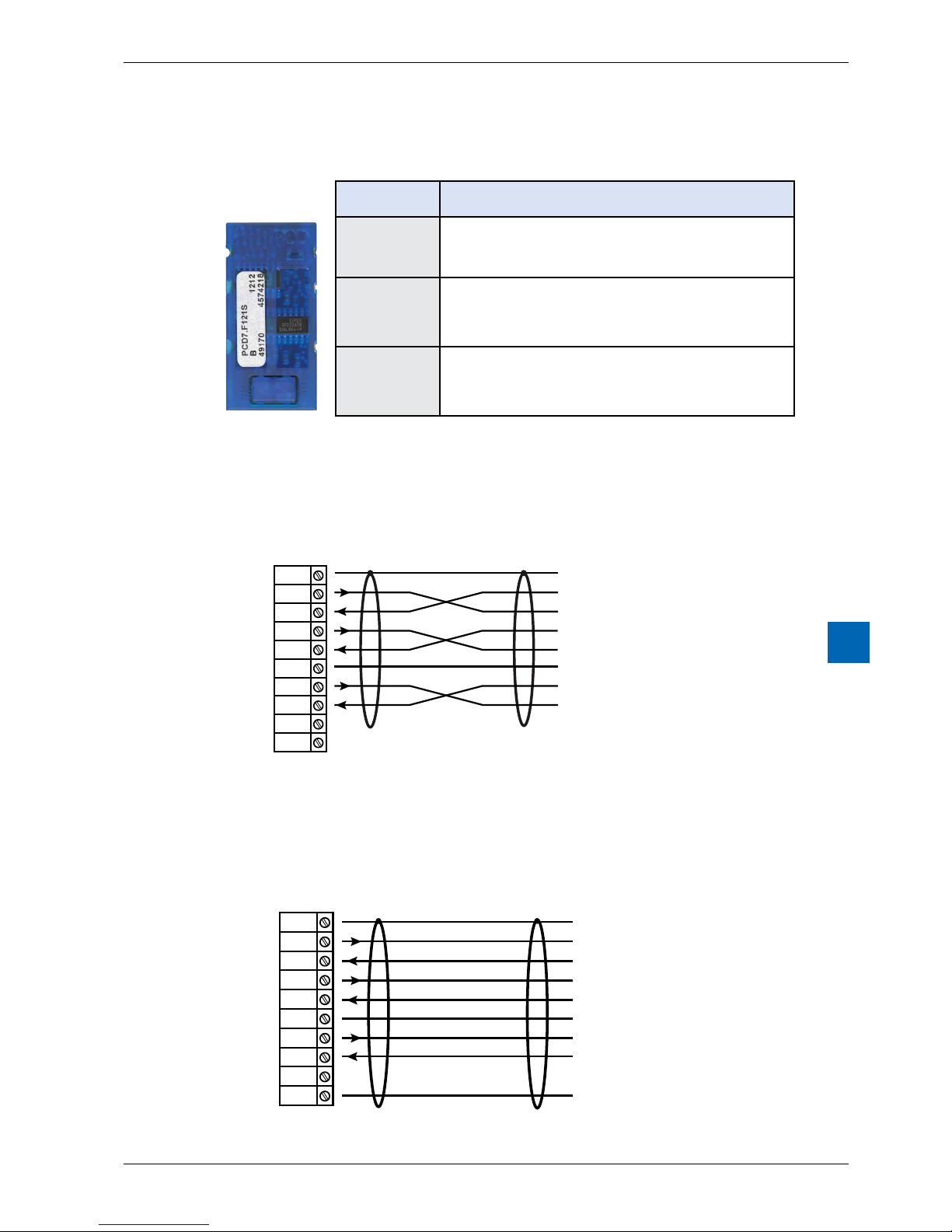

12.2.2 RS-232 up to 115 kBit/s, suitable for Modem Connection
PCD7.F121S Serial Interface Module

PCD7.F121S

HW version
PCD2.M4x60

Restrictions

rev. A The signal "DCD" for modem communication is not supported.

rev. B - Issue with "DTR" signal, RS-232 full protocoll with handshake on

DTR-DSR-signals not supported.

- Modems are supported (without DTR signal).

rev. C
and higher

- RS-232 full protocoll issue is corrected.

- Modems and PCD7.W600 are fully supported.

Standard Cabling:

RS-232

Bus cable

PCD2.M4x60

Terminal Block

X5

peripheral D-Sub (m)

9 pole

D-Sub (f)

25 pole

TXD

RXD

PGND

PGND

RTS

CTS

DTR

DSR

COM

DCD

PGND
TXD

RXD

PGND

RTS

CTS

DTR

DSR

COM

DCD

3

2

5

7

8

4

6

1

2

3

7

4

5

20

6

8

10
11

12
13
14
15
16
17
18
19

Cabling for Modem connection:

RS-232

Bus cable

PCD2.M4x60

Terminal Block

X5

TXD

RXD

PGND

PGND

RTS

CTS

DTR

DSR

Reserve

DCD

PGND
TX

RX

PGND

RTS

CTS

DTR

DSR

DCD

10
11
12
13
14

15
16
17
18
19

Modem

DTE

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-5

12

12.2.3 RS-485 electrical isolation
PCD7.F150S Serial Interface Module

Electrical isolation is achieved with three optocouplers and a DC/DC converter.

Data signals are protected against overvoltage with an anti-surge diode (10 V).

Termination resistors can be connected (CLOSED) or disconnected (OPEN) with
slide switchs.

PCD7.F150S RS-485 termination

Slide

1 2

ON

C

O

Close, terminated,
closed

Slide

1 2

ON

C

O

Open,
not terminated, open
(factory setting)

Cabling:

RS-485

Bus cable

PCD2.M4x60

Terminal Block

X5

peripheral

Strands twisted and shielded

RX - TX

/RX - /TX

PGND

RX - TX

/RX - /TX

PGND

PGND

SGND

10
11

12
13
14
15
16
17
18
19

With the use of this module, the permissible ambient temperature is reduced by
5°C.

For more details see in the Manual 26-740, Installation components for RS-485
Networks.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Communication ports

12-6

12

12.2.4 Belimo MP-Bus
PCD7.F180S Serial Interface Module

Up to 8 actuators and sensors can be connected.

PCD7.F180S

Cabling PCD2.M4x60 :

Belimo

Bus cable

PCD2.M4x60

Terminal Block

X5

24 VDC24 VDC

MP

´MFT´

PGND

PGND

´IN´

GND

10
11

12
13
14
15
16
17
18
19

Cabling MP-Bus device

10 PGND Earth connection, MP string
11 MP Multi Point

The MP bus is the Belimo master-slave bus. Up to 8 slaves can be attached to one
master device.

They are:

- MFT(2) ap drives

- MFT(2) valve drives

- MFT re protection ap drives

- VAV compact controller NMV-D2M

12 “MFT“ MFT programming device (MP bus internal)
13 “IN“ MFT programming device recognition (input 10 kΩ, Z5V1)
15 PGND Earth connection, MFT programming unit

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Dimensions

13-1

13

13 Dimensions

X2X9

X3

I/O BUS

Run

Halt

Error

X4

X5

010 919

S1

O

C

X7

X6

ETH2ETH1

USB

S2

X1

X8

20

25

BAT

M1

Supply 24V

PCD2.M4_

70

213

142

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

PCD2.M4160 | PCD2.M4560

Mounting

14-1

14

14 Mounting

There are 2 di󰀨erent types of installation:

mounted with screws snapped on 2 DIN rails

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Mounting with screws

Mounting

14-2

14

14.1 Mounting with screws

Screw diameter: less than Ø 4.9

Screw head diameter: less than Ø 8.0

125 mm

200 mm

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Mounting with screws

Mounting

14-3

14

14.1.1 Mounting the PCD2.M4x60:

Step 1 Step 2 Step 3

Fit the base plate over the screw

heads and press gently to the wall

Slide bottom

panel downwards

Tighten the screws

Step 4 Fixed

Snap lid onto base plate

14.1.2 Dismounting the PCD2.M4x60:

Step 1 Step 2 Step 3 Step 4

Remove the cover Loosen the screws Push the

base plate

upwards

Lift the base plate

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

DIN rail mounting

Mounting

14-4

14

14.2 DIN rail mounting

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

DIN rail mounting

Mounting

14-5

14

14.2.1 Mounting the PCD2.M4x60:

Step 1 Step 2 Fixed

Press the bottom of the

module to the wall and
slide it slowly upwards

until it stops at the lower

DIN rail

Now press the upper half

towards of the wall until it snaps

14.2.2 Dismounting the PCD2.M4x60:

Press the module

upwards and

simultaneously pull

the upper half of the

module from the wall

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Icons

Annex

A-1

A

A Annex

A.1 Icons

In manuals, this symbol refers the reader to further information in this manual or other
manuals or technical information documents. As a rule there is no direct link to such
documents.

This symbol warns the reader of the risk to components from electrostatic discharges
caused by touch.

Recommendation: Before coming into contact with electrical components, you should
at least touch the system’s negative pole (cabinet of PGU connector). However, it
is better to use a grounding wrist strap with its cable permanently attached to the
system’s negative pole.

This sign accompanies instructions that must always be followed.

Saia-Burgess Controls AG

User Manual PCD2.M4x60 │ Document 27-648 │ Edition ENG 05 │ 2018-05-16

Contact

Annex

A-2

A

A.2 Contact

Saia-Burgess Controls AG

Bahnhofstrasse 18
3280 Murten, Switzerland

Phone central .......................... [phone]

Phone Saia-PCD Support ....... [phone]

Fax .......................................... [phone]

Email support: ........................ [email protected]

Supportsite: ............................ www.sbc-support.com

SBC site: ................................ www.saia-pcd.com

International Represetatives &

SBC Sales Companies: ......... www.saia-pcd.com/contact

Postal address for returns from customers of the Swiss Sales o󰀩ce

Saia-Burgess Controls AG

Service Après-Vente
Bahnhofstrasse 18
3280 Murten, Switzerland
