Color Balance—Adjusting and Storing the Color Balance
Color Balance—Adjusting and Storing the Color Balance
This function allows you to control the overall color tone of copies by adjusting the Y ellow, Magenta, Cyan and Black color balance. Nine levels of tone are available.
Reference
For copy sample, see page 19.
Note
The color balance will return to the default when:
The machine is automatically reset.
The Clear Modes key is pressed.
The operation switch is turned off.
The main power switch is turned off.
You can store and adjustments you make in memory and recall them later.You can sample color balance. ☛ See page 126.
Color Balance Adjustment
Press the Adjustment/Memory key.
1
Make sure that the [Color Balance] key is se-
2
lected.
Adjust the color balance, then press the [OK]
3
key.
124
Color Balance—Adjusting and Storing the Color Balance
Color Balance Program—Storing and Recalling the Color Balance
You can store the color balance setting in memory and recall it when you want to use it.
Note
You can store up to three color balance.
Storing the adjusted color balance
Memory
Change the color balance ( see page 124),
1
but don’t press the [OK] key. Press the [Color Balance Program] key.
2
Press the [Program] key.
3
Select a number for this setting.
4
Adjustment and Color
Recalling the color balance
Press the Adjustment/Memory key.
1
Make sure that the [Color Balance] key is se-
2
lected.
125
Color Balance—Adjusting and Storing the Color Balance
Press the [Color Balance Program] key.
3
Make sure that the [Recall] key is selected.
4
Select the setting you want to recall.
5
Note
Only color balance programs with m contain a color
balance.
Color Balance Sample—Sampling the Color Balance
Adjusting the color balance by trial and error could require many copies. The color balance sampling function allows you to produce nine samples on two copies. The first sample of each sheet uses the current color balance (standard). Each sample after that changes one toner color by a fixed number of steps.
Note
The sample will be copied on two A4p, 81/2" × 11"p sheets or two A3l, 11" × 17"l sheets.Selecting Color Balance Sample does not reset the adjustments, allowing you to make many samples while
progressively changing the balance. The sample might yield a color balance outside the copier’s range which will be reproduced on the sample but not on the copy. For example, if yellow is already adjusted to +3 and you select Sample ±4, the yellow samples will be copied at yellow +7 and –1, but the adjustment for the final copy cannot be set to +7.

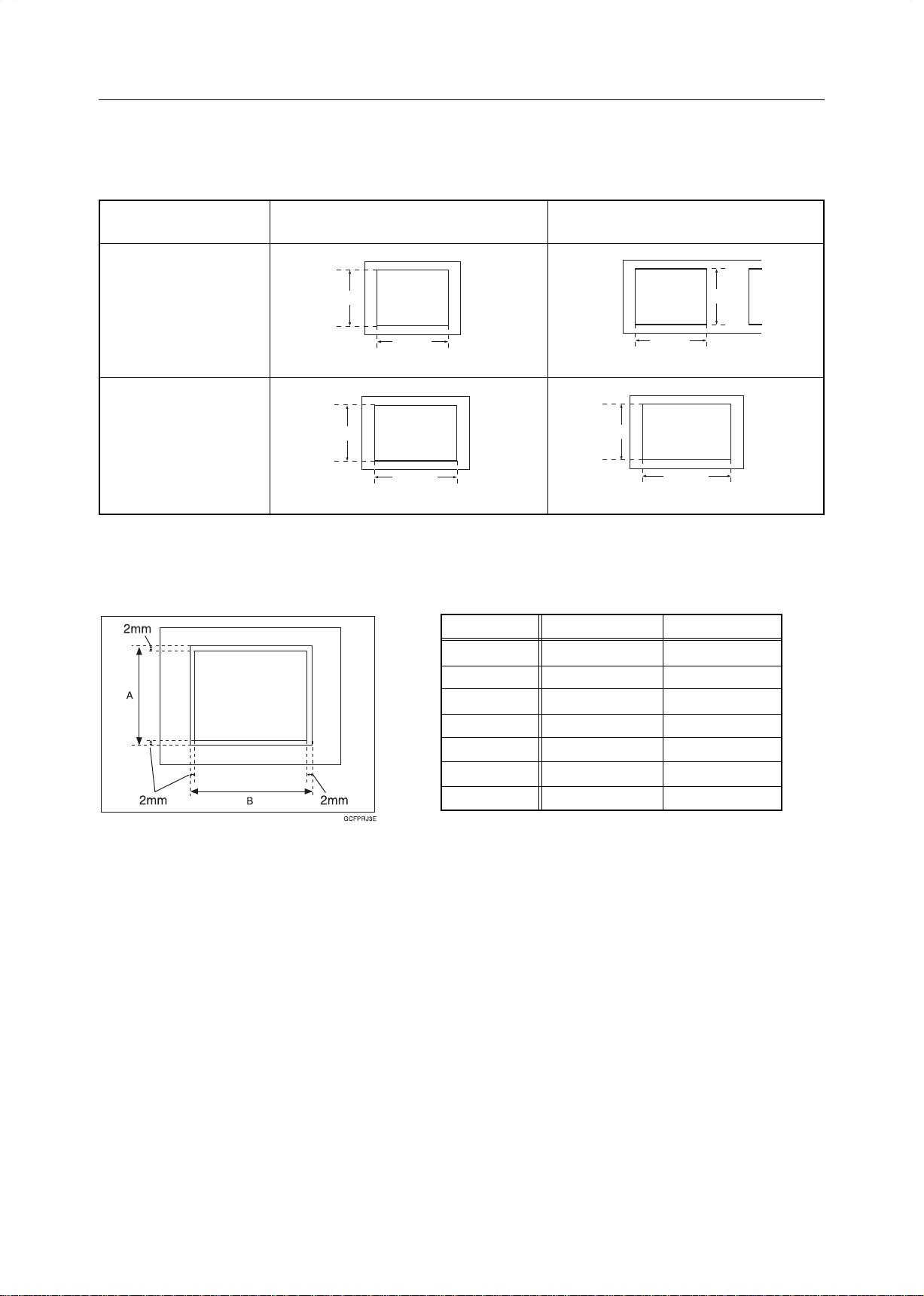

The sampled area is as shown in the illustration.
1: Sampled area
If your machine is Edit type, you can select the sampled area. See page 128.
126
Press the Adjustment/Memory key.
1
Make sure the [Color Balance] key is selected.
2
Press the [Color Balance Sample] key.
3
Color Balance—Adjusting and Storing the Color Balance
Memory
Adjustment and Color
Select the range of densities (standard is the
4
current setting).
Set your original on the exposure glass.
5
Press the [Print Start] key.
6
Note
The sample is copied.
Select the color balance that you want to set,
7
then press the [OK] key.
127
Color Balance—Adjusting and Storing the Color Balance
Selecting the sampled area (Only for Edit type)
Note
The sampled area is as shown below.
a: 58mm, 2.3" b: 180mm, 7.1"
Selected position
+
<
b
Sampled area
<
a
<
>
Orientation of the original and scanned image are related as shown:
Exposure Glass Display
R
R
GCAREA5E
Press the Adjustment/Memory key.
1
128
Make sure the [Color Balance] key is selected.
2
Press the [Color Balance Sample] key.
3
Select the range of densities (standard is the
4
current setting).
Color Balance—Adjusting and Storing the Color Balance
Memory
Adjustment and Color
Set your original on the exposure glass.
5
Press the [Sample Area Selection] key.
6
Press the [Scan Start] key.
7
Note
The image of the original is displayed.
Point at the center of the area with the editor
8
pen, then press the [OK] key.
Note
For details about this display, see page 142.
129
Color Balance—Adjusting and Storing the Color Balance
Press the [Print Start] key.
9
Note
The sample is copied.
Select the color balance that you want to set,
0
then press the [OK] key.
130
Color Adjustment
Color Adjustment
This function lets you alter up to three single colors by mixing them with adjacent colors in the color circle. For example, yellow can be shifted towards red to make orange, or towards green to make a yellow green. Note that only areas of the image containing this color will be modified.
Reference
For copy samples, see page 20.
Note
This function requires Full Color mode or Auto Color Select mode.The single color adjustment will return to the default when:
The machine is automatically reset.
Clear Modes key is pressed.
The
The operation switch is turned off.
The main power switch is turned off.
Press the Adjustment/Memory key.
1
Press the [Color Adjustment] key.
2
Memory
Adjustment and Color
Select the color key that you want to adjust from
3
the color circle.
Adjust the color with the keys.
4
Note
For example, if you wish to make yellow appear more
red, press the [
If you wish to make yellow appear more green, press
the [ ] key.
Press the [OK] key.
] key.
5
131
Image Adjustment
You can change the following default settings for image adjustment:
Image Adjustment
Soft/Sharp
Contrast
Background Density
Pastel
You can adjust the edges of the image to make the image sharper or softer.
Reference
For copy samples, see page 20.
Note
Default: level 4
You can adjust the contrast between light parts and dark parts of the image.
Reference
For copy samples, see page 20.
Note
Default: level 5
You can adjust the background density control.
Reference
For copy samples, see page 20.
Note
Default: level 5 If copying a newspaper or an original with a dark background, adjust the background
density to a lighter setting.
If part of the original is marked with a highlighting pen, adjust the background density
to a darker setting. However, because the color of a highlighting pen is difficult to duplicate, it might be copied in different colors or some colors might not be copied.
You can make copies in pastel tones.
Reference
For copy samples, see page 20.
U.C.R. Adjustment
A.C.S. (Auto Color Selection) Sensitivity
Text/Photo Sensitivity
Note
Default: level 9 which yields a normal color copy
Y ou can adjust the black toner density to make the black parts clearer in Full Color mode.
Note
Default: level 5 Adjust this setting to a darker setting when you want to copy letter parts clearly in
black.
Adjust this setting to a lighter setting when the original image is dark.
You can adjust the sensitivity when detecting whether the original has color areas in Auto Color Select mode. When set to “B&W” values, the machine will be more likely to detect originals as black originals. “Full Color” values will cause the machine to be more likely to detect originals as color originals.
Note
Default: level 3
You can adjust the sensitivity when detecting letter and photo parts of an original in Text/ Photo mode. If letter parts photo parts of an original are not differentiated correctly , adjust this setting.
Note
Default: level 5
132
Image Adjustment
Soft/Sharp, Contrast, Background Density, and Pastel
Note
Any settings you make with the Soft/Sharp, Contrast, Background Density and Pastel functions will be canceled under
the following conditions:
The machine is automatically reset. Clear Modes key is pressed.
The
The operation switch is turned off.
The main power switch is turned off.
Press the Adjustment/Memory key.
1
Memory
Adjustment and Color
Press the [Image Adjustment] key.
2
Adjust the settings.
3
Reference
For details, see page 131.
Press the [OK] key.
4
Note
If you do not press the [OK] key, you can still
make copies, but the Image Adjustment settings you have just entered will not used. However, any settings or featured you choose before pressing the Adjustment/Memory key will still apply .
133
Image Adjustment
U.C.R. Adjustment, A.C.S. Sensitivity and Text/Photo Sensitivity
Note
Any settings you make with the U.C.R. Adjustment, A.C.S. Sensitivity, and Text/Photo Sensitivity functions are not
cleared by turning the power off or by pressing the them with new settings.
Press the Adjustment/Memory key.
Clear Modes key. They are canceled only when you overwrite
1
Press the [Image Adjustment] key.
2
Adjust the settings.
3
Reference
For details, see page 131.
Press the [OK] key.
4
Note
If you do not press the [OK] key, you can still
make copies, but the Image Adjustment settings you have just entered will not used. However, any settings or featured you choose before pressing the Adjustment/Memory key will still apply .
134
Program User Color—Storing User Colors
Program User Color—Storing User Colors
In addition to the base colors, you can store up to 15 customized colors into memory (User Color).
Reference
Color sample chart, see page 23. If your machine is Edit type, you can sample the user color. See page 138.
Memory
Note
There are two ways to make user colors as follows:
Adjusting a selected base color
Mixing colors manually with
Up to 15 colors can be stored.The total percentages of the mixed colors must be 255% or less.If the total percentage of the mixed color is over 255%, the copier cannot create the color properly and the results will
appear different.
If the total percentage of the mixed colors is too low, it may not be bonded to the paper properly resulting in a change
in image density.
The appearance of user colors might vary slightly according to the image type you have selected (ex. Photo, Text,
etc.).
Number keys
Adjusting Colors Based on the Selected Color
Press the Adjustment/Memory key.
1
Adjustment and Color
Press the [Prog. User Color] key.
2
Select the key you wish to store the color in.
3
135
Program User Color—Storing User Colors
Select the base color.
4
Note
If your machine is Edit type, you can scan an original
to sample it’s color. See page 128.
You can change the color density in two ways.
5
Note
Increase or decrease in steps with the [+] or [-] key.
—Press the [+ - keys] key.
Enter the percentage with the Number keys.—Press
the [Enter Size] key.
Repeat step 5 for each color, then press the [OK]
6
key .
Press the [OK] key.
7
136
Mixing Colors Manually with the Number Keys
Press the Adjustment/Memory key.
1
Press the [Prog. User Color] key.
2
Select the number that you want to store the user
3
color in.
Program User Color—Storing User Colors
Memory
Adjustment and Color
Press the [Enter Size] key.
4
Select the color that you want to adjust.
5
Enter the density with the Number keys, then
6
press the [#] key.
Note
To change the number, press the [Clear] key.
137
Program User Color—Storing User Colors
Repeat steps 5 and 6 for each color then press
7
the [OK] key. Press the [OK] key.
8
Sampling the User Color (Only for Edit Type)
You can print out a sample of User Colors to check the colors you have made.
Note
The sample will be copied on a A4p, 81/2" × 11" p sheet or a A3l, 11" × 17"l sheet.
Press the Adjustment/Memory key.
1
Press the [Prog. User Color] key.
2
Press the Start key.
3
138
Area Editing (Only f or Edit Type)
Area Editing
(Only for Edit Type)
139
What is Area Editing?
What is Area Editing?
If your machine is Edit type, you can select areas of an image to be treated differently or have effects applied to them. Some examples are shown below.
Example:
1: Group 1: Positive/Negative 2: Group 2: Mirror Image 3: Group 3: Outline Image
Scan
and select Save Area
Original
(There is an area in each group.)
Designate areas
Specify modes for each group.
1: Group 1: Color Background 2: Group 2: Color Background 3: Group 3: Color Background
Scan
Original
(There are 4 areas in each group.)
Designate areas
Specify modes for each group.
Note
“Group” means a set of areas that you want to do the same edit.
Copy
Copy
140
How to Edit Areas
How to Edit Areas
Editing an image involves scanning it in to memory, choosing areas to edit and how those areas will be re­produced.
The basic steps are summarized below. Details are given in the rest of this section.
Enter Area Editing mode. Press the [Area Editing] key.
Designate areas.
❐☛ See page 142.
Select modes.
❐☛ See page 152.
Specify more areas to be treated differently (optional).
Repeat 3 and 4.
Copy image.
Press the Start key.
Area Editing
(Only for Edit Type)
141
Designating Areas
Designating Areas
Several tools are provided for designating areas of an image.
Area Shapes
Rectangle: Specify two points defining the opposite diagonals of a rectangle.
Right Angle Polygon/Polygon: Specify a sequence of points defining a polygon.
Closed Loop: If your image contains a shape outlined in black and that outline forms a closed loop, specify a point
inside the shape to designate it.
Multi-Closed Loop: If your image contains a closed loop and that outline forms an another closed loop, specify
points inside of the closed loop to designate it.
Frame/Line
Rectangle frame: Specify straight frames by Rectangles.
Right Angle Polygon/Polygon frame: Specify straight frames by Right Angle Polygon/Polygon.
Line: Specify a series of points linked together by straight lines.
Note
You can designate many areas and apply the same changes to them all by placing them in the same Group.Different areas may be treated differently by placing them in different Groups.

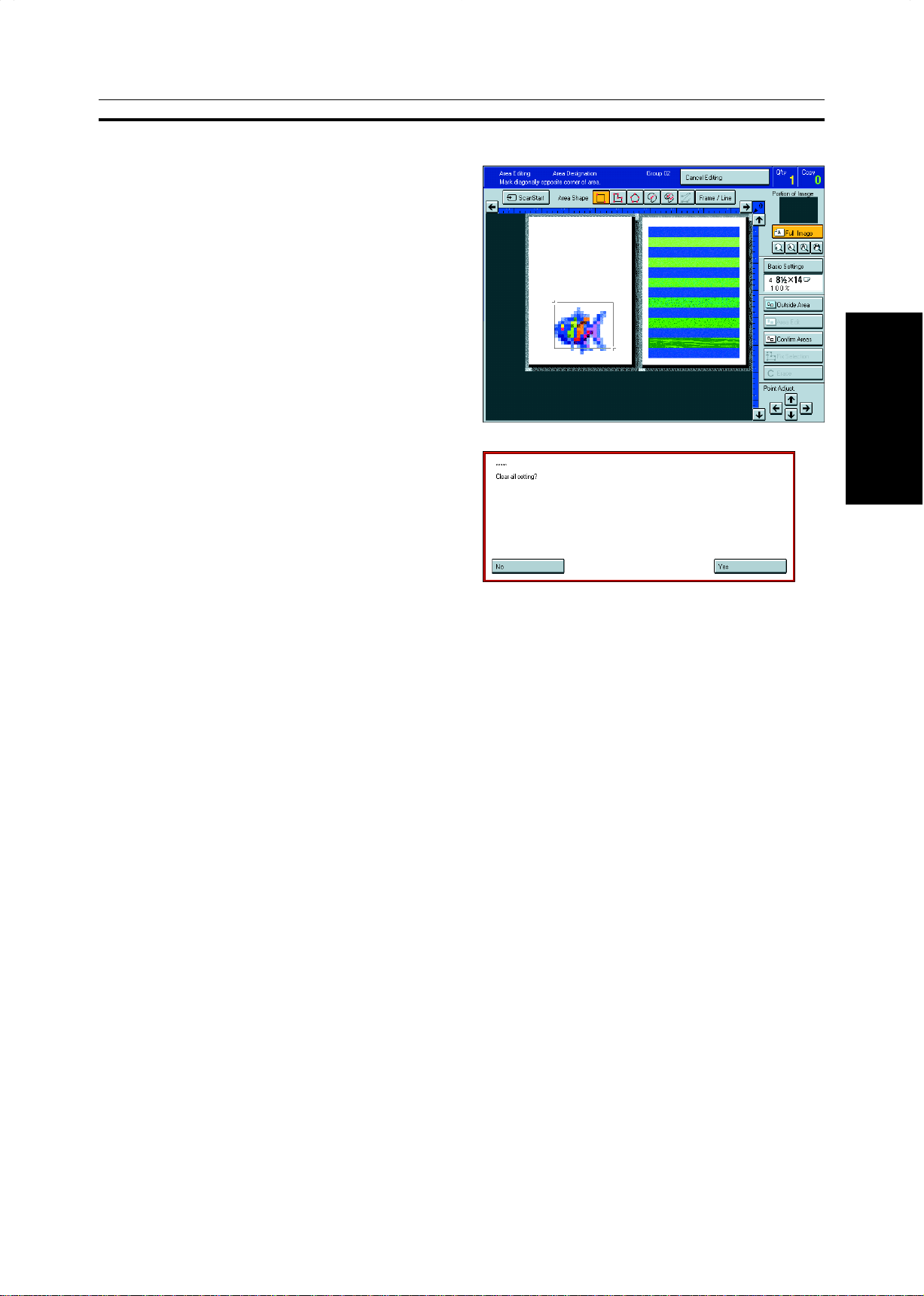

Designate Area Display
1
2
15
1. Message Area
Messages and instructions appear here.
2. Display Area
The image is displayed.
5 3
4
6
7 8
9 10 11 12 13
14
3. Area Shape/Frame/Line
Select the area shape or frame shape and line.
4. Cancel Editing
Exit area editing.
5. Scan Start
Scan in an original again.
6. Portion of Image
Shows the portion of the original that is currently being viewed or is enlarged.
142
7. Enlarge
Enlarge 4 Enlarge by about 528% Enlarge 3 Enlarge by about 394% Enlarge 2 Enlarge by about 264% Enlarge 1 Enlarge by about 200% Full Image
Note
After pressing the [Enlarge] key, mark a point in the displayed image to zoom in on.
8. Basic Settings
Change the job settings for the entire image.
9. Outside Area
Set modes for outside areas.
10. Area Edit
Edit inside the area.
Designating Areas
Area Editing
(Only for Edit Type)
11. Confirm Areas
Show selected areas, modes, and groups.
12. Confirm Selection
Complete a designated area.
13. Erase
Cancel last point selected.
14. Arrow keys
Move cursor in small steps.
15. Scroll key
Move the portion of the original.
Note
Do not press the touch panel display with any hard or sharp object. Always use the editor pen.When you mark a point with the editor pen, the cursor position might not be quite right. In this case, move the cursor
in small steps by pressing the arrow keys on the display.
143
Designating Areas
Designate Area T ools
Note
There are nine tools to designate areas.
Area Editing
Rectangle ( See page 145.)
Area Shape Right Angle Polygon ( See page 146.)
Polygon ( See page 146.) Closed Loop ( See page 146.) Multi Closed Loop ( See page 147.)
Rectangle frame ( See page 148.)
Frame/Line Right Angle Polygon frame ( See page 148.)
Polygon frame ( See page 148.) Line ( See page 149.)
Note
You cannot use the optional document feeder in this function.The relationships between the position of the original and the orientation of the scanned image on the display are as
follows:
Set on the exposure glass
Display
144
Area Shapes
Rectangle
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Note
(Rectangle) key is selected as default.
Mark the first point with the editor pen.
3
Designating Areas
Area Editing
(Only for Edit Type)
Mark the diagonally opposite corner of the area
4
you wish to select.
Note
When you make a mistake, press the [Erase] key. Repeat 4 and 5 to add more rectangles. When you continue to add areas, you can select other
shapes (except Closed Loop Multi-Closed Loop, Line, Frame).
Press the [Confirm Selection] key.
5
Press the [Area Edit] key , specify your settings,
6
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
7
145
Designating Areas
Right Angle Polygon and Polygon
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the (R.A. Polygon) or (Polygon)
3
key. Mark the first point with the editor pen.
4
Mark the next points.
5
Note
When you use Right Angle Polygon mode, mark
points that make right angles.
After making the last point, press the [Confirm
6
Selection] key. Press the [Area Edit] key , specify your settings,
7
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
8
Closed Loop
Limitation
If you specify an area with Closed Loop, you cannot specify any additional areas with other selection tools.
Note
When you color areas with the Closed Loop, the area boundary may shift depending on the image.
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the (Closed Loop) key.
3
Touch on a point inside a closed loop.
4
146
Designating Areas
Press the [Fix Selection] key.
5
Press the [Area Edit] key , specify your settings,
6
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
7
Multi-Closed Loop
Limitation
If you specify an area with Multi-Closed Loop, you cannot specify any additional areas with other selection tools.
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the (Multi-Closed loop) key.
3
Press on a point inside the exterior area you wish
4
to specify. Press on a point inside the interior area you wish
5
to treat differently.
Note
Be sure to select a point inside of the exterior area
you wish to define.
Press the [Confirm Selection] key.
6
Press the [Area Edit] key , specify your settings,
7
then press the [OK] key.
Reference
For details, see page 152.
Area Editing
(Only for Edit Type)
Press the Start key.
8
147
Designating Areas
Frame/Line
Rectangle frame
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the [Frame/Line] key.
3
Press the (Rectangle) key.
4
Mark the first point with the editor pen.
5
Mark the diagonally opposite corner of the area
6
you wish to select. Press the [Confirm Selection] key.
7
Press the [Area Edit] key , specify your settings,
8
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
9
Right Angle Polygon frame and Polygon frame
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the [Frame/Line] key.
3
148
Press the (Right Angle Polygon) key or the
4
(Polygon) key.
Mark the first point with the editor pen.
5
Mark the next points.
6
After making the last point, press the [Confirm
7
Selection] key.
Designating Areas
Area Editing
(Only for Edit Type)
Press the [Area Edit] key , specify your settings,
8
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
9
Line
Set your original on the exposure glass.
1
Press the [Area Editing] key.
2
Press the [Frame/Line] key.
3
Press the (Line) key.
4
149
Designating Areas
Mark the first point with the editor pen.
5
Mark the next points.
6
After marking the last point, press the [Confirm
7
Selection] key.
Press the [Area Edit] key , specify your settings,
8
then press the [OK] key.
Reference
For details, see page 152.
Press the Start key.
9
150
Designating Areas
Notes for Designating Areas
The number of the points, areas, and groups that can be designated
Note
Maximum number of points: 500In Right Angle Polygon mode, Polygon mode, or Line mode, the maximum number of points for one area is 30.The number of areas that can be designated is as follows:
Rectangle mode: maximum 250 areas
Right Angle Polygon mode, Polygon mode, Line mode: 500 points maximum. For example, if 10 points are desig-
nated for each area, the maximum number of areas that can be designated is 50.
Closed Loop mode, Multi-Closed Loop mode: maximum 500 areas
Maximum number of groups: 20
(“Group” means a set of areas that you want to do same editions.)
Note
Do not designate an area or line which overlaps part of another area or line. If an area overlaps another one, the job
settings specified last will be applied to the overlapped portion or those areas might not be copied.
However, areas containing areas (see below) are permitted. Designate starting with the outermost area.
1 2
GCAREA4E
These operations are available, however, under the following conditions:
When designating areas with Closed Loop mode, Multi-closed Loop or Line/Frame mode.
If you mark a line and it overlaps another line you have previously marked, the last point you marked will be canceled
automatically.
If you designate an area in Right Angle Polygon mode, make sure to mark points that make right angles. If you mark a
point which does not match, the editor will automatically correct it to make a right angle.
If you want to designate a triangular area, use Polygon mode.In Closed Loop mode or Multi-Closed Loop mode, the machine might not detect a closed loop area or multi-closed loop
area completely under the following conditions:
The outline is not completely closed, it is too light to detect, or the thickness is uneven.
The outline is thinner than 0.3mm.
The outline is not black.
The space between two closed loop outlines is less than 1mm.
The closed loop can be up to 2 meters long.
The area enclosed by the outline is not white.
The more areas you designate, the more time copying will take.If you erase an area, group, or job setting, it is cleared from the display. However, the points are still stored in memory
and are not cleared until you exit Area Editing. This affects the maximum number of areas you can designate.
Closed Loop mode Multi-Closed Loop mode and Frame/Line mode cannot be used with Rectangle mode, Right Angle
Polygon mode, and Polygon mode for one group at a time.
If you need to align areas precisely , you can have a grid shown on the enlarged display . The grid spacing matches the
scale of the display.
Area Editing
(Only for Edit Type)
151
Selecting Modes for Designated Areas
Selecting Modes for Designated Areas
Reference
The available modes for area editing depend on the area shape. See page 164. For functions that cannot be used together in area editing, see page 164. More than one mode can be set for designated area, however, there are some limitations, see page 164. And up to 7
patterns of modes can be set together.
Note
Up to 20 groups of multiple areas can be edited. All the areas should belong to groups 1 ~ 20.
You can select up to seven job patterns for at most 20 groups. After you have set seven patterns, the copier will only allow you to choose the pattern of a previous group. If you change the settings for one group, it will change the settings for all other groups with the same job pattern. However, if you have set a Paint, Color Background, or Frame/ Line, changing the color in one group will not affect other groups. (Up to 15 colors can be selected.)
The modes that can be set for inside areas as follows:

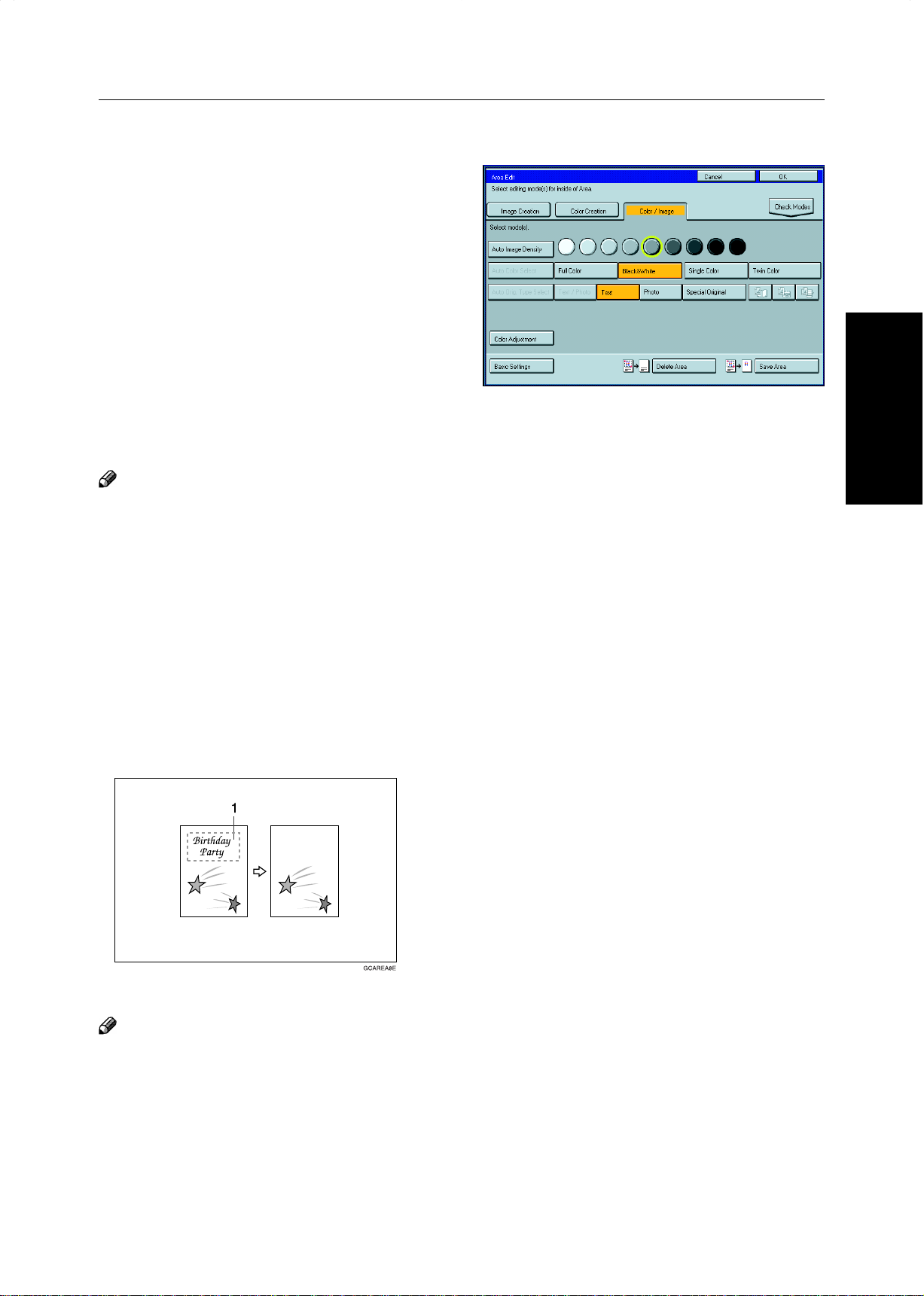

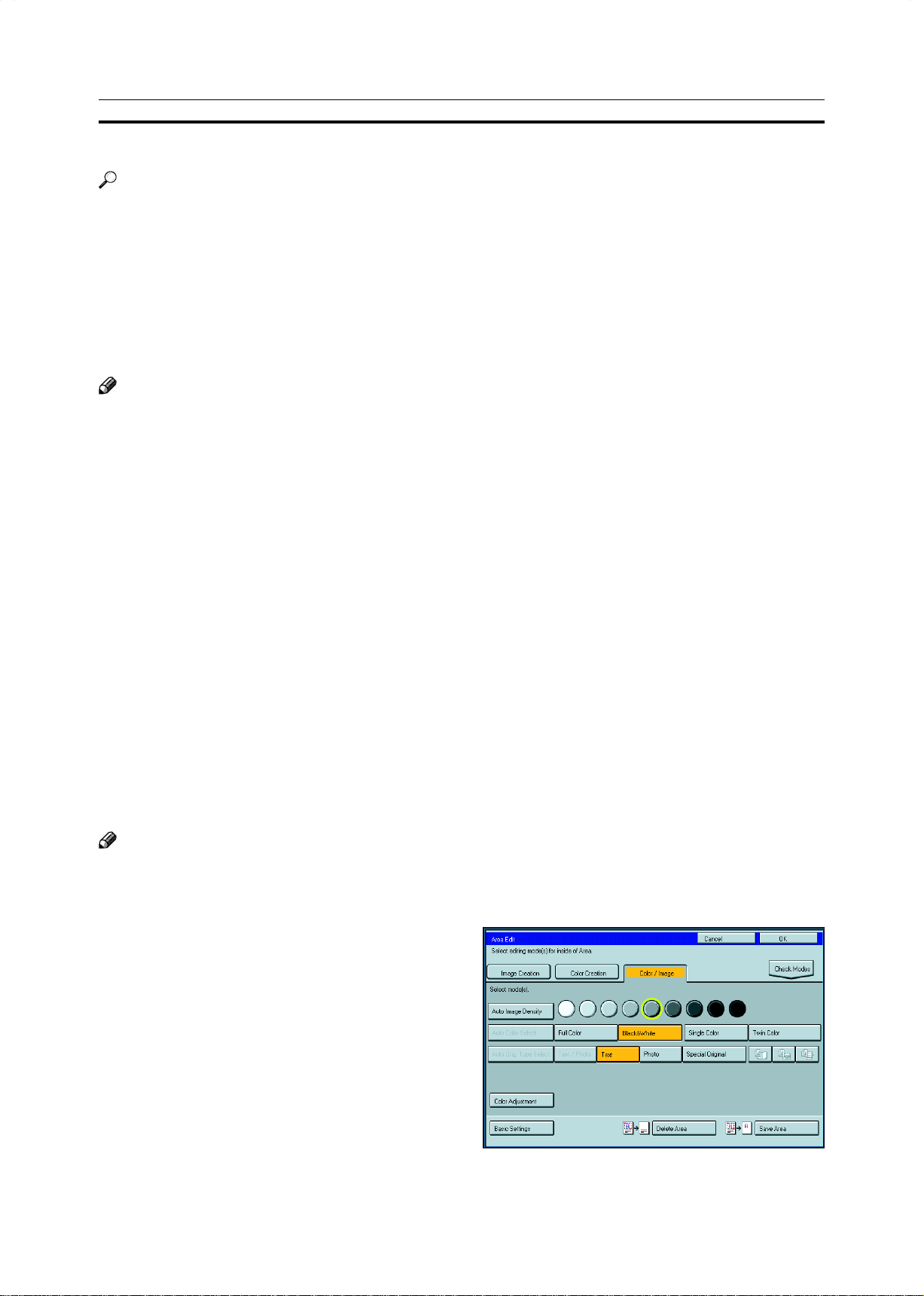

Color/Image Adjustment: Image Density, Color Mode, Original Type, Image Adjustment, Color Adjustment, Color Balance Adjustment

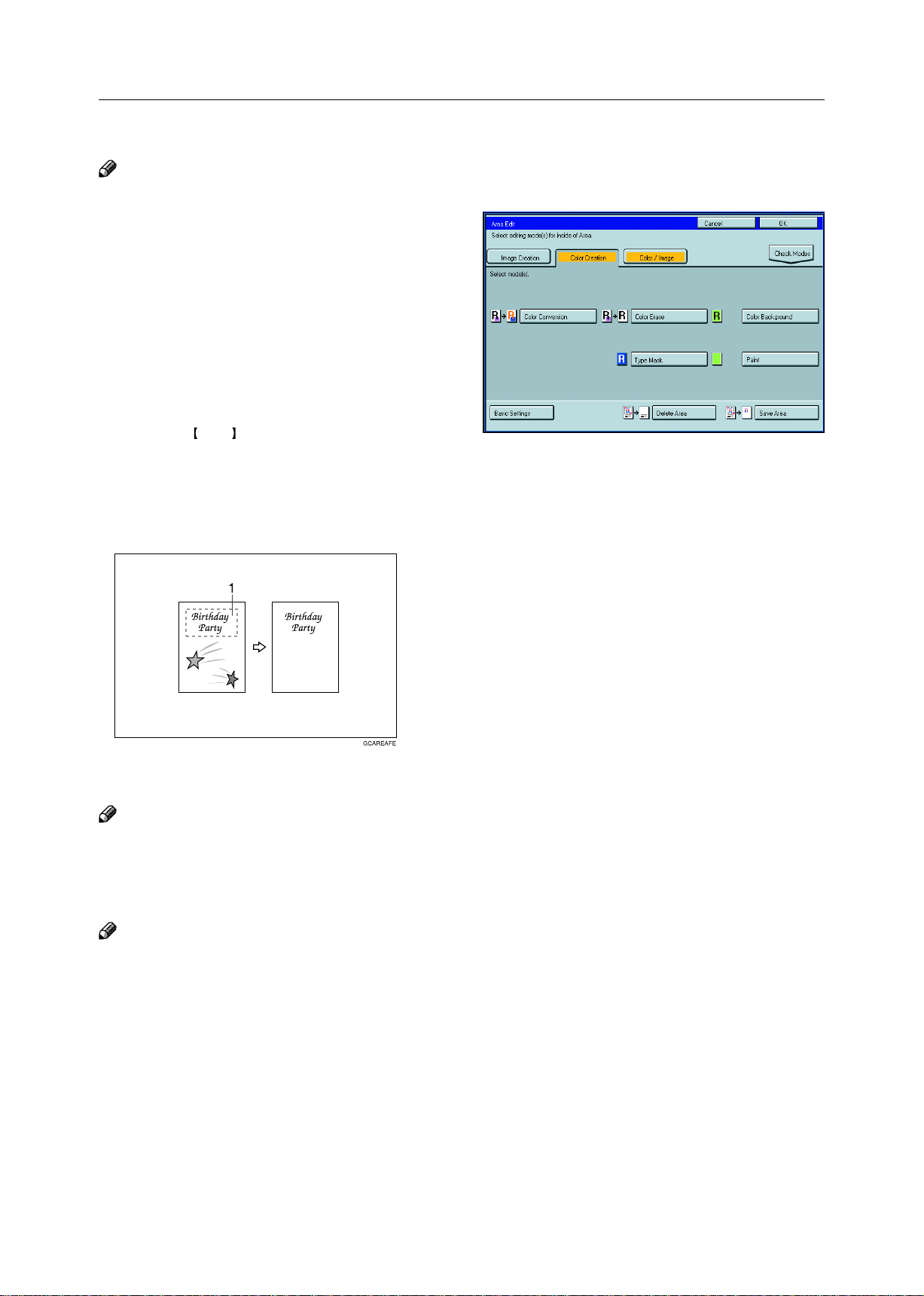

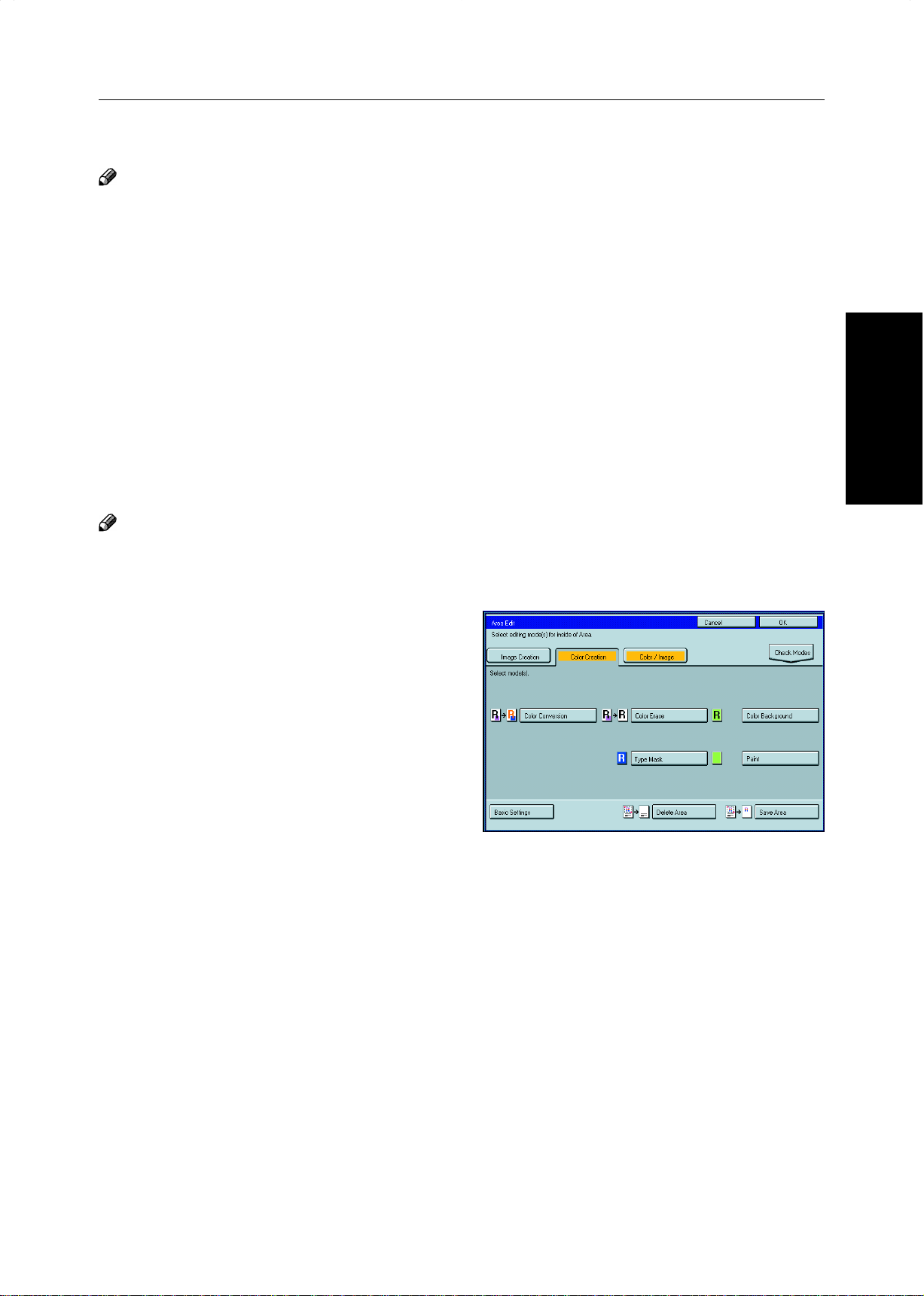

Color Creation: Color Conversion, Color Erase, Color Background, Paint, Type Mask
Image Creation: Outline Image, Shadow Image, Slanted Image, Mirror Image, Positive/Negative
Note
The editing functions available when specifying area with Frame/Line mode are Width and Color.Color/Image Adjustment’s default setting:
• Image Density - Manual Image Density
• Color Mode - Black
• Original Type - Text
You can change the default settings. ☛ See page 187.Depending on the shapes of the areas, coloring or deleting near the outlines of the areas might not do well, or the
outlines might become uneven.
The way to set modes is basically the same as for the entire image. For details, refer to each page.
To fill an area with a selected color, select the Paint.
Image Density See page 39.
Original T ype See page 44.
Color Adjustment See page 131.
Color Conversion See page 85.
Type Mask See page 89.
Color Background See page 88.
Outline Image See page 91.
Slanted Image See page 95.
Positive/Negative See page 101.
Color Mode See page 40.
Image Adjustment See page 132.
Color Balance Adjustment See page 124.
Color Erase See page 87.
Shadow Image See page 92.
Mirror Image See page 96.
Save Area See page 154.
Changing Job Settings for the Entire Image
See page 158.
Change Modes See page 159.
Adding Areas See page 160.
Erasing a Group See page 162.
Area Shapes
Basic modes
Designate the areas you wish to modify.
1
Note
For designating areas, see page 145.
152
Loading...
+ 96 hidden pages
