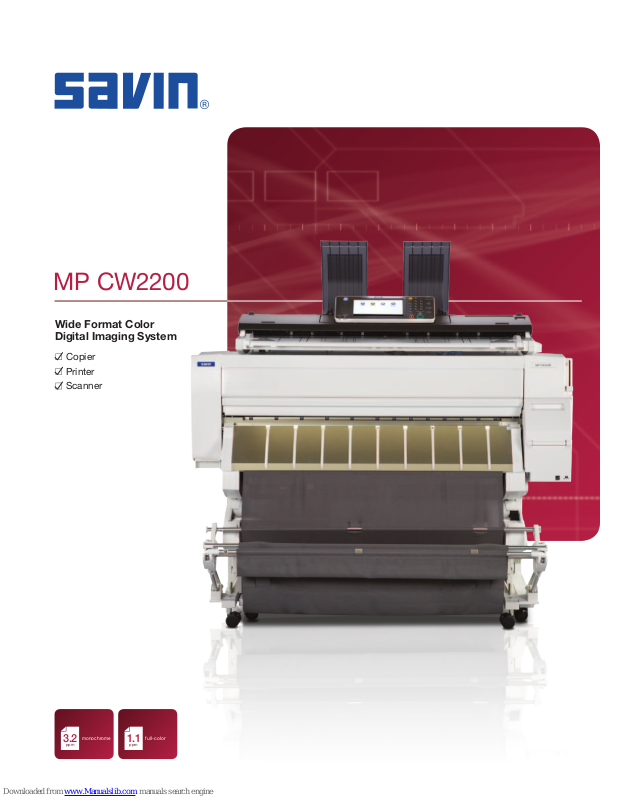

Savin MP CW2200 Specifications

MP CW2200

Wide Format Color
Digital Imaging System

Copier

Printer

Scanner

monochrome

full-color

1.13.2

ppmppm

Add color to wide format workflows

The SAVIN® MP CW2200 combines full-color output with exceptional versatility to meet a wider range of

wide format workflow demands. The affordable, full-color low-volume digital imaging system offers print,

copy and scan functionality to ensure essential large documents can be captured, saved and shared with

incredible ease and simplicity. Present design plans, documents, schematics and more in brilliant colors —

exactly the way they were designed.

Versatile performance to do more

The Savin MP CW2200 offers incredible multifunction per formance, including
copying, scanning and printing, to streamline low-volume, wide format
workloads for CAD-centric organizations, such as architectural, construction
and engineering firms. With full-color output, you can create compelling,
professional-quality documents to put your work in the best light. Choose from
multiple paper sizes and weights in order to meet ever y demand and manage
every project with ease from the device or from the desktop.

Intuitive functionality makes it easy

The Savin MP CW2200 is designed to work the way you do. Take advantage of
embedded SDK architecture to integrate highly productive Savin applications
such as GlobalScan NX as well as the 4.3" tiltable operator panel to configure
workf lows and to set up easy, one-touch shortcuts for frequently used tasks
and personal preferences. A simplified display and step-by-step animated
guide ensure easy operation for every user. Users can also replace proprietary
ink cartridges in moments without swapping print heads for longer-lasting
performance and less waste.

Advanced scanning streamlines
operations

With the Savin MP CW2200 digital imaging system, you can share high-quality color
or black-and-white electronic documents quickly and easily at no additional cost.
The Savin MP CW2200 lets you scan full-color originals and distribute them via
Scan-to-Email/Folder/FTP/HDD. Take advantage of Scan-to-URL to give users in the
field immediate access via any Web browser. Save files directly to a USB or SD card
for mobile convenience. In addition, full-color thumbnail views allow users to review
documents for accuracy and clarity before delivery.

Full-featured capabilities in full color

Outstanding paper feeding

Take advantage of uninterrupted workflow and improve your
productivity. The Savin MP CW2200 includes multiple paper feeds
to ensure users have the right kind of paper to handle every project
with consistent speed and efficiency. With optional two-roll printing,
the system can accommodate various-sized paper rolls and change
them automatically. Users can print on the appropriately sized paper
to reduce paper waste without having to walk to the device and
spend critical time changing paper manually.

Powerful security

Protect confidential and proprietary documents with a host of
advanced security features. With user authentication, print jobs
are stored and released only when the authorized user swipes
an ID card or enters a password at the device. PDF encryption
protects the integrity of scanned, password-protected PDFs during
distribution. The device includes the DataOverwriteSecurity System
(DOSS) feature to automatically destroy latent images and data
on the HDD. Administrators can even restrict access to specific
functions for each individual user.

External media convenience

The Savin MP CW2200 is designed to enhance efficiency for every
user — especially for those on the go. With the built-in USB and
SD card slots, users can Scan-To or generate prints directly at
the device using a USB memory or SD card for optimal on-the-go
flexibility. It also supports an optional keyboard unit for users who
prefer traditional keyboard input to a touch screen. In addition, users
can even print from most manufacturer’s mobile devices to ensure
they have important documents at the most critical times.

Savin MP CW2200

SYStem SpecificationS

General Specifications

Configuration Console
Scanning Element CIS Color Scanner (Moving original)
Printing Process On demand Piezo inkjet system
Ink Type Pigment-based ink (All 4 colors)
System Memory 3GB
HDD 250GB
Warm-up Time Less than 40sec*
First Copy Time A0 SEF: (B/W) Speed Priority Mode:

(from Standby mode) 51sec/ Standard Mode: 71sec
(Color) Speed Priority Mode:155sec/

A1 LEF: (B/W) Speed Priority Mode:

Copy Resolution 600dpi
Original Feed Sheet
Original Set Position Center
Original Scan Size Maximum: 36" x 590" (914mm x

Original Paper Weight Paper Feed Guarantee: 0.035 – 1.0mm

Image Quality Guarantee: 0.090 – 0.2mm

Feed to Carrier Sheet: 0.070mm and less
Original Paper Width Inches: 8.5” / 9” / 11” / 12” / 17” / 18” /

Metric (mm): 210 / 257 / 297 / 364 / 420 /

Output Paper Size Inches: Maximum Roll Feeder – Width:

Maximum Bypass – Width 36", Length:

Minimum – Width 11", Length: 8.27"
Metric: Maximum Roll Feeder – Width:

Maximum Bypass – Width 914.4mm,

Minimum – Width 279.4mm, Length:

Output Paper Weight Roll Paper: 0.068-0.2mm (51 – 190g/m
Cut Sheet: 0.068-0.4mm (51 – 220g/m
Roll Paper Width Inches: 11" / 12" / 15" / 17" /18" / 22" /

Metric (mm): 297 / 364 / 420 / 440 / 490 /

Paper Type Plain Paper, Recycle Paper, Inkjet Plain

Copy Speed (CPM) A0 SEF: (B/W) Speed Priority Mode:

(Color) Speed Priority Mode: 0.6cpm/

A1 LEF: (B/W) Speed Priority Mode:

(Color) Speed Priority Mode: 1.1cpm/

Reproduction Ratio Metric: 25%, 35.4%, 50%, 70.7%,

Engineer (inch): 25%, 32.4%, 50%,

Architecture: 25%, 33.3%, 50%, 66.7%,

Standard Mode: 244sec

29sec/ Standard Mode: 41sec
(Color) Speed Priority Mode: 84sec/
Standard Mode: 131sec

15,000mm)
Minimum: 8.5" x 8.5" (210mm x 210mm)

(64 – 190g/m

2

)

22” / 24” / 30” / 34” / 36”

440 / 490 / 515 / 594 / 610 / 620 / 625 /
660 / 680 / 707 / 728 / 800 / 841 / 880 /

914.4

36", Length: 590"

78.7"

914.4mm, Length: 15,000mm

Length: 2,000mm

210mm

2

)

2

)

24" / 30" / 34" / 36"

515 / 594 / 610 / 620 / 625 / 660 / 680 /
707 / 728 / 800 / 841 / 880 / 914.4

Paper, Tracing Paper, Matte Film, Coated
Paper, Coated Paper (CAD), Special Paper

1.8cpm/Standard Mode: 1.1cpm

Standard Mode: 0.3cpm

3.4cpm/Standard Mode: 2.0cpm

Standard Mode: 0.6cpm

141.4%, 200%, 282.8%, 400%

64.7%, 129.4%, 200%, 258.8%, 400%

133.3%, 200%, 266.7%, 400%

Zoom 25% – 400% by 0.1% Step
Multiple Copying 1 to 99
Paper Feeding Capacity 1st Roll and Optional 2nd Roll: One Roll

Bypass: One sheet
Paper Output Capacity 10 Sheets (Plain Paper)*

*2" core roll cannot stack because the curvature factor is too small.

Paper Cut Method Preset size cut/Synchronized cut/

Power Source 220 – 240V 50 – 60Hz, 1.9A 120 – 127V

Max Power Consumption Less than 180W
Dimensions (WxDxH) 55.1" x 22.1" x 50.3" (1,400 x 560 x

Weight Less than 265 lbs (120 kg)

Printer Specifications

Controller Board Embedded (GW Controller)
CPU Celeron-M 1.0GHz
RAM 3GB
HDD 250GB
Print Speed A0 SEF: (B/W) – 1.8ppm (Speed Priority

(Color) – 0.6ppm (Speed Priority Mode)
A1 LEF: (B/W) – 3.2ppm (Speed Priority

(Color) – 1.1ppm (Speed Priority Mode)
Print Drivers Adobe PostScript3, HDI
Supported Print Language
Print Resolution Speed Priority Mode: 600dpi x 300dpi

Standard Mode : 600dpi x 600dpi
Quality Priority Mode: 600dpi x 600dpi
Quality Priority Mode for Coated Paper,

Font European 136 fonts (PS3)
Ink Save Mode Yes, Save Ratio 50% (PS Driver)
Interface Standard: Ethernet 100BASE-TX/

Optional: Wireless LAN (IEEE802.11a/b/g,)

Network Protocol TCP/IP (IP v4, IP v6), IPX/SPX
Standard MIB MIB-II (RFC1213), Host Resource

Private MIB Savin Original
Network/Operating System

Mac: OS 10.2 – 10.6 or later
Citrix Presentation Server 4.5 (32bit/64bit)
Citrix XenApp5.0 (32bit/64bit)
Citrix XenApp6.0 (64bit)
Supported CAD version AutoCAD 2004/2005/2006/2007/2008/
(HDI Driver) 2009/2010/2011/2012

One Direction Yes
Media to Print Yes (JPEG/TIFF/PDF)
(Print from USB/SD)
Unauthorized Copy Yes (PS driver)
Prevention
WSD Printer Yes
Color Matching Yes
POP Yes
CUD Yes

Paper each, Width: 8.5" – 36" (279.4mm
– 914mm), Max. length:150,000mm, Max
diameter: 176mm

Variable cut

60Hz, 3.6A

1,280mm)

Mode)

Mode)

PostScript3, HP-GL, HP-GL2

Film (Matted) and Special Paper: 1200dpi
x 1200dpi

10BASE-T, USB2.0

Gigabit Ethernet (1000BASE-T)

(RFC1514), Printer MIB (RFC1759)

Windows: XP/Vista/Server2003/

Server2008/Server2008R2/7

Scanner Specifications

Color Scan Standard
Scan to Multimedia Standard
Media to Print Standard
Scanning Speed B/W: 600dpi: 3.14ips, 80mm/s

Color: 600dpi: 1.05ips, 26.7mm/s
Scanning Resolution Standard: 100 / 200 / 300 / 400 / 600 dpi
Default: 200 dpi

Scan Detection Auto detect, Preset size, Custom size
RGB Support Standard
Network Interface Standard: Ethernet 100BASE-TX/

Optional: Gigabit Ethernet (1000BASE-T),

Protocol Network: TCP/IP, Scan-to-E-mail: SMTP,

Compression Method B/W: TIFF (MH, MR, MMR), Grayscale

Full Color: JPEG (5 levels)
Scan Mode B/W: Text/Line Art (Default), Text, Text/

Full Color: Text/Photo, Photo
Image Density Auto Density Selection effective only in

Manual: 7 levels (Effective in B&W/

Image Rotation Yes
SADF/Batch Mode Yes
Mixed Size Mode Yes

10BASE-T, USB2.0, USB Host, SD card
slot

Wireless LAN (IEEE802.11a/b/g)

Scan-to-Folder: SMB, FTP

Photo, Grayscale

B/W and Grayscale scan mode

Grayscale and Full-Color scan mode)

External Options

2nd Roll Unit

Roll Paper Size Maximum Width: 36" (914mm)
Minimum Width: 11" (279.4mm)

Roll Paper Diameter 6.92" (176mm)
Dimensions (WxHxD) 43.6" x 15.7" x 17" (1,108 × 398 ×

Weight 31.9 lb. (14.5 kg)

Roll Holder Unit

Dimensions (WxHxD) 41.3" x 6.3" x 6.3 (1,049 ×160 ×160mm)
Weight 3.3 lb. (1.5 kg)

432mm)

Consumables*

Starter (Included):

Print Cartridge Black 60ML
Print Cartridge Cyan 28ML
Print Cartridge Magenta 28ML
Print Cartridge Yellow 28ML

For Purchase:

Print Cartridge Black 200ML
Print Cartridge Cyan 100ML
Print Cartridge Magenta 100ML
Print Cartridge Yellow 100ML

*For maximum performance and yield, we recommend using genuine
Savin parts and supplies.

Warranty

The Savin MP CW2200 is under warranty against defects for a period
of one year from the date of purchase. Consumables are under
warranty for a period of 90 days from the date of purchase or until
depleted, whichever comes first. Please refer to warranty documents
shipped with the product for more details.
