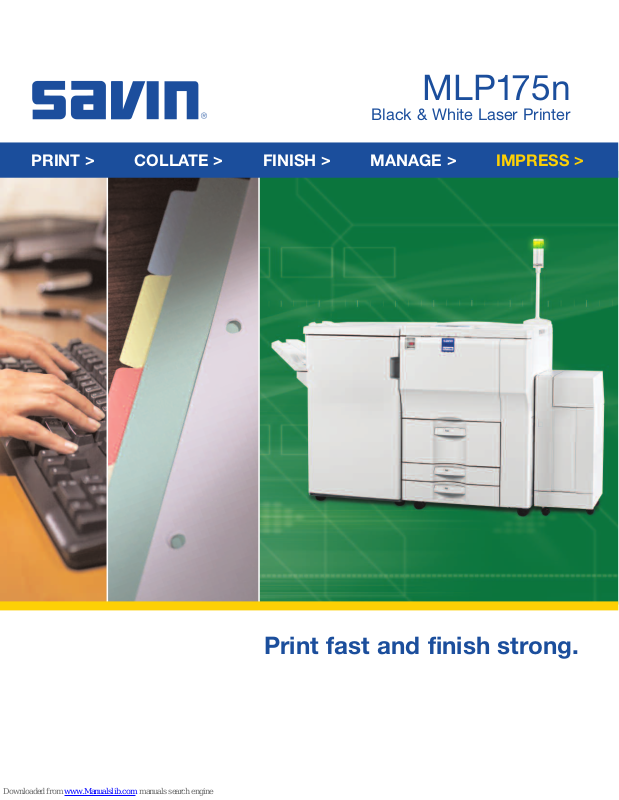

Savin MLP175n Brochure & Specs

MLP175n

Black & White Laser Printer

PRINT

>

COLLATE

>

FINISH

>

MANAGE

>

IMPRESS

>

Print fast and finish strong.

Reliable performance—from a fast start to a

>

beautiful finish.

The Savin MLP175n prints your documents at an impressive 75 pages per
minute, keeping pace with demanding work environments. And when the
pressure’s on to deliver high-volume, high-priority jobs, the 8,200 total
sheet capacity and versatile finishing options deliver professional-looking
documents on time, every time.

Volume and versatility in one.

Print high-volume jobs quickly and without interrup­tion thanks to five different easy-access paper trays
and an 8,200-sheet capacity. But the Savin MLP175n
is also flexible enough to handle everything from

5.5" x 8.5" to 11" x 17" sheets on up to 100 lb. Index
with the optional large capacity tray.And the straight,
paper path provides further uninterrupted printing.

Timesaving tools.

The Savin MLP175n gives you all the capabilities
you need to manage workflow and maximize
productivity—right from your desktop.

• Configure network settings, check printer status
and select printer options remotely via any
standard Web browser with WebImageMonitor

• Manage your files, create notes or combine
documents from different applications into a
single file for easy printing with DeskTopBinder

™

The finishing advantage.

In today’s competitive business environment,
professional-looking documents can give you a
definite advantage. Whether it’s proposals or manuals
or informational booklets, the Savin MLP175n’s
optional finishers give you a wide array of automatic
capabilities to do your jobs right.

• Create affordable manuals in-house with the
Saddle Stitch Finisher.

• Punch holes in precisely the right spot using the
Reactive Punch Unit, which automatically and
correctly positions paper prior to punching.

• Staple up to 100 sheets easily with the SR842
Stapler Finisher.

.

• Insert thick-stock covers automatically with the
Cover Interposer.

™

.

• Eliminate constant trips to the printer and provide
document security by using Hold Print to store all
your jobs for on-demand output release when
you walk up to the printer.

• Store frequently printed documents and forms
on the system for printing at your convenience
with Stored Print.

Print duplex copies a

•
speed with standard stackless duplexing.

• Get your documents faster with PDF Direct Print,
which sends compressed files directly to the printer
in PDF forma

www.savin.com

t nearly 100% of simplex

t without opening the a

pplica

tion.

MLP175n

Network Laser Printer

PRINT

Cover Interposer allows users to add
preprinted covers and inserts to documents.

The optional Saddle Stitch
Finisher creates professional­style booklets in-house.

>

COLLATE

>

FINISH

>

MANAGE

>

IMPRESS

Patrol Lamp provides
a clear visual that the
system is working.

4,200-sheet large
capacity tray extends
paper capacity for
further uninterrupted
printing.

Easy-pull-out trays
are accessible from
the top or bottom.

>

Fast, secure processing.

Process multiple jobs in networked environments in no time with the Savin MLP175n’s
next-genera
enhanced security fea

Ensure that sensitive prints aren’t left in output trays with Locked Print, which

•
requires a password to be entered at the printer prior to printing confidential
materials.

• Keep login passwords and address book information secure while printing through
the network with Encryption capabilities.

tion controller. Not only is the 866MHz controller super fast, but it delivers

tures as well.

Connect and go.

Standard Ethernet 10/100base TX and USB 2.0 interfaces make networking easy. And
the latest Page Description Langua
and graphics applications effortless, too.

Keep your projects moving and make a grea
Laser Printer. Get all the details from your Savin dealer, today.

ges make working with today’

t impression with the Sa

s popular business

vin MLP175n

Your Environmental Partner

Savin continues its long-standing commitment to
developing a full line of
office solutions with superior energy and supply­saving features, including:

• Power-Saving Sleep Mode

aper-Saving Duplex Mode

• P

oner Recyc

T

•

• Low Noise Levels

• Minimal Ozone Emissions

Restriction of Hazardous

•
Substances Compliant (RoHS)

ling Mechanism

environmentally friendly

MLP175n

SPECIFICATIONS

PRINT

>

COLLATE

MAIN UNIT

Configuration Console-type attached base unit
Technology Twin laser beam scanning &

Electro-photographic printing with
dry, dual Component toner

R

esolution 1200 x 1200/600 x 600/300 x 300
Print Speed 75 ppm (LT)
First Print Speed 5.5 seconds or less
Dimensions (WxDxH) 27.1" x 31.1" x 39.5" (without

finisher & call-light)
Weight 414.4 lbs. (without toner & finisher)
Warm Up Time 300 seconds
Power Source 120V/60Hz/20A
Power Consumption 1850W or less
Standard Paper Capacity 4,200 sheets
Optional Paper Capacity 4,000 sheets
Maximum Capacity 8,200 sheets
Acceptable Paper Sizes Standard Trays:

Tray 1: 8.5" x 11" (A4)

Tray 2 and Tray 3 Standard sizes:

5.5" x 8.5", 8.5" x 11",

7.25" x 10.5", 8" x 10.5", 8" x 13,

8.5" x 14" and 11" x 17"

Tray 2 and Tray 3 Custom sizes

from 5.5" x 5.5" to 11.69" x 17"

Bond- 34 lb. Bond

Acceptable

Standard

Paper Weights (60 - 128g/m

Duplex Paper Weight 20 lb. Bond - 34 lb. Bond

Standard Output Capacity 500 sheets (face down)
Optional Output Capacity 3,000 sheets

tic Duplexing Standard

Automa

16 lb.

(64 - 128g/m

2

)

2

)

>

FINISH

>

CONTROLLER SPECIFICATIONS

CPU 866 MHz
Printer Languages PCL 5e/6 emulation,

Adobe PostScript3, PDF, RPCS
Memory (RAM) 256 MB
Standard Interfaces USB 2.0, 100Base-TX/10Base-T

Ethernet
O

ptional Interfaces IEEE 1284, IEEE802.11b,

Gigabit Ethernet
Network Protocols TCP/IP, IPX/SPX, AppleTalk
Standard Print Utilities SmartDeviceMonitor for Admin,

Printer Utility for Mac,

D

esktopBinder Lite,

Font Manager 2000
Optional Print Utilities DeskTopBinder Professional

DRIVERS/OPERATING SYSTEMS

Windows 95/98SE/NT4.0/2000/Me/XP/Server 2003
Netware 3.12, 3.2, 4.1, 4.11,5.0, 5.1, 6
Unix (using Savin UNIX filter)
Linux RedHat Linux 6.x, 7.x, 8.x, 9, and Enterprise
Mac OS 8.6 - 9.2x, OS X 10.1 or later
USB print is supported for Mac OS X v.10.3.3 or later
For Mac OS: Plug-in function for Sample Print, Locked Print
and User Code is supported 10.2 or later

MANAGE

>

CONTROLLER OPTIONS

Controller Options 802.11b Interface Unit Type I

G

igabit Ethernet Board Type A
IEEE1284 Interface Board Type A
Data Overwrite Security Unit Type G

*Used for adding Java applications integrated into the device by Ricoh

Developer Program members.

VM Card Type D*

CONSUMABLES & YIELDS

Savin Toner Type 6075 Black – 43K LT pages at 5% toner
c

overage per bottle (Yield based on 8.5" x 11" (A4) pages at
6% toner coverage)
Savin Staple Type L
Staple Refill Staple Type L
Savin Staple Type H
Savin Refill Staple Type H

Type K

ple

vin Sta

Sa
Savin Refill Staple Type K

IMPRESS

>

or maximum yield and performance,

vin Consumables:

Sa
we recommend using genuine Savin parts and supplies.

F

www.savin.com

Savin Five Dedrick Place, West Caldwell,

®

is a registered trademark of Ricoh Corpora

SAVIN
registered trademarks of Apple Computer,Inc.Adobe
DeskTopBinder
Specifications and external appearances are subject to change without notice.

™

and Web Image Monitor™are trademarks of Ricoh Company, Ltd.All other trademarks are the property of their respective owners. Print speed may be affected by network,application or PC performance.

Printed in U.S.A. on recycled paper. S2281
