Savin IS760,IS760D Operating Instructions Manual

2004 10 G418-8600

Quick Installation Guide

Please read the Safety Information in the Operating Instructions before using this machine. It contains important information related to USER SAFETY and PREVENTING MACHINE PROBLEMS.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Checking the Contents of the Box

Confirming the Installation

Environment

Installing the Scanner

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Disengaging the Lock

Installing the TWAIN/ISIS Driver

Preparation

Log on to the computer as a member of the Administrators group, for installation to Windows 2000/XP, Windows Server 2003, or Windows NT

4.0.

This machine can be used both as a TWAIN scanner and an ISIS scanner. A TWAIN driver and its applications (DeskTopBinder Lite, etc) are to be installed for the TWAIN scanner, and an ISIS driver and its applications (QuickScan, etc), are to be installed for the ISIS scanner.

Important

❒ Before starting "Found New Hardware Wizard,"

it is necessary to install the TWAIN/ISIS driver. If the "Found New Hardware Wizard" started before the installation, click the [Cancel] button to discontinue the wizard and then install the TWAIN/ISIS driver.

Start Windows, and then insert the supplied CD-ROM labeled “Scanner Driver(s), Utilities and Operating Instructions ” into the CD-ROM drive of the client computer.

The CD-ROM Launcher screen appears.

When installation does not start automatically

A Auto Run might not automatically work with

certain operating system settings. In this case, launch “Setup.exe” located in the CDROM root directory.

Click [TWAIN DRIVER] or [ISIS DRIVER].

The installer of the TWAIN/ISIS driver starts. Follow the instructions on the screen.

Power off the computer after the installation is completed.

Note

❒ Don't power on the computer before the step

procedure, “8. Detecting the Scanner”.

About TWAIN driver help

After you have installed the TWAIN driver, [(Model Name) TWAIN V4] will be created under [Programs] of the [Start] menu. Help files for the TWAIN driver can be displayed from here.

Notes on using the TWAIN scanner are provided in “Readme.txt.” Be sure to read them before use.

Image Scanner

North America

G417-17/G418-17

power supply rating:

AC 120V, 60Hz, 2A

Europe

G418-27

power supply rating:

AC 220-240V, 50/60Hz, 1A

North America

G417-17/G418-17

Electrical Outlet Requirements:

AC 120V, 60Hz, min.10A

Europe

G418-27

Electrical Outlet Requirements:

AC 220-240V, 50/60Hz, min.5A

Check the contents of the box according to the following list. If one or some items are missing, please contact your sales or service representative.

Quick Installation Guide (this sheet)

CD-ROM

Power Cord

Tool

Cleaning Cloth

Safety Instruction Sheet

Two Caps

Remove the plastic bag. Lift the scanner and move it to the place where you want to install it.

The scanner location should be carefully chosen because environmental conditions greatly affect its performance.

WARNING

• Make sure the wall outlet is near the machine

and easily accessible so that in event of an emergency it can be unplugged easily.

CAUTION

• Keep the machine away from humidity and

dust. A fire or an electric shock might occur.

• Do not place the machine on an unstable

or tilted surface. If it topples over, it could cause injury.

Optimum Environment Conditions

Recommended temperature and humidity

ADC122S

Important

❒ When the machine is moved from a cold

location to a warm location, sudden temperature changes cause condensation inside of the scanner. Wait one hour or more before turning on the scanner to allow the condensation to evaporate.

Environments to Avoid

Important

❒ Do not set up the scanner in any of the fol-

lowing types of locations. It may be the cause of the malfunction.

• In a location exposed to direct sunlight

• In a location where the scanner will be sub-

jected to blowing air or radiant heat, such as near an air conditioner or heater

• In a location near other electronic devices,

such as a radio or television set

• In a location subject to extreme tempera-

tures or humidity

• Near a humidifier

Power Connection

Connect the power cord to a power source with the following specifications:

Product Specifications

Electrical Outlet Requirements

Space Required for Installing the Scanner

Make sure that the scanner is in a location where there is enough space to provide a clearance as illustrated below, and also provide a comfortable working area in the front.

ADC115S

. 100mm (4inch) or more

ADC116S

. 800mm (31.5inch) or more

Remove two lock screws fixed on the back of this machine.

ADC082S

Note

❒ Use a coin to remove the screws.

The holes left by the removed screws are to be covered by the caps. Put the leg stopper of the caps into the holes vertically.

ADC084S

CAUTION

• This scanner weighs approximately 33 kg.

• Make sure to lift it carefully with two persons

or more so as to minimize physical strain. Careless lifting, reckless handling or allowing it to drop down can cause injury.

• When transporting over long distances,

please consult an authorized dealer.

Take out the scanner main unit.

ADC057S

Remove the tape.

Important

❒ Save the box and cushioning material in

which the scanner was packed so that they can be used if it is necessary to transport the scanner in the future.

Open the automatic document feeder (ADF) and remove the protective sheet on the contact glass.

ADC058S

Turn the caps 90 degrees.

Lift the Pressure Panel, and carefully pull out the Background Panel that is fixed with the Velcro.

ADC071S

The removed screws are to be kept fixing on the back of the Pressure Panel.

ADC086S

Return the removed Background Panel to where it was.

Reference

❒ Regarding how to set the Background Panel,

please refer to a note on the back of the Pressure Panel.

Set the lock lover to the “Unlock” position.

ADC025S

Quick Installation Guide

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Connecting to the Computer

This scanner can be connected to the computer with a SCSI and/or USB interface.

You can connect the scanner to two computers at the same time. One with the SCSI interface, and one with the USB 2.0 interface. Though, you cannot use the scanner at the same time from two computers. Interfaces are switched automatically when you change from one of the computer to the other.

Important

❒ The SCSI interface of this unit is of the 50-

pin half-pitch (pin-type) type. Connect a shielded SCSI-2 compliant with ANSI standards or a SCSI-3 (Ultra-SCSI) cable.

❒ It is possible that malfunction occurs or data

is lost when more than one SCSI ID's exists simultaneously. Adjust the settings such that the SCSI ID of this unit does not coincide with the ID of another SCSI device.

❒ Keep the total length of the SCSI cable in-

cluding the cable inside the PC to a maximum of 1.5m (4.9 feet) when using the SCSI-3 (Ultra-SCSI) and 3m (9.8 feet) when using the SCSI-2.

❒ Some combinations of the SCSI board of

your computer and daisychained peripherals might cause an incorrect operation. Please contact and ask your service representative about the recommended SCSI board.

❒ If you connect this unit to other SCSI devices

through a daisy chain, it may not work properly. In this case, connect only this unit to the computer.

Connecting the SCSI Interface (When the Scanner is at the End of the Daisy Chain)

Shut down the computer and all of the SCSI connected devices.

Daisy chain the computer, scanner and SCSI connected devices.

ADC018S

Note

❒ Connect the SCSI cable to either one side of the

connectors.

Open the cover of the switch box on the lower left of the front side of the scanner.

Note

❒ Push the knob of the cover to the left and pull

the cover to open.

Confirm the DIP Switch NO.3 is in the OFF position.

ADC019S

When you do not use the USB connection

Changing the DIP Switch settings enables highspeed data transfer. This is available with SCSI connection, the USB and the optional IEEE1394 connection cannot be used with this setting.

A Set the DIP Switch NO.2 to the OFF position.

SCSI synchronous transmission is enabled.

Set the SCSI ID by rotating the Rotary Switch.

ADC017S

Connecting the SCSI Interface (When the Scanner is not at the End of the Daisy Chain)

Shut down the computer and all of the SCSI connected devices.

Daisy chain the computer, scanner and SCSI connected devices.

ADC020S

Open the cover of the switch box on the lower left of the front side of the scanner.

Note

❒ Push the knob of the cover to the left and pull

the cover to open.

Set the DIP Switch NO.3 to the ON position.

ADC021S

Built-in SCSI terminator is disabled.

When you do not use the USB connection

Changing the DIP Switch settings enables highspeed data transfer. This is available with SCSI connection, the USB and the optional IEEE1394 connection cannot be used with this setting.

A Set the DIP Switch NO.2 to the OFF position.

SCSI synchronous transmission is enabled.

Set the SCSI ID by rotating the Rotary Switch.

ADC017S

Connecting the USB Interface

Note

❒ Please use the recommended USB cable. Using

other cables might occur an irregular operation. As for the recommended cables, please ask your service representative.

Open the cover of the switch box on the lower left of the frontside of the scanner.

Note

❒ Push the knob of the cover to the left and pull

the cover to open.

Confirm the DIP Switch NO.2 is in the ON position.

ADC080S

Note

❒ If the DIP Switch NO.2 is set to OFF, set it to

ON. The scanner will not be detected if the switch is set to OFF.

Connect the USB cable to the USB connector.

ADC022S

Connect the other side of the cable to the USB connector on your computer.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Connecting the Power Code

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Detecting the Scanner

Appendix: Turning the Power On/Off

Turning the Power On when Connected with SCSI Interface

Turn the power on from the farthest devices from the computer on the daisy chain. Start the computer last.

Note

❒ The scanner will not be detected if you start the

computer first.

Turning the Power On when Connected with USB Interface

There is no order to turn on the power when you connect the scanner with USB Interface. You can turn on either the scanner or the computer first.

○○○○○○○○○

○○○○○○○○○○○○○○

GB GB EN USA

Turning the Power Off

There is no order to turn off the power. You can turn off either the scanner or the computer first.

○○○○○○○○○

This section explains how to connect this machine to a power source, using a bundled AC power cord.

WARNING

• Do not use with a power source with a voltage

different from the specified voltage. Do not use a power outlet with multiple devices plugged in. These could create the risk of fire or electric shock.

• Avoid the use of an extension cord.

• Do not damage, break, twist or modify the

Power Cord. Placing heavy objects on the cord, pulling on or bending it excessively can damage the Power Cord, creating the risk of fire or electric shock.

• Never touch or unplug the power plug with wet

hands. This can create the risk of electric shock.

CAUTION

• When unplugging from an outlet, be sure to

grasp the plug when pulling. Never pull on the cord. This could damage the cord creating the risk of fire or electrical shock.

Confirm that the power switch is set to off.

ADC124S

Confirm the lock screws on the back of this machine are removed and the holes left by the removed screws are covered with the cap, and confirm that the lock lever is set to the "Unlock" position.

ADC089S

Important

❒ Turning the power on leaving the lock lever

to the "Lock" position and/or turning the power on without removing the screws could result not only in failure in scanning but in malfunction of this machine.

Push the power cord plug all the way into the power connector on this machine.

ADC026S

Note

❒ Be sure to use the power cord that comes with

this machine.

Insert the power plug into the power outlet.

Power on the scanner.

ADC125S

Start the computer.

The installation completes here for the computer with the operation systems, Windows 95 and Windows NT4.0. For the computer with other operation systems, “Plug & Play” detects the scanner and the “Found New Hardware Wizard” automatically starts.

In the Wizard, select [Search f or a suitable driver for my device [recommended]], and continue the “Found Ne w Har dware Wizard” to the end, according to the instruction on the displa y.

Note

❒ When an instruction to set the Windows system

CD-ROM appears on the display in the course of the installation, follow the instruction accordingly.

❒ Even when “No approval of the logo test” ap-

pears on the display, you can continue the installation by clicking [continue].

Image Scanner

Operating Instructions

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety

Information in this manual before using the machine.

Guide to Components

Setting up the Scanner

Installing Software

Setting Originals

Using the TWAIN Driver

Appendix

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Caution

Certain options might not be available in some countries. For details, please contact your local dealer. Some illustrations in this manual might be slightly different from the machine.

The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products.

Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licens-

es. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its

completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.

Power Source

Color Scanner: 120V, 60Hz, 10A or more Please be sure to connect the power cord to a power source as above.

Trademarks

Adobe, PostScript, and Acrobat are trademarks of Adobe Systems Incorporated. QuickScan™ is a trademark of Pixel Translations and Captiva Software Corporation.

PixTools

and ISIS® are registered trademarks of Pixel Translations and Captiva Software Corporation. Pentium is a registered trademark of Intel Corporation. MS, Microsoft, and Windows are registered trademarks of Microsoft Corporation. Other product names used herein are for identification purposes only and might be trademarks of their

respective companies. We disclaim any and all rights to those marks.

The proper names of the Windows operating systems are as follows:

• The product name of Windows

• The product names of Windows

Microsoft Microsoft Microsoft

• The product names of Windows

Microsoft Microsoft

Windows® 2000 Professional

Windows® 2000 Server

Windows® 2000 Advanced Server

Windows® XP Home Edition

Windows® XP Professional

95 is Microsoft® Windows® 95

98 is Microsoft® Windows® 98

Me is Microsoft® Windows® Millennium Edition (Windows Me)

2000 are as follows:

XP are as follows:

• The product names of Windows Server™ 2003 are as follows:

Microsoft® Windows Server™ 2003 Standard Edition Microsoft Microsoft

• The product names of Windows

Microsoft Microsoft

Windows Server™ 2003 Enterprise Edition

Windows Server™ 2003 Web Edition

Windows NT® Workstation 4.0

Windows NT® Server 4.0

NT 4.0 are as follows:

TABLE OF CONTENTS

Safety Information ................................................................................................. 1

Safety During Operation............................................................................................. 1

Energy Star Program ............................................................................................. 4

Manuals for This Scanner .....................................................................................5

How to Read This Manual .....................................................................................6

1. Guide to Components

Guide to This Scanner...........................................................................................7

Understanding Indicators ...........................................................................................9

DIP Switches ............................................................................................................10

2. Setting up the Scanner

Confirmations Before the Setup.........................................................................11

Location, Space and Environment ........................................................................... 11

Disengaging the lock for transportation.................................................................... 13

Installing Options.................................................................................................16

Installing the Image-Processing Unit........................................................................16

Installing the IEEE1394 Interface Board ..................................................................18

Connecting to the Computer ..............................................................................21

Connecting with SCSI Interface ............................................................................... 21

About the SCSI Interface....................................................................................... 21

Setting the SCSI ID ............................................................................................... 22

Setting the SCSI ID Automatically .........................................................................23

Connecting the SCSI Cable (When the Scanner is at the End of the Daisy Chain) Connecting the SCSI Cable (When the Scanner is not at the End of the Daisy Chain)

Using the Scanner only with the SCSI Connection ............................................... 27

Connecting with USB Interface ................................................................................28

Connecting with IEEE1394 Interface ....................................................................... 29

Connecting to a Power Source...........................................................................31

Turning the Power On/Off ...................................................................................33

Turning the Power On when Connected with SCSI Interface ..................................33

Turning the Power On when Connected with USB/IEEE1394 Interface .................. 33

Turning the Power Off .............................................................................................. 33

Using the Hard Reset Switch..............................................................................34

...24 ...26

3. Installing Software

Installing TWAIN Driver .......................................................................................35

System Requirements.............................................................................................. 35

Installing TWAIN Driver ............................................................................................ 36

Installing DeskTopBinder Lite ............................................................................38

System Requirements.............................................................................................. 38

Installing DeskTopBinder Lite .................................................................................. 39

Installing ISIS Driver ............................................................................................40

System Requirements.............................................................................................. 40

Installing ISIS Driver.................................................................................................41

Installing QuickScan............................................................................................43

System Requirements.............................................................................................. 43

Installing QuickScan.................................................................................................43

4. Setting Originals

Sizes and Weights of Recommended Originals................................................45

Original Sizes Available for Auto Detection.............................................................. 46

Originals that Require Special Care......................................................................... 47

Placing Originals.................................................................................................. 48

Placing the Original on the Exposure Glass............................................................. 48

Placing the Originals in the ADF .............................................................................. 49

Changing the Color of the Background Panel ..................................................52

Changing the Color of the Background Panel for the ADF ......................................52

Changing the Color of the Background Panel for the Exposure Glass ....................54

5. Using the TWAIN Driver

Procedure Breakdown.........................................................................................57

Scanning Originals ..............................................................................................58

What You Can Do with the TWAIN Driver .......................................................... 60

Functions of the TWAIN Driver ................................................................................ 60

6. Appendix

Troubleshooting...................................................................................................63

Error Indicators......................................................................................................... 63

When the Original is Jammed or Double Fed in the ADF ........................................64

When the Originals are Not Fed Correctly ............................................................... 66

When Scanning is Not Performed as Expected .......................................................66

When an Error Message Appears............................................................................ 67

When in Installation and Other Problems................................................................. 70

Cleaning................................................................................................................71

Cleaning the Original Table Cove ............................................................................ 72

Cleaning Under the Pressure Panel......................................................................... 73

Cleaning Under the Background Panel .................................................................... 74

Cleaning Inside the ADF Cover................................................................................ 76

Cleaning the Ventilation Panel ................................................................................. 77

Moving and Transporting the Scanner ..............................................................78

Moving Over Short Distances .................................................................................. 78

Transporting the Scanner......................................................................................... 79

Disposing of the Scanner....................................................................................81

How Data Size Changes Depending on Scan Area and Resolution................82

When

When [Gray Scale] or [256 Colors] is Selected............................................................ 83

When [8 Colors] or [8 Colors(Photo)] is Selected ........................................................ 83

When [16770K colors] is Selected..............................................................................84

[

Binary(Text)

], [

Binary(Photo)

], [

Binary(Auto Image)

Options ................................................................................................................. 85

Image Processing Unit Type B................................................................................. 85

IEEE1394 Interface Unit Type IS760 ....................................................................... 85

Specifications.......................................................................................................86

, or

]

[

Binary(Text/Photo)

is Selected

]

...82

INDEX......................................................................................................... 88

Safety Information

When using this machine, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

WARNING:

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

R WARNING:

• Connect the Power Cord directly into a wall outlet and never use an extension cord.

• Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

• To avoid hazardous electric shock or laser radiation exposure, do not remove any covers or screws other than those specified in this manual.

• Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any of the following conditions exists:

• You spill something into the equipment.

• You suspect that your equipment needs service or repair.

• Your equipment's cover has been damaged.

• Disposal can take place at our authorized dealer or at appropriate collection sites.

• Keep the machine away from flammable liquids, gases, and aerosols. A fire or an electric shock might occur.

• Make sure the wall outlet is near the machine and easily accessible so that in event of an emergency it can be unplugged easily.

• Do not use with a power source with a voltage different from the specified voltage. Do not use a power outlet with multiple devices plugged in. These could create the risk of fire or electric shock.

• Avoid the use of an extension cord.

• Do not damage, break, twist or modify the Power Cord. Placing heavy objects on the cord, pulling on or bending it excessively can damage the Power Cord, creating the risk of fire or electric shock.

• Never touch or unplug the power plug with wet hands. This can create the risk of electric shock.

• Never remove any covers or screws other than those specified in this manual. The inside of the scanner contains high-voltage components that can cause electrical shock. Have all inspections, adjustments, and repairs inside the scanner performed by an authorized dealer only.

• Do not attempt to modify this scanner in any way. Modification can cause fire or electrical shock.

R CAUTION:

• Protect the equipment from dampness or wet weather, such as rain, snow, and so on.

• Unplug the Power Cord from the wall outlet before you move the equipment.

While moving the equipment, you should take care that the Power Cord will not be damaged under the equipment.

• When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).

• Do not allow paper clips, staples, or other small metallic objects to fall inside the equipment.

• For environmental reasons, do not dispose of the equipment or expended supply waste at

household waste collection points. Disposal can take place at an authorized dealer or at appropriate collection sites.

• The inside of the machine could be very hot. Do not touch the parts with a label indicating the "hot surface". Otherwise it could cause a personal burn.

• Our products are engineered to meet high standards of quality and functionality, and we recommend that you only use the expendable supplies available at an authorized dealer.

• Keep the machine away from humidity and dust. A fire or an electric shock might occur.

• Do not place the machine on an unstable or tilted surface. If it topples over, it could cause

injury.

• When unplugging from an outlet, be sure to grasp the plug when pulling. Never pull on the cord. This could damage the cord creating the risk of fire or electrical shock.

• When disconnecting the power cord, always make sure to hold onto the plug. Do not pull on the power cord itself. This can cause damage to the cord, fire or electrical shock.

• Be careful not to pinch your fingers when closing the Automatic Document Feeder (ADF).

• This scanner weighs approximately 72.8 lbs.

• Make sure to lift it carefully with two persons or more so as to minimize physical strain.

Careless lifting, reckless handling or allowing it to drop down can cause injury.

• When transporting over long distances, please consult an authorized dealer.

Energy Star Program

As an ENERGY STAR Partner, we have determined that this machine model meets the ENERGY STAR Guidelines for energy efficiency.

The ENERGY STAR Guidelines intend to establish an international energy-saving system for developing and introducing energy-efficient office equipment to deal with environmental issues, such as global warming.

When a product meets the ENERGY STAR Guidelines for energy efficiency, the Partner shall place the ENERGY STAR logo onto the machine model.

This product was designed to reduce the environmental impact associated with office equipment by means of energy-saving features, such as Low-power mode.

❖❖❖❖ Low-Power mode

This unit automatically lowers its power consumption at a predetermined time (approximately 15 minutes) after the last operation was performed. To operate the unit from this mode, see the instructions below.

• Method for clearing

• Put a document on the Original Table.

• Open the cover of the Automatic Document Feeder (ADF).

• Lift the Pressure Panel.

• Follow the instructions from the PC.

Note

❒ The Low-Power mode does not work in the following conditions.

• When an error occurs.

• When a document is placed on the Original Table.

❖❖❖❖ Specifications

Low-Power mode Power consumption Approx. 8W

Transitional interval 15 minutes

Manuals for This Scanner

The following manuals describe the operational and maintenance procedures of this machine.

To enhance safe and efficient operation of this scanner, all users should read and follow the instructions carefully.

❖❖❖❖ Quick Installation Guide

Describes how to install the scanner.

❖❖❖❖ Operating Instructions (this manual)

Provides all of the information how to install, set up, and use the scanner. This manual is provided as a PDF file.

Note

❒ There is a CD-ROM that comes with this scanner.

How to Read This Manual

Symbols

The following set of symbols is used in this manual.

WARNING:

This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are described in the Safety Information section.

CAUTION:

This symbol indicates a potentially hazardous situation that might result in minor or moderate injury or property damage that does not involve personal injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are described in the Safety Information section.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates information or preparations required prior to operating.

Note

This symbol indicates precautions for operation, or actions to take after abnormal operation.

Limitation

This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[]

Keys that appear on the machine's display panel.

[]

Keys and buttons that appear on the computer's display.

{}

Keys built into the machine's control panel.

{}

Keys on the computer's keyboard.

1. Guide to Components

Guide to This Scanner

1. ADF (Automatic Document Feed-

er)

Allows you to automatically load multiple originals into this machine.

2. Paper Thickness Changeover Le-

ver

When you scan the thick originals — originals thicker than 128g/m — with the ADF, set the paper thickness changeover lever to your side. After scanning, return the switch to the back side.

(242.5bls)

3. Original Table

Set originals here to be loaded into this machine using ADF.

4. Output Table

The originals that have been loaded by the ADF are output here after scanning.

5. Original Stopper

Stops the originals scanned by the ADF.

6. Rotary Switch

Use to set SCSI ID.

ADC002S

7. DIP Switches

Use to set the operation mode of this scanner. ⇒ p.10 “DIP Switches”

8. Hard Reset Switch

This switch resets the power to the scanner. Use this switch when validate the settings of the DIP Switches or the Rotary Switch.

9. Indicators

Indicates the status of this machine. ⇒ p.9 “Understanding Indicators”

10. {

{Clear Modes}}}} key

{{

Press this key to stop the manual scanning.

11. {

{Start}}}} key

{{

Press this key to start the manual scanning

12. Power Switch

Turns this machine's power on and off.

Guide to Components

ADC003S

1. Pressure Panel

Holds the originals down on the Exposure Glass.

2. Background Panel for Exposure

Glass

Panel to set the background color for the original in black or white when you place the original on the exposure glass. ⇒ p.54 “Changing the Color of the Background Panel for the Exposure Glass”

3. ADF Exposure Glass

Scans the originals when they are loaded by the ADF.

4. Exposure Glass

Set the original here when you do not use the ADF scanning.

5. ADF Cover

Open when clearing the misfed originals or cleaning the rollers.

6. Lock Screw

This is to lock the scanning parts inside when you transport this machine. Remove this screw when you set up this machine.

7. USB 2.0 Interface Connector

Used for connection of an USB cable. The USB interface board is alternatively used with the optional IEEE1394 interface board.

8. Lock Lever

Set this lever to the “Lock” position when you transport this machine.

9. SCSI Interface Connector

Used for connection of a SCSI Cable.

10. SD Card Slot

Used for an authorized customer engineer's maintenance only.

11. Power Connector

For connection of the bundled AC power code.

Guide to This Scanner

Understanding Indicators

This section explains how to interpret the indicators in front of this machine.

ADC126S

Indicators On Blink Off

Status of Power Power On Low-Power mode Power Off

Machine Busy Scanning operation

No originals are set to the ADF

current status

Documents in place

Error detection Error No error or the

Scan Wait SADF When SADF mode or

Sometimes it looks like blinking.

in progress

Originals are set to the ADF

during standby for the manual scan

All indicators on: For a short while after you turned on the power, or pressed the Hard Reset key.

All indicators blinking: System error. Contact your service representative.

Description of the Error indicator on: See p.63 “Error Indicators”

Guide to Components

DIP Switches

Change only the switches No. 1 to 3. Do not change the other switches.

ADC005S

SW No. Function OFF ON

2 SCSI synchronous transmission enable

3 SCSI termination enable disable

SCAM: SCSI Configured Automatically. Protocol to set SCSI ID automatically.

SCAM

(system usage)

disable enable

disable

always

Do not make changes.

OFF

Important

❒ SCSI ID will not be configured even if you set SCAM to enable, when more

than one of this scanner with the SCAM function enabled are connected to the daisy chain. In this case, disable the SCAM by setting the DIP Switch No.1 ON, and set the SCSI ID with the Rotary Switch.

❒ The USB and the optional IEEE1394 connection cannot be used when the SCSI

synchronous transmission is set. You can turn the DIP Switch No.2 OFF (SCSI synchronous transmission enabled) when using the scanner only with the SCSI connection.

❒ A malfunction with SCSI synchronous transmission may occur if you use a

SCSI cable longer than recommended, or a cable out of the standard. In that case, turn the DIP Switch No.2 ON (SCSI synchronous transmission disabled).

❒ When the scanner is connected to the middle of the daisy chain, set the DIP

Switch No.3 ON.

2. Setting up the Scanner

This section explains how to setup the scanner to get it ready for use, and how to make necessary connections.

Confirmations Before the Setup

Location, Space and Environment

❖❖❖❖ Location

WARNING:

• Make sure the wall outlet is near the machine and easily accessible so that in event of an emergency it can be unplugged easily.

CAUTION:

• Keep the machine away from humidity and dust. A fire or an electric shock might occur.

• Do not place the machine on an unstable or tilted surface. If it topples over, it could cause

injury.

Place the scanner on a level, stable, vibrating-free surface.

• Allowable inclination of the surface for installation is within 0.2inch (when measuring difference of heights between one end and the other of this machine, compared to a level surface).

❖❖❖❖ Space

Make sure that the scanner is in a location where there is enough space to provide the clearance as illustrated below, and also provide a comfortable working area in the front.

4 inch (100 mm) or more

31.5 inch (800 mm) or more

ADC120S

Setting up the Scanner

❖❖❖❖ Environment

Important

❒ Do not set up the scanner in any of the following types of locations. It may

be the cause of the malfunction.

• In a location exposed to direct sunlight

• In a location where the scanner will be subjected to blowing air or radi-

ant heat, such as near an air conditioner or heater

• In a location near other electronic devices, such as a radio or television

set

• In a location subject to extreme temperatures or humidity

• Near a humidifier

Set up the scanner in a location where the temperature and humidity will fall within the ranges shown below.

ADC123S

Important

❒ Save the box and cushioning material in which the scanner was packed so

that they can be used if it is necessary to transport the scanner in the future.

❒ When the machine is moved from a cold location to a warm location, sud-

den temperature changes cause condensation inside of the scanner. Wait one hour or more before turning on the scanner to allow the condensation to evaporate.

Confirmations Before the Setup

Disengaging the lock for transportation

In this section, we explain how to disengage the lock after you take the scanner out of the package for transportation.

Remove two lock screws fixed on the back of this machine.

AAAA

ADC082S

Note

❒ Use a coin to remove the lock screws.

❒ Be sure to remove the lock screws. Turning the power on without remov-

ing the screws could result not only in failure in scanning, but in malfunction of this machine.

Cover both holes left by the removed screws with the caps.

BBBB

A Put the leg stopper of the caps into the holes vertically.

ADC084S

B Turn the caps 90 degrees.

Setting up the Scanner

he removed lock screws are to be kept on the back of the Pressure Panel

CCCC

as follows: A Lift the Pressure Panel and carefully pull out the Background Panel that

is fixed with the Velcro.

ADC071S

B The removed screws are to be kept fixing on the back of the Pressure

Panel.

ADC086S

C Return the removed Background Panel to where it was.

Reference

Regarding how to set the Background Panel, please refer to the step B -

of p.54 “Changing the Color of the Background Panel for the Expo-

sure Glass”.

Turn the lock lever on the back of this machine to the “Unlock” position.

DDDD

ADC025S

Confirmations Before the Setup

Note

❒ Be sure to set the lock lever to the “Unlock” position. Turning the power

on leaving the lock lever to the “Lock” position could result not only in failure in scanning but in malfunction of the machine.

Setting up the Scanner

Installing Options

Installing the Image-Processing Unit

Important

❒ Touch any metallic material before touching the image-processing unit to re-

move static from your body.

Note

❒ Use the accessory tool to remove or fix the screws.

Turn OFF the power to this product and disconnect all cables connected to

AAAA

the product, including the power cable.

Remove the three screws on the lower back surface of the product.

BBBB

ADC009S

Pull out the scanner control unit by pulling the black ribbon on the center

CCCC

of the board.

ADC010S

Important

❒ The control unit is heavy. Please take care not to drop it when pulling it

out.

Remove the seven screws on the cover of the scanner control unit.

DDDD

ADC064S

Open the cover of the scanner control unit.

EEEE

Installing Options

ADC011S

Connect the connector at the bottom surface of the image-processing unit to

FFFF

the connector of the scanner control unit, and fix with one accessory screw.

ADC012S

Check that it is connected tightly, check that there are no foreign objects

GGGG

such as metal on the scanner control unit.

Close the scanner control unit cover and fix with seven screws, then insert

HHHH

the scanner control unit into the main unit.

Note

❒ Be sure to place the scanner on the level surface when inserting the scanner

control unit.

❒ Insert the scanner control unit till you see the screw holes.

Setting up the Scanner

Fix the scanner control unit with three screws.

IIII

Removed cables must connect in former state.

JJJJ

Installing the IEEE1394 Interface Board

Important

❒ Touch any metallic material before touching the IEEE interface board to re-

move static from your body.

Note

❒ The optional IEEE 1394 interface board is alternatively used with the USB in-

terface board.

Turn OFF the power to this product and disconnect all cables connected to

AAAA

the product, including the power cable.

Remove the three screws on the lower back surface of the product.

BBBB

ADC009S

Pull out the scanner control unit by pulling the black ribbon on the center

CCCC

of the board.

ADC010S

Important

❒ The control unit is heavy. Please take care not to drop it when pulling it

out.

Remove the seven screws on the cover of the scanner control unit.

DDDD

ADC064S

Open the cover of the scanner control unit.

EEEE

Installing Options

ADC011S

Remove the USB 2.0 interface board fixed with 6 screws.

FFFF

ADC077S

Setting up the Scanner

Connect the IEEE1394 interface board to the extension connector. Fix the

GGGG

board with four accessory screws from inside, two accessory screws from outside.

ADC014S

Check that it is connected tightly, check that there are no foreign objects

HHHH

such as metal on the scanner control unit.

Close the scanner control unit cover and fix with seven screws, then insert

IIII

the scanner control unit into the main unit.

Note

❒ Be sure to place the scanner on the level surface when inserting the scanner

control unit.

❒ Insert the scanner control unit till you see the screw holes.

Fix the scanner control unit with three screws.

JJJJ

Removed cables must connect in former state.

KKKK

Connecting to the Computer

This scanner can be connected to the computer with either a SCSI, USB, or IEEE1394 interface. An optional board will be required to connect with IEEE1394.

Important

❒

Do not turn the power of the scanner ON before the software installation. If you run the "Found New Hardware Wizard" beforehand, you will not be able to install the software correctly. When the "Found New Hardware Wizard" started before the installation, click the [

Connecting with SCSI Interface

Standard, you can connect the scanner to two computers at the same time. One with the SCSI interface, and one with the USB 2.0 interface. Though, you cannot use the scanner at the same time from two computers. Interfaces are switched automatically when you change from one of the computer to the other.

Cancel

] button to discontinue the wizard.

When the IEEE1394 interface board of the option is installed, you can connect the scanner to three computers at the same time. One with a SCSI interface, and two with the optional IEEE1394 interface. Though, you cannot use the scanner at the same time from three computers. Interfaces are switched automatically when you use any one of the computers.

About the SCSI Interface

Connection of this scanner to the SCSI (Small Computer System Interface) is as follows:

• This scanner is compliant for SCSI-3. You can daisy chain with SCSI-1/2 compliant devices as well. The SCSI connecter of this scanner is male 50pin halfpitch pin type. Use the shielded SCSI-2/3 cable compliant with ANSI (American National Standard Institute). Confirm in advance that some combination of the SCSI cable and SCSI board on the computer may cause an incorrect scanner operation.

• This scanner is compliant for SCAM (SCSI Configured Automatically). If you use SCAM corresponding to SCSI board and driver for your computer, the SCSI ID will be set automatically. ⇒ p.23 “Setting the SCSI ID Automatically”

• This scanner has a built-in terminator. Set the DIP switches properly when you connect the scanner with the SCSI interface.

Important

❒

Using other cable than ANSI compliant SCSI-2/3 shielded cable, may possibly bring about malfunction or electromagnetic wave interference above VCCI rules.

❒

Connect a SCSI cable shorter than 4.9feet (1.5m) for the SCSI-3 (Ultra-SCSI), and a

9.8feet (3m) cable for the SCSI-2, including the cable length inside your computer.

❒ Some combinations of the SCSI board of your PC and daisy-chained periph-

erals might cause an incorrect operation. Please contact and ask your service representative about the recommended SCSI board.

Setting up the Scanner

Setting the SCSI ID

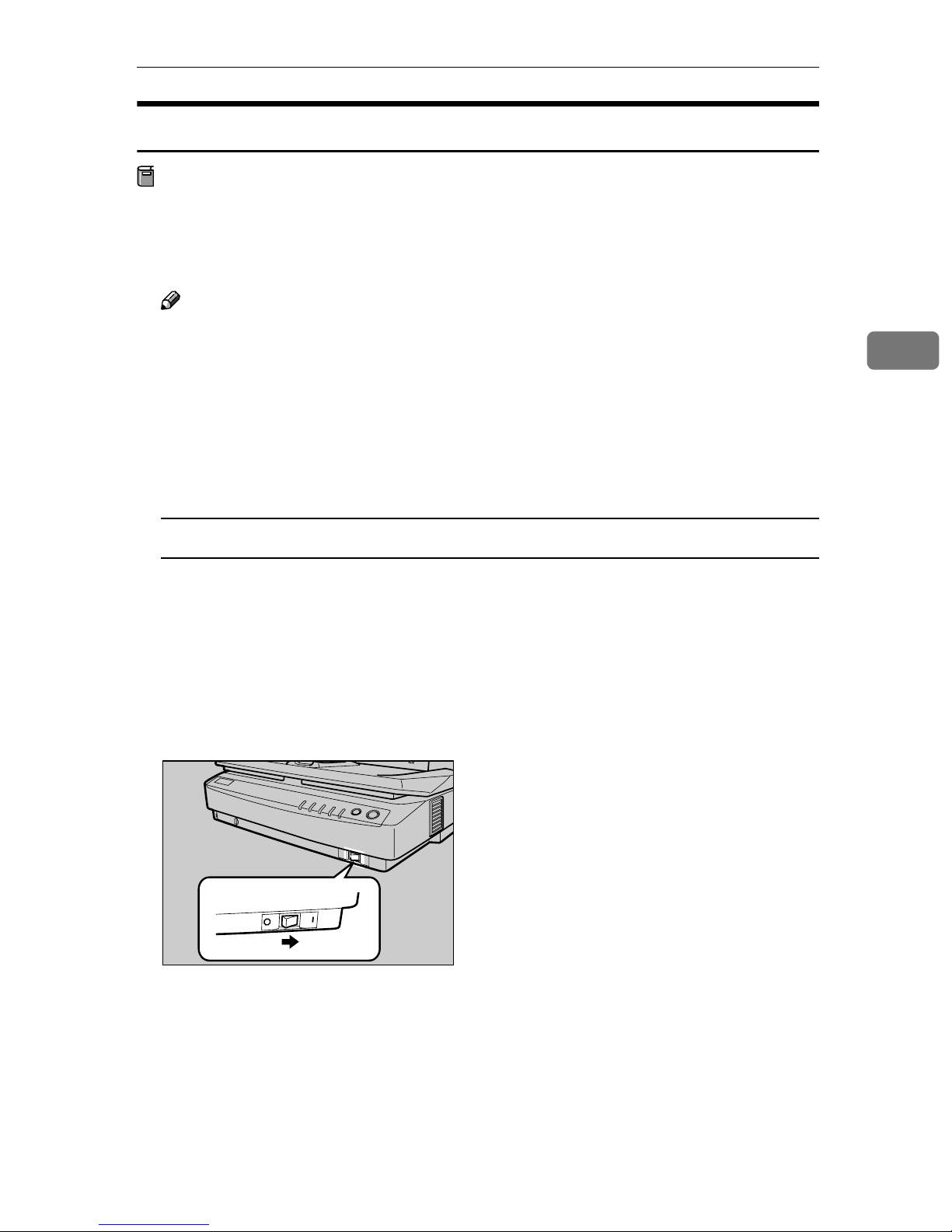

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Confirm the DIP Switch No.1 to the OFF position.

BBBB

ADC069S

SCAM function is disabled.

Set the SCSI ID by rotating the Rotary Switch.

CCCC

Note

❒ Press the Hard Reset Switch if you changed the SCSI ID while the power is

ON. ⇒ p.34 “Using the Hard Reset Switch”

ADC017S

Connecting to the Computer

Setting the SCSI ID Automatically

Note

❒ If you use the SCSI board without SCAM function or the SCSI ID is overlap-

ping with the other SCSI device, set the SCSI ID manually.

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Set the DIP Switch No.1 to the ON position.

BBBB

ADC016S

SCAM function is enabled.

Setting up the Scanner

Connecting the SCSI Cable (When the Scanner is at the End of the Daisy Chain)

Shut down the computer and all of the SCSI connected devices.

AAAA

Daisy chain the computer, scanner and SCSI connected devices.

BBBB

ADC018S

Note

❒ Connect the SCSI cable to either one side of the connectors.

Open the cover of the switch box on the lower left of the frontside of the

CCCC

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Set the DIP Switch No.3 to the OFF position.

DDDD

Built-in SCSI terminator is enabled.

ADC019S

Connecting to the Computer

Note

❒ Press the Hard Reset Switch if you changed the SCSI ID while the power is

ON. ⇒ p.34 “Using the Hard Reset Switch”

Setting up the Scanner

Connecting the SCSI Cable (When the Scanner is not at the End of the Daisy Chain)

Shut down the computer and all of the SCSI connected devices.

AAAA

Daisy chain the computer, scanner and SCSI connected devices.

BBBB

ADC020S

Open the cover of the switch box on the lower left of the frontside of the

CCCC

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Set the DIP Switch No.3 to the ON position.

DDDD

ADC021S

Built-in SCSI terminator is disabled.

Connecting to the Computer

Note

❒ Press the Hard Reset Switch if you changed the SCSI ID while the power is

ON. ⇒ p.34 “Using the Hard Reset Switch”

Using the Scanner only with the SCSI Connection

You can set the scanner to the SCSI synchronous transmission for high-speed data transfer and shorten the total scan time. The USB and the optional IEEE1394 connection cannot be used when the SCSI synchronous transmission is set.

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Set the DIP Switch No.2 to the OFF position.

BBBB

ADC079S

SCSI synchronous transmission is enabled.

Note

❒ Press the Hard Reset Switch if you changed the DIP Switch while the pow-

er is ON. ⇒ p.34 “Using the Hard Reset Switch”

Setting up the Scanner

Connecting with USB Interface

Note

❒ Please use the recommended USB cable. Using other cables might occur an ir-

regular operation. As for the recommended cables, please ask your service representative.

❒ You can connect the scanner to two computers at the same time. One with the

SCSI interface, and one with the USB 2.0 interface. Though, you cannot use the scanner at the same time from two computers. Interfaces are switched automatically when you change from one of the computer to the other.

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Confirm the DIP Switch No.2 is in the ON position.

BBBB

ADC080S

Note

❒ If the DIP Switch No.2 is set to OFF, set it to ON. If the switch is set to OFF,

"Found New Hardware Wizard" will not start. .

❒ Press the Hard Reset Switch if you changed the DIP Switch while the pow-

er is ON. ⇒ p.34 “Using the Hard Reset Switch”

Connecting to the Computer

Connect the USB cable to the USB connector.

CCCC

ADC022S

Connect the other side of the cable to the USB connector on your computer.

DDDD

Connecting with IEEE1394 Interface

Note

❒ The optional IEEE1394 interface board is required.

❒ An IEEE1394 cable is packed to be used for the optional IEEE1394 interface

board.

❒ An irregular operation might occur for the IEEE1394 interface board of some

PC. Please use the recommended IEEE1394 interface board for your PC. As for the recommended boards, please ask you service representative.

❒ You can connect the scanner to three computers at the same time. One with a

SCSI interface, and two with the optional IEEE1394 interface. Though, you cannot use the scanner at the same time from three computers. Interfaces are switched automatically when you use any one of the computers.

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

Note

❒ Push the knob of the cover to the left and pull the cover to open.

ADC015S

Setting up the Scanner

Confirm the DIP Switch No.2 is in the ON position.

BBBB

ADC080S

Note

❒ If the DIP Switch No.2 is set to OFF, set it to ON. If the switch is set to OFF,

"Found New Hardware Wizard" will not start. .

❒ Press the Hard Reset Switch if you changed the DIP Switch while the pow-

er is ON. ⇒ p.34 “Using the Hard Reset Switch”

Connect the IEEE1394 cable to the IEEE1394 connector.

CCCC

ADC023S

Note

❒ Connect the cable to either one of the connectors.

Connect the other side of the cable to the IEEE1394 connector on your com-

DDDD

puter.

Repeat Steps

EEEE

second computer.

and

CCCC

with the other IEEE1394 connector to connect with a

DDDD

Connecting to a Power Source

This section explains how to connect this machine to a power source, using a bundled AC power cord.

WARNING:

• Avoid the use of an extension cord.

• Do not damage, break, twist or modify the Power Cord. Placing heavy objects on the cord,

pulling on or bending it excessively can damage the Power Cord, creating the risk of fire or electric shock.

• Never touch or unplug the power plug with wet hands. This can create the risk of electric shock.

CAUTION:

• When unplugging from an outlet, be sure to grasp the plug when pulling. Never pull on the cord. This could damage the cord creating the risk of fire or electrical shock.

Confirm that the power switch is set to Off.

AAAA

ADC124S

Confirm the lock screws on the back of this machine are removed and the

BBBB

holes left by the removed screws are covered with the caps.

ADC088S

Setting up the Scanner

Important

❒ Be sure to remove the lock screws. Turning the power on without remov-

ing the screws could result not only in failure in scanning but in malfunction of this machine.

Confirm that the lock lever located on the back of the machine is set to the

CCCC

“Unlock” position.

ADC025S

Important

❒ Be sure to set the lock lever to “Unlock”. Turning on the power with the

lock lever set to “Lock” could result in failure in scanning or in malfunction of this machine.

Push the power cord plug all the way into the power connector on this ma-

DDDD

chine.

ADC026S

Note

❒ Be sure to use the power cord that comes with this machine.

Insert the power plug into the power outlet.

EEEE

Turning the Power On/Off

Important

❒ Do not turn the power of the scanner ON before the software installation. If

you run the “Found New Hardware Wizard” beforehand, you will not be able to install the software correctly. When the “Found New Hardware Wizard” started before the installation, click the [Cancel] button to discontinue the wizard.

ADC101S

1. Power Off

2. Power On

Turning the Power On when Connected with SCSI Interface

Turn the power on from the farthest devices from the computer on the daisy chain. Start the computer last.

Note

❒ The scanner will not be detected if you start the computer first.

Turning the Power On when Connected with USB/IEEE1394 Interface

There is no order to turn on the power when you connect the scanner with USB or IEEE1394 interface. You can turn on either the scanner or the computer first.

Turning the Power Off

There is no order to turn off the power. You can turn off either the scanner or the computer first.

Setting up the Scanner

Using the Hard Reset Switch

You need to hard reset the scanner when validate the settings of the DIP Switches or the Rotary Switch. To hard reset the scanner, you can turn off the scanner and turn it on again, or follow the procedures below.

Open the cover of the switch box on the lower left of the frontside of the

AAAA

scanner.

ADC015S

Note

❒ Push the knob of the cover to the left and pull the cover to open.

Press the Hard Reset Switch.

BBBB

ADC029S

The scanner will be in the same status as when you turn off the scanner and turn it on again.

3. Installing Software

This machine can be used both as a TWAIN scanner and an ISIS scanner. A TWAIN driver and its applications are to be installed for the TWAIN scanner, and an ISIS driver and its applications are to be installed for the ISIS scanner.

Installing TWAIN Driver

When this machine is used as the TWAIN scanner; it is necessary to install the TWAIN driver to be used for the TWAIN compliant applications.

Preparation

Start installation, retaining the power of the scanner OFF.

System Requirements

Install TWAIN Driver to the computer that meets the system requirements below.

(A “recommended” environment is for scanning documents by 16,770K Full color Mode.)

• Hardware PC/AT compatible

• CPU Pentium 200 MHz or faster (Pentium II 350 MHz or faster recommended)

• Memory 64 MB or more (128 MB or more recommended)

• Hard Disk Space 200 MB or more (1GB or more recommended)

• Display Resolution 800 × 600 pixels, 256 colors or higher (16,770K colors or higher recommended)

• Operating Systems Windows 95(OSR 2 or later)/98/98 SE/Me/2000(Service Pack 4 or later)/XP, Windows NT 4.0 (Service Pack 5 or later), Windows Server 2003

Installing Software

Installing TWAIN Driver

Preparation

Log on to the computer as a member of the Administrators group, for installation to Windows 2000/XP, Windows Server 2003, or Windows NT 4.0.

Start the computer, retaining the power of the scanner OFF.

AAAA

Note

❒ If the power of the computer turns ON, retaining the power of the scanner

ON, before driver installation, the "Found New Hardware Wizard" automatically starts. In this case, click [Cancel] button.

Start Windows, and then insert the supplied CD-ROM labeled “Scanner

BBBB

Driver(s), Utilities and Operating Instructions” into the CD-ROM drive of the client computer.

The CD-ROM Launcher screen appears.

When installation does not start automatically

Auto Run might not automatically work with certain operating system settings.

A Launch “Setup.exe” located in the CD-ROM root directory.

Click [TWAIN DRIVER].

CCCC

The installer of the TWAIN driver starts. Follow the instructions on the screen.

Turn the power of the scanner ON.

DDDD

Re-start the computer.

EEEE

The installation completes here for the computer with the operation systems, Windows 95 and Windows NT4.0. For the computer with other operation systems, "Plug & Play" detects the scanner and the "Found New Hardware Wizard" automatically starts.

ADC125S

Installing TWAIN Driver

In the Wizard, select [Search for a suitable driver for my device [recommended]],

FFFF

and continue the "Found New Hardware Wizard" to the end, according to the instruction on the display.

Note

❒ When an instruction to set the Windows system CD-ROM appears on the

display in the course of the installation, follow the instruction accordingly.

❒ Even when "No approval of the logo test" appears on the display, you can

continue the installation by clicking [Continue].

----About TWAIN driver help

After you have installed the TWAIN driver, [(Model Name) TWAIN V4] will be created under [Programs] of the [Start] menu. Help files for the TWAIN driver can be displayed from here.

Notes on using the TWAIN scanner are provided in “Readme.txt”. Be sure to read them before use.

----Changing the connecting interface

When you change the connecting interface from the interface first installed, change the cable to the new interface and start from step D. "Scanner Driver(s), Utilities and Operating Instructions" CD-ROM is not required.

Note

❒ Please confirm the DIP Switch when you connect each cable.

Installing Software

Installing DeskTopBinder Lite

DeskTopBinder Lite is a software with which you can manage various types of file data, such as scanned images, or documents as if they were one file. This software is compatible with a TWAIN driver. You can use this software to scan documents with this scanner.

System Requirements

Install DeskTopBinder Lite to the computer that meets the system requirements below.

• Hardware PC/AT compatible

• CPU Pentium 133 MHz or faster (Pentium II 266 MHz or faster recommended)

• Memory 48 MB or more (128 MB or more recommended)

• Hard Disk Space Minimum free space required for installing: 70 MB

Note

❒ In addition to the space required for installation, the hard disk should have

at least 200 MB of free space for files.

• Operating Systems Windows 98 SE/Me/2000(Service Pack 1 or later)/XP, Windows Server 2003

Installing DeskTopBinder Lite

Preparation

Log on to the computer as a member of the Administrators group, for installation to Windows 2000/XP, or Windows Server 2003.

Start Windows, and then insert the supplied CD-ROM labeled “Scanner

AAAA

Driver(s), Utilities and Operating Instructions” into the CD-ROM drive of the client computer.

The CD-ROM Launcher screen appears.

When installation does not start automatically

Auto Run might not automatically work with certain operating system settings.

A Launch “Setup.exe” located in the CD-ROM root directory.

Click [DeskTopBinder Lite.]

BBBB

The DeskTopBinder Lite Setup screen appears.

Click [DeskTopBinder Lite].

CCCC

The Installer of the DeskTopBinder Lite starts. Follow the instructions on the screen.

Reference

For information about the subsequent installation procedure, see the Setup Guide which can be displayed from the Setup screen of DeskTopBinder Lite.

Installing Software

Installing ISIS Driver

When this machine is used as the ISIS scanner; it is necessary to install the ISIS driver to be used for the ISIS compliant applications.

Preparation

Start installation, retaining the power of the scanner OFF.

System Requirements

Install ISIS Driver to the computer that meets the system requirements below.

• Hardware PC/AT compatible

• Display Resolution 1024 × 768 pixels, 256 colors or higher (16,770K colors or higher recommended)

• Operating Systems Windows 98/98 SE/Me/2000(Service Pack 4 or later)/XP, Windows NT 4.0 (Service Pack 6 or higher)

Installing ISIS Driver

Preparation

Log on to the computer as a member of the Administrators group, for installation to Windows 2000/XP, Windows Server 2003, or Windows NT 4.0.

Start the computer, retaining the power of the scanner OFF.

AAAA

Note

❒ If the power of the computer turns ON, retaining the power of the scanner

ON, before driver installation, the "Found New Hardware Wizard" automatically starts. In this case, click [Cancel] button.

Start Windows, and then insert the supplied CD-ROM labeled “Scanner

BBBB

Driver(s), Utilities and Operating Instructions” into the CD-ROM drive of the client computer.

The CD-ROM Launcher screen appears.

When installation does not start automatically

Auto Run might not automatically work with certain operating system settings.

A Launch “Setup.exe” located in the CD-ROM root directory.

Click [ISIS DRIVER].

CCCC

The installer of the ISIS driver starts. Follow the instructions on the screen.

Turn the power of the scanner ON.

DDDD

ADC125S

Re-start the computer.

EEEE

Installing Software

In the Wizard, select [Search for a suitable driver for my device [recommended]],

FFFF

and continue the "Found New Hardware Wizard" to the end, according to the instruction on the display.

Note

❒ When an instruction to set the Windows system CD-ROM appears on the

display in the course of the installation, follow the instruction accordingly.

❒ Even when "No approval of the logo test" appears on the display, you can

continue the installation by clicking [Continue].

----Changing the connecting interface

Note

❒ Please confirm the DIP Switch when you connect each cable.

Installing QuickScan

This software is compatible with a ISIS driver. You can use this software to scan documents with this scanner.

System Requirements

Install QuickScan to the computer that meets the system requirements below.

• Hardware PC/AT compatible

• CPU Pentium II or faster (Pentium II 400 MHz or faster recommended)

• Memory 64 MB or more (128 MB or more recommended)

• Hard Disk Space Minimum free space required for installing: 200 MB

• Operating Systems Windows 98/98 SE/Me/2000(Service Pack 4 or later)/XP

Installing QuickScan

Preparation

Log on to the computer as a member of the Administrators group, for installation to Windows 2000/XP, or Windows Server 2003.

Start Windows, and then insert the supplied CD-ROM labeled “Scanner

AAAA

Driver(s), Utilities and Operating Instructions” into the CD-ROM drive of the client computer.

The CD-ROM Launcher screen appears.

When installation does not start automatically

Auto Run might not automatically work with certain operating system settings.

A Launch “Setup.exe” located in the CD-ROM root directory.

Click [QuickScan].

BBBB

The Installer of the QuickScan starts. Follow the instructions on the screen.

Reference

For information about the subsequent installation procedure, see the Setup Guide which can be displayed from the Setup screen of QuickScan.

Installing Software

4. Setting Originals

This chapter describes how to set an original to be scanned with this machine.

It is possible to set an original on the exposure glass or the ADF. To scan several pages successively, using the ADF is convenient.

Sizes and Weights of Recommended Originals

Where original

is set

Exposure glass Up to 12″ × 17″

ADF

Original size (Main scanning ×××× Sub scanning) Original weight



Up to 297mm × 432mm

❖❖❖❖ Standard size

Maximum: 11” × 17”R, A3R Minimum: B6JIS (Japanese Industrial Standard)S

40–157g/m 298lbs)

(77–

❖❖❖❖ Non-standard size

• One side color

Maximum: 12” (297mm) × 24.8” (630mm) Minimum: 2.7” (69mm) × 3.5” (90mm)

• One side monochrome

Maximum: 12” (297mm) × 78.7” (2000mm) Minimum: 2.7” (69mm) × 3.5” (90mm)

• Both side color, Both side monochrome (The duplex model machine only) Maximum: 12” (297mm) × 17” (432mm) Minimum: 2.7” (69mm) × 3.5” (90mm)

Note

❒ When you scan the thick originals — originals thicker than 128g/m

(242.5bls) — with the ADF, set the paper thickness changeover lever to your side. After scanning, return the lever to the back side.

❒ It may not be possible to scan a full color original even if it meets require-

ments of the chart above. See “Readme.txt” in the CD-ROM for details.

Setting Originals

Original Sizes Available for Auto Detection

The scanner can detect the following document sizes automatically.

❖❖❖❖ When the Background Panel is Black

All of the original size can be detected from Exposure glass and ADF.

❖❖❖❖ When the Background Panel is White

• When set on the Exposure glass Unable to detect automatically.

• When set on the ADF 11” × 17” (279mm × 432mm) R

/2” × 14” (Legal, 216mm × 356mm) R

/2” × 13” (216mm × 330mm) R

/2” × 11” (Letter, 216mm × 279mm) R

/2” × 11” (Letter, 279mm × 216mm) S

/2” × 8 1/2” (216mm × 279mm) R

/2” × 8 1/2” (216mm × 279mm) S

A3 (11.7” × 16.5”, 297mm × 420mm) R B4JIS (10” × 14.3”, 257mm × 364mm) R A4 (8.3” × 11.7”, 210mm × 297mm) R A4 (8.3” × 11.7”, 210mm × 297mm) S B5JIS (7.2” × 10”, 182mm × 257mm) R B5JIS (7.2” × 10”, 182mm × 257mm) S A5 (8.3” × 5.8”, 210mm × 148mm) S B6JIS (7.2” × 5”, 182mm × 128mm) S

Sizes and Weights of Recommended Originals

Originals that Require Special Care

When scanning the following types of originals, be sure to follow the descriptions below.

❖❖❖❖ Originals that are difficult to detect the size automatically

It is difficult for the scanner to automatically detect the sizes of the following types of originals, so select the original size manually.

• Originals with indexes, tags, or other protrusions

• Transparent originals such as OHP transparencies or translucent paper

• Text or picture dense original

• Originals containing solid images

• Originals containing solid images around their edges

❖❖❖❖ Originals that cannot be set in the ADF

Placing the following types of originals in the ADF can cause paper misfeeds or result in damage to the originals. Place these originals on the exposure glass instead.

• Stapled or clipped originals

• Perforated or torn originals

• Curled, folded, or creased originals

• Pasted Originals

• Originals with any kind of coating, such as thermal fax paper, art paper,

aluminum foil, carbon paper, or conductive paper

• Originals with perforated lines

• Originals with indexes, tags, or other projecting parts

• The originals with large frictional resistance such as non-carbon papers.

• Sticky originals such as translucent paper

• Thin originals that have low stiffness

• Bound originals such as books

• Transparent originals such as OHP transparencies

• Originals with ink or correction liquid on them and still not completely dry

• Originals with large curl on the end

ADC065S

Setting Originals

Placing Originals

Placing the Original on the Exposure Glass

Important

❒ Be careful not to pinch your fingers when closing the ADF.

Lift the Pressure Panel.

AAAA

ADC030S

With the side to be scanned facing down, place the original on the exposure

BBBB

glass, and align it with the home position and scale.

ADC103S

1. Home position

2. Scale

Important

❒ Do not press down on the exposure glass. Strong pressure on the exposure

glass could cause it to break.

Gently lower the ADF.

CCCC

Placing Originals

Placing the Originals in the ADF

The ADF allows you to place multiple originals at one time.

❖❖❖❖ Precautions when placing an original in the ADF

• For information about the originals that cannot be placed in the ADF, see p.47 “Originals that cannot be set in the ADF”.

Important

❒

Attempting to use unsuitable originals in the ADF can lead to a misfeed and damage to the originals. Place such originals directly on the exposure glass.

• Do not set originals in the ADF in excess of the upper limit mark.

• In case the end of originals are curled too much to feed with the ADF, de-

crease the number of originals or adjust the curled end of originals straight.

• See p.46 “Original Sizes Available for Auto Detection” for information about the original sizes that can be detected automatically.

Fan the originals to get air between the sheets before setting them in the ADF.

•

Adjust the stopper of the Output Table to the size of your originals.

AAAA

ADC104S

1. stopper

Note

❒ Pull out the stopper and insert it to the other way to adjust the position of

the stopper when you are scanning originals shorter than 5.8” × 8.3”L or

4.1” × 5.8”K (A5L or A6K) in longways.

ADC033S

Setting Originals

Important

❒ Do not hold the stopper to open the ADF.

Align the originals. To have the originals scanned in order, set the originals

BBBB

in order illustrated below.

• Simplex scanning

ADC062S

• Duplex scanning

ADC063S

Fan the originals and align them well.

CCCC

Placing Originals

Place the originals with first page on the top with the face up. Adjust the

DDDD

side guides to the size of your originals.

ADC105S

1. Side guides

Note

❒ Adjust the original guide carefully by moving the root part of the original

guide located over the original tray ditch.

❒ Be careful not to drop any alien objects such as paper clip, dust, etc. into

the original tray ditch.

❒ Check that the ADF is closed.

Set the paper thickness changeover lever to your side when you scan the

EEEE

thick originals — originals thicker than 128g/m

ADC078S

Note

❒ After scanning, return the switch to the back side.

(242.5bls).

Setting Originals

Changing the Color of the Background Panel

Change the color of the Background Panel to enable auto original size detection or scan in clear images.

Important

❒ Change the settings of the TWAIN driver from [Back.Panel] tab in [Initial Set-

tings] of the driver dialog.

❒ Make sure that the color of the Background Panel for Exposure Glass, ADF

and settings made in [Back.Panel] tab on the TWAIN driver are same.

Note

❒ The size of the originals that can be automatically detected will be different

depending on the color of the Background Panel. ⇒ p.46 “Original Sizes Available for Auto Detection”

❒ You can reduce the transparencies of the duplex printed originals by setting

the Background Panel to Black.

❒ To scan the transparent originals which is simplex printed, set the Back-

ground Panel to White.

Changing the Color of the Background Panel for the ADF

Preparation

Skip this procedure if you use the simplex scanner.

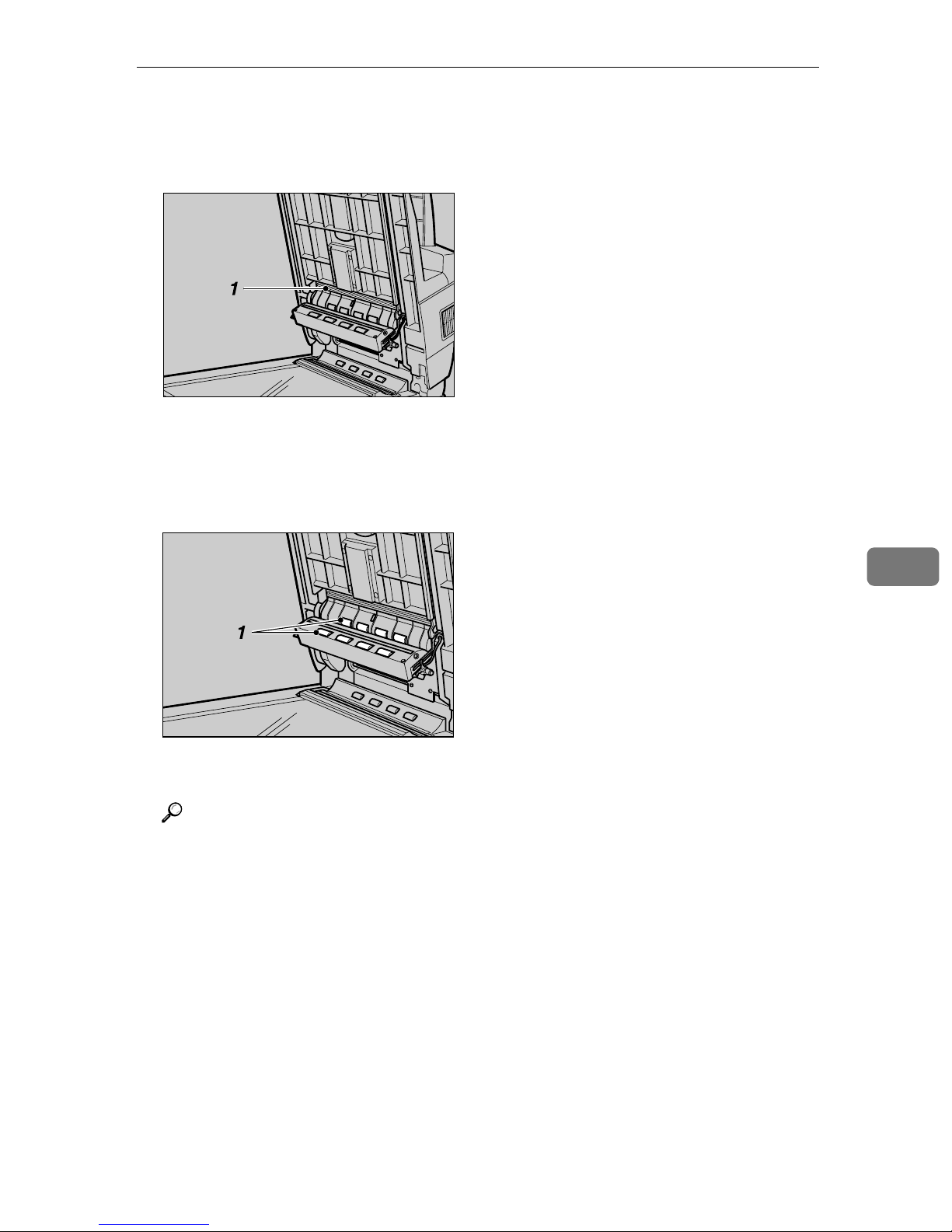

Lift the Pressure Panel.

AAAA

Take off the Background Plate for Exposure Glass.

BBBB

Reference

⇒ p.54 “Changing the Color of the Background Panel for the Exposure Glass”

ADC035S

Changing the Color of the Background Panel

Turn down blue levers on both sides.

CCCC

ADC036S

The unit which stores the Background Panel for the ADF is drawn out.

Push down a lever on the left, and change the color of the Background Pan-

DDDD

el by rotating the screw on the right to the ∆∆∆∆mark position.

ADC037S

Note

❒ Turn the slit in the way shown in the illustration. Do not turn to the other

side.

❒ Turn the slit till you hear the click. Rotate the screw to the position of the

∆mark position, and confirm that the Background Panel color has totally changed.

Push back the unit which you drew out in step

EEEE

the unit.

by pushing both ends of

CCCC

ADC038S

Setting Originals

Changing the Color of the Background Panel for the Exposure Glass

Note

❒ To change the color of the Background Panel for the Exposure Glass, reverse

the panel.

Lift the Pressure Panel, and carefully pull out the Background panel that is

AAAA

fixed with magic tapes.

ADC071S

Place the Background Panel on the Exposure Glass, with the color to use

BBBB

downside.

ADC072S

Note

❒ Set the Background Panel so as to align the blue line at the Home position.

Changing the Color of the Background Panel

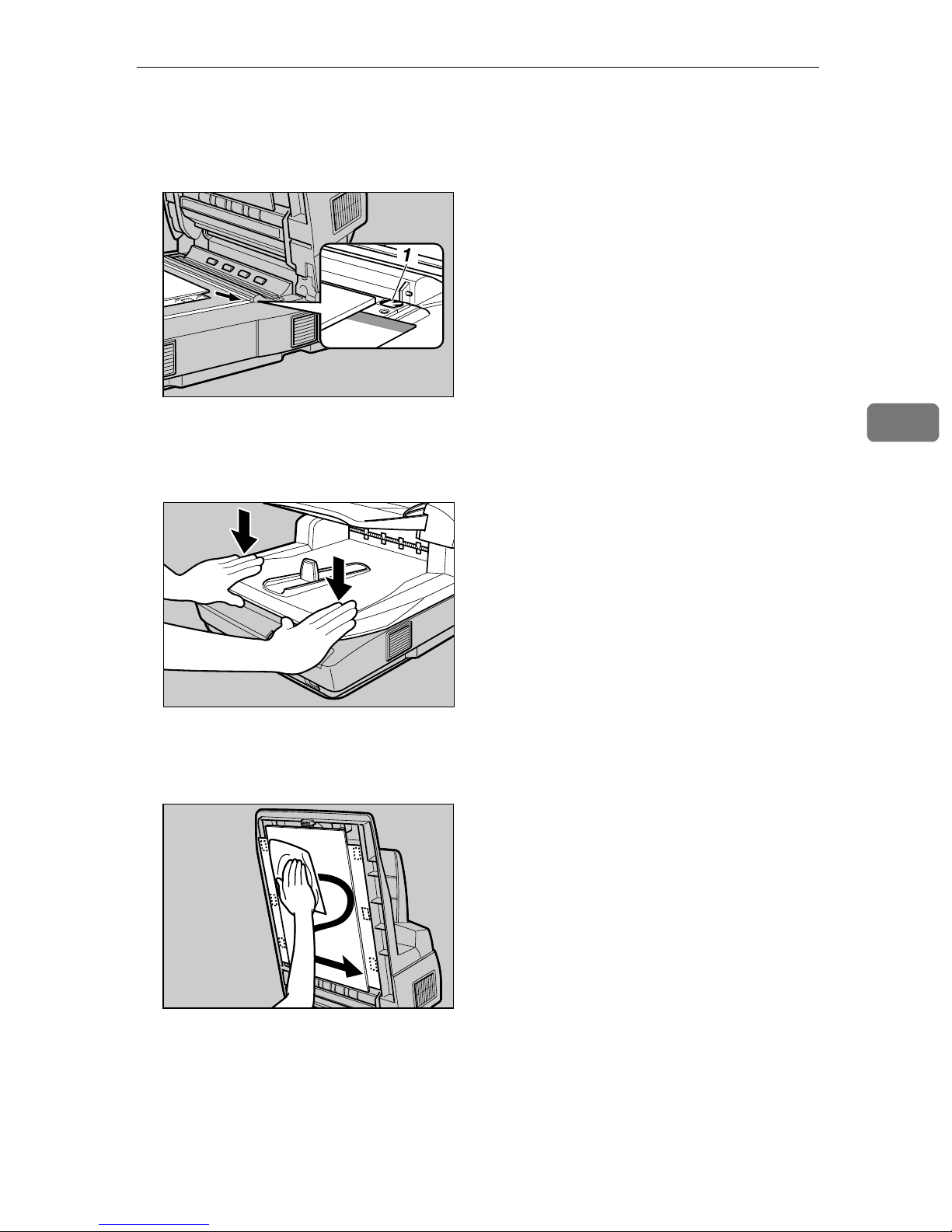

Align upper right of the Background Panel, with the home position for

CCCC

originals.

ADC073S

1. Home position

Close the Pressure Panel slowly, and press it down firmly.

DDDD

ADC074S

Lift the Pressure Panel again, and press all over the Pressure Panel with a

EEEE

clean, soft cloth.

ADC075S

Setting Originals

5. Using the TWAIN Driver

This chapter describes the operations for scanning originals with the TWAIN driver using DeskTopBinder Lite. In addition, some functions of the TWAIN driver are introduced.

Procedure Breakdown

The following overview diagram shows the flow of the steps for scanning documents from a computer using the TWAIN driver.

Start a TWAIN-compliant

application.

Select and start

the TWAIN driver.

Place the originals. ⇒ “Scanning Originals”G

Make the scan settings. ⇒ “Scanning Originals”H

Click

Save the scanned image.

on the TWAIN driver.

[Scan]

Menu may be different depending on the application you use.

⇒ “Scanning Originals”A

Menu may be different depending on the application you use.

⇒ “Scanning Originals”B—F

⇒ “Scanning Originals”I

Menu and procedure may be different depending on the application you use.

⇒ “Scanning Originals”J

Close the TWAIN compliant

application.

Menu and procedure may be different depending on the application you use.

⇒ “Scanning Originals”K

Using the TWAIN Driver

Scanning Originals

This section explains how to scan originals using the TWAIN scanner function. The procedure goes along with p.57 “Procedure Breakdown”.

On the [Start] menu, point to [Program], point to [DeskTopBinder], and then

AAAA

click [DeskTopBinder].

DeskTopBinder Lite starts.

Click [Scanner Settings...] on the [Tools] menu.

BBBB

[Scanner Settings] dialog box appears.

Note

❒ Check the settings in the [File format for scanned image(s)] area. Scanned data

will be saved by the format specified here.

Click [Select Scanner Driver...].

CCCC

The name of the scanner you installed with the TWAIN driver will be displayed in the [Source] list.

Select the model name and then click [Select...].

DDDD

The TWAIN driver for the scanner is selected, and the [Source] list dialog box will be closed.

Click [OK] on the [Scanner Settings] dialog box.

EEEE

The [Scanner Settings] dialog box closes.

On the [File] menu, point to [Add Document], and then click [Scan...].

FFFF

After a short while, the dialog box of the TWAIN driver that operates the scanner appears.

Place the Originals.

GGGG

Note

❒ Place the originals either on the Exposure Glass or on the ADF. See p.48

“Placing Originals” for details.

Make the scan settings.

HHHH

Note

❒ View the TWAIN driver help files for the details of making the scan set-

tings and the preview function.

Scanning Originals

Click [Scan...]

IIII

Note

❒ If you checked [Start from Scanner] on the TWAIN driver, press the {{{{Start}}}}

key after you clicked [Scan...].

The image is scanned. It will be displayed in the DeskTopBinder Viewer and the TWAIN driver dialog will close.

Note

❒ With DeskTopBinder Lite, it is possible to edit and print scan files. For

more information about how to edit and print, see DeskTopBinder Lite Help.

Save the scanned image in DeskTopBinder Lite.

JJJJ

A On the [File] menu, click [Exit]. B Enter the file name, and then click [OK].

The image is stored in DeskTopBinder Lite, and DeskTopBinder Viewer closes.

Close DeskTopBinder Lite.

KKKK

A On the [File] menu, click [Exit].

DeskTopBinder Lite closes.

Using the TWAIN Driver

What You Can Do with the TWAIN Driver

The following is an introduction to the various functions of the TWAIN driver:

Reference

For more information about these functions or other functions, see TWAIN driver Help.

Functions of the TWAIN Driver

Functions About Explanation

Scan Mode 4 Basic modes

(Standard/Photo /OCR/Filing), User saved 100 scan modes

Orientation: Standard 0 deg.

/Right 90 deg. /180 deg. /Left 90 deg.

Comb./Series Combine 2 pages to 1

/Combine 4 pages to 1 /divide to 2 pages /Do not divide /No combination or division

256 Colors (in [

Col./Grad

Endorser User set charactors

])

/Date/Counter:

← Reduces 24bit color data to 8bit to make the data

You can call out and save the original Scan Modes.

You can rotate the image to have originals scanned in correct orientation depending on the place to set the originals. If you are scanning the duplex printed originals, set the [ as well.

You can divide two-page spread originals to two individual page images, or combine duplex printed originals to a simplex one page image.

size smaller.

You can add the information mentioned in the left to the scanned images. You can change the size and the fonts of the endorser.

Scan Settings:

]

ICM: (in

[

Color Matching

Deskew ← Detects and corrects the tilt of the text strings.

Start from Scanner

Preview ← You can confirm the settings you made for the

SADF ← Scanning starts when you set the originals on the

])

← When you enable ICM, the TWAIN Driver will

match the color data according to the color profile.

← Press the {{{{

ning the originals.

scanning images before scanning the originals.

ADF. When you are scanning the originals which are apt to be double fed, enable SADF and set the originals one by one on the ADF.

}}}} key of the scanner to start scan-

Start

What You Can Do with the TWAIN Driver

Functions About Explanation

Original Size

Double Feed Detect Ultrasonic Wave

Auto detect(Mixed-size) /Auto detect(Uni-size) /Various fixed form sizes /Custom size

/Length /Ultrasonic Wave+Length /Off

When the Background Panel is black, an optional width and length of originals will be automatically detected for both ADF and Exposure Glass by the [Auto detect(Mixed-size)] function.

While using ADF, it detects and notes a double feeding. A new ultrasonic function to check space between originals, in addition to the detection of original length, enables more reliable detection of the double feeding.

Using the TWAIN Driver

6. Appendix

Troubleshooting

Error Indicators

The following table shows the meaning of error indicators of this machine, and how to fix the errors.

—— —

——

❍❍❍❍ ❍

: On

ADC112S

Error description Solution

The ADF or ADF cover is not fully closed.

An original is jammed in the ADF.

More than one sheet of originals are fed to the ADF simultaneously, or incorrect feeding occurs.

System error Contact your service

Close the ADF or ADF cover.

Remove the jammed original.

Remove the double feeding original.

Remove the originals from the Exposure Glass, and then lift up the ADF or its cover.

representative.

❍: Blinking

—: Off

Note

❒ When the indicators show a status that is not listed above table, turn off the

power of this machine, and then back on. If the indicators still show the same status, note the status of the indicators and contact your service representative.

Appendix

When the Original is Jammed or Double Fed in the ADF

When the original jammed in or double fed to the ADF, remove the original by the following procedure.

Open the ADF cover and remove if the original is jammed.

AAAA

ADC046S

Remove the original if it is jammed in the cove of the Original Table.

BBBB

ADC047S

Note

❒ You can easily remove the original by lifting the ADF a little.

Lift the ADF and remove if the original is jammed.

CCCC

ADC066S

Troubleshooting

In case the jammed original is not found so far, follow the procedures be-

DDDD

low: A Take off the Background Panel.

Reference

⇒ p.54 “Changing the Color of the Background Panel for the Exposure Glass”

B Turn down blue levers on both sides.

ADC036S

The unit which stores the Background Panel for the ADF is drawn out.

C Remove the jammed original.

ADC067S

Note

❒ Regarding a small size original that cannot be set in the ADF, place it on

the Exposure Glass instead. ⇒ p.47 “Originals that cannot be set in the ADF”

Appendix

When the Originals are Not Fed Correctly

Remove the originals from the ADF.

AAAA

Lift the Pressure Panel or open the ADF cover.

BBBB

ADC048S

Unusual conditions of the Original Table will be corrected.

Shutdown the Pressure Panel or the ADF cover.

CCCC

Note

❒ When you shut the ADF cover, please confirm the two magnets are fixed

on the magnet catch and the cover is closed tightly.

When Scanning is Not Performed as Expected

Condition Possible Cause and Required Action

The scanned image is dirty. • The Exposure Glass, the ADF Exposure

Glass, Background panel, Feed roller or Original Roller is dirty.

• Clean the Exposure Glass, the ADF Exposure Glass, Background panel, Feed roller or Original Roller. ⇒ p.71 “Cleaning”

The originals are damaged when fed to the ADF.

• Set the paper thickness changeover lever correctly or it may damage originals. Please confirm the lever and the paper thickness of the originals. When you scan

the originals thicker than 128g/m (242.5bls), turn the changeover lever on your side (thick paper mode).

Image is distorted or out of position. • The original was moved while scanning.

Do not move the original while scanning.

• The original was not pressed flat against the exposure glass. Make sure that the original is pressed flat against the exposure glass.

Troubleshooting

Condition Possible Cause and Required Action

The scanned image is upside down. • The original was placed upside down.

Place the original in the correct orientation, or set the [ er to the correct setting.

No image results from scanning. • The original was placed with the front and

back reversed.

• When the original is placed directly on the exposure glass, the side to be scanned must face down. When the original is fed via the ADF, the side to be scanned must face up.

Orientation:

] on the TWAIN driv-

When the Background Panel is white, the scanning size will be 0.1inch longer than the actual original size.

When an Error Message Appears

Message Possible Cause Required Action

Cannot find the scanner.

Check if the scanner main power is on.

• The TWAIN driver cannot find the scanner.

• When using SCSI, you have the computer started before turning on the scanner.

• It is set to SCSI synchronous transfer mode. Use the scanner with SCSI asynchronous transmission mode when you use the USB/IEEE1394 connection.

• Change the [

size from the automatic detection setting.

• When the original is a non-standard size, please specify the original size by use of the

[

] tub

Basic

• Change background color to black, and you can detect the same size of originals. Please use black background for the mixed-size in particular.

• Check the cables and connectors to

• Check the power source of the scan-

• When using SCSI, turn on the pow-

• Set the DIP Switch No.2 to ON and

Original Size:

see if it is connected correctly.

ner.

er from the farthest device on the SCSI daisy chain. Start the computer last.

push the Hard Reset Switch in the switch box when you use the USB or IEEE1394 connection.

] to the standard

Scanner is not ready.

Check the scanner and the options.

Fatal error has occurred in the scanner.

• The scanner is busy initializing, or etc.

• The ADF cover is open.

• The ADF is lifted.

• Hardware errors from

which recovery is impossible have occurred in the scanner.

• Wait for a while after turning on the power of the scanner till it gets ready.

• Check the ADF.

• Note the error message and error

number and call the service representative.

Appendix

Message Possible Cause Required Action

Error has occurred in the scanner.

Error has occurred in the scanner driver.

Required library module cannot be found.

Please reinstall the module.

Insufficient memory.

Close all other applications, then restart scanning.

Clear Misfeed(s) in ADF.

• There is an error in parameter setting to the scanner.

• There is an error in the driver, scanner, or in the operating system.

• The library module has not been found.

• The memory or the virtual memory on your computer is short.

• The misfed original is jammed inside the ADF.

• Reinstall the TWAIN driver.

• If the same error occurs again,

please call the service representative.

• Restart the operating system.

• If the same error occurs again,

please call the service representative.

• Reinstall the TWAIN driver.

• Close applications unnecessary for

scanning.

• Expand the memory or the virtual memory of your computer.

• Remove the misfed originals and scan again. ⇒ p.64 “When the Original is Jammed or Double Fed in the ADF”

• Remove the misfed originals and clear the error. ⇒ p.66 “When the Originals are Not Fed Correctly”

• See p.47 “Originals that cannot be set in the ADF” and check if the original is suitable for the ADF.

Cannot detect the paper size of the original.

Specify the scanning size.

• Failed to detect the original size automatically.

• The settings for the Background Panel on the TWAIN driver is set to Black even the panel is set to white on the exposure glass. Set the panel to Black to use the auto detect function. When the panel is set to White, it is unable to auto detect the original size. To use the white side of the panel, set [Background Panel] in the [Back.Panel] tab in [Initial Settings] on the TWAIN driver to [White back- ground panel]. Then set [Original Size:] manually. ⇒ p.52 “Changing the Color of the Background Panel”

Troubleshooting

Message Possible Cause Required Action

Cannot continue endorsing due to the limit.

Cannot add any more scanning mode.

Cannot specify any more scanning area.

Double Feed has occurred.

Do you want to continue scanning?

Set the originals again and press "Yes" to continue,

"No" to end.

• The number of figures exceeded or dipped from the values set for the endorser counter.

• Maximum number of the scanning modes is registered.

• Maximum number of the scanning areas is registered.

• Double Feed (More than 2 sheets of original was fed into the ADF at once) has occurred and was detected.

• The number of the counter has ex-

ceeded the value set in [Digit:] under the [Endorser] tab. Check the number of the originals and set [Start:], [Step:], and [Digit:].

• The number of the counter has

reached -1 when you set [Step:] under the [Endorser] tab to negative value. Check the number of the originals and set [Start:] and [Step:] so the number of the counter ends in higher values than 0.

• You can add a maximum of 100 scanning modes. Delete the modes that you do not use.

• You can add a maximum of 100 scanning areas. Delete the areas that you do not use.

• To continue scanning, replace the double fed originals to the ADF and Click [Yes]. Scanning restarts after you click [Yes].

• To finish scanning, click [No].

• The double feeding is likely to occur

when the changeover switch is not set correctly to the paper thickness of the originals. When you scan the regular thickness originals —origi-

nals thinner than 128g/m (242.5bls)— set the switch on the back side (regular paper mode).

Cannot rotate the original.

Lower the resolution and scan again.

Cannot perform Combine in the current resolution.

Set the resolution to over ndpi and scan again.

• Exceeded the maximum file size for the rotate function.

• When combining the images, the originals will be scanned with the lowest resolution specified for the scanner. The resolution displayed on the message will be the lowest resolution available for the combine function.

• Lower the resolution or the set the scan area smaller and scan again.

• Adjust the resolution to the displayed value.

Appendix

When in Installation and Other Problems

Condition Possible Cause Required Action

The computer could not find the drivers even "Drivers and Utilities" CD-ROM is selected in the "Found New Hardware Wizard."

The computer cannot detect the scanner when they are connected by USB or IEEE1394.

The computer with Windows 2000/XP freezes when scanning with USB connection.

• Wrong Installation of the hardware and the software.

• SCSI synchronous transmission is enabled.

• Windows failed to update the USB driver when the Service Pack is installed.

• First, install the TWAIN Driver from "Scanner Driver(s), Utilities and Operating Instructions" CD-ROM. Then start the "Found New Hardware Wizard." See p.35 “Installing Software” for details.

• Set the DIP Switch No 2 to the ON position. Then, press the Hard Reset Switch. See p.10 “DIP Switches” for details.

• Open the Device Manager. Uninstall the USB Driver "Intel PCI to USB Enhanced Host Controller" and scan for hardware changes. "Intel PCI to USB Enhanced Host Controller" will be updated to the correct USB driver.

Cleaning

WARNING:

• Do not attempt to modify this scanner in any way. Modification can cause fire or electrical shock.

CAUTION:

• When disconnecting the power cord, always make sure to hold onto the plug. Do not pull on the power cord itself. This can cause damage to the cord, fire or electrical shock.

We recommend periodically cleaning the scanner to ensure that it is in optimum operating condition.

Clean the rollers every three months, and the ventilation panel filter every 6 months. The cleaning period, however, varies by type and volume of originals to be used. Glass is to be cleaned every time it gets dirty.

Glass will be dry-cleaned with the cleaning cloth packed. When you cannot remove the dirt with the cloth, clean it with water-dampened and tightly wrung cloth. If you cannot remove the dirt even with the wet cloth, use a neutral detergent. After you removed the dirt, wipe off the detergent, and then dry the glass thoroughly.

Rollers are to be cleaned first with a dry, soft cloth. When the dirt remained, then clean it with water-dampened and tightly wrung cloth. If this is not enough, wipe off the dirt with ethyl alcohol, clean with water-dampened cloth, and then remove moisture thoroughly with dry cloth.

Important

❒ Do not use volatile chemicals such as benzene, paint thinner or spray with in-

secticides. This can cause deformation, discoloration and cracking.

❒ Wipe off the Automatic Document Feeder (ADF) with a dry, clean cloth when

there is dust or soiling present inside.

Note

❒ Please make good use of the packed cleaning cloth putting in its case, setting

on a place convenient to use. The case comes with a both side adhesive tape.

CAUTION:

• Be careful not to pinch your fingers when closing the Automatic Document Feeder (ADF).

Appendix

Cleaning the Original Table Cove

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Wipe all around the Feed Roller with a tightly wrung cloth, by turning the

BBBB

roller with your fingers.

ADC106S

1. Feed Roller

Note

❒ Always make sure to clean the Feed Roller after scanning a document writ-

ten in pencil or other material that is not firmly fixed to the paper. Failure to clean the Feed Roller can cause soiling of the next document scanned.

Cleaning Under the Pressure Panel

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Lift the Pressure Panel.

BBBB

Wipe the Background Panel, the ADF Exposure Glass 1, and the Exposure

CCCC

Glass with the cleaning cloth or a dry and soft cloth, taking a good care of the magic tapes not getting entangled in the cloth.

Cleaning

ADC107S

1. Background Panel for Exposure

Glass

2. ADF Exposure Glass 1

3. Exposure Glass

Appendix

Cleaning Under the Background Panel

Note

❒ The cleaning procedures below are not necessary for the simplex model.

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Lift the Pressure Panel.

BBBB

Take off the Background Panel.

CCCC

ADC035S

Reference

⇒ p.54 “Changing the Color of the Background Panel for the Exposure Glass”

Turn down blue levers on both sides.

DDDD

ADC036S

Wipe the ADF Exposure Glass 2 with the cleaning cloth or a dry and soft

EEEE

cloth.

ADC108S

1. ADF Exposure Glass 2

Wipe the rollers with a tightly wrung cloth.

FFFF

Cleaning

1. Rollers

Reference

Regarding how to set back the store box for the ADF Background Panel, please refer to the step Panel for the ADF”

Regarding how to set the Background Panel for the Exposure Glass, please refer to p.54 “Changing the Color of the Background Panel for the Exposure Glass”.

ADC053S

of p.52 “Changing the Color of the Background

Appendix

Cleaning Inside the ADF Cover

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Open the cover of the ADF.

BBBB

Wipe the rollers with a tightly wrung cloth, by turning them with your fin-

CCCC

gers.

ADC110S

1. Rollers

Wipe the rollers in the cove with a tightly wrung cloth, by turning them

DDDD

with your fingers.

ADC111S

1. Rollers

Note

❒ When you shut the ADF cover, please confirm the two magnets are fixed

on the magnet catch and the cover is closed tightly.

Cleaning

Cleaning the Ventilation Panel

Please clean the filter and the ventilation panel in every six months. However, please clean it properly when it gets dirty.

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Open the ventilation cover panel on the left side of the ADF, and clean the

BBBB

inside filter and the ventilation panel.

ADC056S

Appendix

Moving and Transporting the Scanner

CAUTION:

• This scanner weighs approximately 72.8 lbs.

• Make sure to lift it carefully with two persons or more so as to minimize physical strain.

Careless lifting, reckless handling or allowing it to drop down can cause injury.

• When transporting over long distances, please consult an authorized dealer.

• Safety laws and regulations (including those stipulating radio wave regula-

tions and material regulations) differ in each country. Use of this product and its consumable supplies, etc. in foreign countries in violation of these regulations may be punishable by law.

• Information regarding measures for ensuring safe transport can be obtained from an authorized dealer. However, packaging and transport are to be performed by the customer.

Moving Over Short Distances

Turn off the power of the scanner and unplug the power cord from the out-

AAAA

let.

Disconnect all cables connected to the scanner.

BBBB

Transport the scanner.

CCCC

ADC057S

Important

❒ Try to keep the scanner as level as possible during transport.

Moving and Transporting the Scanner

Transporting the Scanner

Turn on the Power Switch. Allow the scanner to remain on for at least 20

AAAA

seconds, and then turn it off.

Set the Lock Lever on the left side of the scanner to the “Lock” position.

BBBB

ADC068S

Fix it with the two lock screws kept on the back of the Pressure Panel.

CCCC

A Lift the Pressure Panel, and carefully pull out the Background Panel that

is fixed with the Velcro.

ADC071S

B Take out the lock screws kept on the back of the Pressure Panel.

ADC085S

Appendix

C Return the Background Panel to where it was.

Reference

Regarding how to set the Background Panel, please refer to the procedures Exposure Glass”.

D Turn 90 degrees the caps that covered the holes for lock screws, and take

out it.

- E of p.54 “Changing the Color of the Background Panel for the

ADC087S

Note

❒ The removed caps are to be kept in a bag and transported together with

the machine, since they are used at the place where the machine is set up.

E Fix tightly with the lock screws.

ADC083S

Note

❒ Use a coin to tightly fix the lock screws.

Disconnect all cables connected to the scanner.

DDDD

Place the scanner in original box and transport.

EEEE

Important

❒ This scanner is a precision device. Be careful so that it is not damaged dur-

ing transport.

❒ Use the cushioning materials provided with the scanner at the time of pur-

chase.

Disposing of the Scanner

When you want to dispose of your scanner, contact your dealer or a service representative.

Appendix

How Data Size Changes Depending on Scan Area and Resolution

Scan area and resolution determine the data size of a scanned data. The following general rules apply:

• High resolution (dpi) makes data size larger and scan area smaller.

• Large scan area makes data size larger and resolution (dpi) lower.

Note

❒ In the following tables, each of the values displays the memory size to store

as image data. Actual file sizes may vary depending on the file type setting (single page, PDF or multi-page TIFF).

❒ A blank cell means that the combination of the relevant settings is not avail-

able.

❒ Even when a data size is shown in a cell, it may happen that you cannot per-

form a scanning operation with the relevant settings due to the limitation of the TWAIN-compliant application you use for scanning. For information about the maximum data size that the application can handle, see the manual that comes with the application.

When [Binary(Text)], [Binary(Photo)], [Binary(Auto Image)], or [Binary(Text/Photo)] is Selected

Scan Area 100dpi 200dpi 300dpi 400dpi 500dpi 600dpi 700dpi 800dpi

A3 2359432,1213,772----

B4 1767051,5912,826----

A4 117 470 1,061 1,886 2,946 4,247 - -

B5 87 353 794 1,414 2,208 3,183 - -

A5 58 234 528 939 1,469 2,116 2,876 3,759

B6 43 174 394 702 1,098 1,582 2,155 2,815

A6 29 117 264 468 734 1,058 1,437 1,880

11” × 17” 2279132,0513,652----

”/2 × 14”

/2” × 13”

/2” × 11”

/2” × 81/2”

144 579 1,304 2,324 3,629 - - -

134 538 1,211 2,158 3,370 - - -

113 455 1,024 1,826 2,852 - - -

56 227 512 913 1,423 2,051 2,794 3,652

Values: Data size in KB

How Data Size Changes Depending on Scan Area and Resolution

When [Gray Scale] or [256 Colors] is Selected

Scan Area 100dpi 200dpi 300dpi 400dpi 500dpi 600dpi 700dpi 800dpi

A3 1,8887,55216,99330,210----

B4 1,4165,66412,74422,656----

A4 944 3,776 8,496 15,105 23,601 33,986 - -

B5 708 2,832 6,372 11,328 17,700 25,488 - -

A5 470 1,881 4,234 7,527 11,761 16,936 23,052 30,108

B6 352 1,410 3,173 5,642 8,815 12,694 17,278 22,568

A6 235 940 2,117 3,763 5,880 8,468 11,526 15,054

11” × 17” 1,8267,30416,43529,218----

/2” × 14”

”/2 × 13”

/2” × 11”

/2” × 81/2”

1,162 4,648 10,458 18,593 29,052 - - -

1,079 4,316 9,711 17,265 26,977 - - -

913 3,652 8,217 14,609 22,827 - - -

456 1,826 4,108 7,304 11,413 16,435 22,370 29,218

Values: Data size in KB

When [8 Colors] or [8 Colors(Photo)] is Selected

Scan Area 100dpi 200dpi 300dpi 400dpi 500dpi 600dpi 700dpi 800dpi

A3 7072,8296,36511,316----

B4 5292,1164,7738,480----

A4 352 1,411 3,185 5,659 8,838 12,743 - -

B5 263 1,061 2,383 4,244 6,625 9,550 - -

A5 174 702 1,584 2,819 4,408 6,350 8,630 11,277

B6 130 524 1,183 2,107 3,295 4,748 6,465 8,447

A6 87 351 793 1,406 2,202 3,175 4,313 5,640

11” × 17” 6822,7396,15510,957----

/2” × 14”

/2” × 13”

/2” × 11”

/2” × 81/2”

Values: Data size in KB

434 1,739 3,912 6,972 10,889 - - -

403 1,614 3,633 6,474 10,111 - - -

341 1,366 3,074 5,478 8,556 - - -

169 682 1,538 2,739 4,270 6,155 8,384 10,957

Appendix

When [16770K colors] is Selected

Scan Area 100dpi 200dpi 300dpi 400dpi 500dpi 600dpi 700dpi 800dpi

A3 5,663 22,655 50,977 90,628 - - - -

B4 4,247 16,989 38,231 67,964 - - - -

A4 2,831 11,327 25,486 45,314 70,802 101,954 - -

B5 2,123 8,495 19,113 33,982 53,100 76,460 - -

A5 1,411 5,645 12,701 22,581 35,283 50,807 69,154 90,324

B6 1,057 4,230 9,519 16,925 26,446 38,079 51,832 67,701

A6 705 2,822 6,350 11,289 17,639 25,401 34,577 45,162

11” × 17” 5,478 21,914 49,306 87,656 - - - -

/2” × 14”

/2” × 13”

/2” × 11”

/2” × 81/2”

3,486 13,945 31,376 55,781 87,158 - - -

3,237 12,949 29,135 51,796 80,932 - - -

2,739 10,957 24,653 43,828 68,481 - - -

1,369 5,478 12,326 21,914 34,240 49,306 67,111 87,656

Values: Data size in KB

Options

In this section, we refer to the options for this machine.

Image Processing Unit Type B

Installation of this option enables the following visual image processing by use of the TWAIN driver.

❖❖❖❖ Binary(Auto Image)

When you binary-scan an original mainly with text files, this machine automatically detects and scans an appropriate threshold value.

❖❖❖❖ Binary(Text/Photo)

Set when you scan an original consisting of both texts and photos. It scans with binary, and automatically detects and scans the photos to represent a para-intermediate tone (gray) with a black and white net-dot pattern.

❖❖❖❖ Select Range

Set when you Binary-scan an original consisting of both texts and photos. You can set the photo part alone as the para-intermediate (gray) tone. For an original mainly occupied by photos, to the contrary, you can detect and scan the original as a whole as the para-intermediate (gray) tone, setting the text part alone as non-intermediate (gray) tone. The maximum number of ranges to have partially different setting from the overall setting is 4.

IEEE1394 Interface Unit Type IS760

You can connect your PC to the IEEE1394 Interface board

Two IEEE1394 connectors are available, and you can connect a total of 3 PCs to this machine together with another SCSI connector equipped.

Limitation

❒ The pre-installed USB 2.0 interface board is to be used exclusively.

Note

❒ You cannot use simultaneously two or more PCs connected. Connection is

automatically switched to either SCSI, IEEE1349-1 or IEEE1349-2.

Appendix

Specifications

Type flatbed type color scanner with ADF

Scanning method Fixed document scanning and moving document scanning

The duplex model enables scanning of both sides of an original simultaneously.

Scanning area

❖❖❖❖ ADF

• One side color Main direction: 12 inch (297 mm) Max., 2.7 inch (69 mm) Min. Sub direction: 24.8 inch (630 mm) Max., 3.5 inch (90 mm) Min.

• One side monochrome Main direction: 12 inch (297 mm) Max., 2.7 inch (69 mm) Min. Sub direction: 78.7 inch (2000 mm) Max., 3.5 inch (90 mm) Min.

•

Both side color, Both side monochrome (The duplex model machine only) Main direction: 12 inch (297 mm) Max., 2.7 inch (69 mm) Min. Sub direction: 17 inch (432 mm) Max., 3.5 inch (90 mm) Min.

❖❖❖❖ Exposure Glass

Main direction: 12 inch (297 mm) Max., 0.4 inch (10 mm) Min. Sub direction: 17 inch (432 mm) Max., 0.4 inch (10 mm) Min.

Optical resolution Main scanning: 400 dpi

Sub scanning: 400 dpi

Scanning grade Input: 10 bits per pixel for each color

Output: 1 bit per pixel for monochrome and 8 bits per pixel for each color

Scanning time of 1 line binary: 0.229 msec/line

color: 0.558 msec/line

ADF Scanning

time

Original Stacks

Paper Weights

Interface Standard SCSI-3

Option IEEE1394 × 2 (Alternative with USB2.0)

Life ADF: 3,000,000 scans, Flatbed: 600,000 scans, or 5 years

Operating environment

Power 120 V, 60 Hz

Simplex binary scanning: 75 ppm (8 1/2” × 11”R/ 200 dpi)

Duplex binary scanning: 122 ipm

Simplex full color scanning: 40 ppm (8 1/2” × 11”R/ 200 dpi)

Duplex full color scanning: 62 ipm

200 sheets (8

40-157 g/m

USB 2.0

Temperature: 50-90 °F (10-32 °C), humidity 15-80 %

/2” × 11”, 64 g/m2)

(77–298 lbs)

(8 1/2” × 11”R/ 200 dpi Duplex model only)

8 1/2” × 11”R/ 200 dpi Duplex model only )

Power consumption During operation: 180 W

During standby: 50 W

During Low-Power mode: 8 W

Warm-up time Max. 20 seconds

Specifications

Transition time to the Low-Power mode/ Recovery time from the Low-Power mode

Dimensions

Weight Simplex Scanner: Approximately 68.3 lbs (31 kg)

The maximum scanning range varies by the level of resolution and grade.

Actual length of time for the scanning varies by your PC performance and environ-

Transaction time: About 15 minutes

Recovery: 3 seconds or shorter

19.3 inch × 27.4 inch × 13 inch (490 mm × 695 mm × 332 mm) (W × D × H)

Duplex Scanner: Approximately 72.8 lbs (33 kg)

ments.

ipm: images per minute

INDEX

ADF

ADF Cover ADF Exposure Glass ADF Exposure Glass 1 ADF Exposure Glass 2 Auto Detection

Automatic Document Feeder

, ,

73 74

Jammed Originals Originals that cannot be set

Original Sizes

Background Panel for Exposure Glass Background Panel for the ADF

Changing the Color

Background Panel for the Exposure Glass

Changing the Color

, 8,

Cleaning

73 74

ADF Exposure Glass 1 ADF Exposure Glass 2 Background Panel for Exposure Glass

Exposure Glass

Feed Roller Filter

{Clear Modes}}}} key Connecting

Computer IEEE1394 IEEE1394 Board Image-Processing Unit Options Power Code SCSI USB

Data Size DeskTopBinder Lite

DIP Switches Disposing

Installation

, 7,

38 10

Error Indicators Error Message and Required Action Error on the Original Table Exposure Glass

, 8,

Feed Roller Filter

Guide to This Scanner

Hard Reset Switch

, 7,

IEEE1394 Board IEEE1394 Interface Unit Type IS760 Image-Processing Unit Image Processing Unit Type B Indicators

In Normal State With Error

Installing

DeskTopBinder Lite ISIS Driver QuickScan TWAIN Driver

ISIS Driver

Installation

Jam

Lock Lever

Moving

Operating Instructions Options Originals Size Original Stopper Originals Weight Original Table Output Table

Placing Originals

In the ADF On the Exposure Glass

Power Connector Power Switch Pressure Panel

Quick Installation Guide QuickScan

Installation

Transporting Troubleshooting Turning the Power On/Off TWAIN Driver

Example of the Scanning Functions Installation Procedure Breakdown

USB 2.0 Interface Connector

Resolution and Data Size Rotary Switch

Scan Area and Data Size SCSI ID

Setting Automatically Setting Manually

SCSI Interface Connector

SD Card Slot Setting Originals Sizes Automatically Detected Specifications {Start}}}} key Surroundings for Setup

MEMO

EN USA G418-8602

In accordance with IEC 60417, this machine uses the following symbols for the main power switch:

aaaa means POWER ON. bbbb means POWER OFF.

Image Scanner Operating Instructions

EN USA G418-8602

Cleaning Background Panel for the ADF

Follow the procedures below to clean the "Background Panel for the ADF" of this machine.

Reference

❐

See "Cleaning" of the "6.Appendix" in the PDF manual for the details of cleaning the other parts of the machine.

1 Lift the Pressure Panel. 2

Wipe Background Panel for the ADF 1 with water-dampened and tightly wrung cloth.

AID001S

Take off the Background Plate for Exposure Glass.

AID002S

Turn down blue levers on both sides.

AID003S

See "Changing the Color of the Background Panel for the Exposure Glass" in "4. Setting Originals" in the PDF manual for details. Go to step 8 if you use the simplex scanner.

1. Background Panel for the ADF 1

The unit which stores the Background Panel for the ADF is drawn out.

5 Wipe Background Panel for the ADF 1with water-dampened and tightly wrung cloth.

AID004S

Push down a lever on the left, and change the color of the Background Panel by rotating the screw

on the right to the ∆ mark position.

AID005S

Push back the unit which you drew out in step 4 by pushing both ends of the unit.

AID006S

8 Set the Background Panel for the Exposure Glass back on.

Note

❐

Turn the slit in the way shown in the illustration. Do not turn to the other side.

❐

Turn the slit till you hear the click. Rotate the screw to the position of the ∆ mark position, and confirm that the Background Panel color has totally changed.

1. Background Panel for the ADF 2 Go to step 7 if you are not cleaning the other background color.

See "Changing the Color of the Background Panel for the Exposure Glass" in "4. Setting Originals" in the PDF manual for details.

Savin IS760,IS760D Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
