Savin 3515, 3515MF, 3515F Quick Manual

> DIGITAL IMAGING SYSTEMS

3515/3515F

3515MF

Savin 3515/3515F/3515MF

High

performance

digital imaging

systems

The SAVIN®3515, 3515F and 3515MF

systems combine walk-up simplicity

with easy connectivity in a compact

footprint that’s perfect for today’s

busy small office, workgroup or

professional practice. Featuring

advanced digital technology and

15 PPM output speed, the Savin

3515, 3515F and 3515MF come in

one of three configurations, which

means that you can select the system

that’s right for your business…

• Savin 3515 Digital Copier

• Savin 3515F Digital Copier and Fax

• Savin 3515MF Digital Copier, Fax,

Scanner and Printer

Savin 3515/3515F/3515MF – Open The Box, Plug In A Better Solution.

Powerful Network Duplex Printing

The Savin 3515 and 3515MF let you
consolidate assets by leveraging your
existing LAN resource and eliminate
multiple desktop printers.

Standard PCL 5e/6 and Optional
Adobe

®

PostScript®3™– ensures

compatibility with today’s most popular
business software.

Refined Print Command Stream –
RPCS

™

– features an icon-based user
interface that let’s you program frequently
used document settings, allowing you to
output print jobs with a single click.

Network Printer Management
Utilities – allows you and your IT staff

to monitor and manage all of the Savin
3515MF’s core functions – print, copy,
fax and scan. Choose Web SmartDevice­Monitor or Web Image Monitor and
manage the Savin 3515MF via a standard

Web browser. Or, choose SmartDevice­Monitor and manage the Savin
3515MF via an icon located on the
Windows Taskbar.

Better Engineering Maximizes
User Productivity

Regardless of the system you choose,
you’ll get a great digital copier! The
Savin 3515, 3515F and 3515MF each
provide all the copy features you need.

Standard 30 Sheet Automatic Document
Feeder – increases your productivity when

copying multiple page documents by elim­inating the need to manually place each
original, including 8.5" x 14" documents.

Scan Once, Print Many – enables you
to scan originals once and then go back
to work while the Savin 3515, 3515F
and 3515MF produce the requested
number of copies.

Combine Originals – offers a convenient method
of managing documents that require copying on
both sides, such as insurance cards, by automatically
combining multiple originals onto a single page.

Standard Electronic Sorting – eliminates
the need to hand-sort document sets,
which increases user productivity.

850 Sheet Maximum Paper Capacity

– allows you to get through long copy
jobs, print jobs and fax receptions
without stopping to replace paper.
And, a front-load design simplifies
paper replenishment tasks.

High-Performance Fax

In most business environments, docu­ments exist in hardcopy and electronic
form, so you need a communications
solution that will handle all your fax
applications…and that’s just what you
get when you select the Savin 3515F or
3515MF.

LAN-Fax* – allows you to transmit a fax
directly from your workstation via your
internal LAN, which eliminates the need
for printing documents to the fax.

Internet Fax (T.37)* – enables you to
transmit a fax to another Internet fax –
or e-mail address – over the Internet,
which eliminates busy signals and costly
long distance phone charges.

Super G3 36.6 Kbps Modem and
JBIG Compression – combine to speed

hard copy faxes to their destinations in
just under two seconds per page.

Dual Access – perform multiple tasks
at any given time. Scan outgoing fax
documents into memory while the
Savin 3515F or 3515MF prints an
incoming fax document.

Batch Transmission, Serial Broad­casting and Send Later – combine

to automate virtually all aspects of the
traditional fax process.

Connect Now!

With the Savin 3515MF, it’s easy to make
the right connections. Use the standard
10/100BaseT Ethernet interface and
connect your Savin 3515MF to your
LANor, use the standard USB 2.0

interface and connect
your Savin 3515MF to
your PC, it’s your call.

If you have specialized
connectivity requirements,
several options are available
for your use: Wireless LAN
and BluetoothTMconnec­tions enable flexible
placement options and
eliminate additional cables.
Or, the IEEE 1284

Parallel and IEEE 1394
interfaces allow you to
connect your Savin
3515MF to PCs that are
not on the network.

Advanced connectivity
includes standard USB
and Ethernet, plus
optional Wireless,
Bluetooth, IEEE 1284
and IEEE 1394.

*Available on the Savin 3515MF only.

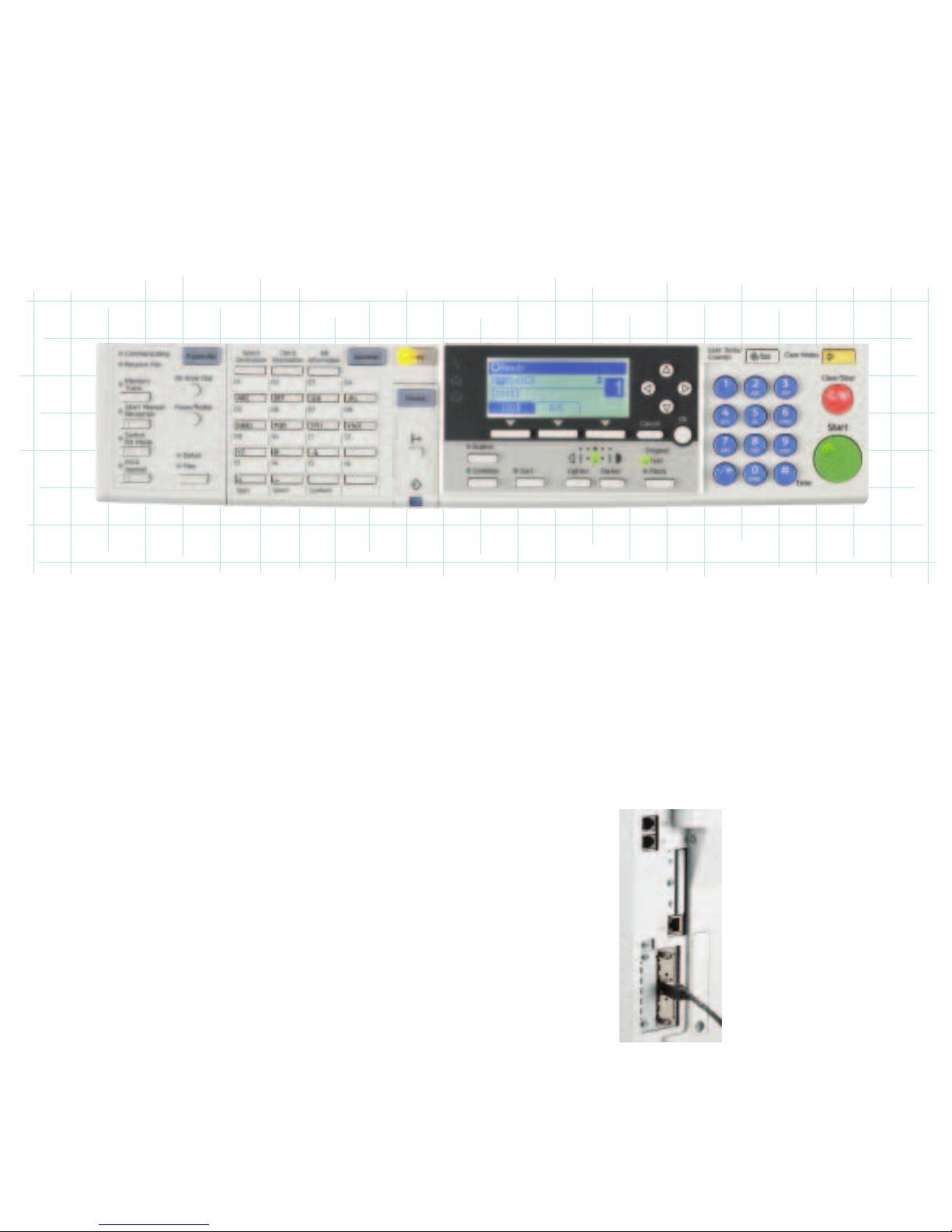

Intuitive Control Panel

Ensures easy access to all of the Savin 3515, 3515F and 3515MF’s functions
via a 4-Line Back Lit Display and convenient Directional Cursor Keys.

Versatile Network Scanning

Implement an efficient and cost-effective
electronic document delivery strategy
using the Savin 3515MF’s network
scanning function.

Embedded Scan to E-mail – enables
you to scan, or fax, hardcopy documents

to multiple e-mail addresses in TIFF or
PDF format at a fraction of the cost of
traditional overnight delivery services.
Recipients receive important business
communications virtually instantaneously,
and there’s no need to print, or copy,
multiple document sets.

ScanRouter V2 Lite – allows
you to easily share hardcopy
documents such as spread­sheets or hand-drawings. Or,
for more rigorous scanning
requirements, upgrade to
ScanRouter V2 Professional
and gain Scan to Folder/File
and OCR capabilities.

Network TWAIN Scanning –
enables users to scan hardcopy
originals to an image editing
application on their PC, which
eliminates the need for indi­vidual desktop scanners.

Savin
3515/3515F/
3515MF

Scan documents and store them on your PC for
use in e-mails and applications.

Dual Component Consumable Design – simplifies
routine maintenance while reducing cost-per-page.

30-sheet Automatic Document Feeder increases
productivity by eliminating the need to manually
place each original on the platen and allows for

8.5" x 14" copying.

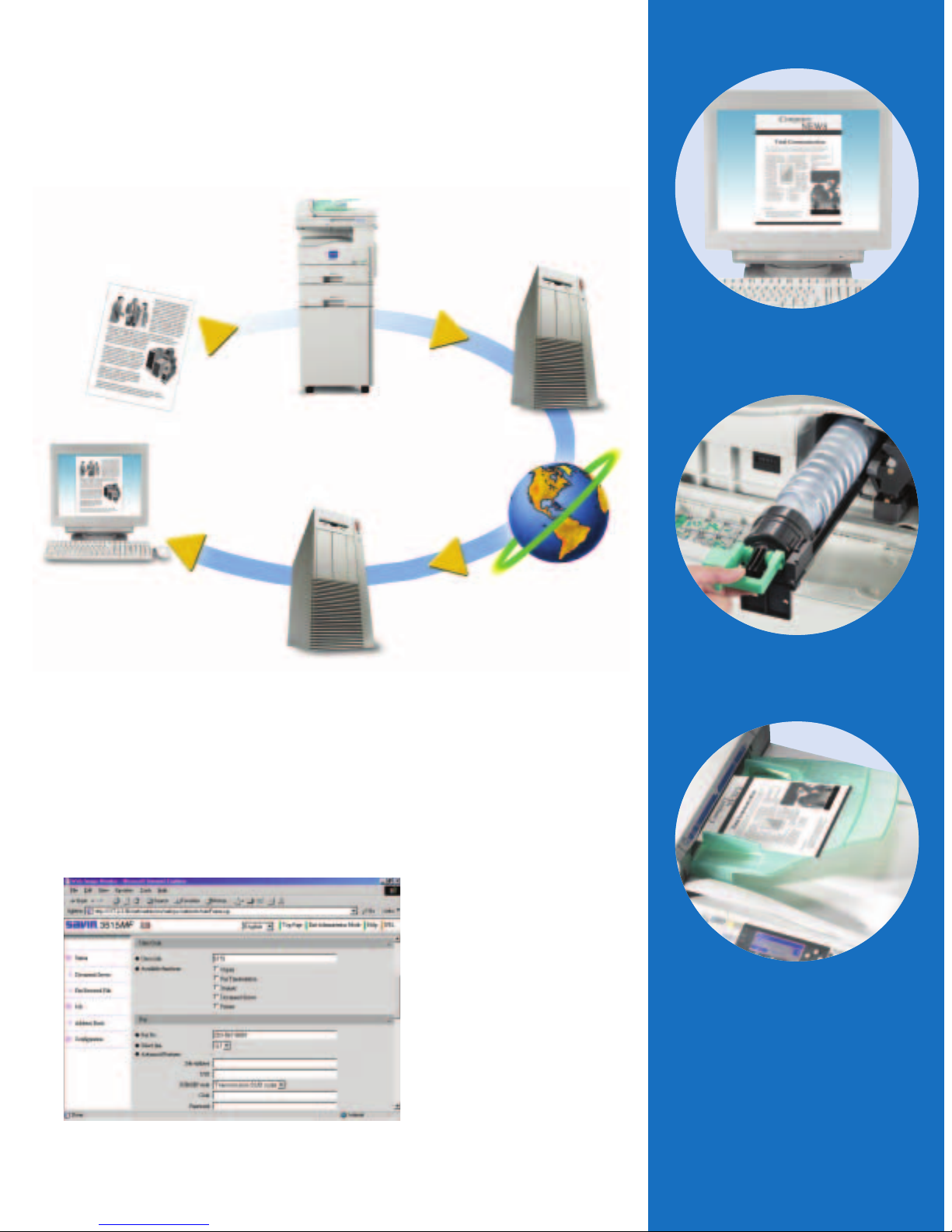

Embedded Scan To E-Mail

Savin 3515MF

Scan or fax hardcopy documents to multiple e-mail addresses in TIFF or PDF
format for instant communication.

Easily enter fax addresses through Web Image Monitor.

Electronic
Document

Mail Server

Internet

Mail Server

Paper Document

Easy on the Budget

For the small business owner or manager,
the ability to make smart fiscal decisions
can mean the difference between success
and failure. The Savin 3515, 3515F and
3515MF incorporate technology designed
to dramatically reduce overall cost of
ownership.

Multifunctional Platform – eliminates
the need to acquire and manage up to
four separate systems – including their
supplies and maintenance agreements.

Produce Print and Fax Pages at Copier
Page Cost – enables owners and managers

to regulate and maintain consistent
document production expenses.

Good for the Environment

Sophisticated technology does not have
to come at the expense of responsible
environmental manufacturing polices.
And to prove it, the Savin 3515, 3515F
and 3515MF feature a variety of
technologies designed to reduce energy
consumption and promote the use of
energy-saving capabilities.

Standard Auto Duplexing – enables
two-sided copying

* and printing, which

reduces paper consumption.

Exceptionally Quiet Operation –
enables placement of the Savin 3515,
3515F or 3515MF where it will be the
most productive – next to the people
who use it.

Quick Start Up Technology – facilitates
a fast Recovery Time – when coming
out of the Energy Saver Mode – of just
10 seconds.

The Perfect Connected Solution
For The Small Office Or
Workgroup

When you choose a Savin system, you
choose a system backed by a business
partner that is committed to providing
your small business with sophisticated,
yet affordable, document management
solutions.

@

For more information contact
your authorized Savin dealer.

www.savin.com

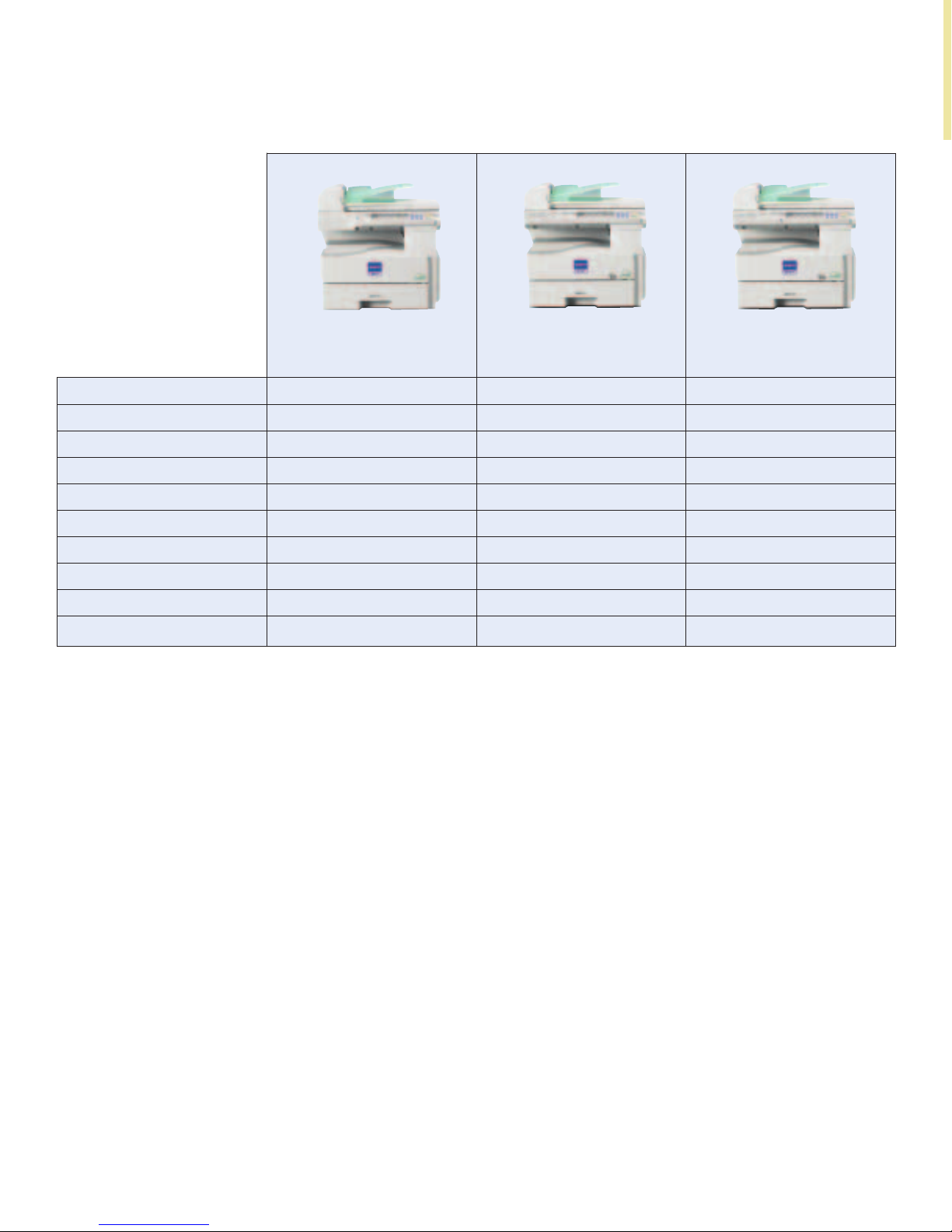

Savin 3515/3515F/3515MF

3515 3515F 3515MF

Digital Copier Digital Copier and Fax Digital Copier, Fax,

Scanner and Printer

Copy/Print Speed 15 PPM 15 PPM 15 PPM

Automatic Document Feeder Standard/30 Sheets Standard/30 Sheets Standard/30 Sheets

Standard Paper Capacity 350 Sheets 350 Sheets 350 Sheets

Maximum Paper Capacity 850 Sheets 850 Sheets 850 Sheets

Automatic Duplexing (1:2) Standard Standard Standard

Network Printing/Scanning Optional Not Available Standard

Scan To E-Mail Optional Not Available Standard

Faxing Not Available Standard Standard

Internet Faxing (T.37) Not Available Not Available Standard

LAN-Faxing Not Available Not Available Standard

Choose The
Savin 3515,
3515F or 3515MF
That Meets The
Needs Of Your
Small Office/
Workgroup

*1-sided to 2-sided only.

Savin 3515/3515F/3515MF

Savin Corporation Stamford, Connecticut 06904 ©2004 Savin Corporation.
SAVIN

®

is a registered trademark of Savin Corporation. Windows®and Windows®3.1/95/98/Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh®, Mac®OS and AppleTalk®are registered

trademarks of Apple Computer, Inc. Adobe

®

and PostScript®are trademarks of Adobe Systems, Inc. PCL®is a registered trademark of Hewlett-Packard Company. RPCS™is a trademark of Ricoh Company, Ltd.

All other trademarks are the property of their respective owners. Product specifications subject to change without notice.

Printed in U.S.A. on recycled paper. (S1963) 75M 5/04

ENGINE/COPIER SPECIFICATIONS

Configuration Console
Scanning Element Flatbed with CCD array image-sensor
Printing Process Laser beam scanning/marking & electro-photographic

printing

Toner Dry, Dual Component
System Memory (std./max) Savin 3515 16MB; Savin 3515F 64MB;

Savin 3515MF 192MB

Copy Resolution 600 x 600 dpi
Grayscale 256 levels
Exposure Adjustment Manual & Automatic
Quantity Indicator 1 - 99
Original Type Sheet/Book
Maximum Original Size 8.5" x 14" through Automatic Document Feeder
Copy Size 5.5" x 8.5" to 8.5" x 14" through Bypass Tray and

Optional Paper Bank

Copy Type Plain Paper

Envelopes, Transparencies (through Bypass Tray)

Warm-up Time Savin 3515 – 15 seconds

Savin 3515F & 3515MF – 30 seconds

First Copy Speed Less than 7.5 seconds
Continuous Copying Speed 15 cpm - simplex

9 cpm - duplex

Duplex Yes (1:2)
Recovery Time 10 seconds (from Energy Saver Mode)
Energy Saver Mode 1W (Savin 3515)

10W (Savin 3515F/Savin 3515MF)

Power Source 120V/60HZ
Dimensions (WxDxH) 18.43" x 17.72" x 20.12" (with Automatic Document

Feeder)

Weight Savin 3515 with ADF – 52.91 lbs.

Savin 3515F – 55.12 lbs.
Savin 3515MF – 55.12 lbs.

Standard Paper Capacity 250 sheets x 1 tray and 100-sheet multi bypass tray
Optional Paper Capacity 500 sheets x 1 tray
Paper Size 5.5" x 8.5" to 8.5" x 11" – standard tray

5.5" x 8.5" to 8.5" x 14" – bypass tray

Paper Weight 16 - 24 lb. Bond – Tray 1 and Duplex

16 - 42 lb. Bond – Bypass Tray

Reduction Ratios 65%, 78%, 93%
Enlargement Ratios 129%, 155%
Zoom 50% to 200% in 1% increments
Standard Features Auto Start, Combine Copy, Duplex Copying,

Duplex Printing, Electronic Sort, Photo Mode

Optional Features with Auto Tray Switching

500 x 1 Paper Bank

PRINTER SPECIFICATIONS

Print Speed 15 ppm
CPU TMPR495B-300 240MHZ
Standard Interfaces 10/100 Base TX

USB 2.0

Optional Interfaces IEEE 802.11b Wireless LAN

Bluetooth
IEEE 1394
IEEE 1284

Memory Capacity 64MB Resident, plus 128MB pre-installed in

Savin 3515MF

Network Protocol TCP/IP, IPX/SX, SMB, AppleTalk
Utilities SmartDevice Monitor, Web SmartDevice Monitor,

Web Image Monitor – available with Savin 3515MF only

Page Description Languages PCL5e/6, RPCS

PostScript3 (optional)

Print Resolution PCL5e: 300 dpi, 600 dpi

PCL6: 600 dpi
RPCS: 300 dpi, 600 dpi
PS3: 600 dpi

Grayscale 256 levels
Fonts for PCL5e/6 35 Intellifonts, 10 TrueType Fonts, 1 Bitmap
Fonts for PS3 136 PostScript Fonts
Drivers for PCL5e/6, RPCS Windows 9x/Me, NT4.0, 2000, XP, 2003
Drivers for PS3 Windows 9x/Me, NT4.0, 2000, XP, 2003, Macintosh

8.6 - 9.2X (OS X Classic)

SCANNER SPECIFICATIONS

Scanning Speed Embedded Scan to E-mail: 22 ipm (@200 dpi)

ScanRouter: 22 ipm (@200 dpi)
TWAIN: 18 ipm (@200 dpi)

Scanning Resolution 600 dpi
Scan Area 8.5" x 11" – platen

8.5" x 14" – ADF

Interface 10/100 Base TX

IEEE 802.11b Wireless LAN
IEEE 1394

Protocol SMTP, TCP/IP
Memory Capacity 64MB Resident, plus 128MB pre-installed

in Savin 3515MF (shared with printer)

File Format Single Page TIFF, Multi-Page TIFF, PDF

FAX SPECIFICATIONS

Circuit PSTN, PBX
Compatibility ITU-T (CCITT) G3
Resolution 200 x 100 dpi

200 x 200 dpi
200 x 400 dpi

Compression Method MH, MR, MMR, JBIG
Scanning Speed Less than 2 seconds
Modem Speed 33.6 Kbps with Auto Fallback
Transmission Speed G3: 3.0 seconds per page (without JBIG)

G3: 2.0 seconds per page (with JBIG)

Memory 2 MB; 160 pages

*

Memory Backup One Hour
Quick Dials 16 (out of 150 Speed Dials)
Speed Dials 150
Group Dials 10 (maximum 100 numbers per group)
ID Code Programming 4 digits
User Function Key 3 keys
User Codes 8 digits (50 personal codes)
Standard Features Batch Transmission, Dual Access, One Hour

Backup, Serial Broadcasting

*Note: Based on ITU-T Test Chart No. 1 in standard mode.

OPTIONS

PS480 (500 sheets x 1) Paper Bank

Paper Size 8.5" x 11" SEF, 8.5" x 14" SEF
Paper Weight 16 - 24 lb. Bond
Paper Capacity 1 x 500 sheets

Scanner/Printer Kit

Bundled Software Includes ScanRouter V2 Lite

DeskTopBinder V2 Lite

PostScript3

IEEE 1284 Interface Type A

IEEE 1394 Interface Board Type B

Included Cables 2.0 m 6 pin to 4 pin cable

2.0 m 6 pin to 6 pin cable

Hardware Specifications 6 pins; 2 ports available
Data Transmission Speeds 400/200/100 Mbps

System Requirements for IP MS-Windows 2000, XP

over 1394

IEEE 802.11b Wireless LAN Interface Type D

Data Transmission Speeds 1/2/5.5/11 Mbps
Protocol TCP/IP
Connection Types Ad hoc mode

Infrastructure mode

Distance Between Devices 151 to 1,300 feet (140 to 400 meters)

Bluetooth Interface Type 2238

Data Transmission Speeds 1 Mbps
Supported OS Windows XP, 2000, 98 SE, Me (dependent

on Bluetooth Card)

Distance Between Devices 33 feet (10 meters)
