Specifications and Main Features
- Source of Power:
- For Master Making: Power type: AC 120 V 50/60Hz and minimum current: Less than 2.9 A
- For Printing: Power type: AC 120 V 50/60Hz and minimum current: Less than 2.9 A
- Environmental Considerations:
- Temperature range: 10 - 30°C, 50 - 86°F
- Humidity requirements:
- Main frame: 20 - 90 % RH
- Document feeder (option): 20 - 70 % RH
- Original Maximum Size: 257364mm 10.214.4 of inches
- Original Maximum Total Thickness: 30mm which is approximately 1.1”
- Original Maximum Total Weight : 5 kg which is approximately (11.0 lb)
- Various Choices for Operation Speed:
- Setting 1: 60 sheets/min or 3,600 sheets/ h
- Setting 2: 75 sheets/min or 4,500 / h
- Setting 3: 90 sheets/min or 5,400 /h
- Setting 4: 105 sheets/min or 6300 /h
- Setting 5: 120 sheets/min or 7200/h
- Supported Sizes of Paper:
- The lowest size being supported: 90 mm by 148 mm 3.6in by 5.9in
- The highest size being supported: 297 mm by 432 mm 11.6 by 17.0 in
- Weights of paper:
- 209.3 g/m² is heaver than 55.6lb
- 47.1 g/m² is lighter than 12.5lb
- Components that are optional:
- Document feeder
- Optional color drum
Frequently Asked Questions
- Q: What is the power supply that the machine is best suited for?
A: The power supply that is best suited and recommended is AC 120 V, 50/60 Hz and 2.9 A .
- Q: What is the upper limit of dimension for an original printing?
A: In case of any further questions, the upper limit of dimensions when printing an original is 257 by 364 mm, which is also equal to 10.2 by 14.4 inches.
- Q: Is it possible to apply paper more than 209.3g/m² in thickness?
A: Unfortunately, that is not possible, for the utmost limit has been set at 209.3 g/m² which is equal to 55.6 pounds.

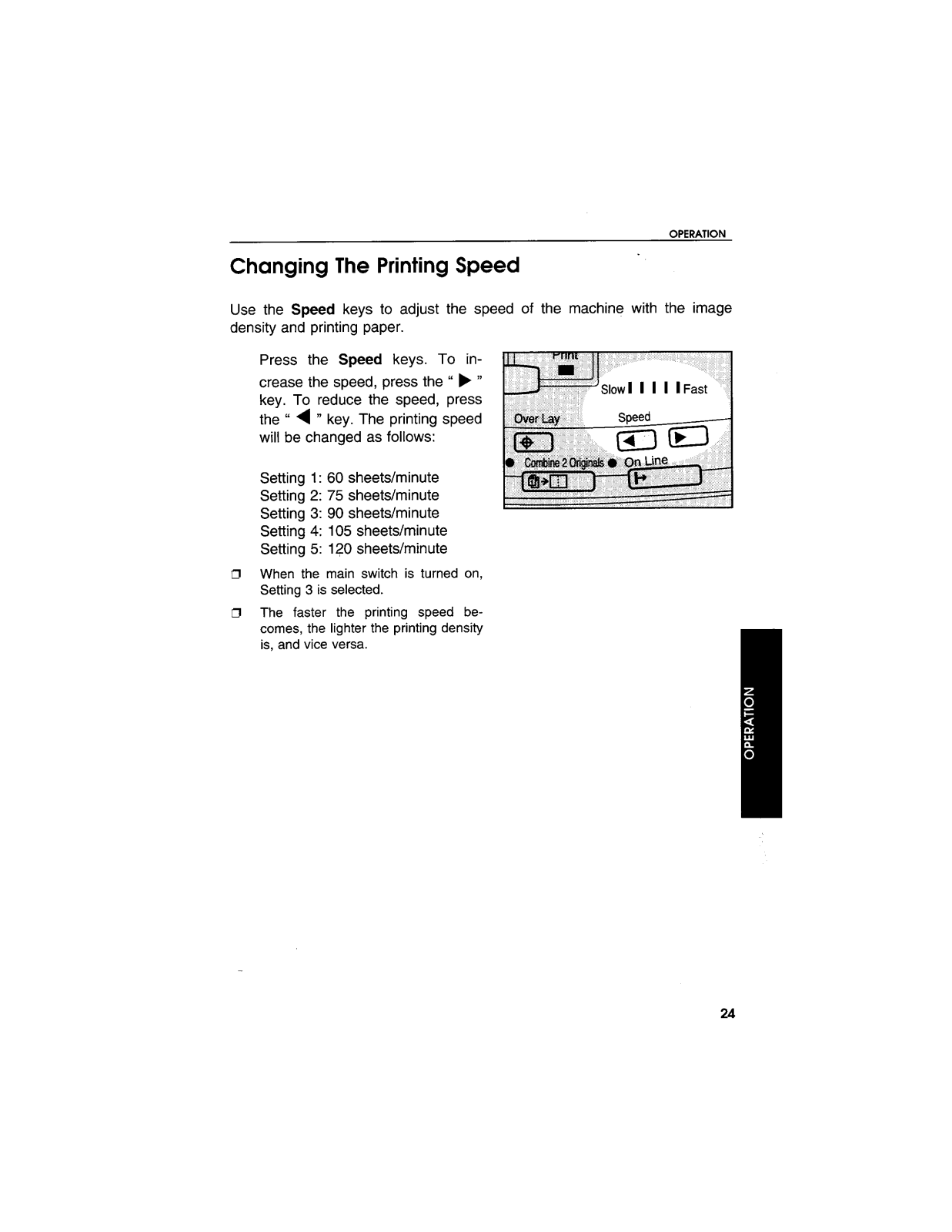

- Q: In my case the print speed needs to be modified, how would I go about doing this?
A: That can be done using the Speed keys which are designed to do exactly this, allowing selection among five different print speeds.
- Q: Ideally if I wanted to achieve the best performance, what would be the best temperature for the machine?
A: The area, or in case of a machine its frame, should have a temperature between 10-30° Celsius and humidity ranging from 20 and 90% RH.
