Savin 3150DNP User Manual

Specifications and Main Features

  • Model: SaVini Digital Duplicator 3150DNP
  • Power supply: 220 — 240 V, 50/60 Hz, 1.5 A or higher
  • Maximum Print Size: 257 x 364 mm (10.2" x 14.4")
  • Maximum Paper Weight: 5 kg (11.0 lbs)
  • Compatible Paper:

Minimum Paper Size: 90 mm x 148 mm (3.6” x 5.9”)

Maximum Paper Size: 268 mm x 388 mm (10.5” x 15.2”)

Paper Weight: 47.1 g/m² to 157.0 g/m² (12.5 lb to 41.7 lb)

  • Compatible paper:
  • Paper Weight:47.1grams to 157grams
  • Print Speed Options:

Setting 0: 80 sheets/minute

Setting 1: 100 sheets/minute (default)

Setting 2: 120 sheets/minute

  • Original Thickness Capacity: 30 mm (1.1”)
  • Total Number of Prints: Designed to facilitate changes in maximum for multiple prints, which can go up to 10,000.
  • Control Panel Features: Includes multiple buttons which have functions such as change of image density and configuration of the print speed and mode including security and memory modes.

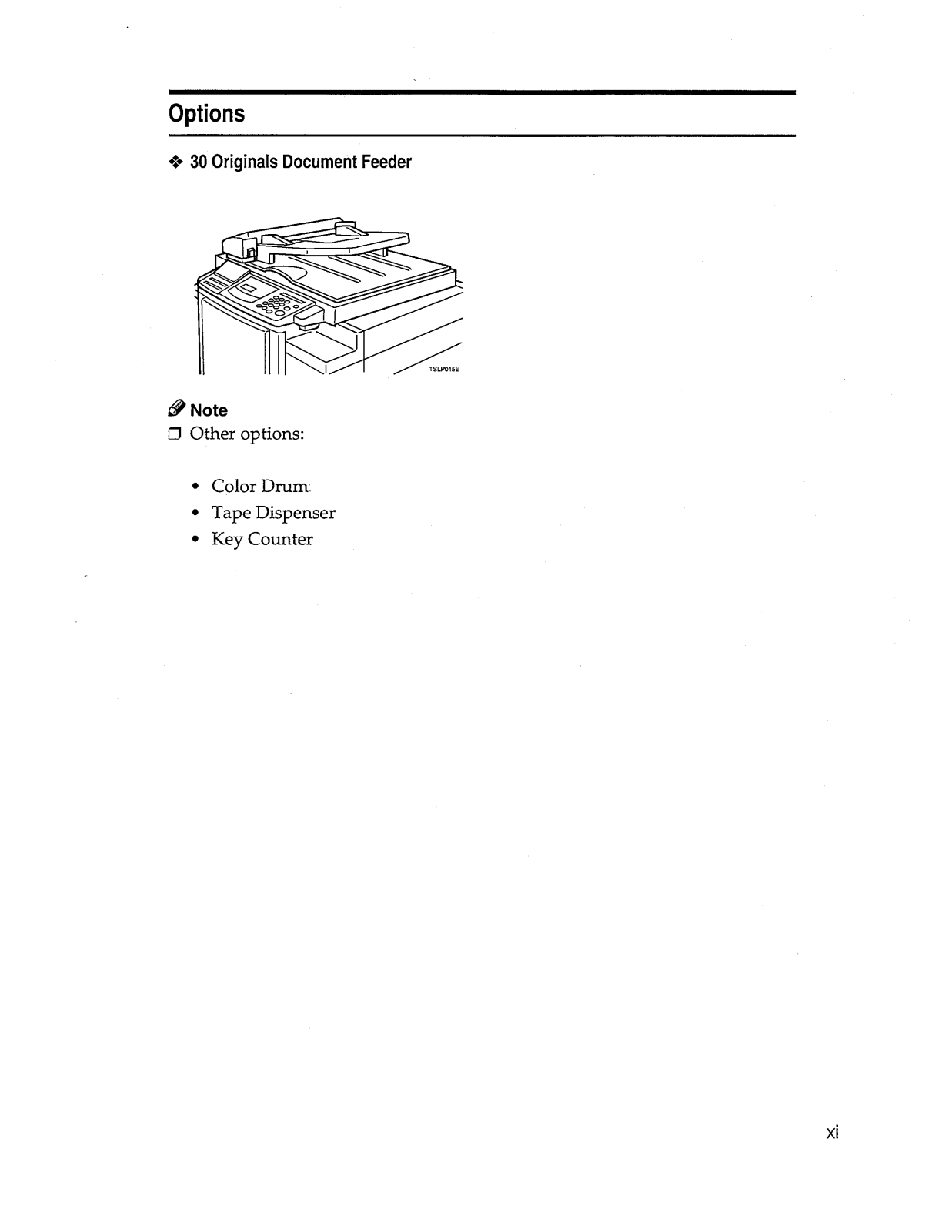

  • Optional Accessories:

30 Originals Document Feeder

Color Drum

Tape Dispenser

Key Counter

Frequently Asked Questions

Q1: What kind of a power source does the SaVini 3150DNP require?*

A1: This device requires a power source of 220 — 240 V, 50/60 Hz, and 1.5 A or more.

Q2: What is the maximum paper size that the duplicator is capable of using?

A2: The said equipment is only able to print a maximum of 268 mm x 388 mm which is equal to 10.5 inches by 15.2 inches.

Q3: What is the maximum number of prints that I can set it to for a single session?

A3: The printer is capable of making a maximum of 9999 cuts in one session.

Q4: What is the minimum thickness acceptable of the item to be duplicated?

A4: The total minimum thickness of the item cannot be more than 30 mm which is equal to 1.1 inches.

Q5: Is it possible to use heavier paper than 157grams per m²?

A5: It is not recommended as the printer cannot take in mats that is heavier than 157 grams per m² (41.7 pounds)

Q6: What is the available range of print speeds?

A6: The available printing speeds include 80 sheets, 100 sheets, and 120 sheets in one minute.

Q7: Are there any options available for this model?*

A7: Yes there are, 30 Originals Document Feeder, Color Drum, Tape Dispenser, Key Counter are a few optional accessories available.
