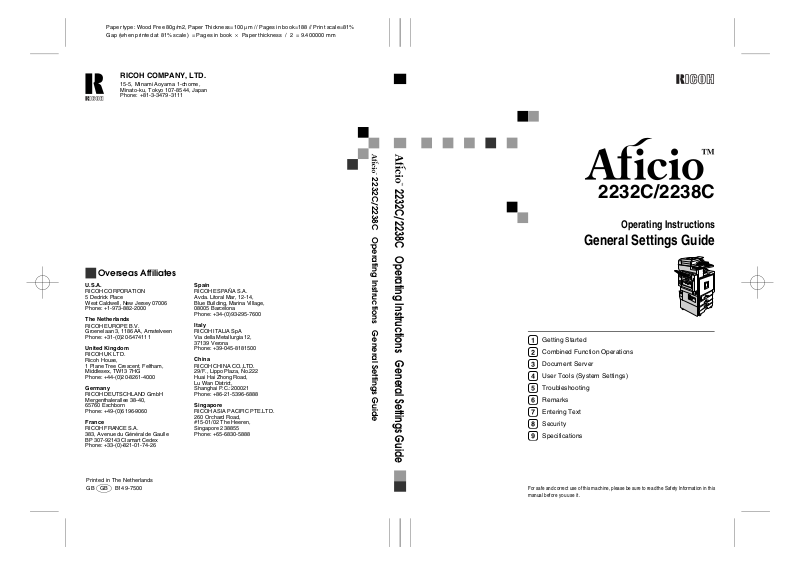

Savin 2232C, 2238C Operating Manual

2232C/2238C

Operating Instructions

General Settings Guide

Getting Started Combined Function Operations Document Server User Tools (System Settings)

Troubleshooting Remarks Entering Text Security

Specifications

For safe and correct use of this machine, please be sure to read the Safety Information in this

manual before you use it.

Introduction

This manual describes detailed instructions on the operation and notes about the use of this machine. To get maximum versatility from this machine all operators are requested to read this manual carefully and follow the instructions. Please keep this manual in a handy place near the machine.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Notes:

Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer.

Operator Safety:

This machine is considered a Class 1 laser device, safe for office/EDP use. The machine contains five AIGalnp laser diodes, 7-milliwatt, 645-660 nanometer wavelength for each emitter. Direct (or indirect reflected ) eye contact with the laser beam might cause serious eye damage. Safety precautions and interlock mechanisms have been designed to prevent any possible laser beam exposure to the operator.

The following label is attached on the back side of the machine.

Laser Safety:

The optical housing unit can only be repaired in a factory or at a location with the requisite equipment. The laser subsystem is replaceable in the field by a qualified customer engineer. The laser chassis is not repairable in the field. Customer engineers are therefore directed to return all chassis and laser subsystems to the factory or service depot when replacement of the optical subsystem is required.

Warning:

Use of controls or adjustment or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.

Notes:

The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, see P.14 “Machine Types”.)

• Type 1: Aficio 2232C

• Type 2: Aficio 2238C Certain types might not be available in some countries. For details, please contact your local dealer.

Two kinds of size notation are employed in this manual. With this machine refer to the metric version.

For good copy quality, Ricoh recommends that you use genuine Ricoh toner.

Ricoh shall not be responsible for any damage or expense that might result from the use of parts other than genuine Ricoh parts with your Ricoh office products.

Power Source

220–240V, 50/60Hz, 8A or more Please be sure to connect the power cord to a power source as shown above. For details about power

source, see P.141 “Power Connection”.

Manuals for This Machine

The following manuals describe the operational procedures of this machine. For particular functions, see the relevant parts of the manual.

Note

❒ Manuals provided are specific to machine type.

❒ Adobe Acrobat Reader is necessary to view the manuals as a PDF file.

❒ Two CD-ROMs are provided:

• CD-ROM 1 “Operating Instructions for Printer/Scanner”

• CD-ROM 2 “Scanner Driver & Document Management Utilities”

❖❖❖❖ General Settings Guide (this manual)

Provides an overview of the machine and describes System Settings (paper trays, Key Operator Tools, etc.), Document Server functions, and troubleshooting. Refer to this manual for Address Book procedures such as registering fax numbers, e-mail addresses, and user codes.

❖❖❖❖ Network Guide (PDF file - CD-ROM1)

Describes procedures for configuring the machine and computers in a network environment.

❖❖❖❖ Copy Reference

Describes operations, functions, and troubleshooting for the machine's copier function.

❖❖❖❖ Facsimile Reference <Basic Features>

Describes operations, functions, and troubleshooting for the machine's facsimile function.

❖❖❖❖ Facsimile Reference <Advanced Features>

Describes advanced functions, and settings for key operators.

❖❖❖❖ Printer Reference 1

Describes system settings and operations for the machine's printer function.

❖❖❖❖ Printer Reference 2 (PDF file - CD-ROM1)

Describes operations, functions, and troubleshooting for the machine's printer function.

❖❖❖❖ Scanner Reference (PDF file - CD-ROM1)

Describes operations, functions, and troubleshooting for the machine's scanner function.

❖❖❖❖ Manuals for DeskTopBinder V2 Lite

DeskTopBinder V2 Lite is a utility included on the CD-ROM labeled “Scanner Driver & Document Management Utilities”.

• DeskTopBinder V2 Lite Setup Guide (PDF file - CD-ROM2) Describes installation of, and the operating environment for DeskTopBinder V2 Lite in detail. This guide can be displayed from the [Setup] display when DeskTopBinder V2 Lite is installed.

• DeskTopBinder V2 Lite Introduction Guide (PDF file - CD-ROM2) Describes operations of DeskTopBinder V2 Lite and provides an overview of its functions. This guide is added to the [Start] menu when DeskTopBinder V2 Lite is installed.

• Auto Document Link Guide (PDF file - CD-ROM2) Describes operations and functions of Auto Document Link installed with DeskTopBinder V2 Lite. This guide is added to the [Start] menu when DeskTopBinder V2 Lite is installed.

❖❖❖❖ Manuals for ScanRouter V2 Lite

ScanRouter V2 Lite is a utility included on the CD-ROM labeled “Scanner Driver & Document Management Utilities”.

• ScanRouter V2 Lite Setup Guide (PDF file - CD-ROM2) Describes installation of, settings, and the operating environment for ScanRouter V2 Lite in detail. This guide can be displayed from the [ play when ScanRouter V2 Lite is installed.

• ScanRouter V2 Lite Management Guide (PDF file - CD-ROM2) Describes delivery server management and operations, and provides an overview of ScanRouter V2 Lite functions. This guide is added to the [Start] menu when ScanRouter V2 Lite is installed.

Setup

] dis-

❖❖❖❖ Other manuals

• PS3 Supplement (PDF file - CD-ROM1)

• Unix Supplement (Available from an authorized dealer, or as a PDF file on

our Web site.)

What You Can Do with This Machine

The following introduces the functions of this machine, and the relevant manuals containing detailed information about them.

Products marked with * are optional. For details about optional products, see p.165 “Options”, or contact your local dealer.

Copier, Facsimile, Printer, and Scanner Functions

This machine provides copier, facsimile*, printer, and scanner functions.

• You can make copies of originals. With a finisher*, you can sort and staple copies. See Copy Reference.

• You can send originals by fax and receive faxes from other parties. See Facsimile Reference <Basic Fea-

tures> , and Facsimile Reference <Advanced Features>.

• You can print documents created using applications. See Printer Ref- erence 1, Printer Reference 2.

• You can scan originals and send the scan file to a computer. See Scanner Reference.

Utilizing Stored Documents

• You can store file from originals scanned by this machine, or file sent from other computers, into the machine's hard disk. You can print and fax stored documents as required. You can also change print settings and print multiple documents (Document Server). See p.33 “Using the Document Server”.

• With DeskTopBinder V2 Professional*/Lite, you can search, check, print, and delete stored documents using your computer. You can also retrieve stored documents scanned in scanner mode. With File Format Converter*, you can even download documents stored in copy and printer functions to your computer. See Network Guide.

iii

Paperless Fax Transmission and Reception

Reception

• You can store received fax messages on the machine's hard disk, instead of printing them onto paper. You can use DeskTopBinder V2 Professional*/Lite or a Web browser to check, print, delete, retrieve, or download documents using your computer (Storing received documents). See Facsimile Reference <Advanced Features>.

Transmission

Fax Transmission and Reception Through the Internet

GCKONN9J

You can send fax documents through e-mail by specifying the recipient's email address (Internet Fax Transmission).

You can receive sent documents via Internet Fax, or from computers (Internet Fax Reception). See Facsimile Reference <Basic Features>.

Using the Scanner in a Network Environment

• You can send documents created using applications to another party's fax machine directly, without performing a print job (LAN-Fax). See Facsimile Reference <Advanced Features>.

• You can send scanned documents to other network computers using e-mail (Sending stored scan file by e-mail). See Scanner Reference.

• With ScanRouter V2 Professional*/Lite, you can save scanned documents in specified destinations on network computers (File storage). See Scanner Reference.

• You can send scanned documents to other network folders (Scan to Folder). See Scanner Reference

Administrating the Machine/Protecting Documents (Security Functions)

The security functions protect documents from being copied without permission or unauthorized access via the network. See p.155 “Security”.

❖❖❖❖ Security Functions

• Protecting stored documents

(setting passwords)

• Protecting file remaining in

memory

• Protecting against unauthor-

ized access via phone line

• Authenticating administrator

(setting the key operator code). See p.58 “Key Operator Code”.

Monitoring the Machine Via Computer

You can monitor machine status and change settings using a computer.

• Using SmartNetMonitor for Admin, SmartNetMonitor for Client, or a Web browser, you can use a computer to view the machine's status, such as to check on paper quantities, or misfeeds, etc. See Network Guide.

• You can also use a Web browser to make network settings. See Net- work Guide.

• You can also use a Web browser to register and manage items such as user codes, fax numbers, e-mail addresses, and folders in the Address Book. See the Web browser's Help.

❖❖❖❖ Extended Security Function

By setting a password, documents are protected against unauthorized access. See p.59 “Extended Security”.

Manuals for This Machine......................................................................................i

What You Can Do with This Machine..................................................................iii

Copier, Facsimile, Printer, and Scanner Functions................................................... iii

Utilizing Stored Documents....................................................................................... iii

Paperless Fax Transmission and Reception............................................................. iv

Fax Transmission and Reception Through the Internet............................................ iv

Using the Scanner in a Network Environment .......................................................... iv

Administrating the Machine/Protecting Documents (Security Functions) ..................v

Monitoring the Machine Via Computer.......................................................................v

Notice......................................................................................................................1

Copyrights and Trademarks .................................................................................2

Trademarks ................................................................................................................2

Information about Installed Software..........................................................................3

How to Read This Manual .....................................................................................8

Safety Information .................................................................................................9

Safety During Operation.............................................................................................9

Positions of Labels and Hallmarks for RRRRWARNING and RRRRCAUTION............11

ENERGY STAR Program.....................................................................................12

Machine Types .....................................................................................................14

1. Getting Started

Guide to Components .........................................................................................15

External Options.......................................................................................................17

Internal Options........................................................................................................18

Control Panel........................................................................................................19

Display Panel ...........................................................................................................21

Turning On the Power .........................................................................................22

Turning On the Main Power .....................................................................................22

Turning On the Power..............................................................................................22

Turning Off the Power..............................................................................................22

Turning Off the Main Power .....................................................................................23

Saving Energy..........................................................................................................23

2. Combined Function Operations

Changing Modes..................................................................................................25

Multi-Access......................................................................................................... 27

3. Document Server

Relationship between Document Server and Other Functions .......................31

Document Server Display ........................................................................................32

Using the Document Server................................................................................33

Storing Data .............................................................................................................33

Changing a Stored Document's File Name, User Name, or Password....................36

Selecting a Document..............................................................................................36

Searching for Stored Documents.............................................................................37

Printing Stored Documents ......................................................................................38

Deleting Stored Documents .....................................................................................41

Viewing Stored Documents Using a Web Browser ..................................................41

Downloading Stored Documents..............................................................................42

Settings for the Document Server......................................................................43

4. User Tools (System Settings)

User Tools Menu (System Settings)...................................................................45

Accessing User Tools (System Settings) .......................................................... 48

Changing Default Settings .......................................................................................48

Exiting User Tools ....................................................................................................48

Settings You Can Change with User Tools .......................................................49

General Features .....................................................................................................49

Tray Paper Settings .................................................................................................53

Timer Settings ..........................................................................................................56

Key Operator Tools..................................................................................................58

Address Book.......................................................................................................66

User Name ............................................................................................................69

Registering a User Name.........................................................................................69

Changing a User Name............................................................................................70

Deleting a User ........................................................................................................70

User Code.............................................................................................................71

Registering a New User Code..................................................................................71

Changing a User Code.............................................................................................72

Deleting a User Code...............................................................................................73

Displaying the Counter for Each User Code ............................................................73

Printing the Counter for Each User Code.................................................................73

Clearing the Number of Prints..................................................................................74

Fax Destination....................................................................................................76

Registering a Fax Destination..................................................................................77

Changing a Registered Fax Destination ..................................................................78

Deleting a Registered Fax Destination.....................................................................80

E-mail Destination................................................................................................81

Registering an E-mail Destination............................................................................81

Changing a Registered E-mail Destination ..............................................................82

Deleting a Registered E-mail Destination ................................................................82

Registering Folders .............................................................................................84

Using SMB to Connect.............................................................................................84

Using FTP to Connect..............................................................................................88

vii

Registering a Protection Code ...........................................................................91

Registering a Protection Code To a Single User .....................................................91

Registering a Protection Code To a Group User .....................................................92

Registering Destinations to a Group .................................................................93

Registering a New Group.........................................................................................93

Registering Destinations to a Group ........................................................................94

Removing a Destination from a Group.....................................................................94

Displaying Destinations Registered in Groups.........................................................95

Changing a Group Name .........................................................................................95

Deleting a Group......................................................................................................96

Registering the Transfer Request ......................................................................97

Registering a Transfer Station/Receiving Station ....................................................97

Changing a Registered Transfer Station/Receiving Station.....................................99

Deleting a Registered Transfer Station/Receiving Station .......................................99

Programming/Changing LDAP Server.............................................................101

Programming an LDAP Server...............................................................................101

Changing an LDAP Server.....................................................................................103

5. Troubleshooting

If Your Machine Does Not Operate As You Want............................................105

General ..................................................................................................................105

Document Server ...................................................................................................107

Maintenance...........................................................................................................108

BBBB Loading Paper...............................................................................................109

Loading Paper into Paper Trays and Paper Tray Unit ...........................................109

Loading Paper into Large Capacity Tray (optional)................................................110

DDDD Adding Toner.................................................................................................112

Inserting Toner.......................................................................................................113

xxxx Clearing Misfeeds .........................................................................................114

Changing the Paper Size...................................................................................122

Changing the Paper Size of the Paper Tray .........................................................122

If you load a paper size that is not selected automatically.....................................123

dddd Adding Staples..............................................................................................125

2 Tray Finisher .......................................................................................................125

Booklet Finisher .....................................................................................................126

Removing Jammed Staples ..............................................................................127

2 Tray Finisher .......................................................................................................127

Booklet Finisher .....................................................................................................128

yyyy Removing Punch Waste ...............................................................................129

2 Tray Finisher .......................................................................................................129

Booklet Finisher .....................................................................................................130

Adjusting the Colour Registration ...................................................................131

Auto Colour Registration ........................................................................................131

Fuser Adjustment for Thick Paper..........................................................................132

Checking the Fuser Adjustment Sheet...................................................................134

Auto Colour Calibration ..........................................................................................135

viii

6. Remarks

Dos and Don'ts...................................................................................................137

Saving Colour Copies........................................................................................138

Toner...................................................................................................................139

Handling Toner.......................................................................................................139

Toner Storage ........................................................................................................139

Used Toner ............................................................................................................139

Where to Put Your Machine..............................................................................140

Machine Environment ............................................................................................140

Moving....................................................................................................................141

Power Connection..................................................................................................141

Access to the Machine...........................................................................................142

Maintaining Your Machine ................................................................................143

Cleaning the Exposure Glass.................................................................................143

Cleaning the Exposure Glass Cover......................................................................143

Cleaning the Auto Document Feeder.....................................................................143

Cleaning the Dustproof Glass ..........................................................................144

Replacing the Fuser Oil Unit.............................................................................145

Replacing the Waste Toner Bottle....................................................................148

Other Functions .................................................................................................151

Inquiry ....................................................................................................................151

Changing the Display Language ............................................................................151

Counter ...............................................................................................................152

Displaying the Total Counter..................................................................................152

7. Entering Text

Entering Text......................................................................................................153

Available Characters ..............................................................................................153

Keys .......................................................................................................................153

How to Enter Text ..................................................................................................154

8. Security

Security...............................................................................................................155

Primary Security Functions ....................................................................................155

Extended Security Function ...................................................................................155

Temporarily Disabling Document Security.............................................................157

Operating Environment and Notes...................................................................158

Operating Environment ..........................................................................................158

For Administrator....................................................................................................158

For User .................................................................................................................159

9. Specifications

Main Unit.............................................................................................................161

Options ...............................................................................................................165

Exposure Glass Cover ...........................................................................................165

Auto Document Feeder ..........................................................................................165

2 Tray Finisher .......................................................................................................166

Punch Kit (2 tray finisher).......................................................................................167

Booklet Finisher .....................................................................................................168

Punch Kit (Booklet finisher)....................................................................................169

1 Tray Paper Unit...................................................................................................170

2 Tray Paper Unit...................................................................................................170

Large Capacity Tray...............................................................................................171

Copy Paper.........................................................................................................172

Recommended Paper Sizes and Types.................................................................172

Unusable Paper .....................................................................................................174

Paper Storage ........................................................................................................175

INDEX....................................................................................................... 176

Notice

Notice To Wireless LAN Interface (optional) Users

Notice to Users in EEA Countries

This product complies with the essential requirements and provisions of Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

The CE Declaration of Conformity is available on the Internet at URL:

http://www.ricoh.co.jp/fax/ce_doc/.

This product is only for use in EEA or other authorized countries. Outdoor use of this product in Belgium, France, Germany, Italy, or the Netherlands is prohibited.

Copyrights and Trademarks

Trademarks

Microsoft®, Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Acrobat

Bluetooth™ is a trademark of the Bluetooth SIG, Inc. (Special Interest Group) and is used by RICOH Company Limited under license.

The Bluetooth Trademarks are owned by Bluetooth SIG, Inc. USA

Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights in those marks.

The proper names of the Windows operating systems are as follows:

• The product name of Windows

• The product names of Windows

• The product names of Windows Server™ 2003 are as follows:

• The product names of Windows

is a registered trademark of Adobe Systems Incorporated.

95 is Microsoft® Windows® 95

98 is Microsoft® Windows® 98

Me is Microsoft® Windows® Millennium

Edition (Windows Me)

2000 are as follows:

XP are as follows:

NT are as follows:

Microsoft Microsoft Microsoft

Microsoft Microsoft

Microsoft Microsoft Microsoft

Microsoft Microsoft

Windows® 2000 Advanced Server

Windows® 2000 Server

Windows® 2000 Professional

Windows® XP Professional

Windows® XP Home Edition

Windows Server™ 2003 Standard Edition

Windows Server™ 2003 Enterprise Edition

Windows Server™ 2003 Web Edition

Windows NT® Server 4.0

Windows NT® Workstation 4.0

Information about Installed Software

Expat

• The software including controller, etc. (hereinafter "software") installed on this product uses the expat Version 1.95.2 (hereinafter "expat") under the conditions mentioned below.

• The product manufacturer provides warranty and support to the software of the product including the expat, and the product manufacturer makes the initial developer and copyright holder of the expat, free from these obligations.

• Information relating to the expat is available at: http://expat.sourceforge.net/

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

NetBSD

1. Copyright Notice of NetBSD

For all users to use this product:

This product contains NetBSD operating system:

For the most part, the software constituting the NetBSD operating system is not in the public domain; its authors retain their copyright.

The following text shows the copyright notice used for many of the NetBSD source code. For exact copyright notice applicable for each of the files/binaries, the source code tree must be consulted.

A full source code can be found at http://www.netbsd.org/.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

A Redis tributions of sourc e code m ust ret ain the a bove co pyright noti ce, thi s list

of conditions and the following disclaimer.

B Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

All advertising materials mentioning features or use of this software must

display the following acknowledgment: This product includes software developed by The NetBSD Foundation, Inc. and its contributors.

D Neither the name of The NetBSD Foundation nor the names of its contribu-

tors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE NETBSD FOUNDATION, INC. AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

2.Authors Name List

All product names mentioned herein are trademarks of their respective owners.

The following notices are required to satisfy the license terms of the software that we have mentioned in this document:

• This product includes software developed by the University of California, Berkeley and its contributors.

• This product includes software developed by Jonathan R. Stone for the NetBSD Project.

• This product includes software developed by the NetBSD Foundation, Inc. and its contributors.

• This product includes software developed by Manuel Bouyer.

• This product includes software developed by Charles Hannum.

• This product includes software developed by Charles M. Hannum.

• This product includes software developed by Christopher G. Demetriou.

• This product includes software developed by TooLs GmbH.

• This product includes software developed by Terrence R. Lambert.

• This product includes software developed by Adam Glass and Charles Han-

num.

• This product includes software developed by Theo de Raadt.

• This product includes software developed by Jonathan Stone and Jason R.

Thorpe for the NetBSD Project.

• This product includes software developed by the University of California, Lawrence Berkeley Laboratory and its contributors.

• This product includes software developed by Christos Zoulas.

• This product includes software developed by Christopher G. Demetriou for

the NetBSD Project.

• This product includes software developed by Paul Kranenburg.

• This product includes software developed by Adam Glass.

• This product includes software developed by Jonathan Stone.

• This product includes software developed by Jonathan Stone for the NetBSD

Project.

• This product includes software developed by Winning Strategies, Inc.

• This product includes software developed by Frank van der Linden for the

NetBSD Project.

• This product includes software developed for the NetBSD Project by Frank van der Linden

• This product includes software developed for the NetBSD Project by Jason R. Thorpe.

• The software was developed by the University of California, Berkeley.

• This product includes software developed by Chris Provenzano, the Univer-

sity of California, Berkeley, and contributors.

Sablotron

a) The application software installed on this product includes the Sablotron software Version 0.82 (hereinafter, "Sablotron 0.82"), with modifications made by the product manufacturer. The original code of the Sablotron 0.82 is provided by Ginger Alliance Ltd., the initial developer, and the modified code of the Sablotron 0.82 has been derived from such original code provided by Ginger Alliance Ltd.

b) The product manufacturer provides warranty and support to the application software of this product including the Sablotron 0.82 as modified, and the product manufacturer makes Ginger Alliance Ltd., the initial developer of the Sablotron 0.82, free from these obligations.

c) The Sablotron 0.82 and the modifications thereof are made available under the terms of Mozilla Public License Version 1.1 (hereinafter, "MPL 1.1"), and the application software of this product constitutes the "Larger Work" as defined in MPL 1.1. The application software of this product except for the Sablotron 0.82 as modified is licensed by the product manufacturer under separate agreement(s).

d) The source code of the modified code of the Sablotron 0.82 is available at: http://support-download.com/services/device/sablot/notice082.html

e) The source code of the Sablotron software is available at: http://www.gingerall.com

f) MPL 1.1 is available at: http://www.mozilla.org/MPL/MPL-1.1.html

JPEG LIBRARY

• The software installed on this product is based in part on the work of the Independent JPEG Group.

SASL

CMU libsasl

Tim Martin

Rob Earhart

Rob Siemborski

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

A Redis tributions of sourc e code m ust ret ain the a bove co pyright noti ce, thi s list

of conditions and the following disclaimer.

B Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

The name "Carnegie Mellon University" must not be used to endorse or pro-

mote products derived from this software without prior written permission. For permission or any other legal details, please contact:

Office of Technology Transfer Carnegie Mellon University 5000 Forbes Avenue Pittsburgh, PA 15213-3890 (412) 268-4387, fax: (412) 268-7395 tech-transfer@andrew.cmu.edu

D Redistributions of any form whatsoever must retain the following acknowl-

edgment: "This product includes software developed by Computing Services at Carnegie Mellon University (http://www.cmu.edu/computing/)."

CARNEGIE MELLON UNIVERSITY DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL CARNEGIE MELLON UNIVERSITY BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

MD4

License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc. MD4 Message-Digest Algorithm" in all material mentioning or referencing this software or this function.

License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD4 MessageDigest Algorithm" in all material mentioning or referencing the derived work.

RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind.

These notices must be retained in any copies of any part of this documentation and/or software.

MD5

License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc. MD5 Message-Digest Algorithm" in all material mentioning or referencing this software or this function.

License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD5 MessageDigest Algorithm" in all material mentioning or referencing the derived work.

These notices must be retained in any copies of any part of this documentation and/or software.

How to Read This Manual

Symbols

This manual uses the following symbols:

WARNING:

This symbol indicates a potentially hazardous situation that might result in death or serious injury if you misuse the machine by not following the instructions under this symbol. Be sure to read the instructions, all of which are included in the Safety Information section in the General Settings Guide.

CAUTION:

This symbol indicates a potentially hazardous situation that might result in minor or moderate injury or property damage not involving bodily injury, if you misuse the machine by not following these instructions under this symbol. Be sure to read the instructions, all of which are included in the Safety Information section in the General Settings Guide.

* WARNINGS and CAUTIONS are notes for your safety.

Important

If these instructions are not followed, paper might be misfed, originals damaged, or data lost. Be sure to read these instructions.

Preparation

This symbol indicates the prior knowledge or preparation required before operation.

Note

This symbol indicates precautions for operation, or actions to be taken following user error.

Limitation

This symbol indicates numerical limits, functions that cannot be used together, or conditions under which a particular function cannot be used.

Reference

This symbol indicates where further relevant information can be found.

[]

Keys that appear on the machine's display panel.

{}

Keys built into the machine's control panel.

Safety Information

When using this machine, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

WARNING:

CAUTION:

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

R WARNING:

• Connect the power cord directly into a wall outlet and never use an extension cord.

•

Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

• To avoid hazardous electric shock or laser radiation exposure, do not remove any covers or screws other than those specified in this manual.

• Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any of the following occurs:

• You spill something into the machine.

•

You suspect that your machine needs service or repair.

• The external housing of your machine has been damaged.

•

Do not incinerate spilled toner or used toner. Toner dust might ignite when exposed to an open flame.

•

Disposal can take place at our authorized dealer.

• Dispose of the used toner bottle in accordance with the local regulations.

R CAUTION:

• Protect the machine from dampness or wet weather, such as rain and snow.

• Keep the machine away from humidity and dust. Otherwise a fire or an elec-

tric shock might occur.

• Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

• If you use the machine in a confined space, make sure there is a continuous air turnover.

• Unplug the power cord from the wall outlet before you move the machine. While moving the machine, you should take care that the power cord will not be damaged under the machine.

• When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).

• Do not allow paper clips, staples, or other small metallic objects to fall inside the machine.

• Keep toner (used or unused) and toner bottle out of the reach of children.

• For environmental reasons, do not dispose of the machine or expended

supply waste at household waste collection points. Disposal can take place at an authorized dealer.

• The inside of the machine could be very hot. Do not touch the parts with a label indicating “hot surface”. Otherwise, an injury might occur.

• The fusing section of this machine might be very hot. Caution should be taken when removing misfed paper.

• The fusing unit becomes very hot. When installing a new fuser oil unit, turn off the machine and wait about an hour. After that, install the new fuser oil unit. Not waiting for the unit to cool could result in a burn.

• Keep the fuser oil unit away from flames. There is a risk of fire or burns.

• Keep the waste oil bottle away from flames. There is a risk of fire or burns.

• Do not use aluminum foil, carbon paper, or similar conductive paper to avoid

a fire or machine failure.

Positions of Labels and Hallmarks for

RRRRWARNING and RRRRCAUTION

This machine has labels for RWARNING and RCAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

ZKVH040J

ENERGY STAR Program

As an ENERGY STAR Partner, we have determined that this machine model meets the ENERGY STAR Guidelines for energy efficiency.

The ENERGY STAR Guidelines intend to establish an international energy-saving system for developing and introducing energy-efficient office equipment to deal with environmental issues, such as global warming.

When a product meets the ENERGY STAR Guidelines for energy efficiency, the Partner shall place the ENERGY STAR logo onto the machine model.

This product was designed to reduce the environmental impact associated with office equipment by means of energy-saving features, such as Low-power mode.

❖❖❖❖ Low-Power mode

• Low Power Mode This product automatically lowers its power consumption 15 minutes after the last copy or print job has finished. Printing is still possible in Low Power Mode, but if you wish to make copies press the {{{{Energy Saver}}}} key first.

Reference

For details about how to change the default interval, see p.56 “Energy Saver Timer”.

• Sleep Mode This product automatically lowers its power consumption even further 60 minutes after the last copy or print job has finished. This function is called “Sleep Mode”. Printing from computer or fax is possible in this mode, but if you wish to make copies, press the operation switch first.

❖❖❖❖ Duplex Priority

The ENERGY STAR Program recommends the duplex function. By conserving paper resources this function reduces a burden to the environment. For applicable machines, duplex function (one-sided originals→ two-sided copies) can be selected preferentially when the operation switch or the main power switch is turned on, the {{{{Energy Saver}}}} key is pressed, or the machine resets automatically.

Reference

For details about how to change the default interval, see p.56 “Auto Off Timer”.

Reference

To change the settings of the Duplex Priority mode, see “Duplex Mode Priority”in “General Features 2/5”, Copy Reference.

Specifications

Type 1 Type 2

Low- Power mode Power consumption 173.2W 196.3W

Sleep mode Power consumption 80W or less

Default interval 60 minutes

Recovery time 101 seconds

Duplex Priority 1 Sided→1 Sided

❖❖❖❖ Recycled Paper

In accordance with the ENERGY STAR Program, we recommend use of environmentally friendly recycled paper. Please contact your sales representative for recommended paper.

Machine Types

This machine comes in two models which vary in copy speed. To confirm which model you have, see the inside front cover.

Type 1 Type 2

/2"

Copy speed/B&W 32 copies/minute (A4K, 8

Copy speed/Full Colour 24 copies/minute (A4K, 8

11"K)

38 copies/minute (A4K, 81/2"

11"K)

28 copies/minute ( A4K, 8

/2"

11"K)

/2"

1. Getting Started

Guide to Components

Exposure glass cover (optional) or Auto Document Feeder (ADF) (optional)

Lower the exposure glass cover over originals placed on the exposure glass. If you have the ADF, load a stack of originals here. They will be fed automatically, one by one.

(The illustration shows the ADF.)

Exposure glass

Place originals face down.

External tray

Copied, printed paper or fax messages are delivered here.

Duplex reversal unit

Open this to remove misfed paper. The upper left cover can be opened by first opening the duplex reversal unit.

AAE007S

Ventilation holes

Prevents overheating. Do not obstruct the ventilation holes by placing anything near it or leaning objects against it. If the machine overheats, an error might occur.

Main power switch

If the machine does not operate after turning on the operation switch, check the main power switch is turned on. If it is off, turn it on.

Operation switch

Press this switch to turn the power on (the On indicator lights up). To turn the power off, press this switch again (the On indicator goes off).

Control panel

See p.19 “Control Panel”.

Getting Started

Standard tray

Copied, printed paper or fax messages are delivered here.

10.

Front cover

Open to access the inside of the machine.

Upper right cover

Open this cover to replace the toner cartridge.

Ventilation holes

Optional connectors

Use to connect options such as Bluetooth.

11.

Paper tray

Load paper here. See p.109 “B Loading Paper”.

12.

Paper tray unit (optional)

Load paper here. See p.109 “B Loading Paper”, p.17 “External Options”.

AAE020S

Bypass tray extension

Pull out this extension to load paper in the bypass tray when its length is longer than that of A4L size.

Bypass tray

Use to print on thick paper, OHP transparencies, custom size paper, as well as plain paper.

Lower right cover

Open this cover to remove misfed paper.

External Options

Guide to Components

Left tray

If you select this as the output tray, copies will be delivered face down.

Exposure glass cover

Lower this cover over originals before copying.

ADF

Load a stack of originals here. They will be fed in automatically.

2 Tray finisher

Sorts, stacks, staples, and punches copies. *1 Finisher Shift Tray 1 *2 Finisher Shift Tray 2

AAE021S

Booklet finisher

Sorts, stacks, and staples copies. The saddle stitch function can staple the copies in the centre and folds them like a booklet.

1 Tray paper unit

Consists of 1 paper tray.

2 Tray paper unit

Consists of 2 paper trays.

Large Capacity Tray (LCT)

Holds up to 2000 sheets of A4K paper.

Getting Started

Internal Options

A Fax unit

Allows you to use the facsimile function.

B IEEE 1394 interface board

Connects to an IEEE 1394 cable.

Bluetooth

Allows you to expand the interface.

D File Format Converter

Allows you to download documents from the Document Server stored by

copier and printer functions. See p.42 “Downloading Stored Documents”.

E IEEE 802.1b Wireless LAN Board

You can install a wireless LAN interface.

F USB 2.0 Interface Board

Allows you to connect a variety of external devices.

You cannot install two or more of the options below:

IEEE 1394 interface board, IEEE 802.1b Wireless LAN Board, USB 2.0 Interface Board,

Bluetooth

+ 1142 hidden pages

Savin 2232C, 2238C Operating Manual

General Settings Guide

Manuals for This Machine

What You Can Do with This Machine

TABLE OF CONTENTS

Notice

Copyrights and Trademarks

How to Read This Manual

Safety Information

ENERGY STAR Program

Machine Types

Guide to Components
