Feature Summary
• Interconnect components that have
long distances between them
• Range over CAT5 UTP cable: 100
meters (330 feet)
• USB Tx connector (upstream):
1 x USB Type B
• USB Tx connector (downstream):
1 x RJ45
• USB Rx connector (upstream):
1 x RJ45
• USB Rx connector (downstream):
2 x USB Type A
USB 2.0 over Cat 5e Digital Extender Set: UCX-2000
Description
The USB 2.0 over Cat 5e Digital Extender Set (UCX-2000) is a USB
2.0 over CAT 5e extender solution set that includes the USB 2.0
Transmitter, and the USB 2.0 Receiver.
The UCX-2000 extends any USB 2.0 device up to 100 meters (330
feet) over one Cat 5e cable.
UCX-2000 can be linked to any Savant SmartSystem™ containing a
Savant host, such as an HST-4001, HST-4002, SVR-4100 or
SVR-4100S.

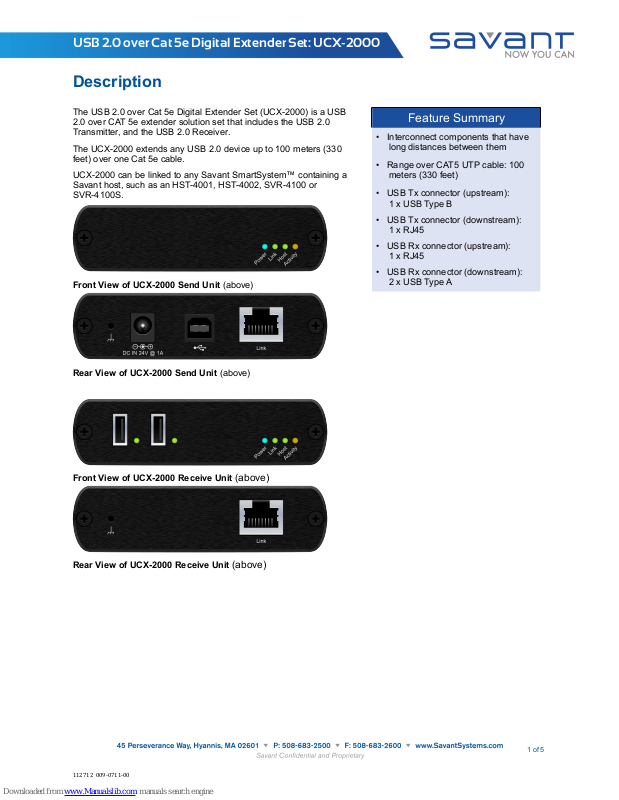

Front View of UCX-2000 Send Unit (above)
Rear View of UCX-2000 Send Unit (above)
Front View of UCX-2000 Receive Unit (above)
Rear View of UCX-2000 Receive Unit (above)
112712$$009'0711'00
1 of 5
Front View
Rear View
TOP VIEW of Receive or Send Unit
2.99 in
7.6 cm
3.94 in
10 cm
UCX-2000 Send Unit
3.94 in
10 cm
1.02 in
2.6 cm
3.94 in
10 cm
1.02 in
2.6 cm
Front View
Rear View
EnvironmentalEnvironmental
Temperature 32° to 122° F (0° to 50° C)
Humidity 20% to 80% Relative Humidity (non-condensing)
Rack Space 1U
Dimensions and WeightDimensions and Weight
Height 1.02 in/2.60 cm
009-0xxx-00
USB 2.0 over Cat 5e Digital Extender Set: UCX-2000
Dimensions
The next figures show the dimensions of the UCX-2000 send and receive units.
UCX-2000 Send Unit (below)
UCX-2000 Receive Unit (below)
112712$$009'0711'00
2 of 5
Environmental
Temperature
32° to 122° F (0° to 50° C)
Humidity
20% to 80% Relative Humidity (non-condensing)
Rack Space
1U
Dimensions and Weight
Height
1.02 in/2.60 cm
Width
3.94 in/10.00 cm
Depth
2.99 in/7.60 cm
Weight
2.0 lb/.91 kg (shipping weight)
Power
Maximum Power
14.8 watts
Power Supply
(Send unit)
24V DC 100-240V AC, 50/60 Hz
Compliance
Safety and Emissions
FCC Part 15 | IC | CE Mark
RoHS
Compliant
Front Panels
The LEDs on the front panels of the send and receive units are used for diagnostic purposes. A description of the
multi-color LEDs is available in the USB Over Cat 5e Extender (UCX-2000) Quick Reference Guide.
On the front of the receiver unit, the two USB Type A connectors interface the receiver to USB peripherals.
Rear Panel
See Rear Panel Capabilities and Connectors on page 5.
Enclosure
Metal enclosure, matte black
USB 2.0 over Cat 5e Digital Extender Set: UCX-2000
Specifications
112712$$009'0711'00
3 of 5
Description
Quantity
AC Power Cord
1
Send Unit
1
Receive Unit
1
Power supply, 24V DC 1Amp
(5.5 mm x 2.1 mm, center positive DC barrel jack)
1
6.5 feet (2 meter) USB Cable
1
Quick Reference Guide
1
Description
Model Number
Host Controllers
HST-4001, HST-4002, SVR-4100 or
SVR-4100S
Ethernet Network
Enterprise-grade network deployment
Description
Model Number
Radio Frequency (RF) Wireless Receiver
RFD-1000
USB 2.0 over Cat 5e Digital Extender Set: UCX-2000
Included Items
The individual components included with the Savant UCX-2000 are outlined in the next table.
Required System Components
The system components required for use with the UCX-2000 are outlined in the next table.
Optional Accessories
The optional Savant accessories available for use with the UCX-2000 are outlined in the next table.
112712$$009'0711'00
4 of 5
Connector
Description
Link
RJ-45 connector provides 24V DC
power and control signals to the
Receive unit.
USB Type B connector provides
USB signals to the Host via the
USB cable.
DC IN 24V @1A
5.5 mm x 2.1 mm, center positive
DC barrel jack provides power to
the Send unit.
Use the ground connector to
achieve a greater level of safety
from electrical hazards to persons
and protection from
electromagnetic interference
(EMI).
Connector
Description
Link
RJ-45 connector provides 24V DC
power and control signals from the
Send unit.
Use the ground connector to achieve
a greater level of safety from electrical
hazards to persons and protection
from electromagnetic interference
(EMI).
USB 2.0 over Cat 5e Digital Extender Set: UCX-2000
Connectors and Capabilities of the UCX-2000
The ports and connectors on the rear panel of the UCX-2000 transmitter and receiver units are described in the next
tables.
Send Unit
Receive Unit
Copyright © 2012 Savant Systems, LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
112712$$009'0711'00
5 of 5
