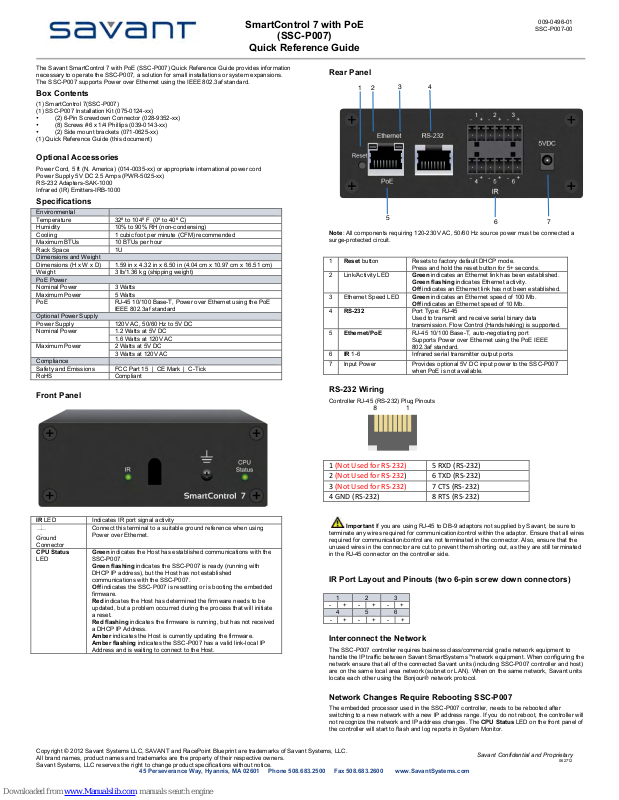

SmartControl 7 with PoE

(SSC-P007)

Quick Reference Guide

009-0496-01

SSC-P007-00

Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.

Savant Confidential and Proprietary

062712

45 Perseverance Way, Hyannis, MA 02601 Phone [phone] Fax [phone] www.SavantSystems.com

The Savant SmartControl 7 with PoE (SSC-P007) Quick Reference Guide provides information
necessary to operate the SSC-P007, a solution for small installations or system expansions.
The SSC-P007 supports Power over Ethernet using the IEEE 802.3af standard.

Box Contents

(1) SmartControl 7(SSC-P007)
(1) SSC-P007 Installation Kit (075-0124-xx)

• (2) 6-Pin Screwdown Connector (028-9352-xx)

• (8) Screws #6 x 1/4 Phillips (039-0143-xx)

• (2) Side mount brackets (071-0625-xx)

(1) Quick Reference Guide (this document)

Optional Accessories

Power Cord, 5 ft (N. America) (014-0035-xx) or appropriate international power cord
Power Supply 5V DC 2.5 Amps (PWR-5025-xx)
RS-232 Adapters-SAK-1000
Infrared (IR) Emitters-IRB-1000

Specifications

Environmental
Temperature

32º to 104º F (0º to 40º C)
Humidity

10% to 90% RH (non-condensing)
Cooling

1 cubic foot per minute (CFM) recommended
Maximum BTUs

10 BTUs per hour
Rack Space

1U
Dimensions and Weight
Dimensions (H x W x D)

1.59 in x 4.32 in x 6.50 in (4.04 cm x 10.97 cm x 16.51 cm)
Weight

3 lb/1.36 kg (shipping weight)
PoE Power
Nominal Power

3 Watts
Maximum Power

5 Watts
PoE

RJ-45 10/100 Base-T, Power over Ethernet using the PoE
IEEE 802.3af standard
Optional Power Supply
Power Supply

120V AC, 50/60 Hz to 5V DC

1.2 Watts at 5V DC

Nominal Power

1.6 Watts at 120V AC
2 Watts at 5V DC

Maximum Power
3 Watts at 120V AC
Compliance
Safety and Emissions

FCC Part 15 | CE Mark | C-Tick
RoHS

Compliant

Front Panel

IR LED

Indicates IR port signal activity

Ground
Connector

Connect this terminal to a suitable ground reference when using
Power over Ethernet.

CPU Status
LED

Green indicates the Host has established communications with the
SSC-P007.
Green flashing indicates the SSC-P007 is ready (running with
DHCP IP address), but the Host has not established
communications with the SSC-P007.
Off indicates the SSC-P007 is resetting or is booting the embedded
firmware.
Red indicates the Host has determined the firmware needs to be
updated, but a problem occurred during the process that will initiate
a reset.
Red flashing indicates the firmware is running, but has not received
a DHCP IP Address.

Amber indicates the Host is currently updating the firmware.
Amber flashing indicates the SSC-P007 has a valid link-local IP

Address and is waiting to connect to the Host.

Rear Panel

Note: All components requiring 120-230V AC, 50/60 Hz source power must be connected a

surge-protected circuit.

1

Reset button

Resets to factory default DHCP mode.
Press and hold the reset button for 5+ seconds.
2

Link/Activity LED

Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.

3

Ethernet Speed LED

Green indicates an Ethernet speed of 100 Mb.
Off indicates an Ethernet speed of 10 Mb.

4

RS-232

Port Type: RJ-45
Used to transmit and receive serial binary data
transmission. Flow Control (Handshaking) is supported.
5

Ethernet/PoE

RJ-45 10/100 Base-T, auto-negotiating port
Supports Power over Ethernet using the PoE IEEE

802.3af standard.
6

IR 1-6

Infrared serial transmitter output ports

7

Input Power

Provides optional 5V DC input power to the SSC-P007
when PoE is not available.

RS-232 Wiring

Controller RJ-45 (RS-232) Plug Pinouts

1"(Not"Used"for"RS/232)"

5"RXD"(RS/232)"
2"(Not"Used"for"RS/232)"

6"TXD"(RS/232)""
3"(Not"Used"for"RS/232)"

7"CTS"(RS/232)""
4"GND"(RS/232)"

8"RTS"(RS/232)""

Important If you are using RJ-45 to DB-9 adaptors not supplied by Savant, be sure to
terminate any wires required for communication/control within the adaptor. Ensure that all wires
required for communication/control are not terminated in the connector. Also, ensure that the
unused wires in the connector are cut to prevent them shorting out, as they are still terminated
in the RJ-45 connector on the controller side.

IR Port Layout and Pinouts (two 6-pin screw down connectors)

1 2 3

- + - + -

+

4 5 6

- + - + -

+

Interconnect the Network

The SSC-P007 controller requires business class/commercial grade network equipment to
handle the IP traffic between Savant SmartSystems™network equipment. When configuring the
network ensure that all of the connected Savant units (including SSC-P007 controller and host)
are on the same local area network (subnet or LAN). When on the same network, Savant units
locate each other using the Bonjour® network protocol.

Network Changes Require Rebooting SSC-P007

The embedded processor used in the SSC-P007 controller, needs to be rebooted after
switching to a new network with a new IP address range. If you do not reboot, the controller will
not recognize the network and IP address changes. The CPU Status LED on the front panel of
the controller will start to flash and log reports in System Monitor.

1 2

3 4

5

6 7

SmartControl 7 with PoE

(SSC-P007)

Quick Reference Guide

009-0496-01

SSC-P007-00

Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.

Savant Confidential and Proprietary

062712

45 Perseverance Way, Hyannis, MA 02601 Phone [phone] Fax [phone] www.SavantSystems.com

Restoring System Defaults

This procedure will clear a static IP address that has been set up by the installer using the
embedded scanner, RPMembscanner— a Savant specific program located in the RacePoint
Media folder and installed when you load RacePoint Blueprint™ on your computer.

To restore the default state of the SSC-P007, do the following.

1. Press and hold the reset button for 5+ seconds.

2. The status LED will blink green briefly while the firmware clears the static IP address.

3. The system will then reboot and come back with the status LED blinking green, if the
system received an IP address from the DHCP server. If the system has a self-assigned
address, the LED is blinking amber. See the Front, CPU Status LED, Amber flashing
description above.

You can confirm your embedded processor has an IP address by opening the
RPMembscanner application inside the RacePointMedia folder, or by entering
RPMembscanner in Spotlight.

SSC-P007 Side Mounting Bracket Installation

Use the supplied screws to install the Side Mounting Brackets (071-0625-xx) to the SSC-P007
as shown.

Additional Documentation

To see more documentation for the SSC-P007 go to SavantSystems.com and navigate as
follows:
>Dealer Login > Knowledge Base

• Refer to Products > RS-232/RS Conversion to DB-9 and RS-422/485 Pinout

Application Note

• Click link: RacePoint Blueprint™
