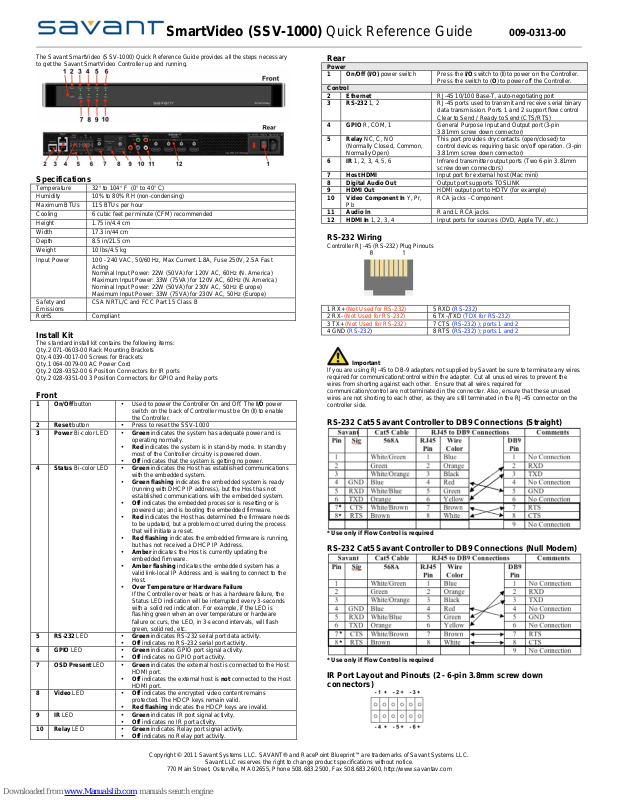

SmartVideo (SSV-1000) Quick Reference Guide 009-0313-00
The Savant SmartVideo (SSV-1000) Quick Reference Guide provides all the steps necessary
to get the Savant SmartVideo Controller up and running.
Specifications
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
Maximum BTUs 115 BTUs per hour
Cooling 6 cubic feet per minute (CFM) recommended
Height 1.75 in/4.4 cm
Width 17.3 in/44 cm
Depth 8.5 in/21.5 cm
Weight 10 lbs/4.5 kg
Input Power
Safety and
Emissions
RoHS Compliant
Install Kit
The standard install kit contains the following items:
Qty.2 071-0603-00 Rack Mounting Brackets
Qty.4 039-0017-00 Screws for Brackets
Qty.1 064-0079-00 AC Power Cord
Qty.2 028-9352-00 6 Position Connectors for IR ports
Qty.2 028-9351-00 3 Position Connectors for GPIO and Relay ports
Front
1 On/Off button • Used to power the Controller On and Off. The I/O power
2 Reset button • Press to reset the SSV-1000
3 Power Bi-color LED • Green indicates the system has adequate power and is
4 Status Bi-color LED • Green indicates the Host has established communications
5 RS-232 LED • Green indicates RS-232 serial port data activity.
6 GPIO LED • Green indicates GPIO port signal activity.
7 OSD Present LED • Green indicates the external host is connected to the Host
8 Video LED • Off indicates the encrypted video content remains
9 IR LED
10 Relay LED
100 - 240 VAC, 50/60 Hz, Max Current 1.8A, Fuse 250V, 2.5A Fast
Acting
Nominal Input Power: 22W (50VA) for 120V AC, 60Hz (N. America)
Maximum Input Power: 33W (75VA) for 120V AC, 60Hz (N. America)
Nominal Input Power: 22W (50VA) for 230V AC, 50Hz (Europe)
Maximum Input Power: 33W (75VA) for 230V AC, 50Hz (Europe)
CSA NRTL/C and FCC Part 15 Class B
switch on the back of Controller must be On (I) to enable
the Controller.
operating normally.
• Red indicates the system is in stand-by mode. In standby
most of the Controller circuitry is powered down.
• Off indicates that the system is getting no power.
with the embedded system.
• Green flashing indicates the embedded system is ready
(running with DHCP IP address), but the Host has not
established communications with the embedded system.
• Off indicates the embedded processor is resetting or is
powered up; and is booting the embedded firmware.
• Red indicates the Host has determined the firmware needs
to be updated, but a problem occurred during the process
that will initiate a reset.
• Red flashing indicates the embedded firmware is running,
but has not received a DHCP IP Address.
• Amber indicates the Host is currently updating the
embedded firmware.
• Amber flashing indicates the embedded system has a
valid link-local IP Address and is waiting to connect to the
Host.
• Over Temperature or Hardware Failure
If the Controller over heats or has a hardware failure, the
Status LED indication will be interrupted every 3-seconds
with a solid red indication. For example, if the LED is
flashing green when an over temperature or hardware
failure occurs, the LED, in 3-second intervals, will flash
green, solid red, etc.
• Off indicates no RS-232 serial port activity.
• Off indicates no GPIO port activity.
HDMI port.
• Off indicates the external host is not connected to the Host
HDMI port.
protected. The HDCP keys remain valid.
• Red flashing indicates the HDCP keys are invalid.
• Green indicates IR port signal activity.
• Off indicates no IR port activity.
• Green indicates Relay port signal activity.
• Off indicates no Relay port activity.
Copyright 2011 Savant Systems LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems LLC.
770 Main Street, Osterville, MA 02655, Phone 508.683.2500, Fax 508.683.2600, http://www.savantav.com
Savant LLC reserves the right to change product specifications without notice.
Rear
Power
1 On/Off (I/O) power switch Press the I/O switch to (I) to power on the Controller.
Control
2 Ethernet RJ-45 10/100 Base-T, auto-negotiating port
3 RS-232 1, 2 RJ-45 ports used to transmit and receive serial binary
4 GPIO R, COM, 1 General Purpose Input and Output port (3-pin
5 Relay NC, C, NO
(Normally Closed, Common,
Normally Open)
6 IR 1, 2, 3, 4, 5, 6 Infrared transmitter output ports (Two 6-pin 3.81mm
7 Host HDMI Input port for external host (Mac mini)
8 Digital Audio Out Output port supports TOSLINK
9 HDMI Out HDMI output port to HDTV (for example)
10 Video Component In Y, Pr,
Pb
11 Audio In R and L RCA jacks
12 HDMI In 1, 2, 3, 4 Input ports for sources (DVD, Apple TV, etc.)
Press the switch to (O) to power off the Controller.
data transmission. Ports 1 and 2 support flow control
Clear to Send / Ready to Send (CTS/RTS)
3.81mm screw down connector)
This port provides dry contacts (open/closed) to
control devices requiring basic on/off operation. (3-pin
3.81mm screw down connector)
screw down connectors)
RCA jacks - Component
RS-232 Wiring
Controller RJ-45 (RS-232) Plug Pinouts
1 RX+ (Not Used for RS-232) 5 RXD (RS-232)
2 RX- (Not Used for RS-232) 6 TX-/TXD (TDX for RS-232)
3 TX+ (Not Used for RS-232) 7 CTS (RS-232) ); ports 1 and 2
4 GND (RS-232) 8 RTS (RS-232) ); ports 1 and 2
Important
If you are using RJ-45 to DB-9 adapters not supplied by Savant be sure to terminate any wires
required for communication/control within the adapter. Cut all unused wires to prevent the
wires from shorting against each other. Ensure that all wires required for
communication/control are not terminated in the connecter. Also, ensure that these unused
wires are not shorting to each other, as they are still terminated in the RJ-45 connector on the
controller side.
RS-232 Cat5 Savant Controller to DB9 Connections (Straight)
* Use only if Flow C ontrol is required
RS-2 32 Cat5 Savant Cont roller to DB9 Connec tions (Null Modem)
* Use only if Flow C ontrol is required
IR Port Layout and Pinouts (2 - 6-pin 3.8mm screw down
connectors)
SmartVideo (SSV-1000) Quick Reference Guide 009-0313-00
Relay and GPIO Port Pinouts (3-pin 3.8mm screw down
connectors)
For information on GPIO voltage and current specifications, refer to Additional
Documentation.
Interconnect the Network
The SSV-1000 requires business class/commercial grade network equipment in order to
handle the IP traffic between Savant Network Equipment. When configuring the network
ensure that all of the connected Savant units (SSV-1000 and HST-3001) are on the same local
area network (subnet or LAN). Being on the same subnet allows the Savant units to locate
each other using the Bonjour network protocol.
Interconnect the SSV-1000 and HST-3001 (Example)
To interconnect the SSV-1000 and HST-3001 or SVR-3000, refer to the following diagram.
GPIO Relay
Pin #/
R, COM, 1
Pin #/
NC, C, NO
Network Changes Require Rebooting the SSV-1000
The embedded processor used in the Smart Controller, needs to be rebooted after switching to
a new network with a new IP address range. If you do not reboot, the Controller will not sense
the network and IP address changes. The Status LED on the front panel of the Controller will
start to flash and log reports in System Monitor.
Additional Documentation
Additional documentation for the SSV-1000 is available at: http://www.savantav.com/ > Dealer
Login > Knowledge Base > Products.
• Refer to the SmartVideo (SSV-1000) Installation Guide for additional installation and
configuration information.
• Refer to the GPIO Hardware Setup Guide for information on input and output triggers and
GPIO input and outputs to Savant Controllers.
• Refer to the Relay Hardware Setup Guide for detailed information.
• Refer to the RacePoint Blueprint
1000 into a Savant System.
Programming Guide on how to configure the SSV-
