On-Wall Media Dock: OWM-210B/OWM-210W
Feature Summary
• Made for iPod® and iPhone®. A/V and
control interface
• Enables full two-way control including
metadata and “now playing”
• Displays metadata and album cover art
• Universal docking cradle and charger
• Connects to the iPod® or iPhone® using
docking station
• Plays audio throughout the home or facility
• On-Wall Media Dock available in white or
black
• Distribution of audio and video signals up to
100 meters over Cat 5
• Fully scalable and expandable: add multiple
docks throughout the installation
• Control an iPod from any Savant User
Interface
• Made for iPod® / Made for iPhone®
• Simple installation over common Cat 5
• Readily placed in strategic locations
• Configured and customized using
RacePoint Blueprint™
Description
The Savant On-Wall Media Dock in a flush wall mount design
provides an interface and control solution for the Apple iPod®
personal media players and iPhone®. Savant uses the latest
Apple technology enabling high speed music library browsing
and compatibility with the latest Apple products and features.
Within the Savant architecture, the Savant On-Wall Media
Dock — OWM-210B (black) or OWM-210W (white)—
transforms the iPod or iPhone into a portable multi-room digital
media server. These Savant media docks combine the
convenience of personal audio and video with the
performance, distribution, and control capabilities of Savant’s
multi-room A/V systems—delivering audio, and DVD quality
video throughout the home or facility.
With the Savant iPod or iPhone distribution interface,
consumers can listen to music, and watch videos from
anywhere (up to 100 meters) within their home or facility—with
the superior sound and video quality that is the hallmark of
every Savant audio/video system—while providing two-way
operation from Savant’s entire line of diverse user interfaces.
Simple Docking
Simply placing the iPod or iPhone into the On-Wall docking
cradle instantly connects it for sharing with speakers and video
monitors throughout the home or facility.
Ease of Navigation
Integrating the iPod or iPhone with a Savant SmartSystem
enables full control and navigation using TrueControl apps
running on iOS devices (iPad®, iPod touch or iPhone),
handheld remotes (SSR-1000), or the TrueCommand™ on-TV
menu system. From any touch screen, you can search the
entire iPod or iPhone library by genre, artist, album and track,
and even view album cover art.
Audio and Video Distribution up to 100 meters
The Savant On-Wall Media Dock allows stereo audio,
composite video, and component video signals to be fed from
the iPod or iPhone to your home theater or multi-room
distribution system. The included Media Dock Receiver
(MDR-2000) extends the capability of this on-wall media dock
for long-haul installations up to 100 meters over Cat 5.
009-518-00
Front View (left) and Rear View (right) of OWM-210B. The views of OWM-210W are similar, except white in color.
1 of 4042612
Top View with Bezel (above)
Side View with Bezel (above)
On-Wall Media Dock: OWM-210B/OWM-210W

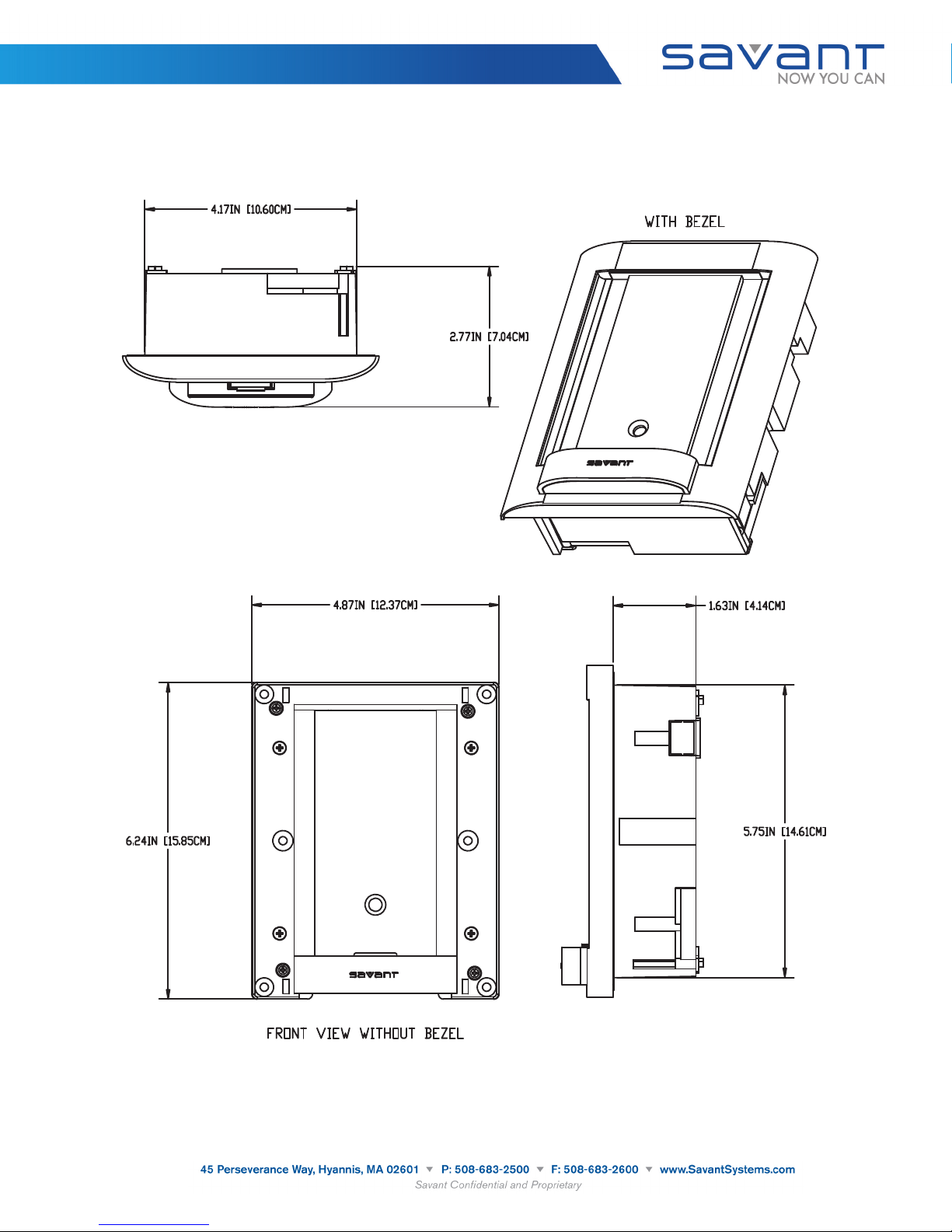

Dimensions
The next figures show the dimensions of the on-wall media dock OWM-210B/OWM-210W. For dimensions of the
Media Dock Receiver (MDR-2000) see the technical specifications for that product.
009-518-00
2 of 4042612
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 90% RH (non-condensing)
Maximum BTU
9 BTUs per hour
Dimensions(and(Weight
Height with Bezel
6.53 in/16.57 cm
Width with Bezel
5.05 in/12.83 cm
Depth with Bezel
2.77 in/7.04 cm
Weight
.5 lb (0.23 kg)
Power
Input Power
24V DC, 120-230V AC, 50/60 Hz
Maximum Power Draw
8 Watts
Compliance
Safety and Emissions
FCC Part 15 | CE Mark | C-Tick
RoHS
Compliant
Rear Panel
Data
Port Type: RJ-45 (input from network)
Cable: Cat 5, use for system control (data)
Video
Output to Media Dock Receiver — Port Type: RJ-45
Cable: Cat 5, use with MDR-2000 for video transmission up to 100 meters
Audio
Output to Media Dock Receiver — Port Type: RJ-45
Cable: Cat 5, use with MDR-2000 for audio transmission up to 100 meters
24V DC
24V DC, 120-230V AC, 50/60 Hz
!"#$#%&'()
*+",-&(+./#
01&2(
*%3#$&(%44#,"%$
(%56%4#4"&178#%&*+",-&(+./#
(%44#,"9&"%&)4:&
!+;+4"&(%4"$%//#$
<#87+&2%,=&
'#,#7;#$
>%9"&?>%9"&@
(+"0&(+./#&37"-&'ABC0&
(%44#,"%$9&D6&"%&?EE5&
(%56%97"#&178#%&*+",-&(+./#
F4BG+//&<#87+&2%,=&
H$#+$&;7#3I
)D87%
178#%
2+"+
@C1&2(
*%3#$&)8+6"#$
J#"3%$=
On-Wall Media Dock: OWM-210B/OWM-210W
Specifications
The next table outlines the specifications for the on-wall media dock (OWM-210B/OWM-210W). For
specifications of the Media Dock Receiver (MDR-2000) see the technical specifications for that product.
009-518-00
Typical Configuration
The next figure shows the cabling from the Media Dock Receiver to any Savant A/V controller and
an On-Wall Media Dock.
Wall Mount Design Elements
The On-Wall Media is designed for
easy recess-mount installation in a
wall or similar flat, vertical surface.
The mounting options include a choice
of pre-construction back box.
Wall Mount Interface for Apple iPod
and iPhone
A recessed wall mount dock for the
popular Apple iPod personal media
player and iPhone allows sharing of
audio and video throughout an entire
home or facility AV system, and
enables enhanced control from
Savant’s line of user interfaces
including TrueControl and
TrueCommand.
Integrated Charger
An iPod or iPhone connected to the
On-Wall Media Dock is powered from
the docking station—with no batteries
or local external power adapter
required.
3 of 4042612
Description
Quantity
Media Dock Receiver (MDR-2000)
1
Power Cord 10A plug, 1.83 m, 1250 watts or appropriate international cord
1
On-Wall Media Dock Bezel
1
24V DC 60 Watt Power Supply
1
5V DC 2.5 Amp Power Supply
1
Two-pin Screw Down Connector
2
Media Dock Filler Plate
1
Phillips Pan Screws #6-32 X 2.25
4
Phillips Flat Screws #6 X 1/4
8
Phillips Pan Screws #6 X 1.5
4
Mounting Brackets
2
Cut-Out Template
1
Quick Reference Guide
1
Description
Model Number
Host Controllers
HST-4001, HST-4002 or SVR-4100
Ethernet Network
Enterprise-grade network deployment
Cat 5 Cable with RJ-45 connectors up to 100 m.
generic
Stereo RCA Patch Cable
generic
Component Video Patch Cable
generic
Description
Model Number
Pre/Post Construction Box for On-Wall Media Dock
RIB-OWMD
On-Wall Media Dock: OWM-210B/OWM-210W
Included Items
The items included with the OWM-210B/OWM-210W are outlined in the next table.
Required System Components
009-518-00
The system components required for use with the OWM-210B/OWM-210W are outlined in the next table.
Optional Accessories
An optional accessory available for use with the OWM-210B/OWM-210W is outlined in the next table.
Copyright © 2012 Savant Systems, LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
