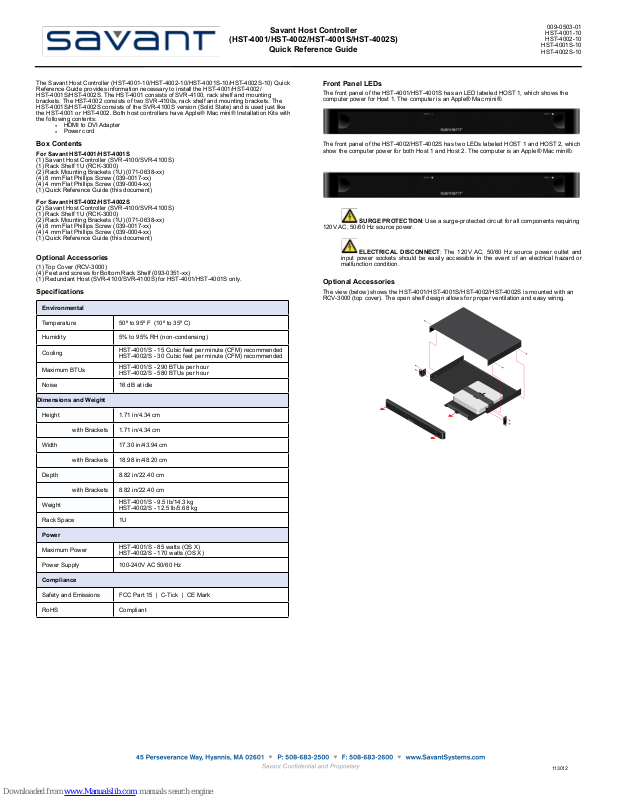

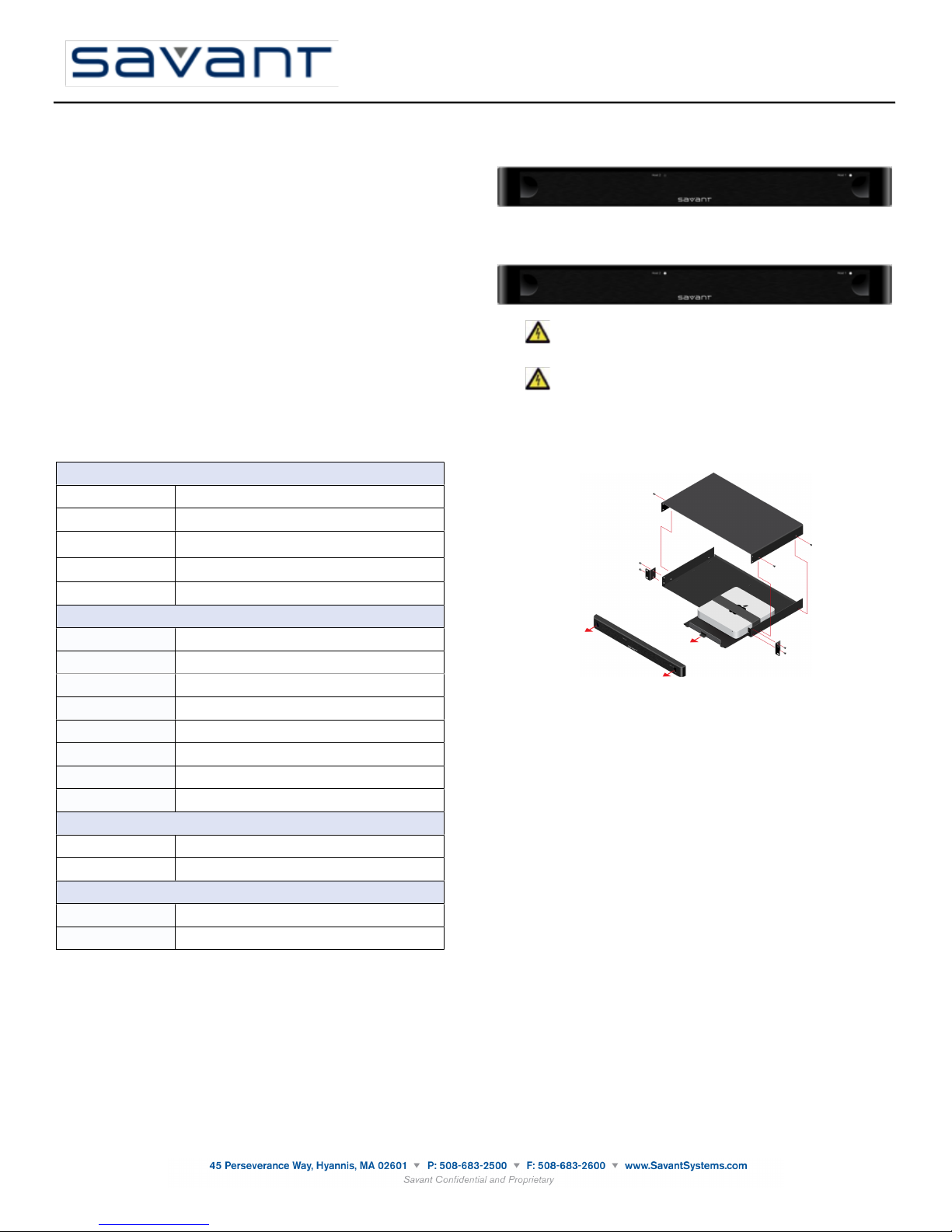

Page 1
The Savant Host Controller (HST-4001-10/HST-4002-10/HST-4001S-10/HST-4002S-10) Quick
Environmental
Temperature
50º to 95º F (10º to 35º C)
Humidity
5% to 95% RH (non-condensing)
Cooling
HST-4001/S - 15 Cubic feet per minute (CFM) recommended
HST-4002/S - 30 Cubic feet per minute (CFM) recommended
Maximum BTUs
HST-4001/S - 290 BTUs per hour
HST-4002/S - 580 BTUs per hour
Noise
16 dB at idle
Dimensions and Weight
Height
1.71 in/4.34 cm
with Brackets
1.71 in/4.34 cm
Width
17.30 in/43.94 cm
with Brackets
18.98 in/48.20 cm
Depth
8.82 in/22.40 cm
with Brackets
8.82 in/22.40 cm
Weight
HST-4001/S - 9.5 lb/14.3 kg
HST-4002/S - 12.5 lb/5.68 kg
Rack Space
1U
Power
Maximum Power
HST-4001/S - 85 watts (OS X)
HST-4002/S - 170 watts (OS X)
Power Supply
100-240V AC 50/60 Hz
Compliance
Safety and Emissions
FCC Part 15 | C-Tick | CE Mark
RoHS
Compliant
Savant Host Controller
(HST-4001/HST-4002/HST-4001S/HST-4002S)
Quick Reference Guide
009-0503-01
HST-4001-10
HST-4002-10
HST-4001S-10
HST-4002S-10
Reference Guide provides information necessary to install the HST-4001/HST-4002/
HST-4001S/HST-4002S. The HST-4001 consists of SVR-4100, rack shelf and mounting
brackets. The HST-4002 consists of two SVR-4100s, rack shelf and mounting brackets. The
HST-4001S/HST-4002S consists of the SVR-4100S version (Solid State) and is used just like
the HST-4001 or HST-4002. Both host controllers have Apple® Mac mini® Installation Kits with
the following contents:
HDMI to DVI Adapter
•
Power cord
•
Box Contents
For Savant HST-4001/HST-4001S
(1) Savant Host Controller (SVR-4100/SVR-4100S)
(1) Rack Shelf 1U (RCK-3000)
(2) Rack Mounting Brackets (1U) (071-0638-xx)
(4) 8 mm Flat Phillips Screw (039-0017-xx)
(4) 4 mm Flat Phillips Screw (039-0004-xx)
(1) Quick Reference Guide (this document)
For Savant HST-4002/HST-4002S
(2) Savant Host Controller (SVR-4100/SVR-4100S)
(1) Rack Shelf 1U (RCK-3000)
(2) Rack Mounting Brackets (1U) (071-0638-xx)
(4) 8 mm Flat Phillips Screw (039-0017-xx)
(4) 4 mm Flat Phillips Screw (039-0004-xx)
(1) Quick Reference Guide (this document)
Optional Accessories
(1) Top Cover (RCV-3000)
(4) Feet and screws for Bottom Rack Shelf (093-0351-xx)
(1) Redundant Host (SVR-4100/SVR-4100S) for HST-4001/HST-4001S only.
Specifications
Front Panel LEDs
The front panel of the HST-4001/HST-4001S has an LED labeled HOST 1, which shows the
computer power for Host 1. The computer is an Apple® Mac mini®.
The front panel of the HST-4002/HST-4002S has two LEDs labeled HOST 1 and HOST 2, which
show the computer power for both Host 1 and Host 2. The computer is an Apple® Mac mini®.
120V AC, 50/60 Hz source power.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring
ELECTRICAL DISCONNECT: The 120V AC, 50/60 Hz source power outlet and
input power sockets should be easily accessible in the event of an electrical hazard or
malfunction condition.
Optional Accessories
The view (below) shows the HST-4001/HST-4001S/HST-4002/HST-4002S is mounted with an
RCV-3000 (top cover). The open shelf design allows for proper ventilation and easy wiring.
113 012

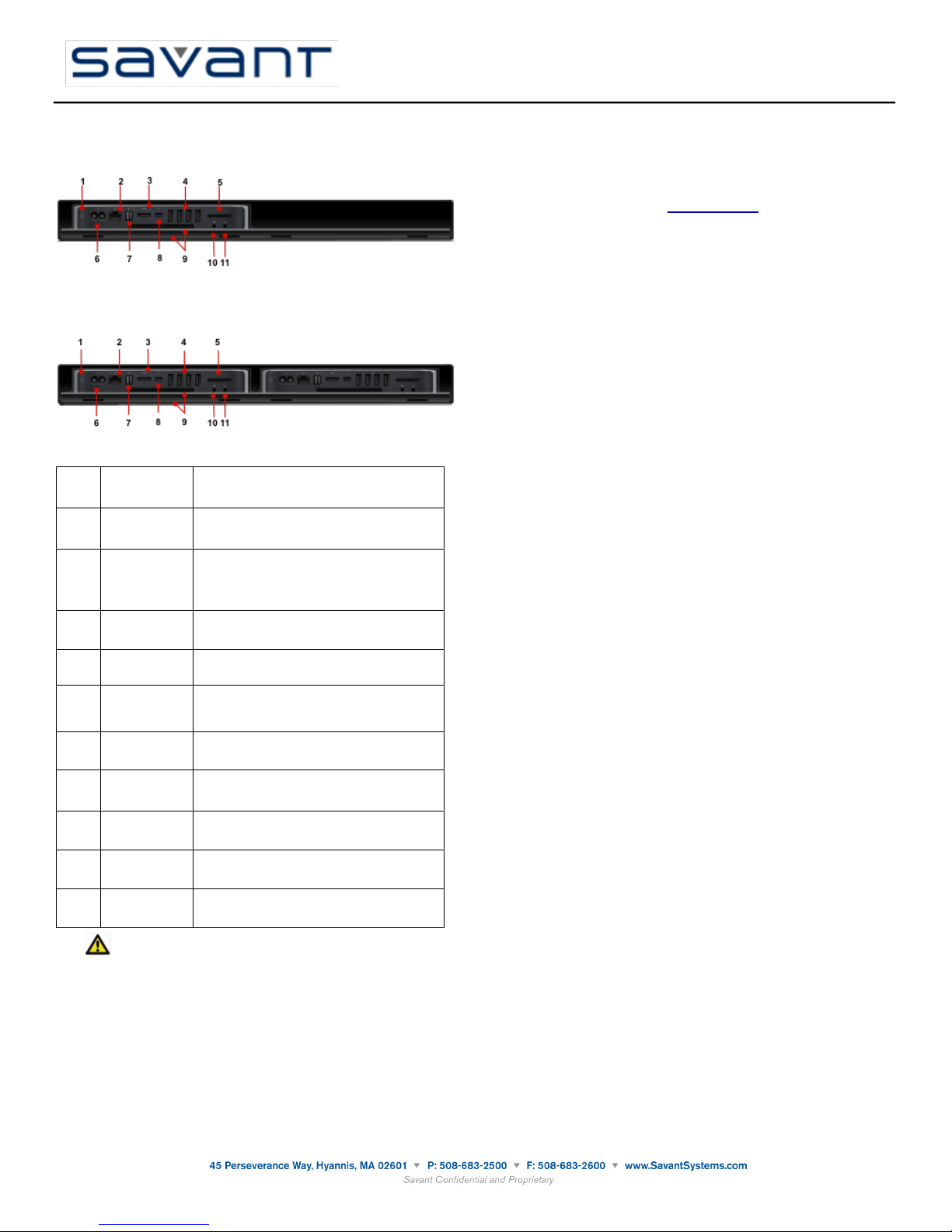

Page 2
Rear Panel LEDs
1
Power Button
Resets the Host Controller.
2
Ethernet
RJ45 10/100/1000 Base-T, auto-negotiating port
(Gigabit)
3
HDMI
High-Definition Multimedia Interface (HDMI) port with
support for up to 1920 x 1200 resolution, DVI output
using HDMI to DVI adapter (included).
4
USB (4 ports)
USB 3 - Up to 5 Gpbs (Backward compatible)
5
SD card slot
Secure Digital Extended Capacity (SDXC) card slot
2
Input power
connector
100-240V AC, 50/60 Hz source power to the OS X
processor.
4
FireWire
FireWire 800 port (up to 800 Mbps)
6
Thunderbolt
Thunderbolt display port with support for up to 2560 x
1600 resolution, up to 10 Gbps
9
Air Vents
Intake and exhaust vents
10
Audio in
Mini-jack; audio (digital/analog) line in
11
Audio out
Mini-jack; audio (digital/analog) line out
Savant Host Controller
(HST-4001/HST-4002/HST-4001S/HST-4002S)
Quick Reference Guide
009-0503-01
HST-4001-10
HST-4002-10
HST-4001S-10
HST-4002S-10
HST-4001/HST-4001S
The callouts in the SVR-4100/SVR-4100S (shown below) in the HST-4001/HST-4001S relate to
the descriptions provided in the table below.
HST-4002/HST-4002S
The callouts in the SVR-4100/SVR-4100S (shown left) in the HST-4002/HST-4002S relate to the
descriptions provided in the next table. The callouts are also applicable to the SVR-4100/
SVR-4100S shown to the right in the HST-4002/HST-4002S below.
The next table describes the functionality on the rear of a Host Controller.
Power Management Recommendations
Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut
down the HST Host Controllers before the battery runs out of power. Never remove power from
the HST Host Controllers before shutting it down.
Additional Documentation
Additional Documentation is available at: SavantSystems.com
Products > Savant Host & Controllers
CAUTION: Do not block the intake and exhaust vents on the bottom and back of
the HST Host Controllers. This will affect performance and could result in damage to the
equipment.
Copyright © 2012 Savant Systems, LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
113 012
