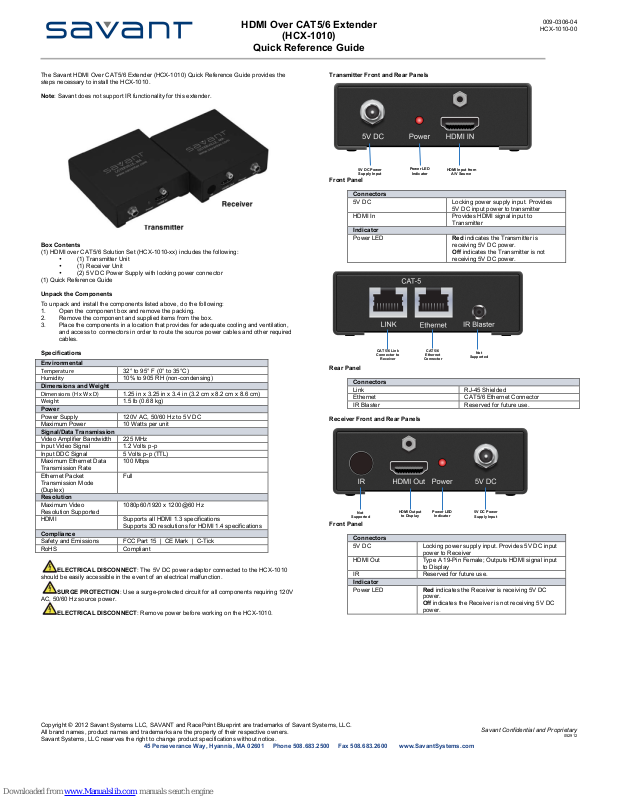

Savant HCX-1010 Quick Reference Manual

HDMI Over CAT5/6 Extender

(HCX-1010)

Quick Reference Guide

009-0306-04

HCX-1010-00

Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.

Savant Confidential and Proprietary

052912

45 Perseverance Way, Hyannis, MA 02601 Phone [phone] Fax [phone] www.SavantSystems.com

The Savant HDMI Over CAT5/6 Extender (HCX-1010) Quick Reference Guide provides the
steps necessary to install the HCX-1010.

Note: Savant does not support IR functionality for this extender.

Box Contents

(1) HDMI over CAT5/6 Solution Set (HCX-1010-xx) includes the following:

• (1) Transmitter Unit

• (1) Receiver Unit

• (2) 5V DC Power Supply with locking power connector

(1) Quick Reference Guide

Unpack the Components

To unpack and install the components listed above, do the following:

1. Open the component box and remove the packing.

2. Remove the component and supplied items from the box.

3. Place the components in a location that provides for adequate cooling and ventilation,

and access to connectors in order to route the source power cables and other required
cables.

Specifications

Environmental

Temperature

32° to 95° F (0° to 35°C)

Humidity

10% to 905 RH (non-condensing)

Dimensions and Weight

Dimensions (H x W x D)

1.25 in x 3.25 in x 3.4 in (3.2 cm x 8.2 cm x 8.6 cm)

Weight

1.5 lb (0.68 kg)

Power

Power Supply

120V AC, 50/60 Hz to 5V DC
Maximum Power

10 Watts per unit

Signal/Data Transmission

Video Amplifier Bandwidth

225 MHz
Input Video Signal

1.2 Volts p-p
Input DDC Signal

5 Volts p-p (TTL)
Maximum Ethernet Data
Transmission Rate

100 Mbps

Ethernet Packet
Transmission Mode
(Duplex)

Full

Resolution

Maximum Video
Resolution Supported

1080p60/1920 x 1200@60 Hz

HDMI

Supports all HDMI 1.3 specifications
Supports 3D resolutions for HDMI 1.4 specifications

Compliance

Safety and Emissions

FCC Part 15 | CE Mark | C-Tick
RoHS

Compliant

ELECTRICAL DISCONNECT: The 5V DC power adaptor connected to the HCX-1010

should be easily accessible in the event of an electrical malfunction.

SURGE PROTECTION: Use a surge-protected circuit for all components requiring 120V

AC, 50/60 Hz source power.

ELECTRICAL DISCONNECT: Remove power before working on the HCX-1010.

Transmitter Front and Rear Panels

Front Panel

Connectors

5V DC

Locking power supply input. Provides
5V DC input power to transmitter
HDMI In

Provides HDMI signal input to
Transmitter
Indicator
Power LED

Red indicates the Transmitter is
receiving 5V DC power.
Off indicates the Transmitter is not
receiving 5V DC power.

Rear Panel

Connectors

Link

RJ-45 Shielded
Ethernet

CAT5/6 Ethernet Connector
IR Blaster

Reserved for future use.

Receiver Front and Rear Panels

Front Panel

Connectors

5V DC

Locking power supply input. Provides 5V DC input
power to Receiver
HDMI Out

Type A 19-Pin Female; Outputs HDMI signal input
to Display
IR

Reserved for future use.
Indicator
Power LED

Red indicates the Receiver is receiving 5V DC
power.
Off indicates the Receiver is not receiving 5V DC
power.

5V DC Power
Supply Input

Power LED

Indicator

HDMI Input from

A/V Source

Not

Supported

CAT 5/6

Ethernet

Connector

CAT 5/6 Link
Connector to

Receiver

Not

Supported

HDMI Output

to Display

Power LED

Indicator

5V DC Power
Supply Input

HDMI Over CAT5/6 Extender

(HCX-1010)

Quick Reference Guide

009-0306-04

HCX-1010-00

Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.

Savant Confidential and Proprietary

052912

45 Perseverance Way, Hyannis, MA 02601 Phone [phone] Fax [phone] www.SavantSystems.com

Rear Panel

Connectors

Link

RJ-45 Shielded
Ethernet

CAT5/6 Ethernet Connector
Ext IR

Reserved for future use.

Interconnect the Units

To interconnect the units, do the following:

1. Connect the Savant Extra Long Range Extender Over one CAT5/6 cable to the A/V
and Ethernet source devices such as infrastructure, routers and switches using short
HDMI and CAT5/6 cables.

2. Do the same operation between the Extender receiver and the extended HD display
and any network devices that are to be connected.

3. When the Extender Transmitter and Receiver units have been connected to sources,
displays and network equipment, connect a single CAT5/6 extension cable between
the Transmitter and Receiver. The Transmitter and Receiver units may be up to 330
feet apart.

Details for Connecting the Transmitter and Receiver

1. Connect an HDMI source to the Transmitter unit. Also connect an Ethernet source to
the Transmitter unit.

2. Connect the Receiver unit to a suitable display using an HDMI cable. Connect a
CAT5/6 cable to the Display.

3. Connect the Transmitter unit to the Receiver unit using the CAT5/6 Ethernet cable.

4. Apply power to all connected units. Plug the AC power adaptors between the power
strip and the 5V DC input connectors on the Transmitter and Receiver.

Important: Savant recommends the use of a CAT6 solid core cable for optimum
performance. Also, a single continuous run from the transmitter to the receiver is
recommended. Use of patch panels or wall plates may interfere with the signal.

Wiring Diagram for the HCX-1010 - HDMI over CAT5/6 Extender

Additional Documentation

For more documentation, go to http://www.SavantSystems.com and navigate as follows:
>Dealer Login > Knowledge Base >

• Click link: RacePoint Blueprint™

Not

Supported

CAT 5/6
Ethernet

Connector

CAT 5/6 Link

Connector
to Sender
