Catalogue
Part names.......................................................................................................................1
Product features. .............................................................................................................1
Mark illustrations..............................................................................................................1
Safety information............................................................................................................2
Carrying and installing.....................................................................................................6
Usage at the first time......................................................................................................7
Thermostat.......................................................................................................................7
General knowledge for usage. ........................................................................................8
Cleaning and maintaining the appliance.........................................................................9
Defrosting. .......................................................................................................................9
Faults and diagnosing...................................................................................................10
Chest Freezer For Commercial Use
Non-fault instances........................................................................................................10
Part names
Safety information
The below picture is for your reference. There maybe some differences from your
appliance.
1 - Door
2 - Food basket
3 - Body
4 - Control panel
5 - Wheel
Product features
Very thick foaming for super heat insulation
Deep body for higher capacities and smaller room occupations
Safety lock optional
Green refrigerant without CFC and FCKW
Fashionable designs for comfortable use
Fully tropicalised
Fast freezing function
Zintec coated anti-rust
Technology for weak current
Mark illustrations
Warning
Attention
Wrong operations will cause users damaged or even dead
Wrong operations will cause users or the appliance damaged
Warning and Attention
This appliance is not intended for use by persons(including children) with reduced physical,
sensory or mental capabilities , or lack of experience and knowledge, unless they have been
given supervision concerning use of the appliance by a person responsible for their safety.
If the supply cord is damaged , it must be replaced by a special cord or assembly available
from the manufacturer or its service agent.
If the supply cord is damaged ,it must be replaced by the manufacture , its service agent or
similarly qualified persons in order to avoid a hazard.
Must use separate, well-earthed and 3 wires
power socket with 10A or higher fuse. Do not
use the appliance with any other appliance
on the same socket to avoid hazard.
Do not plug in or plug out by wet hand to
avoid to get an electric shock.
Plug in and plug out in a proper way. When
plugging in, make sure good connection
between the plug and socket. When
plugging out, pull the plug and do not pull
the cord to avoid loosing in plug or damage
in cord.
The socket must be well-earthed. The
earthed terminal must not connect any gas
pipe, water pipe, telephone cable, lightning
rod and zero line. The socket should be with
a current leakage protector as well.
Plug out at once if there is a abnormal
working. Before eliminating the abnormity, do
not plug in. Any abnormal working may cause
hazard.
Do not squeeze, fold, knot or damage the
cord. When the cord is damage ,it must be
replaced by the service agent or similar
qualified person to avoid danger.
Or it will cause electric shock and even fire.
The wrong operations should be prohibited
The right operations should be performed strictly
It is a high temperature danger warning
1
Do not spray on the appliance by water. It
will damage the insulation or speed up the
rusting on the metal parts.
Plug out before maintaining the appliance
to avoid electrical shock.
2
Safety information
Warning and Attention
When there is some flammable gas (e.g.
coal gas, natural gas etc) around the
appliance, open the window and let the
gas out firstly. Do not plug in or close
thermostat to avoid an explosion cause
from electrical fire.
In the cabinet, do not store flammable,
explosive or volatile goods.
In the cabinet, do not corrosive goods
such as acid or alkali.
Safety information
Warning and Attention
Do not touch the bare pipes or wires to
avoid a potential scald or electrical shock.
The working voltage should be 220-230V +10% /-15 %.
That is from 187V to 242V.
If the working voltage is too low or too high,
the compressor will be damaged.
When the appliance is stopped or kept
for a period, please keep the appliance
in a place where no children play, and let
the door not closed wholly to avoid
children inside and asphyxial.
The refrigerant and the foaming material
is flammable. When the appliance is
abandoned, it should be kept from fire
sources and not treated with fire.
The appliance should be recycled by
appointed institutions. Personal handling
may cause danger.
To avoid a hazard due to instability of the
appliance, it must be fixed in accordance
with the instructions.
Children should be supervised to ensure
that they do not play with the appliance .
Do not spray explosive agent near the
appliance to avid fire or explosion.
Do not damage the refrigerant circuit.
If the appliance has not been used for a
long time, plug out for safety.
Do not spray cold water onto the cabinet
to avoid any damage on inner shell or
safety problem.
Do not store any medicine or study
material which require a very accurate
temperature.
Do not touch any pipes or electrical parts
inside the appliance to avoid scald.
Sometimes the pipes or electrical parts inside
the appliance are at a high temperature.
Do not touch the refrigerant pipes inside the
cabinet to avoid low-temperature burns on skin.
Do not store any goods which are easily
cracked after freezing (e.g. bottles or cans),
when the temperature is under -18 .
3
4

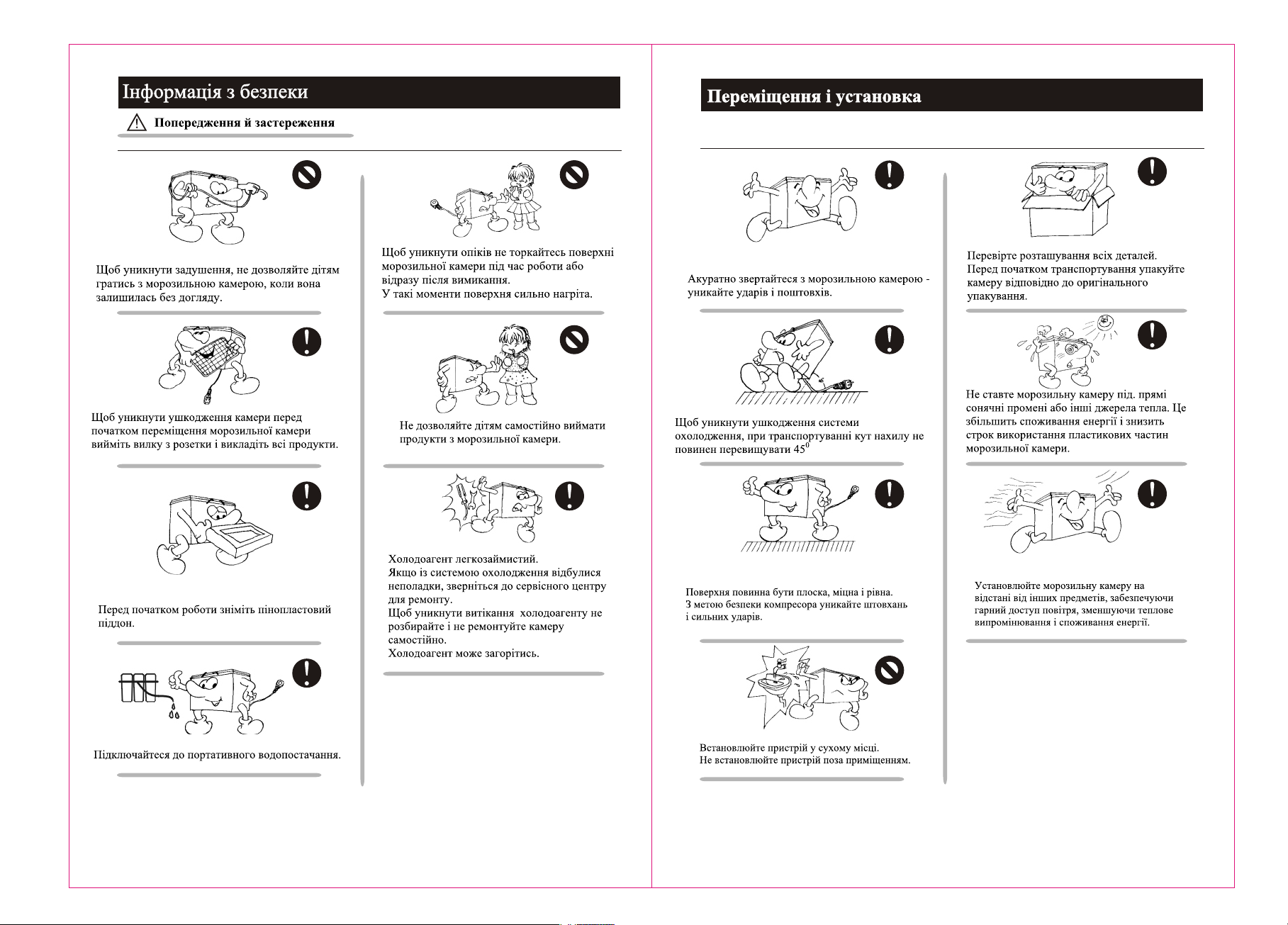

Safety information
Warning and Attention
Carrying and installing
Remove the door seal to avoid asphyxia if
children inside the cabinet, when the
appliance is abandoned.
Plug out and take all the stored goods out
before moving to avoid the appliance
damaged or the users hurt.
Remove the flammable bottom polyfoams
before using to avoid fire.
Connect to potable water supply only.
Do not touch the surface to avoid any scald
during working or right after plugging out.
At this moment, the surface is at a high
temperature.
Do not let children take goods out by
themselves to avoid any hazard.
The refrigerant is flammable.
Do ask Service Dept to repair if the cooling
system has some problem.
Do not disassemble, repair or modify the
appliance by yourselves to avoid any
refrigerant leakage.
The refrigerant may ignite or cause eye injuries.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the
built-in structure ,clear of obstruction.
WARNING: Do not use mechanical devices or
other means to accelerate the
defrosting process ,other than those
recommended by the manufacture.
WARNING: Do not use electrical appliances
inside the food storage compartments
of the appliance, unless they are of
type recommended by the manufacturer.
Carry the appliance carefully and avoid
collisions and big shakes .
The incline angle should be less than 45
during carrying to avoid damages of the
cooling system.
The ground should be flat, sturdy and
horizontal for a stable installing.
It is not only for safety, but also for a stable
working of the compressor without big
shocks and noises.
Install the appliance in a dry place.
The appliance will get rusted and have a
poor insulation if in a place with humidity
or water for a long time.
Do not install the appliance in the outside
place where rain can reach.
Check all the positions for the package.
Pack the appliance according to the orignial
one before carrying.
Do not place the appliance under sunshine or
near heating sources.
It will increase the power consumption and
decrease plastic parts or surface coatings life.
The appliance should have some distance
from circumferences for good ventilation,
heat radiation and power consumption
decreasing.
5
6
Usage at the first time
General knowledge for usage
Place the appliance according to the
installing requirements.
Open the door for air ventilating.
After installing the appliance, wait for 30 minutes at least before switching on the appliance.
( During transportation the oil in the compressor may have flowed into the refrigeration system.)
At the beginning, the cabinet is hot and the compressor will work for a long time and then stopped
by the thermostat at the set temperature. At that time, the compressor can works and stops regularly.
Recommend to put goods into the cabinet when the cabinet temperature reaches the set
temperature.
Clean the inner cabinet before using.
Thermostat
The cabinet temperature is controlled by the thermostat on the panel. The thermostat can set a
suitable temperature range according to different ambient temperatures and different kinds and QTY
of goods.
The green indicator is the POWER indicator. When plugging in, the green indicator works.
The red indicator is the OPERATION indicator. When the compressor runs, the red indicator works.
The thermostat knob can be rotated from MIN to MAX.
When rotating clockwise, the cooling time will be longer & the stopping time will be shorter. In this
way, the cabinet temperature will be lower.
When rotating anticlockwise, the cooling time will be shorter & the stopping time will be longer. In this
way, the cabinet temperature will be higher.
Keep some spaces between stored goods.
It do good for cooling air circulating and
heat exchange and a better cooling effect
will be achieved.
For hot food, hold it cooled and then put
into the appliance. If put it in hot status, it
will decrease the cooling level of the
goods nearby.
Put labels marked time onto the goods.
The goods stored early should be taken
out early.
Seal the food by fresh kept bags or closed
container to avoid smell-mixed or dry.
Open the door as briefly as possible.
Make sure the door closed wholly to save
power consumption.
Set different cooling temperatures according
to different goods. Too low cooling
temperature will waste power consumption.
After adjusting the thermostat, it will take some time to reach the stable working.
7
When switching off or a power cut, must
restart after 5 minutes minimum.
Or it will shorten the compressor life or
even damage the compressor.
If know a power cut in advance, set the
thermostat for a low temperature and keep the
appliance cooling for some time. And open the
door as briefly as possible. When power is cut,
try not to open the door and do not add goods
into the appliance.
8
Cleaning and maintaining the appliance
Faults and diagnosing
Regular cleaning and maintaining can prolong the life of the appliance and increase the cooling
efficiency.
Plug out before cleaning or maintaining.
Clean the inner cabinet and outer shell in
soft clothes with neutral agent & warm
water.
Do not use hot water, corrosive cleaning
agents or organic agent .
After maintaining, check the below points
to make sure safety.
1. If the connection is good between the
plug and the socket?
2. If the plug is hot abnormally?
3. If there is any cranny or nick on the
cord?
Clean the door seal by a bleacher which
diluted by 10 times water.
Then remove the remains by clear water.
Before stopping for a long time, the appliance
should be switched off, plugged out, cleaned
wholly and dried for some days .
No cooling
- Check if there is a power cut.
- Check if the connection between the
plug and the socket is good.
- Check if the fuse is switched off.
- Check if the currency protector is
workable. ( If the appliance is fixed
with a currency protector)
The appliance does not stop working
- Check if the thermostat is on too
high temperature.
- Check if put into too many goods.
- Check if the ambient temperature
is too high.
Non-fault instances
Bad cooling effects
- Check if the thermostat is on a suitable
position.
- Check if the appliance is exposed to
sunlight or near heat sources.
- Check if there is dust on the compressor
and condenser.
- Check if the stored goods are too many.
- Check if there is no enough spaces
between the goods.
- Check if some goods are hot.
- Check if open the door too frequently.
- Check if the door is closed wholly.
- Check if the frost on inner cabinet is too
thick.
- Check if the ground is flat and sturdy.
- Check if the appliance closes to walls.
- Check if the appliance contacts
something which is easily shocked.
Big noise
Defrosting
Moisture in goods and air will change into frost on the low temperature surface of the evaporator
( the inner surface of the cabinet).
The frost will decrease the cooling effect. If the frost thickness reaches 5 ~ 7mm, defrosting should
be carried out.
1. Switch off and plug out, and take out all the stored goods.
2. Open the door, and remove the frost by a special defrosting shovel when the frost gets soft.
3. Open the drain hole on the bottom, and open the drain cover on the outer shell. The frost water
will go out through the drain pipe.
4. Wipe off all the frost water, then plug in and switch on the appliance.
When the cabinet temperature reaches the set temperature, put the goods back.
Attention
Do not defrost by metal edge tools or electrical heating tools. They may damage the evaporator.
9
When the ambient temperature is to high or opening the door very rarely, there is frost on the door
frame and door seal. Just wipe off the frost water.
The appliance has a sound like water current or water boiling. The refrigerant goes trough the pipe
to cause this sound.
The compressor and the condenser are hot when working.
The compressor works for a long time if too many goods put inside.
The compressor works for a long time if the ambient temperature is high in summer.
Attention
If a problem can not be handled according to the instruction manual, please contact the Service
Dept soon. Do not try to repair the appliance by yourselves.
10
1211
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Loading...
