2007 Saturn AURA Green Line Hybrid Owner Manual M

Seats and Restraint Systems

Front Seats Rear Seats Safety Belts Child Restraints Airbag System Restraint System Check

Features and Controls

Keys Doors and Locks Windows Theft-Deterrent Systems Starting and Operating Your Vehicle Mirrors

....................................................... 88

.............................................. 8

............................................. 15

............................................ 17

...................................... 39

........................................ 67

................................ 87

.................................... 93

................................................ 99

.................................................. 125

....................... 7

......................... 84

....................... 103

..... 107

OnStar Storage Areas Sunroof

Instrument Panel

Instrument Panel Overview Climate Controls Warning Lights, Gages,

Driver Information Center (DIC) Audio System(s)

Driving Your Vehicle

Your Driving, the Road, Towing

System

...................................... 131

................................................ 133

....................................... 135

and Indicators

and Your Vehicle

................................................. 247

................................... 127

................................... 154

................................... 161

................................... 192

................................. 209

.............................. 210

................... 138

............ 179

Service and Appearance Care

Service Fuel

................................................. 253

...................................................... 255

Checking Things Under the Hood Bulb Replacement

................................ 294

Windshield Wiper Blade Replacement Tires Appearance Care Vehicle Identiﬁcation Electrical System

..................................................... 298

.................................. 332

............................. 341

.................................. 342

Capacities and Speciﬁcations

.................. 251

......... 262

.... 297

................ 351

Maintenance Schedule

.............................. 353

.......................... 354

Customer Assistance Information

Customer Assistance and

Information

Reporting Safety Defects

........................................ 372

...................... 386

Vehicle Data Recording

and Privacy

Index

.......................................................... 393

....................................... 389

............. 371

SATURN and the SATURN Emblem are registered trademarks, and the name AURA is a trademark of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation.

This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.

This manual describes features that may be available in this model, but your vehicle may not have all of them. For example, more than one entertainment system may be offered or your vehicle may have been ordered without a front passenger or rear seats.

Keep this manual in the vehicle for quick reference.

Canadian Owners (English)

A French language copy of this manual can be obtained from your dealer/retailer or from:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

Litho in U.S.A. Part No. 15870405 A First Printing

Using this Manual

Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things.

{CAUTION:

These mean there is something that could hurt you or other people.

Index

A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

Safety Warnings and Symbols

There are a number of safety cautions in this book. A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning.

We tell you what the hazard is and what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, you or others could be hurt.

A circle with a slash through it is a safety symbol which means “Do Not,” “Do Not do this” or “Do Not let this happen.”

Vehicle Damage Warnings

Vehicle Symbols

You will also ﬁnd notices in this manual.

Notice: These mean there is something that could damage your vehicle.

A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly. The notice tells what to do to help avoid the damage.

When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words.

There are also warning labels on the vehicle which use the same words, CAUTION or NOTICE.

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage, or indicator.

If you need help ﬁguring out a speciﬁc name of a component, gage, or indicator, reference the following topics:

• Seats and Restraint Systems in Section 1

• Features and Controls in Section 2

• Instrument Panel Overview in Section 3

• Climate Controls in Section 3

• Warning Lights, Gages, and Indicators in

Section 3

• Audio System(s) in Section 3

• Engine Compartment Overview in Section 5

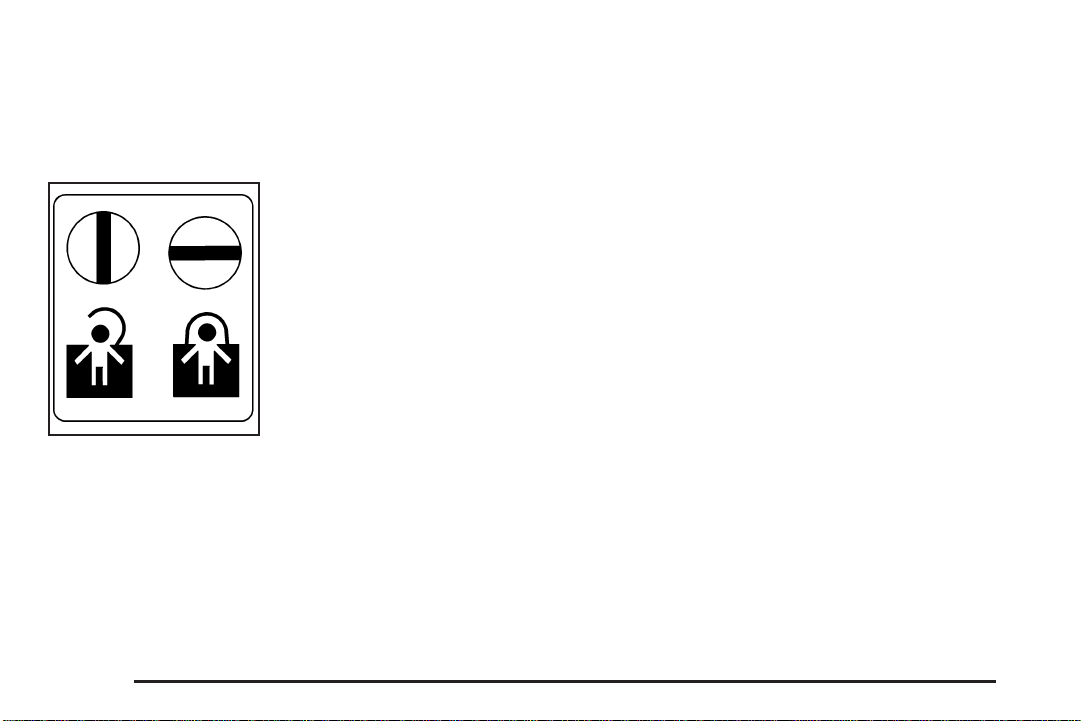

These are some examples of symbols that may be found on the vehicle:

Section 1 Seats and Restraint Systems

Front Seats ..................................................... 8

Manual Seats ................................................ 8

Power Seats ................................................. 9

Manual Lumbar ............................................. 9

Reclining Seatbacks .................................... 10

Head Restraints .......................................... 13

Power Lift Seat ........................................... 14

Rear Seats .................................................... 15

Split Folding Rear Seat ............................... 15

Safety Belts .................................................. 17

Safety Belts: They Are for Everyone ........... 17

Questions and Answers About

Safety Belts ............................................. 21

How to Wear Safety Belts Properly ............. 22

Driver Position ............................................. 22

Shoulder Belt Height Adjustment ................. 30

Safety Belt Use During Pregnancy .............. 31

Right Front Passenger Position ................... 31

Rear Seat Passengers ................................ 32

Rear Safety Belt Comfort Guides ................ 35

Safety Belt Pretensioners ............................ 38

Safety Belt Extender ................................... 38

Child Restraints ............................................ 39

Older Children ............................................. 39

Infants and Young Children ......................... 42

Child Restraint Systems ..............................45

Where to Put the Restraint .......................... 49

Lower Anchors and Tethers for Children

(LATCH) .................................................. 52

Securing a Child Restraint in a Rear Seat

Position ................................................... 60

Securing a Child Restraint in the Right

Front Seat Position .................................. 62

Airbag System .............................................. 67

Where Are the Airbags? .............................. 70

When Should an Airbag Inﬂate? .................. 73

What Makes an Airbag Inﬂate? ................... 75

How Does an Airbag Restrain? ................... 75

What Will You See After an Airbag

Inﬂates? ................................................... 76

Passenger Sensing System ......................... 77

Servicing Your Airbag-Equipped Vehicle ...... 82

Adding Equipment to Your

Airbag-Equipped Vehicle .......................... 83

Restraint System Check ............................... 84

Checking the Restraint Systems .................. 84

Replacing Restraint System Parts

After a Crash ........................................... 85

Front Seats

Manual Seats

{CAUTION:

You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver’s seat only when the vehicle is not moving.

To move a manual seat forward or rearward:

1. Lift the bar to unlock the seat.

2. Slide the seat to the desired position and release the bar.

Try to move the seat with your body to be sure the seat is locked in place.

Power Seats

Manual Lumbar

On vehicles with this feature, the handle is located on the outboard side of the seat.

In vehicles with power seats, the controls used to operate them are located on the outboard side of the seat.

To adjust the seat, do any of the following:

• Move the seat forward or rearward by sliding

the control forward or rearward.

• Raiseorlowerthefrontpartoftheseatcushion

by moving the front of the control up or down.

• Raiseorlowertherearpartoftheseatcushion

by moving the rear of the control up or down.

Move the handle up repeatedly to decrease lumbar support. Move the handle down repeatedly to increase lumbar support.

Reclining Seatbacks

Manual Reclining Seatbacks

{CAUTION:

If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.

On seats with manual reclining seatbacks, the lever used to operate them is located on the outboard side of the seat.

To recline the seatback, do the following:

1. Lift the recline lever.

2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

To return the seatback to an upright position, do the following:

1. Lift the lever fully without applying pressure to the seatback and the seatback returns to the upright position.

2. Push and pull on the seatback to make sure it is locked.

Power Reclining Seatbacks

If the seats have power reclining seatbacks, the control used to recline them is located on the outboard side of the seat behind the power seat control.

• To recline the seatback, tilt the top of the

control rearward.

• To bring the seatback forward, tilt the top of

the control forward.

{CAUTION:

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this.

The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.

The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Do not have a seatback reclined if your vehicle is moving.

Head Restraints

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash.

Pull the restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down.

The rear seat head restraints are also adjustable.

Power Lift Seat

To adjust a power lift seat up or down:

1. Move the seat forward or rearward to the desired position.

2. Press the top or bottom of the power lift seat switch, located on the outboard side of the driver’s seat, to raise or lower the seat.

See Manual Seats on page 8.

Rear Seats

Split Folding Rear Seat

With this feature, you can fold either side of the seatback down for more cargo space. Make sure the front seat is not reclined. If it is, the rear seatback will not fold down all the way.

Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.

To lower the rear seatback, pull on the seat tab located on the outboard side of the seatback cushion and fold the seatback down. This allows you direct access to the trunk.

To raise the rear seatback, follow these steps:

1. Raise the seatback up and make sure it latches.

2. Push and pull on the seatback to be sure it is locked in position.

3. Make sure that the safety belts are properly stowed over the seatback in all three positions.

{CAUTION:

If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.

{CAUTION:

A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

When the seat is not in use, it should be kept in the upright locked position.

Safety Belts

Safety Belts: They Are for Everyone

This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.

{CAUTION:

Do not let anyone ride where he or she cannot wear a safety belt properly. If you are in a crash and you are not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.

{CAUTION:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Your vehicle has indicators to remind you and your passengers to buckle your safety belts. See

Safety Belt Reminder Light on page 163 and Passenger Safety Belt Reminder Light on page 164.

In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work.

You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.

A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed.

After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot!

Why Safety Belts Work

When you ride in or on anything, you go as fast as it goes.

Take the simplest vehicle. Suppose it is just a seat on wheels.

Put someone on it. Get it up to speed. Then stop the vehicle. The

rider does not stop.

The person keeps going until stopped by something. In a real vehicle, it could be the windshield...

or the instrument panel...

or the safety belts! With safety belts, you slow down as the vehicle

does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.

Questions and Answers About Safety Belts

Q: Will I be trapped in the vehicle after an

accident if I am wearing a safety belt?

A: You could be — whether you are wearing a

safety belt or not. But you can unbuckle a safety belt, even if you are upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has airbags, why should I

have to wear safety belts?

A: Airbags are supplemental systems only; so

they work with safety belts — not instead of them. Every airbag system ever offered for sale has required the use of safety belts. Even if you are in a vehicle that has airbags, you still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.

Q: If I am a good driver, and I never drive far

from home, why should I wear safety belts?

A: You may be an excellent driver, but if you are

in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.

Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h).

Safety belts are for everyone.

How to Wear Safety Belts Properly

This part is only for people of adult size. Be aware that there are special things to know

about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see

Older Children on page 39 or Infants and Young Children on page 42. Follow those rules for

everyone’s protection. First, you will want to know which restraint

systems your vehicle has. We will start with the driver position.

Driver Position

Lap-Shoulder Belt

The driver has a lap-shoulder belt. Here is how to wear it properly.

1. Close and lock the door.

2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index.

3. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

4. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 38.

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. Move the shoulder belt height adjuster to the height that is right for you. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash. See Shoulder Belt Height Adjustment on page 30.

6. To make the lap part tight, pull up on the shoulder belt.

It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.

The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The safety belt locks if there is a sudden stop or crash.

Q: What is wrong with this?

A: The shoulder belt is too loose. It will not give

nearly as much protection this way.

{CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.

Q: What is wrong with this?

A: The lap belt is too loose. It will not give nearly

as much protection this way.

{CAUTION:

You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs.

Q: What is wrong with this?

A: The belt is buckled in the wrong place.

{CAUTION:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

Q: What is wrong with this?

A: The shoulder belt is worn under the arm. It

should be worn over the shoulder at all times.

{CAUTION:

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.

Q: What is wrong with this?

A: The belt is twisted across the body.

{CAUTION:

You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your retailer to ﬁx it.

To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.

Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.

Shoulder Belt Height Adjustment

Before you begin to drive, move the shoulder belt adjuster to the height that is right for you.

Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash.

To move it down, squeeze the buttons (A) on the sides of the height adjuster and move the height adjuster to the desired position.

After you move the adjuster to where you want it, try to move it down without squeezing the buttons to make sure it has locked into position.

Safety Belt Use During Pregnancy

Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.

Right Front Passenger Position

To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 22.

The right front passenger’s safety belt works the same way as the driver’s safety belt — except for the following.

If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again.

When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop.

Rear Seat Passengers

It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts.

Rear passengers who are not safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

Lap-Shoulder Belt

All rear seat positions have lap-shoulder belts. Here is how to wear one properly.

1. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

2. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure.

When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.

If the belt is not long enough, see Safety Belt Extender on page 38.

Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

3. To make the lap part tight, pull up on the shoulder part.

belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The safety belt locks if there is a sudden stop or a crash.

{CAUTION:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.

To unlatch the belt, push the button on the buckle.

Rear Safety Belt Comfort Guides

Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.

There is one guide for each outboard passenger position in the rear seat. Here is how to install a comfort guide to the safety belt:

1. Pull the elastic cord out from between the edge of the seatback and the interior body to remove the guide from its storage clip.

2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt and insert the two edges of the belt into the slots of the guide.

3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.

{CAUTION:

A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

4. Buckle, position, and release the safety belt as described in Rear Seat Passengers on page 32. Make sure that the shoulder belt crosses the shoulder.

To remove and store the comfort guide, squeeze the belt edges together so that you can take them out of the guide. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Turn the guide and clip inward and slide them in between the seatback and the interior body, leaving only the loop of the elastic cord exposed.

Safety Belt Pretensioners

Safety Belt Extender

Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal and near frontal crash if the threshold conditions for pretensioner activation are met. And, if your vehicle has side impact airbags, safety belt pretensioners can help tighten the safety belts in a side crash.

Pretensioners work only once. If they activate in a crash, you will need to get new ones, and probably other new parts for your safety belt system. See Replacing Restraint System Parts After a Crash on page 85.

If the vehicle’s safety belt will fasten around you, you should use it.

But if a safety belt is not long enough, your retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to ﬁt. The extender has been designed for adults. Never use it for securing child seats. To wear it, just attach it to the regular safety belt. For more information, see the instruction sheet that comes with the extender.

Child Restraints

Q: What is the proper way to wear safety

belts?

Older Children

Older children who have outgrown booster seats should wear the vehicle’s safety belts.

A: An older child should wear a lap-shoulder belt

and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

{CAUTION:

Never do this. Here two children are wearing the same

belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.

Q: What if a child is wearing a lap-shoulder

belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?

A: If the child is sitting in a seat next to a

window, move the child toward the center of the vehicle. Also see Rear Safety Belt Comfort Guides on page 35. If the child is sitting in the center rear seat passenger position, move the child toward the safety belt buckle. In either case, be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide.

{CAUTION:

Never do this. Here a child is sitting in a seat that has a

lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.

Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.

Infants and Young Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

{CAUTION:

Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Never leave children unattended in a vehicle and never allow children to play with the safety belts.

Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint.

{CAUTION:

People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint.

{CAUTION:

Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the

CAUTION: (Continued)

vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.

Q: What are the different types of add-on

child restraints?

A: Add-on child restraints, which are purchased by

the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.

For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.

The restraint manufacturer’s instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.

{CAUTION:

Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints.

{CAUTION:

The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints.

Child Restraint Systems

An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.

A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.

A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.

A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.

Q: How Should I Use a Child Restraint? A: A child restraint system is any device designed

for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner. To help reduce injuries, an add-on child restraint must be secured in the vehicle. With built-in or add-on child restraints, the child has to be secured within the child restraint.

When choosing an add-on child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.

Securing an Add-on Child Restraint in the Vehicle

{CAUTION:

A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in this manual.

To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system. See Lower

Anchors and Tethers for Children (LATCH) on page 52 for more information. A child can

be endangered in a crash if the child restraint is not properly secured in the vehicle.

When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it.

Securing the Child Within the Child Restraint

There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap. A shield may take the place of hip straps. A T-shaped shield has shoulder straps that are attached to a ﬂat pad which rests low against the child’s body. A shelf- or armrest-type shield has straps that are attached to a wide, shelf-like shield that swings up or to the side.

{CAUTION:

A child can be seriously injured or killed in a crash if the child is not properly secured in the child restraint. Make sure the child is properly secured, following the instructions that came with that restraint.

Because there are different systems, it is important to refer to the instructions that come with the restraint. A child can be endangered in a crash if the child is not properly secured in the child restraint.

Where to Put the Restraint

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.

We recommend that children be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; a child riding in a forward-facing child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts.

A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

{CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag.

Even though the passenger sensing system is designed to turn off the right front passenger’s frontal and seat-mounted side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can

CAUTION: (Continued)

guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. We recommend that rear-facing child restraints be secured in a rear seat, even if the airbag(s) are off.

If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

If you need to secure more than one child restraint in the rear seat, review the following illustrations. Depending on where you place the child restraint or the size of the child restraint, you may not be able to access certain safety belt assemblies or LATCH anchors for additional passengers or child restraints.

Conﬁgurations for Use of Two Child Restraints

A. Child restraint using

LATCH

B. Occupant prohibited

Conﬁgurations for Use of Three Child Restraints

A. Child restraint or

occupant using safety belt

A. Occupant prohibited B. Child restraint using

LATCH

A. Child restraint using

LATCH

B. No occupant

recommended

C. Child restraint or

occupant using safety belt

A. Child restraint or

occupant using safety belt

B. Child restraint using

LATCH

Wherever you install a child restraint, be sure to secure the child restraint properly.

Lower Anchors and Tethers for Children (LATCH)

The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.

Make sure that a LATCH-compatible child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual.

When installing a child restraint with a top tether, you must also use either the lower anchors or the safety belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor.

In order to use the LATCH system in your vehicle, you need a child restraint that has LATCH attachments. The child restraint manufacturer will provide you with instructions on how to use the child restraint and its attachments. The following explains how to attach a child restraint with these attachments in your vehicle.

Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments.

Lower Anchors

Top Tether Anchor

Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B).

A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.

Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor.

Some child restraints with top tethers are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. In the United States, some child restraints also have a top tether. Be sure to read and follow the instructions for your child restraint.

If the child restraint does not have a top tether, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available.

Lower Anchor and Top Tether Anchor Locations

i (Top Tether Anchor):

Seating positions with top tether anchors.

j (Lower Anchor):

Seating positions with two lower anchors.

Rear Seat

To assist you in locating the lower anchors, each rear anchor position has a label, near the crease between the seatback and the seat cushion, showing where the anchors are located.

The top tether anchors are located behind the rear seat on the ﬁller panel.

Do not secure a child restraint in the right front passenger’s position if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached. There is no place to attach the top tether in this position.

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the Restraint on page 49 for additional information.

Securing a Child Restraint Designed for the LATCH System

{CAUTION:

If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual.

Each top tether anchor and lower anchor in the vehicle is designed to hold only one child restraint. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured if this happens. To help prevent injury to people and damage to your vehicle, attach only one child restraint per anchor.

{CAUTION:

Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed. Be sure to follow the instructions of the child restraint manufacturer.

Notice: Contact between the child restraint or the LATCH attachment parts and the vehicle’s safety belt assembly may cause damage to these parts. Make sure when securing unused safety belts behind the child restraint that there is no contact between the child restraint or the LATCH attachment parts and the vehicle’s safety belt assembly.

Folding an empty rear seat with the safety belts secured may cause damage to the safety belt or the seat. When removing the child restraint, always remember to return the safety belts to their normal, stowed position before folding the rear seat.

If you need to secure more than one child restraint in the rear seat, see Where to Put the Restraint on page 49. Depending on where you place the child restraint, you may not be able to access certain safety belt assemblies or LATCH anchors for additional passengers or child restraints.

You cannot secure three child restraints using the LATCH anchors in the rear seat at the same time, but you can install two of them. If you want to do this, install one LATCH child restraint in the passenger-side position, and install the other one either in the driver-side position or in the center position. Refer to the following illustration to learn which anchors to use.

A. Passenger Side Rear Seat Lower Anchors B. Center Rear Seat Lower Anchors C. Driver Side Rear Seat Lower Anchors

Make sure to attach the child restraint at the proper anchor location.

This system is designed to make installation of child restraints easier. When using lower anchors, do not use the vehicle’s safety belts. Instead use the vehicle’s anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether.

1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.

1.1. Find the lower anchors for the desired seating position.

1.2. Put the child restraint on the seat.

1.3. Attach and tighten the lower attachments on the child restraint to the lower anchors.

2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps:

2.1. Find the top tether anchor.

2.2. If the position you are using has an adjustable head restraint, raise it. See Head Restraints on page 13.

2.3. Route, attach, and tighten the top tether according to the child restraint instructions and the following instructions:

If the position you are using does not have a head restraint and you are using a single tether, route the tether over the seatback.

If the position you are using does not have a head restraint and you are using a dual tether, route the tether over the seatback.

If the position you are using has an adjustable head restraint and you are using a single tether, route the tether under the head restraint and in between the head restraint posts. See Head Restraints on page 13.

If the position you are using has an adjustable head restraint and you are using a dual tether route the tether under the head restraint and in between the head restraint posts. See Head Restraints on page 13.

3. Push and pull the child restraint in different directions to be sure it is secure.

Securing a Child Restraint in a Rear Seat Position

If your child restraint has the LATCH system, see

Lower Anchors and Tethers for Children (LATCH) on page 52.

If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

1. Put the child restraint on the seat.

2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock.

5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.

6. If your child restraint manufacturer recommends using a top tether, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and see Lower Anchors and Tethers for Children (LATCH) on page 52.

7. Push and pull the child restraint in different directions to be sure it is secure.

To remove the child restraint, if the top tether is attached to the top tether anchor, disconnect it. Unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.

Securing a Child Restraint in the Right Front Seat Position

Your vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 49.

In addition, your vehicle has a passenger sensing system. The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag when an infant in a rear-facing infant seat or a small child in a forward-facing child restraint or booster seat is detected. See Passenger

Sensing System on page 77 and Passenger Airbag Status Indicator on page 165 for more information

on this, including important safety information. A label on your sun visor says, “Never put

a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

{CAUTION:

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is

CAUTION: (Continued)

because the back of the rear-facing child restraint would be very close to the inﬂating airbag.

Even though the passenger sensing system is designed to turn off the right front passenger’s frontal and seat-mounted side impact airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. We recommend that rear-facing child restraints be secured in a rear seat, even if the airbags are off.

If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

If your child restraint has the LATCH system, see

Lower Anchors and Tethers for Children (LATCH) on page 52.

There is no top tether anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored or if the instructions that come with the child restraint say that the top tether must be anchored. See Lower Anchors and Tethers for Children (LATCH) on page 52 if the child restraint has a top tether.

You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

Your vehicle has airbags. See Passenger Sensing System on page 77. We recommend that rear-facing child restraints be secured in a rear seat, even if the airbags are off.

1. Move the seat as far back as it will go before securing the forward-facing child restraint. See Manual Seats on page 8 or Power Seats on page 9.

When the passenger sensing system has turned off the right front passenger’s frontal airbag and seat-mounted side impact airbag, the off indicator on the passenger airbag status indicator should light and stay lit when you start the vehicle. See Passenger Airbag Status Indicator on page 165.

2. Put the child restraint on the seat.

3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.

4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.

5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock.

6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. You should not be able to pull more of the belt from the retractor once the lock has been set.

7. Push and pull the child restraint in different directions to be sure it is secure.

If the airbags are off, the off indicator will be lit and stay lit when you start the vehicle.

If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint.

If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible. Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint.

If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle and check with your dealer/retailer.

To remove the child restraint, unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop.

Airbag System

Your vehicle has the following airbags:

• A frontal airbag for the driver.

• A frontal airbag for the right front passenger.

• A seat-mounted side impact airbag for the

driver.

• A seat-mounted side impact airbag for the

right front passenger.

• A roof-mounted side impact airbag for the

driver and passenger directly behind the driver.

• A roof-mounted side impact airbag for the right

front passenger and the person seated directly behind that passenger.

Airbags are designed to supplement the protection provided by safety belts. Even though today’s airbags are also designed to help reduce the risk of injury from the force of an inﬂating bag, all airbags must inﬂate very quickly to do their job.

Here are the most important things to know about the airbag system:

{CAUTION:

You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Airbags are “supplemental restraints” to the safety belts. All airbags are designed to work with safety belts, but do not replace them.

{CAUTION:

Frontal airbags for the driver and right front passenger are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past.

Seat-mounted side impact airbags and roof-mounted side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inﬂate in frontal, in rollover or in rear crashes.

Everyone in your vehicle should wear a safety belt properly — whether or not there is an airbag for that person.

Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash. Always wear your safety belt even with frontal airbags. The driver should sit as far back as possible while still maintaining control of the vehicle. Occupants should not lean on or sleep against the door.

{CAUTION:

Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see Older Children on

page 39 or Infants and Young Children on page 42.

There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol.

The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 164 for more information.

Where Are the Airbags?

The driver’s frontal airbag is in the middle of the steering wheel.

The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side.

The seat-mounted side impact airbag for the driver is in the side of the driver’s seatback closest to the door.

The seat-mounted side impact airbag for the right front passenger is in the side of the passenger’s seatback closest to the door.

The roof-mounted side impact airbag for the driver and the person seated directly behind the driver is in the ceiling above the side windows.

The roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger is in the ceiling above the side windows.

{CAUTION:

If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering. Never secure anything to the roof of your vehicle by routing the rope or tie-down through any door or window opening. If you do, the path of an inﬂating airbag will be blocked. Do not let seat covers block the inﬂation path of a side impact airbag. The path of an inﬂating airbag must be kept clear.

When Should an Airbag Inﬂate?

The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help restrain the occupants. Whether your frontal airbags will or should deploy is not based on how fast your vehicle is traveling. It depends largely on what you hit, the direction of the impact, and how quickly your vehicle slows down.

In addition, your vehicle has “dual stage” frontal airbags, which adjust the restraint according to crash severity. Your vehicle has electronic frontal sensors, which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact. For moderate frontal impacts, these airbags inﬂate at a level less than full deployment. For more severe frontal impacts, full deployment occurs.

If the front of your vehicle goes straight into a wall that does not move or deform, the threshold level for the reduced deployment is about 12 to 16 mph (19 to 26 km/h), and the threshold level for a full deployment is about 18 to 25 mph (29 to

40.2 km/h). The threshold level can vary, however, with speciﬁc vehicle design, so that it can be somewhat above or below this range.

Frontal airbags may inﬂate at different crash speeds. For example:

• If the vehicle hits a stationary object, the

airbags could inﬂate at a different crash speed than if the vehicle hits a moving object.

• If the vehicle hits an object that deforms, the

airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.

• If the vehicle hits a narrow object (like a pole),

the airbags could inﬂate at a different crash speed than if the vehicle hits a wide object (like a wall).

• If the vehicle goes into an object at an angle,

the airbags could inﬂate at a different crash speed than if the vehicle goes straight into the object.

Frontal airbags (driver and right front passenger) are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts.

The side impact airbags are intended to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.” The threshold level can vary with speciﬁc vehicle design. Side impact airbags are not intended to inﬂate in frontal or near-frontal impacts, rollovers, or rear impacts. A side impact airbag is intended to deploy on the side of the vehicle that is struck, unless the passenger sensing system has turned off the passenger’s seat-mounted side impact airbag. See Passenger Sensing System on page 77 for more information.

In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inﬂation is determined by what the vehicle hits, the angle of the impact, and how quickly the vehicle slows down in frontal and near-frontal impacts. For side impact airbags, inﬂation is determined by the location and severity of the impact.

What Makes an Airbag Inﬂate?

How Does an Airbag Restrain?

In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag and related hardware are all part of the airbag modules. Frontal airbag modules are located inside the steering wheel and the instrument panel. For vehicles with seat-mounted side impact airbags, there are also airbag modules in the side of the front seatbacks closest to the door. For vehicles with roof-mounted side impact airbags, there are also airbag modules in the ceiling of the vehicle, near the side window.

In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. Airbags supplement the protection provided by safety belts. Airbags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But the frontal airbags would not help you in many types of collisions, including rollovers, rear impacts, and many side impacts, primarily because an occupant’s motion is not toward the airbag. Side impact airbags would not help you in many types of collisions, including many frontal or near frontal collisions, rollovers, and rear impacts.

Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s frontal airbags, and only in moderate to severe side collisions for vehicles with side impact airbags.

What Will You See After an Airbag Inﬂates?

{CAUTION:

After frontal airbags and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-mounted side impact airbags may still be at least partially inﬂated minutes after the vehicle comes to rest. Some components of the airbag module — the steering wheel hub for the driver’s airbag, the instrument panel for the right front passenger’s bag, the side of the seatback closest to the door for the seat-mounted side impact airbags, and the area along the ceiling of your vehicle near the side windows for roof-mounted side impact airbags — may be hot for a short time. The parts of the airbag that come into contact with you may be warm, but not too hot to touch. There may be some smoke and dust coming from the vents in the deﬂated airbags. Airbag inﬂation does not prevent the driver from seeing out of the windshield or being able to steer the vehicle, nor does it prevent people from leaving the vehicle.

When an airbag inﬂates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but cannot get out of the vehicle after an airbag inﬂates, then get fresh air by opening a window or a door. If you experience breathing problems following an airbag deployment, you should seek medical attention.

Your vehicle has a feature that may automatically unlock the doors, turn the interior lamps on, and turn the hazard warning ﬂashers on when the airbags inﬂate. You can lock the doors, turn the interior lamps off, and turn the hazard warning ﬂashers off by using the controls for those features.

In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag.

• Airbags are designed to inﬂate only once.

After an airbag inﬂates, you will need some new parts for the airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash. A new system will include airbag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

• Your vehicle has a crash sensing and

diagnostic module which records information after a crash. See Vehicle Data Recording and

Privacy on page 389 and Event Data Recorders on page 389.

• Let only qualiﬁed technicians work on the

airbag systems. Improper service can mean that an airbag system will not work properly. See your dealer/retailer for service.

Passenger Sensing System

Your vehicle has a passenger sensing system for the right front passenger’s position. The passenger airbag status indicator will be visible when you start your vehicle in the instrument panel.

United States Canada

The words ON and OFF, or the symbol for on and off, will be visible during the system check. When the system check is complete, either the word ON or the word OFF, or the symbol for on or the symbol for off, will be visible. See Passenger Airbag Status Indicator on page 165.

The passenger sensing system will turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag under certain conditions. The driver’s airbags are not part of the passenger sensing system.

The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag and seat-mounted side impact airbag should be enabled (may inﬂate) or not.

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.

A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

{CAUTION:

CAUTION: (Continued)

If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag if:

• The right front passenger seat is unoccupied.

• The system determines that an infant is

present in a rear-facing infant seat.

• The system determines that a small child is

present in a child restraint.

• The system determines that a small child is

present in a booster seat.

• A right front passenger takes his/her weight off

of the seat for a period of time.

• The right front passenger seat is occupied by

a smaller person, such as a child who has outgrown child restraints.

• Or, if there is a critical problem with the airbag

system or the passenger sensing system.

When the passenger sensing system has turned off the right front passenger’s frontal airbag and seat-mounted side impact airbag, the off indicator will light and stay lit to remind you that the airbags are off. See Passenger Airbag Status Indicator on page 165.

If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint following the child restraint manufacturer’s directions and refer to Securing a

Child Restraint in the Right Front Seat Position on page 62.

Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint. See Head Restraints on page 13.

Remove any additional material from the seat cushion before reinstalling or securing the child restraint.

If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle, and check with your dealer/retailer.

The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag and seat-mounted side impact airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit to remind you that the airbags are active.

For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag, depending upon the person’s seating posture and body build. Everyone in your vehicle who has outgrown child restraints should wear a safety belt properly — whether or not there is an airbag for that person.

If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended. Restart the vehicle and have the person remain in this position for two to three minutes. This will allow the system to detect that person and then enable the right front passenger’s frontal airbag and seat-mounted side impact airbag.

Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.

{CAUTION:

If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s). See Airbag Readiness Light on page 164 for more on this, including important safety information.

A thick layer of additional material, such as a blanket or cushion, or aftermarket equipment such as seat covers, seat heaters, and seat massagers can affect how well the passenger sensing system operates. You may want to consider not using seat covers or other aftermarket equipment. See Adding Equipment to Your Airbag-Equipped Vehicle on page 83 for more information about modiﬁcations that can affect how the system operates.

{CAUTION:

Stowing of articles under the passenger’s seat or between the passenger’s seat cushion and seatback may interfere with the proper operation of the passenger sensing system.

Servicing Your Airbag-Equipped Vehicle

Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your retailer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 387.

{CAUTION:

Adding Equipment to Your Airbag-Equipped Vehicle

For up to 10 seconds, after the ignition is turned off and the battery is disconnected, an airbag can still inﬂate during improper service. You can be injured if you are close to an airbag when it inﬂates. Avoid yellow connectors. They are probably part of the airbag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualiﬁed to do so.

The airbag system does not need regular maintenance.

Q: Is there anything I might add to the front

or sides of the vehicle that could keep the airbags from working properly?

A: Yes. If you add things that change your

vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly. Also, the airbag system may not work properly if you relocate any of the airbag sensors. If you have any questions about this, you should contact Customer Assistance before you modify your vehicle. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See Customer Satisfaction Procedure on page 372.

Q: Because I have a disability, I have to get

my vehicle modiﬁed. How can I ﬁnd out whether this will affect my airbag system?

A: Changing or moving any parts of the

front seats, safety belts, the airbag sensing and diagnostic module, steering wheel, instrument panel, overhead console, ceiling headliner, ceiling and pillar garnish trim, roof-mounted airbag modules, or airbag wiring can affect the operation of the airbag system. If you have questions, call Customer Assistance. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See Customer Satisfaction Procedure on page 372.

Restraint System Check

Checking the Restraint Systems

Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Keep safety belts clean and dry. See Care of Safety Belts on page 335 for more information.

Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away.

Also look for any opened or broken airbag covers, and have them repaired or replaced. The airbag system does not need regular maintenance.

Notice: If you damage the covering for the driver’s or the right front passenger’s airbag, or the airbag covering on the driver’s and right front passenger’s seatback, or the side impact airbag covering on the ceiling near the side windows, the bag may not work properly. You may have to replace the airbag module in the steering wheel, both the airbag module and the instrument panel for the right front passenger’s airbag, the airbag module and seatback for the driver’s and right front passenger’s seat-mounted side impact airbags, or side impact airbag module and ceiling covering for the roof-mounted side impact airbag. Do not open or break the airbag coverings.

Replacing Restraint System Parts After a Crash

{CAUTION:

A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

If you have had a crash, do you need new belts or LATCH system parts?

After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new parts.

If the LATCH system was being used during a more severe crash, you may need new LATCH system parts.

If belts are cut or damaged, replace them. Collision damage may also mean you may need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision.

If an airbag inﬂates, you will need to replace airbag system parts. See the part on the airbag system earlier in this section.

If an airbag inﬂates, you may also need to replace the driver’s and right front passenger’s safety belt assemblies. Be sure to do so. Then the new assemblies will be there to help protect you in a collision.

After a crash you may need to replace the driver and front passenger’s safety belt assemblies, even if the airbags have not deployed. Have your safety belt pretensioners checked if your vehicle has been in a collision, or if your airbag readiness light stays on after you start your vehicle or while you are driving. See Airbag Readiness Light on page 164.

Section 2 Features and Controls

Keys .............................................................. 88

Remote Keyless Entry (RKE) System .......... 89

Remote Keyless Entry (RKE) System

Operation ................................................. 90

Doors and Locks .......................................... 93

Door Locks ................................................. 93

Power Door Locks ....................................... 94

Door Ajar Reminder .................................... 94

Delayed Locking .......................................... 94

Programmable Automatic Door Locks .......... 95

Rear Door Security Locks ........................... 96

Lockout Protection ....................................... 97

Trunk .......................................................... 97

Windows ....................................................... 99

Power Windows ........................................ 100

Sun Visors ................................................ 102

Theft-Deterrent Systems ............................. 103

Content Theft-Deterrent ............................. 103

PASS-Key PASS-Key

III+ ......................................... 105

III+ Operation ......................... 105

Starting and Operating Your Vehicle ......... 107

New Vehicle Break-In ................................ 107

Ignition Positions ....................................... 108

Retained Accessory Power (RAP) ............. 109

Starting the Engine

(Automatic Engine Start/Stop) ................. 110

Engine Coolant Heater ..............................114

Automatic Transaxle Operation .................. 116

Parking Brake ........................................... 119

Regenerative Braking ................................ 119

Shifting Into PARK (P) .............................. 120

Shifting Out of PARK (P) ........................... 122

Parking Over Things That Burn ................. 122

Engine Exhaust ......................................... 123

Running the Engine While Parked ............. 124

Mirrors ......................................................... 125

Manual Rearview Mirror ............................. 125

Manual Rearview Mirror with OnStar

....... 125

Outside Power Mirrors ............................... 126

OnStar

System .......................................... 127

Storage Areas ............................................. 131

Glove Box ................................................. 131

Cupholder(s) .............................................. 131

Center Console Storage Area .................... 132

Convenience Net ....................................... 132

Sunroof ....................................................... 133

Keys

{CAUTION:

Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.

One key is used for the ignition and all locks.

When a new vehicle is delivered to the dealer/retailer, the key has a key tag. This tag has a bar-coded key code that tells your dealer/retailer how to make extra keys. This tag may be removed and kept by your dealer/retailer. If it has not been removed, keep the tag in a safe place. If you lose your key, your dealer/retailer can easily make another one by using the key code. See Roadside Assistance Program on page 377 for more information.

Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys.

Remote Keyless Entry (RKE) System

Your vehicle may have a Remote Keyless Entry (RKE) system. The RKE system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference received, including interference that may cause undesired operation of the device.

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference received, including interference that may cause undesired operation of the device.

Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment.

At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this:

• Check the distance. You may be too far from

your vehicle. You may need to stand closer during rainy or snowy weather.

• Check the location. Other vehicles or objects

may be blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again.

• Check to determine if battery replacement is

necessary. See “Battery Replacement” under Remote Keyless Entry (RKE) System Operation on page 90.

• If you are still having trouble, see your retailer

or a qualiﬁed technician for service.

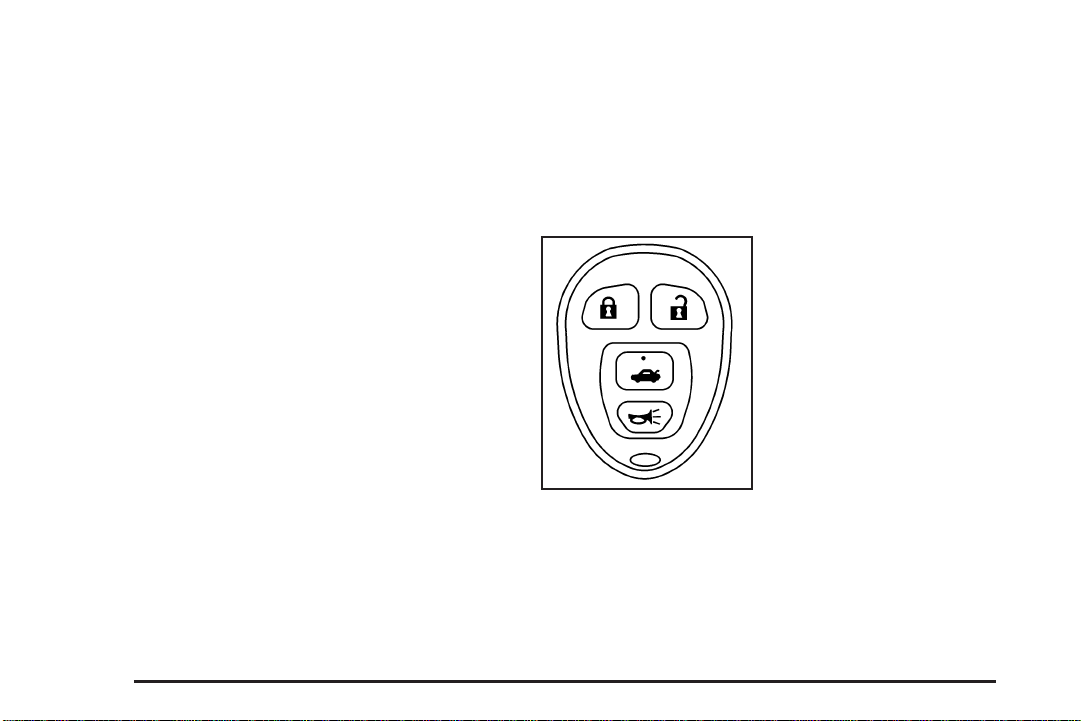

Remote Keyless Entry (RKE) System Operation

The vehicle’s doors can be locked and unlocked, and the trunk can be opened from about 3 feet (1 m) up to 197 feet (60 m) away with the Remote Keyless Entry (RKE) transmitter.

Use the following functions if your vehicle has the RKE system.

Q(Lock): Press the lock button to lock all the

doors. The interior lamps will turn off after all of the doors are closed. If enabled through the Driver Information Center (DIC), the remote lock feedback can be programmed to have the horn chirp and/or the turn signals ﬂash when the RKE transmitter is used to lock the vehicle’s doors. See “LOCK HORN” and “LIGHT FLASH” under DIC Vehicle Personalization on page 187 for more information.

Pressing the lock button may also arm the content theft-deterrent system. See Content Theft-Deterrent on page 103.

K(Unlock): Press the unlock button to unlock the

driver’s door. If the button is pressed again within ﬁve seconds, all remaining doors unlock. The interior lamps turn on and stay on for 20 seconds or until the ignition is turned on. If enabled through the DIC, the remote unlock feedback can be programmed to have the horn chirp and/or the turn signals ﬂash when the RKE transmitter is used to unlock the vehicle’s doors. See “UNLOCK HORN” and “LIGHT FLASH” under DIC Vehicle Personalization on page 187 for more information.

If enabled through the DIC, and it is dark enough outside, the vehicle’s high-beam headlamps, parking lamps, and back-up lamps will turn on each time the unlock button on the transmitter is pressed. These exterior lamps will stay on for 20 seconds, or until a door is opened. See “EXT (Exterior) LIGHTS” under DIC Vehicle Personalization on page 187 for additional information.

Pressing the unlock button on the RKE transmitter will disarm the content theft-deterrent system. See Content Theft-Deterrent on page 103.

V(Remote Trunk Release): Press and hold

this button for about one second to open the trunk. The trunk can be opened with the transmitter when the vehicle speed is less than 2 mph (3 km/h) or when the ignition is off.

L(Vehicle Locator/Panic Alarm): Press and

release this button to locate your vehicle. The horn sounds three times and the headlamps and turn signals ﬂash three times. Press and hold the button for about three seconds to initiate the panic alarm. The horn sounds and the headlamps and turn signals ﬂash for 30 seconds. Press the button again to cancel the panic alarm.

Matching Transmitter(s) to Your Vehicle

Each RKE transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your retailer. Remember to bring any remaining transmitters with you when you go to your retailer. Each vehicle can have a maximum of four transmitters matched to it.

Battery Replacement

Under normal use, the battery in your RKE transmitter should last about four years.

The battery is weak if the transmitter does not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.

If the battery is low, a KEY FOB BATT (Battery) LOW message will display in the vehicle’s DIC.

Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

To replace the battery in the RKE transmitter do the following:

1. Insert a ﬂat object, with a thin edge, into the notch located below the vehicle locator/panic alarm button, and separate the bottom half from the top half of the transmitter.

2. Remove the battery and replace it with the new one. Make sure the positive (+) side of the battery faces up. Use one three-volt, CR2032, or equivalent, type battery.

3. Put the two halves back together. Make sure the cover is on tight, so water will not get inside the transmitter.

4. Test the operation of the transmitter with the vehicle.

Doors and Locks

Door Locks

{CAUTION:

Unlocked doors can be dangerous.

• Passengers, especially children, can

easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked. So, wear safety belts properly and lock the doors whenever you drive.

CAUTION: (Continued)

•

Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it.

• Outsiders can easily enter through an

unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.

There are several ways to lock and unlock your vehicle.

From the outside, use your key or Remote Keyless Entry (RKE) transmitter, if the vehicle has one. Turn the key counterclockwise to unlock the door.

From the inside, lock and unlock the door by moving the manual lock knob down and up, or by using the power door lock switches.

Power Door Locks

Delayed Locking

The power door lock switches are located on the driver’s and front passenger’s door.

Press the outboard side of the switch to unlock all doors. Press the inboard side of the switch to lock all doors.

The rear doors do not have power door lock switches. Rear seat passengers must use the manual lock knob on their doors.

Door Ajar Reminder

If one of the doors is not fully closed while the ignition is on and the shift lever is moved out of PARK (P) or NEUTRAL (N) the following will occur:

• A chime will sound.

• The DOOR AJAR message will display

through the Driver Information Center (DIC) until the door is closed. See DIC Warnings and Messages on page 182.

This feature allows the driver to delay the locking of the vehicle. It will not operate with the key in the ignition. See Lockout Protection on page 97.

Press the driver’s power door lock switch or the Remote Keyless Entry (RKE) transmitter lock button once. With the key removed from the ignition and the driver’s door open, the following occurs:

• Three chimes sound to signal the delay.

• All doors will lock and the turn signals ﬂash

once ﬁve seconds after the last door has been closed.

• The horn chirps if the horn chirp feature is

enabled. See DIC Vehicle Personalization on page 187.

If a door is opened before the ﬁve seconds has elapsed, the doors do not lock until ﬁve seconds after all doors are closed.

If the power door lock switch or the transmitter lock button is pressed twice when leaving the vehicle, the doors lock immediately.

If the power door unlock switch or the transmitter unlock button is pressed, the doors unlock immediately and do not lock automatically after the doors are closed.

This feature is turned on at the factory but may be turned off through the Driver Information Center (DIC). See DIC Vehicle Personalization

on page 187

Programmable Automatic Door Locks

Your vehicle is programmed at the factory to lock all doors automatically when the following are met:

• Alldoorsareclosed.

• Theignitionison.

• TheshiftleverismovedoutofPARK (P).

This feature cannot be disabled.

When the shift lever is moved back to PARK (P), all doors will unlock.

If someone needs to exit the vehicle once the doors are locked, have that person use the manual lock knob or power door unlock switch.

The power door unlock function can be programmed through prompts displayed on the Driver Information Center (DIC). These prompts allow you to choose unlock settings. See DIC Vehicle Personalization on page 187.

Rear Door Security Locks

Your vehicle has rear door security locks. These prevent passengers from opening the rear doors from the inside.

The rear door security locks are located on the inside edge of each rear door.

Security Lock Label

shown

The rear doors must be open to access them. The label showing lock and unlock positions is located near the lock.

To set the locks, do the following:

1. Insert the key into the security lock slot and turn it so the slot is in the horizontal position.

2. Close the door.

When you want to open a rear door when the security lock is on, do the following:

1. Unlock the door by lifting the rear door manual lock, using the power door lock switch, or the Remote Keyless Entry (RKE) transmitter, if the vehicle has one.

2. Open the door from the outside.

To cancel the rear door security lock, do the following:

1. Unlock the door and open it from the outside.

2. Insert the key into the security lock slot and turn it so the slot is in the vertical position.

Lockout Protection

This feature prevents the driver’s door from being locked using the power door locks, if the key is left in the ignition and a door is open.

Press the power door lock switch to lock all the doors and then unlock the driver’s door.

Press and hold the power door lock switch for more than three seconds to override this feature.

If the key is removed from the ignition, or if the manual door lock or the Remote Keyless Entry (RKE) transmitter is used, the key could still be locked inside the vehicle. Always remember to take the key with you.

Trunk

To open the trunk from the outside, press the trunk release button on the Remote Keyless Entry (RKE) transmitter.

{CAUTION:

It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid:

• Make sure all other windows are shut.

• Turn the fan on your heating or

cooling system to its highest speed and select the control setting that will force outside air into your vehicle. See Climate Control System.

• If you have air outlets on or under

the instrument panel, open them all the way.

See Engine Exhaust on page 123.

Remote Trunk Release

Press the button located on the driver’s door near the map pocket to open the trunk.

The trunk can only be opened while the vehicle is in PARK (P).

Emergency Trunk Release Handle

Notice: Do not use the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk as it could damage the handle. The emergency trunk release handle is only intended to aid a person trapped in a latched trunk, enabling them to open the trunk from the inside.

There is a glow-in-the-dark emergency trunk release handle located inside the trunk on the trunk latch. This handle glows following exposure to light. Pull the release handle up to open the trunk from the inside.

Windows

{CAUTION:

Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.

Power Windows

The power window switches are located on the armrest on the driver’s door. In addition, each passenger door has a switch for its own window.

Express-Down Window

The driver’s window has an express-down feature. This switch is labeled AUTO. Press the front of the switch part way, and the driver’s window opens a small amount. If the front of the switch is pressed all the way down and released, the window goes all the way down automatically.

To stop the window while it is lowering, pull the front of the switch momentarily. To raise the window, pull and hold the front of the switch.

Express-Up Window

Your vehicle may have this feature on the driver’s window. Pull the switch up to the second position and release the switch to activate the express-up feature. To stop the window as it is raising, pull up or press down brieﬂy on the switch again.

100

Saturn Aura Hybrid 2007 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Section 1 Seats and Restraint Systems

Front Seats

Manual Seats

Power Seats

Manual Lumbar

Reclining Seatbacks

Head Restraints

Power Lift Seat

Rear Seats

Split Folding Rear Seat

Safety Belts

Safety Belts: They Are for Everyone

Questions and Answers About Safety Belts

How to Wear Safety Belts Properly

Driver Position

Shoulder Belt Height Adjustment

Safety Belt Use During Pregnancy

Right Front Passenger Position

Rear Seat Passengers

Rear Safety Belt Comfort Guides

Safety Belt Pretensioners

Safety Belt Extender

Child Restraints

Older Children

Infants and Young Children

Child Restraint Systems

Where to Put the Restraint

Lower Anchors and Tethers for Children (LATCH)

Securing a Child Restraint in a Rear Seat Position

Securing a Child Restraint in the Right Front Seat Position

Airbag System

Where Are the Airbags?

How Does an Airbag Restrain?

Passenger Sensing System

Servicing Your Airbag-Equipped Vehicle

Adding Equipment to Your Airbag-Equipped Vehicle

Restraint System Check

Checking the Restraint Systems

Replacing Restraint System Parts After a Crash

Section 2 Features and Controls

Keys

Remote Keyless Entry (RKE) System

Remote Keyless Entry (RKE) System Operation

Doors and Locks

Door Locks

Power Door Locks

Delayed Locking

Door Ajar Reminder

Programmable Automatic Door Locks

Rear Door Security Locks

Lockout Protection

Trunk

Windows

Power Windows
