HDMI-SPL-2108C
2x8 HDMI 1.3 over Single CAT5
Distribution Amplifier
User Manual
Made in Taiwan
1
Safety and Notice
The HDMI-SPL-2108C 2x8 HDMI 1.3 over Single CAT5 Distribution Amplifier has been tested for
conformance to safety regulations and requirements, and has been certified for international use. However,
like all electronic equipments, the HDMI-SPL-2108C should be used with care. Please read and follow the
safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
z Follow all instructions and warnings marked on this unit.
z Do not attempt to service this unit yourself, except where explained in this manual.
z Provide proper ventilation and air circulation and do not use near water.
z Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
z Use only the power adapter and power cords and connection cables designed for this unit.
z Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
2
The HDMI-SPL-2108C 2x8 HDMI 1.3 over Single CAT5 Distribution Amplifier provides the most flexible
solution by which the high definition video and high quality audio can be transmitted to different locations
over a long distance. The devices are cascadable, allowing you to extend HDMI compliant displays almost
anywhere. Installed with a 2x1 HDMI 1.3 compliant switch, one of the input HDMI sources can be duplicated
and distributed to up to 8 HDMI enable displays through cost effective Cat-5/5e cables and RJ-45 to HDMI
mini-extenders (HDMI-EXT-1111C-RX). With the built in equalization, the input HDMI cable can be extended
up to 20 meters long under Full HD, and make the overall transmission distance superior than regular HDMI
splitters or matrix switches in the market.
Features
z State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and
reliability
z HDMI 1.3c compliant
z HDCP compliant
z Regenerates the HDMI signal
z Acts as a 2x1 HDMI switch plus a 1x8 HDMI over CAT5 splitter
z Supports default HDMI EDID and has the ability to learn the EDID of displays
z Extends up to 20m of input HDMI cable
z Extends up to 60m of output CAT-5/5e/6 UTP cable under HD (720p / 1080i)
z Extends up to 40m of output CAT-5/5e/6 UTP cable under Full HD (1080p)
z Pure unaltered uncompressed 7.1ch digital HDMI over UTP cable transmission
z Allows cascading
z Perfectly integrated with other HDMI over CAT5 series products
z 1RU rack mountable
The length depends on the characteristics and quality of the cables. Higher resolutions and longer
transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6
with metal RJ-45 connectors is recommended.
Introduction
3
Specifications & Package Contents
Model Name HDMI-SPL-2108C HDMI-EXT-0101C-RX HDMI-EXT-1111C-RX
Technical
Role of usage
2x8 distribution amplifier
Transmitter [TX]
Receiver [long range RX] Receiver [short range RX]
HDMI compliance HDMI 1.3c
HDCP compliance Yes
Video bandwidth Single-link 225MHz [6.75Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60
HDMI transmission
over LAN cable
Full HD (1080p): 40m (130ft) [CAT5e] / 50m (165ft) [CAT6]
HD (720p/1080i): 50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization Built-in Adjustable 8-level digital None
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[HDMI-SPL-2108C]
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
Input 2x HDMI 1x RJ-45 1x RJ-45
Output 8x RJ-45 1x HDMI 1x HDMI
HDMI connector Type A [19-pin female] Type A [19-pin female] Type A [19-pin male]
RJ-45 connector WE/SS 8P8C with 2 LED indicators
DIP switch
[HDMI-SPL-2108C]
4-pin for EDID learning and audio setting modes
Rotary control switch
None
HDMI signal level
None
Mechanical HDMI-SPL-2108C HDMI-EXT-0101C-RX HDMI-EXT-1111C-RX
Housing Metal case Metal case Plastic mold
Dimensions
[L x W x H]
Model
438 x 158 x 44mm 93 x 90 x 25mm 25 x 45 x 20mm
Package
230 x 545 x 110mm 175 x 270 x 80mm 115 x 170 x 40mm
Carton
580 x 570 x 260mm 450 x 370 x 300mm 370 x 450 x 300mm
Weight
Model
1.4kg 175g
22g
Package
2.2kg 475g 90g
Fixedness 1RU rack-mount with ears
W
all-mounting case with screws
Direct plug-in
Power supply 5V 4A DC 5V 2A DC None
Power consumption 13 Watts [max] 1 Watt [max] 0.5 Watt [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents
1x HDMI-SPL-2108C
2x Rack-mounting ears
1x 5V power adapter
1x User Manual
1x HDMI-EXT-0101C-RX
1x 5V power adapter
1x User Manual
1x HDMI-EXT-1111C-RX
1x User Manual
4

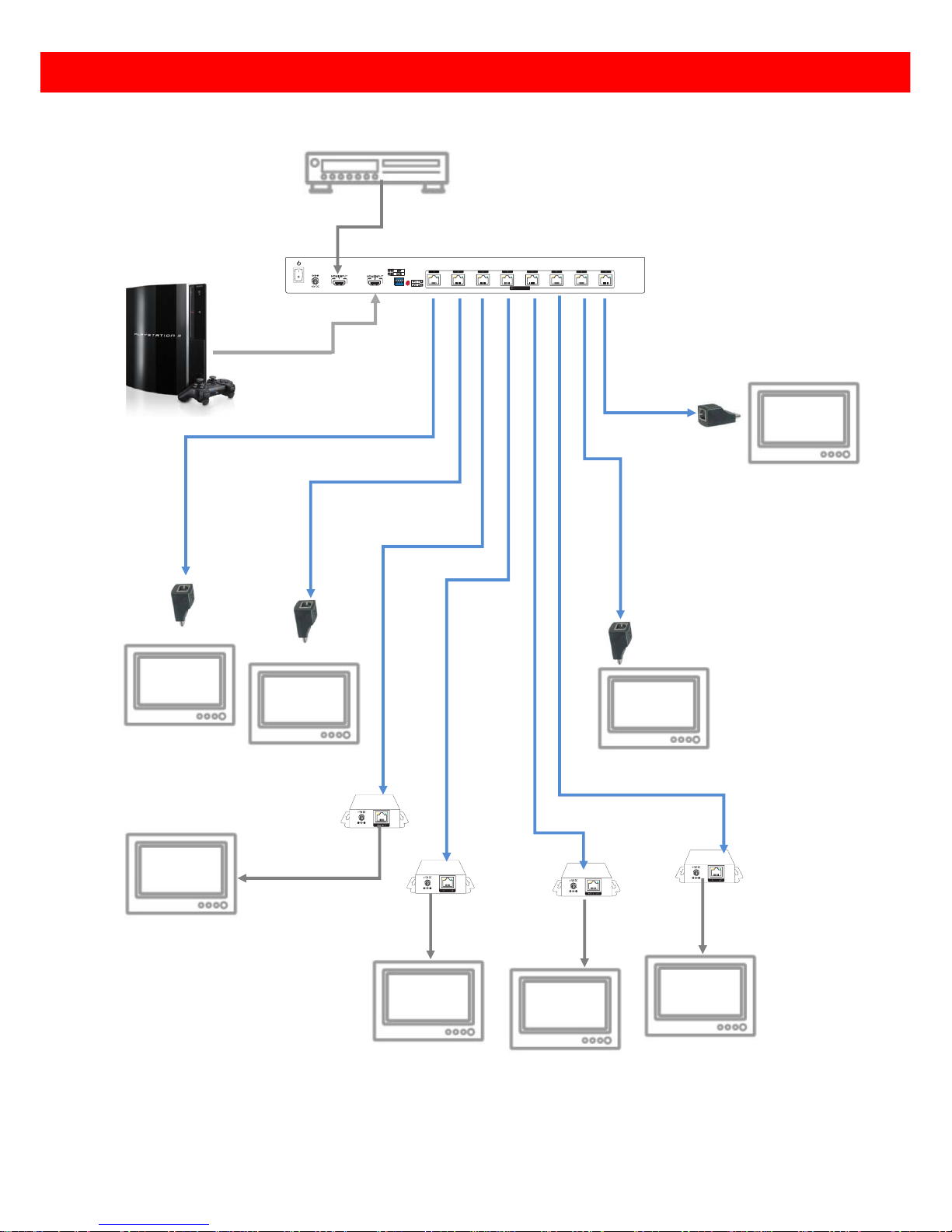

A
pplication Diagram
CAT5 cable up to 25m (80ft)
CAT
5 cable
u
p
to 60m (200ft)
HDMI cable
HDMI-SPL-2108C
HDMI source #1
HDTV#1
HDMI-EXT-1111C-RX
HDMI
-
EXT-1111C-RX
HDTV#2
CAT5 cable
HDTV#3
HDMI cable
CAT5 cable
HDTV#4
HDMI cable
CAT5
cable
HDMI-EXT-1111C-RX
HDTV#8
HDTV#7
HDTV#5
HDMI cable
HDTV#6
HDMI cable
HDMI-EXT-0101C-RX
HDMI
-
EXT-0101C-RX
HDMI-EXT-1111C-RX
HDMI source #2
HDMI cable
HDMI-EXT-0101C-RX
5
HDMI-SPL-2108C
1. +5V DC: Power jack for 5V DC
2. HDMI INPUT 1: Connect to one HDMI source here
3. HDMI INPUT 2: Connect to another HDMI source here
4. EDID & Audio: DIP Switch (see more detail in the next section)
5. Push-in button for switching between HDMI INPUT 1 and HDMI INPUT 2
6. HDMI Signal OUTPUT 1–8: Link to each HDMI display via a Cat-5/5e/6 cable with a HDMI over CAT5
receiver HDMI-EXT-0101C-RX or HDMI-EXT-1111C-RX
Panel Descriptions
DIP Switch
1 2 3 4 5 6
6
Note
1
Pin-1 and pin-2 are for HDMI INPUT 1; while pin-3 and pin-4 are for HDMI INPUT 2
2
If the HDTV shows video but without audio, please set audio mode to stereo.
3
Factory default setting is pin-1 at OFF[©], pin-2 at OFF[©], pin-3 at OFF[©] & pin-4 at
OFF[©] for 1080p with stereo.
4
If you encounter any unsolved audio/video output problem during system installation,
please dial the DIP switch to pin-1 at OFF[©], pin-2 at ON[ª], pin-3 at OFF[©], & pin-4 at
ON[ª] for safe mode to enforce the most compatible 720p stereo output for system check.
However, the safe mode cannot be initiated if your HDMI sources are set to enforce 1080p
output. In this case, please reconfigure your HDMI source to all resolution output for
troubleshooting.
5
Bypass means this device will maintain playing the original format of HDMI signals in video
and perhaps audio. By setting at this mode, the users may encounter compatibility issue
among different kinds of HDMI sources and displays. If you cannot get the audio and/or
video output normally at the system installation, please change the DIP switch setting to
default mode or even safe mode to verify the functionality of the device.
6
To learn the EDID of HDMI display for respective HDMI source devices, set (pin-1 and/or
pin-3) at ON[ª] first then connect the HDTV sets to respective HDMI inputs via HDMI cables.
Then please wait for 20 seconds for completing the EDID learning procedure. If you want to
learn the EDID from another HDTV, you must set pin-1 and/or pin-3) at OFF[©] first and
repeat this procedure all over again.
DIP Switch Position1
Video Audio Description
Pin-1 Pin-2
Pin-3 Pin-4
OFF [©] OFF [©] Up to 1080p Stereo
2
Default Mode3 – Up to 1080p & stereo audio output for
most HDTVs
OFF [©] ON [ª]
Up to
720p/1080i
Stereo
Safe Mode4 – Enforce the system output at 720p/1080i
video and stereo audio for basic compatibility among HDTV
ON [ª] OFF [©] Bypass
5
Bypass
5
EDID Learning6 Mode – for learning EDID from the display
while playing any received HDMI audio format
ON [ª] ON [ª]
Bypass Stereo
EDID Learning6 & Stereo Mode – for learning EDID from
the display while enforcing stereo output if any HDTV cannot
play surround sound normally
DIP Switch
7
Function Key Function Description
POWER Turn on/off HDMI over CAT5e/6/7 transmission on all eight output ports
Switch to the other channel from either HDMI INPUT 1 or HDMI INPUT 2 that is in play
Switch to the other channel from either HDMI INPUT 1 or HDMI INPUT 2 that is in play
SOURCE SELECT 1 Select HDMI INPUT 1 to be the input source
SOURCE SELECT 2 Select HDMI INPUT 2 to be the input source
F1 Mute on/off (audio off, video on) on all eight output ports
IR Control
8
Broadcasts HDMI signals to eight remote displays from either of two HDMI sources
1. Turn off all devices, including sources and displays.
2. Connect HDMI sources (such as a Blu-ray Disc player) to the HDMI INPUT 1 port and/or HDMI INPUT 2
port.
3. Connect the receivers (HDMI-EXT-0101C-RX or HDMI-EXT-1111C-RX) via Cat-5/5e/6 cables to each
HDMI Signal OUTPUT port.
4. Plug in 5V 4A DC power supply.
5. Power on the HDMI displays.
6. Power on the HDMI source devices.
Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL
Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 SDA
Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground
Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield Pin 18 +5 V Power
Pin 5 TMDS Data1 Shield Pin 12 TMDS Clock– Pin 19 Hot Plug Detect
Pin 6 TMDS Data1– Pin 13 CEC
Pin 7 TMDS Data0+ Pin 14 Reserved (N.C. on device)
Hardware Installation
HDMI Pin Definition
9
1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and
provide DVI/HDMI EDID information.
2. All HDMI over CAT5 transmission distances are measured using Belden CAT5e 125MHz LAN cable and
ASTRODESIGN Video Signal Generator VG-859C.
3. The transmission length is largely affected by the type of LAN cables, the type of HDMI sources, and the
type of HDMI display. The testing result shows solid LAN cables (usually in bulk cable 300m/1000ft form)
can transmit a lot longer signals than stranded LAN cables (usually in patch cord form). Shielded STP
cables are better suited than unshielded UTP cables. A solid UTP CAT5e cable shows longer transmission
range than stranded STP CAT6 cable. For long extension users, solid LAN cables are the only viable
choice.
4. EIA/TIA-568-B termination (T568B) for LAN cables is recommended for better performance.
5. To reduce the interference among the unshielded twisted pairs of wires in LAN cable, one can use
shielded LAN cables to improve EMI problems, which is worsen in long transmission.
6. Because the quality of the LAN cables has the major effect on how long the transmission limit can achieve
and how good is the received picture quality, the actual transmission range is subject to one’s choice of
LAN cables. For desired resolutions
7.
8. greater than 1080i or 1280x1024, a Cat-6 cable is recommended.
9. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input #1]
generally can produce better transmission performance among all HDMI inputs.
Performance Guide for HDMI over LAN Cable Transmission
Performance rating Type of LAN cable
Wiring Shielding CAT5 CAT5e CAT6
Solid
Unshielded (UTP)
Shielded (STP)
Stranded
Unshielded (UTP)
Shielded (STP)
Termination Please use EIA/TIA-568-B termination (T568B) at any time
Notice
