HDMI-SPL-2004H
1x4 HDMI 1.3 Distribution Amplifier
User Manual
Made in Taiwan
~ 1 ~
Safety and Notice
The HDMI-SPL-2004H 1x4 HDMI 1.3 Distribution Amplifier has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic
equipments, the HDMI-SPL-2004H should be used with care. Please read and follow the safety instructions
to protect yourself from possible injury and to minimize the risk of damage to the unit.
z Follow all instructions and warnings marked on this unit.
z Do not attempt to service this unit yourself, except where explained in this manual.
z Provide proper ventilation and air circulation and do not use near water.
z Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
z Use only the power adapter and power cords and connection cables designed for this unit.
z Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
~ 2 ~
The HDMI-SPL-2004H 1x4 HDMI 1.3 Distribution Amplifier provides the most cost effective and
advanced HDMI 1.3 splitter solution on the market, by which the high definition video and high quality audio
can be transmitted to 8 different locations without losing quality. With built-in USB firmware update
mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed.
With 12 bit deep color video and high definition audio support, HDMI-SPL-2004H is suitable for high quality
A/V broadcasting, digital signage and education applications!
Features
z HDMI 1.3c and DVI 1.0 compliant
z HDCP 1.2 compliant
z Wide Frequency Range: 25MHz~225MHz
z Video bandwidth: 6.75GBPS
z Supports conversion of HDMI signaling to DVI
z Resolution up to 1080p or WUXGA
z Automatic EDID learning
z Supports xvYCC
z USB firmware update for expanding compatibility
z Supports Dolby Digital, DTS-HD and Dolby True HD audio
z Easy installation
Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze all the
content of EDID. The EDID with minimal resolution support will be the reference EDID for incoming
HDMI source players.
I
ntroduction
~ 3 ~
Specifications & Package Contents
Model Name HDMI-SPL-2004H
Technical
HDMI compliance HDMI 1.3c [Deep Color, xvYCC color space supported]
DVI compliance DVI 1.1
HDCP compliance Yes
Video bandwidth Single-link 225MHz [6.75Gbps]
Video support Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz]
Audio support
DTS-HD Master Audio, Dolby TrueHD
Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±2kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
USB firmware
updatable
YES
CEC Channel No
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
Input 1x HDMI [7.1ch audio & video]
Output 4x HDMI [7.1ch audio & video]
HDMI connector
Type A [19-pin female]
Mechanical HDMI-SPL-2004H
Housing Metal enclosure
Dimensions
(L x W x H)
Model 204 x 92 x 27mm
Package 270 x 175 x 80mm
Carton 430 x 360 x 290mm
Weight
Model 720g
Package 980g
Fixedness Wall-mounting case with screws
Power supply Interlocking 5V 2A DC
Power consumption 4 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents
1x HDMI-SPL-2004H
1x 5V power adapter
1x User Manual
~ 4 ~
OUT 4
USB
Power
OUT 3
OUT 2
OUT 1
HDMI IN
+5V DC
Input Panel
1. HDMI IN: HDMI input source
2. HDMI OUT: distributed HDMI outputs
3. USB IN: for firmware update use only
4. Power: Red light means power is on
5. +5V DC interlocking power jack: connect to 5V 2A interlocking power supply unit
When the connected HDMI monitor is verified as HDMI and HDCP compliant, the corresponding
green LED will blink.
Panel Descriptions
1 2
3 4 5
~ 5 ~
OUT 4
USB
Power
OUT 3
OUT 2
OUT 1
HDMI IN
+5V DC

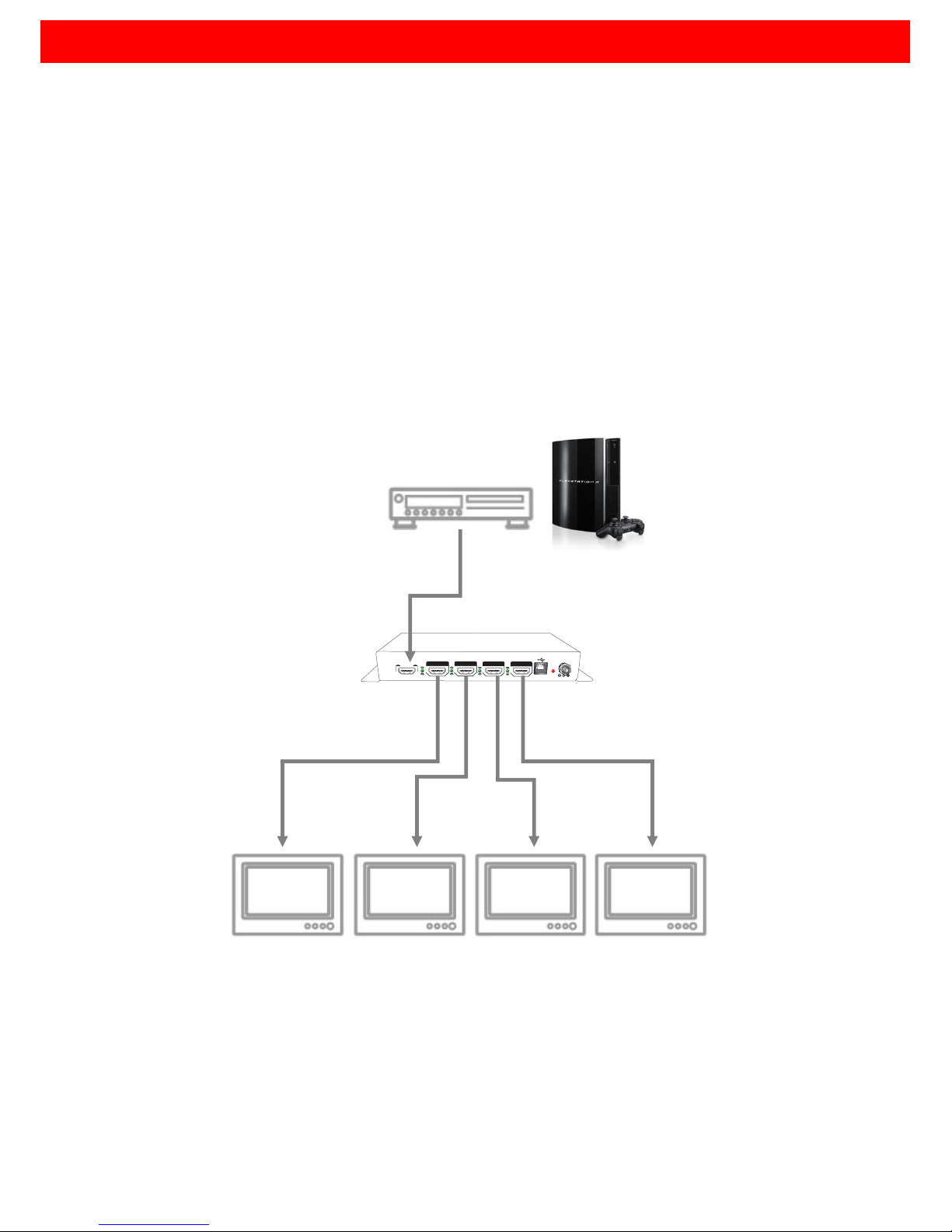

Broadcasts HDMI signal to 4 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the receivers.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.
Hardware Installation
HDMI-SPL-2004H
HDMI cable
HDMI cable HDMI cable
HDTV HDTV HDTV HDTV
HDMI source
~ 6 ~
1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be
expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the
HDMI input is necessary to update!
2. For long range high definition HDMI transmission applications, please adopt CAT-5 cable based HDMI
extenders.
3. For firmware update through USB, users MUST first turn off the power, plug USB cable connected to
your PC, and then power up the module! In this setup, the power LED indicator will NOT blink, and this
is normal! Execute the attached or download EPFlash.exe, and the following window will pop up. Click
on “OpenFile” button to direct to the new firmware HEX file, and keep PORT at USB 0! Meantime, keep
“Program With Verification” selected, and then click on “START” button on the bottom of the window!
Wait for seconds until the update process is completed! After firmware update is successfully
accomplished, please unplug USB cable and power off the splitter!
Notice
