Sato Vicinity MDOCR User Manual
Page 1 of 44
EMC Technologies Pty Ltd
ABN 82 057 105 549
Unit 3/87 Station Road
Seven Hills NSW 2147 Australia
Telephone +61 2 9624 2777
Facsimile +61 2 9838 4050
Email syd@emctech.com.au
www.emctech.com.au
APPENDIX L
OF
TEST REPORT T70719_F
USER MANUAL
FCC ID:
Manufacturer:
Test Sample:
Model:
Serial Number:
Date:
TVN-MDOCR
Magellan Technology
Document Tray Reader
MDOCR-2505
Prototype
30th July 2007
Melbourne
176 Harrick Road
Keilor Park Vic 3042
Tel: +61 3 9365 1000
Fax: +61 3 9331 7455
Sydney
Unit 3/87 Station Road
Seven Hills NSW 2147
Tel: +61 2 9624 2777
Fax: +61 2 9838 4050
Brisbane
1/15 Success St reet
Acacia Ridge Qld 4110
Tel: +61 7 3875 2455
Fax: +61 7 3875 2466
Auckland (NZ)
47 MacKelvie Street
Grey Lynn Auckland
Tel: +64 9 360 0862
Fax: +64 9 360 0861
MDOCR-2505
Document Tray Reader
Document Number : 54-70-007-DOC
Revision: 1.0
Last Changed : 18 July, 2007
Copyright © Magellan Technology 2007
All rights reserved
User Manual
2 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
REVISION HISTORY
Version Date Person Reason
Ver.1 07.2007 Bodo Ischebeck
To our valued customers
We constantly strive to improve the quality of all our products and documentation. We have spent time to ensure
that this document is correct. However, we realise that we may have missed a few things. If you nd any
information that is missing or appears in error, please use the contact section at the end of this document to
inform us. We appreciate your assistance to constantly improve this document.
Attention please!
The information herein is given to describe certain components and characteristics and is not to be considered
in any way as warranted or guaranteed. We hereby disclaim any and all warranties, including but not limited
to warranties of non-infringement, regarding circuits, descriptions and charts stated herein. No licenses to
patents or other intellectual property of Magellan Technology are granted in connection with the sale of Magellan
Technology’s products, expressly or by implication. If a failure of Magellan Technology products can reasonably
be expected to cause the failure of a life-support device or system, or to affect the safety or effectiveness of
that life-support device or system, then Magellan Technology’s products may only be used in such life-support
devices or systems with the express prior written approval of Magellan Technology. Magellan Technology shall
in no event be liable and disclaims any and all liability for any damage whatsoever caused by the information
provided or donated herein to the recipient under any legal cause whatsoever for any damage including, but
not limited to lost production, interrupted operations, lost prots, loss of information and data or loss of interest,
except where mandated by statute Terms of delivery and rights to technical change are reserved. Unauthorised
opening of equipment voids all rights to any claim on Magellan for repair or refurbishment. Magellan’s Terms of
Trade also always apply.
All rights of use are conditional upon the above terms.
18-Jul-07 54-70-007-DOC 3
User Manual MDOCR-2505
CONTENTS
REVISION HISTORY ................................................................................................................................................2
About this manual ......................................................................................................................................................5
Meaning of Alert Symbols and Signal Words ............................................................................................................5
Important Information ................................................................................................................................................5
1. INTRODUCTION ............................................................................................................................................
7
2. BEFORE YOU BEGIN ...................................................................................................................................
9
2.1 Unpacking and Inspection ..............................................................................................................................
9
2.1.1 Power Pack ....................................................................................................................................................
9
2.1.2 Data Communication Cables .......................................................................................................................
10
2.1.3 CD-ROM ......................................................................................................................................................
10
2.2 Recommended System Requirements ........................................................................................................
11
3. PRODUCT OVERVIEW ...............................................................................................................................
13
3.1 MDOCR-2505 ..............................................................................................................................................
13
4. INSTALLATION ...........................................................................................................................................
15
4.1 Quick Start Guide .........................................................................................................................................
15
4.2 Hardware Installation ...................................................................................................................................
16
4.2.1 Connecting to a power supply ......................................................................................................................
16
4.2.2 Connecting a Reader to a Computer using USB .........................................................................................
18
4.2.3 Connecting a Reader to a Computer using Ethernet ...................................................................................
18
4.2.4 Connecting Multiple Readers to a local network ..........................................................................................
19
4.3 ReaderManager Software Installation ..........................................................................................................
19
4.3.1 Installation and Functionality Test ................................................................................................................
19
4.3.2 Upgrading software ......................................................................................................................................
20
4.4 Connecting to a Reader using ReaderManager ...........................................................................................
21
4.4.1 Getting an IP address using Ethernet ..........................................................................................................
22
4.4.2 Getting an IP address using USB ................................................................................................................
23
4.4.3 Getting a Reader connected using the ReaderManager ..............................................................................
25
4.5 Communication Test ....................................................................................................................................
27
5. WORKING WITH TAGS ..............................................................................................................................
29
5.1 How to reconfigure tags individually or en masse ........................................................................................
29
5.2 How to check a tag configuration mode .......................................................................................................
30
5.3 How to check a Tag Chip Type (IT or ST) ....................................................................................................
30
5.4 Tag-to-Reader Orientation and Position inside the Reader .........................................................................
31
6. APPENDIX ...................................................................................................................................................
33
6.1 Specifications ...............................................................................................................................................
33
6.2 Regulation and Standards ............................................................................................................................
34
6.2.1 FCC Radio Frequency Interference Statement (USA) .................................................................................
34
6.2.2 Industry Canada Radio Frequency Interference Declaration of Conformity ................................................
34
6.2.3 CE Declaration of Conformity (European Union) .........................................................................................
34
6.2.4 ACMA Declaration of Conformity (Australia) ................................................................................................
35
6.2.5 ISO/IEC 18000 – 3 Mode 2 (Air Interface at 13.56 MHz) Compliance .........................................................
35
6.2.6 Human Safety ..............................................................................................................................................
35
6.3 Glossary of Terms and Abbreviations ..........................................................................................................
36
6.4 Troubleshooting ...........................................................................................................................................
38
6.4.1 LEDs ............................................................................................................................................................
38
6.4.2 Connecting a Reader ...................................................................................................................................
39
6.5 Reporting a Problem ....................................................................................................................................
40
4 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
6.5.1 Warranty Repairs .........................................................................................................................................40
6.5.2 Non-Warranty Repairs .................................................................................................................................
40
6.5.3 Warranty .......................................................................................................................................................
41
6.5.4 Limitation of Liability .....................................................................................................................................
41
6.5.5 Service Form
(editable pdf-file on your cd) ....................................................................................42
6.6 Contact us .................................................................................................................................................... 43
18-Jul-07 54-70-007-DOC 5
User Manual MDOCR-2505
About this mAnuAl
Please read this document before using Magellan’s readers.
This manual is designed for use by engineers experienced with Radio Frequency Identication (RFID) devices. Regulatory,
safety and warranty notices that must be followed are given in chapter 7.5 and 7.8.
meAning of Alert symbols And signAl Words
Notes and Tips. Application Notes.
Requires your attention.
Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or
may result in serious injury or death. Can cause signicant property damage.
importAnt informAtion
Installation Environment
For indoor use only unless otherwise specied.
Install Magellan’s readers within the temperature and humidity range according to the product specication.
For standard readers the temperature range is from +10°C to +45°C. The humidity range is from 10% to 80%
(non-condensing humidity).
The environment must not contain corrosive, ammable or explosive agents or be subject to rapid changes
in temperature, to direct vibration or shock.
Installation
Magellan’s RFID reader-writers communicate with data carriers (RFID inlets, labels and tags) using the
13.56 MHz High Frequency (HF) band. Some industrial machines and electronic devices can generate
unwanted noise which may degrade communication. Make sure that other equipment is properly installed,
grounded and at a reasonable distance from the reader and/or reader antennas.
Wireless communication can be degraded by high-voltage and high-current lines and other sources of strong
electric and magnetic elds. Installation in such locations should be avoided.
•
•
•
•
6 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
Magellan’s RFID reader-writers are to be professionally installed by authorised, qualied and service-
trained installation personnel only.
Maintenance
All Magellan’s RFID readers-writers are low maintenance equipment. Except for externally accessible fuses
there are no user-serviceable parts in any reader. There is no requirement to remove the cover of the reader.
Removal of the reader cover by unauthorised personnel will void the product warranty.
Do not attempt to clean internally. Periodic cleaning of external case parts with a damp cloth is advisable. Turn
off the reader before cleaning. Do not use a solvent of any kind.
Electrical Safety
In order to avoid electric shock do not remove the reader cover or attempt to repair. The reader must be
maintained by authorised, qualied and service-trained personnel only.
Environmental
For disposal readers should be treated as industrial waste.
This symbol on the product or on its packaging indicates that this product shall not be treated as household
waste. Instead it shall be handed over to an appropriate collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city ofce, your household waste disposal
service or the Magellan Technology regional sales ofce.
18-Jul-07 54-70-007-DOC 7
User Manual MDOCR-2505
1. INTRODUCTION
Thank you for your recent purchase of a Magellan RFID reader-writer.
This User Manual will provide you with information to rapidly adopt Magellan’s PJM technology for your needs,
to install the reader hardware and ReaderManager software and get the reader running.
Refer to the 66V10 PJM Condential Data Book (36-10-006-SPC)for the description of the PJM ItemTag® and
PJM StackTag® products of Magellan Technolgoy.
Refer to the ReaderManager Guide (40-01-006-DOC) for a description of the various tools and advanced options
available in the ReaderManager software.
Programming is covered in the Application Programmer’s Guide (40-01-000-DOC).
Refer to Appendix 6.2 of this manual for details of the Regulations and Standards to which this product
complies.
For details of product Warranty refer to Appendix 6.5 of this manual.
For a Glossary of Terms and Abbreviations used in this manual, refer to Appendix 6.3
Magellan reserves the right to change its product design, specications and product range without notice. This
document is subject to change without notice.
This document is protected by copyright and is intended solely for use in conjunction with Magellan’s products.
This document shall not be copied, reproduced or transmitted in any form or by any means without written
permission from Magellan Technology Pty Limited.
8 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
18-Jul-07 54-70-007-DOC 9
User Manual MDOCR-2505
2. BEFORE YOU BEGIN
2.1 unpAcking And inspection
When you receive your system, inspect it for any obvious damage that may have occurred during shipment. If
there is damage, notify the shipping carrier and the supplier of the equipment or Magellan if purchased directly
from Magellan.
Until you have checked the system, save the shipping carton and packaging materials in the event the unit
has to be returned.
The standard MDOCR-2505 package includes the following components:
Reader-writer unit
Power adapter
USB data communication cable
Quick Start Guide
CD-ROM
2.1.1 poWer pAck
The Reader is connected to the power source via a low voltage power pack (12VDC output).
A power cable is not included. End-users should purchase a power cable suitable for the country in which
the equipment is being used.
Only power cables and adapters that are compliant with the regulations in the country of use may be
connected to Magellan’s equipment.
•
•
•
•
•
10 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
2.1.2 dAtA communicAtion cAbles
Magellan supplies USB shielded cables (USB 2.0, 2 m long).
As shielded cables are generally required in order to comply with EMC emissions limits, the shielded cables
recommended by Magellan Technology must be used. Unshielded cables may be used where explicitly allowed
in the Installation Requirements section of this User Manual.
USB cable should not be longer than 3m
Ethernet cable is not included with the supply.
Magellan recommends CAT5 STP (shielded twisted pair) Ethernet cable.
2.1.3 cd-rom
The CD-ROM contains the following les:
AdbeRdrxx_enu_full.exe
Self-extracting installation software for Adobe Acrobat reader,
which is required to read and print PDF les
40-01-000-DOC
Application Programmer Guide.pdf
PDF document describing how to program all of Magellan’s
readers
40-01-006-DOC
ReaderManager Guide
PDF document describing various tools and advanced options
available in ReaderManager software
54-70-007-DOC
User Manual.pdf
PDF version of this document
ReaderManager-Install.exe Self-extracting installation software for the ReaderManager
Once you installed the ReaderManager software the User Manuals and Guides can be opened in Windows:
Start -> (All) Programs -> Magellan Technology -> User Manuals
18-Jul-07 54-70-007-DOC 11
User Manual MDOCR-2505
2.2 recommended system requirements
Recommended minimum host computer requirements:
Operating System: Windows XP SP2
Memory: 128MB RAM
Hard Drive: 20 GB
CPU: Intel Celeron 500
Interface: USB or Ethernet
Power supply requirements:
Mains input: 110 - 240 VAC @ 50/60 Hz
Input Rating (MDOCR-2505): 12 VDC @ 1 A
•
•
•
•
•
•
•
12 54-70-007-DOC 18-Jul-07
MDOCR-2505 User Manual
18-Jul-07 54-70-007-DOC 13
User Manual MDOCR-2505
3. PRODUCT OVERVIEW
Magellan’s RFID readers are intended to read and write information to individual Magellan ItemTags and multiple
Magellan StackTags.
The communication protocol used by the reader is compliant with ISO/IEC 18000 - 3 Mode 2 (Air Interface at
13.56 MHz).

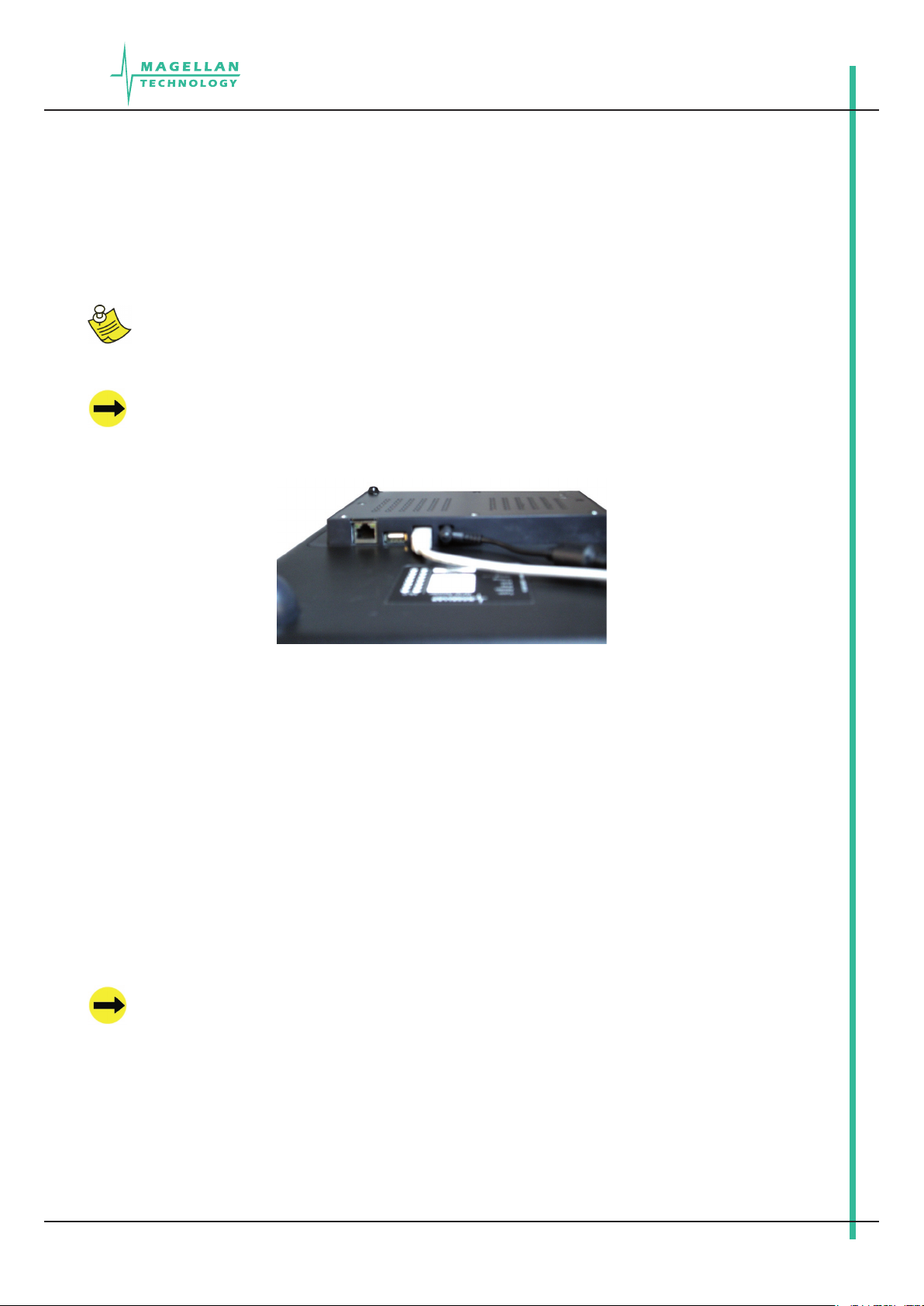

3.1 mdocr-2505
Document Tray Reader
2 PJM reply channels
Available in blue and green
Loading...
