satmap active12,Active 12 User Manual

Download

satmap.com

Full User Guide Software v2.0.xxxx

i. Contents

i. Contents ............................................................2

ii. Basic Layout ......................................................4

iii. Map Screen Layout ...........................................5

1. 

2. 

2.1 Safety & Care Tips: ............................................7

2.2 Battery Charging ................................................ 7

2.3 Spare Batteries .................................................7

2.4 Acquiring a Lock / GPS Accuracy ...................... 7

2.5 Spare Mapping .................................................7

2.6 Understanding Your Map ................................... 7

2.7 Extreme Weather Care Tips .............................. 8

2.8 In extreme weather conditions:..........................8

2.9 In the case of water submersion:.......................8

2.10 Missing/worn parts: ............................................ 8

 

3.1 Battery Power .................................................... 9

3.2 Switching On, Off & Hibernate ........................... 9

3.3 Keyboard Lock ................................................... 9

3.4 Map Card Insertion ........................................... 10

3.5 Base Mapping ................................................... 10

3.6 Battery Indicator & Stop/Record Icon ................10

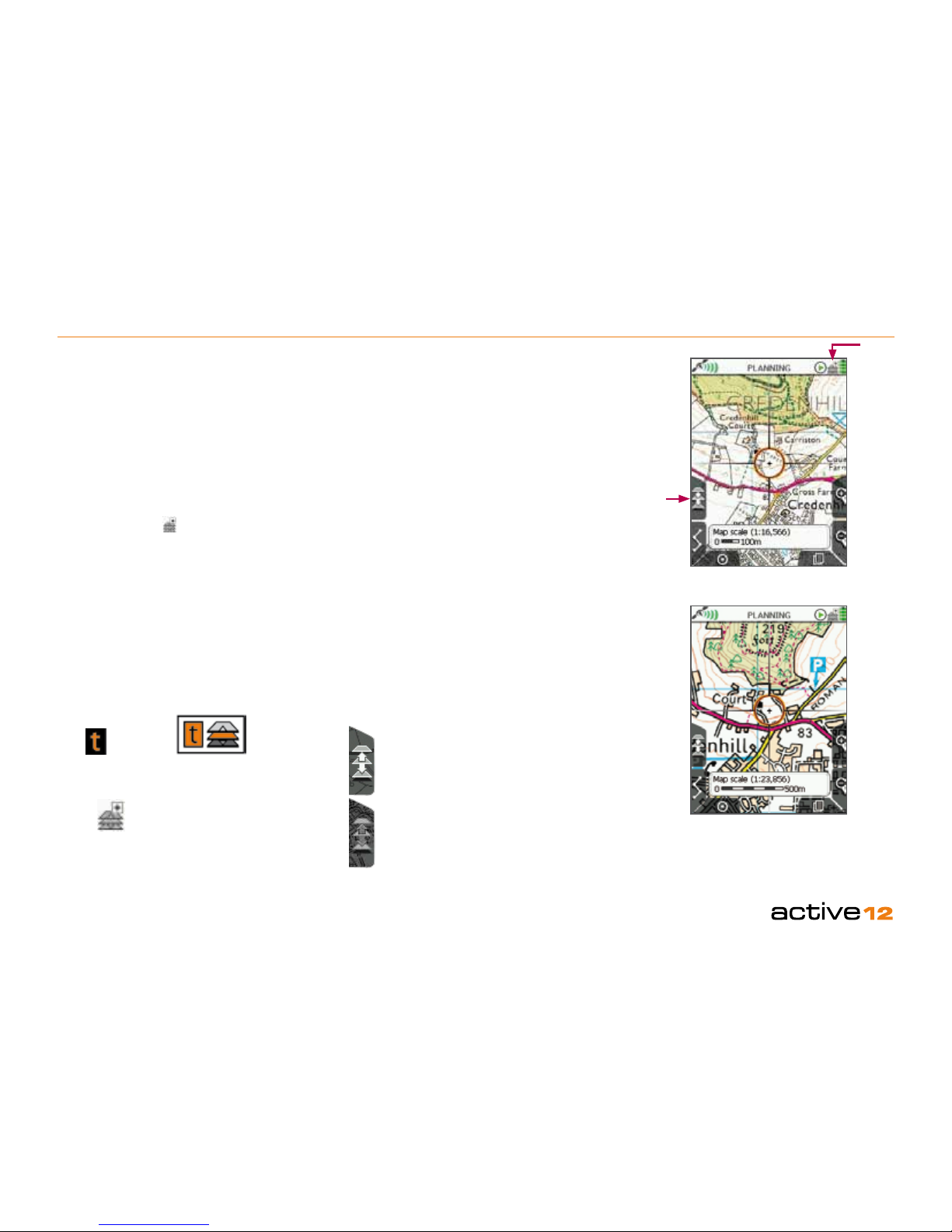

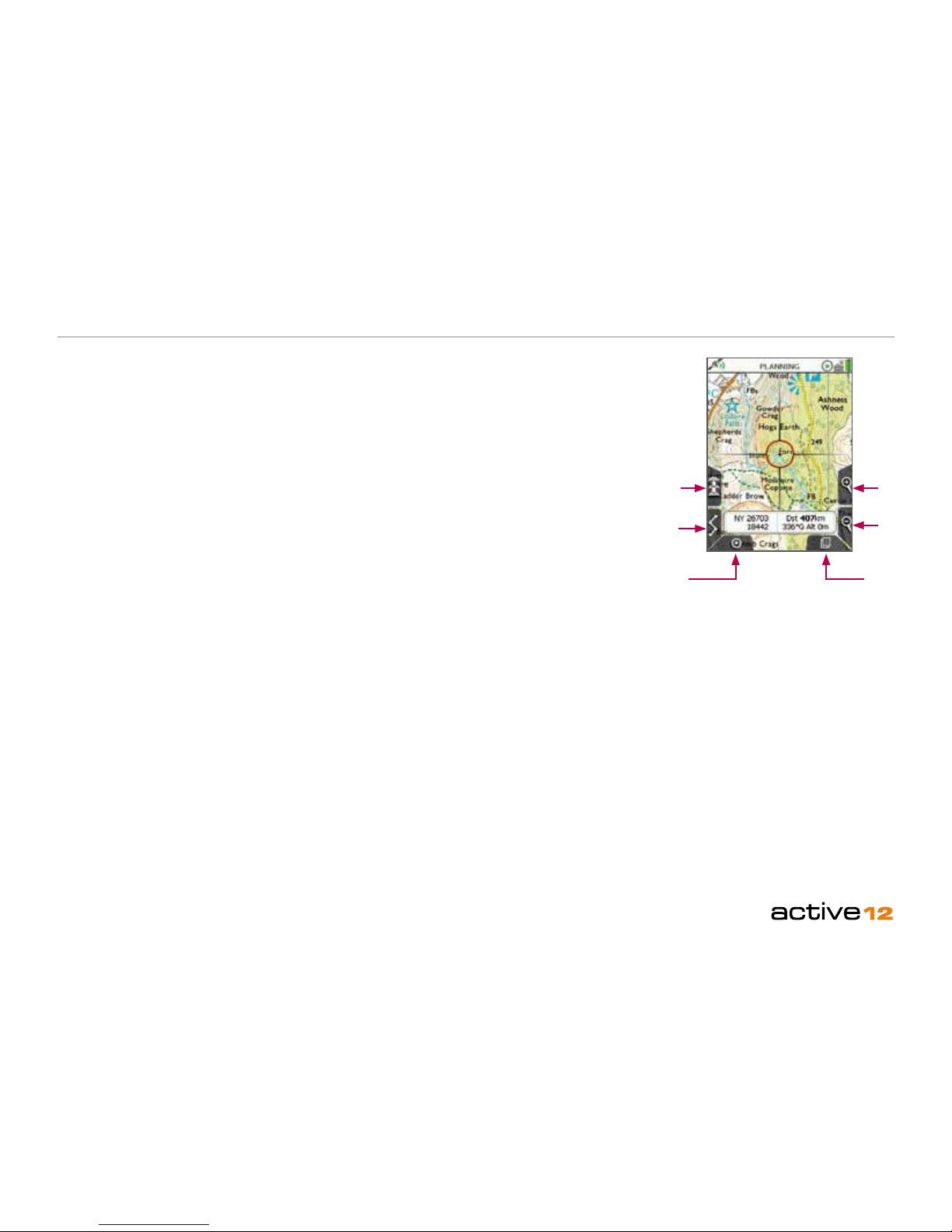

3.7 'PLANNING' Mode .............................................10

3.8 SatSYNC ..........................................................10

 

4.1 Primary Screen 1:  .......................... 12

4.1.1 GPS MAP Screen ..............................................12

4.1.2 Toggleable Maps ...............................................13

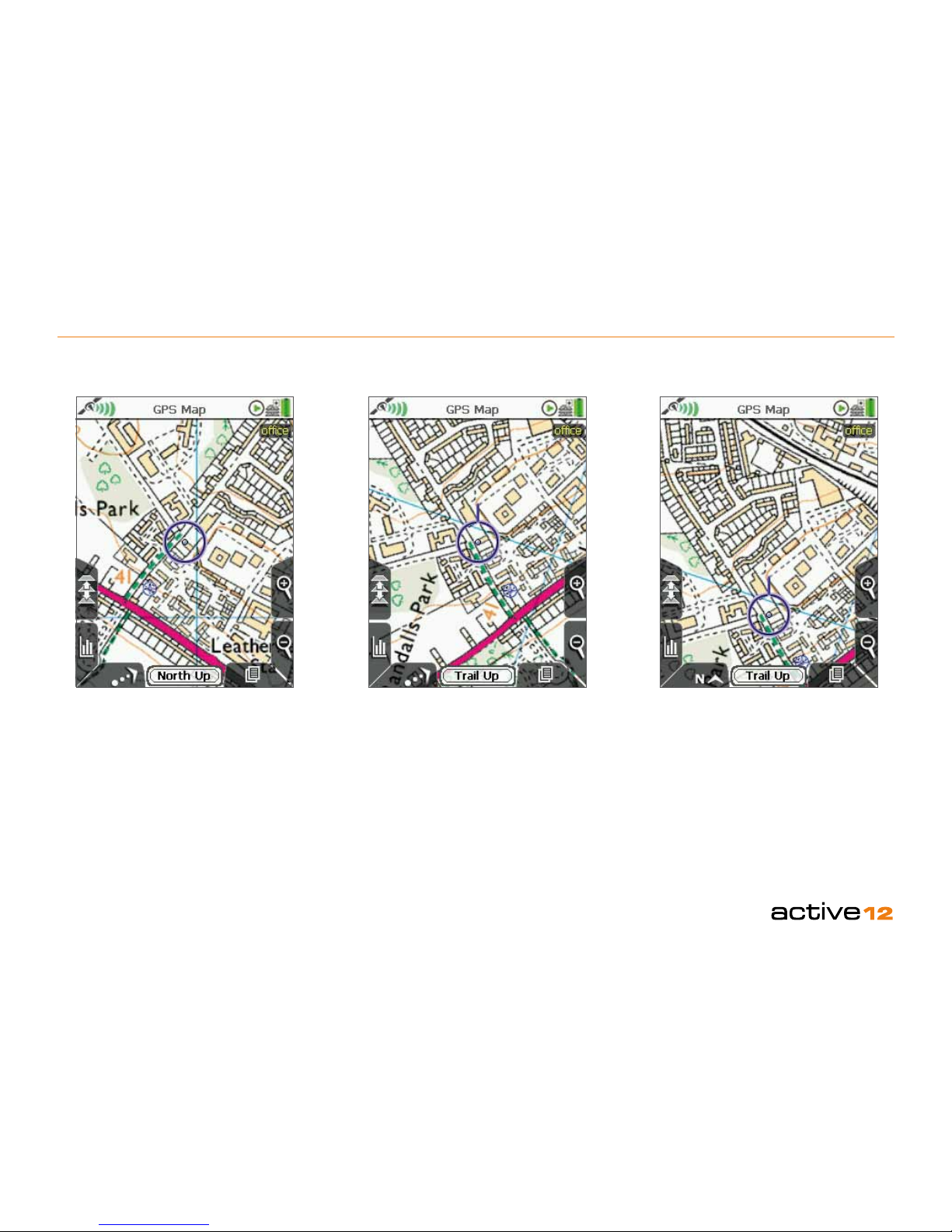

4.1.3 Map orientation .................................................14

4.1.4 Map Packs Screen ............................................15

4.2 Primary Screen 2:  ........................ 16

4.3 Primary Screen 3:  ..............17

4.4 Primary Screen 4:  ..........................18

4.4.1 To access TRIP LOG Screen ............................18

4.4.2 Convert Trail to Track ........................................19

4.4.3 Convert Trail to LOI/AOI .................................... 19

4.4.4 Geotag Photos with Trip Log Data.....................19

4.5 Primary Screen 5:  ..................... 20

4.6 Primary Screen 6:  ...... 21

4.6.1 To access COMPASS screen ............................21

4.6.2 POINTER Screen ..............................................22

4.7 Primary Screen 7:  .................23

4.8 Primary Screen 8:  .................... 25

   

6.1 Access SETTINGS MENU screen ..................... 27

6.2 Power Control .................................................28

6.3 Advanced Power Control ...................................29

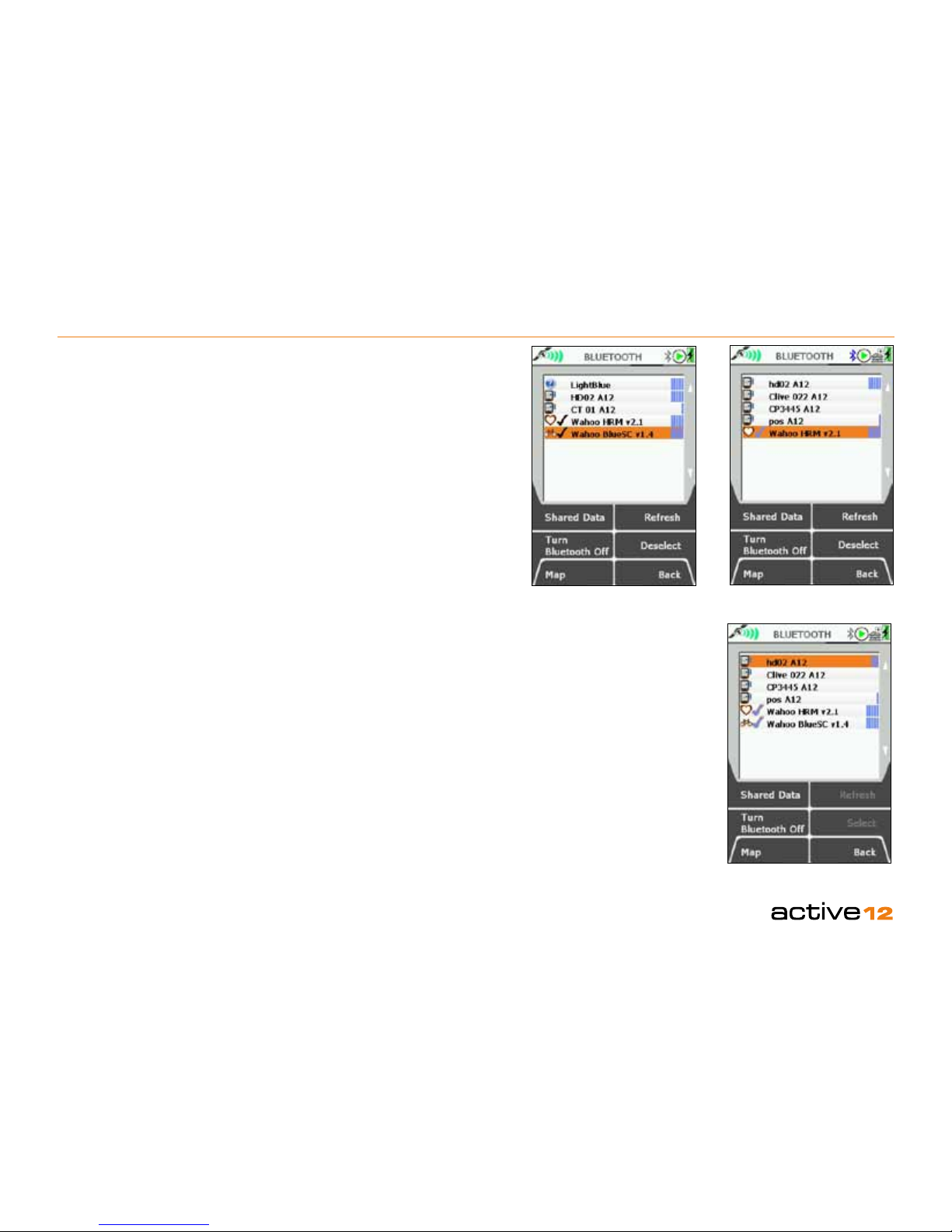

6.4 Bluetooth ...........................................................30

6.5 Elevation ............................................................33

6.6 Backlight ............................................................ 35

6.7 Screen Data Capture .........................................36

6.8 Data Boxes ........................................................ 37

6.8.1 2 Data Box Layout ............................................. 37

6.8.2 4 Data Box Layout (upper) ................................38

6.8.3 4 Data Box Layout (lower) .............................. 38

6.8.4 Options for 2 & 4 Data Boxes ............................ 39

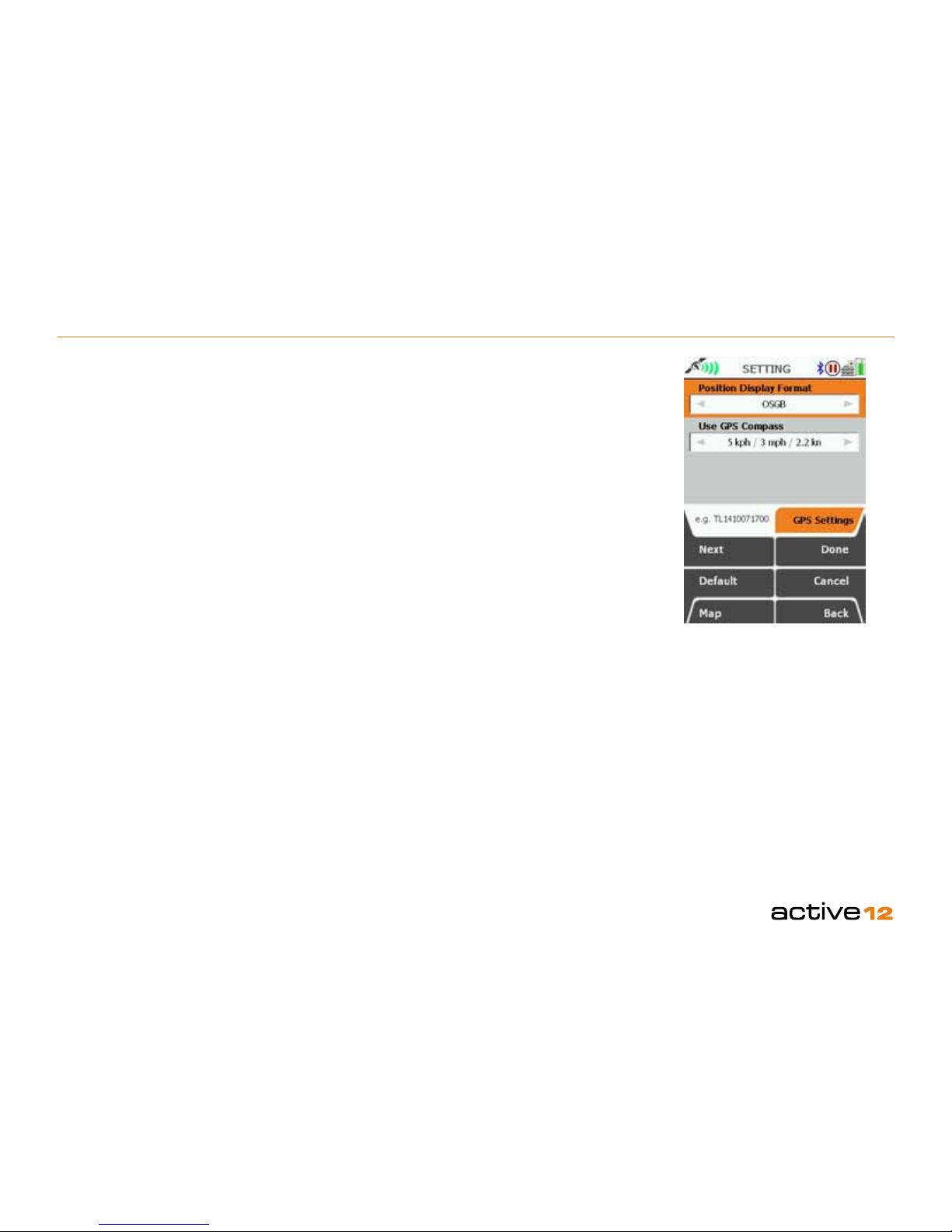

6.9 GPS Settings ..................................................... 41

6.10 Memory Status ................................................42

6.11 Units and Set Speed .......................................43

6.12 Compass Settings ........................................44

6.13 Calibrate Compass ......................................... 45

6.14 Set Trip Data ......................................................46

6.15 Volume Control ..............................................47

6.16 Button Control ................................................ 47

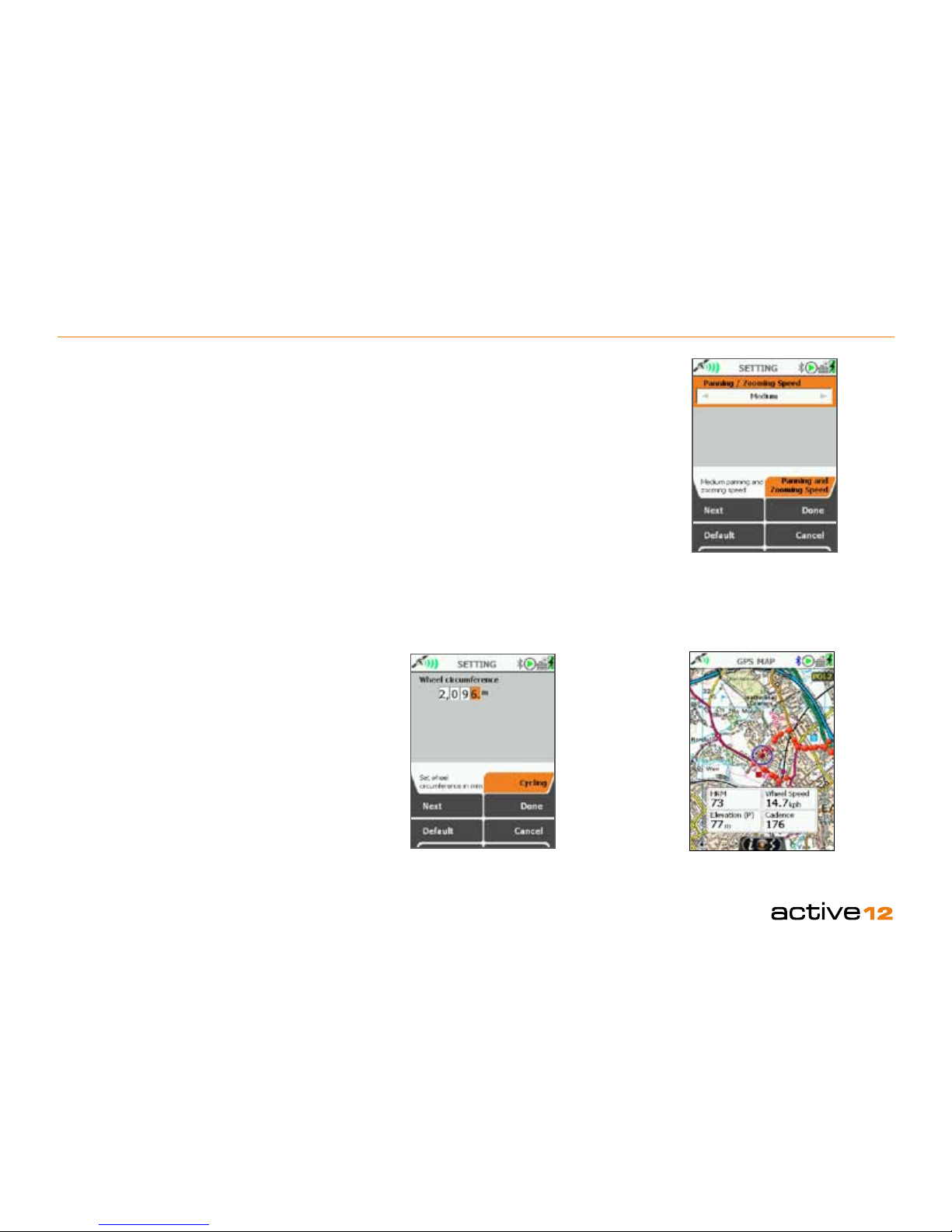

6.17 Pan and Zoom Speed ....................................48

6.18 Cycling ...........................................................48

6.19 Screen Data Options ....................................49

6.20 Time Offset .................................................... 49

6.21 Enter User Name ...........................................49

6.22 Languages .....................................................50

6.23 About .............................................................50

 

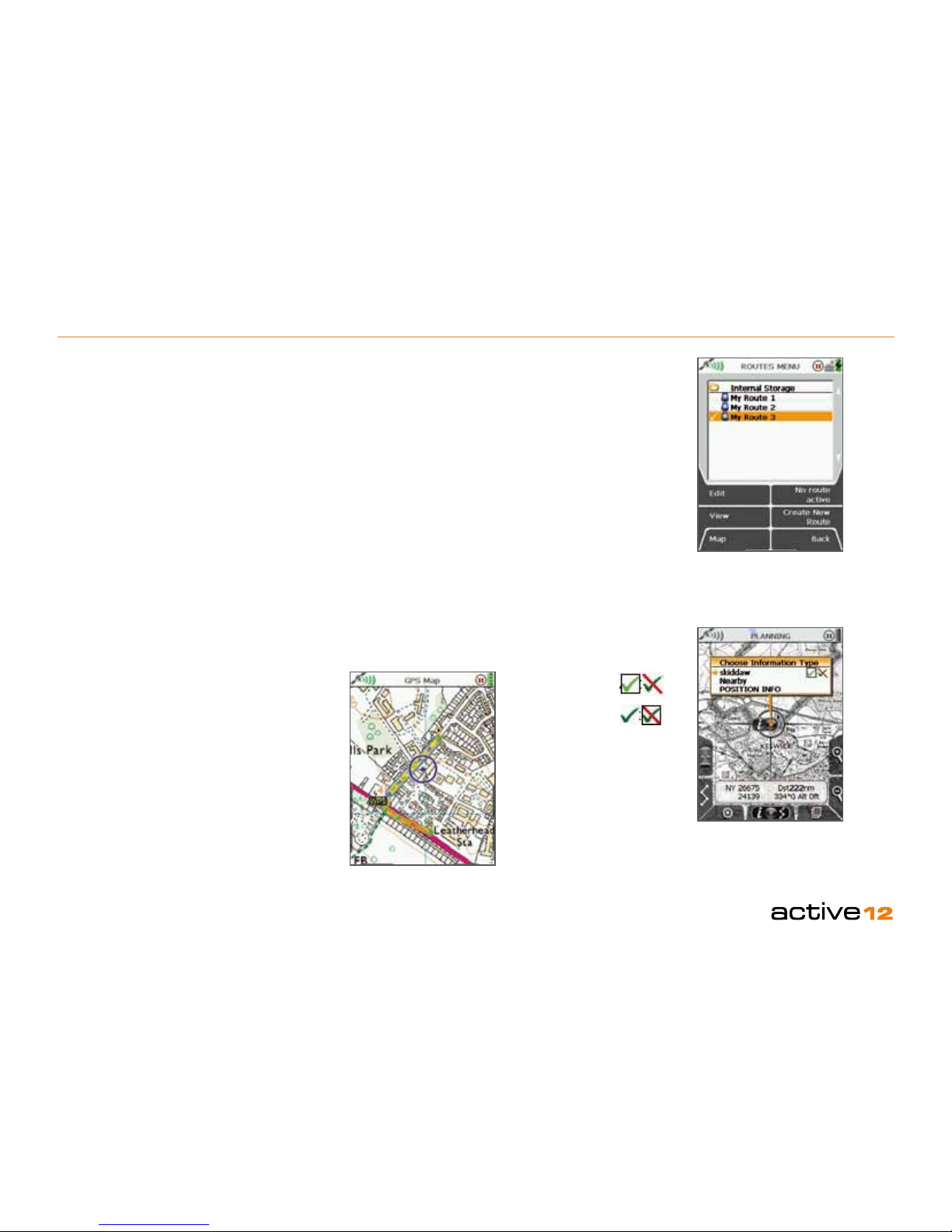

7.1 ROUTES MENU Screen ................................. 51

7.2 Active and Inactive Routes ............................... 52

7.3 Following a Route ..............................................52

7.4 Create New Route ........................................... 53

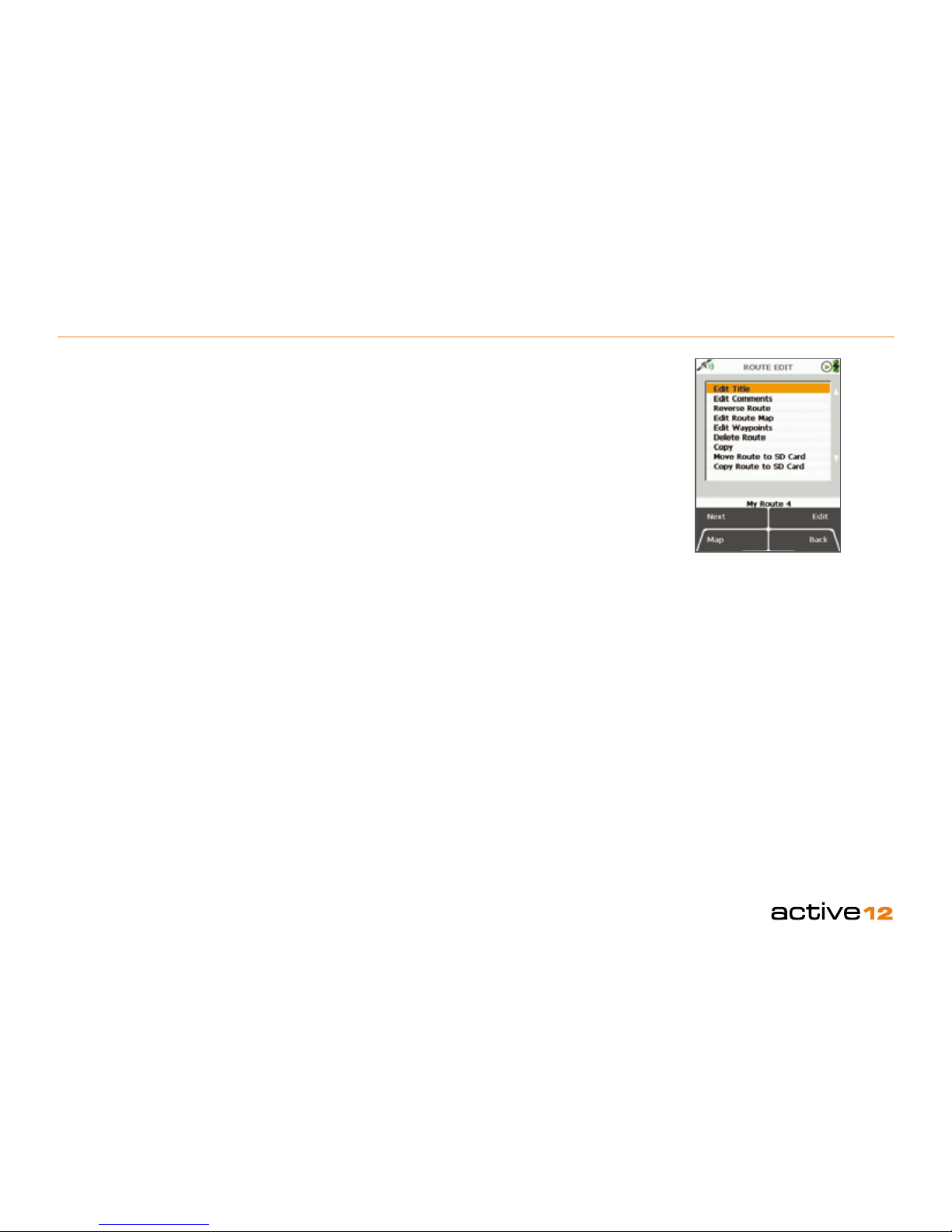

7.5 Route Edit Screen ..........................................54

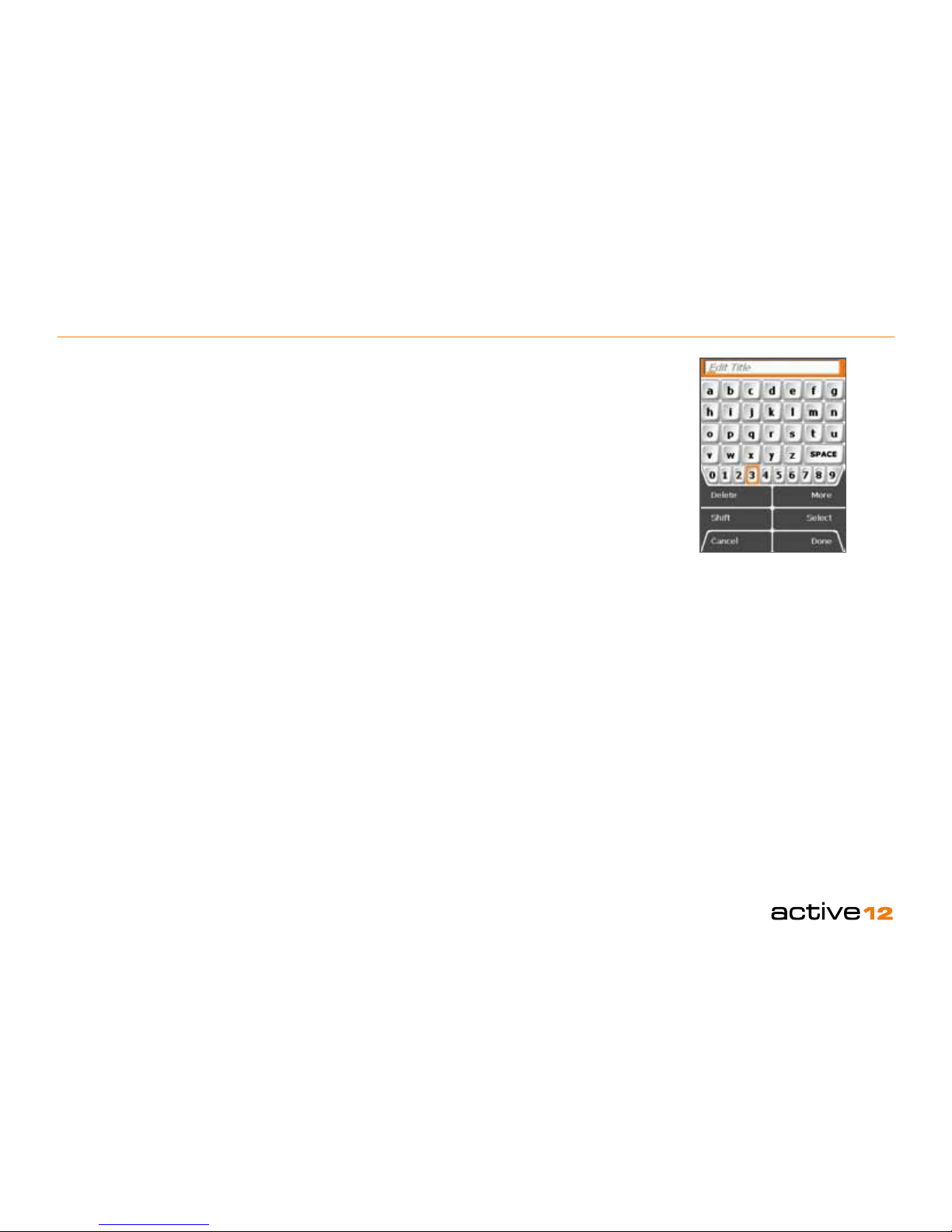

7.6 Edit Title .......................................................... 55

7.7 Edit Comments ................................................ 55

7.8 Reverse Route .................................................. 55

7.9 Edit Route Map .................................................56

7.10 Edit Waypoints .................................................. 56

7.11 Edit Active Route Colour ...................................57

7.12 Delete Route ...................................................... 57

7.13 Copy ..................................................................57

7.14 Move Route to SD Card ....................................57

7.15 Copy Route to SD Card .....................................57

7.16 ROUTE MAP Screen .........................................58

7.17 ROUTE PLAN Screen .......................................59

7.18 ROUTE CARD Screen ......................................60

7.19 Routes Folders ..................................................61

    



10.1 OOI Menu ......................................................... 64

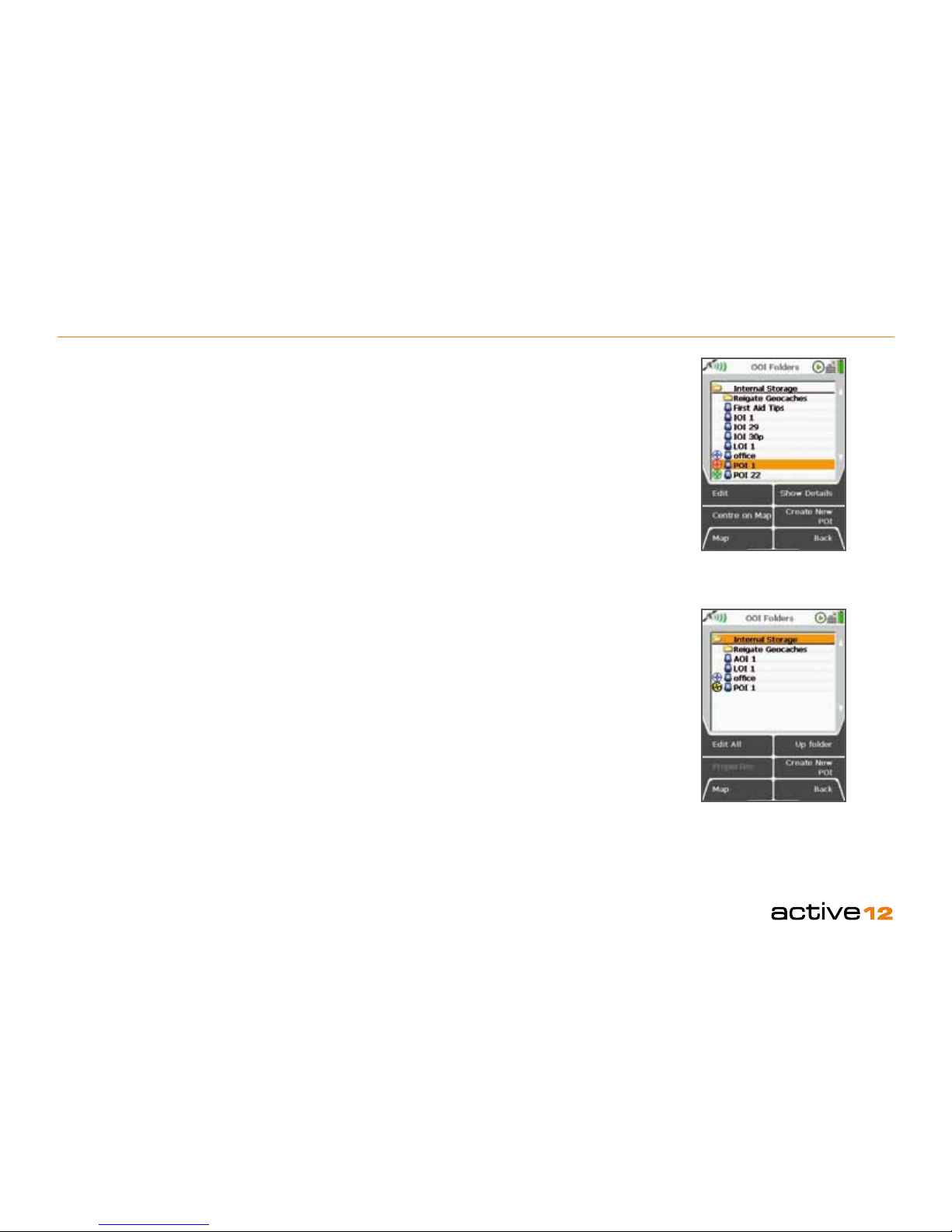

10.2 OOI Folders ....................................................... 65

 

11.1 POIs Overview ................................................... 66

11.2 Add POI by Map ................................................66

11.3 Add POI by Grid Reference ...............................67

11.4 Add POI by Postcode (UK only) ........................67

11.5 Add POI in a Specic Folder .............................67

11.6 POI Details Screen ............................................ 67

11.7 Edit POI Menu ...................................................68

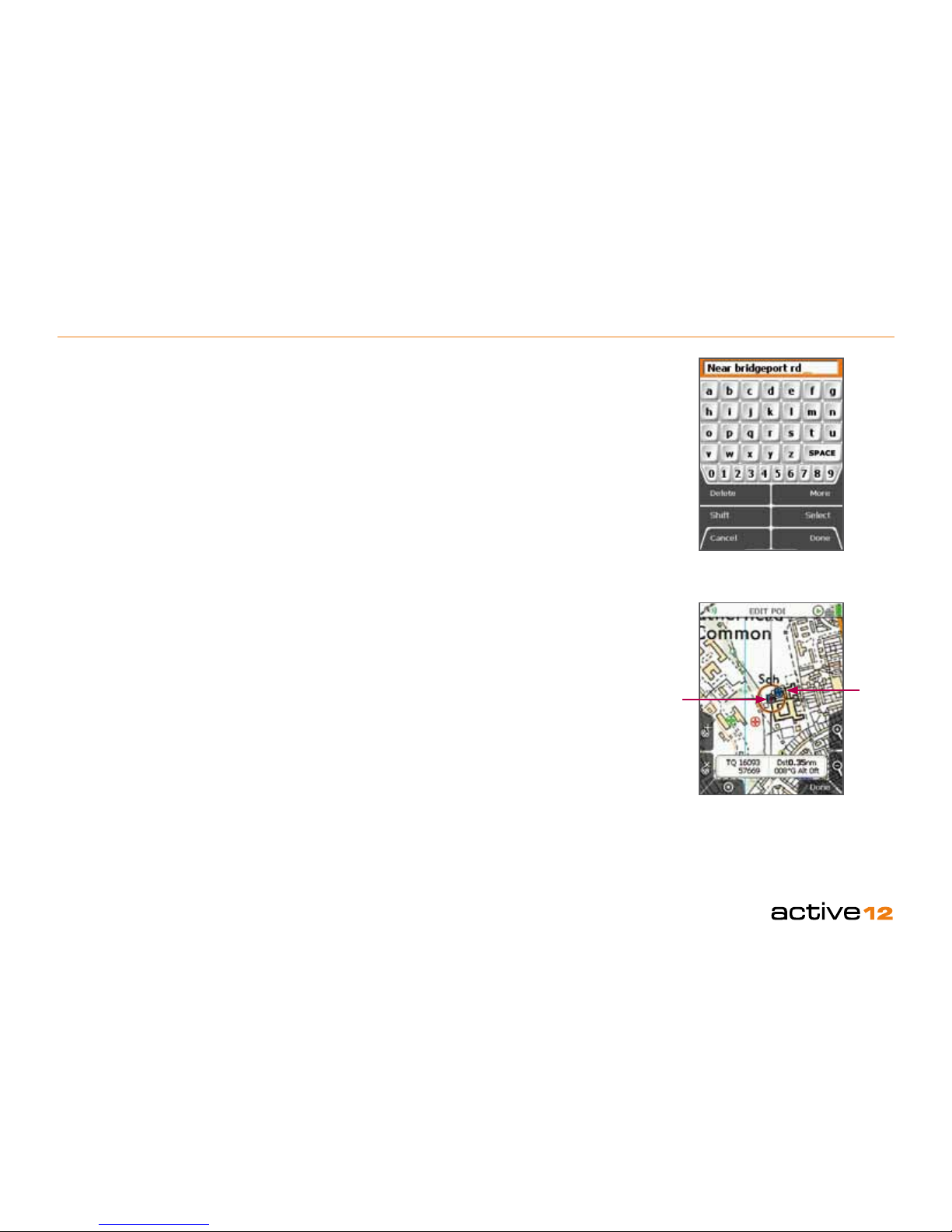

11.8 Rename POI ......................................................69

11.9 Edit Description .................................................69

11.10 Edit Location by Map ........................................ 69

11.11 Edit Location by Grid ........................................ 69

11.12 Edit Warning Radius ..........................................70

11.13 Edit Visibility ......................................................70

11.14 Edit POI Icon .....................................................70

11.15 Delete ................................................................70

11.16 Move to SD Card ............................................... 70

11.17 Copy to SD Card ...............................................70

 

12.1 AOIs (Areas of Interest) Overview .....................71

12.2 Add AOI Screen ................................................. 71

12.3 Add AOI in a Specic Folder..............................71

12.4 AOI Details Screen ............................................ 72

12.5 Edit AOI Menu ...................................................73

12.6 Rename AOI ......................................................74

12.7 Edit Description .................................................74

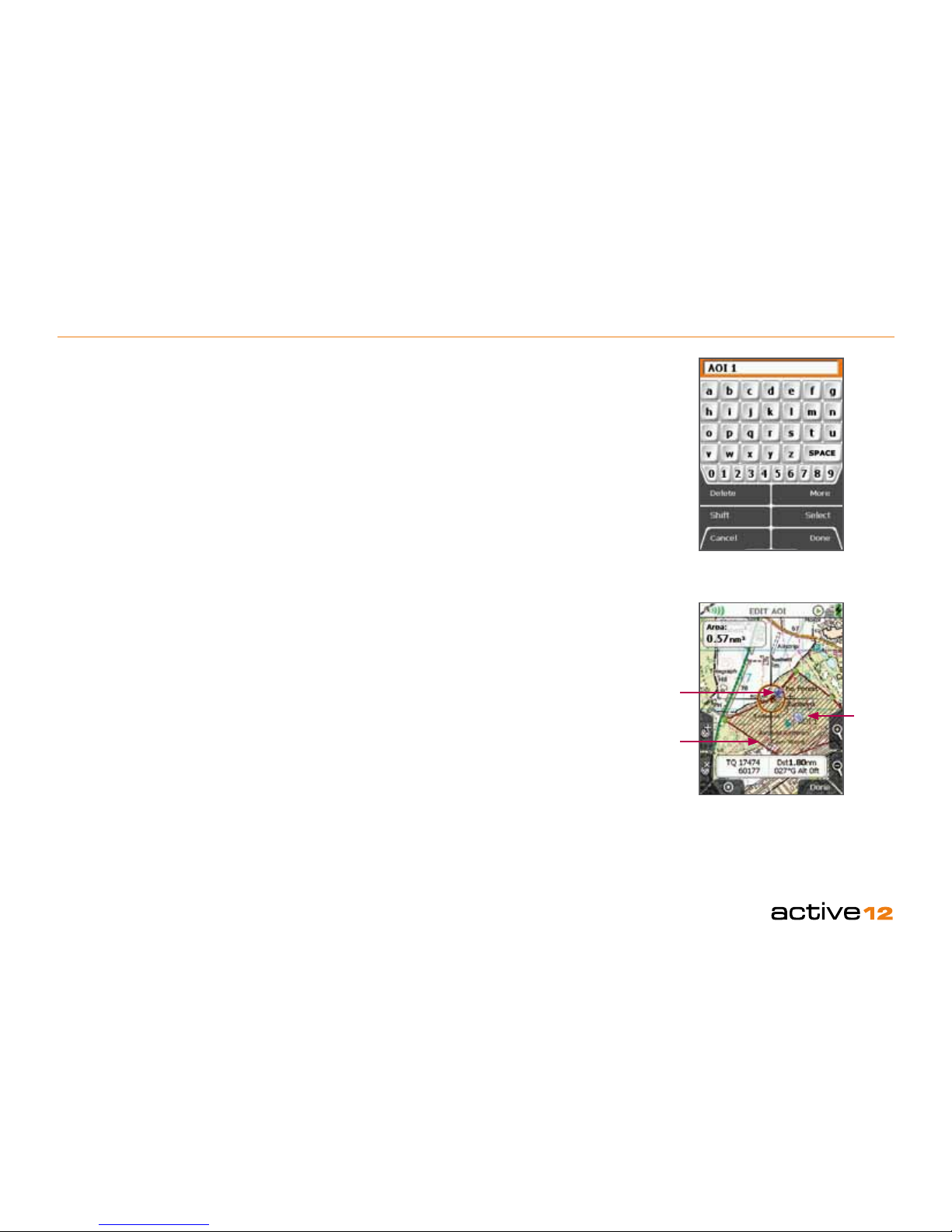

12.8 Edit Location by Map ........................................ 74

12.9 Edit Visibility ......................................................74

12.10 Edit Colour .........................................................75

12.11 Edit Pattern .......................................................75

12.12 Delete ................................................................75

12.13 Move to SD Card ............................................... 75

12.14 Copy to SD Card ...............................................75

 

13.1 LOIs (Lines of Interest) Overview ...................... 76

13.02 Add LOI Screen ................................................. 76

13.03 Add LOI in a Specic Folder ..............................76

13.4 LOI Details Screen ............................................77

13.5 Edit LOI Menu .................................................... 78

13.6 Rename LOI ......................................................79

13.7 Edit Description .................................................79

13.8 Edit Location by Map ........................................ 79

13.9 Edit Visibility ......................................................80

13.10 Edit Colour .........................................................80

13.11 Delete ................................................................80

13.12 Move to SD Card ............................................... 80

13.13 Copy to SD Card ...............................................80

 

14.1 Grids Overview .................................................. 81

14.2 Add Grid Screen ................................................ 81

14.3 Add Grid in a Specic Folder .............................82

14.4 Grid Details Screen ...........................................82

14.5 Edit Grid Menu ................................................... 83

14.6 Rename Grid .....................................................84

14.7 Copy ..................................................................84

14.8 Delete ................................................................84

14.9 Move to SD Card ............................................... 84

14.10 Copy to SD Card ...............................................84

14.11 Edit AOIs Within a Grid ...................................... 85

 

15.1 IOIs (Items of Interest) Overview .......................86

15.2 Add an IOI .........................................................86

15.3 Add IOI in a Specic Folder ...............................86

15.4 IOI Details Screen .............................................86

15.5 Edit IOI Screen ..................................................87

15.6 Rename IOI .......................................................88

15.7 Edit Description .................................................88

15.8 Delete ................................................................88

15.9 Move to SD Card ............................................... 88

15.10 Copy to SD Card ...............................................88

 

16.1 GoTo and Marker Overview ...............................89

16.2 GoTo & Marker – Set By Coords ......................89

 

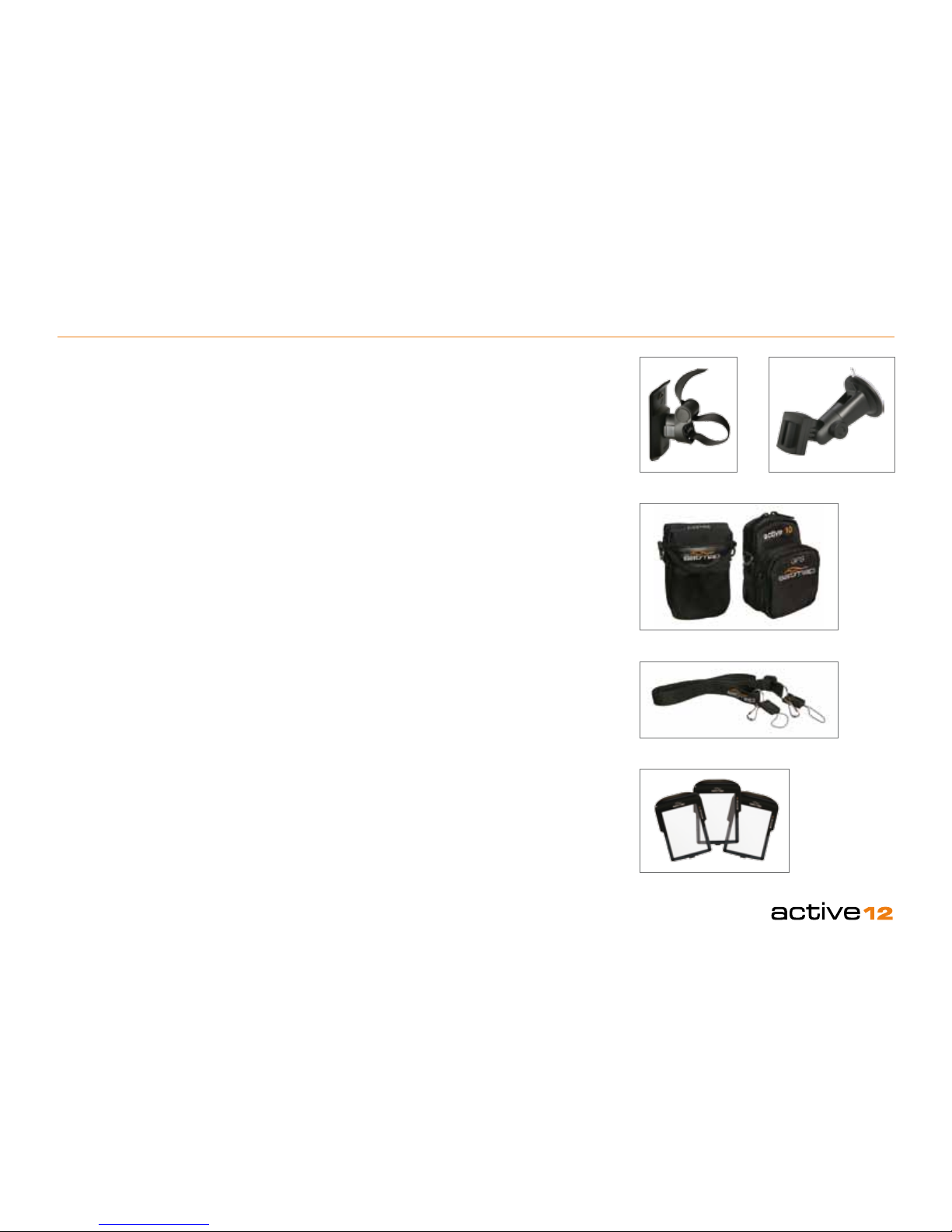

17.1 Bike Mount. ....................................................... 90

17.2 Vehicle Mount. ..................................................90

17.3 Carry Cases (Standard & Deluxe) ..................... 90

17.4 Lanyard. ............................................................. 90

17.5 Screen Cover. ................................................... 90

17.6 ProSHIELD (Silicon protective case) .................90

17.7 ZAGG invisibleSHIELDTM ................................91

17.9 Standard Power Bundle.....................................91

17.10 Slimline Power Bundle ...................................... 91

17.11 Solar Power Bundle ..........................................91

 

18.1 General Service .................................................92

18.2 World Base Map ................................................ 92

18.3 Specialized Custom Map Service ......................92

18.4 Toggleable Map Service ....................................92

18.5 Custom Mapping (GB only) ...............................92

18.6 Site-Centreed Mapping .....................................92

18.7 Map Consolidation .............................................92

19. Xpedition : Online Mapping & Route Planner .... 93

 

21. Troubleshooting ................................................95

22. Glossary ............................................................96

i. Contents (...cont)

ii. Basic Layout

Insert SD Card

Lanyard Point

SiRF III GPS

GPS Lock Icon

Trail Taken

Location Icon

Mini USB

9 Function Joystick

Large Side/Front

Multifunction Keys

Side/front press

keys enable one-

handed operation.

Buttons are variable

(depending on the

screen shown)

and can be set to

activate with 1-click

or 2-click operation .

Backlight Boost

Toggle Map Icon

Battery Indicator

On/Off

Planning Icon

Replaceable Screen Cover

3.5 in / 8.7cm Bright, Hi-Res HVGA (320x480) Screen

Weatherproof, Toughened Impact Casing

Lock/ Unlock

Screen 3.4 in / 8.7cm Width 3 in / 7.5cm Height 5.1 in / 13cm Depth 1.4 in / 3.5cm Weight 6.2 oz / 175g

Removable Battery Back

Can be replaced with a Battery Back for mounting on a bike or in a car, or with a Slimline Battery Back for a lighter unit with a lower prole.

Stats Recording

Bluetooth Icon

Map Toggle

This is only

functional

when a toggle-

enabled map

card is loaded

Zoom In

Battery icon

When unit is fully charged icon is a solid block

Map orientation

Primary Screens

Use to scroll through the primary screens

Zoom Out

Toggle Icon

Shows when a toggle-enabled map card is loaded

Stop/Record Icon

Trip log status

Status Bar

All status icons shown in the top bar

Screen name

Memory Status Warning

GPS Signal Lock

Normal lock

EGNOS/WAAS

lock

No lock

Trip Log Active

Trip Log Inactive

No GPS Lock

iii. Map Screen Layout

Location Icon

Move the joystick

left/right to go into

PLANNING mode and

see the Planning icon

If the Trail Up icon is showing, it means

North Up was the

last option selected.

If the North Up icon is showing, it means

Trail Up was the last

option selected.

The icon on the

lower left shows

the orientation that

will next appear if

the front left button

is selected.

Trail Up

North Up

Bluetooth Icon

1. Introduction

Welcome to the world of GPS mapping!

with most software products, we have ongoing updates and developments. We continually strive to improve our product and value any feedback you may like to share with us.

Introduction

Satmap Systems is the creator of the Active 12 — an award-winning rugged sports GPS range, purpose-built for the great outdoors, offering a long battery life in a weatherproof and shockproof casing.

 Easy-to-use with ‘plug-and-play’ mapping

 Rugged, shockproof and weather-resistant

 Latest dual-band Bluetooth connectivity for

Peer-to-Peer data sharing, in addition to support for Heart Rate Monitors and bike

speed/cadence sensors.

 Barometric altimeter for accurate elevation

and pressure readings.

 Map orientation options for enhanced

visibility barometric altimeter for accurate elevation and pressure readings.

 Hi-Res (HVGA) bright 3.5" colour screen

 Long battery life with numerous power

management options.

 Ability to plan routes on GPS and online

 Extensive range of international maps

The Active 12 is latest model from Satmap Systems ultimate sports GPS range. It is easy-to-use and intuitive, showing a blue location dot on a real map so you know exactly where you are at all times. Switch it on, wait for a couple of minutes and your position is shown as being the centre of the screen. It has never been easier to nd yourself in the great outdoors!

We have over 350 maps to choose from.

The unit is supplied with a world base map, and individual maps are sold separately on SD cards that plug straight into the Active 12. Simple to use, there is no computer or other equipment needed.

As a standalone unit, you are able to plot routes or Objects of Interest at home or whilst exploring the outdoors. The unit is weatherproof with a backlit screen which means it can be used day or night in any weather, with enhanced features such as the Red Filter for night vision and the Sun Filter for use in bright sunlight.

This guide will go through everything you need to know about how to use the Active 12 on version 2.0 software.

EXPLORE

Dare to

2. Care for your Active 12

2.1 Safety & Care Tips:

The Active 12 is purpose-built for the great outdoors, offering a long battery life in a weatherproof and shockproof casing. Although the unit has been built to be rugged and reliable, you should remember that this is a complex electronic device requiring specic care and maintenance.

These tips are intended to provide you with suggestions on getting the most from your Active 12, ensuring you have many years of accurate and reliable GPS and digital map use.

2.2 Battery Charging

When using the Lithium Polymer battery option supplied by Satmap, it is extremely important that you only use Satmap products to charge the battery (i.e. Satmap Wall Charger, Car Charger, etc.) Failure to do so is potentially dangerous, may damage the Active 12, or result in partial or complete loss of warranty.

2.3 Spare Batteries

We recommend that you always carry a set of new / spare batteries, and keep them in a watertight wrapping. Although the Active 12 will give you many hours of use, it can be difcult to keep track of the length of time you have been using the batteries, so it is always good to have a back up.

2.4 Acquiring a Lock / GPS Accuracy

To acquire a satellite lock, the Active 12 should be under open skies, immobile and held upright. When a lock has been acquired, the top left signal icon will change from a red ‘x’ to green or blue crescents, depending on the signal. (Satellite lock times vary).

It is important to remember that the accuracy of any GPS is variable. The GPS system uses triangulation on a constellation of satellites circling the earth to determine a position on the ground. There are a number of factors which can reduce the accuracy of this position information, including poor weather, a limited view of the sky (e.g. in a building, urban/natural canyons, under a thick tree canopy, etc), metallized glass (such as a car windshield), etc. You may also notice a variable performance from one day to the next. This is due to the fact that the position of the satellites relative to the ground can change, resulting is a different triangulation value.

Understanding this variability in the accuracy is important when enjoying outdoor sports in the proximity of dangerous features (e.g. cliffs, marsh, rivers, lakes, etc.) as users must still apply safe practice, be aware of the weather conditions and their own abilities in order to avoid unnecessary risks and dangers.

2.5 Spare Mapping

Although the Active 12 has been designed for use in the great outdoors, carrying a paper map of the area and a compass is always considered good practice.

2.6 Understanding Your Map

Although the Active 12 gives your exact position on a map, it is important that you understand the symbols and notations on the map. If you are unsure about these, you can download them from our website:

www.satmap.com

2. Care for your Active 12 (... cont)

2.7 Extreme Weather Care Tips

It is important to remember that the Active 12 unit is weatherproof (not 100% waterproof), which means it can withstand weather conditions such as rain and snow, but is not submergible in water. Rated at IP65, the Active 12 will have no harmful effects from rain and is also dust tight, providing the rubber doors are closed.

Please note the following instructions:

• It is extremely important that all watertight seals (i.e. USB port & SD card slot) are properly closed after use, and in good condition.

• Take care if removing the screen cover while outdoors. Vigorous tugging of the screen cover may temporarily pull the main seal apart, potentially allowing water ingress. Use a soft damp cloth to wipe down the screen in the case of rain or mud splashes, to avoid undue scratching to the plastic.

• Map cards: Do not expose the mapcards to water. They should be kept dry and clean at all times. NEVER insert a damp, wet or dirty map card into the Active 12.

2.8 In extreme weather conditions:

Provide a degree of protection to the unit by either placing in a Satmap Standard or Deluxe Carry Case, or use a Satmap ProShield. Either of these will protect the unit from driving rain.

You can also carry the unit around your neck on the lanyard, keeping it safely underneath a waterproof jacket. This upright position will ensure that any water slides off the unit, without collecting at the base (where water damage might occur if the unit is submerged for periods of time).

• Do not keep the Active 12 in an external waterproof jacket pocket or back pack outer pocket, where there is a risk of a pool of water collecting at the bottom of the pocket and damaging the unit.

• The interior of the unit should not be exposed to water or dust. Avoid changing the batteries or map card whilst exposed to bad weather conditions. With the SD Card door, USB door, or battery back open, the Active 12 will not remain weatherproof. Should water or dust enter the Active 12, do not switch it back on until it has been completely dried out or the dust has been removed.

2.9 In the case of water submersion:

• Once indoors, remove the screen cover, battery back and LiPol battery/AA batteries with battery caddy.

• Wipe down the screen cover with a soft cloth.

• Place the Active 12 and components in a warm, dry place (e.g. on a window sill near a heater or airing cupboard), and let them dry completely.

If you are unsure about any damage to your Active 12, please call our technical team who will be able to give you advice on how to proceed, and if necessary, repair your unit accordingly. (Please refer to satmap.com for your local number).

2.10 Missing/worn parts:

You will need to send your Active 12 back to Satmap for repair if parts have been lost or worn down. Failure to do so may result in partial or complete loss of warranty, as it will no longer be weatherproof.

• Rubber seals: The watertight seal on the USB port and the SD card slot of the Active 12 should always remain properly intact to prevent water leaking into the unit. If either of these seals is lost or damaged, you will need to send your Active 12 back to Satmap for repair.

• Joystick: If your joystick is worn down or ripped, this can cause water to leak into the unit. Please send your Active 12 back to Satmap for repair.

SD card door USB door

3. Overview

3.1 Battery Power

The Active 12 can be powered by a Lithium Polymer rechargeable battery, or three AA batteries. The rechargeable battery is optimized to last longer over a wide range of temperatures/conditions and lasts signicantly longer than AA's. Since AA batteries vary signicantly in power and life from one type to another, we recommend using Lithium Energizers which are the most powerful on the market. It is not advisable to use cheap batteries in the unit as they will have a short life.

There are 4 ways to conserve power:

1. Select a ‘Screen Turn Off’ option

Settings > Power Control > Automatic Screen Turn Off > Select ‘Off after 3 minutes’

2. Change the Power Saving Mode to

Advanced, so the GPS MAP screen updates

every 4 seconds instead of every second.

Settings > Advanced Power Control > Power Saving Mode > Advanced

Note: The "Trail Up" facility is disabled when in Advanced Powersaving Mode, and backlight is limited to 80%.

3. Decrease the Backlight setting

Settings > Backlight (adjust slider accordingly)

4. Use Hibernate Mode to set an ultra low

power state and rapid satellite acquisition.

Power Button > Hibernate for X hours

Note: Trip log data is not stored in this mode.

On / Off / Lock

Button

Keyboard Lock

Power Off screen for

Hibernate options

3.2 Switching On, Off & Hibernate

When rst installed, the software allows users to select the operating language. Whatever language is selected, the unit is then set for the appropriate GPS position: i.e. selecting English sets up the GPS default to Great Britain.

After switching on the unit, the GPS STATUS screen will load up. The bars at the bottom of the screen indicate how many satellites are in range of the Active 12.

When the bars turn from yellow to orange this shows that the unit has locked to that specic satellite. In general, the unit needs a minimum of four satellites to get a lock. Outdoors, the unit should get a lock within three minutes. If it takes much longer, please contact Satmap. Hibernate mode allows rapid satellite lock as the unit remembers the satellites’ position.

To switch the unit off, press the On/Off button and a Power Off? screen is displayed in order to prevent accidental switch-off; select Power

Off. Your data will be saved before power off. If

no selection is made after 10 seconds the unit will revert to the previous screen.

Hibernate mode puts the unit into a very

low power state, but keeps the real-time clock alive. This permits a very quick boot-up time & fast satellite lock when the power button is re-pressed.

3.3 Keyboard Lock

The Power Off? screen has a padlock (Keypad Lock) icon by the On/Off button. Press the On/

Off button to lock the keypad. A padlock icon is

displayed by the battery indicator.

To unlock the keypad press any button and the

Unlock screen will be displayed. Select Yes to

unlock the keypad. If no selection is made after 3 seconds the unit will revert to the previous screen.

3.4 Map Card Insertion

The map card door is hinged at the bottom and opens from the top downwards. When inserting the card please ensure that the label is facing you with the arrow pointing inwards.

You can make an SD card write-protected by moving the switch on the side of the card down (saves from accidental deletion of les).

3.5 Base Mapping

The Active 12 is supplied with a world base map at 1:5m up to 1:200m (and in addition for UK customers, a 1:1 m & 1:250k scale UK road map). Once a map card has been inserted, you can zoom through the base mapping to see more detail. If you have a toggleable map, you can switch between different map layers at a particular point on the same zoom level, e.g. you can ip between the two scales (1:50k and 1:25k) and the base map.

3.6 Battery Indicator & Stop/Record Icon

The battery indicator is solid for new or fully charged batteries. As the charge decreases it is broken into four bars which then reduce. When a single bar remains, it is coded red. After some further time (depending on the power source and activity), an on-screen warning alerts that the unit will power off in 30 seconds and a countdown is shown.

If you are using the rechargeable LiPol battery (section 20.03), the battery indicator shows a lightning ash whilst charging. You will need to disconnect the unit from the power supply to check if the battery indicator is fully charged,

i.e. solid.

Next to the battery indicator is the Stop/

Record icon, indicating that data logging

is either paused or recording. This can be accessed on the TRIP LOG screen. When the unit has a lock, the record icon has a solid green arrowhead. The record icon is shown as ‘empty’ when there is no lock. A red pause symbol indicates data logging is paused.

3.7 'PLANNING' Mode

Moving the joystick changes the screen from the GPS MAP screen to the PLANNING screen. The blue circle (location icon) will move away from the middle of the screen as you control the joystick to move the map. A visual cue that you are in planning mode is the orange locator circle which has longer crosshairs. In PLANNING mode you can plan routes via the Routes Menu, study the map using the joystick to pan across the map, and set a GoTo point/Marker/POI.

3.8 SatSYNC

(Refer to SatSYNC User Guide)

SatSYNC is a free software available for download from satmap.com. It allows you to connect your Active 12 to a computer via a standard USB connection. With this software you can upload/download routes, Objects of Interest, and geotag photos. These les can then be shared via e-mail or forums (e.g. Satmap Route Share Network) or viewed on a computer-based mapping system (e.g. Satmap-Xpedition Online Route Planner and Google Earth), compatible with a number of

supported formats. The Satmap-Xpediton allows the download of pre-planned routes, the upload of routes for editing, and the printing of a paper version of the route to take as back-up when outdoors.

To view your trail recorded by the Active 12 on a computer:

1. You will need to Export your converted

track. Once you have nished your walk,

Stop the Trip Log.

2. On the TRIP LOG screen press

Menu > Convert Trail to Track

3. Connect the Active 12 to a computer via a

USB and open SatSYNC.

4. Select the converted track (.map le, e.g.

2010-06-24_1502 167km.map) and press

Export to copy to your desktop as a .gpx

or .kmz le.

5. Import the le to your computer mapping

system (e.g. Online Route Planner and Google Earth).

Battery Indicator

Map Toggle Icon

Insert

SD Card

Stop/Record Icon

3. Overview (... cont)

Pan and zoom across the map.

(Nudge the joystick on the GPS MAP

screen to get to PLANNING mode).

PLANNING

ROUTES

Access to main functions

MAIN MENU

Add/View

OOIs

Add/View Routes

GPS Map

(your position

on the map)

Log data

Data and trail logging

TRIP LOG

Elevation data

Elevation prole

Satellite acquisition screen

GPS STATUS

Maximum Signal to Noise Ratio

Satellites’ atomic clock time

Signal

indicator

Average

Signal

to Noise

Ratio

(SNR)

Built-in electronic compass

with direction indicator

Calibrate

Compass

Orange

tipped north

indicator

Bearing indication given here

Pointer

COMPASS

Your position on the map

GPS MAP

Toggle maps

Zoom In

Data boxes

Zoom Out

North Up/

Trail Up

4. Eight Primary Screens

Eight Primary Screens

(GPS MAP/PLANNING → POSITION INFO → TRIP LOG → MAIN MENU → COMPASS → DATA SHARE → GPS STATUS)

Use the lower right button (Primary Screens ) to scroll through the primary screens which give you access to the main GPS features. You can also move the joystick left/right to scroll through these options.

POSITION INFO

SHARED DATA

Nearby Active 12 units that

may have shareable data,

showing name & unique ID.

Extra functions

Menu for trail conversion options

Note: Moving the joystick in the GPS MAP screen will take you into PLANNING mode. To avoid this, lock your keypad.

A successful satellite lock (a ‘x’) is indicated at the top left of the screen by the red cross changing to a green signal icon. The number of green crescents denotes the signal strength. A weak lock is indicated by a single crescent plus a ‘2D’ caption.

The unit is EGNOS/WAAS enabled. This means users in Europe and North America are able to benet from ‘differential’ GPS when one of the EGNOS/WAAS satellites is in view. When this service is available, the green signal crescents turn blue and accuracy is enhanced.

Your position is shown as a blue dot in the centre of the screen. Once moving, a pointer appears on the blue circle, indicating the current direction of travel. As you move, a snail trail of red dots is laid down, indicating the path you have taken, as long as you have started the trip log. To change the red trail dot size may changed in the Settings Menu.

The Active 12 logs your position once every second. The rate at which red dots are displayed depends on the map scale and the speed of travel. Dots are laid down so an appropriate distance is rendered between them to create a clear track. A power saving option (in Advanced Power Control), allows screen data to be set to update once every 4 seconds.

4.1.1 GPS MAP Screen

For best results in achieving a satellite lock;

• The Active 12 should be pointed at clear sky. The unit can also acquire a lock through glass, i.e. windows/car windshield.

• Getting a GPS whilst moving may take longer. From a cold start, very large MapCard may slow the GPS lock time slightly.

• To see the progress og the GPS lock set the screen to GPS STATUS using the Primary

Screens button.

The primary purpose of the "GPS Map" screen is to display your own location in the centre of the screen (blue circle) and the mapping around you.

Buttons (from L to R):

Toggle maps

(Icon is three layers of stacked mapping)

Toggle between available maps at the same zoom level.

Data boxes

Toggle between none, 2 or 4 data boxes onscreen

North Up/Trail Up

Map display cycles through North Up, Trail Up (Centre), and Trail Up (Low)

Primary Screens

Scroll through primary screens

Zoom In / Out

Map scale is continuously displayed during zooming

4.1 Primary Screen 1: GPS MAP

GPS MAP

screen with

function buttons

Blue pointer appears once you start

moving to indicate direction of travel.

Toggle

maps

Blue

pointer

Zoom In

Snail Trail

North Up/

Trail Up

Data box

Primary Screens

Zoom Out

Toggle icon

4.1.2 Toggleable Maps

Map toggling is a feature available on all Active 12's. Toggle-enabled MapCards allow you to switch between different map layers at a particular point on the same zoom level. For example, you can ip between the two scales (1:50k and 1:25k) and the Base Map. It is also possible to toggle between different map types and map providers.

If a toggle-enabled MapCard is loaded, a mini toggle symbol appears next to the

Stop/Record icon on the GPS screen in the

status bar, indicating the map inserted can be toggled. This enables the toggle maps button on the left.

Note: Not all maps are toggleable. Look for the toggle icon or logo on all of our toggle-enabled products. The toggle function can also be added to existing map cards (see satmap.com for further details on this service).

Getting Started:

• Insert your SD card. This will load your Map

Packs screen.

• Use the joystick to ip between maps, and select View Map to access the desired GPS

MAP screen.

• To access the Map Packs screen at any point, centre press the joystick (or page forward on the Primary Screens to POSITION INFO) and select Map Packs using the lower lefthand side button.

Toggle between maps by pressing the upper left-hand side button (Toggle maps) and switch seamlessly between different maps without having to zoom in or out.

Please note: Most detailed maps have a "ceiling", and will disappear from the screen when zoomed out above this ceiling. This is intentional, as the map detail would be too small to observe clearly. If no other maps are available for toggling, the Toggle icon will disappear.

4.1 Primary Screen 1: GPS MAP (...Cont)

Toggle icon

Toggle Symbol

(shown on screen)

Toggle logo

Toggle maps button appears bold when

suitable map card is loaded and map areas and zoom levels overlap.

Toggle maps button appears gray when

toggle function is not available.

OS 1:25 000

scale mapping

OS 1:50 000

scale mapping

Toggle

maps

Toggle icon

North Up Trail Up (Centre)

Trail Up (Centre) is currently on the screen. Trail Up (Low) can be selected by pressing

the Trail Up icon (front left button).

The blue location icon is shown in the centre of the screen. The map orientates to match the direction of travel (similar to turning a paper map to nd your bearings).

If you switch to PLANNING mode, the map will stay in Trail Up mode.

Note: Trail Up is not available in advanced power saving mode. (The screen refreshes more frequently in Trail Up, drawing more power).

North Up is currently on the screen. Trail Up

can be selected by pressing the Trail Up icon (front left button).

The blue location icon is shown in the centre of the screen with North facing up on the map. Use this mode to conserve battery power.

From the PLANNING screen if you wish to switch the map to North Up, return to the GPS

Map screen and press the North Up/Trail Up

button.

Trail Up (Low) is currently on the screen. North Up can be selected by pressing the

North Up icon (front left button).

The map orientates to match the direction of travel. However the blue location icon is positioned low on the screen so you can see more mapping ahead of you. Useful for when you are traveling at higher speeds, such as on a bike.

Note: The 4 data box option is not available in the Trail Up (Low) mode as it would obscure the locator circle.

Trail Up (Low)

4.1.3 Map orientation

There are 3 map orientation options for enhanced visibility: North Up / Trail Up (Centre) / Trail Up (Low)

4.1 Primary Screen 1: GPS MAP (... cont)

4.1.4 Map Packs Screen

(GPS MAP → POSITION INFO via centre press → Map Packs), or Page Forward.

(Available once a map card is inserted).

Alternative access:

(PLANNING → POSITION INFO via centre press → Map Packs), or Page Forward.

A map card may be inserted or removed at any time. When a map card is inserted, the unit beeps three times, and an on-screen message shows, ‘SD Card Inserted’. After a short time, (depending on the size of the map), the Map

Packs screen appears (map title screen). After

about ten seconds the screen will revert to the previous screen.

If you have multiple layers on your MapCard (e.g. you may also have consolidated more than one map on a MapCard (a service offered by Satmap), you can access the different maps by moving the joystick left/right on the Map

Packs screen.

ProTiP:

The detailed name of the Map / Layer can be seen in the box at the top of the MapPacks screen. You'll note in the Figures to the right, whilst the images look similar - the scale detail in the top box differs.

4.1 Primary Screen 1: GPS MAP (...cont)

Map

title

Buttons:

Back

Return to POSITION INFO

View Map

Go to PLANNING screen

Note: The screen shows a default location for the loaded map, generally a notable point or the centre of the map area.

Map

title

Map

title

4.2 Primary Screen 2: PLANNING

To access PLANNING screen

(GPS MAP → PLANNING, via joystick nudge)

The PLANNING screen is accessed from the

GPS MAP screen by moving the joystick away

from your current location (blue location icon).

The PLANNING screen displays a planning

icon (orange circle with a small black cross)

as soon as you move the joystick away from your current location. Instead of a blue dot, a small black cross is shown in the centre. From the edges of the orange planning icon radiate crosshairs as an additional visual cue that you are in PLANNING mode rather than GPS MAP mode. The orange planning icon stays in place as you use the joystick to move the map.

The POSITION INFO screen may be accessed from the PLANNING screen by centre pressing the joystick, or by pressing the bottom right Primary Screens button.

When a map is loaded, the PLANNING screen shows a central default location for that particular map.

There is a data box overlay which shows;

• Grid reference – format options are given in

GPS Settings / Position Display Format

option).

• Altitude for this location – elevation above sea

level, obtained from base maps (UK) or from map cards (non-UK).

• Distance from your last known location, i.e.

where you last acquired a GPS lock. This is useful as a ‘rangender’.

• Bearing from your last known location – format options given in Compass Settings.

Note: This data overlay is not congurable by the user, unlike the 2-Data Box and 4-Data Box layouts available on the GPS MAP screen.

When the crosshairs are moved over an OOI or a route, an OOI/route indicator icon appears at the bottom of the screen. Centre pressing the joystick brings up further information via the 'Choose Information

Type' window.

Buttons:

Toggle Maps

Toggle between maps at the same zoom level

ROUTES MENU

Go to ROUTES MENU

GPS Map

Go to GPS MAP

Zoom

Zoom in/out

Primary Screens

Page forward to POSITION INFO screen and scroll through primary screens

PLANNING

Screen

Toggle

maps

ROUTES

GPS Map

Zoom In

Zoom Out

Primary Screens

4.3 Primary Screen 3: POSITION INFO

GPS Map

Primary Screens

Add POI

Set GoTo

Lat/Long

Set Marker

Local Grid

Map Packs

To access POSITION INFO Screen:

(GPS MAP / PLANNING → POSITION INFO, via Primary Screen page forward)

The POSITION INFO screen is accessed from either the GPS MAP or PLANNING screens screen either by a centre press of the joystick, or by pressing the Primary Screen button once.

The purpose of the POSITION INFO screen is to display useful information about that particualr location, be it your own location (GPS MAP) or somewhere else on the map (PLANNING).

Buttons:

Set Marker - This function allows you to

measure the distance and bearing between any two points on the map, the rst point being the centre of the circle in the middle of the screen, and the second point being any that you cursor to with the joystick, connected by a red line. Cleared by using the Clear Marker button.

Map Packs - Allows you to see the maps that

are present on your SD MapCard. A separate BookCover will be displayed for each of the MapPacks present on the SD card.

Maps - Flicks you back into your previous map

screen (GPS MAP or PLANNING).

Primary Screens - Pages forward to the TRIP

LOG screen.

Add POI - Will place a POI menu at the centre

of the circle. A defult name will be given (e.g. POI 1) that can be over written, and a POI Icon can be selected.

Set GoTo - This function places a GoTo

waypoint at the centre of the circle. A solid blue line will then connect your location to the GoTo point at all times, until the Clear GoTo button is pressed.

This is a particularly useful and quick way of setting a simple, single-leg route. Especially when zoomed in to view map detail, and when in Track Up mode, the GoTo line still shows the required direction.

Info Boxes: Local Grid & Lat/Long - This

features allows the location of the circle centre to be simultaneously displayed in two grid formats. The format of Local Grid is determined in the SETTINGS / GPS Settings screen.

The format of the right hand box has be preset as Lat/Long (decimals). This feature is very useful if you may need to quickly convert one position format into another: simply use the joystick to cursor to the desired location, and then read off the other format version of the grid reference.

Alternate access if cursor is on a Route or POI

4.4.1 To access TRIP LOG Screen

(GPS MAP→ POSITION INFO→ TRIP LOG),

(PLANNING→ POSITION INFO→ TRIP LOG)

The upper half of the TRIP LOG screen is split into 12 data elds:

• Total distance travelled (Total Dist)

• Total time (Total Time)

• Time of last reset (Trip Reset)

• Straight line distance: from start position to end position (Strt Line Dist)

• Time moving (Time Moving)

• Average moving speed (Av Moving)

• Speed now (Speed Now)

• Average speed (Av Speed)

• Maximum speed (Max Speed)

• Sunrise time (Sunrise)

• Sunset time (Sunset)

• Altitude above sea level (Elevation)

All units can be given in metric or imperial.

The lower half of the TRIP LOG screen shows a graph of the elevation prole of your journey. Above the graph, a red pointer indicates the maximum height and a blue pointer indicates the minimum height. Figures for these heights are given below the graph. Also shown is the abbreviation ‘Asc:’ for ascended height.

Buttons:

Start/Stop

Press to start/stop data logging.

(Note: remember that if Stop is showing, it means Start was the button pressed previously and the GPS is logging data).

The unit’s data logging functions are intended

to register a single trip. The log should be reset before starting the next trip. Using the Start/

Stop button allows you to pause data logging

during a journey, e.g. pausing for a lunch break.

When Stop has been pressed, the unit stops all data logging. If you switch to the GPS MAP screen and continue moving, no new snail trail is created.

Spot Button (GPS Map)

Return to GPS MAP

Primary Screens (Page Forward)

Go to GPS STATUS screen and scroll through primary screens.

Access the following range of options:

• Reset All

• Reset All & Convert

• Reset Log (keeps the snail trail and elevation prole)

• Reset Trail (also resets elevation data)

• Reset Trail & Convert

• Convert Trail to Track

• Set Trip Data

There are on-screen descriptors for each option. If you would like to save your data before resetting, choose one of the ‘Convert’ options in the menu.

As the trip log data uses up memory on your unit, make sure you reset the trip log regularly to maintain optimum performance.

Note: If you transit between trips and press Start without resetting the log, the transit is shown as

4.4 Primary Screen 4: TRIP LOG

TRIP LOG

screen

GPS Map

Primary Screens

a straight line snail trail to your present location and will be incorporated into subsequent data logging.

Elevation data data is obtained from maps,

GPS, or derived from Pressure data. See GPS

Settings for more details (section 7.09).

Elevation data

Access

options

Elevation

prole

Stop

Trip Log

has started

Trip Log Active

Trip Log Inactive

Trip Log Status:

Note: Trip log data is not stored in hibernate mode.

(Stop/Record Icon)

4.4 Primary Screen 4 : TRIP LOG (... cont)

4.4.2 Convert Trail to Track

(TRIP LOG → Menu → Convert Trail to Track)

When a route has been completed the (snail) trail can be saved for reference, future use, or for swapping with others on the Route Share Network. Select the Convert Trail to Track option to convert the snail trail of red dots into a track.

Waypoints will automatically be added at key points on the map. As these are computer generated, the positions should be checked and where appropriate, amended to ensure they are practical from a user’s point of view. When the track has been created, this can be viewed on the unit in the Routes Menu, or can be shared using the SatSYNC program (free download from www.satmap.com).

The terms trail, route and track are used to describe different stages of a recorded route:

Trail: The path that has been taken, shown as a

series of red dots (‘snail trail’).

Route: The planned path users intend to take. It

has waypoints laid down at key turning points, and can be created on the unit, or on a mapping system such as the Online Route Planner, Google Earth etc.

Track: The snail trail that has been saved and

converted to a track. It is called a track to differentiate it from a route. A track is a route derived from a recorded snail trial, and can still be found in the Routes Menu like a route. A track is likely to have many more waypoints

ROUTE PLAN

screen

than a pre-planned route, and consequently the les will be larger.

Note: At the bottom of the elevation prole screen there is a list of all the trip data attached to each waypoint on the route.

4.4.3 Convert Trail to LOI/AOI

This feature is only available on SatSYNC. After using one of the Convert Trail to Track options, you can export the track as a .GPX or .KMZ le to your computer. This can be imported back as an LOI/AOI by selecting the appropriate import settings in SatSYNC. (Please refer to the SatSYNC 1.5 User Guide for more information).

Note: KMZ/KML les give enhanced features on Google Earth. GPX les are better for the Online Route Planner/Route Share Network.

4.4.4 Geotag Photos with Trip Log Data

This feature is only available on SatSYNC. Photos are labeled or 'tagged' indicating where they were taken. Date/time information from your camera is synchronized with the GPS local time. After recording your trip log data, it can be used to geotag your photos via SatSYNC. This adds longitude and latitude information to the photos, which can then be viewed in the correct location on Google Earth or similar applications. This allows you and other to see where the pictures were taken.

(Please refer to the SatSYNC 1.5 User Guide to nd out more on how to use the geotagging application within SatSYNC to geotag your photos).

To access MAIN MENU screen

(GPS MAP → POSITION INFO → TRIP LOG → MAIN MENU)

The MAIN MENU screen gives access to some of the Active 12’s main functions and settings.

The upper half of the MAIN MENU screen shows the title of the Active Map, ie. the loaded MapPack on the MapCard. The lower half of the MAIN MENU screen shows the name of the Active Route. Only one at once Route can be Active.

Buttons:

OOI Menu. Go to OOI Menu. These are

Objects of Interest, and include Points of Interest (POIs), Areas (AOIs) and Lines (LOIs).

GoTo and Marker. Set GoTo point/Marker

either by coordinates (or postcode: GB only). A GoTo point is a single leg route with a single waypoint. A Marker allows the measurement of distance and bearing between any two points.

Spot Button (map screens). Return to GPS

MAP/ PLANNING map screens

Routes Menu. Go to ROUTES MENU.

Create, View, Activate, Edit and Delete routes functionaliy.

Settings. Go to SETTINGS MENU

4.5 Primary Screen 5: MAIN MENU

MAIN MENU

Map

Screens

Primary Screens

Primary Screens (Page Forward). Press

to scroll through the primary screens. This can also be achieved by using the Left-Right action on the joystick.

4.6 Primary Screen 6: COMPASS/POINTER

COMPASS

Bearing indication given here

Orange

tipped

north

indicator

Pointer

Calibrate

Compass

Map

Screens

Primary Screens

4.6.1 To access COMPASS screen

(GPS MAP → MAIN MENU → COMPASS)

The Active 12 has an electronic compass and a GPS compass and switches between the two at a preset speed. Having both ensures you have the correct bearings at all times whether you are moving or stationary. It is important that the unit is held level (like a regular magnetic compass) and is calibrated correctly.

Buttons:

Calibrate Compass

Go to Calibrate Compass

Spot Button (map Screens)

Return to map screens (GPS MAP /

PLANNING)

Pointer

Go to POINTER screen

Primary Screens (page Forward)

Go to TRIP LOG screen and scroll through primary screens

There are 3 types of ‘target’ to select from using the Target type button.

4.6.2 POINTER Screen

(GPS MAP → POSITION INFO → MAIN MENU → COMPASS → POINTER)

Within the COMPASS menu there is the option of following a Pointer, which points you in the direction of your desired destination ie. a waypoint, Point Of Interest (POI), Line Of Interest (LOI), Area Of Interest (AOI) or GoTo point.

To access the POINTER screen, press the

Pointer button on the COMPASS screen

Buttons:

Target type

Scroll through overlays giving data on either nearest Waypoint, Point Of Interest, Line Of Interest, Area Of Interest, or Go To Point

GPS Map

Return to GPS MAP screen

Compass

Return to COMPASS screen

Primary Screens

Go to TRIP LOG screen and scroll through primary screens

Note: You need at least 1 POI or route on the map for the Pointer to work. (It does not work if you only have one Grid, AOI or LOI).

Compass

Target

type

COMPASS

Pointer Screen

4.6 Primary Screen 6: COMPASS / POINTER (... cont)

1. Nearest POI/LOI/AOI

Only available once a POI has been entered.

2. GoTo Point

Only available once a GoTo Point has been set. A green ag will appear at the top of the pointer image.

3. Next WayPoint

Only available once a route has been activated. A blue dot will appear at the top of the pointer image.

In each target type, the 2-data eld overlay contains information on bearing and distance to the target.

Note: If you have POIs/LOIs/AOIs/waypoints set to invisible, the pointer will not show their location.

GPS Map

Primary Screens

2-data eld overlay

Target

icon

Default icon

4.7 Primary Screen 7: SHARED DATA

Access SHARED DATA screen

(GPS MAP / PLANNING → POSITION INFO → TRIP LOG → MAIN MENU → COMPASS → SHARED DATA)

The SHARED DATA screen allows you to use Bluetooth wireless connectivity to share route data with other nearby Active 12's. To move Routes between devices, they have to have been previously marked as "Share" in the

Route Edit screen.

Operation: Selection of this screen

will initiate a scan for nearby Active 12's. Other Bluetooth devices will not be visible on this screen.

Main List: The list will display the User

Name and ID number for all nearby Active 12's that have Bluetooth turned on. The blue signal strength bars on the right hand side range from 1-5 bars.

This Device: Your device will always

be at the top of the list. Either centre press the joystick, or the Select button to display the list of Routes that you have previously marked as "Share". To make an item shareable or not, locate it in your ROUTES menu, press Edit, then Share / Unshare.

MY SHARED DATA screen also allows

access back to the Routes Menu screen, and the ability to Unshare items.

Fetch Data. Back on the SHARED

DATA screen, items that have been

made shareable by other Active 12's can be viewed by highlighting that device using the joystick, and then either a centre press of the joystick or the Select button will take you to their "catalogue" data. Press Fetch to transfer that item to you device. As the transfer occurs an information box will display "Data downloading in progress ... Please wait".

Lists all nearby

Active 12's

Lists your Routes marked

for sharing

Select an Active 12 to view

their shareable routes.

Press Fetch to get a route.

4.7 Primary Screen 7: SHARED DATA (... cont)

Imported Data. Once an item has

been fetched to your device, it will be placed in the ImportedData folder on the Internal memory. From here all the standard ROUTES MENU functions are available. The route that you have just imported should be highlighted.

Shareable - by default. All imported

data is agged as shareable by default. If you wish to change this, Edit the route and change the status to "Not Shared"

SHARED DATA - Other buttons:

Bluetooth Devices: this will hop to

a screen where all Bluetooth devices can be observed - including Bluetooth Smart Low Energy tness sensors and other BT devices generally.

Turn Bluetooth Off / On: When turned Off - the BT icon will disappear from the Status Bar and only the shareable data on your own device can be inspected. The SETTINGS button will hop to the SETTINGS / Bluetooth screen.

Refresh: This button will rescan for nearby Active 12's - and typically takes about 10 seconds. You may see the list move about & reorder, depending on new devices in range and signal

strength.

Lists all nearby

Active 12's

Other Buttons

Bluetooth Off

4.8 Primary Screen 8: GPS STATUS

Access GPS STATUS screen

(GPS MAP/PLANNING → POSITION INFO → TRIP LOG → MAIN MENU → COMPASS → SHARED DATA → GPS STATUS)

This is the screen that is rst displayed when switching on the unit (unless there is already a map card inserted in which case the unit will briey show the Map Packs screen.

The elliptical diagram represents the sky above you where North is the top of the ellipse. Satellites visible to the unit are allocated numbers and also shown on the bar chart. Yellow bars indicate the unit can see a satellite. The bars change to orange when the unit has acquired a lock. There are also indications of Signal to Noise Ratio (Av SNR and Max SNR).

Before acquiring a lock, details of your last known position, with time, date, and grid reference are shown at the top of the screen. (Grid reference format options are given in

GPS Settings, ‘Position Display Format’).

Once you have a lock, your current coordinates and elevation are shown. As a guide, a

minimum of four satellites are needed to

acquire a lock.

To access the GPS STATUS screen from the

GPS MAP screen, keep pressing the Primary Screens button (front right button) until you

reach the GPS STATUS screen.

The signal indicator (either red cross or green signal icon) indicates the strength of signal received by the unit. The GPS indicator caption at the bottom of the screen either says ‘Acquiring GPS’ or gives accuracy to within a certain distance.

If the unit is receiving a poor signal e.g. under wet tree canopy, it may only be able to give two dimensional data, i.e. no elevation data. Under these circumstances the elevation caption at the top right of the screen will show ‘2D’ instead of an elevation gure. The signal received icon at the top left will also show a single green crescent plus ‘2D’.

Buttons:

GPS Map

Return to GPS MAP

Primary Screens

Go to PLANNING screen and scroll through primary screens

Signal

indicator

Satellitesʼ atomic clock time

Maximum Signal to Noise Ratio

Average

Signal

to Noise

Ratio

(SNR)

GPS Status

GPS Map

Primary Screens

5. POWER OFF Screen

Power Off : Press the long side button on

the right hand side of the GPS to display the

Power Off? screen. The bottom right Power Off

button will totally power down the GPS unit, but your current data will be saved. Once off, no GPS logging or trip data will be recorded until the unit is tuned on again.

Hibernate : This function puts the GPS into

a low power "stand-by" mode. The primary benet of this to allow a very fast restart and GPS re-aquisition. Typically useful over a lunch break, for instance. After the specied period, the GPS will do a full "Power Off". In Hibernate mode, the Active 12 will not log any further data until the Power button is repressed and a GPS lock is restored.

Screen Lock : You may wish to lock the

screen to prevent accidental button presses. From the Power Off? screen - just press the long Power Button one more time, this will send you back to previous working screen, and will place a small yellow padlock icon on the status bar. Thereafter, pressing any button will display the Unlock? screen

POWER Screen, with

Hibernate options

LOCK Sceen option.

6.1 Access SETTINGS MENU screen

(GPS MAP → MAIN MENU → Settings)

The SETTINGS MENU screen gives you access to a wide range of settings options.

In addition, use Memory Status to nd out how much RAM/operating memory you are using. If the consumption is too high, you can reduce it by adjusting Set Trip Data to 'Hide Inactive Routes' or only show the start point of an inactive route ('Show Inactive Routes SP').

The full list of settings options are:

• Power Control

• Advanced Power Control

• Bluetooth

• Elevation

• Backlight

• 2 Data Box Layout

• 4 Data Box Layout (upper)

• 4 Data Box Layout (lower)

• GPS Settings

• Memory Status

• Units and Set Speed

• Compass Settings

• Calibrate Compass

• Set Trip Data

• Volume Control

• Buttons Control

• Panning Speed

• Cycling

• Screen Data Options

• Time Offset

• Enter User Name

• Languages

• About

At any point, should you wish to exit a settings screen, either press Map (front left button) to go to the GPS MAP/PLANNING screen, or press

Back (front right button).

Buttons:

Scroll through menu options. Alternatively use the joystick to highlight an option.

Default

Takes you to the Default Settings screen with the option to choose Yes or No. Pressing Yes takes you to the Default Options screen:

• Choose Clear All to reset all the user dened settings, trail and GPS data, (including OOIs and routes) to the factory set defaults. The unit will then turn itself off.

• Choose Reset Settings to reset only the settings data to the factory set defaults.

(If you choose Yes you will not be able to go back without choosing one of these options).

Choose No to retain all current settings and return to the SETTINGS MENU.

Map

Return to last map screen

Select

Either press Select or centre press the joystick to select the highlighted option

Cancel / Back

Return to MAIN MENU

6. MAIN MENU: Settings Menu

Figure 7.00

SETTINGS Menu -1

SETTINGS Menu -2

6.2 Power Control

(MAIN MENU → Settings → Power Control)

Automatic Power Saving

• Use the joystick, moving left/right to select desired time the unit will stay powered on for.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Note: Allowing the unit to power off will cause it to lose GPS lock. However, if the unit is in hibernate mode, then it will be able to acquire a lock very quickly after powering on.

Automatic Screen Turn Off

This is a power saving option.

• Use the joystick, moving left/right to select desired time before the screen will turn off leaving the unit still operating.

• Press Done or centre press the joystick to return to SETTINGS MENU.

GPS lock will be maintained and the unit will continue to log your position.

• To instantly re-activate the screen, press any button, except when the screen is locked. In this case, use the power button.

Alert When Screen Off

• Use the joystick, moving left/right to toggle between Off and Screen Alerts Every

Minute.

• Press Done or centre press the joystick to return to SETTINGS MENU.

With the alerts mode selected the screen will ash on at 1 minute intervals to remind you the unit is switched on—particularly useful when dark.

Pressing the Default button restores the following settings:

Automatic Power Setting

Off after 120 minutes

Automatic Screen Turn Off

Always On

Alert When Screen Off

Screen Alerts Every Minute

6. MAIN MENU: Settings Menu (... cont)

Power Control

Settings

6.3 Advanced Power Control

(MAIN MENU → Settings → Advanced Power Control)

Power Saving Mode

To save power, select Advanced power saving mode and the screen will update every four seconds instead of every second.

In this mode Trail Up is disabled and the

Backlight setting has a maximum value of

80%, but can be temporarily be set to 100% by pressing the backlight button.

• Use the joystick, moving left/right to select

Normal or Advanced.

• Press Done or centre press the joystick to return to SETTINGS MENU.

6. MAIN MENU: Settings Menu (... cont)

Advanced Power Control

- For Power Saving

6. MAIN MENU: Settings Menu (... cont)

6.4 Bluetooth

(MAIN MENU → Settings → Bluetooth)

This Active 12 carries a Bluetooth 4.0 module (also known as Bluetooth Smart), which has two bands: Classic (which handles route data transfer between Active 12's) and Low Energy (LE, which handles tness sensor data, e.g. Heart Rate and Cadence Monitors).

The SETTING/Bluetooth buttons have the following functions:

Joystick Left/Right will turn Bluetooth On &

Off. When turned On, the BT Icon on the status bar should ash as the unit search for other devices. Data transfer and tness sensor data will not function whilst Bluetooth is turned off.

Bluetooth Devices will display all Bluetooth

enable devices that are nearby (Classic & Low Energy).

Done returns you to the SETTINGS screen.

Shared Data hops to the SHARED DATA

screen which allows you to see and fetch other Active 12 users' route data.

Cancel will cancel the operation and return you

to the SETTINGS menu.

Map returns to the GPS MAP/PLANNING

screens.

Back will go back to the previous that you were

on.

BLUETOOTH SCREEN. This screen allows

you to see local devices - and connect to Low Energy sensors.

Shared Data, as above, hops to the SHARED

DATA screen.

Refresh, kicks off a Bluetooth refresh scan to

look for new devices nearby. In this version of the software, previously identied Active 12's and LE devices will be displayed. The blue bars on the right hand side of the screen indicate signal strength. Typically 5 bars indicate a range of 1m and 1 bar approx. 10m.

Turn Bluetooth Off, does exactly that, and

returns to the main SETTINGS screen. At this point any connected LE devices will disconnect, and Bluetooth data sharing and data logging will cease.

Select/Deselect, this controls the connections

to BT LE tness sensors. This version of the software allows Bluetooth Smart connection

SETTINGS Menu

SETTINGS / Bluetooth

BLUETOOTH screen

6. MAIN MENU: Settings Menu (... cont)

to two types of tness sensors: Heart Rate Monitors (HRM), and bike Speed & Cadence sensors (Sp/Cad).

Sensors. Bluetooth Smart

sensors are optional extras for the Active 12 GPS units. They can be purchased from the Satmap website, or from other outlets.

Please Note; Currently Satmap

has partnered with the "Wahoo" brand for these tness sensors. When selecting other brands, please ensure that they support the Bluetooth 4.0 "Smart" and "Smart Ready" proles. The Active 12 does not support the ANT+ prole.

Connecting Step 1. Ensure

that your sensors is activated. For HRM, this is typically done by putting the strap around your chest. For bike Sp/Cad sensors, typically by spinning the wheel or pedals.

Connecting Step 2. Providing

the sensor is in range and activated, the Active should "see" it on the Bluetooth devices screen. If not, please press Refresh and the name of sensor should appear, in the example right: "Wahoo HRM v2.1". Use the joy stick to cursor up and

down to your desired sensor device. Either press the Select button, or centre press the joystick and a black tick will indicate that the sensor has been "Selected".

Please Note; Bluetooth allows

only one of each type of sensor to be selected at any one time. You can have a HRM and a Sp/

Cad sensor selected, but not two HRM's.

Connecting Step 3. Wait for a

short period and the black tick should turn blue. This indicates that your selected LE device has now "connected" and sensor data can be collected. During the connection process, the BT icon on the status bar should ash blue/grey and then turn solid blue when the connection is made.

Troubleshooting.

Very occasionally Bluetooth can be temperamental! If a connection is not made on the rst attempt - deselect the BT LE device, check that your sensor is activated and in range, and then reselect the device. Failing that, turn the Bluetooth fully off, then back on again, and reattempt the connection process. If that continues to fail, please connect Satmap support.

Two Sensors "Selected"

One Sensor "Connected"

Two Sensors "Connected"

6. MAIN MENU: Settings Menu (... cont)

Connecting Step 4. Once a

blue "connected" tick has been observed, you sensor will then pass data to the Active 12. This data may then be displayed in the 2 & 4 data boxes that appear on the GPS MAP screen. To set this up, you will need to select SETTINGS / 2/4 BoxLayout and the HRM data item (20.HRM).

Data Types : HRM. Heart rate

data is displayed as "beats per second". Future editions of software will display Heart Rate Zones, and the such like.

Data Types : Cadence. This is a

measure of the pedal revolutions per second on a bike.

Data Types : Wheel Speed.

In addition to using speed calculated by GPS position movement, cyclist often use "wheel speed" as a reliable backup. This is especially useful if a GPS lock is difcult for any reasons (e.g. very thick woodland or the urban jungle).

Sensor data displayed

Set up for Wheel Speed.

This relies on a default value for the wheel circumference, which is then multiplied by the wheel revolutions output from the sensor. The default setting is 2,096mm, and this can be changed in the SETTINGS / Cycling screen. Use the joystick to navigate the numbers and set the values.

Data Output. HRM and cadence

data will be stored on the Active

12. After your activity, save your data for later upload. This is done via the TRIPLOG / Menu / Convert options. Your data containing the HRM and cadence values will be stored in a TCX le (e.g. MyRoute1.tcx). You will be able to see these les when you use the SatSYNC PC application to upload your data.

About TCX les. This is an

industry standard format that is accepted by a wide variety of 3rd party activity storing and sharing web sites. These TCX les can contain location and speed data, along with a wide variety of tness related data items.

SETTINGS / Cycling

Set your Wheel Circumference in mm.

6. MAIN MENU: Settings Menu (... cont)

6.5 Elevation

(MAIN MENU / Settings /Elevation)

Overview. The Active 12 gives you

3 options for calculating elevation values. All are useful, but they do have some pros and cons.

Elevation from Maps. Each map

is supplied with a "height data set" that provides spot heights at regular horizontal intervals (post spacing). Typically these are between 50m-100m. This method works well when the ground is less steep, with fewer cliffs around.

Elevation from GPS. This method

uses height data supplied by the GPS itself, and works best when there is a good, unobstructed view of a large portion of the sky. The data can be quite variable in forests and amongst tall buildings.

Elevation from Pressure. The

highly accurate barometric altimeter can be used to assist with elevation calculations, and uses the principle that pressure falls as elevation rises. It is especially useful over short periods of time where the weather is relatively stable, since pressure also generally falls when bad weather is approaching.

Setting "Elevation" source. Data

that is stored for later upload has a single set of elevation data. You can control this by setting its source. Select Elevation from the SETTINGS screen. The top box indicates the Elevation data source and can be changed by moving the joystick left and right (when it is highlighted by the orange background). A selection can be made between "Elevation from Maps, GPS or Pressure". The rst two settings require no further action - just press Done, Back or Map to continue with the GPS use.

Setting Elevation from Pressure.

To work effectively, elevation from the barometric altimeter needs to be calibrated at intervals. This is because changing weather would otherwise affect the elevation reading.

Altimeter Calibration: Auto. On this

setting the Altimeter is recalibrated against the Map elevation every 2 hours (by default). This is a good setting for normal use and requires no further user input.

Info Box:

"Last Successful Calibration." If

a long time has elapsed since the last calibration, the accuracy may have drifted due to weather change:

Select "Elevation" from SETTINGS

Select Elevation data source

Select Recalibration frequency

Auto calibration setting

6. MAIN MENU: Settings Menu (... cont)

it would be wise to recalibrate the device as described below.

Auto Recalibrate Frequency. The

left / right joystick function can be used to toggle the recalibrate time interval between 2 / 4 / 6 / 8 hours.

"Calibrate Now" button will calibrate

the local pressure against your current Map Elevation, and record the date and time for future reference.

Manual Calibration. Should you

wish to have more control over the recalibration of the altimeter, select "Manual" using the joystick, and then

Select.

Method 1: Map/GPS Elevation. This

will simply use the Map elevation for calibration (or GPS height data for no map data is available).

Method 2: Known Elevation. This

allows you to enter you own known elevation for a precise calibration. Typically you might be at a Trig Point or a map location where you are sure of the exact height. Use the joystick to scroll through and set the values.

Viewing Elevation Data. On the

GPS MAP screen the Data Boxes

can be used to view your elevation data. It is even possible to select all 3 types of elevation data for comparison, however, only one set of elevation data can be saved in the TRIP LOG for display and upload.

2/4/6/8 Hour Intervals Manual: Using Map/GPS

Set Your Known Height

Precise Calibration: Known Elevation

Trip Elevation data

View your Elevation data

6.6 Backlight

(MAIN MENU → Settings → Backlight)

The Backlight setting is used to control the brightness of the GPS screen. It has signicant impact on the battery life and is therefore recommended that you choose a setting which you nd comfortable, not necessarily the brightest.

Filter Options:

Within the Backlight settings you will nd options for ltering your screen. These include options for use at night and in strong sunlight:

• Red Filter: for night vision

Press the Red Filter button for night use to preserve your night vision. This adds a red tint to your screen so your eyes are protected from viewing a bright screen in the dark.

To preserve night vision, use a low level setting. Below 10%, the scale goes down in steps of 2%. (Some text may become

illegible using the red lter with a backlight setting below 10%).

Select Sun Filter, then Normal to return to the daylight screen.

• Sun Filter: for strong sunlight

Press the Red Filter button to access the

Sun Filter option. This gives your screen a

higher contrast and increases the levels of red, green and blue, so it is easier to view your map in very bright sunlight.

Note: With the Sun Filter your screen loses some intricate map details in order to enhance the visibility of the map in sunlight.

Select Normal to return to the daylight screen.

The Red Filter, Sun Filter and Backlight level can be used in combination to suit your individual needs.

• Use the joystick, moving left/right to select the desired level.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following setting: 90%

Note: If you are in Advanced Power Saving mode, the Backlight setting cannot go beyond 80%.

6. MAIN MENU: Settings Menu (... cont)

Adjust backlight

brightness

Red Filter Sun FilterNormal

Adjust brightness

6. MAIN MENU: Settings Menu (... cont)

Backlight Boost and Screen Data Capture

Camera icon

Briey replaces icons next to the battery

6.7 Screen Data Capture

Screenshots may be captured as jpeg les and accessed in SatSYNC, listed with time/ date details.

This might be useful in a variety of circumstances. For example, sending a screenshot of a particular location to another person or using a series of screenshots in conjunction with timed digital photos for use in a presentation.

Press and hold the Backlight Boost button for three seconds; a camera icon briey replaces the icons next to the battery (i.e. Stop/Record icon, toggle icon). A beep sounds to indicate a successful screenshot capture, depending on your Beep Alert Count setting.

To access your screenshot:

• Connect your Active 12 to the computer via a USB cable.

• Open SatSYNC.

• Screenshots are found in the root folder of the Internal Storage or SD Card. (By default it is saved to the SD Card folder, if the SD card is in the unit and is not write-protected. Otherwise it is saved to the Internal Storage of your unit).

• Select the screenshot and press Export to download it to your computer.

6. MAIN MENU: Settings Menu (... cont)

6.8 Data Boxes

This is a white overlay that appears in the lower half of the map screen. It allows you to show customized information (data) about your trip, environment and map objects. Available as a 2 or 4 box layout.

6.8.1 2 Data Box Layout

(MAIN MENU → Settings → 2 Data Box Layout)

For both the Left Box and the Right Box:

• Use the joystick, moving left/right to select the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

The data options are listed below and are the same for both 2 data box and 4 data box layouts.

Pressing the Default button restores the following settings:

Choose Data for Left Box

Heading

Choose Data for Right Box

Elevation

2 Data Box Layout

4 Data Box Layout

Select items for the

Data Boxes

6. MAIN MENU: Settings Menu (... cont)

6.8.2 4 Data Box Layout (upper)

(GPS MAP → MAIN MENU → Settings → 4 Data Box Layout: upper)

For both the Upper Left Box and the Upper Right Box:

• Use the joystick, moving left/right to select the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

The data options are listed below and are the same for both 2 data box and 4 data box layouts.

Pressing the Default button restores the following settings:

Choose Data for Upper Left

Trip Distance

Choose Data for Upper Right

Speed Now

Data boxes are shown on the GPS MAP screen. To reach the GPS MAP screen from the SETTINGS MENU, press Map (front left button).

• On the GPS MAP screen, use the lower left side button to toggle between having 2 data boxes, 4 data boxes or none.

6.8.3 4 Data Box Layout (lower)

(GPS MAP → MAIN MENU → Settings → 4 Data Box Layout: lower)

For both the Lower Left Box and the Lower Right Box:

• Use the joystick, moving left/right to select the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

The data options are listed below and are the same for both 2 data box and 4 data box layouts.

Pressing the Default button restores the following settings:

Choose Data for Lower Left

GoTo Distance

Choose Data for Lower Right

Location

Upper Data

box selections

Lower Data

box selections

6. MAIN MENU: Settings Menu (... cont)

6.8.4 Options for 2 & 4 Data Boxes

(GPS MAP → MAIN MENU → Settings → 2/4 Data Box Layout)

The following data options are available for each box in both the 2-box and 4-box layouts. Move the joystick left/right to select the desired option, and then press Done or centre press the joystick to complete. For each data option, a summary descriptor is given on-screen.

Heading

Direction of travel, given in either Degrees (M – Magnetic North, G – Grid North, T – True North), Cardinal points (e.g. N, NNE), or milradians. See Compass Settings.

Location

GPS position given by either OSGB (Ordnance Survey GB); UTM; Degrees decimal; Degrees, minutes decimal; Degrees, minutes, seconds decimal; British Grid. See GPS Settings for other formats.

GoTo Bearing

Bearing to your “Go To” point. See POSITION

INFO, (Set as GoTo option).

GoTo Distance

Distance to GoTo point, either imperial or metric. See Units and Set Speed.

GoTo ETA

Estimated Time of Arrival at GoTo point.

GoTo Time

How long to reach GoTo point.

GoTo VMG

VMG (Velocity Made Good) is the actual speed you are making toward your chosen location (POI, Next WP or GoTo point (AOI, LOI, POI, WP or any unidentied point on the map), rather than your simple forward speed.

Bearing Next WP

Bearing to the next waypoint.

Distance Next WP

Distance to the next waypoint.

ETA to Next

Estimated Time of Arrival at next waypoint.

Time Next

How long to reach next waypoint.

VMG Next

Velocity Made Good to next waypoint. See GoTo VMG summary above.

WP Name

Name of next waypoint.

Nearest POI*

Name of nearest POI/LOI/AOI.

Bearing to POI*

Bearing to nearest POI/LOI/AOI.

Nearest POI* Distance Distance to nearest

POI/LOI/AOI.

POI* ETA

Time of arrival at nearest POI/LOI/AOI.

POI* Time

Time until nearest POI/LOI/AOI.

POI* VMG

Velocity Made Good to nearest POI/LOI/AOI. See GoTo VMG summary.

Bearing to End

Bearing to the route end.

Distance to End

Distance to route end (along the route).

ETA to End

Estimated Time of Arrival at route end.

Time to End

How long to get to route end.

VMG End

Velocity Made Good to route end. See GoTo

VMG summary.

Route Cross Track Error

This is the distance between the planned blue/yellow route and the snail trail. It is most relevant for aircraft (cross wind effects) and nautical applications (effects of currents).

Route Distance

Total distance of the active route.

Route Done

Percentage of route travelled so far.

6. MAIN MENU: Settings Menu (... cont)

6.8.4 Options for 2 & 4 Data Boxes (... cont)

Route Name

Name of route.

Average Moving

Average moving speed.

Average Speed

Average speed overall; total distance divided by total time.

Max Speed

Maximum speed.

Speed Now

Current speed.

Sunrise

Time of sunrise.

Sunset

Time of sunset.

Moon Phase

An icon is displayed along with the percentage of a full moon.

Time Moving

Time spent moving, as recorded by the Trip

Log (section 6.03). This will be a cumulative

total until the Trip Log is reset.

Stopped Time

Time spent not moving. See Time Moving summary above.

Trip Distance

Total trip distance. See Time Moving summary above.

Trip Time

Total trip time. See Time Moving summary above.

GPS Accuracy

Accuracy of GPS within a certain distance.

Position as Lat. Long.

Position is given in degrees latitude and longitude.

Elevation

Current height above sea level. See GPS

Settings (section 7.09).

Time Now

Time of day.

Date

Date today.

Total Ascents

Cumulative total of height (altitude) gained.

Total Descents

Cumulative total of height (altitude) lost.

Max Altitude

Maximum height (altitude) attained.

Min Altitude

Minimum height (altitude) attained.

In the data boxes, data options mentioning POIs also refer to any reference point of an LOI and AOI (usually the point at the start of the name).

6. MAIN MENU: Settings Menu (... cont)

6.9 GPS Settings

(GPS MAP → MAIN MENU → Settings → GPS settings)

Position Display Format (ie. grid reference format)

• Use the joystick, moving left/right to select from OSGB (Ordnance Survey GB); German Grid; UTM; MGRS; GARS; CH1903/LV03 Swiss Grid; Swedish Grid RT90; French Grid Lambert 2E; French Grid Lambert93; Irish Grid ITM; Irish Grid IG; Pakistan MG; New Zealand TM; Degrees decimal; Degrees, minutes decimal; Degrees minutes, seconds decimal; British Grid.

• Press Done or centre press the joystick to return to SETTINGS MENU.

OSGB grid references are given to 10 gures. If you are working to 6-gure grid references, set the last 2 digits of each number set to 0.

Figure 7.09

GPS Used as Heading at

The Active 12 has an electronic compass (good when stationary) and a GPS compass (good when in motion), and switches between the two at a preset speed. In this setting you are able to select the speed at which the GPS compass overrides the electronic compass.

The GPS compass is more accurate the faster you go.

• Use the joystick, moving left/right to select from Never, then from 1 kph/0.5 mph to 16

kph/10 mph.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Select Correct Position

Format for Country

6. MAIN MENU: Settings Menu (... cont)

6.10 Memory Status

(GPS MAP → MAIN MENU → Settings → Memory Status)

This screen provides information on the memory usage and status of the different types of memory on your unit. These include:

• SD Card Information Shows the percentage of memory used on your SD card. Also indicates the total size and amount of free space remaining on your SD card.

• Internal Storage (Flash) Shows the percentage of memory used on your unit.

• Operating Memory (RAM) Shows the percentage of memory being used to operate the unit.

A warning icon (showing a yellow bubble with a black exclamation mark) appears on the status bar of every screen if:

• amount of memory used on the SD card is 95% or higher.

• amount of memory used on the internal storage is 95% or higher.

• amount of memory used in the operating memory is 95% or higher.

• SD card is read-only (write-protected).

In this case a message will also appear on the memory status screen below the progress bars telling you that the 'SD Card is ReadOnly'. (Make the SD Card writable by sliding the small switch on side of the card upwards. This will also remove the warning icon that appears on the screen).

A memory warning icon appears in 3 places in these cases:

• on the status bar of every screen

• next to the Settings button in the MAIN

• next to the 'Memory Status' option in the

SETTINGS MENU.

When a memory warning icon appears on the status bar of your screen you will need to go to

MAIN MENU → Settings to check the warning.

On pressing the Settings button, you will be immediately taken to the Memory Status screen on the SETTING screen.

(Usually by selecting the Settings button you are directed to the SETTINGS MENU where you can select an option. If you would like to access the menu from the Memory Status screen, press Back).

Move the joystick up/down, or press the Next button to select a memory option. Move the joystick left/right to opt in/out of the memory warning.

Opt in by selecting the yellow icon which

keeps the warning icon message showing in the status bar.

Opt out by either xing the problem or

selecting the yellow icon with a red line through it. This removes the warning icon message.

Pressing the Default button sets the opt in option for all warnings.

Back

to get to the SETTINGS MENU

Opt in

Progress bars:

orange: safe usage green: low usage purple: high usage

Opt out

To x the memory status warning:

• Hide inactive routes (reduces RAM)

• Show inactive routes SP (reduces RAM)

• Back up and delete non-essential OOIs & routes (reduces Internal Storage, SD Card space & RAM)

• Reset trip log (reduces Internal Storage & RAM)

6.11 Units and Set Speed

(GPS MAP → MAIN MENU → Settings → Units and Set Speed)

This is where you can set your preference for units of measurement (i.e. for elevation, speeds and distances), and set your target speed.

Units: Distance & Speed. Use the joystick,

moving left/right to switch between Miles and feet, Kilometres and meters, Nautical Miles and Knots. Press Done or centre press the joystick to return to SETTINGS MENU.

Target Speed. This is the speed on which

Estimated Time of Arrival (ETA) calculations

are based if the average moving speed in the trip log (Av. Moving) is zero, i.e. you are stationary. Once you are moving, your ETA is taken from your average moving speed if you have a lock or recently had a lock.

Use the joystick, moving left/right to select the Target Speed from 1 kph (0.6 mph) to 100 kph (62.5 mph).

Press Done or centre press the joystick to return to SETTINGS MENU. Pressing the

Default button restores the following settings:

Units: Kilometres and meters Target Speed: 10 kph (6.2 mph / 5.4 kn)

6. MAIN MENU: Settings Menu (... cont)

Set desired Units

Pressure Units. Use the joystick (L/R) function

to select your desired units for the Pressure display:

Options are :

a. mBar (millibars)

b. inHg (inches mercury)

c. mmHg (mm of mercury)

d. hPa (Hectopascal)

6. MAIN MENU: Settings Menu (... cont)

6.12 Compass Settings

(GPS MAP → MAIN MENU → Settings → Compass Settings)

This controls the data boxes that appear on the

COMPASS screen and POINTER screen, and

how the bearing options are displayed in the data box on the GPS MAP screen.

There are three norths commonly used in Great Britain:

• Grid North: the direction of a grid line which is parallel to the central meridian on the National Grid.

• True North: the direction of a meridian of longitude which converges on the North Pole.

• Magnetic North: the direction indicated by a magnetic compass. Magnetic North moves slowly with a variable rate and currently is West of Grid North in Great Britain.

Compass Display

• Use the joystick, moving left/right to select from Degrees, Cardinal points (e.g. N, NNE), or mil-radians.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Grid Magnetic Angle

• Use the joystick, moving left/right to switch

between Manual and Automatic.

Press Done to select Automatic.

If you want to set your Grid Magnetic Angle

manually, select Manual and then press Set. This will take you onto a new SETTING screen on which the Grid Magnetic Angle may be adjusted by moving the joystick up/down.

Pressing the Default button restores the following setting:

Grid Magnetic Angle Value : W 03

• Press Done or centre press the joystick to return to Compass Settings screen. Press

Done again to return to SETTINGS MENU.

Bearing Display

• Use the joystick, moving left/right to switch between Show Grid Bearings and Show

Magnetic Bearings.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Compass Display

Degrees

Grid Magnetic Angle

Manual

Bearing Display

Show Grid Bearings

Settings for Grid Magnetic

Angle

Manual or Automatic Enter values for Manual

selection

6. MAIN MENU: Settings Menu (... cont)

6.13 Calibrate Compass

(GPS MAP → MAIN MENU → Settings → Calibrate Compass)

Ideally you should calibrate your compass before every trip to get the most accurate bearings.

When the ‘Calibration Required’ prompt is displayed at the bottom of the COMPASS screen, go to the Settings menu and select

Calibrate Compass. Follow the on-screen

instructions. Press Cancel to return to the

SETTINGS MENU.

Note: This screen may also be accessed from the COMPASS screen.

1) Hold GPS level

2) Press Start

3) Turn device around in TWO full circles (720 degrees)

4) Press Stop when completed turning or

Cancel to quit.

An on-screen message ‘Keep turning’ is replaced with ‘Completed. Press Stop’.

Note: When in motion it is better to use the GPS compass over the electronic compass. The GPS compass requires forward motion to provide a heading; it will not work when static. See GPS Settings (section 7.09) to control when the GPS compass overrides the electronic compass at a preset speed: 'GPS

Used as Heading at'.

Calibrating on a bike

The electronic compass is affected when brought into proximity with metal objects. This means that once the GPS unit has been mounted onto the handlebars of a bike, it should be re-calibrated.

To do this follow the instructions exactly as you would if the unit were in your hands. When asked to turn the compass in two full circles (720°), you should pick up the bike with the unit and rotate it as indicated.

When subsequently removed and used for walking, a further recalibration is required.

It should also be re-calibrated when a different battery type is inserted, due to the varying metal content from one battery type to the next.

Calibrate Compass

- Option 1

Calibrate Compass

- Option 2

6. MAIN MENU: Settings Menu (... cont)

6.14 Set Trip Data

(GPS MAP → MAIN MENU → Settings → Set Trip Data)

This is where you can control how inactive routes are displayed, as well as the deletion/ preservation of trail and trip log data when a new route is activated.

Showing Inactive Routes

• Use the joystick, moving left/right to toggle

between;

Show Inactive Routes: Inactive routes are

shown on maps.

Hide Inactive Routes: Inactive routes are

hidden on maps.

Show Inactive Routes SP: The start point

(SP) of each inactive route is shown on the maps. (A gray marker with a black triangle appears at the start point).

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Note: Showing inactive routes uses a lot of operating memory on the unit, so it is important to keep this selection to a minimum, as it will slow down your unit. Showing too many inactive routes could also 'freeze' your unit. Only show a few short inactive routes, or to reduce RAM consumption, choose the Show

Inactive Routes SP option.

Auto Clear Trail Data

• Use the joystick, moving left/right to toggle between;

On: Trail data is cleared when a new route

is selected.

Off: Trail data is not cleared on new route

selection.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Auto Reset Log

• Use the joystick, moving left/right to toggle between;

Keep Log on New Route: Log will not be

cleared when starting a new route.

Clear Log on New Route: Log will be

cleared on starting a new route.

• Press Done or centre press the joystick to return to SETTINGS MENU

Pressing the Default button restores the following settings:

Showing Inactive Routes

Show Inactive Routes SP

Auto Clear Trail Data

Off

Auto Reset Log

Keep Log on New Route

Control Data on

Map Screens

6. MAIN MENU: Settings Menu (... cont)

6.15 Volume Control

(GPS MAP → MAIN MENU → Settings → Volume Control)

Audio Playback Volume - This is intended for

volume control when using the audio jack.

Beep Alert Count - The unit will beep when

it encounters WayPoints, Points Of Interest, GoTo Points or Routes. It will also beep when a map card is inserted or a screenshot is captured. You are able to customize how many beeps sound in these instances:

• Use the joystick to select the number of beeps, ranging from 1 to 10, or mute.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Audio Playback Volume: 70%

Beep Alert Count: Three Beeps

Note: You cannot control the volume of the beeps.

6.16 Button Control

(GPS MAP → MAIN MENU → Settings → Button Control)

The 4 side-press or 2 front-press buttons on the unit enable one-handed operation and are multifunctional, with variable keys depending on the screen displayed. You are able to customize the operating of your unit and tailor it to t your needs, i.e. how many clicks you want the buttons to operate with, and whether

you are right/left handed.

Key Click Sound - This function only operates

in conjunction with headphones.

Hidden Map Buttons - This function applies to

the GPS MAP or PLANNING screens.

• Use the joystick to toggle between;

Two Click operation: click to reveal button

function then click again for action.

One Click operation: one click activates

button instantly.

• Press Done to return to SETTINGS MENU.

Note: The 'Two Click' operation is particularly useful for beginners, as they will be able to see the gray icon that appears on the screen before the button takes the intended action.

Button Handling -

• Use the joystick, moving left/right to toggle between Right Handed and Left Handed operation.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Key Click Sound: Off

Hidden Map Buttons: One Click

Button Handling: Right Handed

Audio jack playback

volume

Audio jack - key click

sounds

6. MAIN MENU: Settings Menu (... cont)

6.17 Pan and Zoom Speed

(GPS MAP → MAIN MENU → Settings → Panning Speed)

Set Pan and Zoom Speed This control

allows the Pan and Zoom rates to be adusted between:

Very Slow Slow Medium Fast Very fast

Use the joystick to cursor leaft and right to your desired setting. The default settings is

Medium.

6.18 Cycling

(GPS MAP → MAIN MENU → Settings → Cycling)

Introduction - The Bluetooth wireless

connectivity allows for the connection of Bluetooth Smart bike speed and cadence sensor units (sold separately). Bike speed is calculated directly from the wheels, while "cadence" is calculated from the pedal revolutions. Generally, the speed data given by the GPS will adequate for most purposes, however, in certain conditions (thickly wooded areas and near tall buildings) the wheel speed data (for bike riders) will give a nore stable and accurate reading.

Sensor Unit - Sends back "wheel revolutions

per second" data. To turn this into speed data it needs to be multiplied by the circumference of the bike wheel being used.

Set Wheel Circumference in mm - The

default setting is 2096mm, which is generally good for most road bike (700C) wheels, but will need to be adjusted for other types of bikes with different size wheels and tyres.

Wheel size? - If you are unsure of your wheel

size, you can either measure this directly, or refer to the bike manufacturer's documentation.

Set in mm - In this edition of the software

the wheel size needs to be entered in mm, although speed can be displayed in metric or imperial.

Panning Speed

Options

Set Wheel Circumference

for Wheel speed data

Display wheel speed on

GPS MAP screen data

Boxes

6. MAIN MENU: Settings Menu (... cont)

6.19 Screen Data Options

(GPS MAP → MAIN MENU → Settings → Screen Data Options)

This controls the automatic display of the POI details screen and the display of POI names, waypoint names, and route names (i.e. 'titles') on maps. Pressing the Default button restores the following settings:

Auto Show POI Information: Off

Show Titles on Maps: On

Auto Show POI Information

• Use the joystick, moving left/right to switch between;

On: POI overlay data is automatically

shown when nearby.

Off: POI overlay data is not automatically

shown.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Show Titles on Maps

These are the names of POIs, waypoints and routes, and appear as white text within a black rectangle.

• Use the joystick, moving left/right to switch between;

On: POIs, waypoints and route names

shown on maps.

Off: Names not shown on maps.

• Press Done or centre press the joystick to return to SETTINGS MENU.

6.20 Time Offset

(GPS MAP → MAIN MENU → Settings → Time Offset)

This function allows you to vary the time setting in relation to GMT (e.g. for British Summer Time add one hour).

• Use the joystick, moving left/right to select the time offset.

• Press Done or centre press the joystick to return to SETTINGS MENU.

GPS/UTC time (appears in the on-screen descriptor) is the same as Greenwich Mean Time, GMT. An explanation of UTC is given in the glossary.

6.21 Enter User Name

(GPS MAP → MAIN MENU → Settings → Enter User Name)

This function allows you to set a User Name for your device. This name is primarily used in the SHARED DATA screens to identify other nearby Active 12s.

After a full default factory reset - the device will normally ask you to set a User Name.

POI Info on

Map screens

Set Time

offset

Press Done to complete

Enter User Name

in Text Box

6. MAIN MENU: Settings Menu (... cont)

6.22 Languages

(GPS MAP → MAIN MENU → Settings → Languages)

Languages

Select your preferred language:

• Use the joystick, moving left/right to select the operating language from English to English (US), Nederlands (Dutch), Norsk (Norwegian), Svenska (Swedish), Français (French), Deutsch (German), Italiano (Italian), Español (Spanish), Català (Catalan).

• Press Done or centre press the joystick to return to SETTINGS MENU.

6.23 About

(GPS MAP → MAIN MENU → Settings → About)

This screen gives details of the software version installed on your unit and Satmap contact details.

Press Done to return to the SETTINGS MENU.

To check for the latest software updates, please:

1. Download the SatSYNC application from

the Satmap website.

2. Connect your Active 12 to your PC, and

SatSYNC will automatically check if software updates are available. You will be asked if you wish to update your device.

Alternatively, if you do not use a PC, please

Select desired

Language

System info on

About screen

contact Satmap support and an Upgrader SD card will be mailed to you.

Please Note: The 1st relase sofware for the Active 12 is Version 2.0.xxxx

All Active 12 GPS have "Platform 29", or higher.

7. MAIN MENU: ROUTES MENU

7.1 ROUTES MENU Screen

(MAIN MENU → ROUTES MENU)

The ROUTES MENU contains the listing of routes, stored in a series of folders.

By default, the rst route created is entitled ‘My Route 1’. The routes following are titled in numerical order, i.e. 'My Route 2', (unless you have imported a prenamed route to your unit from an external mapping system). You can rename the title of your route via the Edit button.

When a trail is converted to a track it is also saved in the ROUTES MENU and is allocated a default title including the year, month, day, time and distance (e.g. 2010-08-14_16:35

15.6km). A track is a route derived from a trail

that has already been made.

Route listing

Buttons:

Edit. Go to ROUTE EDIT screen

View. Go to ROUTE MAP screen

Map. Return to GPS MAP screen

Up folder / Select / Activate / No route active.

Move up to a higher level folder, or when a route is highlighted, toggle between activating it and selecting no route active.

Create New Route. Go to CREATE ROUTE

(section 8.01)

Back. Return to MAIN MENU

Accelerated scrolling: If you have several

routes in one folder you are able to scroll quickly by holding the joystick up/down. Keep the joystick pressed up/down until you reach the le you are looking for.

Two storage areas

7. MAIN MENU: ROUTES MENU (... cont)

Active route

Inactive route

Figure 8.00b

"Choose Info

Type" box

7.3 Following a Route

A route is made up of individual waypoints, shown as small green circles which turn blue as you approach the next waypoint. The route colour can be either blue or yellow, with varying transparency, depending on the active route colour chosen. The default route colour is blue.

To follow a route, you need to rst 'activate' it.

As you begin to follow the yellow/blue route, the next waypoint along turns blue. The current leg between waypoints is shown to have blue edging and blue arrowheads. As you approach this point, the waypoint name is displayed and the unit will beep. As you pass this waypoint it will turn from blue to green, and the next waypoint marker will turn blue, and so on.

7.2 Active and Inactive Routes

There are three ways to 'activate' a route:

• Highlight the route in the ROUTES MENU and press Activate. An active route is indicated by a tick next to the route name.

To deactivate, highlight the ticked route

name and press No route active.

• Alternatively you can go to the ROUTES

MENU, press View and then Start, which

activates the route automatically.

• If you can see the route on the GPS MAP or

PLANNING screen, centre press the joystick

anywhere on the route. This will bring up the

Choose Information Type window (section

11.00). Select the route, and then move the

joystick left/right to highlight the green tick.

An activate route has relevant data choices available for display on the GPS MAP screen in either 2 or 4 data box overlays. Refer to

MAIN MENU → Settings → Set Trip Data to

control whether changing an activated route during a trip will reset the log data. When active, the route is shown as a yellow or blue highlighted line with red arrowheads indicating the direction of travel. Inactive routes are shown as gray highlighted lines when displayed.

Inactive routes may be hidden or have just their start points displayed.

Note: Showing your inactive routes will take up operating memory.

Route seleted =

"Activated"

7. MAIN MENU: ROUTES MENU (... cont)

Add

Waypoint

Remove

Waypoint

ROUTES

CREATE

ROUTE screen

Zoom In

Finish

Start

Done

Zoom Out

Route Start

Route End

7.4 Create New Route

(MAIN MENU → ROUTES MENU → Create New Route)

From the MAIN MENU, select the Routes

Menu and press Create New Route. This

takes you to the CREATE ROUTE screen where you will be able to plot routes by laying down a series of waypoints. Zoom in for greater accuracy in placing waypoints.

Alternative ways to create a route:

GPS MAP → POSITION INFO via centre press → Create New Route

GPS MAP → PLANNING → ROUTES MENU via lower left button → Create New Route

Buttons:

Add Waypoint*

Press the button or centre press the joystick

Remove Waypoint

Press the button or centre press the joystick

ROUTES MENU

Return to ROUTES MENU

Zoom

Zoom in and out

Done

Press when route is nished, unless you have ‘closed’ the route.

If there is an SD card in the unit and it is not write-protected, by default the route will go into the SD Card folder. If there is no SD card in the unit, by default the route will go into the

Internal Storage folder.

You can create route folders using SatSYNC. To create a new route in an existing folder, you will need to select the folder in the Routes

Menu and press Create New Route from

there.

Note: Folders are only visible if they contain a minimum of one route or OOI.

The Add Waypoint button has 3 functions:

1. To add a waypoint.

2. To click on an existing waypoint and drag it to another location.

3. To close the route (i.e. connect the last waypoint to the start point) if the last waypoint is very close to the start waypoint.

The centre cross turns green inside the orange location icon when you are on the CREATE

ROUTE screen to indicate you are ready to

add waypoints. Place waypoints wherever your planned route changes direction. Waypoints are shown as green dots. As waypoints are laid down, a yellow/blue highlighted route is created. To remove waypoints, position the green cross over a waypoint and press the

Remove Waypoint button.

The start point of a route has an icon with a forward arrowhead in a yellow bubble. The end of a route has an icon with a chequered ag in a yellow bubble.

Press Done or press the lower left button to return to the ROUTES MENU.

To view the route, highlight it and press View; a route map plus route length is shown.

7. MAIN MENU: ROUTES MENU (... cont)

7.5 ROUTE EDIT Screen

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit)

Alternative access:

(GPS MAP/PLANNING → click on route → Choose Information Type → select route via centre press → ROUTE MAP → Edit)

To access the ROUTE EDIT screen, highlight the route to be edited in the ROUTES MENU (section 8.00), and press Edit. In selecting either Edit Title or Edit Comments you will bring up an on-screen keypad. When using the keypad for labelling, either press

Select or centre press the joystick to select

entries. Use the Shift button for upper case letters, the More button offers more characters.

Buttons:

Press Next or use joystick to scroll down options

Map

Return to last map screen

Edit

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include Copy,

Move, Delete, Reverse.

Back

Return to ROUTES MENU

When the title and any comments have been entered, the ROUTE MAP screen will be annotated with the new title and comments. (To get to the ROUTE MAP screen, select

View on the ROUTES MENU screen).

The menu options on the ROUTE EDIT screen are as follows;

• Edit Title

• Edit Comments

• Reverse Route

• Edit Route Map

• Edit Waypoints

• Edit Active Route Colour

• Delete Route

• Copy

• Move Route to/from SD Card*

• Copy Route to/from SD Card*

*The last two options on the list become available only when a mapcard has been inserted and is not write-protected.

ROUTE EDIT

screen

7. MAIN MENU: ROUTES MENU (... cont)

7.6 Edit Title

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Title)

When a route is created it is called 'My Route 1' by default (or similar, depending on the number of existing routes). To rename it, use

Edit Title.

Highlight Edit Title, then either press the Edit button or centre press the joystick to access the keypad (section 9.00).

7.7 Edit Comments

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Comments)

Highlight Edit Comments, then either press the Edit button or centre press the joystick to access the keypad.

Operate the keypad to input comments describing the route and press Done when nished. The screen will return to the ROUTE

EDIT screen.

TEXT EDIT

screen

Reverse

Route option

7.8 Reverse Route

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Reverse Route)

Press Reverse to reverse the route. Press again to go back to the original direction of travel. There is an on-screen statement which says either Currently Forward or Currently

Reverse.

Alternative ways to reverse the route are via the ROUTE PLAN screen or the ROUTE

CARD screen.

Currently

Reverse

Currently

Forward

7. MAIN MENU: ROUTES MENU (... cont)

7.9 Edit Route Map

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Route Map)

Highlight Edit Route Map, then press Edit to access EDIT ROUTE screen. Using the joystick, move the location icon to the edit point on the route. Either press the Add Waypoint button or centre press the joystick to add a waypoint with a green-headed ‘pin’. Drag the new waypoint to the desired location.

Either press Done or centre press the joystick to x the new waypoint. Move the location icon away from the route. Press Done to return to

ROUTE EDIT screen.

7.10 Edit Waypoints

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Waypoints)

Highlight Edit Waypoints, press Edit to access the WAYPOINTS screen. A list is shown, SP is for start point, WP is for waypoint. Highlight the waypoint to be edited and either press Edit or centre press the joystick to access the EDIT

WAYPOINT screen. Here you have the option

to edit individual waypoints:

• Edit Name

• Edit Comments

• Edit Location by Grid

• Edit Location by Map

• Delete

green-

headed

Edit Route on

Map options

Waypoint edit

options

Edit Name

Highlight Edit Name and press Edit or centre press the joystick to access the keypad and rename the waypoint.

Edit Comments

Highlight Edit Comments and press Edit or centre press the joystick to access the keypad and add a description to the waypoint. This will show up next to the waypoint name in the

WAYPOINTS menu.

Edit Location by Grid

Highlight Edit Location by Grid and press Edit or centre press the joystick to edit the waypoint by changing the grid reference values. This will take you to the SETTING screen where you can use the joystick to move left/right to toggle between boxes. Move the joystick up/ down to change the box entries. Pressing Next will move between rows (except with OSGB). Select Done when complete to go back to the

EDIT WAYPOINT menu.

Edit Location by Map

Highlight Edit Location by Map and press

Edit or centre press the joystick to edit the

waypoint on the map. Click the waypoint to set a green-headed 'pin' and drag it to a new location. Press Done or centre press the joystick to conrm the placement.

Delete

Highlight Delete and press Delete or centre press the joystick to instantly delete the waypoint. Press Back to go back to the

ROUTE EDIT menu.

7. MAIN MENU: ROUTES MENU (... cont)

7.11 Edit Active Route Colour

(MAIN MENU → ROUTES MENU → (folder/ route) → Edit → Edit Active Route Colour)

Highlight Edit Active Route Colour, press

Edit or centre press the joystick to access the ROUTE MAP screen. Here you will be able

to customize the colour of your route. You are able to choose from 6 options that range between the two colours blue and yellow with varying degrees of transparency. You can make the appropriate selection to avoid obscuring map details.

Use the joystick to move across the colours. Once you are happy with the selection, press

Set or Back to go back to the Route Edit

menu.

7.12 Delete Route

(MAIN MENU → ROUTES MENU → (folder/ route) → Edit → Delete Route)

Highlight Delete Route, then press Delete to access a screen showing the option to delete the route. When either Delete or Cancel is selected, the screen will return to the ROUTES

MENU.

7.13 Copy

(MAIN MENU → ROUTES MENU → (folder/ route) → Copy)

Press Copy to create a copy of the current route which will appear in the same folder.

7.14 Move Route to SD Card

(MAIN MENU → ROUTES MENU → (folder/ route) → Edit → Move Route to SD Card)

(Only available if an SD card has been inserted).

Highlight Move Route to SD Card and either press Move or centre press the joystick. (Subsequently this option becomes Move

Route from SD Card). The screen will go to

the ROUTES MENU and your route will appear in the SD Card folder. It will no longer exist in its previous location.

7.15 Copy Route to SD Card

(MAIN MENU → ROUTES MENU → (folder/ route) → Edit → Copy Route to SD Card)

(Only available if an SD card has been inserted).

Highlight Copy Route to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

Route from SD Card). The screen will go to

the ROUTES MENU and you can nd a copy of the route in the SD Card folder.

Route colour options

The default colour for a route is the medium blue option.

7. MAIN MENU: ROUTES MENU (... cont)

7.16 ROUTE MAP Screen

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → View)

Alternative access:

(GPS MAP/PLANNING → click on activated route → Choose Information Type → select route via centre press → ROUTE MAP)

A map showing the entire planned route is shown. An appropriate scale is used to ensure the whole route can be displayed on the screen.

Note: If you see your route on a blue background, this means there is no suitable map at that scale to incorporate the entire route.

The route length is given in a window. From this screen you can either examine details of the route via the Prole button, or edit the route via the Edit button. You can also view the start of a route by pressing Start.

To return to the PLANNING screen, either press Back or centre press the joystick.

ROUTE MAP

screen

Buttons:

Prole

Go to ROUTE PLAN screen

Start

Go to the start of the route on the PLANNING screen (section 6.00)

Note: This is useful to locate a route on your screen when it is not visible.

Edit

Go to the ROUTE EDIT screen

Back

Go to PLANNING

7. MAIN MENU: ROUTES MENU (... cont)

7.17 ROUTE PLAN Screen

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → View → Prole)

This screen shows an elevation prole of the route, together with six data elds:

• Distance

• Total Ascents

• Total Descents

• Maximum Altitude

• Minimum Altitude

• Approximate Time

The ROUTE PLAN screen is accessed from the ROUTE MAP screen by pressing the

Prole button.

The vertical line can be used to access information about each waypoint by moving the joystick left/right. Pressing the joystick once left/right, moves the vertical line along each individual waypoint. Pushing and holding the joystick left/right moves the vertical line across numerous waypoints, giving you accelerated scrolling.

Accelerated scrolling: This is useful if you have a route with many waypoints and want to access information about a particular waypoint. Press and hold the joystick left/right

until you reach the specic waypoint.

If you have more than 50 waypoints, then you will only be able to see the start and end points, but you will still be able to access details of each point using the vertical line.

The waypoint label on the map, its coordinates and comments appear under the elevation prole. Below a total of fty waypoints, individual waypoints are shown along the prole as green dots. If a route is a ‘track’, i.e. a converted trail, the comment eld contains date, time, speed etc. as recorded by the Active 12.

Buttons:

Card

Go to ROUTE CARD screen

Go To

Go to PLANNING screen, centred on the indicated waypoint

Reverse

Press to Reverse the route

Back

Go to previous screen

ROUTE PLAN

screen

Waypoint

End point

Vertical

line

Start point

Less than 50 waypoints

7.18 ROUTE CARD Screen

(GPS MAP → MAIN MENU → ROUTES MENU → (folder/route) → View → Prole → Card)

The ROUTE CARD screen gives a list of 'legs' (distance and bearing between 2 waypoints). At the bottom of the screen you will see the start point and end point of the highlighted leg. Below that is the name and description of the route.

This screen is accessed from the ROUTE

PLAN screen.

Buttons:

Map

Go to ROUTE MAP screen

Go To

Go to the start of the highlighted leg on the

PLANNING screen

Reverse

Reverse the sequence of waypoints

Back

Go to ROUTES MENU

ROUTE CARD

screen

Accelerated scrolling: This is useful if you

have a long list of 'legs' and want to access a particular one. Scroll through the list quickly by holding the joystick up/down. Keep the joystick pressed up/down until you reach the leg you are looking for.

7. MAIN MENU: ROUTES MENU (... cont)

7.19 Routes Folders

(GPS MAP → MAIN MENU → ROUTES MENU)

Routes folders or sub-folders can only be created via SatSYNC (please refer to the SatSYNC User Guide) and only appear on

the unit if they contain at least one route or one OOI. These folders consist of groups

of routes and help you manage your les, by organizing for example, your routes into different categories, e.g. 'geocaches', 'pubs', 'walks' etc.

If you are in a sub-folder and want to go back to another folder, you can use the Up Folder button to move up to the next folder.

Another way to access other folders is to centre press the joystick on the folder name. This will reveal a Choose Folder drop-down box with options to select a specic folder. (This applies to any folder menu).

ROUTE CARD

screen

There are several instances when the keypad is used. One example is:

GPS MAP → MAIN MENU → OOI Menu →

(OOI folders) → POI 1 → Edit → Rename

Other instances include:

• Naming an OOI

• Adding comments to an OOI

• Naming a waypoint

• Adding comments to a waypoint

• Naming a route

• Adding comments to a route

Use the joystick to navigate around the keypad (including going off the ‘edge’ left/right and up/down). Press Select or centre press the joystick for character selections. Use Shift to access upper case and More for more characters. Press Done when nished and then Back to return to the OOI Folders.

Buttons:

Delete

Delete characters in the display

Shift

Access upper case letters

Cancel

Option depends on the context

Access more characters

Select

Character selection

Done

Option depends on the context

8. Keypad

Text Edit

keypad

9. Choose Information Type Window

(GPS MAP → Choose Information Type via centre press)

Alternative access:

(PLANNING → Choose Information Type via centre press)

This window will be accessed via the GPS MAP or PLANNING screen, by centre pressing the joystick on a route or OOI. When the locator circle is over an OOI or a route, an indicator icon is displayed at the bottom of the screen. It comprises of 3 elements:

• 'i' for information

• joystick image (in the centre)

• POI icon/route symbol

Active route

Visible OOI

Invisible OOI

Inactive route

OOI indicator icon Route indicator icon

Nearby routes

& OOIs

OOI details

Once you are in the Choose Information

Type window, you will be able to:

• Make OOIs visible and invisible (move the joystick left/right to highlight relevant icon).

• Activate and deactivate routes (change time varies depending on the size of the route).

• Centre press the joystick to view details of an OOI.

• Go to the ROUTE MAP screen of any route, shows your route on a map, with details such as trip length, and gives you access to the

Prole screen).

• Access the Nearby option, which includes nearby routes and OOIs.

To bring up the Choose Information Type window:

On the GPS MAP screen: your current location

has to coincide with a route or OOI.

On the PLANNING screen: planning icon has

to be placed over any point on a route or OOI.

(Otherwise, centre pressing the joystick will bring up the POSITION INFO screen).

By centre pressing the joystick on a route or OOI, the screen turns gray and an overlay shows the Choose Information Type window. To cancel the gray screen, press either of the front buttons.

'Nearby' is dened by an OOI reference point at a radius of: 245m (804ft) at 1:50 000

122.5m (402ft) at 1:25 000

49m (160ft) at 1:10 000

A route is classied as being 'nearby' if any of the three conditions are true:

• The cursor is within it's bounding area (a square or rectangle which covers ALL the points in a route).

• The centre of the bounding area is nearby as dened above for OOI reference points.

• The start point of the route is nearby as dened above for OOI reference points.

10. MAIN MENU: OOI Menu (Objects of Interest)

10.1 OOI Menu

(GPS MAP → MAIN MENU → OOI Menu)

OOIs are Objects Of Interest and collectively refer to all 'points' of interest. They consist of the following 'objects':

• POIs (Points of Interest)

• AOIs (Areas of Interest)

• LOIs (Lines of Interest)

• Grids

• IOIs (Items of Interest)

OOIs can contain a description with rich text

and pictures, both of which can only be added

via SatSYNC 1.5 or higher. These can be retrieved from third party applications such as geocaching.com, Google Maps, Google Earth etc.

Note: OOIs created on the unit can only have a description with simple plain text. The only OOIs that will work on software versions 1.4 and lower are POIs with plain or rich text.

The OOI Menu shows options for managing and creating all OOIs:

• List All OOIs

• Visibility - All On

• Visibility - All Off

• Visibility - Default

• Add POI by Map

• Add POI by Grid Ref

• Add AOI by Map

• Add LOI by Map

• Add Grid by Map

• Add IOI

OOI Menu

Create new POIs, AOIs, LOIs, Grids and IOIs from the OOI Menu using the 'Add' options.

Users can easily hide or show all OOIs on the

Internal Storage and SD card, and visibility

can be set individually at folder level or globally. Icons are only available for POIs and can also be set individually or at folder level.

From the OOI Menu you are also able to access the OOI Folders where all OOIs are stored, as well as the Routes Menu for creating and managing your routes.

Buttons:

Move down to next option

OOI Folders

Access all folders containing OOIs

Map

Return to GPS Map screen

Select

Press Select or centre press the joystick to select an option from the menu

Routes Menu

Access the Routes Menu

Back

Go back to MAIN MENU

• List All OOIs

Takes you to the last visited OOI Folder.

• Visibility - All On

All OOIs will be displayed on the map, regardless of the folder and individual settings.

• Visibility - All Off

All OOIs will not be displayed on the map, regardless of the folder and individual settings.

• Visibility - Default

(Recommended option)

Respects individual settings of each OOI. Use 'Default' visibility to allow visibility to be editable for individual OOIs.

10. MAIN MENU: OOI Menu (... cont)

OOI Folders &

Items

10.2 OOI Folders

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders)

All OOIs are stored in the OOI Folders.

Detailed information for each OOI can be viewed by highlighting a specic OOI and selecting the Show Details button from this screen.

It is also possible to view each OOI on the map by selecting Centre on Map (with exception to IOIs).

Create a new POI directly from this menu by selecting the Create New POI option. This will lead you to the Add POI screen where you will be able to create and remove POIs using the '+' and 'x' buttons. Once you are done, the keypad will appear for you to name the POI and then choose a POI icon.

Access the edit menu by selecting the Edit button once an OOI has been highlighted. To edit visibility and set a new default icon for all OOIs within a specic folder (instead of an individual OOI), select the folder and use the

Edit All button.

To access other folders, use the Up Folder option or centre press the joystick to reveal a Choose Folder drop-down box and select a specic folder. (This applies to any folder menu).

Note: Sub folders can only be created via SatSYNC. (Please refer to the SatSYNC User Guide for detailed information).

Buttons:

Edit

Go to EDIT screen

Centre on Map

Go to PLANNING screen with the OOI in the centre

Map

Return to GPS Map screen

Show Details

Go to OOI details screen

Create New POI

Go to the Add POI screen

Back

Return to the OOI Menu

Accelerated scrolling: If you have several

OOIs listed in one folder you are able to scroll quickly by holding the joystick up/down. Keep the joystick pressed up/down until you reach the OOI you are looking for.

11. POIs (Points of Interest)

11.1 POIs Overview

POIs are Points of Interest: points on a map linked to geo-referenced data (latitude/ longitude), displaying text or images with information about that point (e.g. hotel, restaurant, viewpoint, historical site, etc).

POIs can be added to the unit in two ways — either by map or by grid reference. (POIs can also be added by postcode for some units in the UK). Individual icons can be allocated to each POI. These allow for better management of POIs and faster recognition.

Note: Use SatSYNC to add graphics or more detailed information to a POI. (See the SatSYNC 1.5 User Guide).

11.2 Add POI by Map

(GPS MAP → MAIN MENU → OOI Menu → Add POI by Map)

Alternative access:

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Create New POI)

To create a POI using the map, select Add POI

by Map from the OOI Menu and press Select

or centre press the joystick. This will take you to the Add POI screen where you will be able to set a POI icon.

The orange locator circle has a red cross in the centre to indicate you are in edit mode on the Add POI screen. Create a POI by either pressing the top left '+' button or centre press the joystick in the desired location. Use the lower left 'x' button to remove POIs.

Once you set a POI you are prompted to name the POI on the keypad screen. When a POI is created it is called 'POI 1' by default (or similar, depending on the number of existing POIs). Use the joystick to rename your POI.

Pressing Done will take you to the POI Icon

Selection screen that consists of a library of

POI icons. Here you will be able to allocate an individual icon to the POI. Use the joystick to scroll through choices and press Done to select the icon. Move the joystick up/down to access more screens with POI icons.

The Add POI screen appears with your recent POI creation in the centre of the map. Press

Back to return to the OOI Menu.

Alternatively you can access the Add POI screen by selecting Create New POI from the

OOI Folders menu.

Buttons:

Add POI (+)

Lay down POI icons on the map

Remove POI (x)

Remove POIs from the map

GPS Map

Return to GPS MAP screen

Zoom

Zoom in/out

Back

Go back to OOI Menu

POI icon

Remove

POI

GPS Map

Add

POI

Zoom In

Zoom Out

Back

Add POI

Locator

circle with

red cross

to indicate

edit mode

11.5 Add POI in a Specic Folder

(MAIN MENU → OOI Menu → OOI Folders → specic folder → nal subfolder → Back → Add POI by Map or Add POI by Grid Reference or Add POI by Postcode)

This will add the POI to the last visited folder.

Note: Folders are created using SatSYNC and must contain at least one OOI or route to be visible on the unit. (See SatSYNC User Guide for more information).

11.6 POI Details Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Show Details)

Alternative access:

(GPS MAP/PLANNING → click on POI → Choose Information Type → select POI via centre press → POI details)

This screen summarises details of the POI and is titled by the current POI name. POIs are date and time ‘stamped’, and the following information is given:

• Name of the POI

• Grid reference

• Distance and bearing from current location

• Elevation

• POI icon

• POI description (if added)

The highlighted green 'eye' icon indicates the POI is visible on the map. When invisible, the 'eye' icon is highlighted in red with a red line through it.

11. POIs (Points of Interest) (... cont)

11.3 Add POI by Grid Reference

(GPS MAP → MAIN MENU → OOI Menu → Add POI by Grid Ref)

To create a POI by grid reference, select Add

POI by Grid Ref from the OOI Menu and

press Select or centre press the joystick. This will take you to the SETTING screen where you will be able to create a POI using a grid reference.

To add a location entry, move the joystick left/right to toggle between boxes. Move the joystick up/down to change the box entries.

Under the grid reference boxes are the 'conversions' showing the initial grid references. Once you begin changing the grid reference (i.e. moving the joystick up/ down to change the entries), these conversion gures are grayed out and the Convert button becomes bold. Pressing Convert will update the conversions.

11.4 Add POI by Postcode (UK only)

(GPS MAP → MAIN MENU → OOI Menu → Add POI by Postcode)

POIs can be added by postcode for some units in the UK. Select Add POI by Postcode from the OOI Menu and press Select or centre press the joystick. This will take you to the keypad. Enter the desired postcode and press

Done to go to the Add POI screen.

Follow the steps as described in section 14.01 ('Add POI by Map') to create your POI on the map.

Set location by Grid Reference

Basic POI

detail

11. POIs (Points of Interest) (... cont)

11.7 Edit POI Menu

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit)

Alternative access:

(GPS MAP/PLANNING → click on POI → Choose Information Type → select POI via centre press → POI details → Edit)

To access the EDIT POI menu, highlight the POI to be edited in the OOI Folders (section

13.00), and press Edit or centre press the joystick. Scroll up/down using the Next button or the joystick. The current setting for the highlighted option is shown under the window.

In selecting either Rename or Edit Description you will bring up an on-screen keypad (section

9.00). When using the keypad for labelling, either press Select or centre press the joystick to select entries.

The menu options on the Edit POI screen are as follows;

• Rename

• Edit Description*

• Edit Location by Map

• Edit Location by Grid

• Edit Warning Radius

• Edit Visibility

• Edit POI Icon

• Delete

• Move to SD Card**

• Copy to SD Card**

Buttons:

Move down to next option

Map

Return to GPS MAP screen

Edit

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include

Rename, Delete, Move, Copy.

Back

Return to OOI Folders

The 'Edit Description' option is only available if the existing description has 128 characters or less (e.g. externally imported descriptions from geocaches etc. with more than 128 characters cannot be edited).

The last two options on the list become available only when an SD card has been inserted and is not write-protected.

EDIT POI

options

11. POIs (Points of Interest) (... cont)

11.8 Rename POI

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Rename)

When a POI is created it is called 'POI 1' by default (or similar, depending on the number of existing OOIs).To rename it, highlight the POI in the OOI Folders, press Edit, then Rename. The keypad appears. Use the joystick to rename the POI (section 9.00).

11.9 Edit Description

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit Description)

Highlight Edit Description, then either press the Edit button or centre press the joystick to access the keypad (section 9.00).

Operate the keypad to input comments describing the POI and press Done when nished. The screen will return to the EDIT

POI menu.

The description can be viewed on the POI details screen.

Note: The 'Edit Description' option is only available if the existing description has 128 characters or less (e.g. externally imported descriptions from geocaches etc. with more than 128 characters cannot be edited).

11.10 Edit Location by Map

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit Location by Map)

You are in edit mode when a red cross appears inside the orange locator circle. A copy of the POI icon appears just inside the locator circle. Drag the POI to a new location and centre press the joystick to conrm the placement.

Note: This mode only allows you to edit the specic POI selected. Nothing else on the map is editable, (i.e. the remove POI button 'x' does not have a function on this screen).

Press the GPS Map button to return to the last map screen.

11.11 Edit Location by Grid

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit Location by Map)

Highlight Edit Location by Grid in the EDIT

POI menu if you want to edit the POI by

changing the grid reference values. This will take you to the SETTING screen where you can use the joystick to move left/right to toggle between boxes. Move the joystick up/down to change the box entries. Pressing Next will move between rows (except with OSGB). Select Done when complete to go back to the

EDIT POI menu.

Name POIs

Edit POI

location by map

POI

Locator circle displays a copy of the POI icon being edited

11. POIs (Points of Interest) (... cont)

11.12 Edit Warning Radius

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit Warning Radius)

Select Edit Warning Radius to take you to the

Warning Radius screen. Use the joystick or

the Next button to scroll through the options. Press Select to choose a radius at which the unit will sound warning beeps indicating the vicinity of the selected POI.

11.13 Edit Visibility

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit Visibility)

On selecting Edit Visibility you are taken to a menu where you can hide or show your POIs by setting them as 'visible' or 'not visible' on your map. Pressing Select takes you back to the edit menu.

Note: This is only respected if the global visibility is set to 'Default' (GPS MAP → MAIN MENU → OOI Menu → 'Visibility - Default').

11.14 Edit POI Icon

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Edit POI Icon)

Highlight Edit POI Icon and use the joystick to select a POI icon from the POI Icon Selection screen. Press Done to return to the EDIT POI menu.

Set POI

warning radius

Set visibility

for POIs

11.15 Delete

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Delete)

Press Delete or centre press the joystick to access a screen showing the option to delete the POI. When Delete is selected the screen will go back to the OOI Folders. Pressing

Cancel will take you back to the EDIT POI

menu.

11.16 Move to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Move to SD Card)

(Only available if an SD card has been inserted). Move the POI from the SD card to

the Internal Storage. Highlight Move to SD

Card and either press Move or centre press the

joystick. (Subsequently this option becomes

Move from SD Card). The screen will go to

the OOI Folders and the POI will appear in the

SD Card folder. (To move the POI from the SD

card, select Move from SD Card from the edit menu. The POI will then appear in the Internal

Storage folder).

11.17 Copy to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select POI → Edit → Copy to SD Card)

(Only available if an SD card has been inserted). Make a copy of the POI onto the

SD card. Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

Note: Visibility should be set to 'Default' to be editable for individual OOIs.

from SD Card). The screen will go to the OOI Folders and a copy of the POI will appear in

the SD Card folder, as well as in the Internal

Storage folder.

12. AOIs (Areas of Interest)

12.1 AOIs (Areas of Interest) Overview

AOIs are Areas of Interest and consist of a series of points making up an area of any size or shape. These can be used:

• To mark various areas of interest on a map, (e.g. forests, wetlands).

• To measure an area on a map.

• As an alternative to the circular POI Warning

Radius as any shape can be drawn.

The area can be lled with different colours and patterns.

Note: Use SatSYNC to add graphics or more detailed information to an AOI. (See the SatSYNC 1.5 User Guide).

12.2 Add AOI Screen

(GPS MAP → MAIN MENU → OOI Menu → Add AOI by Map)

To create an AOI, select Add AOI by Map from the OOI Menu and press Select or centre press the joystick. This will take you to the Add

AOI screen where you will be able to lay down

points (green dots) to form an 'area'.

The orange locator circle has a red cross in the centre to indicate you are in edit mode on the Add AOI screen. You can plot points by either pressing the top left '+' button or by centre pressing the joystick. Use the lower left 'x' button to remove points.

The area is shown as you create the AOI. You

will be able to change the colour and pattern options of the AOI. The name of the AOI appears in the designated area.

Buttons:

Add AOI point (+)

Lay down AOI points on the map

Remove AOI point (x)

Remove AOI points from the map

GPS Map

Return to GPS MAP screen

Zoom

Zoom in/out

Done/(Back)

Go to keypad to name AOI and then to OOI

Folders. (Back cancels the operation and

takes you back to the OOI Menu).

12.3 Add AOI in a Specic Folder

(MAIN MENU → OOI Menu → OOI Folders → specic folder → nal subfolder → Back → Add AOI by Map)

This will add the AOI to the last visited folder.

Note: Folders are created using SatSYNC and must contain at least one OOI or route to be visible on the unit. (See SatSYNC User Guide for more information).

AOI point

Remove

AOI point

GPS Map

Add

AOI point

Zoom In

Zoom Out

Done/ Back

Draw Areas of

Interest

Locator circle with red cross to indicate edit mode

12.4 AOI Details Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → select AOI → Show Details)

Alternative access:

(GPS MAP/PLANNING → click on AOI → Choose Information Type → select AOI via centre press → AOI details)

This screen summarises details of the AOI and is titled by the current AOI name. AOIs are date and time ‘stamped’, and the following information is given:

• Name of the AOI

• Grid reference*

• Distance and bearing from current location*

• Elevation*

• Area of AOI

• Description of AOI

Refers to the arbitrary reference point in an AOI (usually close to the centre).

The highlighted green 'eye' icon indicates the AOI is visible on the map. When invisible, the 'eye' icon is highlighted in red with a red line through it.

Basic AOI

detail

12. AOIs (Areas of Interest) (... cont)

AOI

reference point

(default icon and

AOI name)

AOI reference point

(Used for grid reference, elevation, and distance and bearing from current location on AOI details screen).

This is the arbitrary reference point in an AOI indicated by a default icon (visible when editing the AOI on the map) and AOI name. (Icon cannot be changed, but the name is editable). It is also used as a reference point in the following instances:

• As a GoTo point

• As a ‘POI’ in data boxes

• When using the Pointer

• When using the

Centre on Map button

This reference point can be moved to any new location by using the

Edit Location by Map

option.

AOI reference

point

12. AOIs (Areas of Interest) (... cont)

12.5 Edit AOI Menu

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit)

Alternative access:

(GPS MAP/PLANNING → click on AOI → Choose Information Type → select AOI via centre press → AOI details → Edit)

To access the EDIT AOI menu, highlight the AOI to be edited in the OOI Folders, and press Edit or centre press the joystick. Scroll up/down using the Next button or the joystick. The current setting for the highlighted option is shown under the window.

In selecting either Rename or Edit Description you will bring up an on-screen keypad. When using the keypad for labelling, either press

Select or centre press the joystick to select

entries.

The menu options on the Edit AOI screen are as follows;

• Rename

• Edit Description*

• Edit Location by Map

• Edit Visibility

• Edit Colour

• Edit Pattern

• Delete

• Move to SD Card**

• Copy to SD Card**

Buttons:

Move down to next option

Map

Return to GPS MAP screen

Edit

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include

Rename, Delete, Move, Copy.

Back

Return to OOI Folders

The 'Edit Description' option is only available if the existing description has 128 characters or less (e.g. Externally imported descriptions from geocaches etc. with more than 128 characters cannot be edited).

The last two options on the list become available only when an SD card has been inserted and is not write-protected.

EDIT AOI

options

12. AOIs (Areas of Interest) (... cont)

12.6 Rename AOI

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Rename)

When an AOI is created it is called 'AOI 1' by default (or similar, depending on the number of existing OOIs).To rename it, highlight the AOI in the OOI Folders, press Edit, then Rename. The keypad appears. Use the joystick to rename the AOI.

12.7 Edit Description

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Edit Description)

Highlight Edit Description, then either press the Edit button or centre press the joystick to access the keypad.

Operate the keypad to input comments describing the AOI and press Done when nished. The screen will return to the EDIT

AOI menu.

12.8 Edit Location by Map

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Edit Location by Map)

You are in edit mode when a red cross appears inside the orange locator circle. Use the joystick to move the locator circle over individual AOI points and centre press the joystick to select them. A blue POI icon appears just inside the locator circle which means you can then drag the AOI point to a new location. Centre press the joystick to conrm the placement.

If you wish to add another AOI point, press the '+' button. To remove an existing AOI point, press the 'x' button.

Press the GPS Map button to return to the last map screen.

12.9 Edit Visibility

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Edit Visibility)

On selecting Edit Visibility you are taken to a menu where you can hide or show your AOIs by setting them as 'visible' or 'not visible' on your map. Pressing Select takes you back to the edit menu.

Note: This is only respected if the global visibility is set to 'Default' (GPS MAP → MAIN MENU → OOI Menu → 'Visibility - Default').

EDIT AOI

name

EDIT AOI

POI icon

AOI

AOI reference point

(section

15.03)

12. AOIs (Areas of Interest) (... cont)

12.10 Edit Colour

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Edit Colour)

Highlight Edit Colour and use the joystick to make a selection from the colour palette. As you move the joystick over a colour, the AOI automatically changes colour on the map. Once you are happy with the colour choice, press Set to conrm or centre press the joystick. This will take you back to the edit menu.

12.11 Edit Pattern

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Edit Pattern)

Highlight Edit Pattern and use the joystick to make a selection from six different pattern options. As you move the joystick over a pattern, the AOI pattern automatically changes on the map. Once you are happy with the pattern choice, press Set to conrm or centre press the joystick. This will take you back to the edit menu.

12.12 Delete

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Delete)

Highlight Delete, then press Delete or centre press the joystick to access a screen showing the option to delete the AOI. When Delete is selected the screen will go back to the OOI

Folders. Pressing Cancel will take you back

to the EDIT AOI menu.

Edit AOI ll

colour

Edit AOI ll

style

12.13 Move to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Move to SD Card)

(Only available if an SD card has been inserted). Move the AOI from the SD card

to the Internal Storage. Highlight Move to

SD Card and either press Move or centre

press the joystick. (Subsequently this option becomes Move from SD Card). The screen will go to the OOI Folders and the AOI will appear in the SD Card folder. To move the AOI from the SD card you will need to select Move

from SD Card from the edit menu.

12.14 Copy to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select AOI → Edit → Copy to SD Card)

(Only available if an SD card has been inserted). Make a copy of the AOI onto the

SD card. Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

from SD Card). The screen will go to the OOI Folders and a copy of the AOI will appear in

the SD Card folder.

13. LOIs (Lines of Interest)

13.1 LOIs (Lines of Interest) Overview

LOIs are Lines of Interest allowing you to plot a line consisting of multiple waypoints joined together, instead of a single POI (Point of Interest).

LOIs are drawn in a similar way to a route, but cannot be followed or activated like a route, or have comments for individual points. They are used to represent boundaries or alternative routes. The description screen shows the length of the line and the line colour can be edited.

Note: Use SatSYNC to add graphics or more detailed information to an LOI. (See the SatSYNC 1.5 User Guide).

13.02 Add LOI Screen

(GPS MAP → MAIN MENU → OOI Menu → Add LOI by Map)

To create an LOI, select Add LOI by Map from the OOI Menu and press Select or centre press the joystick. This will take you to the Add

LOI screen where you will be able to lay down

points (green dots) to form a 'line'.

The orange locator circle has a red cross in the centre to indicate you are in edit mode and on the Add LOI screen. You can plot points by either pressing the top left '+' button or by centre pressing the joystick. Use the lower left 'x' button to remove points.

The line and its length are shown as you create the LOI. The name of the LOI appears in the designated area and you will be able to change the colour of the LOI.

Buttons:

Add LOI point (+)

Lay down LOI points on the map

Remove LOI point (x)

Remove LOI points from the map

GPS Map

Return to GPS MAP screen

Zoom

Zoom in/out

Done/(Back)

Go to keypad to name LOI and then to OOI

Folders. (Back cancels the operation and

takes you back to the OOI Menu).

13.03 Add LOI in a Specic Folder

(MAIN MENU → OOI Menu → OOI Folders → specic folder → nal subfolder → Back → Add LOI by Map)

This will add the LOI to the last visited folder.

Note: Folders are created using SatSYNC and must contain at least one OOI or route to be visible on the unit. (See SatSYNC User Guide for more information).

LOI point

Remove

LOI point

GPS Map

Add

LOI point

Zoom In

Locator circle with red cross to indicate edit mode

Zoom Out

Done/ Back

Create Lines (of

Interest, LOI)

13. LOIs (Lines of Interest) (... cont)

13.4 LOI Details Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Show Details)

Alternative access:

(GPS MAP/PLANNING → click on LOI → Choose Information Type → select LOI via centre press → LOI details)

This screen summarises details of the LOI and is titled by the current LOI name. LOIs are date and time ‘stamped’, and the following information is given:

• Name of the LOI

• Grid reference*

• Distance and bearing from current location*

• Length of the line

• Elevation*

• Description of LOI

Refers to the arbitrary reference point in an LOI (usually close to the centre).

The highlighted green 'eye' icon indicates the LOI is visible on the map. When invisible, the 'eye' icon is highlighted in red with a red line through it.

Basic LOI

detail

LOI

reference point

(default icon and

AOI name)

LOI reference point

(Used for grid reference, elevation, and distance and bearing from current location on LOI details screen).

This is the arbitrary reference point in an LOI indicated by a default icon (visible when editing the LOI on the map) and LOI name. (Icon cannot be changed, but the name is editable). It is also used as a reference point in the following instances:

• As a GoTo point

• As a ‘POI’ in data boxes

• When using the Pointer

• When using the

Centre on Map button

This reference point can be moved to any new location by using the

Edit Location by Map

option.

13. LOIs (Lines of Interest) (... cont)

13.5 Edit LOI Menu

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit)

Alternative access:

(GPS MAP/PLANNING → click on LOI → Choose Information Type → select LOI via centre press → LOI details → Edit)

To access the EDIT LOI menu, highlight the LOI to be edited in the OOI Folders, and press

Edit or centre press the joystick. Scroll up/

down using the Next button or the joystick. The current setting for the highlighted option is shown under the window.

In selecting either Rename or Edit Description you will bring up an on-screen keypad. When using the keypad for labelling, either press

Select or centre press the joystick to select

entries.

The menu options on the Edit LOI screen are as follows;

• Rename

• Edit Description*

• Edit Location by Map

• Edit Visibility

• Edit Colour

• Delete

• Move to SD Card**

• Copy to SD Card**

Buttons:

Move down to next option

Map

Return to GPS MAP screen

Edit

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include

Rename, Delete, Move, Copy.

Back

Return to OOI Folders

The last two options on the list become available only when an SD card has been inserted and is not write-protected.

Edit LOIs

13. LOIs (Lines of Interest) (... cont)

13.6 Rename LOI

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Rename)

When an LOI is created it is called 'LOI 1' by default (or similar, depending on the number of existing OOIs).To rename it, highlight the LOI in the OOI Folders, press Edit, then Rename. The keypad appears. Use the joystick to rename the LOI.

13.7 Edit Description

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Edit Description)

Highlight Edit Description, then either press the Edit button or centre press the joystick to access the keypad (section 9.00).

Operate the keypad to input comments describing the LOI and press Done when nished. The screen will return to the EDIT LOI menu.

13.8 Edit Location by Map

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Edit Location by Map)

You are in edit mode when a red cross appears inside the orange locator circle. Use the joystick to move the locator circle over individual LOI points and centre press the joystick to select them. A blue POI icon appears just inside the locator circle which means you can then drag the LOI point to a new location. Centre press the joystick to conrm the placement.

If you wish to add another LOI point, press the '+' button. To remove an existing LOI point, press the 'x' button.

Press the GPS Map button to return to the last map screen.

Edit LOI name

Edit LOI location

POI icon

LOI

LOI reference point

(section

16.03)

13. LOIs (Lines of Interest) (... cont)

13.9 Edit Visibility

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Edit Visibility)

On selecting Edit Visibility you are taken to a menu where you can hide or show your LOIs by setting them as 'visible' or 'not visible' on your map. Pressing Select takes you back to the edit menu.

Note: This is only respected if the global visibility is set to 'Default' (GPS MAP → MAIN MENU → OOI Menu → 'Visibility - Default').

13.10 Edit Colour

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Edit Colour)

Highlight Edit Colour and use the joystick to make a selection from the colour palette. As you move the joystick over a colour, the LOI automatically changes colour on the map. Once you are happy with the colour choice, press Set to conrm or centre press the joystick. This will take you back to the edit menu.

13.11 Delete

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Delete)

Highlight Delete, then press Delete or centre press the joystick to access a screen showing the option to delete the LOI. When either

Delete or Cancel is selected, the screen will

go back to the EDIT LOI menu.

Set LOI visibility

Set LOI colour

13.12 Move to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Move to SD Card)

(Only available if an SD card has been inserted). Move the LOI from the SD card to the

Internal Storage. Highlight Move to SD Card and either press Move or centre press the joystick. (Subsequently this option becomes

Move from SD Card). The screen will go to the OOI Folders and the LOI will appear in the SD Card folder. To move the LOI from the SD card

you will need to select Move from SD Card from the edit menu.

13.13 Copy to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select LOI → Edit → Copy to SD Card)

(Only available if an SD card has been inserted). Make a copy of the LOI onto the

SD card. Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

from SD Card). The screen will go to the OOI Folders and a copy of the LOI will appear in

the SD Card folder.

14. Grids

14.1 Grids Overview

Grids consist of a group of square-shaped

AOIs in a large square/grid formation. They allow you to overlay a square grid/table onto the map. Grids are used to split an area into searchable chunks. For example, search and rescue teams can use grids for rescue missions. Other examples of uses include ornithology (bird watching), archaeology, forestry, crime surveying, etc.

Each grid consists of 100 AOIs (or squares), i.e. 10 across and 10 down. Each AOI is 300m x 300m. The grid follows a default naming convention and individual AOIs can be renamed individually (section 17.05). As you zoom into the map, the name of the AOI appears in each square. Moving the locator circle over individual squares shows the name of the AOI in the top right-hand corner.

Rows are labelled AA, AB, AC, etc... and columns are labelled 1, 2, 3, etc... so a square or individual AOI can be referred to as “AA3” or “AB2”. (To avoid confusion with the number 1,

the letter 'I' has been omitted).

You are able to change the colour and pattern of individual AOIs just like a regular AOI. The grid appears on the PLANNING screen once created. More than one grid can be placed on the map. Visibility can only be set for individual AOIs, not for the entire grid.

14.2 Add Grid Screen

(GPS MAP → MAIN MENU → OOI Menu → Add Grid by Map)

To create a grid, select Add Grid by Map from the OOI Menu and press Select or centre press the joystick. This will take you to the Add

Grid screen where you will need to set the centre point of the grid.

The orange locator circle has a red cross in the centre to indicate you are in edit mode and on the Add Grid screen. Use the top left '+' button or centre press the joystick to set the centre point. This will take you to the keypad to name your grid.

Note: The lower left 'x' button is not used on this screen.

Buttons:

Add Grid (+)

Sets the centre point of the grid

GPS Map

Return to GPS MAP screen

Zoom

Zoom in/out

Back

Go back to the OOI Menu

Grid

(made

up of AOI

squares)

GPS Map

Add Grid

(centre

point)

Zoom In

Locator circle with red cross to indicate edit mode

Zoom Out

Back

Add GRIDS

14.3 Add Grid in a Specic Folder

(MAIN MENU → OOI Menu → OOI Folders → specic folder → nal subfolder → Back → Add Grid by Map)

This will add the grid to the last visited folder.

Note: Folders are created using SatSYNC and must contain at least one OOI or route to be visible on the unit. (See SatSYNC User Guide for more information).

14.4 Grid Details Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Select AOI → Show Details)

Alternative access:

(GPS MAP/PLANNING → click on Grid → Choose Information Type → select AOI on Grid via centre press → AOI details)

This screen summarises details of individual AOIs that make up a grid, depending on the AOI selected. It is titled by the current AOI name (e.g. AA1). AOIs in a grid are not date and time ‘stamped’. The following information is given:

• Name of the AOI

• Grid reference*

• Distance and bearing from current location*

• Area (meters squared)

• Elevation*

• Description of grid

Refers to the arbitrary reference point of the AOI within the grid (usually top left corner of an AOI within a grid).

Basic GRID

info

14. Grids (... cont)

The highlighted green 'eye' icon indicates the AOI is visible on the map. When invisible, the 'eye' icon is highlighted in red with a red line through it.

AOI reference point within a grid

(Used for grid reference, elevation, and distance and bearing from current location on AOI details screen).

This is the arbitrary reference point in a particular AOI within the grid, indicated by the AOI name. (Name is editable). It is also used as a reference point in the following instances:

• As a GoTo point

• As a ‘POI’ in data boxes

• When using the Pointer

• When using the

Centre on Map button

This reference point can be moved to any new location by using the

Edit Location by Map

option in the EDIT AOI menu (once you have selected a particular AOI within the grid). Here reference points for all AOIs within the grid will be displayed on the map, indicated by default icons and individual AOI names (see below).

AOI reference point in a grid

(AOI name)

AOI

reference

point

(Default

icon and

AOI name)

14.5 Edit Grid Menu

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Edit)

To access the EDIT menu for a grid, highlight the grid to be edited in the OOI Folders, and press Edit or centre press the joystick. Scroll up/down using the Next button or the joystick. The current setting for the highlighted option is shown under the window.

In selecting either Rename you will bring up an on-screen keypad. When using the keypad for labelling, either press Select or centre press the joystick to select entries.

The menu options for a grid on the EDIT screen are as follows;

• Rename

• Copy

• Delete

• Move to SD Card*

• Copy to SD Card*

The last two options on the list become available only when an SD card has been inserted and is not write-protected.

Buttons:

Move down to next option

Map

Return to GPS Map screen

Rename

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include Copy,

Delete, Move.

Back

Return to OOI Folders

EDIT GRIDs

14. Grids (... cont)

14.6 Rename Grid

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Edit → Rename)

When a grid is created it is called 'Grid 1' by default (or similar, depending on the number of existing OOIs).To rename it, highlight the grid in the OOI Folders, press Edit, then Rename. The keypad appears. Use the joystick to rename the grid.

14.7 Copy

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Edit → Copy)

To create a duplicate of the grid, highlight the grid in the Edit menu, select Copy, and either press the Copy button or centre press the joystick.

The screen will return to the OOI Folders and a copy of the grid will appear above the original grid. It has the prex 'Copy of' to indicate it is a copy, e.g. 'Copy of Grid 1'. The options in the EDIT menu can also be applied to the grid copy, e.g. if you need to rename it, etc.

14.8 Delete

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Edit → Delete)

Highlight Delete, then press Delete or centre press the joystick to access a screen showing the option to delete the grid. When either

Delete or Cancel is selected, the screen will

go back to the OOI Folders.

14.9 Move to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Edit → Move to SD Card)

(Only available if an SD card has been inserted). Move the grid from the SD card

to the Internal Storage. Highlight Move to

SD Card and either press Move or centre

press the joystick. (Subsequently this option becomes Move from SD Card). The screen will go to the OOI Folders and the grid will appear in the SD Card folder. To move the grid from the SD card you will need to select Move

from SD Card from the edit menu.

14.10 Copy to SD Card

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select grid → Edit → Copy to SD Card)

(Only available if an SD card has been inserted). Make a copy of the grid onto the

SD card. Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

from SD Card). The screen will go to the OOI Folders and a copy of the grid will appear in

the SD Card folder.

GRIDs in OOI

folders

Edit GRID

name

14. Grids (... cont)

14.11 Edit AOIs Within a Grid

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select Grid → Select AOI → Edit)

Alternative access:

(GPS MAP/PLANNING → click on AOI → Choose Information Type → select AOI via centre press → AOI details → Edit)

Individual AOIs within a grid can be edited in the same way as regular AOIs. Go to the OOI

Folders, highlight the grid and press Select to

list the AOIs that make up the grid. By pressing

Edit you will be taken to the EDIT AOI menu.

Here you will be able to change the colour and pattern of individual AOIs within a grid. (Please refer to the AOI section for more information on the EDIT AOI menu options).

From the grid screen you will also be able to centre an AOI on the map or locate the nearest AOI to your current location. Pressing the

Show Details button will give you a description

of the AOI selected. You can also access the edit options from this screen. (Please refer to section above for more on the Choose

Information Type window).

Note: Only individual AOIs within a grid can be made visible or invisible. An entire grid cannot be made visible or invisible, unless you set the visibility options of a folder containing the grid.

Editing GRIDs

Grid Name

Edited AOI within a grid

AOI

Name

AOI

Name

Buttons:

Edit

Go to EDIT AOI screen

Centre on Map

Go to PLANNING screen with the AOI in the centre

Locate Nearest

Go to PLANNING screen and show nearest AOI to current location

Show Details

Go to AOI details screen

Back

Return to the OOI Menu

15. IOIs (Items of Interest)

15.1 IOIs (Items of Interest) Overview

IOIs are Items of Interest and are non georeferenced documents. They include digital information that can be saved on the unit, such as a graphic showing information about a species of a bird or ower. They can also be used to reference instructions, e.g. how to make a camp re or rst aid tips.

An IOI is not necessarily assigned to a specic point on the map. (If the item was plotted against a specic point on the map, it would be a POI). An IOI contains no latitude or longitude data. It can be created directly on the unit as a simple text description, and details of the IOI are shown on the description screen.

Note: If you want to add graphics or more detailed information, you are able to create an IOI on your computer and import it to your unit via SatSYNC. (Please refer to the SatSYNC 1.5 User Guide provided on the CD or downloadable from satmap.com). This employs the use of a tab delimited plain text le containing OOI data in different columns and is used for creating routes, POIs, AOIs, LOIs, as well as IOIs.

15.2 Add an IOI

(GPS MAP → MAIN MENU → OOI Menu → Add IOI)

To create an IOI, highlight the Add IOI option from the OOI Menu and press Select or centre press the joystick. This will take you straight to the keypad to prompt you to rename your IOI.

When an IOI is created it is called 'IOI 1' by default (or similar, depending on the number

of existing OOIs). Use the joystick to rename your IOI and then press Done when complete.

The Edit Description screen appears and this is where you can add a brief description using the keypad. This information is shown in the IOI. Pressing Done takes you back to the

OOI Menu. To view your IOI, go to the OOI Folders.

15.3 Add IOI in a Specic Folder

(MAIN MENU → OOI Menu → OOI Folders → specic folder → nal subfolder → Back → Add IOI)

This will add the IOI to the last visited folder.

Note: Folders are created using SatSYNC and must contain at least one OOI or route to be visible on the unit. (See SatSYNC User Guide for more information).

15.4 IOI Details Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select IOI → Show Details)

This screen shows the description included in the IOI and is titled by the current IOI name. Graphics and more detailed information created on a computer and imported onto the unit can be viewed on this screen. (See

SatSYNC 1.5 User Guide).

An IOI contains information that is for reference only. Therefore there are no options to adjust visibility as an IOI does not appear on the map, and no date or time 'stamp' is shown.

Non-geographic Items

of Interest

15. IOIs (Items of Interest) (... cont)

15.5 Edit IOI Screen

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit)

Alternative access:

(GPS MAP → MAIN MENU → OOI Menu → OOI Folders → Select IOI → Show Details → Edit)

To access the EDIT IOI screen, highlight the IOI to be edited in the OOI Folders, and press

Edit or centre press the joystick. Scroll up/

down using the Next button or the joystick. The current setting for the highlighted option is shown under the window.

In selecting either Rename or Edit Description you will bring up an on-screen keypad. When using the keypad for labelling, either press

Select or centre press the joystick to select

entries.

The menu options on the Edit IOI screen are as follows;

• Rename

• Edit Description

• Delete

• Move to SD Card*

• Copy to SD Card*

The last two options on the list become available only when an SD card has been inserted and is not write-protected.

Buttons:

Move down to next option

Map

Return to GPS Map screen

Edit

Either press the Edit button or centre press joystick to access alpha-numeric keypad for labelling.

Note: This button changes depending on the option selected. Other options include

Rename, Delete, Move, Copy.

Back

Return to OOI Folders

Edit IOIs

15. IOIs (Items of Interest) (... cont)

15.6 Rename IOI

(MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit → Rename)

When an IOI is created it is called 'IOI 1' by default (or similar, depending on the number of existing IOIs).To rename it, highlight the IOI in the OOI Folders, press Edit, then Rename. The keypad appears. Use the joystick to rename the IOI.

15.7 Edit Description

(MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit → Edit Description)

Highlight Edit Description, then either press the Edit button or centre press the joystick to access the keypad.

Operate the keypad to input comments describing the IOI and press Done when nished. The screen will return to the EDIT IOI menu.

15.8 Delete

(MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit → Delete)

Highlight Delete, then press Delete or centre press the joystick to access a screen showing the option to delete the IOI. Pressing Delete will delete the IOI and take you back to the OOI

Folders. Pressing Cancel will take you back to

the EDIT IOI menu.

Edit IOI name

15.9 Move to SD Card

(MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit → Move to SD Card)

(Only available if an SD card has been inserted). Move the IOI from the SD card to the

Internal Storage. Highlight Move to SD Card and either press Move or centre press the joystick. (Subsequently this option becomes

Move from SD Card). The screen will go to

the OOI Folders and the IOI will appear in the

SD Card folder. To move the IOI from the SD

card you will need to select Move from SD

Card from the edit menu.

15.10 Copy to SD Card

(MAIN MENU → OOI Menu → OOI Folders → Select IOI → Edit → Copy to SD Card)

(Only available if an SD card has been inserted). Make a copy of the IOI onto the SD

card. Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

from SD Card). The screen will go to the OOI Folders and a copy of the IOI will appear in the SD Card folder.

16. MAIN MENU : GoTo and Marker

16.1 GoTo and Marker Overview

(GPS MAP → MAIN MENU → GoTo and Marker)

GoTo point: A set point that acts as a target.

Once you have activated a GoTo point, a straight line from your current location and GoTo point (or route) will appear. This is useful in situations when you do not know where you are going, i.e. you have no determined route. Access various statistics from the data box options using this feature, e.g. GoTo Distance, GoTo ETA, GoTo Bearing etc.

Marker: A red ag (reference point) on the map

from which the distance and bearing to any other point on the map can be measured. You are not able to follow a Marker and it is only available in Planning mode. Use the joystick to move the planning circle in the desired direction to calculate the straight line distance or bearing.

The menu options are as follows:

• GoTo – Set By Coords

• GoTo – Route*

• Marker – Set By Coords

*Available once a GoTo point has been set.

Note: GoTo and Marker function for setting by postcode are available for some units sold in the UK.

Clear Marker and GoTo – Clear buttons are

active once a point/marker has been set. (Also accessible from the POSITION INFO screen).

16.2 GoTo & Marker – Set By Coords

Selecting one of these options brings up a screen on which grid references may be entered. Move the joystick up/down to change the coordinate values, and left/right to select the next entry box, or use the Next button to move to the next row.

Buttons:

Move between rows (does not work with

OSGB)

Convert

Updates coordinate conversions. (Active once

original coordinates have been changed).

Map

Return to last map screen

Done

Press to set coordinates of GoTo point/Marker

Cancel

Return to GoTo and Marker screen

Back

Return to PLANNING screen

Coordinates can be entered in different position display formats and the preferred format can be selected from Main Menu → Settings →

GPS Settings.

Alternative option for setting a GoTo point/ Marker:

(PLANNING → POSITION INFO via centre press → Set Marker/Set GoTo)

GoTo piont

Set GoTo by

Grid reference

16.3 GoTo – Route

Only available once a GoTo point has been set. Selecting this option shows the straight line distance from your current location to a route and puts the centre of the planning circle at the GoTo point.

17. Accessories

Accessories

The following accessories are available from Satmap. For a full range, please visit www.satmap.com.

17.1 Bike Mount.

The Bike Mount has a robust, exible tting and is designed for using the Active 12 GPS unit on a bike. It can be attached to the handle bars, stem or crossbar, allowing you to get the most out of your cycling and mountain biking experience.The Standard Battery Back of the Active 12 is replaced with a Mount Battery Back which has a moulded section and clips onto the Bike Mount.

17.2 Vehicle Mount.

The Vehicle Mount is a tough unit designed for using the Active 12 GPS in motor vehicles. It has a powerful suction cup for attachment to smooth surfaces such as a windshield. It can also be tted to any at surface, such as the dashboard, using the adhesive Mounting Plate. This product will primarily appeal to drivers of off-road vehicles where navigation on accurate topographical mapping is a must.

17.3 Carry Cases (Standard & Deluxe)

The Standard Carry Case has a padded compartment for the Active 12, closed with a Velcro top for fast access, and an elasticated front mesh for additional storage.

The Deluxe Carry Case has a main padded compartment for the Active 12 itself and a secondary compartment, ideal for storing spare

batteries, map cards, car keys, small mobile phone, etc. There are also two mesh pockets on either side. The zips are covered to provide weatherproong, and an additional elasticated front mesh provides further storage.

17.4 Lanyard.

The Lanyard is 1.3m long, branded with the Satmap logo, and is adjustable to t most requirements. It has two ttings on each end: a metal clip for attaching to the D-Rings on the side of the carry case, or a nylon hoop tting for attaching directly onto the shoulders of the Active 12 itself.

17.5 Screen Cover.

The removable Screen Cover is made of tough polycarbonate and is easily replaced, ensuring the view of the map is always at its best and never obscured by scratches.

17.6 ProSHIELD (Silicon protective case)

The ProSHIELD is a silicon rubber protective case that ts snugly around the Active 12 GPS unit. It has been designed to provide increased impact protection for the Active 12, allowing it to survive drops of up to 3m onto concrete. It also provides additional environmental protection against water and dust (IP67), making it ideal for operating the unit in extreme conditions. Available in black orange, sand or green.

Bike Mount Vehicle Mount

Spare screen covers

Standard & Deluxe Carry Case

Lanyard

17.11 Solar Power Bundle

The Solar Power Bundle includes a 2200mAh powermonkey-eXplorer Portable Charger and a Solar Panel. Suitable for use with the Active 12 GPS and other 5 Volt portable electronic devices, this versatile combination will provide you with essential power even in remote locations.

The Portable Charger gives you a battery life of approximately 6-10 hours in Normal Power Mode, 13-19 hours in Advanced Power Mode and 81-97 hours in Hibernate Mode.

17.7 ZAGG invisibleSHIELD

The ZAGG invisibleSHIELDTM is a clear and virtually indestructible lm that will protect your Active 12 from unsightly scratches.

17.9 Standard Power Bundle

The Standard Power Bundle is a selection of power options available for use with the Active 12 GPS. It includes a 2700mAh rechargeable Lithium Polymer (LiPol) battery which is optimized to last longer over a wide range of temperatures and conditions. The LiPol battery may be charged without removal from the Active 12 via a USB connector, either from a mains socket, laptop, computer or car cigarette lighter.

The LiPol gives you a battery life of approximately 8-12 hours in Normal Power Mode, 16-24 hours in Advanced Power Mode and 100-120 hours in Hibernate Mode.

17.10 Slimline Power Bundle

The Slimline Power Bundle gives you the option of using a thinner, lighter battery (1500mAh) in a low prole battery back. This is designed to meet the needs of users who take shorter routes and prefer to use rechargeable batteries.

The low prole means the Active 12 can t into your pocket without the need for a Carry Case. This smaller battery gives you a battery life of approximately 4-7 hours in Normal Power Mode, 9-13 hours in Advanced Power Mode and 55-66 hours in Hibernate Mode.

17. Accessories (... cont)

ProShield - optional colours Zag screen lm

LiPol Power Bundle

Slimline power bundle

Solor charger bundle

can put your own digital map data onto an SD card. Our GIS specialists can convert almost any map into a format that can be viewed on the Active 12 unit.

18.4 Toggleable Map Service

Toggling is a feature available on version 1.4 or later of our platform software (free download from our software page). Toggleable map cards allow you to switch between different map layers at a particular point on the same zoom level. For example, you can ip between the two scales (1:50,000 and 1:25,000) and the base map. It is also possible to toggle between different map types and map providers.

Toggleable maps are marked with a toggle icon and are available from our website. Not all maps are toggleable. It is also possible to customize existing maps and make them toggleable. (See website for further details).

18.5 Custom Mapping (GB only)

Custom Mapping allows you to create your own unique maps of the highly detailed Ordnance Survey 1:25,000 scale Explorer series. The result is that you get a map of exactly the area or areas you want, making it a very effective way of capturing your favorite outdoor areas on one map card. This service is only available for GB maps.

18.6 Site-Centreed Mapping

(Select areas only)

For customers who want non-standard map

areas, Satmap offers a bespoke service to create and supply map cards centreed on a place (grid reference) of your choice. Now available for Austria (BEV), France (IGN), Germany (LVA), Great Britain (OS), and Switzerland (Swisstopo). Price is determined by the area covered.

There is a key difference between the SiteCentreed Map service and the Custom Mapping service:

• Custom Mapping allows you to create irregular shaped maps.

• Site-Centreed Maps are only supplied as a square or rectangle of a set size.

18.7 Map Consolidation

Many of our customers are nding that the Active 12 is so useful they are taking it everywhere with them. As a result, they are building up impressive collections of SD cards. We offer a service to add several of these maps together onto one consolidated SD card so you don’t have to worry about keeping track of all your maps. Depending on the size of the maps in question, this service may not always be appropriate, so please call us to check what is possible.

Satmap offers a variety of services. Please check www.satmap.com for more information.

18.1 General Service

Whilst our unit is designed to withstand the rigors of outdoor sports, it is not indestructible. Satmap offers a General Service for the care of your Active 12 which includes:

• Replacement front casework

• Replacement back casework (if needed)

• Replacement inner screen cover

• Replacement battery caddy (if needed)

• Replacement screen cover

• Software upgrade (if needed)

• Antenna check

• Full performance testing

Please allow 10 working days for Satmap to complete this service.

18.2 World Base Map

The World Map is derived from data supplied by Collins Bartholomew. At 1:30 million you get an overview of the world and once you have zoomed down to 1:5 million you will be able to see the major roads, towns and cities in every country. Such details provide a useful backdrop when you are using the Active 12 internationally. If you do not have the World Base Map on your unit (applicable to earlier units), it is available as an upgrade.

18.3 Specialized Custom Map Service

If Satmap does not have the map data, we

18. Services

The Online Route Planner allows users to:

• Create routes

• Name routes and waypoints

• Add comments to a route or individual waypoints within a route

• Download routes onto the Active 12 via SatSYNC*

• Upload routes from the Active 12 via SatSYNC*

• Create a route card

• Print out copies of the map and route

• Store routes on a private space on the server.

• Includes Bing

(Microsoft) road maps and

aerial imagery for the whole world.

Route Share Network

The Route Share Network is exactly as the name suggests: an area for users to share and access a library of routes. It features:

• Route upload and download

• Ability to view routes from other users—ideal for areas you are planning to explore.

• An option to add comments and feedback on routes

This Network will allow you to view routes worldwide.

Online Planning Software

With the Online Route Planner and Route Share Network customers can create routes on their computer, download them onto their Active 12 via SatSYNC*, and share them with other users. This software is available online for select countries only (please see below). As both applications complement each other, they are sold as a bundle.

Online Route Planner

The Online Route Planner provides users with access to digital topographical mapping for a range of countries, at various scales from local map providers, with new maps being added regularly:

• Great Britain: Ordnance Survey 1:50,000 & 1:25,000

• Germany: LVA 1:50,000

• Switzerland: Swisstopo 1:50,000 & 1:25,000

• Belgium: IGN 1:50,000

• Spain: IGN 1:200,000 (Whole) & 1:25,000 (Islands)

• Spain: Alpina Various Scales (Hot Spots)

• Northern Ireland: OSNI 1:50,000 & 1:25,000

• Republic of Ireland: OSI 1:210,000 & 1:50,000

• Netherlands: Kadaster 1:50,000

• Italy: Kompass/OpenCycleMap 1:50,000

• Austria: BEV 1:50,000 & 1:25,000

19. Xpedition : Online Mapping & Route Planner

Online Route Planner

Organise Routes

Please refer to the 1.5 SatSYNC User Guide provided on the CD or downloadable from our website.

20. Tips

• For the best performance in acquiring a satellite lock: Wait until a lock is established

before inserting a map card. The GPS should be under open skies, immobile and held upright. When a lock has been acquired, the top left signal icon will change from a red ‘x’ to green or blue crescents, depending on the signal. (Satellite lock times vary). The Active 12 can acquire a lock on the move, e.g. whilst driving. However, this can cause a delay in the time to get a lock.

• Calibrate compass before use: Before you

use the Active 12 compass, make sure you have calibrated it rst by going to Main Menu

> Settings > Calibrate Compass (section

7.13).

• To prevent the screen switching from GPS MAP to PLANNING: Either lock the

screen (section 3.02), or allow it to go into the powersave screen off mode before stowing it away.

• To maximize battery life: Refer to section

3.00 for tips on how to conserve battery

power. If you want to carry out route planning on your Active 12, connect it to your computer as a good way to get more out of your batteries.

• Take out the batteries when not using the Active 12: Even when switched off the

unit draws some power, which over time can drain the batteries.

• Recording your trip log: Remember to use

the Stop (data logging) button (section 6.03) if you take a break and want to maintain a log of all trip statistics. Don’t forget to press

Start once you are ready to go again. If you

remain stationary for a longer period of time without pausing (Stop), the data logging/trip statistics will be inaccurate.

• Make a back-up le copy of any maps

that you purchase: A back-up may be done

either using an SD card reader or SD card slot on your computer. If your map card data is corrupted or erased, copy the le back onto the original card. Data transferred to a different card will not be usable.

• Use a GoTo point as a rangender: Set a GoTo point on your destination to calculate

the straight line distance from your current location to the GoTo point (section 19.00).

• Use SatSYNC to manage les: Upload/

download routes and OOIs from your computer to your unit by using our free SatSYNC software (download available from our website). You can transfer all sorts of GPS data les from your computer to your Active 12, e.g. .map, .kml, gpx, .loc, geocaching les, tab delimited text les etc. (Refer to section 3.07 or the SatSYNC user guide for more information).

• To set the time on your unit: Go to MAIN

MENU > Settings > Time offset and move

the joystick to select the appropriate hour differential (+/- GMT).

• To quickly setup a route on your unit:

Go to GPS MAP > POSITION INFO via

centre press > Create New Route. Plot in

your waypoints using the directional joystick and press Done.

• To quickly setup a POI on your unit:

Go to GPS MAP or PLANNING > POSITION

INFO via centre press > Add POI. Name

the POI using the keypad and press Done. Select an icon from the POI icon selection screen and press Done.

21. Troubleshooting

• If your unit fails to recognize a map card:

Switch off the unit and remove the card. Switch the unit on again and re-insert the card. Also be sure to check you are on the latest version of software (download available from our website).

• If your screen ickers: Wait 10 minutes

or so and it should stop. Some ickering is normal and happens when using a strong power source such as when using the supplied AA Lithium Energizers (the most powerful AA batteries on the market).

• If water gets under the screen cover:

Remove the cover and gently wipe away the moisture with a soft cloth. Any direct hand pressure may mark the inner screen. (Refer to section 2.06 for more tips on how to care for your unit).

• 'Snail trail' is not displaying: Make sure you

have a GPS lock and the trip log is recording

(TRIP LOG > Start). Check the snail trail is on

by going to GPS MAP > POSITION INFO via

centre press > Turn Trail On. Here you can

also adjust the size of the dots.

• Software has been upgraded but is still showing old version: Ensure that

Hibernate Timeout is turned off (MAIN

MENU > Settings > Advanced Power Control > Hibernate Timeout). Press the Power

Off button and select Yes to switch the unit

off. Switch the unit back on and check the software has been installed by going to

MAIN MENU > Settings > About.

• Unit is slow/freezing: Make sure you have

the latest version of the software (download available from our website). It is a good idea to reset the trip log, (TRIP LOG >

Menu > Reset All) as it uses up memory

on your unit. Make sure you back up any data beforehand. You can also reset all the settings to the factory default (MAIN MENU

> Settings > Default > Yes).

• For further assistance or additional queries please contact our technical department on

+44 (0)845 873 0101. Please also check our

FAQs on www.satmap.com.

22. Glossary

Active map. The map on a card which is in use

(multiple maps can be on one SD card).

Active route. Shown as a highlighted yellow or

blue line to follow on the map with red arrows between waypoints.

AOI. An Area of Interest. Consists of a series

of points making up an area of any size or shape. Can be used to measure an area on a map, mark various areas of interest, or as an alternative to the circular POI warning radius.

Arbitrary reference point (for AOIs/LOIs/Grids)

Automatically generated (set) point within or on an AOI/LOI/Grid. It is used as a reference point in the following instances:

• As a GoTo point

• As a 'POI' in data boxes

• When using the Pointer

• When using the Centre on Map

button

This reference point can be moved to any new location by using the

Edit Location by Map

option.

Asc. Abbreviation for ascended height.

Ascents. Positive changes in elevation.

Atomic clock. A type of clock that uses

microwave signals emitted by electrons as its timekeeping element. It is the most accurate time standard and is used to control the frequency of GPS satellite signals.

Bearing. Direction from one object to another.

CEP (Circular Error Probability). Determines

the radius of a circle containing 50% of the GPS readings.

Cross Track Error. The difference in distance

between a planned route and your location.

Data Box. A white overlay box that appears

in the lower half of the map screen. Shows customized information about your trip, environment and map objects. Available as a 2 or 4 box layout.

Descents. Negative changes in elevation.

EGNOS. The European Geostationary

Navigation Overlay Service has been developed by the European Space Agency (ESA) for safety of air navigation. It is part of the Galileo project. When a signal is available (which is only in the south of England and mainland Europe), this signal improves the accuracy of signals from the GPS system.

Electronic compass. Uses magnetic elds to

calculate accurate compass bearings whilst stationary.

ETA. Estimated Time of Arrival. The ETA is

calculated from the average moving speed if it is available (see Trip Log). Otherwise the set speed is used. For example if you have no lock

but the unit previously recorded an average moving speed which has not been cleared from the trip log, the ETA will be based on this average moving speed.

Explorer. 1:25 000 Ordnance Survey map.

Galileo. A planned global navigation satellite

system, being built by the European Union and European Space Agency as an alternative for the US Global Positioning System (GPS) and the Russian GLONASS system. The project is expected to be completed in 2013.

Geocaching. An outdoor treasure hunt activity

using a GPS to locate hidden containers, ('geocaches'). Often called a "game of hightech hide and seek", coordinates, along with other details of the location, are posted online. Download les onto your computer from geocaching.com and use SatSYNC to import them to the Active 12.

Geotagging. Photos are labeled or 'tagged'

to show where they were taken. Date/time information from the photos is matched with the location information from the GPS unit. (Use the geotagging application in SatSYNC).

GLONASS. A space-based navigation system

comparable to the American GPS system. Developed by the former Soviet Union and now operated for the Russian government by the Russian Space Forces.

GoTo point. A set point which acts as a target.

It is on a straight line from your current location and the route (yellow or blue highlighted route with red arrows between current location and GoTo point).

GMT (Greenwich Mean Time). The local time

at the 0 meridian passing through Greenwich.

GPS. The Global Positioning System is

the only fully operational Global Navigation Satellite System in the world. Created in the US it utilizes a constellation of 24 Medium Earth Orbit satellites that transmit precise signals. The system enables a GPS receiver to determine its time, location, speed and distance.

GPS ‘compass’ Relies on a GPS signal to

determine the direction of travel from two locations and calculate accurate compass bearings whilst moving. Need a GPS lock.

Grid. A group of square-shaped AOIs (Areas

of Interest) in a large square/grid formation. Used to split an area into searchable pieces by overlaying a 10 x 10 square grid onto a map

(each AOI covering 300m x 300m).

Grid Magnetic Angle. The horizontal angular

difference between Grid North and Magnetic North. It is this angle which needs to be applied when converting between magnetic and grid bearings.

Grid North. The direction of a grid line which is

parallel to the central meridian on the national grid.

Heading. Direction you are traveling.

Hibernate mode. An ultra low power state

giving signicantly extended battery life and a rapid satellite acquisition.

Inactive route. Shown as a gray highlighted line

on the map (only if you have made it visible).

IOI. An Item of Interest. A non geo-referenced

document including digital information saved on the unit that contains no latitude or longitude data. Used to reference instructions, or contain a graphic showing information. Can be created directly on the unit as a simple text description with details of the IOI shown on the description screen.

Knot. One nautical mile per hour.

Landranger. 1:50 000 Ordnance Survey map.

LOI. A Line of Interest. Allows you to plot a

line consisting of multiple waypoints joined together, instead of a single POI (Point of Interest). Cannot be followed or activated like a route, but used to represent boundaries or alternative routes and to customize your map.

Magnetic North. The direction indicated by a

magnetic compass. Magnetic North moves slowly and is currently West of Grid North in Great Britain.

Marker. A red ag on the map from which you

can measure distance and bearing from any other point on the map.

Meridian. A line of longitude.

MGRS. Military Grid Reference System, used

by NATO countries. It is derived from the UTM grid system but uses a different labelling convention. It does not describe a point, but rather an area.

Mil-radians. The military use mil-radians (short

for milli-radians) because breaking down a circle into 6400 mil-radians rather than 360 degrees allows greater accuracy.

22. Glossary (Cont...)

Nautical mile. Distance corresponding to one

minute of arc of latitude along any meridian, 1852m. A mile (‘statute mile’) is 1609m.

OOI. An Object of Interest. A collective term for

all 'points' of interest – POI, AOI, LOI Grids, IOI. OOIs can include rich text and pictures.

Ordnance Survey (OS). Mapping provider for

Great Britain.

POI. A Point of Interest. A point on a map linked

to geo-referenced data (latitude/longitude), displaying text or images with information about that point (e.g. hotel, restaurant, viewpoint, historical site, etc).

Primary screens. Eight main screens that give

you access to the key GPS features: GPS MAP, PLANNING, POSITION INFO, TRIP LOG, MAIN MENU, COMPASS, SHARED DATA, GPS STATUS.

Rangender, The distance from your location

to a given point.

Route. A route is shown on the unit as a series

of transparent yellow or blue lines going from waypoint to waypoint (with red arrows between waypoints). A route may be planned either on the unit or on a computer, and it may also be a converted trail (known as a ‘track’).

Satellite. A GPS satellite used by the NAVSTAR

(Navigation Signal Timing and Ranging Global Positioning System (GPS). The rst satellite in the system, Navstar 1, was launched February 22, 1978.

SD Card. Secure Digital card (1MB – 4GB).

SDHC is Secure Digital High Capacity (4GB – 32GB) card, which has a different internal format. In the manual these are also referred to as mapcards since they are pre-loaded with digital mapping.

Soft keys. Buttons with functions that vary

depending on the screen displayed.

Target speed. The speed on which Estimated

Time of Arrival calculations are based if there is no GPS lock, or there is a GPS lock and you are stationary.

Toggle function. Allows users to select which

map they want to view at a particular point without changing the zoom level. Only possible if you have a toggle-enabled map card with map layers of the same area.

Toggleable maps. Map cards that have been

toggle-enabled, i.e. contain more than one scale or map type of a particular area, and can therefore be used with the toggle function. Toggle-enabled map cards are available from our website. Older maps can also be converted to enable toggling via the Toggleable Map Service.

22. Glossary (... cont)

Total Ascents. Sum of all the positive changes

in elevation.

Total Descents. Sum of all the negative

changes in elevation.

Track. A track is a trail that has been converted.

It effectively becomes a route (.map le) which can then be exported as a GPX or KMZ le for viewing on online planning software, e.g. Google Earth.

Trail. The path taken, leaving behind a snail

trail.

Trail Up. The map is orientated to match the

ground ahead of you.

Trip Log. Records trip data.

True North. The direction along the earth’s

surface towards the geographic North Pole.

UTC (also GMT and Zulu Time). The worldwide

standard for time is coordinated universal time, abbreviated UTC. This was formerly known as Greenwich Mean Time, GMT. UTC is a high precision atomic time standard also referred to by the military and civil aviation as Zulu time (Z). The abbreviation is a compromise between CUT (Coordinated Universal Time) and TUC (Temps Universel Coordonné).

UTM. The Universal Transverse Mercator

22. Glossary (... cont)

coordinate system is a grid based method of specifying locations.

VMG. Velocity Made Good is the effective

velocity towards a target, after the effects of crosswinds (especially relevant to aircraft), currents (watercraft) and terrain (walkers/ cyclists who have planned on walking at a certain speed) have taken effect. It is the forward component of velocity.

WAAS. Wide Area Augmentation System. This

is a GPS augmentation system in the U.S. which enhances the accuracy of GPS.

Warning Radius. Distance at which the unit will

sound beeps indicating the vicinity of a POI, GoTo point or a route.

Waypoint. Set of coordinates that identify a

point on the map and make up a route ('route points'). Waypoints are usually placed at turns in the path or where the path changes.

100

Disclaimer: Satmap Systems is not liable for damages and injuries caused by improper use or tting of the device. Subject to technical changes and errors. Satmap does not disclaim any statutory rights relating to faulty or misdescribed goods that cannot be disclaimed under applicable law. Translations into languages other than English are provided for information only. In the event of any confusion, the English text is the controlling language. Please note: Product specications are liable to change without notice.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment. Such modications could void the user's authority to operate the equipment.

A12-FUG-V100-EN-NOV2013
