Full User Guide

Software v1.45

(i) Contents

(i) Contents .....................................................2-3

(ii) Basic Layout .................................................4

1.00 Overview .......................................................5

1.01 Getting Started ..............................................5

2.00 Introduction ...................................................6

2.01 The Global Positioning System (GPS) ..........6

2.02 How GPS Works ...........................................6

2.03 SatSYNC .......................................................6

2.04 Base Mapping ...............................................6

2.05 Battery Insertion ............................................7

2.06 Switching On and Off ....................................7

2.07 Map Card Insertion .......................................7

2.08 Keypad Lock .................................................7

2.09 Battery Indicator & Stop/Record Icon ............7

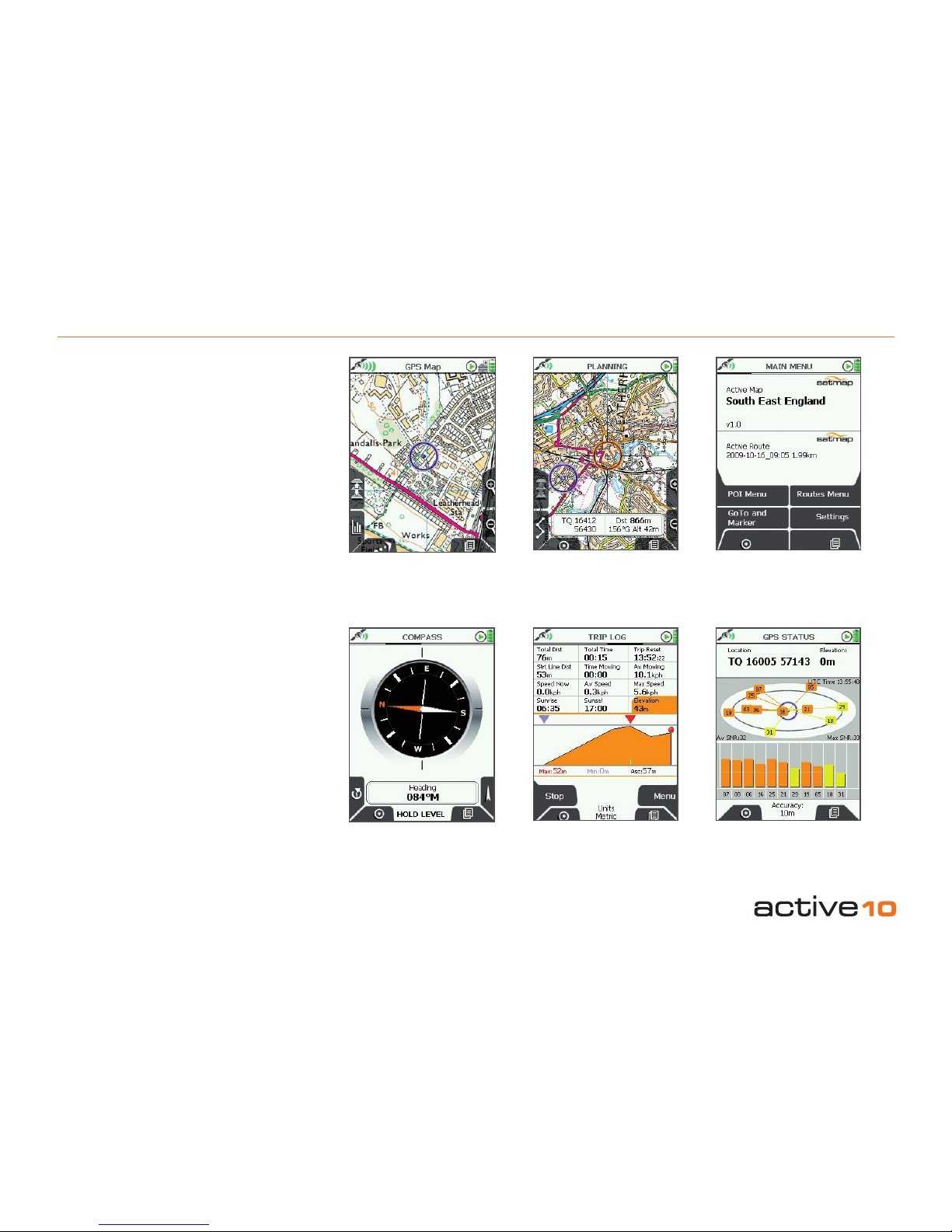

2.10 Six Primary Pages ........................................8

3.00 GPS Map Screen ..........................................9

3.01 Toggleable Maps .........................................10

3.02 Map Packs Page .........................................10

4.00 Primary Pages ............................................10

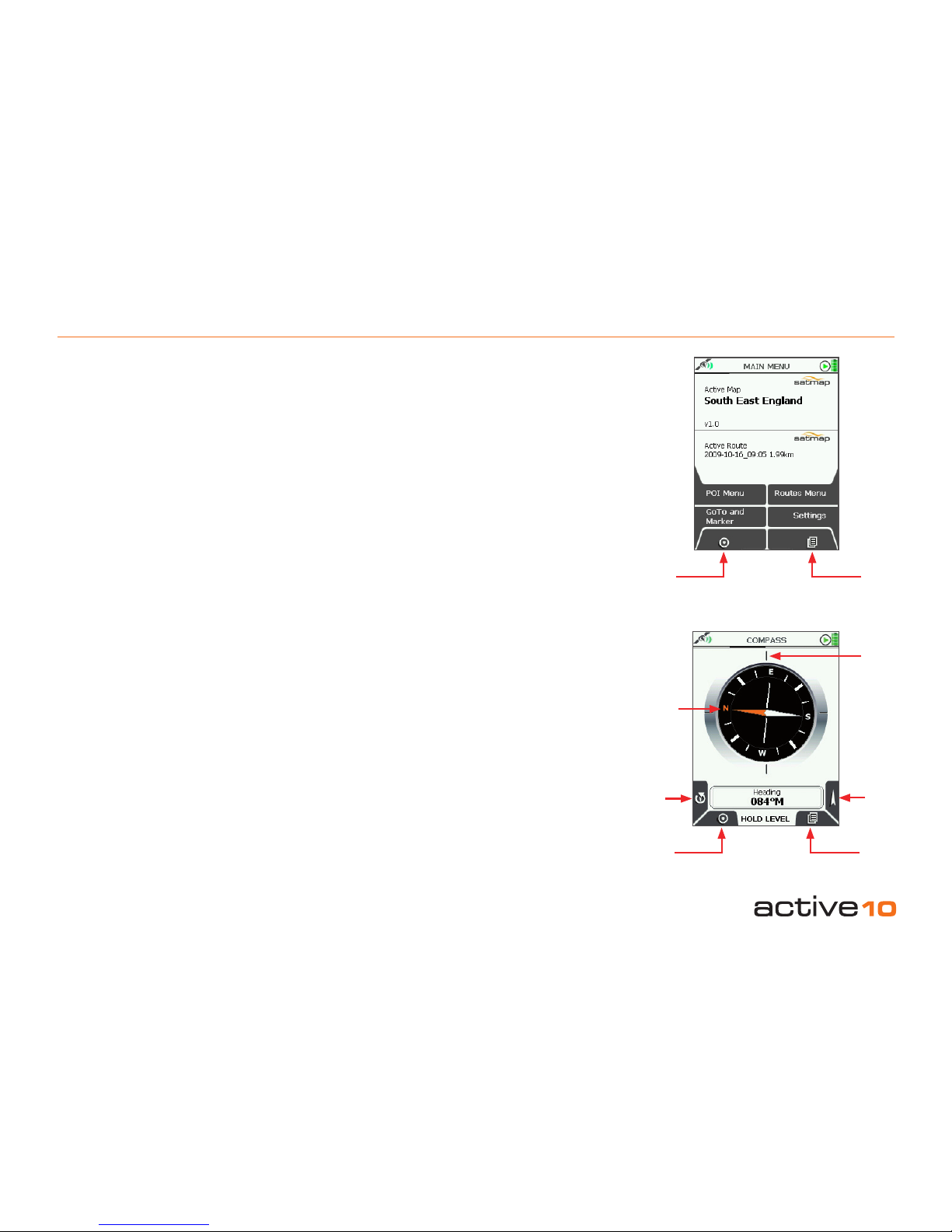

4.01 MAIN MENU Page ......................................11

4.02 COMPASS Page .........................................11

4.02a POINTER Page ...........................................12

4.03 TRIP LOG Page ..........................................13

4.04 Convert Trail to Track ..................................14

4.05 GPS STATUS Page ....................................15

5.00 SETTINGS MENU Page .............................16

5.01 Power Control .............................................17

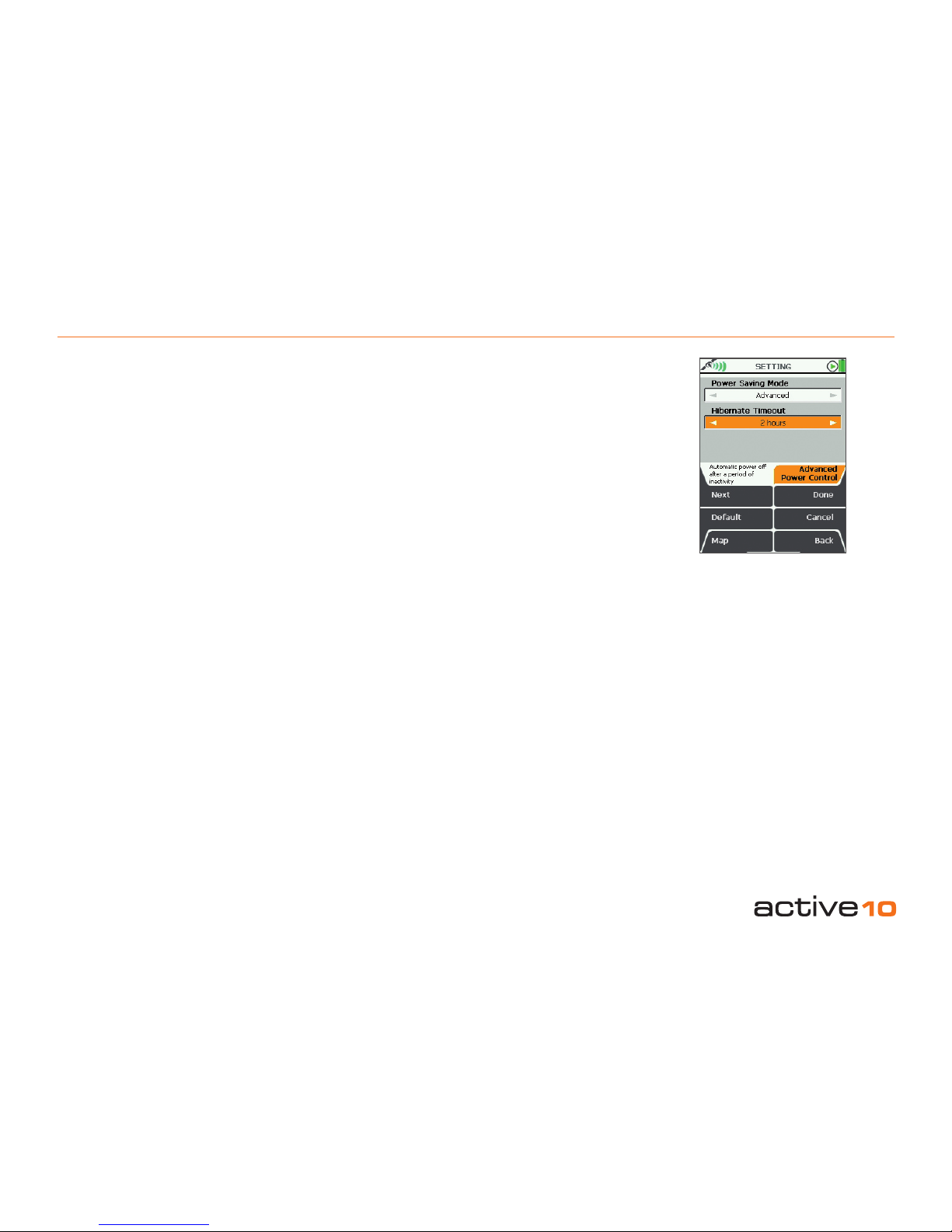

5.02 Advanced Power Control ............................18

5.03 Backlight .....................................................19

5.03a Screen Data Capture ..................................19

5.04 2 Data Box Layout ......................................20

5.04a Data options for data box overlays.........20-21

5.05 4 Data Box Layout (upper) ..........................22

5.06 4 Data Box Layout (lower) ..........................22

5.07 GPS Settings ..............................................23

5.08 Memory Status ............................................24

5.09 Units and Set Speed ...................................24

5.10 Compass Settings .......................................25

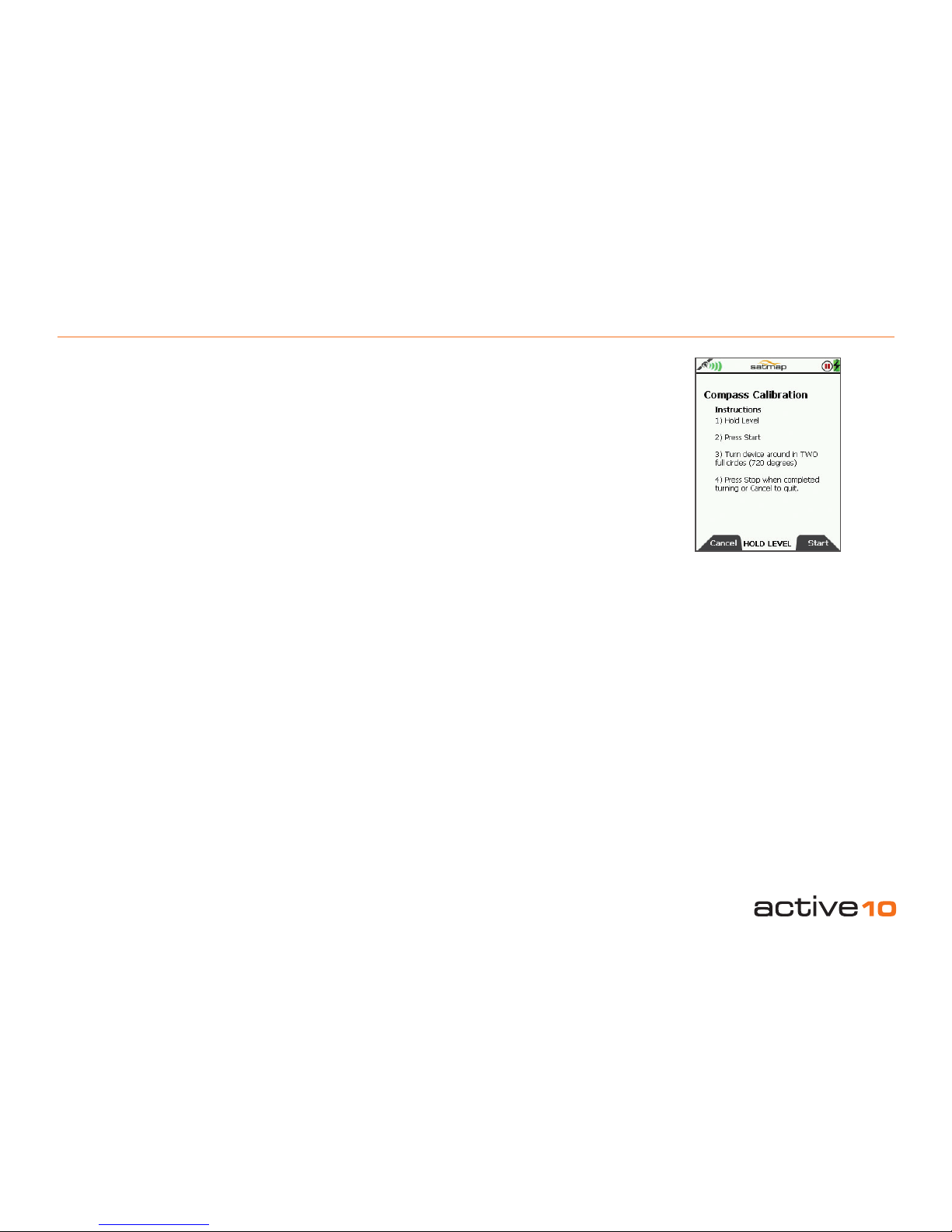

5.11 Calibrate Compass .....................................26

5.12 Set Trip Data ...............................................27

5.13 Volume Control ...........................................28

5.14 Buttons Control ...........................................28

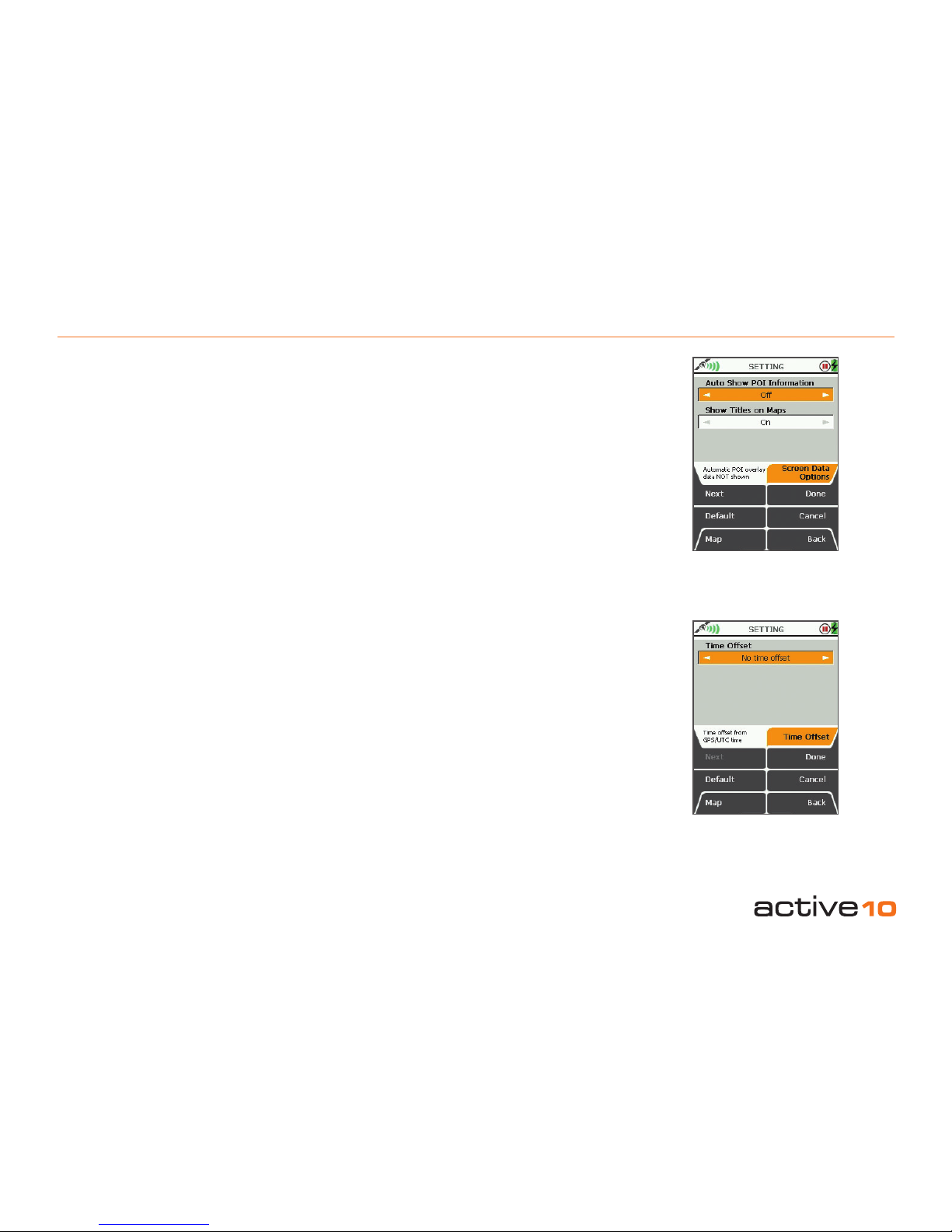

5.15 Screen Data Options ...................................29

5.16 Time Offset ..................................................29

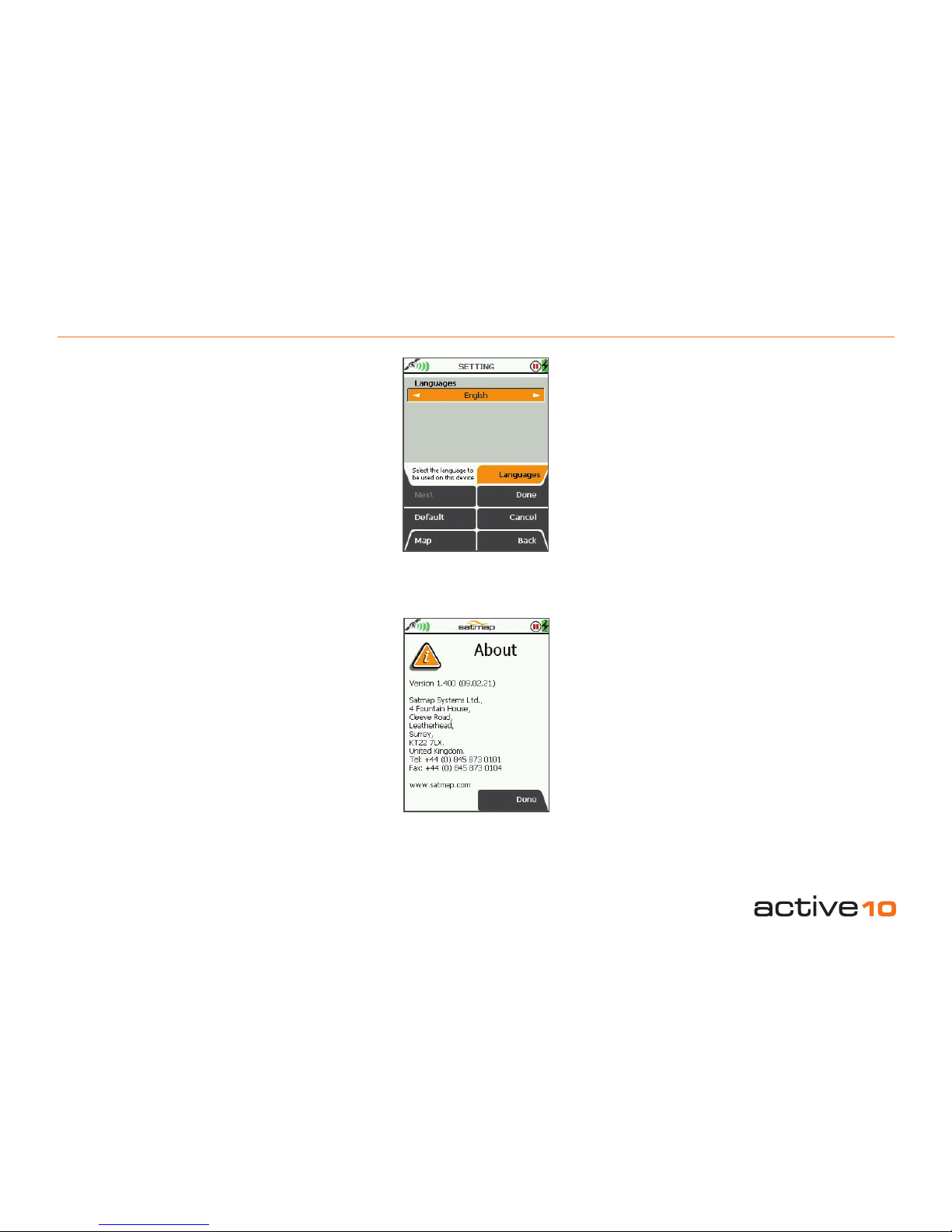

5.17 Languages ..................................................30

5.18 About ...........................................................30

6.00 PLANNING Screen .....................................31

7.00 ROUTES MENU Page ................................32

7.01 Create New Route ......................................33

7.02 ROUTE EDIT Page .....................................34

7.02a Edit Title ......................................................34

7.02b Edit Comments ...........................................35

7.02c Reverse Route ............................................ 35

7.02d Edit Route Map ...........................................35

7.02e Edit Waypoints ............................................35

7.02f Delete Route ...............................................35

7.02g Copy ............................................................35

7.02h Move Route to SD Card ..............................35

7.02i Copy Route to SD Card ..............................35

7.03 ROUTE MAP Page .....................................35

7.03a ROUTE PLAN Page ....................................35

7.03b ROUTE CARD Page ...................................37

7.04 Create Routes Folders Using SatSYNC .....38

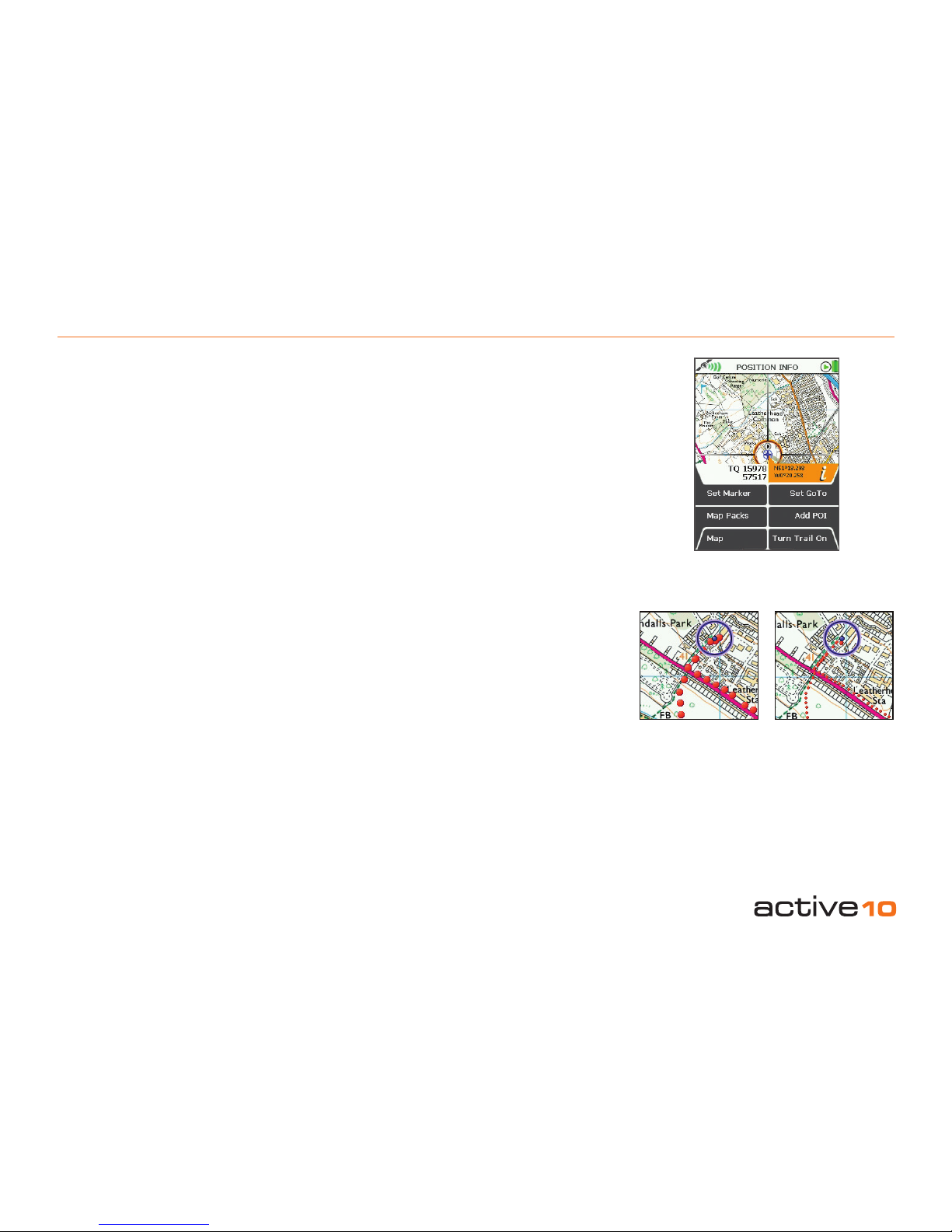

8.00 POSITION INFO Page ................................39

(i) Contents

11.03 Standard Power Bundle ..............................50

11.04 Slimline Power Bundle ................................50

11.05 Carry Cases ................................................51

11.06 Lanyard .......................................................51

11.07 Screen Cover ..............................................51

11.08 ZAGG’s InvisibleSHIELDTM .........................51

12.00 Services ......................................................52

12.01 General Service ..........................................52

12.02 World Base Map .........................................52

12.03 Specialised Custom Map Service ...............52

12.04 Toggleable Map Service ..............................52

12.05 Custom Mapping (GB only) .........................52

12.06 Site-Centred Mapping (GB only) .................52

12.07 Map Consolidation ......................................52

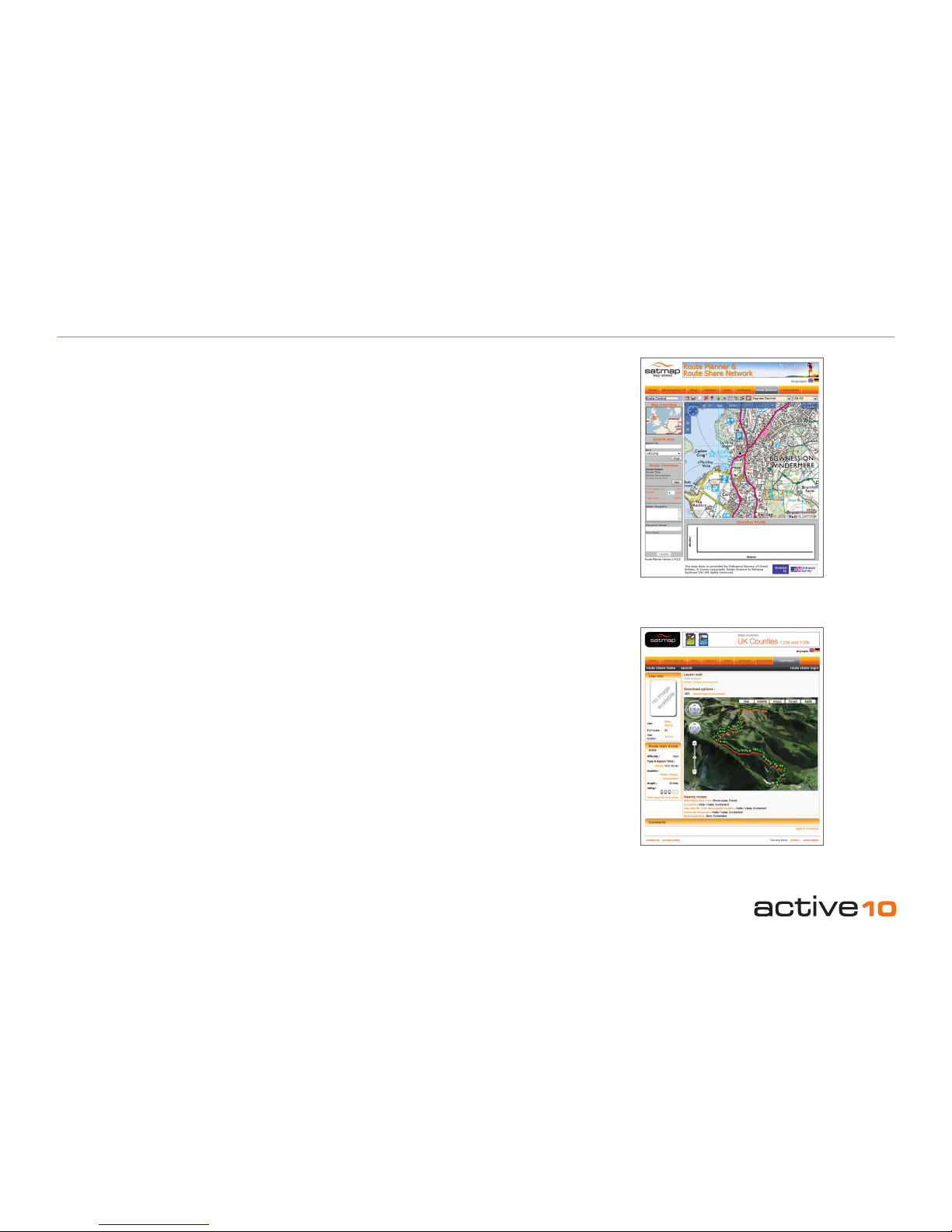

12.08 Route Planner & Route Share ....................53

13.00 General FAQs.........................................54-55

13.01 Mountain Biking FAQs ................................55

14.00 Trouble Shooting .........................................56

14.01 Tips.........................................................57-58

15.00 Glossary..................................................59-60

9.00 POI Menu ....................................................40

9.01 Add New POI Page .....................................40

9.02 ADD POIs Page ..........................................41

9.03 Keypad ........................................................42

9.04 POI CATEGORY Page ................................42

9.04a Rename POI Category ................................42

9.04b Copy POI Category .....................................42

9.04c Delete POI Category ...................................42

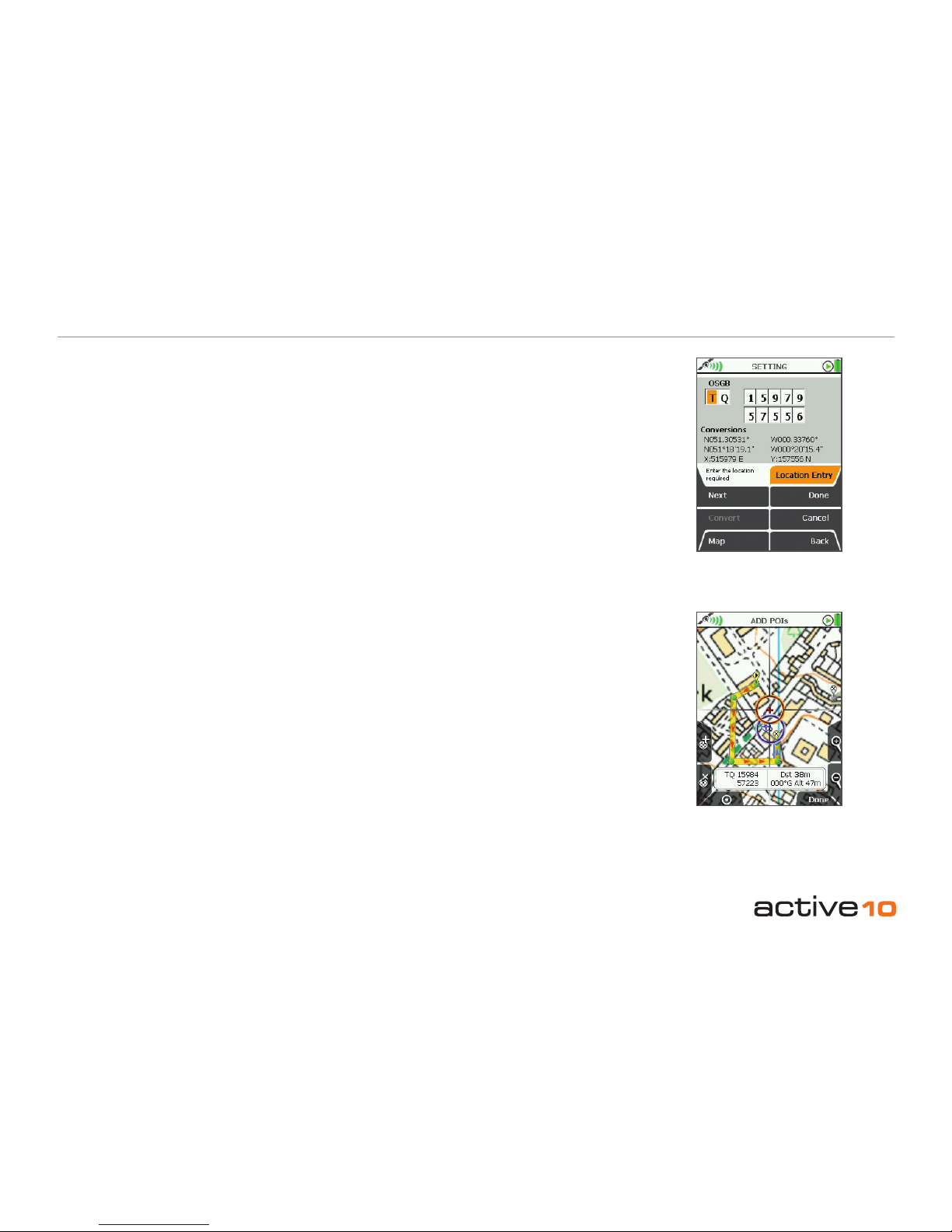

9.04d Add New POI by Grid Ref ...........................43

9.04e Add New POI by Map .................................43

9.04f Add New POI by Postcode .........................43

9.04g Move to SD Card ........................................43

9.04h Copy to SD Card .........................................44

9.05 My POIs Page .............................................44

9.05a POI 1 Page .................................................44

9.06 EDIT POI Page ...........................................45

9.06a Rename ......................................................45

9.06b Edit Description ...........................................45

9.06c Edit Location by Grid ...................................46

9.06d Edit Location by Map ..................................46

9.06e Edit Warning Radius ...................................46

9.06f Edit Visibility ................................................46

9.06g Delete ..........................................................46

9.06h Edit POI Icon ...............................................46

9.07 Create POI Folders Using SatSYNC ..........47

9.08 POI Indicator Icon .......................................48

10.00 GoTo and Marker Page ...............................49

10.01 Set By Coords .............................................49

10.02 Set By Postcode .........................................49

11.00 Accessories.................................................50

11.01 Bike Mount ..................................................50

11.02 Vehicle Mount .............................................50

(ii) Basic Layout

GPS antenna

USB (power & data)

Audio jack (AV POIs)

Insert SD card

Lanyard point (x2)

Backlight Boost

On/Off

Interchangeable

screen cover

Soft keys (functions vary)

Soft keys

(functions vary)

8 way joystick (with centre press

ʻselectionʼ)

1.00 Overview

Welcome to the world of GPS mapping!

The Active 10 is an intuitive unit, easy to use. Switch it on, wait for a couple of minutes and your position is shown as being the centre of the screen. As you move, so does the map. The unit is weatherproof and the screen is backlit which means it can be used day or night in any weather.

OS maps are sold separately on SD cards.

The unit is supplied with a world map showing major roads, towns and cities and a UK road map.

The Active 10 is a standalone unit and you can plan routes on it whilst in the great outdoors. Satmap’s online Route Planner allows the download of pre-planned routes, the upload of routes for editing and the printing of a paper version of the route to take as back-up when outdoors.

The rock-steady bike bracket accessory makes the unit ideal for mountain biking and the unit is tailor-made for geocaching.

1.01 Getting Started

Outdoors, the unit should get a lock within three minutes. If it takes much longer, please contact Satmap. Hibernate mode allows rapid satellite lock as the unit remembers the satellites' position (available via the Platform Software Upgrade card from satmap.com).

In this manual, displays of mapping are referred to as ‘screens’ and displays of other

information are referred to as ‘pages’. The main mapping screen is titled GPS Map (section 3.00). Use the zoom buttons, shown in section (ii), for detail/perspective.

Moving the joystick changes the screen to the PLANNING screen (section 6.00); the blue position indicator circle will move away from the middle of the screen as you control the joystick to move the map. A visual cue that you are in planning mode is the orange locator circle which has longer crosshairs. In planning mode you can plan routes and also study the map using the joystick to pan (keep it pressed in the desired direction and the map moves faster).

Although you will not get more detail than that available with 1:25k scale mapping, zooming

in to closer scales allows magnication of

detail which is sometimes hard to make out on paper maps.

Whilst stationary, the unit will appear to be recording travelled distance and ascended height. This is due to the way GPS works. On car devices, ltering and ‘locking’ masks the effect, but the Active 10 is designed for a different purpose and its sensitivity means

that incremental differences in ‘xes’ accrue,

resulting in an incorrect log. The unit gives accurate data once moving.

The TRIP LOG page has a Start/Stop button for data logging. To clear previous data, press the Menu button, then choose a reset option. To begin data logging, press Start. If you pause, say, for lunch, press Stop but

remember to press Start when you resume. Press Stop when you nish the route. A Stop/ Record icon next to the battery indicator shows whether the data log is paused or recording.

Until Reset is pressed, the unit will operate as if you are following a single route. This means that if you press Stop, then relocate by car for example, on pressing Start again the car journey is represented by a straight line crumb trail and the data log will incorporate the car journey.

An advantage of buying the rechargeable battery is that you should always be able to set off with a fully charged battery which means no break in contacts whilst changing batteries, hence no loss of logged data. A second advantage is that the rechargeable battery

lasts signicantly longer than AAs.

To conserve battery power: press the front right button until you see ‘Settings’, select

Settings, then Power Control and then adjust Automatic Screen Turn Off (to, say, ‘Off after

3 minutes’) by pushing the joystick sideways. Press Done, then Map. The Trail Up facility is disabled when in powersave mode.

As with most software products, there will always be ongoing updates and developments. We strive continually to improve our product and value any feedback you may like to share with us. Please remember to register your Active 10 online so that we can notify you of updates which are available for download from our website.

2.00 Introduction

The Satmap Active 10 has been designed for use in outdoor sports such as walking, mountain biking, geocaching, orienteering, cross-country horse riding, family cycle rides and many other outdoor activities. Although robust and rugged it has not been designed to be your sole navigational aid. Since, like all electrical devices, the batteries can run out, we strongly advise users to carry paper mapping as a back up. A paper map of your location can be printed from our website's Route Planner (UK). It is also advised that users are familiar with mapping cartography and can read and understand map symbols. (The symbols for both the OS Explorer 1:25,000 (1:25k) and Landranger 1:50,000 (1:50k) series mapping are given on our website.) The Satmap Active 10 is an enriching and valuable aid to the outdoor experience, allowing you to focus on your sport without worrying about your location.

This product is sold in conjunction with Satmap’s terms and conditions of sale. Please be aware that Satmap Systems Ltd. will upgrade this product on an ongoing basis and therefore this manual will be amended from time to time.

2.01 The Global Positioning System (GPS)

The GPS system is a U.S. space-based global radio navigation system. GPS is made up of three parts; between 24 and 32 satellites orbiting the earth, four ground stations and the GPS receivers owned by users. It took 20 years to get the required 24 satellites in orbit and the system became operational in

1994. It is maintained by the U.S. government (currently costing $400 million a year), and is a free service offered for the public good.

2.02 How GPS Works

GPS works by measuring your location relative to four or more satellites simultaneously. Knowing the exact location of the satellites, the receiver (Active 10) can determine its latitude, longitude and height whilst at the same time synchronizing its clock with the satellites’ atomic clocks.

In addition to being an accurate location device, the Active 10 is a precise timepiece and can therefore perform forward speed calculations.

2.03 SatSYNC

SatSYNC is free software available for download from our website. It allows you to connect your Active 10 to a PC via a standard USB connection. With this software you can upload/download routes and Points of

Interest. These les can then be shared via

2.00 Introduction

e-mail, forums (eg. the Satmap Route Share Forum) or viewed on PC based mapping systems compatible with the Satmap format (eg. the Satmap Online Route Planner).

To view your trail on a PC:

• Connect the Active 10 to a PC

• Open SatSYNC

• Select the trail data (a .gpx le) and copy

this to your desktop

• Import the le to your PC mapping system

eg the Satmap Online Route Planner or

Google Earth. (Sections 7.04 & 9.07)

2.04 Base Mapping

The Active 10 is supplied with a 1:1,000,000 scale road map of the UK and a world map at 1:30,000,000.

1:25k and 1:50k Ordnance Survey mapping is available on SD cards and a large selection of maps is on sale from the Satmap website. Our popular custom mapping is centred on a location of your choosing, thereby eliminating the problems traditionally encountered when you reach the edge of a map.

Once a map card is inserted, zoom ‘through’ the base mapping to see more detail. On premium map cards, you can zoom seamlessly between 1:50k and 1:25k scale mapping.

2.05 Battery Insertion

The Active 10 is powered by either three AA batteries or a rechargeable battery (sections 11.03 & 11.04). AA batteries vary

signicantly in power and life from one type

to another. The most powerful on the market are the Lithium Energisers, a set of which are supplied with the Active 10. It is not advisable to use cheap batteries in the unit as they will have a short life.

2.06 Switching On and Off

When rst installed, the software allows users

to select the operating language. Whatever language is selected, the unit is then set for the appropriate GPS position: ie. selecting English sets up the GPS default to Great Britain.

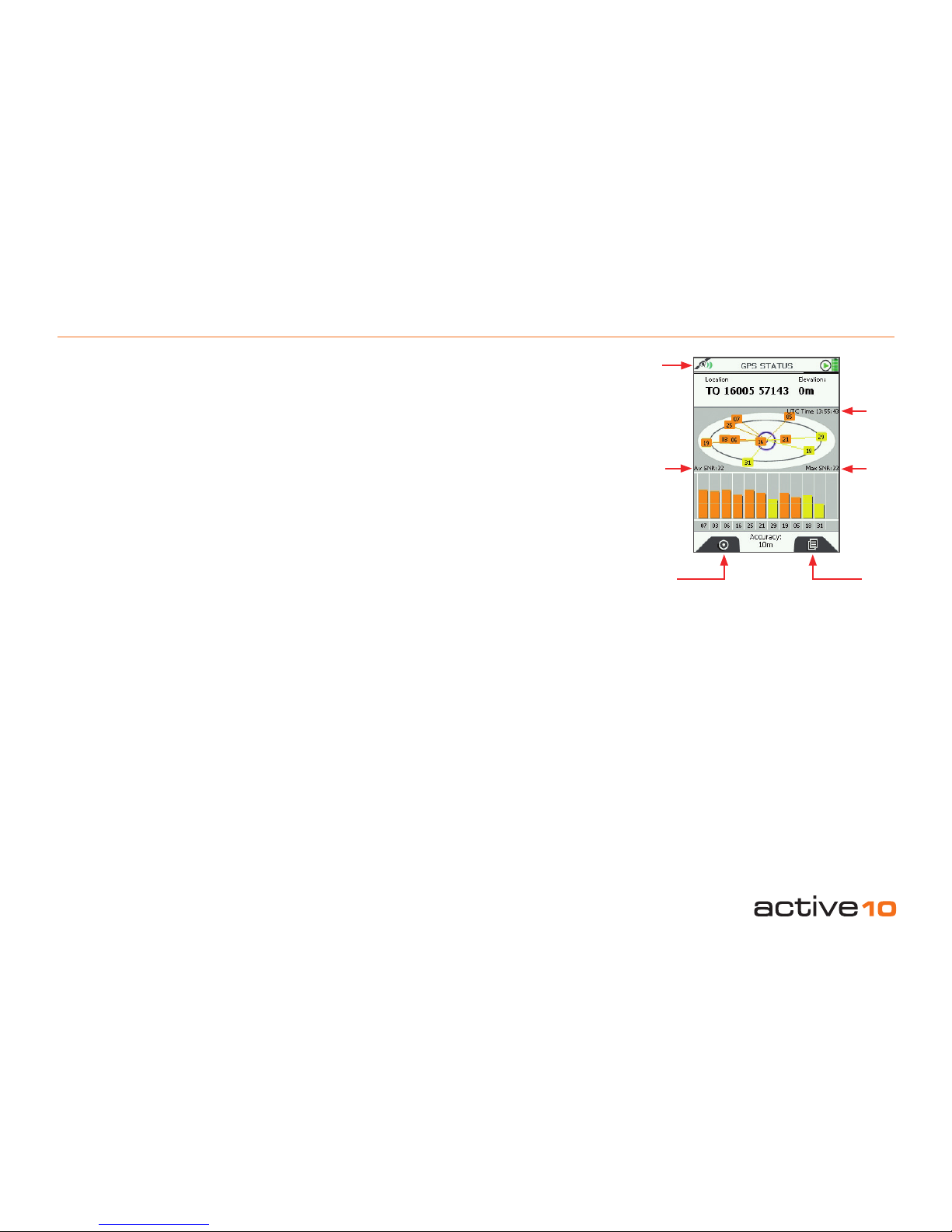

After switching on the unit the GPS STATUS page (section 4.04) will load up, the bars at the bottom of the page indicate how many satellites are in range of the Active 10.

When the bars turn from yellow to orange this shows that the unit has locked on to that

specic satellite. In general the unit needs a

minimum of four satellites to get a lock.

To switch the unit off, press the On/Off button and a Power Off? page is displayed in order to prevent accidental switch-off; select Yes. Your data will be saved before power off. If no selection is made after 10 seconds the unit will revert to the previous page.

2.07 Map Card Insertion

The map card door is hinged at the bottom and opens from the top downwards. When inserting the card please ensure that the label is facing you with the arrow pointing inwards.

2.08 Keyboard Lock

The Power Off? page has a padlock (keypad lock) icon by the On/Off button. Press the On/ Off button to lock the keypad. A padlock icon is displayed by the battery indicator.

To unlock the keypad press any button and an Unlock? page is displayed. Select Yes to unlock the keypad. If no selection is made after 3 seconds the unit will revert to the previous page.

2.09 Battery Indicator & Stop/Record Icon

The battery indicator is solid for new or fully charged cells. As the charge decreases it is broken into four bars which then reduce. When a single bar remains, it is coded red. After some further time (depending on the power source and the activity ie. load), there is an on-screen warning that the unit will power off in 30 seconds and a countdown is shown.

If you are using the rechargeable LiPol battery (section 11.00), during charging the

battery indicator has a lightning ash. When

you disconnect the unit from the power supply, the indicator is solid if fully charged.

On/Off button

Keyboard Lock

Battery indicator

Toggle icon

Stop/Record icon

Figure 2.07

Figure 2.06

Getting Started

Next to the battery indicator is the Stop/ Record icon, indicating that data logging, shown on the TRIP LOG page (section 4.03), is either paused or recording. When the unit has lock, the record icon is a solid green arrowhead. Without lock the record icon is ‘empty’.

2.10 Six Primary Pages

Use the front right button (Page button) to scroll through these pages.

GPS Map Screen (section 3.00)

When locked to your GPS position the GPS

Map screen will be shown. Your position is

always displayed in the centre of the map and is indicated by the blue dot in the middle of the target.

PLANNING Screen (section 6.00)

The PLANNING screen is shown when you are panning and zooming across the map. To take the screen back to your current location press the Lock to GPS button on the left of the joystick. Long crosshairs feature as an additional cue that you are now in planning mode.

MAIN MENU

(section 4.01)

GPS Map

(section 3.00)

PLANNING

(section 6.00)

TRIP LOG

(section 4.03)

COMPASS

(section 4.02)

GPS STATUS

(section 4.04)

screen to PLANNING. If this happens, press the front left button Lock to GPS to go back to the GPS Map screen. To avoid this, lock the keypad (section 2.08).

Successful satellite lock (a ‘x’) is indicated

at the top left of the screen, by the red cross turning to a green signal icon. The number of green crescents represents received signal strength. A weak lock is indicated by a single crescent plus a ‘2D’ caption (section 4.04).

The unit is WAAS/Egnos enabled. This means users in the south of England and mainland

Europe are able to benet from ‘differential’

GPS when one of the EGNOS satellites is in view (section 15.00). When this service is available, the green signal crescents turn blue and accuracy is enhanced. The unit does not lock on to the EGNOS satellites in the same way as with the GPS satellites, because they transmit a different type of data. On the GPS

STATUS page, when visible, the EGNOS

satellite icons (numbered 122, 124 and 126) remain yellow and do not turn orange.

Your position is shown as a blue dot in the centre of the screen. Once moving, a pointer appears on the blue circle, indicating the current direction of travel. As you move, a snail trail of red dots is laid down, indicating the path you have taken. (To change the dot size, see section 8.00).

The Active 10 logs your position once every second. The rate at which red dots are

3.00 GPS Map Screen

For best results in achieving satellite lock;

• The Active 10 should be pointed at clear

sky. The unit is able to acquire lock through glass, ie. windows, car windscreen.

• Set the screen page to GPS STATUS

(section 4.04) using the Page button (see

gure 3.00).

Centre press the joystick to access the

POSITION INFO page (section 8.00).

Buttons:

Toggle maps

(Icon shows three layers of stacked mapping)

Toggle between maps at the same zoom level

Data boxes

Toggle between none, 2 or 4 data boxes onscreen (sections 5.04, 5.05 and 5.06)

North Up/Trail Up

Map display cycles through North Up / Trail Up (Centre) / Trail Up (Low)

Zoom In/Out

Map scale is continuously displayed during zooming

Page

Scroll through the primary pages (section

2.10)

Note: Putting the Active 10 into a tight tting

space (eg. the carrying case or a jeans pocket) will nudge the joystick, switching the

3.00 GPS Map Screen

displayed depends on the map scale and the speed of travel. Dots are laid down such that an appropriate distance is rendered between them to create a clear track. There is a powersave setting (see Advanced Power

Control, section 5.02), in which the screen

data is updated once every 4 seconds.

Trail Up mode orientates the map so that it matches your surroundings, similar to turning

a paper map as you ‘nd your bearings’. The

North Up / Trail Up button cycles through

North Up / Trail Up / Trail Up (Low). Trail Up (Low) mode positions the locator circle low on the screen so that you can see more mapping ahead of your position.

Figure 3.00

Toggle

maps

Zoom In

Snail Trail

North Up/

Trail Up

Data box

Page

Zoom Out

Toggle icon

If you switch to PLANNING the map will stay Trail Up. If you wish to switch the map to North Up, return to the GPS Map page and press the North Up/Trail Up button.

The 4 data box option is not available in the Trail Up (low) mode as it would obscure the locator circle.

Note: Trail Up is not available in advanced power saving mode. (A prompt page will remind you). This is because the screen refreshes more frequently in Trail Up, drawing more power.

3.01 Toggleable Maps

The toggle maps button can be used to toggle between different maps on toggle-enabled map cards without needing to zoom in and out. It will toggle between the map layers at a particular point.

If a toggle-enabled map card is loaded, a mini toggle icon appears next to the Stop/Record icon and the toggle maps button is enabled

(gure 3.00).

Note: Not all maps are toggleable. Maps are available from the website, which are marked with a toggle icon (see below). Look for the toggle logo on all of our toggle-enabled products. The toggle function can also be added to existing map cards (see website for further details).

3.02 Map Packs Page

(GPS Map → POSITION INFO via centre press → Map Packs)

(Available once a map card is inserted).

Alternative access:

PLANNING → POSITION INFO via centre press → Map Packs

At any time a map card may be inserted or taken out. When a map card is inserted, an on-screen message shows, ‘SD Card

Inserted’. After about ve seconds the map title page appears. After a further ve

seconds the screen will revert the previous map screen.

If you have more than one map on a card (a service offered by Satmap) move the joystick left/right to access different maps.

Buttons:

Back

Return to POSITION INFO page (section

8.00)

View Map

Go to PLANNING screen (section 6.00)

Note: The screen shows a default location for the loaded map.

4.00 Primary Pages

(GPS Map → MAIN MENU → COMPASS → TRIP LOG → GPS STATUS → PLANNING/ GPS Map → MAIN MENU etc.)

Alternatively, scroll through the primary pages by pressing the joystick left/right.

3.01 Toggleable Maps, Map Packs & Primary Pages

Map

title

Figure 3.01

After navigating away from the Map Packs page, pressing any one of the 4 side buttons or the 2 front buttons displays the ‘soft’ button symbols on-screen. (‘Soft’ refers to software/ programmable buttons whose function varies depending on which screen is displayed.)

The side buttons are designed to be pressed in a sideways direction, enabling one-handed operation.

With the buttons you have a choice:

• 2-click operation – rst click to reveal button

images (with icons), second click for action.

• 1-click operation – button is activated without

the reveal (section 5.14).

Toggle icon Toggle logo

4.01 MAIN MENU Page

(GPS Map → MAIN MENU)

The MAIN MENU page gives access to some of the Active 10’s main functions.

The upper half of the MAIN MENU page shows the title of the Active Map, ie. the loaded map card. The lower half of the MAIN

MENU page shows the name of the Active Route (section 7.00).

Buttons:

POI Menu

Go to POI Menu page (section 9.00)

GoTo and Marker

Set GoTo point/marker either by co-ordinates or postcode (sections 10.01/10.02)

Lock to GPS

Return to last map screen

ROUTES MENU

Go to ROUTES MENU page (section 7.00)

Settings

Go to SETTINGS MENU page (section 5.00)

Page

Go to COMPASS page (section 4.02)

4.02 COMPASS Page

(GPS Map → MAIN MENU → COMPASS)

The Active 10 has an electronic compass and a GPS ‘compass’ and switches between the two at a preset speed (section 5.07). This is because the GPS compass is accurate with forward speed but not when static, whereas the electronic compass works better when static. It is important that the unit is held level (just like using a normal magnetic compass) and is calibrated correctly (section 5.11).

Buttons:

Calibrate Compass

Go to Calibrate Compass page (section

5.11)

Lock to GPS

Return to last map screen

Pointer

Go to POINTER page (section 4.02a)

Page

Go to TRIP LOG page (section 4.03)

Note: An electronic compass does not give as accurate a bearing as a standard magnetic compass.

4.01 MAIN MENU & COMPASS Page

Figure 4.02

Figure 4.01

Lock to

GPS

Page

Bearing indication given here

Orange

tipped

north

indicator

Pointer

Calibrate

Compass

Lock to

GPS

Page

There are 3 types of ‘target’ to select from using the Target type button.

4.02a POINTER Page

(GPS Map → MAIN MENU → COMPASS →

POINTER)

If you wish, instead of using a compass there is an option of following a pointer, which you can set to point in the direction of your desired destination ie. a waypoint, POI or GoTo point.

To access the POINTER page, press the

Pointer button on the COMPASS page

(section 4.02).

Buttons:

Target type

Scroll through overlays giving data on either nearest Waypoint, Point Of Interest or Go To Point

Lock to GPS

Return to last map screen

Compass

Return to COMPASS page (section 4.02)

Page

Go to TRIP LOG page (section 4.03)

Compass

Target

type

Figure 4.02a

4.02a POINTER

Nearest Point Of Interest (POI)

Only available if a POI has been entered (section

9.00). A POI icon will appear at the top of the pointer image.

GoTo Point

Only available once a GoTo Point has been set (section 8.00). A

green ag will appear

at the top of the pointer image.

Next WayPoint

Only available once a route has been plotted (section 7.00). A blue dot will appear at the top of the pointer image.

In each case the two data eld overlay

contains information on bearing and distance to the target.

Lock to

GPS

Page

Target

icon

4.03 TRIP LOG Page

(GPS Map → MAIN MENU → COMPASS →

TRIP LOG)

The upper half of the TRIP LOG page is split

into 12 data elds:

• Total distance travelled

• Total time

• Trip reset (time of last reset)

• Straight Line Distance

• Time Moving

• Average Moving Speed

• Speed Now

• Average Speed

• Maximum Speed

• Sunrise Time

• Sunset Time

• Elevation (altitude above sea level)

All units can be given in metric or imperial. (section 5.09).

The lower half of the TRIP LOG page graphs

an elevation prole of your journey. Above

the graph, a red pointer indicates maximum height and a blue pointer indicates minimum

height. Below the graph, the gures for

these heights are given. Also shown is the abbreviation ‘Asc:’ for ascended height.

Buttons:

Start/Stop

Press to start/stop logging data.

(Note: remember that if say, Stop is showing, it means Start was the button pressed previously).

The unit’s data logging functions are intended to register a single trip. The log should be reset before starting the next trip. Using the

Start/Stop button allows you to pause data

logging during a journey, eg. pausing for a lunch break.

When Stop has been pressed, the unit stops all data logging. If you switch to the GPS Map screen and continue moving, no snail trail is left.

Lock to GPS

Return to last map screen

Page

Go to GPS STATUS page (section 4.04)

Access the following range of options:

• Reset All

• Reset All & Convert

• Reset Log (keeps snail trail and elevation prole)

• Reset Trail (also resets elevation data)

• Reset Trail & Convert

• Convert Trail to Track (section 4.04)

• Set Trip Data (section 5.12)

There are on-screen descriptors for each option.

Note: If you transit between trips and press

Start without resetting the log, the transit

is shown as a straight line snail trail to your present location and will be incorporated into subsequent data logging.

4.03 TRIP LOG

Figure 4.03

Lock to

GPS

Page

Elevation data (section 5.07):

• Elevation data is provided by Ordnance

Survey. This is from a gridded height data set, with 200 ft between each point on the

elevation prole (gure 4.03). Spot heights

above sea level are given at intersections and any given location is given a weighted average of the 4 surrounding spot heights.

• GPS elevation data. GPS is less accurate

when giving elevation data and errors of ± 50m may be encountered.

Elevation data

Elevation

prole

4.04 Convert Trail to Track

(GPS Map → MAIN MENU → COMPASS → TRIP LOG → Menu → Convert Trail to Track)

When a route has been completed it can be saved for reference, future use, or for swapping with others on the Route Share Network (section 12.08). Select the Convert

Trail to Track option to convert the snail trail

of red dots into a trail (yellow line).

Waypoints will automatically be added at key points on the map. As these are computer generated, the positions should be checked and where appropriate, amended to ensure they are practical from a user’s point of view. When the Track has been created, this can be viewed on the unit or can be shared using the SatSYNC program (free download from www.satmap.com).

Note: At the bottom of the elevation prole

page there is a list of all the trip data attached to each waypoint on the route (Figure 4.04a).

Figure 4.04a

Figure 4.04

The terms Route, Track and Trail are used to allow differentiation between direction information:

Trail: this is the path that has been taken,

shown as a line of red dots (‘snail trail’).

Route: this is the planned path users intend to

take. It is shown as a yellow line and will have waypoints laid down at key turning points.

Track: when a snail trail is saved it is

converted to a track (section 4.04), and is shown as a yellow line. It is called a Track to differentiate it from a Route,as it can also contain the trail data log.

4.05 GPS STATUS

4.05 GPS STATUS Page

(GPS Map → MAIN MENU → COMPASS → TRIP LOG → GPS STATUS)

After rst use (when the language is selected), this is the screen that is rst

displayed when switching on the unit (unless there is already a map card inserted in which case the unit will briey show the Map Packs page, see section 3.01).

The elliptical diagram represents the sky above you where North is up. Satellites visible to the unit are allocated numbers and also shown on the bar chart. Yellow bars indicate the unit can see a satellite. The bars change to orange when the unit has acquired a lock. There are also indications of Signal to Noise Ratio (Av SNR and Max SNR).

On acquiring lock, the GPS STATUS will go to the GPS Map screen. For best results in achieving satellite lock the unit should be showing the GPS STATUS page.

Before acquiring a lock, details of your last known position, with time and date, are shown at the top of the page. Once you have a lock, your coordinates and elevation are shown.

To access the GPS STATUS page from the

GPS Map screen, keep pressing the Page

button (front right button) until you reach the

GPS STATUS page.

The upper section of the GPS STATUS page shows details of your last known location, including time, date and grid reference. (Grid reference format options are given in GPS

Settings, section 5.07, ‘Position Display

Format’).

As a guide, a minimum of four satellites are needed to acquire lock and the Signal to

Noise Ratio (SNR) gure should be 30+.

The signal indicator (either red cross or green signal icon) indicates the strength of signal received by the unit. The GPS indicator caption at the bottom of the screen either says ‘Acquiring GPS’ or gives accuracy to within a certain distance.

If the unit is receiving a poor signal eg. under wet tree canopy, it may only be able to give two dimensional data (losing elevation data). Under these circumstances the elevation caption at the top right of the screen will show

‘2D’ instead of an elevation gure. The signal

received icon at the top left will also show a single green crescent plus ‘2D’.

Buttons:

Lock to GPS

Return to last map screen

Page

Return to last map screen

Signal

indicator

Satellitesʼ

atomic clock time

Maximum Signal to Noise Ratio

Average

Signal

to Noise

Ratio

(SNR)

Figure 4.04

Lock to

GPS

Page

5.00 SETTINGS MENU Page

(GPS Map → MAIN MENU → SETTINGS)

The SETTINGS MENU page gives you access to a wide range of settings options. Of these the most signicant are Power Control and

Backlight. It is recommended that all users

acquaint themselves with these two options pages in order to maximise battery life.

At any point, should you wish to exit a settings page, either press Map (front left button) to go to the GPS Map screen, or press Back (front right button).

The full list of settings options are:

• Power Control

• Advanced Power Control

• 2 Data Box Layout

• 4 Data Box Layout (upper)

• 4 Data Box Layout (lower)

• GPS Settings

• Memory Status

• Units and Set Speed

• Compass Settings

• Calibrate Compass

• Set Trip Data

• Volume Control

• Buttons Control

• Screen Data Options

• Time Offset

• Languages

• About

Buttons:

Either press Next or scroll through options using joystick to highlight settings options

Default

Go to Default Settings page Choose Yes to go to the Default Options page;

• Choose Clear All to reset all the user dened settings, trail and GPS data to the

factory set defaults. The unit will then turn itself off.

• Choose Reset Settings to reset only the settings data to the factory set defaults.

Choose No to retain all current settings and return to the SETTINGS MENU.

Map

Return to last map screen

Select

Either press Select or centre press the joystick to select the highlighted option

Cancel

Return to MAIN MENU

Back

Return to MAIN MENU

5.00 SETTINGS MENU

Figure 5.00

5.01 Power Control

(GPS Map → MAIN MENU → Settings →

Power Control)

Automatic Power Saving

• Use the joystick, moving left/right to select

desired time the unit will stay powered on for.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Note: allowing the unit to power off will cause it to lose GPS lock.

Automatic Screen Turn Off

This is a powersave option.

• Use the joystick, moving left/right to select

desired time before the screen will power off leaving the unit still operating.

• Press Done or centre press the joystick to return to SETTINGS MENU.

GPS lock will be maintained and the unit will continue to log your position.

• To instantly re-activate the screen,

press any button.

Alert when screen off

• Use the joystick, moving left/right to toggle

between Off and Screen Alerts Every

Minute.

• Press Done or centre press the joystick to return to SETTINGS MENU.

With the alerts mode selected the screen will

ash on at 1 minute intervals to remind you

the unit is switched on - particularly useful when dark.

Pressing the Default button restores the following settings:

Automatic Power Setting

Always On

Automatic Screen Turn Off

Always On

Alert When Screen Off

Screen Alerts Every Minute

5.01 Power Control

Figure 5.01

5.02 Advanced Power Control

(GPS Map → MAIN MENU → Settings →

Advanced Power Control)

Power Saving Mode

To save power, select Advanced power saving mode and the screen will update every four seconds instead of every second.

In this mode Trail Up is disabled and the Backlight setting is reduced to 80%. This setting may be adjusted, though increasing the backlight will negate some powersave

benets.

• Use the joystick, moving left/right to select

Normal or Advanced.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Hibernate Timeout

This feature comes as standard on all units bought after December 2009. For all earlier units this is an optional feature via the Platform Software Upgrade card which is available from satmap.com.

This feature may be thought of as an ultra powersave setting.

In this mode the unit can be switched off and will retain satellite position data using a trickle charge. On switching the unit back on the last screen is shown and satellite lock takes only a few seconds.

If you re-locate whilst in hibernate mode the

unit will briey show your position as where

you last had lock until the new satellite positions are acquired.

Note: Trip log data is not stored in this mode.

• Use the joystick, moving left/right to select

from Off to 8 hours.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing Default restores the following:

Power Saving Mode

Normal

Hibernate Timeout

2 hours

Note: For the time that Hibernate Timeout has been set, you will be unable to switch off the unit completely until the time has passed, eg. if Hibernate Timeout is set to 2 hours, you will be unable to switch off the unit completely for 2 hours – it will be in hibernate mode. If you wish to switch off the unit completely in that time, you will need to select

Off under the Hibernate Timeout menu.

5.02 Advanced Power Control

Figure 5.02

5.03 Backlight

(GPS Map → MAIN MENU → Settings →

Backlight)

The backlight setting has a signicant

impact on battery life. It is recommended

that you choose a setting which you nd

comfortable, not necessarily the brightest.

To preserve night vision, use a low level setting. Below 10%, the scale goes down in steps of 2%.

Press the Red Filter button for night use as another option to preserve night vision. Select

Normal to return to the daylight screen. The

red lter and backlight level can be used in

combination to suit your individual needs.

• Use the joystick, moving left/right to select

the desired level.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following setting: 90%

5.03a Screen Data Capture

Screenshots may be captured as jpeg les

and accessed in SatSYNC (section 2.03), listed with time/date details.

This might be useful in a variety of circumstances. For example, sending a screenshot of a particular location to another person or using a series of screenshots in conjunction with timed digital photos for use in a presentation.

Press and hold the Backlight Boost button

for ve seconds; a camera icon briey

replaces the Stop/Record icon and beeps sound to indicate a successful screenshot capture.

In SatSYNC, a Screenshot jpeg is listed under SD Card Files.

To view screenshots, export the le from

SatSYNC to a computer (press Export and

choose a le destination). Then double-click on the computer le. Screenshots may be

copied and pasted by right clicking on the

computer le. To email screenshots, save the le onto your desktop, then either attach it to the email or drag the le from the desktop

into the email where it will format itself as an attachment.

5.03 Backlight & Screen Data Capture

Figure 5.03

Red Filter

Backlight Boost

Camera icon

Briey replaces

Stop/Record icon

5.04 2 Data Box & Data Box Options

5.04 2 Data Box Layout

(GPS Map → MAIN MENU → Settings → 2

Data Box Layout)

2 or 4 data box overlays (sections 5.05 &

5.06) are available on the GPS Map screen

(section 3.00). Toggle selections by pressing the lower left side button.

For both the Left Box and the Right Box:

• Use the joystick, moving left/right to select

the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Choose Data for Left Box

Heading

Choose Data for Right Box

Elevation

5.04a Data Options for 2-box and 4-box

data elds for overlays

(GPS Map → MAIN MENU → Settings → 2/4

Data Box Layout)

The following choices of data are available by moving left/right using the joystick and either selecting Done or centre pressing the joystick. The same data options are available for each box in both the 2-box and 4-box layouts. For each data option a summary descriptor is given on-screen.

Heading

Direction of travel, given in either Degrees

(M – Magnetic North, G – Grid North, T –

True North), Cardinal points (eg. N, NNE), or mil-radians (section 15.00). See Compass

Settings (section 5.10).

Location

GPS position given by either OSGB (Ordnance Survey GB); German Grid; UTM; MGRS; CH1903/LV03 Swiss Grid; Degrees decimal; Degrees, minutes decimal; Degrees, minutes, seconds decimal; British Grid. See GPS Settings, section 5.07.

GoTo Bearing

Bearing to your “Go To” point. See POSITION

INFO, section 8.00 (Set as GoTo option).

GoTo Distance

Distance to GoTo point, either imperial or metric. See Units and Set Speed, section

5.09.

GoTo ETA

Estimated Time of Arrival at GoTo point.

GoTo Time

How long to reach GoTo point.

GoTo VMG

Following variation to the pre-planned route; this new, corrected speed (Velocity Made Good) is required to reach the GoTo point

in the original time planned. This is xed by

the target speed. See Units and Set Speed, section 5.09 (Target Speed).

Bearing Next WP

Bearing to the next WayPoint.

Distance Next WP

Distance to the next WayPoint.

ETA to Next

Estimated Time of Arrival at next WayPoint.

Time Next

How long to reach next WayPoint.

VMG Next

Velocity Made Good to next WayPoint. See GoTo VMG summary above.

WP Name

Name of next WayPoint.

Nearest POI

Name of nearest Points Of Interest. See Points of Interest, section 9.00.

Bearing to POI

Bearing to nearest Waypoint.

Nearest POI Distance Distance to nearest

Point Of Interest.

POI ETA

Time until nearest Point Of Interest.

POI Time

Time of arrival at nearest Point Of Interest.

POI VMG

Velocity Made Good to nearest Point Of Interest. See GoTo VMG summary above.

5.04a Data Box Options

Bearing to End

Bearing to the route end.

Distance to End

Distance to route end (along the route)

ETA to End

Estimated Time Of Arrival at route end.

Time to End

How long to get to route end.

VMG End

Velocity Made Good to route end. See GoTo

VMG summary above.

Route Cross Track Error

This is the distance between the planned yellow route and the snail trail. It is most relevant for aircraft (cross wind effects) and nautical applications (effects of currents).

Route Distance

Total distance of the active route.

Route Done

Percentage of route travelled so far.

Route Name

Name of route.

Average Moving

Average moving speed.

Average Speed

Average speed overall, taking account of breaks.

Max Speed

Maximum speed.

Speed Now

Current speed.

Sunrise

Time of sunrise.

Sunset

Time of sunset.

Moon Phase

An icon is displayed along with the percentage of a full moon.

Time Moving

Time spent moving, as recorded by the Trip

Log (section 4.03). This will be a cumulative

total until the Trip Log is reset.

Stopped Time

Time spent not moving. See Time Moving summary above.

Trip Distance

Total trip distance. See Time Moving summary above.

Trip Time

Total trip time. See Time Moving summary above.

GPS Accuracy

Accuracy of GPS within a certain distance.

Position as Lat. Long.

Position is given in degrees latitude and longitude.

Elevation

Current height above sea level.

Time Now

Time of day.

Date

Date today.

Total Ascents

Cumulative total of height (altitude) gained.

Total Descents

Cumulative total of height (altitude) lost.

Max Altitude

Maximum height (altitude) attained.

Min Altitude

Minimum height (altitude) attained.

5.05 4 Data Box Layout

5.05 4 Data Box Layout (upper)

(GPS Map → MAIN MENU → Settings → 4

Data Box Layout: upper)

For both the Upper Left Box and the Upper Right Box:

• Use the joystick, moving left/right to select

the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

The data options are the same as those listed in section 5.04a for the 2 data box options.

Pressing the Default button restores the following settings:

Choose Data for Upper Left

Trip Distance

Choose Data for Upper Right

Speed Now

Data boxes are shown on the GPS Map screen. To reach the GPS Map screen from the SETTINGS MENU, press Map (front left button).

• On the GPS Map screen, use the lower left side button to toggle between having 2 data boxes, 4 data boxes or none.

5.06 4 Data Box Layout (lower)

(GPS Map → MAIN MENU → Settings → 4

Data Box Layout: lower)

For both the Lower Left Box and the Lower Right Box:

• Use the joystick, moving left/right to select

the desired option.

• Press Done or centre press the joystick to return to SETTINGS MENU.

The data options are the same as those listed in section 5.04a for the 2 data box options.

Pressing the Default button restores the following settings:

Choose Data for Lower Left

Time Now

Choose Data for Lower Right

Location

Figure 5.05

5.07 GPS Settings

(GPS Map → MAIN MENU → Settings →

GPS settings)

Position Display Format (ie. grid reference format)

• Use the joystick, moving left/right to select

from OSGB (Ordnance Survey GB); German Grid; UTM; MGRS; CH1903/LV03 Swiss Grid; Swedish Grid RT90; French Grid Lambert 2E; French Grid Lambert93; Irish Grid ITM; Irish Grid IG; Degrees decimal; Degrees, minutes decimal; Degrees minutes, seconds decimal; British Grid.

• Press Done or centre press the joystick to return to SETTINGS MENU.

OSGB grid references are given to 10 gures. If you are working to 6-gure grid refs, ignore

the last 2 digits of each number set.

GPS Used as Heading at

This is the speed at which the GPS heading overrides the on-board digital compass heading. (See Compass Calibration, section

5.11).

• Use the joystick, moving left/right to select

from Never, then from 1 kph/0.5 mph to 16

kph/10 mph.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Altitude Data Source

• Use the joystick, moving left/right to toggle

between Altitude from GPS and Altitude

from Maps.

Pressing the Default button restores the following settings:

Position Display Format

OSGB

GPS Used as Heading at

2 kph / 1.2 mph / 1.08kn

Elevation Data

Altitude from maps

Note: The British Grid system is an alternative to the more commonly used Ordnance Survey Great Britain, OSGB. A relationship between British Grid and OSGB may be seen by comparing the following two sets of coordinates which represent the same location;

British Grid X:528481 E Y:179816 N OSGB TQ 28481 79816

The Active 10 gives OSGB grid references to

10 gures. The most commonly used system in the UK is the 6-gure grid reference. In the example above, the 6-gure grid ref would be

(TQ) 284 798.

Figure 5.07

5.09 Units and Set Speed

(GPS Map → MAIN MENU → Settings →

Units and Set Speed)

Units

• Use the joystick, moving left/right to toggle

between Miles and feet, Kilometres and metres, Nautical Miles and Knots.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Target Speed

This is the speed on which Estimated Time of Arrival calculations are based.

• Use the joystick, moving left/right to select

the Target Speed from 1 kph (0.6 mph) to 80 kph (50 mph).

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Units

Kilometres and metres

Target Speed

10 kph (6.2 mph / 5.4 kn)

5.08 Memory Status & Units

5.08 Memory Status

(GPS Map → MAIN MENU → Settings →

Memory Status)

This page provides information on the capacity of three elements:

• SD Card Information

The size of the SD card is given with an indication of how much space remains.

• Storage Memory (Flash)

This is where maps and saved routes are stored.

• Operating Memory (RAM)

This is the memory needed to operate the unit. Full RAM may result in the unit ‘freezing’.

Figure 5.08

Figure 5.09

5.10 COMPASS Settings

(GPS Map → MAIN MENU → Settings →

Compass Settings)

There are three norths commonly in use in Great Britain:

• Grid North: the direction of a grid line which

is parallel to the central meridian on the National Grid.

• True North: the direction of a meridian of

longitude which converges on the North Pole.

• Magnetic North: the direction indicated by a

magnetic compass. Magnetic North moves slowly with a variable rate and currently is West of Grid North in Great Britain.

Compass Display

• Use the joystick, moving left/right to select

from Degrees, Cardinal points (eg. N, NNE), or mil-radians (section 15.00).

• Press Done or centre press the joystick to return to SETTINGS MENU.

Bearing Display

• Use the joystick, moving left/right to toggle

between Show Grid Bearings and Show

Magnetic Bearings.

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Compass Display

Degrees

Grid Magnetic Angle

Manual

Bearing Display

Show Grid Bearings

Grid Magnetic Angle

• Use the joystick, moving left/right to toggle

between Manual and Automatic. Press Done to select Automatic. Press Set to select Manual. A new SETTING

page is shown on which the Grid Magnetic Angle (section 15.00) may be adjusted by moving the joystick up/down.

• Press Done or centre press the joystick to

return to Compass Settings page. Press

Done again to return to SETTINGS MENU.

Pressing the Default button restores the following setting:

Grid Magnetic Angle Value

W 03

Figure 5.10

5.11 Calibrate Compass

(GPS Map → MAIN MENU → Settings →

Calibrate Compass)

When the ‘Calibration Required’ prompt is displayed at the bottom of the COMPASS page, follow the on-screen instructions. Press

Cancel to return to the SETTINGS MENU.

1) Hold GPS level

2) Press Start

3) Turn device around in TWO full circles (720 degrees)

4) Press Stop when completed turning or cancel to quit.

An on-screen message ‘Keep turning’ is replaced with ‘Completed. Press Stop’.

Due to the earth’s changing magnetic eld,

the unit’s on-board electronic compass should be re-calibrated every six months.

In practice other considerations should also be taken into account.

When moving, it is better to use the GPS heading as opposed to the electronic compass. (Achieved by setting the override speed fairly low eg the default setting of 2 kph, see GPS Settings, section 5.07). The GPS requires forward motion to provide a heading; it will not work when static.

The electronic compass is affected when brought into proximity with metal objects which means for example, that once mounted on a bike’s handlebars it should be re-calibrated. To do this follow the instructions exactly as you would if the unit were in your hands, when asked to turn the compass in two full circles (720°) you should pick up the bike with the unit and rotate as indicated.

When subsequently removed and used for walking, a further recalibration is required.

It should also be re-calibrated when a different battery type is inserted, due to the varying metal content from one battery type to the next.

Note: This page may also be accessed from the COMPASS page (section 4.02).

Figure 5.11

5.12 Set Trip Data

(GPS Map → MAIN MENU → Settings → Set

Trip Data)

Showing Inactive Routes

• Use the joystick, moving left/right to toggle

between;

Show Inactive Routes: Inactive routes are

shown on maps.

Hide Inactive Routes: Inactive routes are

hidden on maps.

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Auto Clear Trail Data

• Use the joystick, moving left/right to toggle

between;

On: Trail data is cleared when a new route

is selected.

Off: Trail data is not cleared on new route

selection.

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Auto Reset Log

• Use the joystick, moving left/right to toggle

between;

Keep Log on New Route: Log will not be

cleared when starting a new route.

Clear Log on New Route: Log will be

cleared on starting a new route.

• Press Done or centre press the joystick to

return to SETTINGS MENU

Pressing the Default button restores the following settings:

Showing Inactive Routes

Show Inactive Routes

Auto Clear Trail Data

Auto Reset Log

Keep Log on New Route

Figure 5.12

5.13 Volume & Button Controls

5.13 Volume Control

(GPS Map → MAIN MENU → Settings →

Volume Control)

Audio Playback Volume

This is a volume control when using the audio jack. This function relates to audiovisual Points Of Interest which will be available in a future software update.

Beep Alert Count

The unit will beep when it encounters WayPoints, Points Of Interest, GoTo Points or Routes. It will also beep when a map card is inserted and when satellite lock is acquired.

• Use the joystick, to select the number of

beeps, ranging from 1 to 10, or mute.

• Press Done or centre press the joystick to

return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Audio Playback Volume: 70%

Beep Alert Count: Three Beeps

5.14 Buttons Control

(GPS Map → MAIN MENU → Settings →

Buttons Control)

Key Click Sound

This function only operates in conjunction with audio-visual Points Of Interest.

Hidden Map Buttons

This function applies to the GPS Map or

PLANNING screens.

• Use the joystick to toggle between;

Two Click operation: click to reveal button

function then click again for action.

One Click operation: one click activates

button instantly.

• Press Done to return to SETTINGS MENU.

Button Handling

• Use the joystick, moving left/right to toggle

between Right Handed and Left Handed operation.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Pressing the Default button restores the following settings:

Key Click Sound: Off Hidden Map Buttons: Two Click Button Handling: Right Handed

Figure 5.13

Figure 5.14

5.15 Screen Data Options & Time Offset

5.15 Screen Data Options

(GPS Map → MAIN MENU → Settings →

Screen Data Options)

Pressing the Default button restores the following settings:

Auto Show POI Information: Off Show Titles on Maps: On

Auto Show POI Information

• Use the joystick, moving left/right to toggle

between;

On: POI overlay data is automatically shown

when nearby.

Off: POI overlay data is not automatically

shown.

• Press Done or centre press the joystick to return to SETTINGS MENU.

Show Titles on Maps

• Use the joystick, moving left/right to toggle

between;

On: POIs, waypoints and route names

shown on maps

Off: Names not shown on maps

• Press Done or centre press the joystick to return to SETTINGS MENU.

Note: v1.4 has the World Base Map instead of the road names option which was previously available on this settings page.

5.16 Time Offset

(GPS Map → MAIN MENU → Settings →

Time Offset)

This function allows you to vary the time setting in relation to GMT (eg. for British Summer Time add one hour).

• Use the joystick, moving left/right to select

the time offset.

• Press Done or centre press the joystick to return to SETTINGS MENU.

GPS/UTC time (appears in the on-screen descriptor) is the same as Greenwich Mean Time, GMT. An explanation of UTC is given in section 15.00.

Figure 5.15

Figure 5.16

5.17 Languages & About

5.17 Languages

(GPS Map → MAIN MENU → Settings →

Languages)

Languages

• Use the joystick, moving left/right to select

the operating language from English, Dutch, Norwegian, Swedish, French, German, Italian, Spanish, Catalan.

• Press Done or centre press the joystick to return to SETTINGS MENU.

5.18 About

(GPS Map → MAIN MENU → Settings →

About)

This screen gives details of the software version installed on your unit and Satmap contact details.

Press Done to return to the SETTINGS

MENU.

Figure 5.17

Figure 5.18

6.00 PLANNING Screen

(GPS Map → PLANNING)

The PLANNING screen is accessed from the

GPS Map screen by moving the joystick.

The centre of the location icon is a small black cross in the middle of the page instead of a blue dot as with the GPS Map screen. From the edges of the orange location icon radiate cross hairs as an additional visual cue that you are in planning mode rather than GPS mode.

The map is moved using the joystick.

The POSITION INFO page (section 8.00) may be accessed from the PLANNING screen by centre pressing the joystick.

When a map is loaded, the PLANNING screen shows a central default location for that particular map.

There is a data box overlay which shows;

• Grid reference – format options are given

in GPS Settings section 5.07 (Position

Display Format option).

• Altitude (elevation above sea level) for this

location.

• Distance from your last known location, ie where you last had a GPS x. This is useful as a ‘rangender’ (section 14.01).

• Bearing from your last known location –

format options given in Compass Settings, section 5.10 (Compass Display).

Note: This data overlay is not congurable by

the user, unlike the 2 Data Box and 4 Data Box layouts available on the GPS Map screen (section 3.00).

When the crosshairs are moved over a POI or a Route, a POI/Route indicator icon appears at the bottom of the screen. Centre pressing the joystick brings up further information (section 9.08).

Buttons:

Toggle Maps

Toggle between maps at the same zoom level (section 3.00)

ROUTES MENU

Go to ROUTES MENU page (section 7.00)

Lock to GPS

Go to GPS Map screen (section 3.00)

Zoom

Zoom in/out

Page

Go to MAIN MENU page (section 4.01)

Figure 6.00

Toggle

maps

ROUTES

Lock to

GPS

Zoom In

Zoom Out

Page

7.00 ROUTES MENU

7.00 ROUTES MENU Page

(GPS Map → MAIN MENU → ROUTES

MENU)

Alternative access:

GPS Map → PLANNING → ROUTES MENU

via lower left button

The ROUTES MENU contains the listing of routes, stored in a series of folders.

The rst route created is entitled ‘My Route 1’.

Rename it via the Edit button (section 7.02). ‘My Track 1’ is the name given to a converted trail.

An ‘activated’ route is indicated with a tick. This means that on map screens the route is shown as a yellow highlighted line with red arrowheads indicating the direction of travel. Inactive routes are shown as grey highlighted lines.

Inactive routes may be hidden or have just their start points shown (section 5.12). Routes may be reversed (section 7.02c).

To use a route, follow the yellow line. The next waypoint along the route is targeted by being shown as a blue dot and the current leg has blue edging and blue arrowheads. As you pass this point, the waypoint name is displayed (section 7.02e) and the unit will sound beeps. Also, the blue dot will change to green, whilst In turn the next waypoint marker will change to blue.

An activated route has relevant data choices available for display on the GPS Map screen in either 2 or 4 data box overlays (sections

5.04, 5.05 & 5.06). Changing an activated route during a trip will reset the log data.

Buttons:

Edit

Go to ROUTE EDIT page (section 7.02)

Enabled when a route is highlighted.

View

Go to ROUTE MAP page (section 7.03)

Enabled when a route is highlighted.

Map

Return to last map screen

Up folder / Select / Activate / No route active

Move up to a higher level folder, or when a route is highlighted, toggle between activating it and selecting no route active.

Create New Route

Go to CREATE ROUTE (section 7.01)

Back

Return to MAIN MENU (section 4.01)

Figure 7.00

7.01 Create New Route

(GPS Map → MAIN MENU → ROUTES MENU → Create New Route)

Alternative access:

GPS Map → POSITION INFO via centre press → Create New Route

Use the CREATE ROUTE page to plot routes by laying down a series of waypoints.

Buttons:

Add Waypoint

Press the button or centre press the joystick

Remove Waypoint

Press the button or centre press the joystick

ROUTES MENU

Return to ROUTES MENU page (section

7.00)

Zoom

Zoom in and out

Done

Press when route is nished, unless you have

‘closed’ the route (see opposite)

In ROUTES MENU highlight Create New

Route, then either press the Create New Route button or centre press the joystick.

The centre cross inside the orange location icon with long cross hairs is now green. Place waypoints wherever your planned route changes direction; as waypoints are laid down, a yellow highlighted route is created.

Zoom in for greater accuracy in placing waypoints.

The start point icon has a forward arrowhead,

the nish icon is a chequered ag and

waypoint icons are green dots.

If the nal waypoint is very close to the start, a

prompt will appear asking if you wish to close the route. Closing the route connects the last waypoint to the start point.

Press Done to return to the ROUTES MENU.

If there is no mapcard inserted, the route will be saved to the unit in a folder called Internal

Storage. If there is a mapcard in the unit,

the route will be saved onto the mapcard in a folder called SD Card (gure 7.00). If you wish to move the route to the unit, use the

Edit button (section 7.02h).

To view the route, highlight it and press

View; a route map plus route length is shown

(section 7.03).

Use the Select/Up Folder button to navigate between folders.

Add

Waypoint

Remove

Waypoint

ROUTES

Figure 7.01

Zoom In

Finish

Start

Done

Zoom Out

7.02 ROUTE EDIT

7.02 ROUTE EDIT Page

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit)

To access the ROUTE EDIT page, highlight the route to be edited on the ROUTES MENU page (section 7.00), and press Edit. In selecting either Edit Title or Edit

Comments you will bring up an on-screen

keypad (section 9.03). When using the keypad for labelling, either press Select or centre press the joystick to select entries. Use the

Shift button for upper case letters, the More

button offers more characters.

Buttons:

Press Next or use joystick to scroll down options

Map

Return to last map screen

Edit

Either press Edit button or centre press joystick to access alpha-numeric keypad for labelling

Back

Return to ROUTES MENU page (section 7.00)

When the title and any comments have been entered (sections 7.02a & 7.02b), the ROUTE

MAP screen (section 7.03) will be annotated

with the new title and comments. (To get to the ROUTE MAP screen, select View on the

ROUTES MENU page).

The menu options on the ROUTE EDIT page are as follows;

• Edit Title

• Edit Comments

• Reverse Route

• Edit Route Map

• Edit Waypoints

• Delete Route

• Copy

• Move Route to/from SD Card*

• Copy Route to/from SD Card*

*The last two options on the list become available only when a mapcard is inserted.

7.02a Edit Title

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Title)

When a route is created it is called My Route 1 by default. To rename it, use Edit Title.

Highlight Edit Title, then either press the Edit button or centre press the joystick to access the keypad (section 9.03).

Figure 7.02

7.02b ROUTE EDIT

7.02b Edit Comments

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Comments)

Highlight Edit Comments, then either press the Edit button or centre press the joystick to access the keypad.

Operate the keypad to input comments describing the route (section 9.03) and press

Done when nished. The screen will return to

the ROUTE EDIT page.

7.02c Reverse Route

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Reverse Route)

Press Reverse to reverse the route. Press again to go back to the original direction of travel. There is an on-screen statement which says either Currently Forward or Currently

Reverse.

Alternative ways to reverse the route are via the ROUTE PLAN page (section 7.03a) or the

ROUTE CARD page (section 7.03b).

7.02d Edit Route Map

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit Route Map)

Highlight Edit Route Map, then press Edit to access EDIT ROUTE page. (As distinct from the ROUTE EDIT page, section 7.02). Using the joystick, move the location icon to the edit point on the route. Either press the Add

Waypoint button (section 7.01) or centre press

the joystick to add a waypoint with a greenheaded ‘pin’.

7.02g Copy

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Copy)

Highlight Copy, then press Copy and a copy of the route will appear in the routes list.

7.02h Move Route to SD Card

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Move Route

to SD Card)

(This option is only available if a map card is inserted).

Highlight Move Route to SD Card and either press Move or centre press the joystick. (Subsequently this option becomes Move

Route from SD Card). The screen will go to

the ROUTES MENU page and an SD card icon will appear by the route name.

7.02i Copy Route to SD Card

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Copy Route

to SD Card)

(This option is only available if a map card is inserted).

Highlight Copy Route to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy

Route from SD Card). The screen will go to

the ROUTES MENU page and an SD card icon will appear by the route name.

Drag the new waypoint to the desired location.

Either press Done or centre press the joystick

to x the new waypoint. Move the location

icon away from the route. Press Done to return to ROUTE EDIT page.

7.02e Edit Waypoints

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Edit

Waypoints)

Highlight Edit Waypoints, press Edit to access WAYPOINTS page. A list is shown, SP is for start point, WP is for waypoint. Highlight the waypoint to be edited and either press

Edit or centre press the joystick to access EDIT WAYPOINT page.

Edit name/comments using the keypad (section 9.03). There are options to either edit waypoints using grid references or by using the map (section 7.02d). The waypoint may also be deleted. Press Back to go to the

WAYPOINTS page. Press Back again to go

to the ROUTE EDIT page.

7.02f Delete Route

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → Edit → Delete

Route)

Highlight Delete Route, then press Delete to access an option page to delete the route. When either Delete or Cancel is selected, the screen will go to the ROUTES MENU (section

7.00).

7.03 ROUTE MAP & ROUTE PLAN

7.03 ROUTE MAP Page

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → View)

Alternative access:

In PLANNING move the crosshairs over a route and centre press the joystick. A prompt asks you to select the information type. Select the route using the joystick, then centre press the joystick.

A map showing the planned route is shown to an appropriate scale. The route length is given in a window.

From this page you can either examine details of the route via the Prole button (section

7.03a), or edit the route via the Edit button

(section 7.02).

To return to the PLANNING screen, either press Back or centre press the joystick.

Buttons:

Prole

Go to ROUTE PLAN page (section 7.03a)

Start

Go to the start of the route on the PLANNING screen (section 6.00)

Edit

Go to the ROUTE EDIT page (section 7.02)

Back

Go to PLANNING

7.03a ROUTE PLAN Page

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → View → Prole)

This page shows an elevation prole of the route together with six data elds:

• Distance

• Total Ascents

• Total Descents

• Maximum Altitude

• Minimum Altitude

• Approximate Time

The ROUTE PLAN page is accessed from the ROUTE MAP page by pressing the

Prole button.

Move the joystick left/right to move a vertical line indicating waypoints. The waypoint label on the map, its coordinates and comments

appear under the elevation prole. Below a total of fty waypoints, individual waypoints are shown along the prole as green dots. If

a route is a ‘track’, ie. a converted trail, the

comment eld contains date, time, speed etc.

as recorded by the Active 10.

Buttons:

Card

Go to ROUTE CARD page (section 7.03b)

Go To

Go to PLANNING screen (section 6.00), centred on the indicated waypoint

Reverse

Press to reverse the route

Figure 7.03

Back

Go to previous screen

Figure 7.03a

Waypoint

7.03b ROUTE CARD

7.03b ROUTE CARD Page

(GPS Map → MAIN MENU → ROUTES MENU → (folder/route) → View → Prole →

Card)

The ROUTE CARD page gives a list of waypoints with distance and bearing between them.

This page is accessed from the ROUTE

PLAN page (section 7.03a).

Buttons:

Map

Go to ROUTE MAP page (section 7.03)

Go To

Go to the start of the highlighted leg on the

PLANNING screen (section 6.00)

Reverse

Reverse the sequence of waypoints

Back

Go to ROUTES MENU (section 7.00)

Figure 7.03b

7.04 Routes Folders via SatSYNC

7.04 Create Routes Folders Using

SatSYNC

(GPS Map → MAIN MENU → ROUTES

MENU)

You will need to be able to import a route from another folder eg. ‘Routes’ on your desktop.

First connect your Active 10 to a computer and open SatSYNC. Using the right pane (SD

Card Files) press the Create a new folder

button. Enter a name eg. Pub walks. The new folder will not show on the Active 10 until a route is added.

Note: In SatSYNC, the name of a folder is preceded by a folder icon. The name of a route has a .map extension and is preceded by a blue page icon.

To add a route, highlight the new folder and open it by pressing the Open an existing

folder button above the pane. Then press Import and select a route. Follow the

on-screen instructions. Each time a route is added/deleted the unit will sound beeps and default to the Map Packs page while the folder information is updated.

Once a route is stored on a card, a folder appears under ‘Active 10’ entitled SD Card. Further sub folders are created in the same way.

To delete a folder on the unit, delete all routes in the folder and press Up folder. The unwanted folder disappears. To delete a

folder in SatSYNC, press the Delete an

existing folder button above the pane.

Routes can also be stored on the unit. This can be done either via SatSYNC or on the unit itself.

• In SatSYNC, follow the same process as

previously outlined (using the left pane,

Active 10 Internal Files) or drag routes

from one pane to the other.

• On the unit, highlight a route, press Edit, then Move/Copy from SD card.

Once a route is stored on the unit, a folder appears under ‘Active 10’ entitled Internal

Storage.

Routes stored in the unit are managed in the same way as routes stored on an SD card.

Figure 7.04

8.00 POSITION INFO

8.00 POSITION INFO Page

(GPS Map → POSITION INFO via centre

press)

Alternative access:

PLANNING → POSITION INFO via centre

press

If accessed from GPS Map, the upper left button is Create New Route (section 7.01). If accessed from PLANNING, the upper left button is Set Marker/Clear Marker.

This page gives location co-ordinates by grid reference and also lat/long. Options are given to set a marker, view map packs, set a GoTo point, add a POI and to adjust the size of snail trail dots.

Set Marker marks the position with a red ag.

As you move the map using the joystick, a red line is drawn from the marker to the point selected. The overlay shows the grid ref and altitude of the point selected, plus the distance and bearing to the point. To clear the marker, centre press the joystick and select Clear Marker.

Set GoTo marks the position with a green

ag denoting a GoTo point. A yellow route to

the GoTo point is shown plotted from your location. Setting a new GoTo point will replace the previous one. To clear the GoTo point, centre press the joystick and select

Clear GoTo. (See also section 10.00).

The Turn Trail On/Small/Off button allows you to vary the size of snail trail dots.

Buttons:

Set Marker/Clear Marker/Create New Route

Function varies depending on whether the page was accessed from GPS Map or

PLANNING.

Map Packs

Go to Map Packs page (section 3.01)

Map

Return to last map screen

Set GoTo

Set orange locator circle crosshairs as a GoTo point, joined with a straight line route from your current location

Add POI

Lay down a Point Of Interest, POI (section

9.00)

Trail On/Small/Off

Toggle between settings:

Trail On: large red dots Trail Small: tiny red dots Trail Off: no tracking dots

Figure 8.00

Trail On Trail Small

9.00 POIs

9.00 POI Menu

(GPS Map → MAIN MENU → POI Menu)

A Point Of Interest (POI) is a specic point

on the map with some level of detail or information attached.

If there are POIs stored on the unit and also on a mapcard, two folders will be shown, called Internal Storage and SD Card. The folders contain POI categories, each of which in turn contains one or more POIs.

POIs may be added either using the

POSITION INFO page (section 8.00) or the Add New POI page (section 9.01).

When the rst POI is laid down, a POI

category is automatically created for it. By default it is called My POIs until it is renamed (section 9.04a). Also, the Internal

Storage folder is automatically created.

POIs may be moved to an SD card (sections

9.04g & 9.04h). When this happens the

SD Card folder is automatically created.

9.01 Add New POI Page

(GPS Map → MAIN MENU → POI Menu →

Create New POI)

On the Add New POI page, three choices are given for laying down POIs:

• by map (sections 8.00 & 9.02)

• by grid reference (section 9.04d)

• by postcode (section 9.04f)

Please note: postcode lookup is not available on all versions of software.

Figure 9.00a

Figure 9.00 Figure 9.01

9.02 ADD POIs

9.02 ADD POIs Page

(GPS Map → MAIN MENU → POI Menu → Create New POI → Add New POI by Map)

To add a POI either press the ‘+’ button

(upper left) or centre press the joystick. The keypad page (section 9.03) is shown so that POIs can be labelled. When the name is created, press Done. If you have downloaded the POI collection from the website, the POI

Icon Selection page is shown and you can

select your own icon. Press Done to return to the ADD POIs page.

To remove a POI, move the crosshair over the POI and press the ‘x’ button (lower left).

Press Done to return to the Add New POI page, then Back to go to the POI Menu.

To add a category:

• Highlight a POI category, press Edit.

• Select Copy POI Category, press Copy.

The POI Menu now shows the copied category which you can rename (press Edit). In this way you can have categories such as Favourite Pubs or B&Bs.

Note: In creating a new category it is worth copying one which contains only one POI since this saves you having to delete POIs. Also note that when the last POI is deleted from a category, the category is also deleted, so remember to lay down a new POI before deleting the unwanted POI.

Buttons:

Add POI (+)

Lay down POI icons on the map

Remove POI (x)

Remove POIs from the map

Lock to GPS

Return to last map screen

Zoom

Zoom in/out

Done

Return to Add New POI page

A library of new POI icons are available for download from satmap.com. These allow for better management of POIs and faster recognition.

Press the joystick up/down to access further pages of POI icons.

POI icon

Remove

POI

Lock to

GPS

Add POI

Zoom In

9.02

Zoom Out

Done

Figure 9.02

9.04b Copy POI Category

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Copy)

Highlight Copy POI Category and press

Copy. You will go to the POI Menu where

there is a new entry, Copy of My POIs.

9.04c Delete POI Category

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Delete)

Highlight Delete POI Category and press the

Delete button.

9.03 Keypad & POI CATEGORY

9.03 Keypad

There are several instances when the keypad is used. One example is:

GPS Map → MAIN MENU → POI Menu → My POIs → Edit → Rename POI Category

Other instances include:

• Naming a POI

• Adding comments to a POI

• Naming a POI category

• Naming a route

• Adding comments to a route

• Entering postcode

Use the joystick to navigate around the keypad (including going off the ‘edge’ left/ right and up/down). Press Select or centre press the joystick for character selections. Use Shift to access upper case and More for more characters. Press Done when nished to return to the POI Menu.

Buttons:

Delete

Delete characters in the display

Shift

Access upper case letters

Cancel

Options depends on the context

Access more characters

Select

Character selection

Done

Options depends on the context

9.04 POI CATEGORY Page

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit)

This page can only be accessed once a POI

has been added. The rst time a POI is

created, it is automatically stored in a POI category (section 9.00).

The menu options are as follows:

• Rename POI Category

• Copy POI Category

• Delete POI Category

• Add New POI by Grid Ref

• Add New POI by Map

• Add new POI by Postcode*

• Move to SD card**

• Copy to SD card**

(Scroll up/down using the joystick).

*Not available with all versions of software. **Available when a mapcard is inserted.

9.04a Rename POI Category

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Rename)

On the POI Menu highlight the category to be renamed. Press Edit, then Rename.

The keypad page appears. Use the joystick to rename the POI category.

Figure 9.04Figure 9.03

POI Menu

9.04d Add New POI by Grid Ref

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Add New POI by

Grid Ref)

Press the Add POI button to go to the

SETTING page. Use the joystick moving left/

right to go to boxes, then up/down to change box entries.

Under the grid reference boxes are the

Conversions for the reference shown

initially. Once the joystick has been moved vertically (changing the grid reference),

these conversions gures are greyed out.

Pressing the Convert button will update the conversions.

9.04e Add New POI by Map

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Add New POI by

Map)

Press the Add POI button to access the ADD

POIs map screen.

Use the joystick to move the crosshairs. Fix

the POI by either pressing the ‘+’ button

(upper left) or by centre pressing the joystick. The keypad page (section 9.03) appears so

you can label the POI. When nished press

Done to return to the POI CATEGORY page.

9.04f Add New POI by Postcode

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Add New POI by

Postcode)

(This option is not available with all versions of software. Please check our website or your supplier for further details).

Press the Add POI button to access the keypad (section 9.03). Enter the postcode. Press Done to re-access the keypad to name the POI, then press Done to return to the POI

CATEGORY page.

9.04g Move to SD Card

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Move → Up

Folder)

(This option is only available if a mapcard is inserted).

Highlight Move to SD Card and either press Move or centre press the joystick. (Subsequently this option becomes Move

from SD Card). The screen will go to the POI Menu.

Figure 9.04d

Figure 9.04e

POI Menu

9.04h Copy to SD Card

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Edit → Copy → Up

Folder)

(This option is only available if a mapcard is inserted).

Highlight Copy to SD Card and either press Copy or centre press the joystick. (Subsequently this option becomes Copy from

SD Card). The screen will go to the POI Menu.

9.05 My POIs Page

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select)

(This page is only available once a POI has been added).

The My POIs page lists the POIs in a category.

Buttons:

Edit

Go to EDIT POI page (section 9.06)

Centre on Map

Go to PLANNING screen with the POI in the centre

Locate Nearest

Go to the PLANNING screen with the POI nearest your last known location in the centre

Show Details

Go to POI 1 page (section 9.05a)

Create New POI

Go to the Add New POI page (section 9.01)

Back

Return to the POI Menu (section 9.00)

9.05a POI 1 Page

(GPS Map → MAIN MENU → POI Menu → (folder/category) → POI 1 → Show Details)

This page summarises details of the POI. A POI is labelled POI 1 by default until renamed (section 9.06a).

POIs are date and time ‘stamped’, and the following information is given:

• Name of the POI (eg. The Welcome Inn)

• Grid reference (section 5.07)

• Distance and bearing from current location

• Elevation

Also shown are the POI icon and an eye icon. If the eye icon has a red diagonal line through it, the POI icon is not shown on the map screen (section 9.06f).

Figure 9.05

Figure 9.05a

POI icon

ʻeyeʼ icon

9.06 EDIT POIs

9.06 EDIT POI Page

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit)

Alternative access:

GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → POI 1 → Show Details → Edit

The menu options on the EDIT POI page are:

• Rename

• Edit Description

• Edit Location by Grid

• Edit Location by Map

• Edit Warning Radius

• Edit Visibility

• Delete

• Edit POI Icon*

*Available once the POI collection has been

downloaded from the website.

Scroll up/down using the Next button or the joystick. Select by using the appropriate button or centre pressing the joystick.

The current setting for the highlighted option is shown under the window.

Buttons:

Scroll down

Map

Return to last map screen

Figure 9.06a

Figure 9.06

Rename/Edit/Delete

Button changes according to option highlighted

Back

Return to POI category

9.06a Rename

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit →

Rename)

With the Rename option highlighted, the current name of the POI is given under the options list (eg. ‘POI 1’). Press the Rename button to access the keypad to change the name (section 9.03). Press Done when nished to return to the EDIT POI menu. Once you have renamed the POI (section

9.04a), ‘POI 1’ will be replaced with your new

name, eg. ‘The Welcome Inn’.

9.06b Edit Description

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit

Description)

Use the keypad to type in a POI description (section 9.03).

To view the description:

• Press Done – return to EDIT POI page.

• Press Back – go to My POIs page (section

9.05).

• Press Show Details – go to POI 1 page (section 9.05a).

9.06c EDIT POIs

9.06c Edit Location by Grid

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit

Location by Grid)

Press the Add POI button to go to the

SETTING page. Use the joystick moving left/

right to go to boxes, then up/down to change box entries.

Under the grid reference boxes are the

Conversions for the grid reference shown

initially. Once the joystick has been moved vertically (changing the grid reference),

these conversions gures are greyed out.

Pressing the Convert button will update the conversions.

9.06d Edit Location by Map

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit

Location by Map)

On selecting Edit Location by Map, an additional POI icon is shown just inside the locator circle. Use the joystick to move the

icon to the new position and conrm either

by pressing the Add POI button or by centre pressing the joystick.

If you wish to remove the POI icon, press the

Remove POI button.

Press the Lock to GPS button to return to the last map screen.

9.06h Edit POI Icon*

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit POI

Icon)

Use the joystick to select a POI icon. Press

Done to return to the EDIT POI.

*Available once POI collection has been downloaded from satmap.com. Using SatSYNC (section 2.03), ‘Import’ the zipped folder named ‘My POI Icons’ and save to the ‘Internal Memory’. (This means you always have access to the icons no matter what SD

card you are using). Make sure the les are

not extracted – only the zipped folder can be imported into SatSYNC in this instance.

9.06e Edit Warning Radius

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit

Warning Radius)

Press Edit to access the Warning Radius page. Use the Select button to choose a radius at which the unit will sound warning beeps indicating the vicinity of a POI, Go To point or a route.

To see what the current warning radius is set at, highlight Edit Warning Radius on the

EDIT POI page (section 9.06). The gure is

displayed under the menu.

9.06f Edit Visibility

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Edit

Visibility)

Press the Edit button to access the Set

POI Visibility page. Choosing Set POI as not Visible removes the icon from the map

screens but keeps the location as a POI.

9.06g Delete

(GPS Map → MAIN MENU → POI Menu → (folder/category) → Select → Edit → Delete)

To delete a POI from My POIs, press Edit, then Delete. A prompt page asks whether you are sure you wish to delete. Select

Delete and go to My POIs, or use Cancel

and return to the EDIT POI page.

Figure 9.06e Figure 9.06f

9.07 POI Folders via SatSYNC

9.07 Create POI Folders Using SatSYNC

A new POI folder can be created in the same way as with routes (section 7.04).

Connect your Active 10 to a computer and open SatSYNC.

To be able to create a new folder, you must

rst create a new POI (section 9.01). This

creates a POI category which can be seen in the left pane, ‘My POIs.map’.

Using the right pane (SD Card Files) press the Create a new folder button. Enter a name, eg. Pubs. The new folder will not show on the Active 10 until a POI category is added.

Note: In SatSYNC, the name of a folder is preceded by a folder icon. The name of a POI category has a .map extension and is preceded by a blue page icon. You can see the POI folders and categories in SatSYNC but not individual POIs.

To add a POI category, highlight the new folder in the SD Card Files pane and open it by pressing the Open a folder button above the pane. From the left pane (Internal Files), highlight then drag across an existing POI category or select an existing POI category and click on the Copy/Move les to the SD

Card buttons above the pane. You can also

drag across or import POI les from your

computer.

Each time a POI category is added/deleted the unit will default to the Map Packs page while the folder information is updated.

Note: In SatSYNC, you cannot open POI categories to view individual POIs therein. However, you can open POI folders.

Once a POI category is stored in the newly created subfolder on the SD Card, a folder appears in the root of the POI Menu under ‘Active 10’ entitled ‘SD Card’.

Further sub folders are created in the same way.

To delete a folder on the unit, delete all POI categories in the folder and press Up folder. The unwanted folder disappears. To delete a folder in SatSYNC, press the Delete an

existing folder button above the pane.

POI categories can also be stored on the internal storage of the unit. This can be done either via SatSYNC, following the same process as above (using the left pane,

Internal Files, instead of the SD Card Files)

or on the unit itself. To do this, highlight a POI Category in the POI Menu on the unit, press Edit, then Move/Copy from SD card.

Once a POI category is stored on the unit, a folder appears under ‘Active 10’ entitled

Internal Storage.

9.08 POI Indicator Icon

On both the GPS Map screen and the

PLANNING screen, when the locator

crosshair is over a POI or a route, an indicator icon is displayed at the bottom of the screen. It comprises three elements:

• ‘i’ for information

• joystick image

• POI/route symbol

Centre press the joystick for further information. The screen turns grey and an overlay gives options to select;

• If the crosshairs are on a POI, centre press

the joystick to access:

- POI details

- POSITION INFO page (section 8.00)

• If the crosshairs are on a route, centre press

the joystick to access:

- Route details (ROUTE MAP section 7.03)

- POSITION INFO page

To cancel the grey screen without accessing further information, press either of the front buttons.

Figure 9.08

POI Indicator

Route Indicator

10.00 GoTo & Marker

10.00 GoTo and Marker Page

(GPS Map → MAIN MENU → GoTo and

Marker)

Menu options are as follows:

• GoTo – Set Coords

• GoTo – Set By Postcode

• GoTo – Route*

• Marker – Set By Coords

• Marker – Set By Postcode

*Available once a GoTo point has been set.

Note: GoTo and Marker function for setting by postcode is not available for all versions of software.

Clear Marker and GoTo – Clear buttons are

active once a point/marker has been set. (See also section 8.00).

10.01 GoTo – Set By Coords Marker – Set By Coords

Selecting this option brings up a page on which grid references may be entered (section 9.04d).

Use the joystick to change coordinates.

Buttons:

Inoperative

Convert

Update coordinates conversions on screen

Map

Return to last map screen

Done

Press to set coordinates of GoTo point/marker

Cancel

Return to GoTo and Marker page

Back

Return to PLANNING screen

10.02 GoTo – Set By Postcode

Marker – Set By Postcode*

Selecting this option brings up the keypad (section 9.03).

Use the joystick to move the cursor around the page. Quicker navigation may be possible by moving the cursor off the page above, below, left and right.

Buttons:

Delete

Delete characters in the window

Shift

Access upper case and additional symbols

Cancel

Return to GoTo and Marker page

Access additional symbols

Select

Press Select or centre press the joystick to select a character

Done

Return to PLANNING screen

Figure 10.00

Figure 10.01 Figure 10.02

*Please note: postcode lookup is not available on all versions of software.

11.00 Accessories

Among others, the following accessories are available from www.satmap.com:

11.01 Bike Mount

The Bike Mount has a very robust, exible tting which can be attached to any part of

the bike tubing. The back of the Active 10 is replaced with an adapted back that has a moulded section which clips onto the ABUS bike mount. (See Satmap website for user guide).

11.02 Vehicle Mount

The Vehicle Mount is a tough unit designed for using the Active 10 GPS in motor vehicles. It has a powerful suction cup for attachment to smooth surfaces such as a windscreen. It

can also be tted to any at surface, such as

the dashboard, using the adhesive Mounting Plate. This product will primarily appeal to drivers of off-road vehicles where navigation on accurate topographical mapping is a must.

11.03 Standard Power Bundle

The Standard Power Bundle includes a rechargeable Lithium Polymer (LiPol) 2700mAh battery which, between charges, gives a longer life than AA batteries, either conventional or rechargeable. The LiPol battery may be charged without removal from the Active 10 via a USB connector, either from a mains socket, laptop, computer or car cigarette lighter.

The LiPol battery is supplied 50% charged. It will take about 3 hours for the initial full charge. A normal full charge will take 7 hours. It is recommended to charge overnight if the battery is very low.

If you are using the optional Lithium Polymer

battery, please refer to the instructions leaet

which accompanies the product. When plugged in to charge, the unit will switch itself on. You should switch the unit off, which will only turn the screen off, but save unnecessary power draw.

11.04 Slimline Power Bundle

The Slimline Power Bundle gives users the option of using a thinner, lighter battery in

a low prole battery back. This makes the

product smaller and lighter, and is designed to meet the needs of users who take shorter routes and prefer to use rechargeable batteries.

The low prole means the Active 10 can t

into your pocket without the need for a Carry Case. This smaller battery gives typical users a battery life of approximately 6-8 hours in Advanced Power Saving Mode.

Figure 11.01

Figure 11.03

Figure 11.04

Figure 11.02

11.07 Screen Cover

The removable Screen Cover is made of tough polycarbonate and easily replaced, ensuring the view of the map is always at its best and never obscured by scratches.

11.08 ZAGG’s InvisibleSHIELD

ZAGG’s invisibleSHIELDTM is a clear and

virtually indestructible lm that will protect

your Active 10 from unsightly scratches.

11.05 Carry Cases (Standard & Deluxe)

The Standard Carry Case has a padded compartment for the Active 10, closed with a Velcro top for fast access, and an elasticated front mesh for additional storage.

The Deluxe Carry Case has a main padded compartment for the Active 10 itself and a secondary compartment, ideal for storing spare batteries, map cards, car keys, small mobile phone, etc. There are also two mesh pockets on either side. The zips are covered

to provide weatherproong, and an additional

elasticated front mesh provides further storage.

Both cases can be carried by a 4" belt loop or

by the D-Ring ttings on each side designed

for use with the Lanyard.

11.06 Lanyard

The Lanyard is 1.3m long, branded with the

Satmap logo, and is adjustable to t most requirements. It has two ttings on each end:

a metal clip for attaching to the D-Rings on the side of the carry case, or a nylon hoop

tting for attaching directly onto the shoulders

of the Active 10 itself.

11.00 Accessories

Figure 11.05

Figure 11.06

Figure 11.07 Figure 11.08

12.03 Specialised Custom Map Service

If Satmap does not have the map data, we can put your own digital map data onto an SD card. Our GIS specialists can convert almost any map into a format that can be viewed on our GPS unit.

12.04 Toggleable Map Service

Toggling is a new feature available only on version 1.4 of our platform software (downloadable for free from our software

page). Toggling allows the user to ick

between two map scales of the same area

– rather than zooming in all the way into

the 1:25,000 scale or all the way out to the 1:50,000 scale. You can jump between one scale and another at the push of a button! In

order to toggle a map (ick between the two scales), you rst need an SD card containing

two different map scales (ie. 1:25,000 & 1:50,000) with the required area overlapping. Toggleable Maps are being added www. satmap.com (see our current Challenge Series). However, it is possible to customise your own map and make your existing maps toggleable too.

12.05 Custom Mapping (GB only)

Custom Mapping allows you to create your own unique maps of the highly detailed Ordnance Survey 1:25,000 scale Explorer series. The result is that you get a map of exactly the area or areas you want, making it a very effective way of capturing your favourite outdoor areas on one map card.

12.06 Site-Centred Mapping (GB only)

For customers who want non-standard map areas, Satmap offers a bespoke service to create and supply map cards centred on a postcode, town, village, place or grid reference of your choice. The maps are the Ordnance Survey 1:25k Explorer range, and are available for the whole of Great Britain. Price is determined by the area covered.

There is a key difference between the Site-Centred Map service and the Custom Mapping:

• Custom Mapping allows you to create

irregular shaped maps.

• Site-Centred Maps are only supplied as a

square or rectangle.

12.07 Map Consolidation

Many of our customers are nding that the

Active 10 is so useful they are taking it everywhere with them. As a result, they are building up impressive collections of SD Cards. So that you don’t have to worry about keeping track of all these, we can add several of these maps together onto one consolidated SD Card. Depending on the size of the maps in question, this service might not always be appropriate, so please call us to check what is possible.

12.00 Services

Satmap offers a variety of services. Please check www.satmap.com for more information.

12.01 General Service

Whilst our unit is designed to withstand the rigours of outdoor sports, some of our customers have found that it is not indestructible! For those of you who now have units that are looking a little bit worse for wear, Satmap offers a General Service. For £25.00, you will get:

• Replacement front casework

• Replacement back casework (if needed)

• Replacement inner screen cover

• Replacement battery caddy (if needed)

• Replacement screen cover

• Software upgrade (if needed)

• Antenna check

• Full performance testing

Please allow 6–8 working days for Satmap to

complete this service.

12.02 World Base Map

The World Map is derived from data supplied by Collins Bartholomew. At 1:30 million you get an overview of the world and once you have zoomed down to 1:5 million you will see the major roads, towns and cities in every country. Such details provide a useful backdrop when you are using the Active 10 internationally.

12.00 Services

Route Share Network

The Route Share Network is exactly as the name suggests: an area where users can access a library of routes for them to use at no additional cost. It features:

• 3D photographic imagery

• Route upload and download

• Option to add comments and feedback on

routes

This Network will allow users to view routes all over the world, not just Great Britain.

12.08 Route Planner & Route Share

With Online Route Planner and Route Share Network, customers can create routes on their computer, download them onto their Active 10, and share them with other users. This software is available online as a web application accessed from the homepage on www.satmap.com. As both applications complement each other, they are sold as a complete bundle.

Online Route Planner

The Route Planner provides users with Ordnance Survey 1:25k Explorer and 1:50k Landranger mapping for the whole of Great Britain and a growing selection of European countries. It allows users to:

• Create routes

• Name routes and waypoints, and add

comments

• Download routes onto the Active 10

• Upload routes from the Active 10

• Create a route card

• Print out copies of the map and route

• Store routes on a private space on the

server.

12.08 Online Route Planner & Route Share Network

Online Route Planner

Route Share Network

13.00 FAQs

13.00 General FAQs

Which mapscale is best for me?

It depends on where you intend to use the device. If you are using footpaths or bridleways (eg. walking/running/mountain biking) you will need the more detailed 1:25k, if you are using lanes/roads (eg. road cycling)

then 1:50k is ne.

When I buy a mapcard with both 1:25k and 1:50k mapping, how do I switch between the scales?

Zoom in on the 1:50k map and the unit will seamlessly switch to the 1:25k map and vice versa. If maps are toggleable, use the toggle button to switch between different scale maps.

When resuming normal function from the powersave screen off mode, will I have to wait for the unit to re-acquire lock or update the trip log stats?

No. Pressing any button instantly brings up the GPS screen with all functions updated.

Does the unit make any audible sound when you leave a planned route, ie. miss a turn?

No, but you will quickly spot any mistakes by the divergence of the snail trail from your route.

Why does my unit sometimes make beeping noises?

The unit will beep when it encounters Points Of Interest, Waypoints, GoTo Points or Routes. It will also beep when a map card is inserted (section 5.13), when the unit acquires lock, when a screenshot is taken (section 5.03a) and when POIs/routes are transferred.

Can the display be shown as Trail Up and North Up?

Yes. On the GPS screen, press the front left button to toggle between Trail Up and North Up.

Can I choose not to have the snail trail?

Yes. On either the GPS Map or PLANNING screen, centre press the joystick to go to the

POSITION INFO page. On the POSITION INFO page, the front right button cycles

through Turn Trail Small, Turn Trail Off and Turn Trail On.

How easy is it to follow my footsteps back down exactly, if weather closes in on a craggy route or summit?

No problem. Since your current position is shown by a blue locator circle and dot, it is easy to see it superimposed over the red dots when retracing your steps.

Why would I want to set a Go To point?

If you are on a route and the weather closes in, you may want to plot an emergency escape route. Set a GoTo point (sections 4.01 & 8.00), which creates a yellow straight line route between your current location and your GoTo point. You can then make your own route follow this route as closely as possible. It is a visual cue as to your emergency ‘exit’. A GoTo point is indicated on the map by a green

ag (there can only be one).

Can the unit be used in a car? Or an aeroplane?

The Active 10 can be used in a car (although no spoken directions are given) and also in an aeroplane, subject to operators’ regulations. The maximum operating forward speed of the unit is 780 mph.

When I’m stationary, why does my Active 10 trip log show increasing distance?

In the basic method of triangulation, small system errors give rise to something called the Circular Error Probability (CEP) value which determines the radius of a circle containing 50% of the GPS readings; this is one of the elements used by the unit in calculating its position. The more visible satellites there are, the smaller the CEP value and the more accurate the position given. Within a certain radius, the location pinpointed may vary slightly from one second to the next despite no forward movement. This incremental movement is cumulative.

13.00 FAQs

13.01 Mountain Biking FAQs

Is the unit robust enough to cope with the more severe shocks through the handlebars that off-road terrain gives?

Yes, the unit is able to cope with severe shocks. In development, the unit was test dropped from a height of one metre onto concrete in all planes. There have been more extreme instances reported with no damage resulting — this is not recommended!

Whilst travelling quickly, is the unit sensitive enough to display my real-time position so I don’t ride past turnings?

Yes. If there’s a lot of detail to sort out, just zoom in to be able to see what’s coming up ahead.

View full list of FAQs on satmap.com.

With forward motion of more than 2kph, the GPS location given is very accurate.

(Car GPS navigation systems disguise these effects; they use a road navigation database to draw road images, as opposed to accurate

cartographic images, and use ltering to ‘lock’

the position to a road.)

How do I remove the screen cover?

This needs to be done with care! The screen cover is held in place by three lugs. Using

ngernails or a small screwdriver, rst prise

loose the top lug (central position, under the ‘GPS’ logo). Then prise loose the two side lugs (just above the side buttons), one at a time. When replacing the new cover, reverse

the sequence of lugs, pressing each rmly

into place.

Note: When the cover is off, take care not to scratch or unnecessarily expose to moisture,

the screen beneath. Any debris eg. uff, bre

or dust on the screen should be removed with extreme care.

14.00 Troubleshooting & Tips

14.00 Troubleshooting

• If your unit fails to recognise a map card,

switch it off, remove the card, switch on and re-insert the card.

• If your screen ickers, wait 10 minutes or so and it should stop. Some ickering is normal

and happens when using a strong power source such as the supplied AA Lithium Energisers, the most powerful AA batteries on the market.

14.01 Tips

• Do not use alcohol wipes to clean the

screen as this will cause damage. In order

to preserve your screen cover for as long as possible, avoid contact with alcohol, oils and excessive heat. Always use a very soft cloth to clean.

• If water gets under the screen cover, gently

prise off the cover (section 13.00) and stroke away the moisture with a paper tissue, using only the weight of the tissue. Any direct hand pressure may mark the inner screen.

• Ensure the map card is dry before inserting

it into the unit.

• To prevent the screen inadvertently

switching from GPS Map to PLANNING, either lock the screen (section 2.08), or allow it to go into the powersave screen off mode before stowing it away.

• For best performance in acquiring satellite

lock, wait until lock is established before inserting a map card.

• To maximize battery life;

1. Use the screensave (‘Automatic Screen Turn Off’) mode which switches off the screen but keeps the GPS running.

2. Try to minimize the backlight setting as far as is practical.

3. Use hibernate mode - the unit can be switched off and will retain satellite position data. On switching the unit back on the last screen is shown and satellite lock takes only a few seconds.

• If you want to carry out route planning on

your Active 10, a good way to get more out of your batteries is to connect the unit to your pc or laptop.

• When not using the Active 10, it is

recommended that you take out the batteries. Even with the unit switched off, there is a small power draw which, over

time, can atten the batteries.

• Remembering to use the Stop (data logging)

button (section 4.03) is useful if you want a break and yet maintain a log of all trip statistics. Don’t forget to press Start once you are ready to go again, especially if it was a pub break! If you do not press Stop and you are stationary for a period of time, a snail trail ‘scribble’ will develop as the unit ‘hunts’ (section 13.00).

• To plan a route from a given set of grid

coordinates: On the PLANNING screen, go to the approximate area of the walk/activity. Go to ROUTES MENU (side button, lower left) and select Create New Route. The data box overlay gives the coordinates for the location of the crosshairs. Using the joystick, move the crosshairs until you have the desired grid coordinates showing and either press the ‘add waypoint’ button (side button, upper left) or centre press the joystick. Once all waypoints have been added, press Done.

• It is recommended that you make a back-up le copy of any maps that you purchase.

Back-up may be done either using a card reader or an SD card slot on your computer. If your map card data is corrupted or erased,

copy the le back onto the original card.

Data transferred to a different card will not be usable.

• The Active 10 is capable of acquiring lock on

the move, even whilst driving. However this can cause a delay in the time to get a lock

so it is advisable to allow the unit to get a x

whilst stationary.

• ‘Rangender’ functions:

Short range:

On the PLANNING screen, the blue locator circle which depicts your position in the centre of the GPS Map screen, is still active and shows you advancing across the screen. The data overlay shows the distance from the blue locator circle (your location) to the

14.01 Tips

orange locator circle which is now the centre of the screen, eg. position the orange circle at a target destination and follow progress of the blue circle as you walk towards the target.

Long range:

On moving the joystick, the GPS Map screen switches to PLANNING. The data overlay includes the distance from where you last had GPS lock. This is also useful in a variety of scenarios, eg. showing distance to the next waypoint, or in the car, distance to the next motorway services.

• Use a GoTo point as a rangender: Set

a GoTo point on your destination (section

8.00). Press ‘Lock to GPS’ (front left button) to return to the GPS Map screen. Select a data box overlay (section 3.00) and select GoTo Dist (section 5.04a). The data overlay will now show a straight line distance from your current location to the GoTo point.

• It can be useful to combine the advantages

of screensave mode (‘automatic screen turn off’, section 5.01) with the keypad lock (section 2.08). Whilst the unit is stowed the screen cannot be activated (even if the power button is pressed it will be activated only for the preset time until the screen switches off). To reactivate the unit, press the power button and select unlock.

Remote rangender: ‘Marker’

This function allows you to nd the distance

between two points. From either GoTo and

Marker Menu (section 10.00) or POSITION INFO (section 8.00), set a marker (red ag)

and then move the joystick; a red line is drawn from the marker to the point selected. The overlay shows the grid ref and altitude of the point selected, plus the distance and bearing to the point.

15.00 Glossary

Active map

The map on a card which is in use (there can be more than one map present).

Active route

Shown as a highlighted yellow line to follow on the map.

Asc

Abbreviation for ascended height.

Atomic clock

A type of clock that uses microwave signals emitted by electrons as its timekeeping element. It is the most accurate time standard and is used to control the frequency of GPS satellite signals.

Bearing

Direction from one object to another.

CEP (Circular Error Probability)

Determines the radius of a circle containing 50% of the GPS readings.

Cross Track Error

The difference in distance between a planned route and your location.

EGNOS

The European Geostationary Navigation Overlay Service has been developed by the European Space Agency (ESA) for safety of air navigation. It is part of the Galileo project. When a signal is available (which is only in the south of England and mainland Europe),

this signal improves the accuracy of signals from the GPS system.

Electronic compass

This doesn’t rely on GPS signals and works whilst stationary. Whilst moving, the GPS ‘compass’ is more accurate.

Galileo

A planned global navigation satellite system, being built by the European Union and European Space Agency as an alternative for the US Global Positioning System (GPS) and the Russian GLONASS system. The project is expected to be completed in 2013.

GLONASS

A radio-based satellite navigation system, developed by the former Soviet Union and now operated for the Russian government by the Russian Space Forces. After completion, the system fell into disrepair with the collapse of the Russian economy. In 2001 Russia committed to restoring the system with a goal of full restoration by 2009.

GoTo point

A set point which acts as a target. It is on a straight line from your current location and the yellow highlighted route is a rough guide only, eg. an emergency route off the hill in worsening weather.

GMT (Greenwich Mean Time)

The local time at the 0 meridian passing through Greenwich.

GPS

The Global Positioning System is the only fully functional Global Navigation Satellite System in the world. Created in the US it utilizes a constellation of 24 Medium Earth Orbit satellites that transmit precise signals. The system enables a GPS receiver to determine its time, location, speed and distance.

GPS ‘compass’

Whilst stationary the unit cannot determine which direction you are facing. If you have a GPS reading from two locations you can determine the direction of travel.

Grid Magnetic Angle

The horizontal angular difference between Grid North and Magnetic North. It is this angle which needs to be applied when converting between magnetic and grid bearings.

Grid North

The direction of a grid line which is parallel to the central meridian on the national grid.

Heading

Direction you are travelling.

Hibernate mode

An ultra low power state giving signicantly

extended battery life and a rapid satellite aquisition.

Inactive route

Shown as a grey highlighted line on the map.

Knot

One nautical mile per hour.

Magnetic North

The direction indicated by a magnetic compass. Magnetic North moves slowly and is currently West of Grid North in Great Britain.

Meridian

A line of longitude.

MGRS

Military Grid Reference System, used by NATO countries. It is derived from the UTM grid system but uses a different labeling convention. It does not describe a point, but rather an area.

Mil-radians

The military use mil-radians (short for milliradians) because breaking down a circle into 6400 mil-radians rather than 360 degrees allows greater accuracy.

Nautical mile

Distance corresponding to one minute of arc of latitude along any meridian, 1852m. A mile (‘statute mile’) is 1609m.

POI

A Point Of Interest.

Route

A route is shown on the unit as a series of transparent yellow lines going from waypoint to waypoint. A route may be pre-planned either on the unit or on a pc, or it may be a converted trail (known as a ‘track’).

Satellite

A GPS satellite is a satellite used by the NAVSTAR (NAVigation Satellite Timing and Ranging) Global Positioning System (GPS).

The rst satellite in the system, Navstar 1,

was launched February 22, 1978.

SD Card

Secure Digital card (1MB – 4GB). SDHC is Secure Digital High Capacity (4GB – 32GB),

which has a different internal format. In the manual these are also referred to as mapcards since they are pre-loaded with digital mapping.

Soft keys

Buttons whose functions vary depending on which screen is displayed.

Target speed

The speed on which Estimated Time of Arrival calculations are based.

Toggle function

Allows users to select which map they want to view at a particular point without changing the zoom level. The map layers you are toggling between must be of the same area.The map card must be toggle enabled.

Toggleable maps

Older maps can be converted to enable toggling and maps are available which are already toggle enabled. A toggle enabled map card contains more than one scale or map type of a particular area.

Track

A track is a trail that has been saved. It effectively becomes a route.

Trail

The path taken, leaving behind a snail trail.

Trail Up

The map is orientated to match the ground ahead of you.

Trip Log

Records trip data.

True North

The direction along the earth’s surface towards the geographic North Pole.

UTC (also GMT and Zulu time)

The worldwide standard for time is coordinated universal time, abbreviated UTC. This was formerly known as Greenwich Mean Time, GMT. UTC is a high precision atomic time standard also referred to by the military and civil aviation as Zulu time (Z). The abbreviation is a compromise between CUT (Coordinated Universal Time) and TUC (Temps Universel Coordonné).

UTM

The Universal Transverse Mercator coordinate system is a grid based method of specifying locations.

15.00 Glossary

VMG

Velocity Made Good is the effective velocity towards a target, after the effects of crosswinds (especially relevant to aircraft), currents (watercraft) and terrain (walkers/ cyclists who have planned on walking at a certain speed) have taken effect. It is the forward component of velocity.

WAAS

Wide Area Augmentation System. This is a GPS augmentation system in the U.S. which enhances the accuracy of GPS.

Warning Radius

Distance at which the unit will sound beeps indicating the vicinity of a POI, GoTo point or a route.

Waypoint

A location on a route typically associated with a distinctive feature (eg. a fork in the path) or a planned event (eg. a rest point). A

series of waypoints are used to help dene a

route.

15.00 Glossary

Tel: +44 (0)845 873 0101

Fax: +44 (0)845 873 0104

Email: info@satmap.com

www.satmap.com

satmap active10,Active 10 Full User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
