Satlink WS 6951 User Manual

USER‘S MANUAL

contents

1 GUIDE ...................................................................................................2

1.1 Important Safety Instructions.........................................2

1.2 Unpacking ...............................................................................2

1.3 PRODUCT OVERVIEW & ILLUSTRATION ..................3

1.4 INSTALLATION OF METER ..............................................4

2 OUTLINE .............................................................................................4

3. THE MENU OSD INSTRUCTION................................................5

3.1 Satellite Find (PIC2, 3) .......................................................5

3.1.1 Satellite(PIC 4) ..............................................................6

3.1.2 Local Frequency(PIC 5) ............................................6

3.1.3 Transponder(PIC 6) ....................................................6

3.1.4 Frequency .......................................................................6

3.1.5Symbrate ..........................................................................6

3.1.6Polarity .............................................................................6

3.1.7TONE ..................................................................................7

3.1.8Beep Tone ........................................................................7

3.1.9DiSEqC Mode ..................................................................7

3.1.10 DisEqc type & Input ................................................7

3.1.0.1 Quick Search (PIC 8) ..............................................7

3.2 CH List ......................................................................................8

3.2.1 Sort (PIC 14) ..................................................................9

3.2.2 Lock (PIC 15) ................................................................9

3.2.3 Del (PIC 16) ...................................................................9

3.2.4Sat (PIC 17) .....................................................................9

3.3EPG(PIC 18) ..........................................................................10

3.4 SAT/TP Manager (PIC 19) .............................................10

3.4.1 Satellite Setting .........................................................10

3.4.2 Auto Scan(PIC 24) .................................................... 12

3.4.3 Transponder(PIC 25) ............................................... 12

3.5 Multimedia ............................................................................ 13

3.6 System Setting (PIC 31) ................................................... 14

4 Technical Specication .............................................................. 15

5 Trouble Shooting .......................................................................... 16

Digital Satellite Finder

1

1 GUIDE

1.1 Important Safety Instructions

Thank you for choosing our product. Before installation, we
would like to remind you some notes, which is very important
for operating safely and properly, as follows:

gBe sure to read this user manual before starting your

operation.

gYou must install the dish with correct direction and angle. If

the dish is not working properly, contact your local dealer.

gWhen the unit is suddenly moved to a hot area from a cold

area, it may cause some problems. In that case, turn o󱐯 the
power, and turn on again after 1-2 hours.

gKeep meter placed in clean space with su󱐰cient ventilation.
gDo not cover the meter with or place it on a unit that emits

heat.

gClean the case by a soft cloth with a little washing liquid.
gDo not remove the cover.
gDo not let the unit exposed to extreme heat, cold or humid

conditions.

gNo liquids or any other materials to come inside of the unit.

WARNING:All instructions are subject to the latest version of
software without prior notice if any new functions are added
to the equipment.

Digital Satellite Finder

2

1.2 Unpacking

Open the package and make sure it includes all below items, if
any missing, please contact the reseller for replacement.

1.Digital SatelliteMeter

2.User’s manual

3.AV cable

4.Car charger cable

5.Power Adaptor

6.Strap of carrying case

Digital Satellite Finder

3

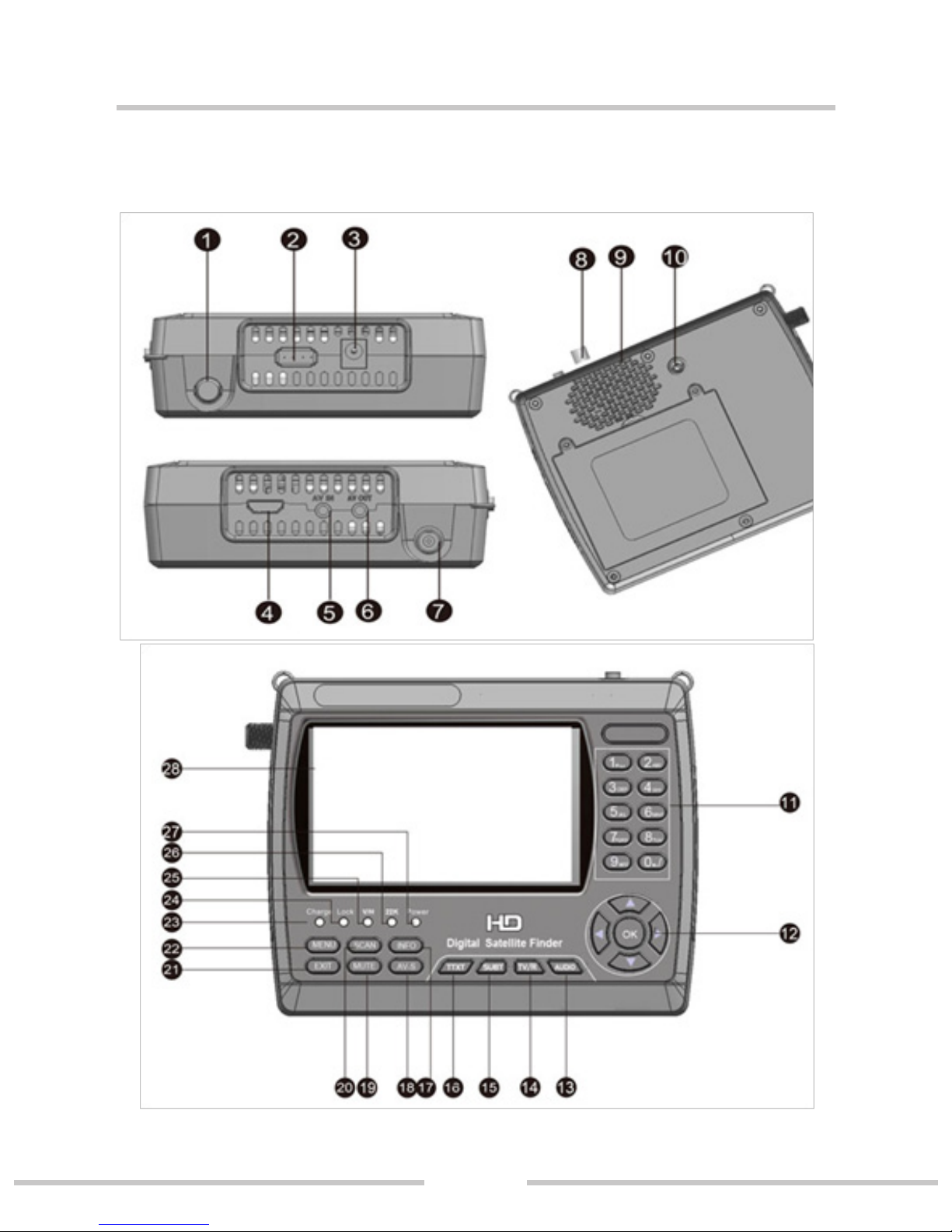

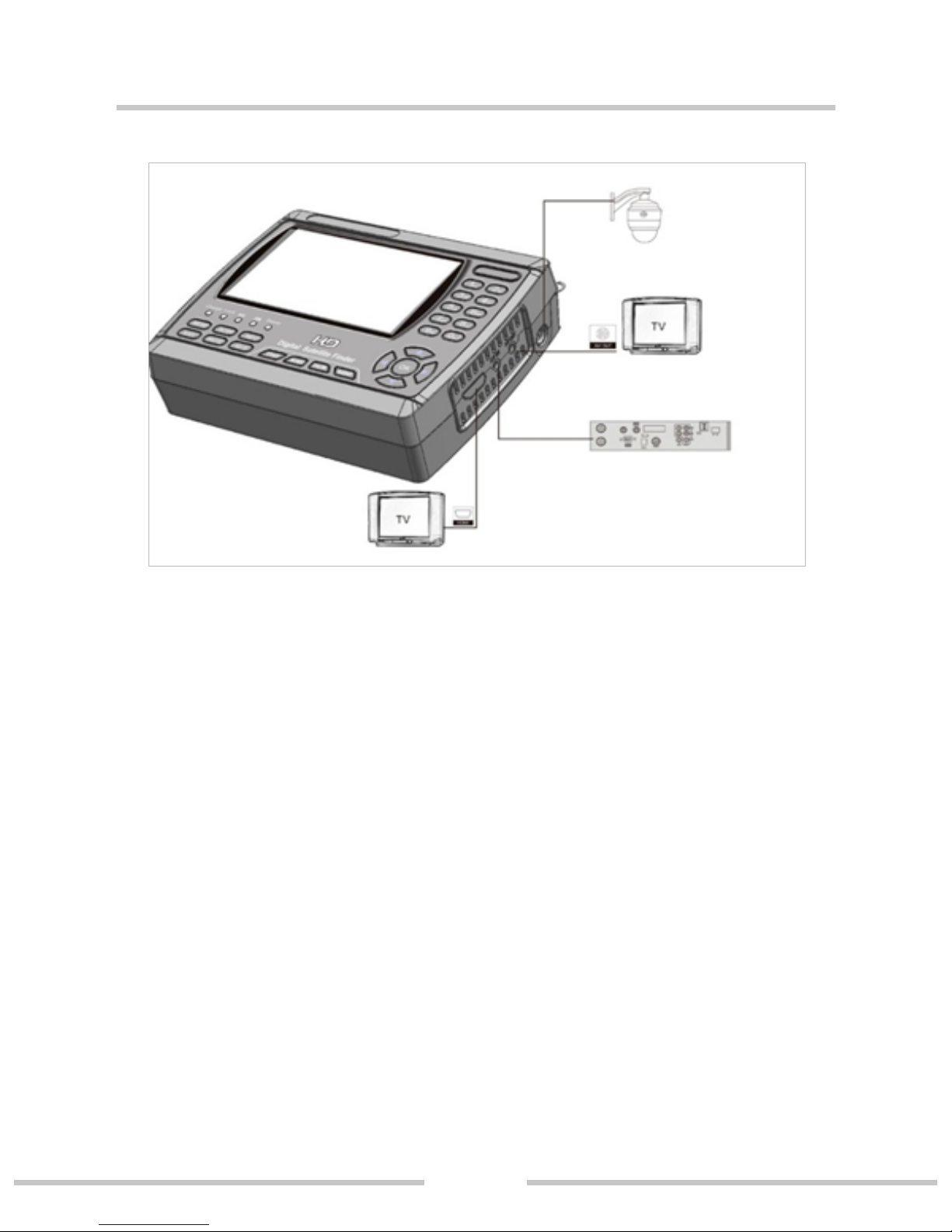

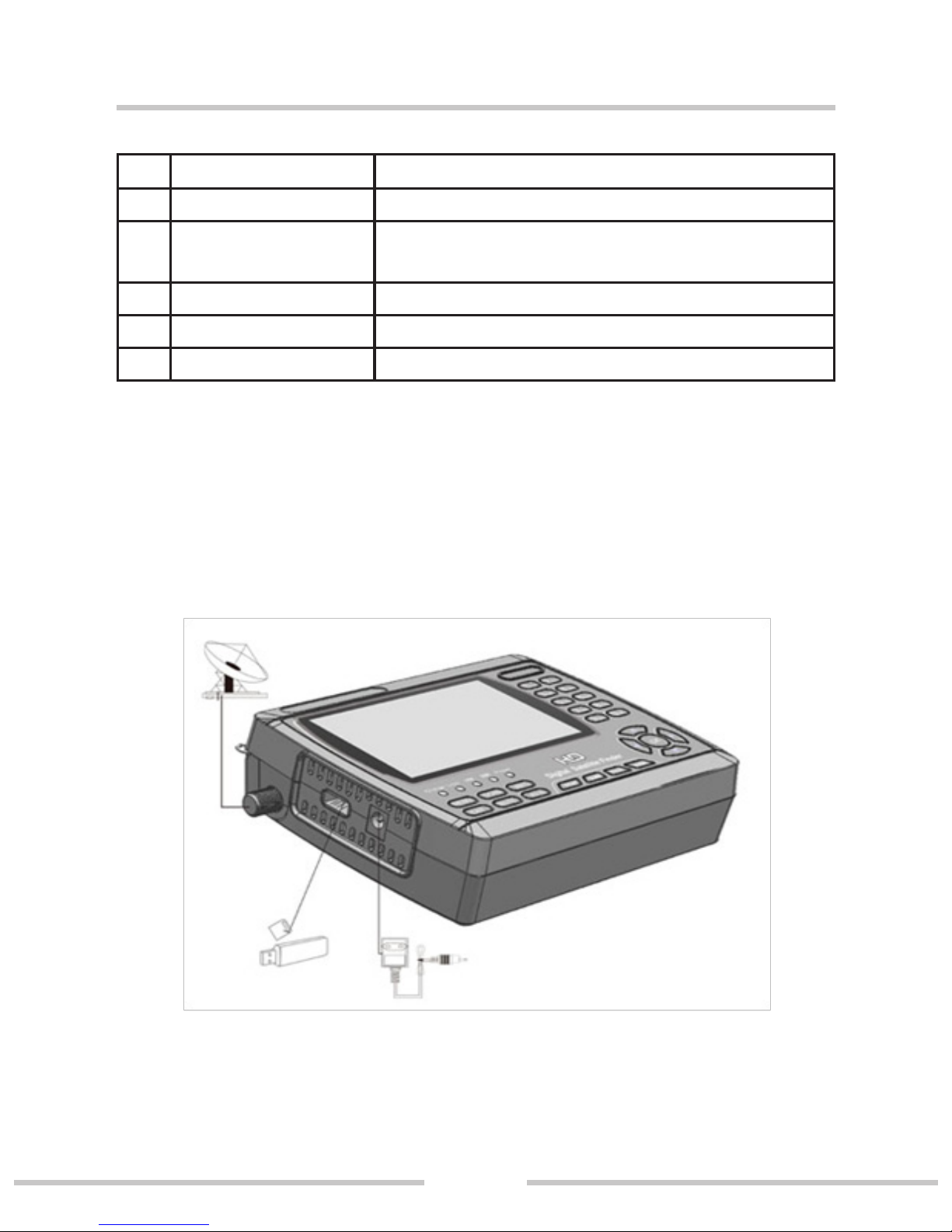

1.3 PRODUCT OVERVIEW& ILLUSTRATION

Digital Satellite Finder

4

NO Description FUNCTION
1 LNB IN Connect to satellite antenna cable

2 USB Port Connect to USB memory
3 DC Slot Connect to Adaptor Input
4 HDMI Use HDMI cable to connect for TV
5 AV IN Connect to AV port for meter
6 AV OUT Connect to AV port for TV
7 DC12V Slot DC12V OUT
8 Power witch Turn on/o󱐯 meter
9 Speaker Speaker Integrated
10 Torch LED Night lighting
11 0-9 Number key to select channels or enter

programming

12 NEVIGATION

KEY

Volume Control or move cursor, chan-

nel or change, conrm etc
13 BLUE &AUDIO Blue key & Audio interface
14 Orange &TV/R Orange key & TV and radio switch
15 Green & SUBT Green key & Subtitle interface
16 Red & TTXT Red KEY &Teletext interface
17 INFO INFO key
18 AV-S If we connect AV IN; switch AV in/out

for LCD and speaker
19 MUTE MUTE
20 SCAN ‘Quick Search’menu shortcut key
21 EXIT Escape from present menu and save

the settings
22 MENU Show the main menu on the screen or

jump back to previous menu in sub-

menu setting conditions

Digital Satellite Finder

5

23 Charger (Note1) Charger indicator light

24 LOCK Signal lock indicator light
25 V/H Vertical /Horizontal polarization volta-

ge output light
26 22KHZ 22Khz indicator light
27 Power Power indicator light
28 LCD TFT LCD Screen

Note1:When the adapter insert dc slot, Charge indicator is red,
when the batteries charged su󱐰cient, the charge indicator is
orange.

1.4 INSTALLATION OFMETER

Digital Satellite Finder

6

2.OUTLINE

g 4.3 Inch High Denition TFT LCD Screen
g Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant
g MPEG-2 / H.264 Hardware decoding
g Digital meter for signal strength and quality
g Supports scan of Auto,Blind,Manual or NIT
g Sound and Light Alarm for Locking Signal
g Auto Calculate Angle of AZ ,EL
g Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
g Speaker Integrated
g Support both AV out and AV in
g LNB short protect
g 7.4V/3000mAh Li-Ion Battery Included
g Software upgrade via USB port
g Easy to carry

Digital Satellite Finder

7

3. THE MENU OSD INSTRUCTION

If you have installed and connected the cables of the meter,
pressing MENU key to display the Main Menu.
(PIC1)

gSatellite Find
gCH List
gEPG
gSat/TP Manage
gMultimedia
gSystem Setting

Press the keys of ▲▼◄► to move the cursor up or down in
the menu interface, then u se OK key to conrm a selection.

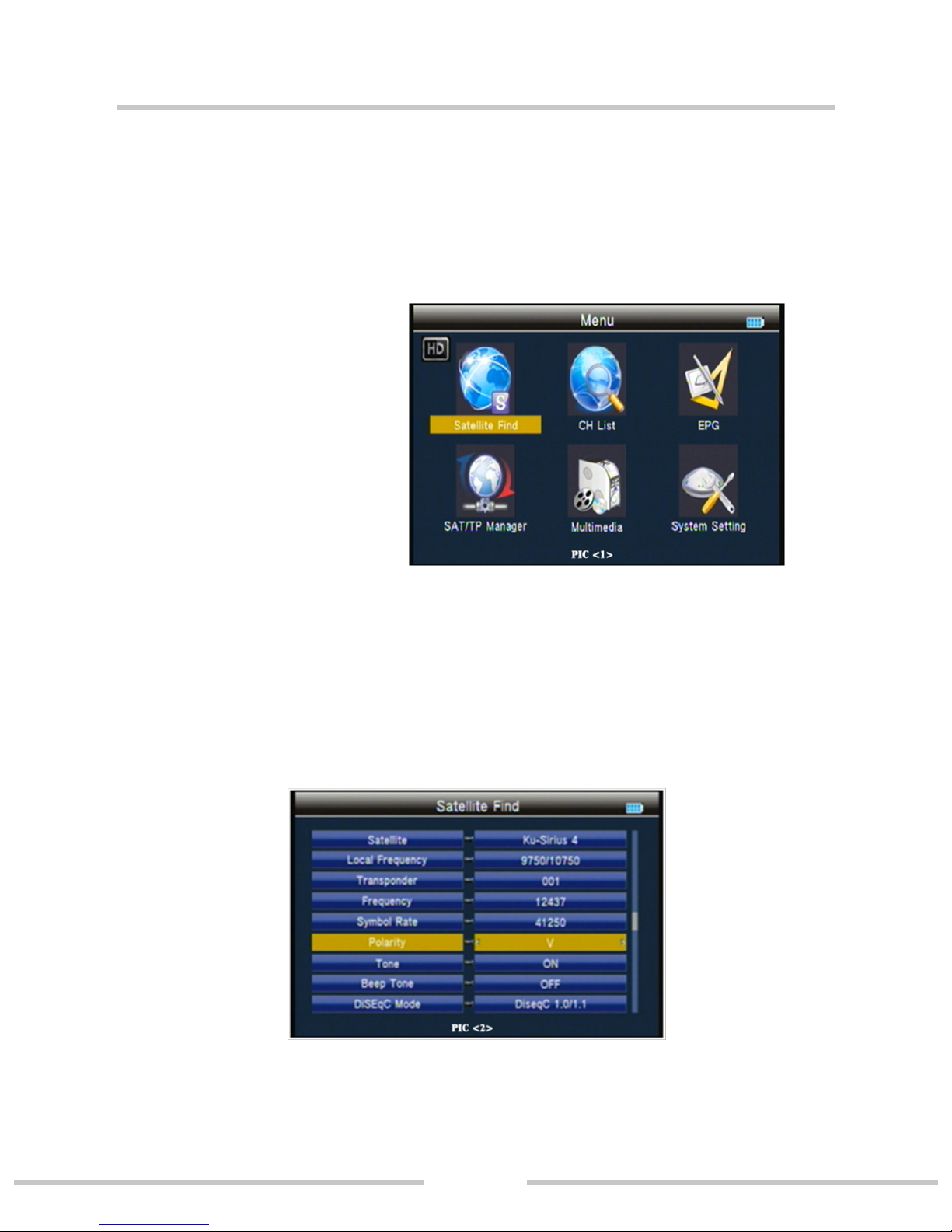

3.1Satellite Find(PIC2,3)

Digital Satellite Finder

8

3.1.1 Satellite

As shown in gure PIC<4>.
Press ◄►key into the satellite list. Use ▲▼ key to move
the cursor, then press OK key to select the satellite of you
want.

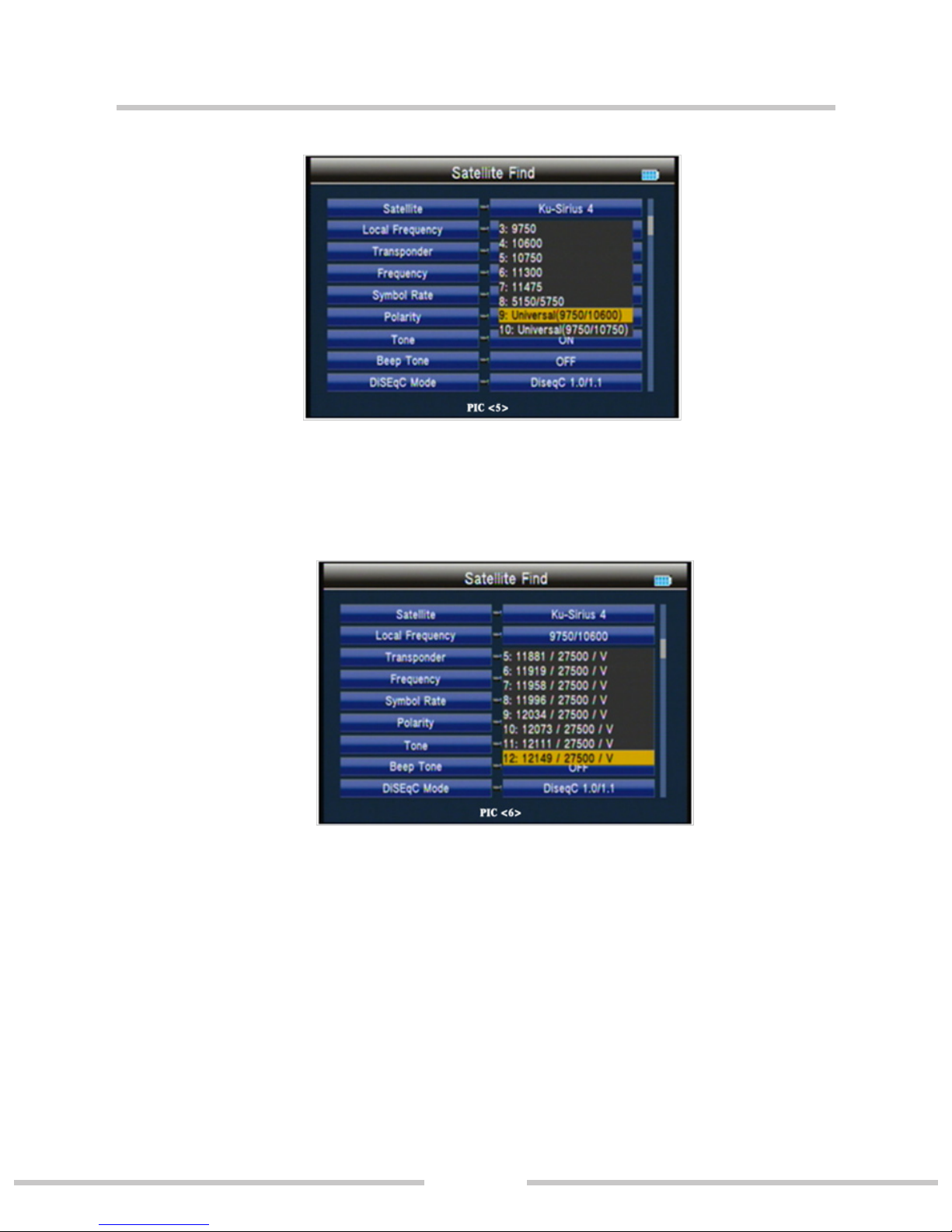

3.1.2 Local Frequency(PIC 5)

Press ◄► key into the LNB list. Use ▲▼ key to move the cur­sor then pressOK key to select the LNB of you want.

Digital Satellite Finder

9

3.1.3 Transponder(PIC 6)

Press ◄► key into the TP list. Use ▲▼ key to move the cursor
then pressOK key to select the satellite of you want.

3.1.4 Frequency

Frequency of the current transport, Input the value by using
the numeric keys.

3.1.5 Symbrate

Symbol rate of the current transport, Input the value by using
the nu¬meric keys.

Digital Satellite Finder

10

3.1.6 Polarity

Press ◄► key to changeVertical or horizontal of polarization.

3.1.7 TONE

Press ◄► key to on or o󱐯22kHz TONE Switch.

3.1.8 Beep Tone

Press ◄► key to Switch beep tone. If we open the beep tone;
when we into the search screen, the beep of lock alarm will
open.

3.1.9 DiSEqC Mode

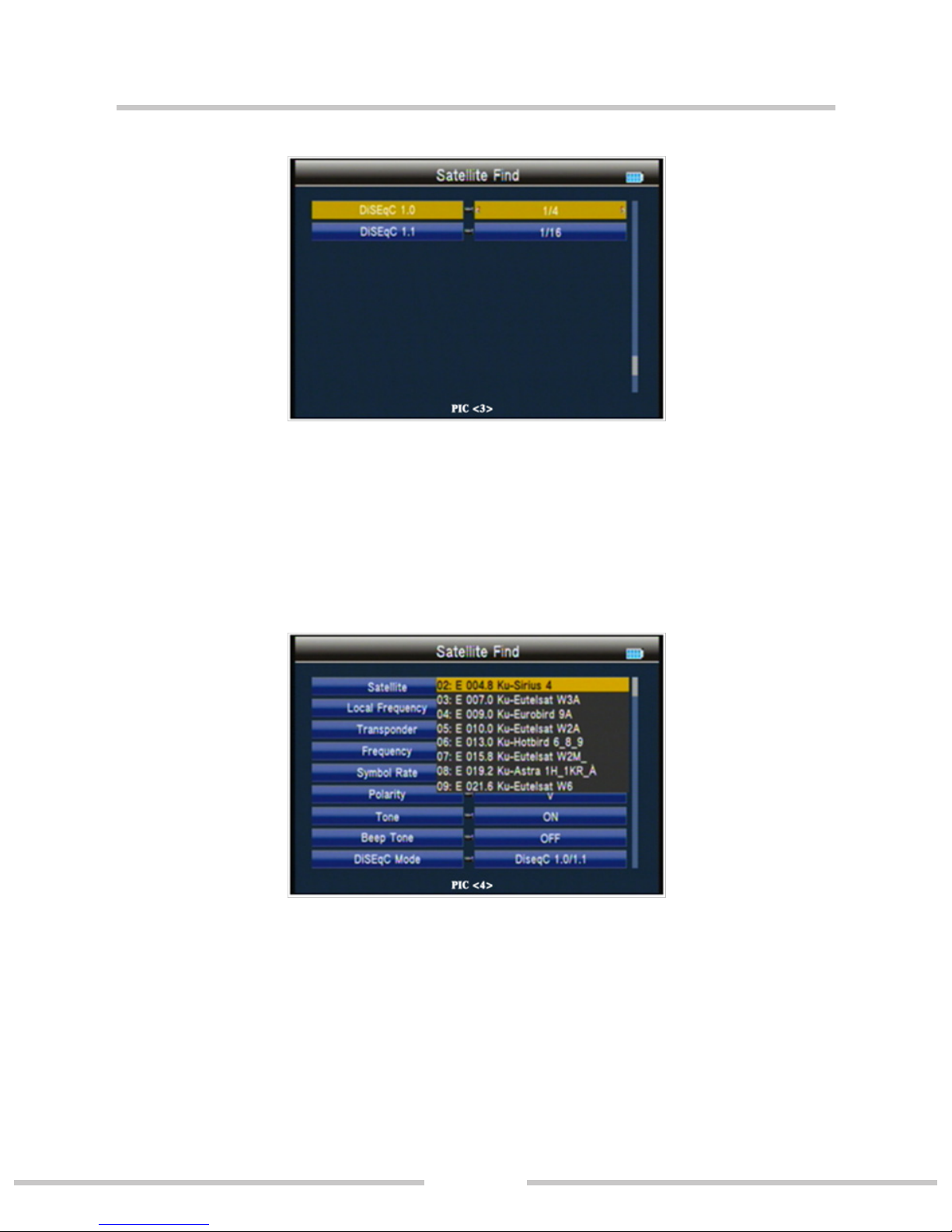

Press ◄► key toset the port type diseqc1.0/1.1 or unicable

3.1.10 DisEqc type & Input

If we select diseqc1.0/1.1; we can press ◄► key toset the port

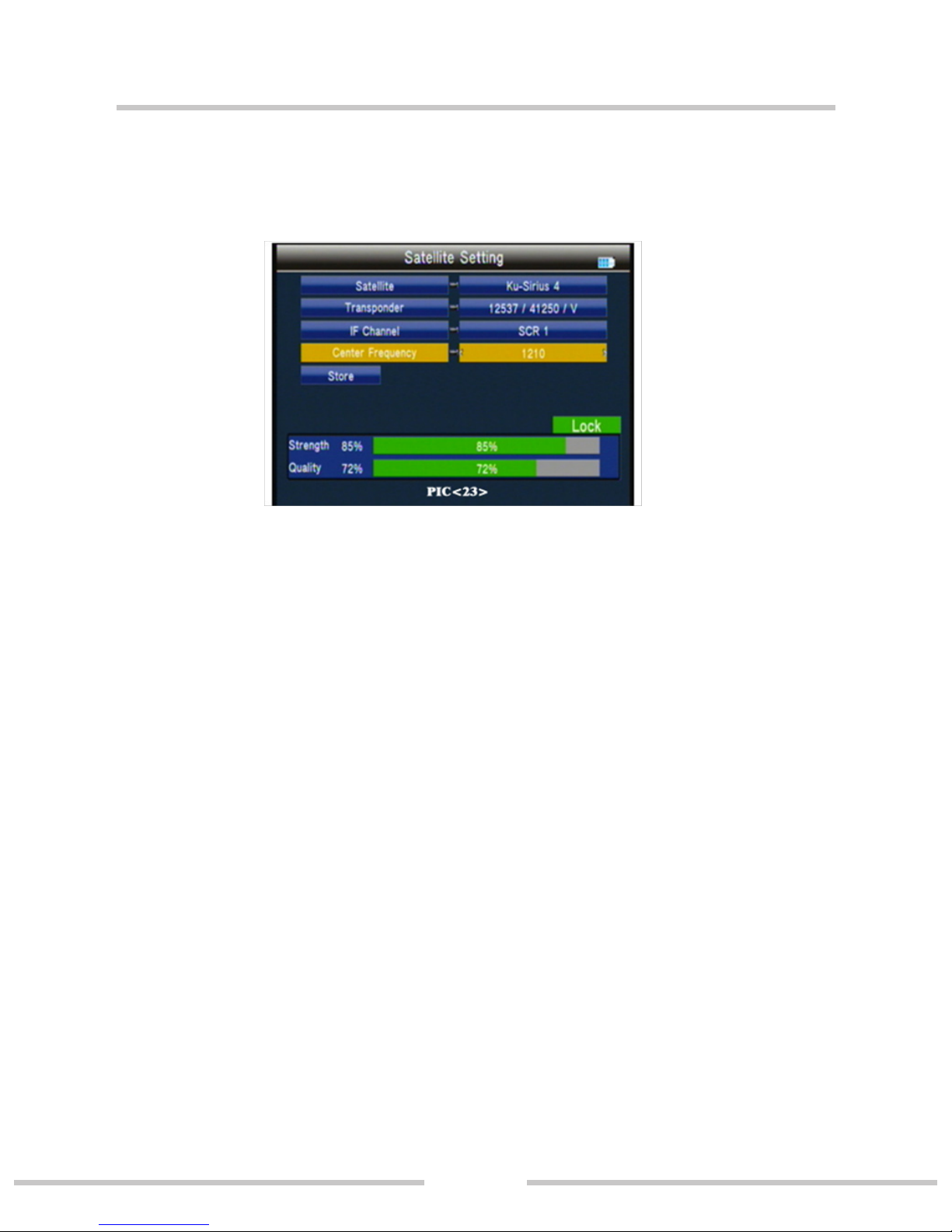

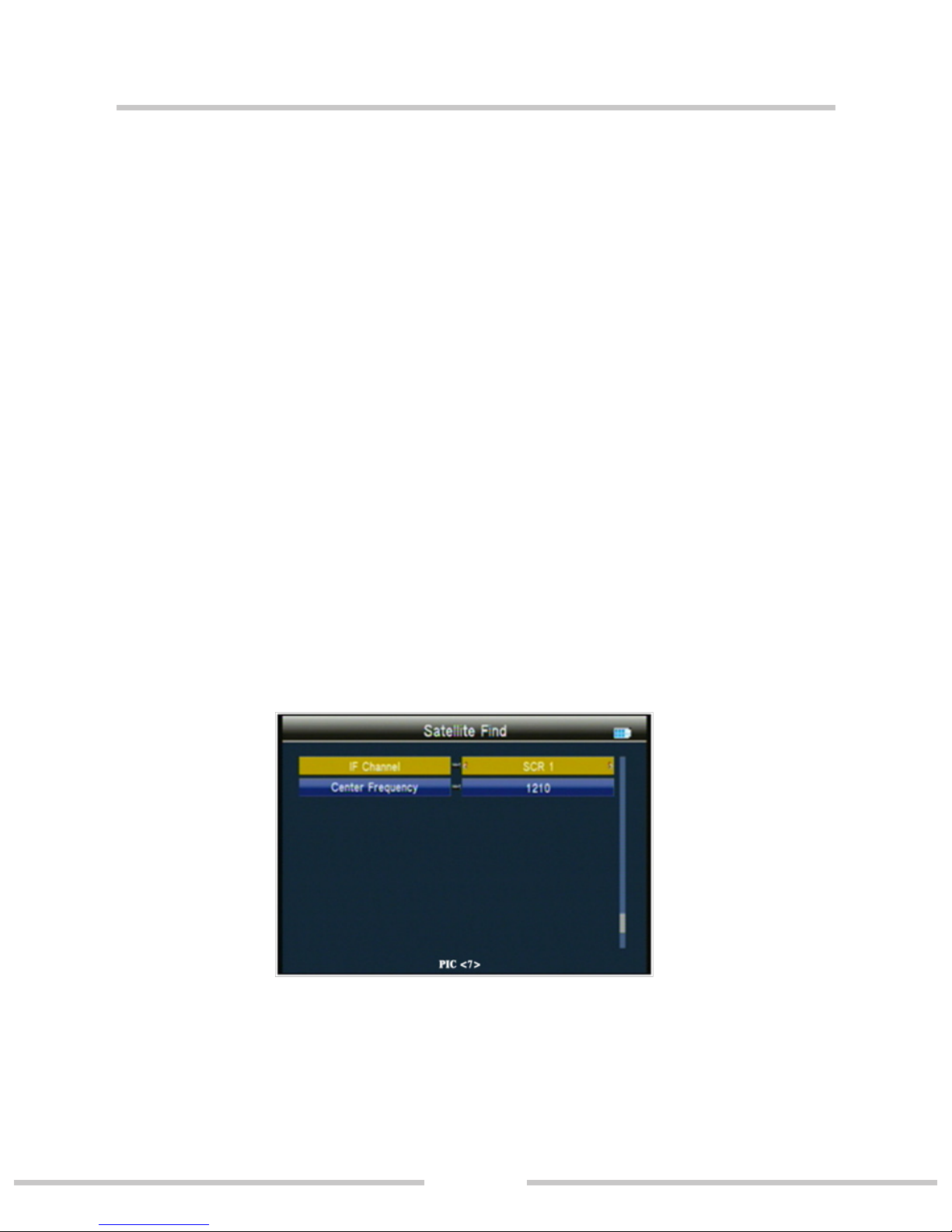

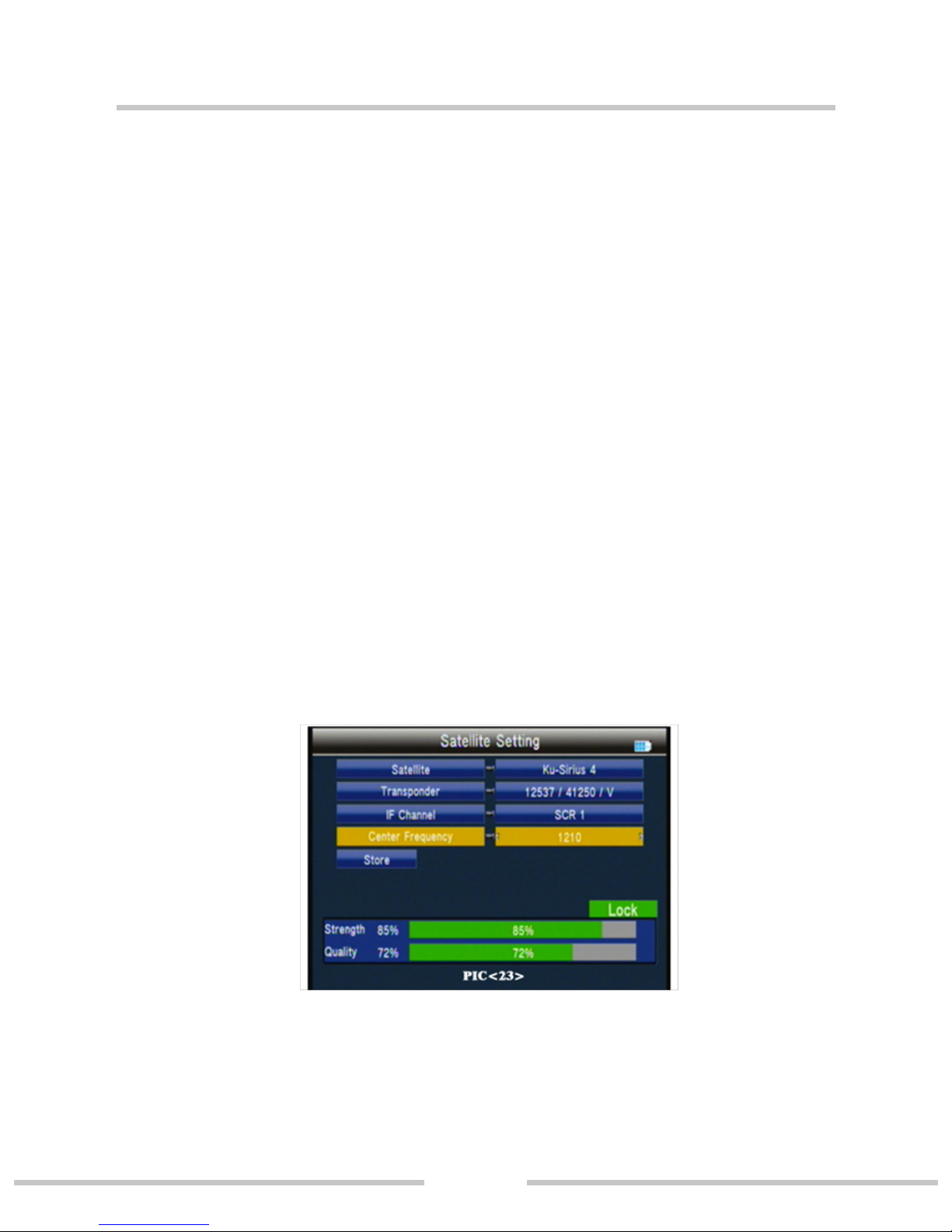

number. If select unicable(PIC 7),we can press ◄►to select IF
Channel; and use number key to input center Frequency.

Digital Satellite Finder

11

3.1.0.1 Quick Search (PIC 8)

In the satellite Find interface,pressing OK key will into the
quick search.
If you set the local Longitude and Latitude Under the system
setting, the angle of LNB, theorientation and elevation of an­tenna, all will be display on the screen.

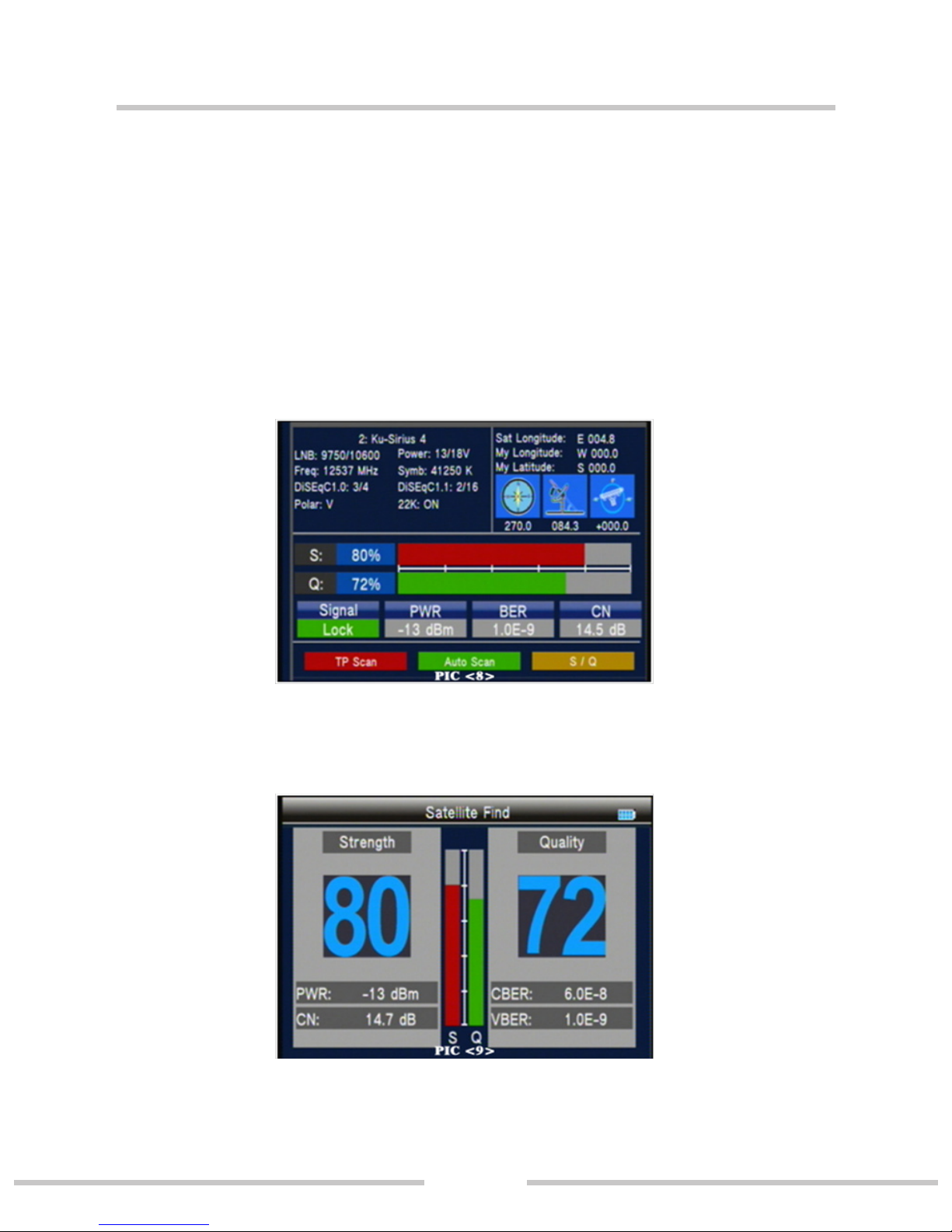

g S/Q: Press the orange key to enlarge showing of the signal

strength and quality.(PIC 9)

Digital Satellite Finder

12

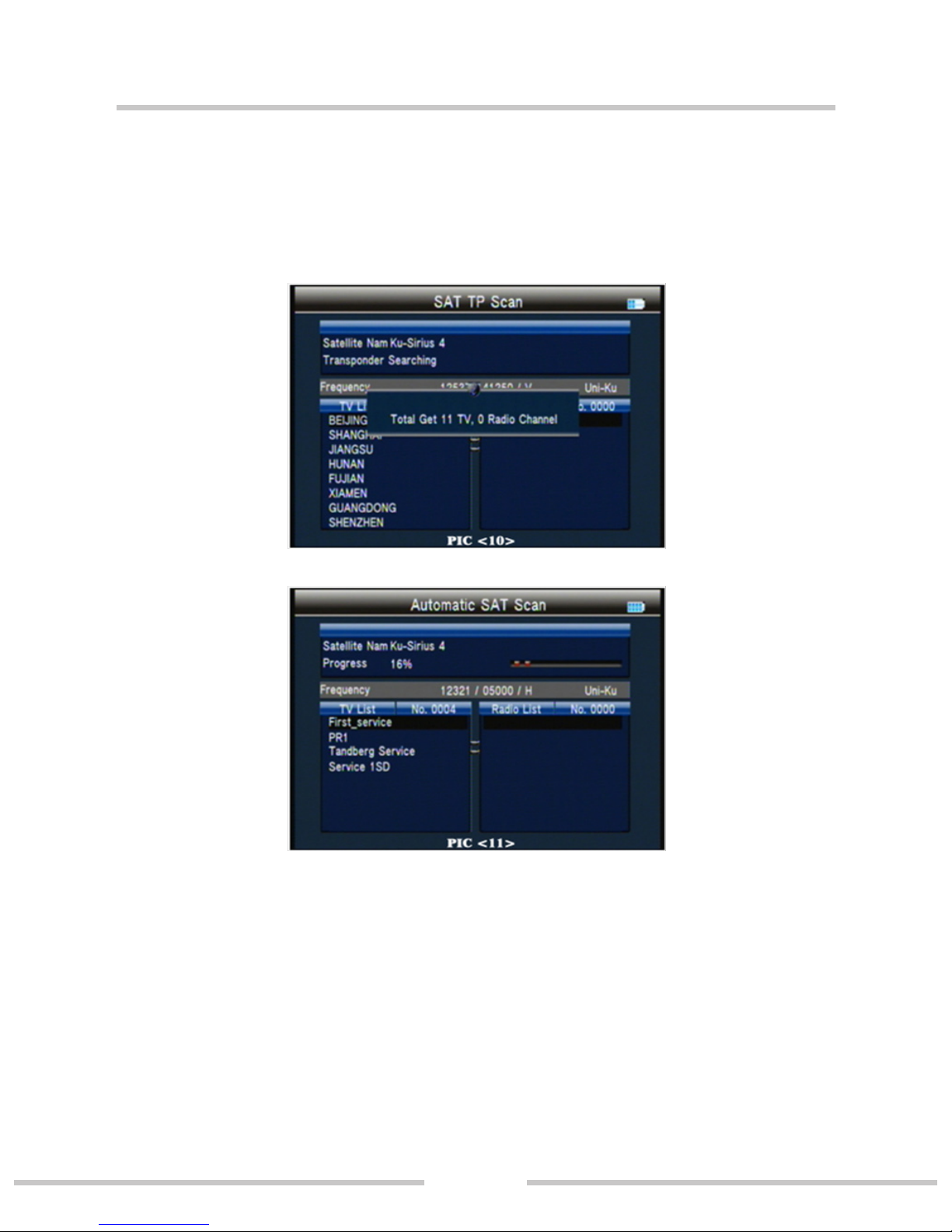

g Scan : Press the red key to search the current TP.(PIC 10)
g Auto :Press the green key to auto blind search the current

satellite.(PIC 11)

3.2 CH List

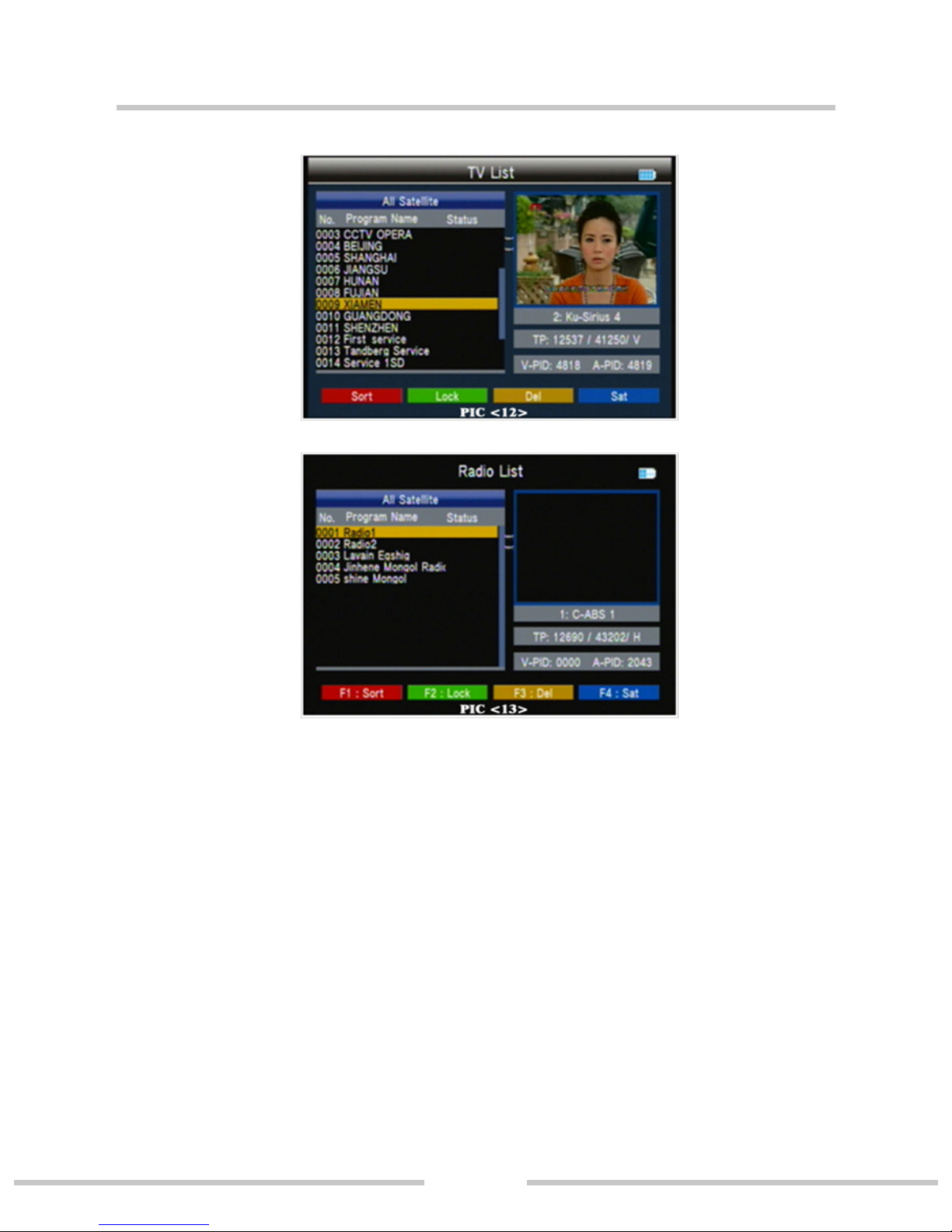

In the TV mode into the CH List is edit TV program, in the radio
mode is processing radio program. (PIC 12,13)

Digital Satellite Finder

13

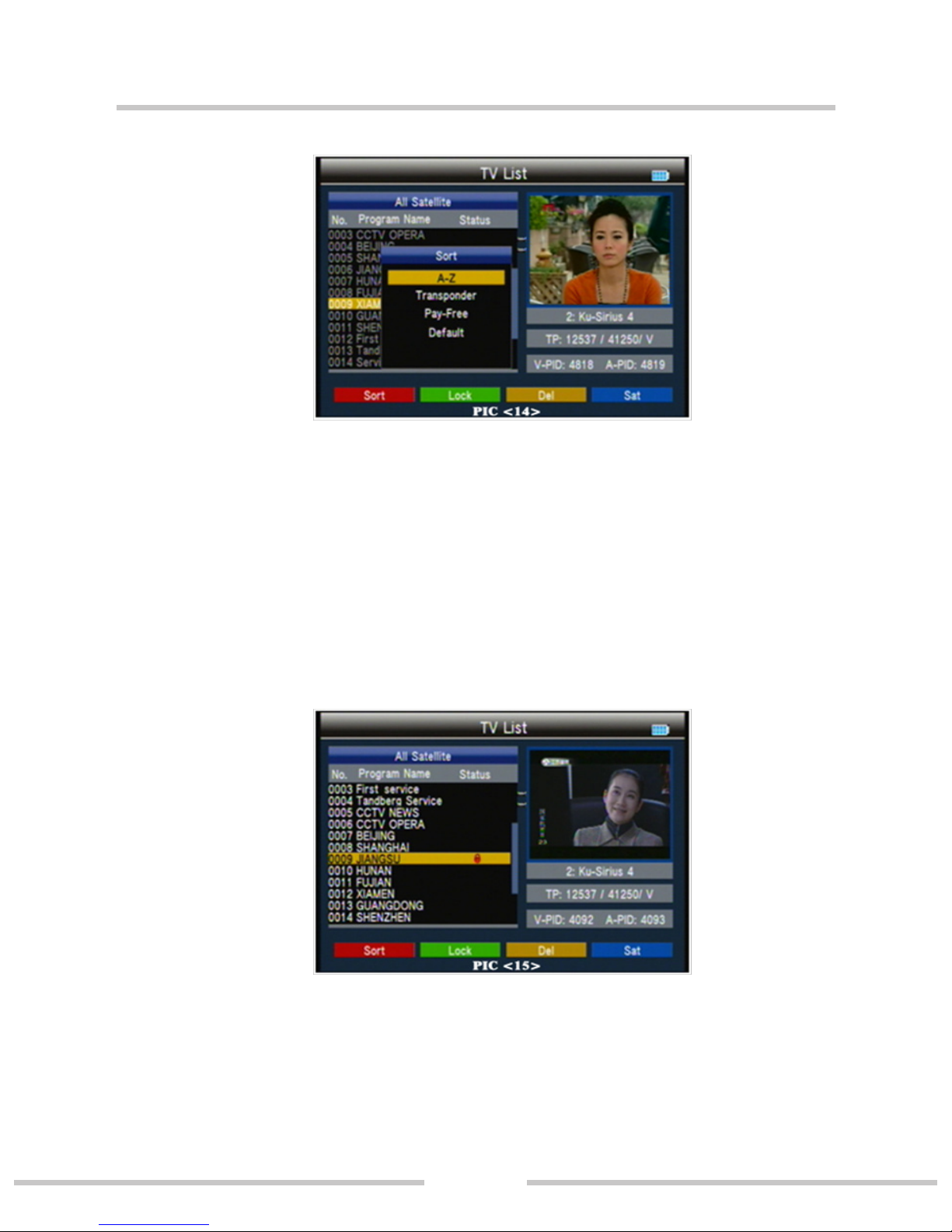

3.2.1 Sort (PIC 14)

Press red key into the sort list. Use ▲▼ key to move the
cursor, then press OK key to select the sort type of we want;
then press ok key to conrm or move the cursor to “x” press
ok key to cancel.

Digital Satellite Finder

14

3.2.2 Lock(PIC 15)

Press ▲▼ key to the program that we want lock or unlock,
then press green key to lock or unlock the program. When we
deal with all the program need to be processed, press menu
key to then press ok key to conrm the operation or select “x”;
press ok key to cancel.

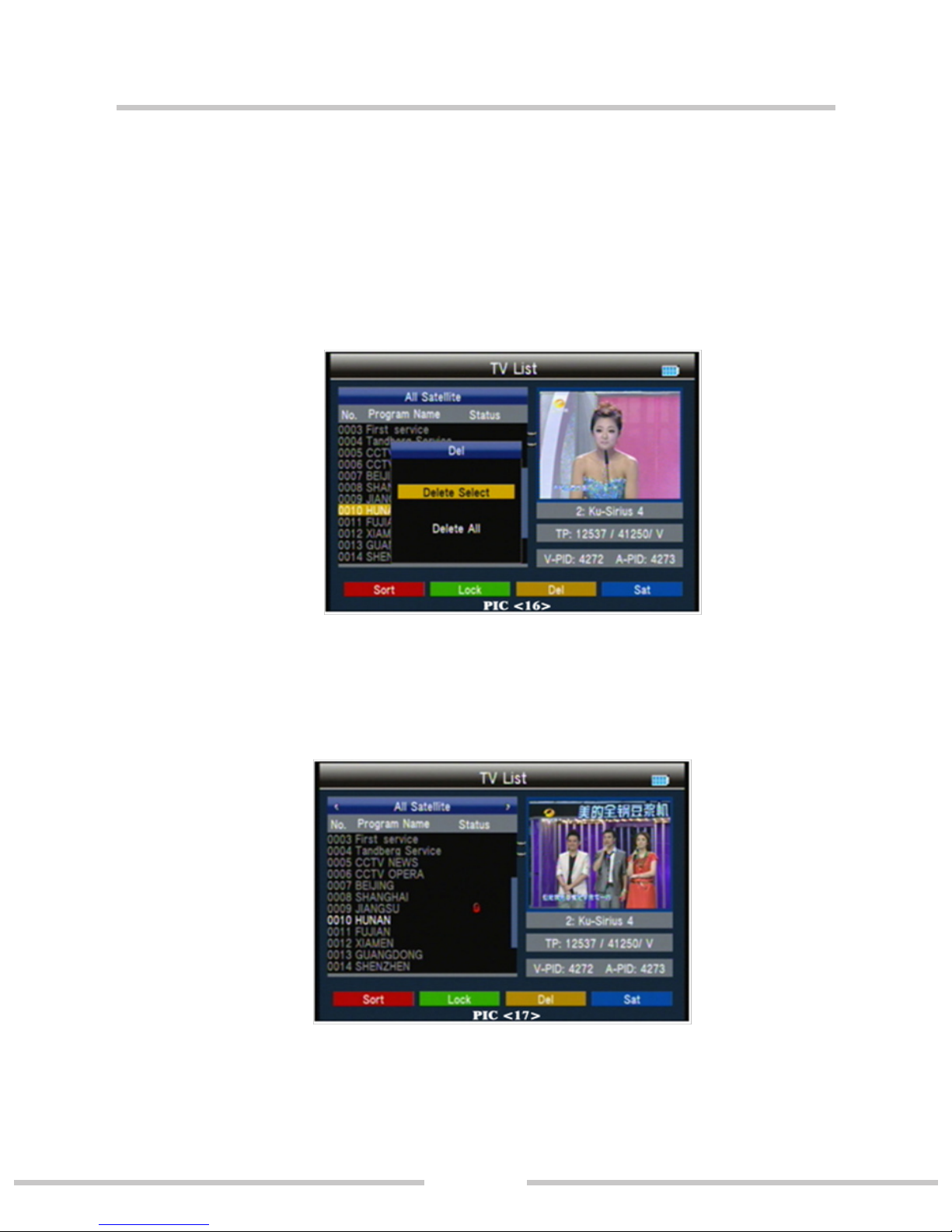

3.2.3 Del (PIC 16)

Press orange key to select“Delete Select” or “Delete ALL”.Press
▲▼ key to select the program that we wantto delete, then

Digital Satellite Finder

15

press orange key to label. When we deal with all the program
need to be processed, press menu key to then press ok key to
conrm the operation or select “x”; press ok key to cancel.

3.2.4 Sat (PIC 17)

Press blue key then press ◄► key to select program list of the
single satellite, or all satellite.

Digital Satellite Finder

16

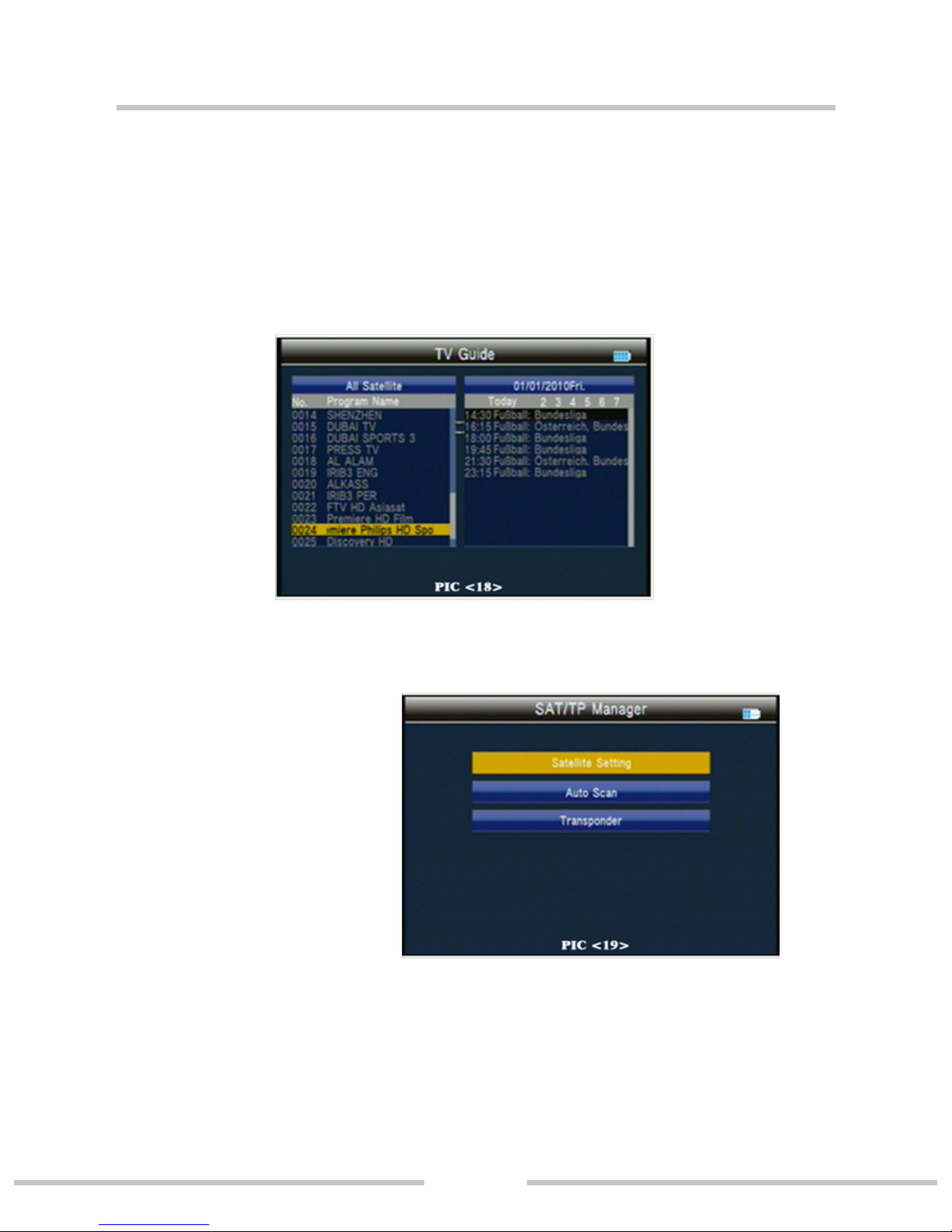

3.3 EPG(PIC 18)

Press ▲▼ key to change program. If the current program has
EPG info, it will appear on the right side of the window.Press
◄► key to change the day of the EPG info.

3.4 SAT/TP Manager (PIC 19)

gSatellite Setting

gAuto Scan

gTransponder

3.4.1 Satellite Setting

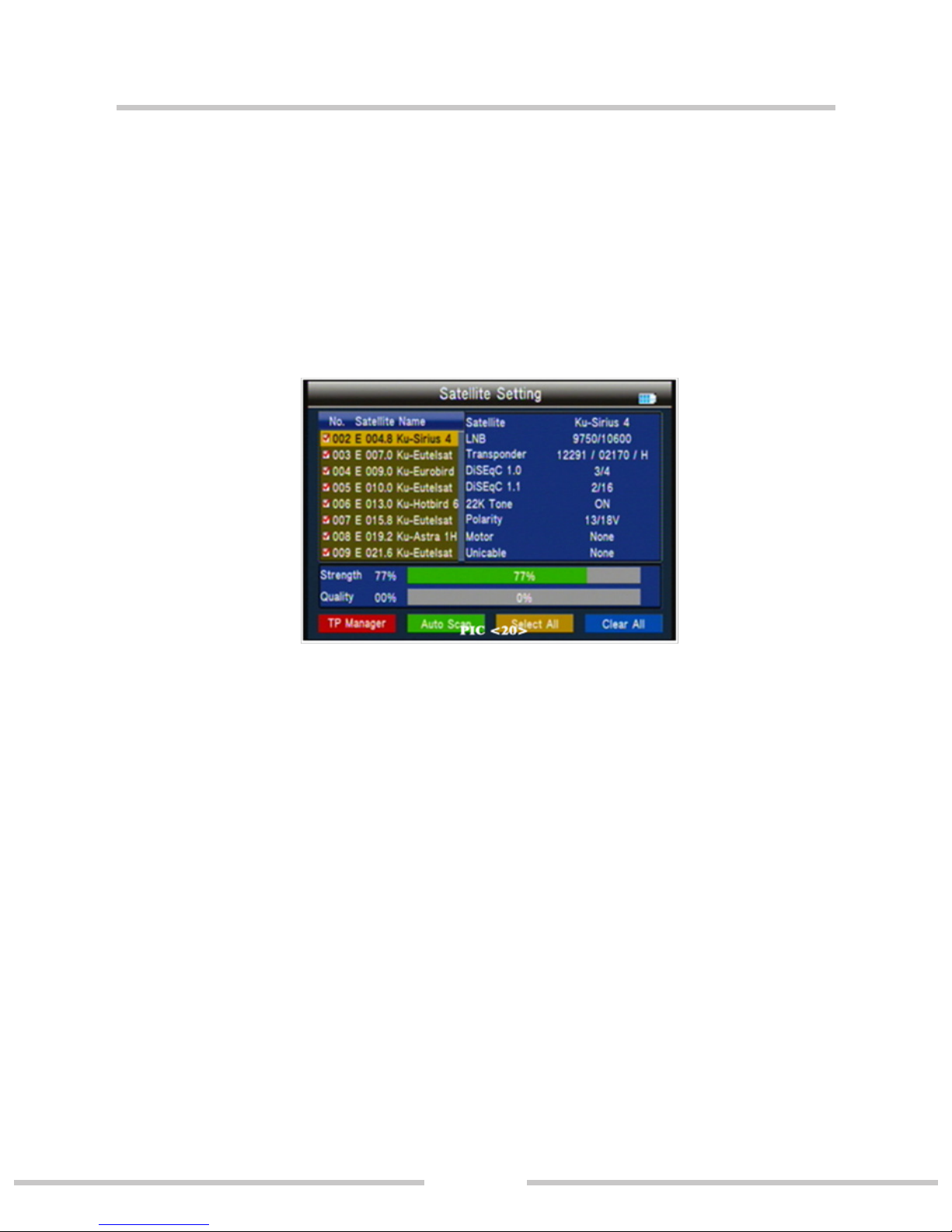

In the all Satellites Setting (PIC 20)
Press blue key to clear all selecte of satellite.

Digital Satellite Finder

17

Press orange key to selecte all satellites.
Press green key into auto scan interface.
Press red key into the Transponder interface.
Press ▲▼ key to move the cursor, then press ok key to change
the satellite select or unselect.

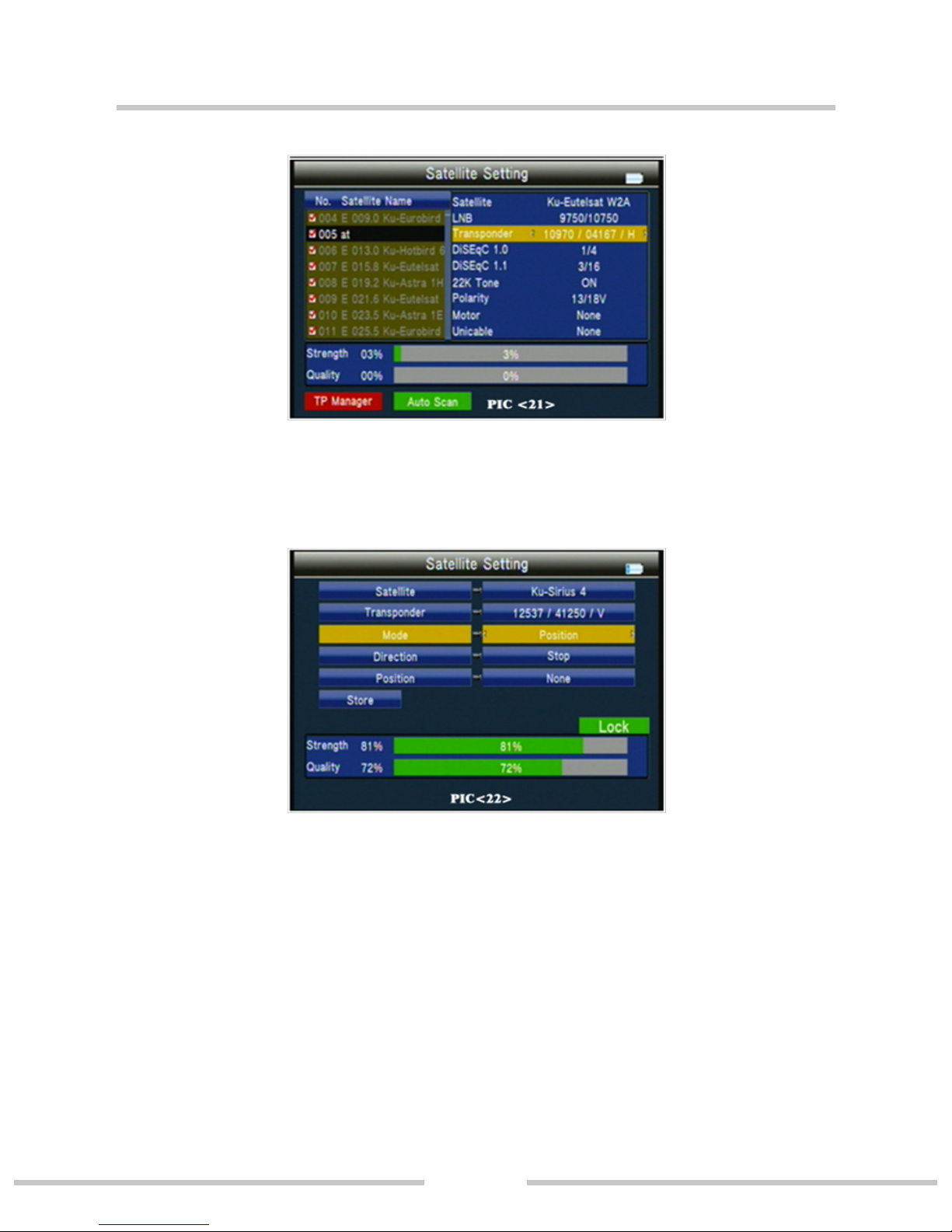

Press ◄► to set the single satellite setting. (PIC 21)
In the setting interface:
1, TP Manage: press red key into TP manager.
2, Auto Scan: press green key into auto scan..
3, LNB: Press ◄► key then change the LNB frequency.
4, Transponder: Press ◄► key then change the current TP.
5, DiSEqc1.0: Press ◄► key to change the DiSEqC port.
6,DiSEqc1.1: Press ◄► key to change the DiSEqC port.
7, Motor: Press ◄► key to change the DiSEqC port.

Digital Satellite Finder

18

If we select DiSEqC1.2/USALS, press ok into the motor inter­face.(PIC 22)

○ Transponder: Press ok key to change the current tp.
○ Mode: A, Position
A1 Direction:Press ◄► key to move direction to west or east.
A2 Position: set the satellite save position.
A3 Store: save the satellite position to set of A2.
○ Mode: B, Drive to Zero; move the cursor to GO, then press OK
key, the motor will go to zero.

Digital Satellite Finder

19

○ Mode: C,Drive to stored position; move the cursor to GO,
then press OK key, the motor will go to position of we saving
in mode A Position.
○ Mode: D, Drive to Satellite move the cursor to GO, then press
OK key, the motor will go to position of auto calculate.
D1 Direction:Press ◄► key to move direction to west or east.
○ Mode: E, Set East Limit or Set west Limit, limit the motor
move to east or to west.
E1 Direction:Press ◄► key to move direction to west or east.
E2 Store: save the satellite position of A2
○ Mode: F, Set Limit enable or disable, set the limit enable or
disable,
8, Unicable: Press ◄► key to select Unicalbe then press OK key
into the Unicable setting.(PIC 23)

Transponder: press ◄► key to change the current TP.
IF Channel: press ◄► key to change change SCR channel.

Digital Satellite Finder

20

Center Frequency: use value key to input number.
Store: store the setting.

3.4.2 Auto Scan(PIC 24)

○ Satellite：Press ◄►key into the satellite list. Use ▲▼ key
to move the cursor, then press OK key to select the satellite of
you want.
○ Transponder: press ◄► key into the TP list. Use ▲▼ key
to move the cursor then pressOK key to select the satellite of
you want.
○ NIT: press ◄► key to switch network searcher on/o󱐯
○ Program: TV search type ALL/FTA
○ Scan Mode: scan mode select, we can select Default TP /
One TP/Blind.
○ Scan Select: scan all satellites of selected or the current sa­tellite.

3.4.3 Transponder(PIC 25)

Press ▲▼ key to select the current satellite.

Digital Satellite Finder

21

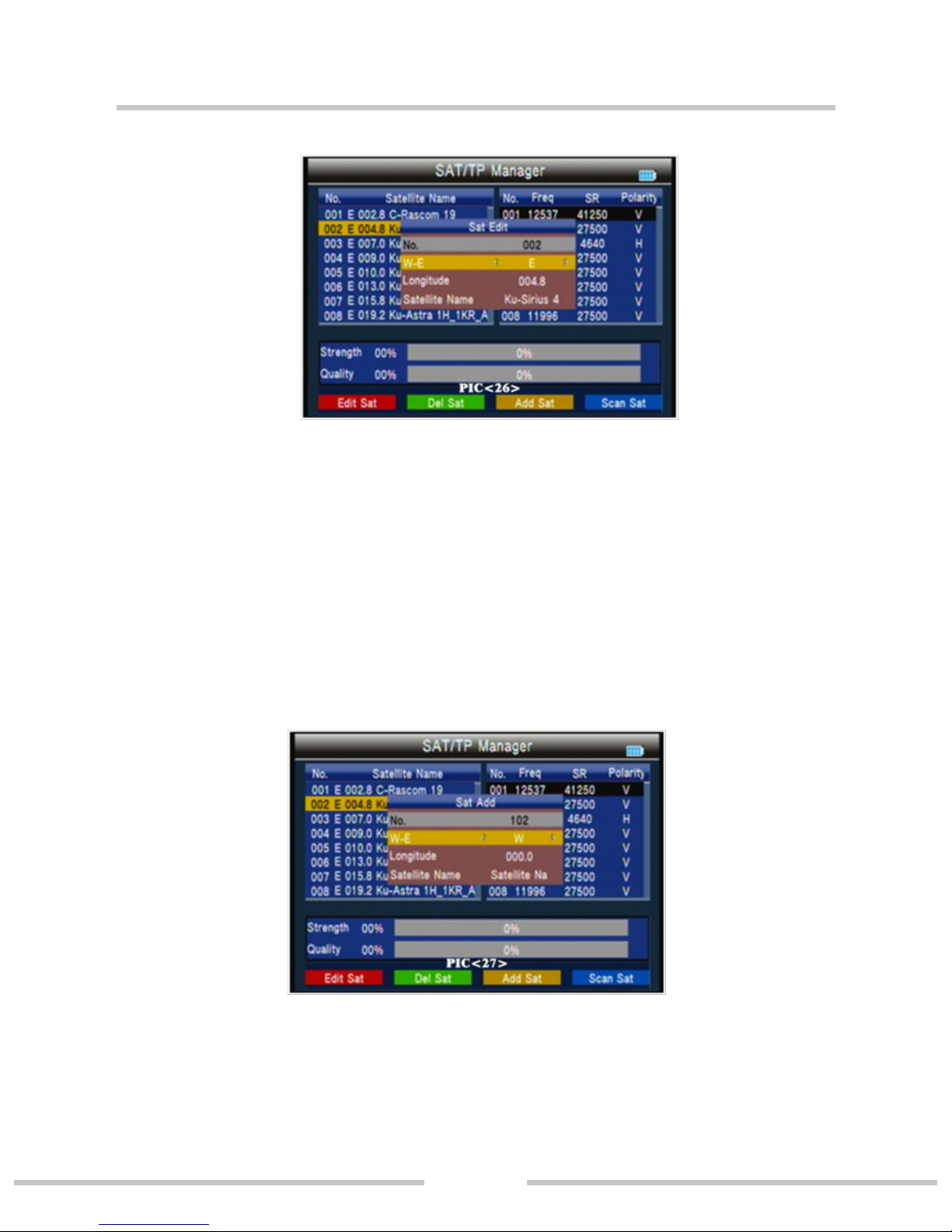

Press red key to edit satellite (PIC 26)

W-E: switch the satellite longitude west or east.
Longitude; use number key input value.
Satellite Name: press ok will open the keyboard; use the direc­tion key input satellite name.
○ Press green key to delete satellite, then press ok key to con­rm or press menu key to cancel.

Digital Satellite Finder

22

○ Press orange key to add a satellite。(PIC 27)
NO.: Satellite number.
W-E: switch the satellite longitude west or east.
Longitude; use number key input value.
Satellite Name: press ok will open the keyboard; use the direc­tion key input satellite name.

○ Press blue key into auto scan interface.

Digital Satellite Finder

23

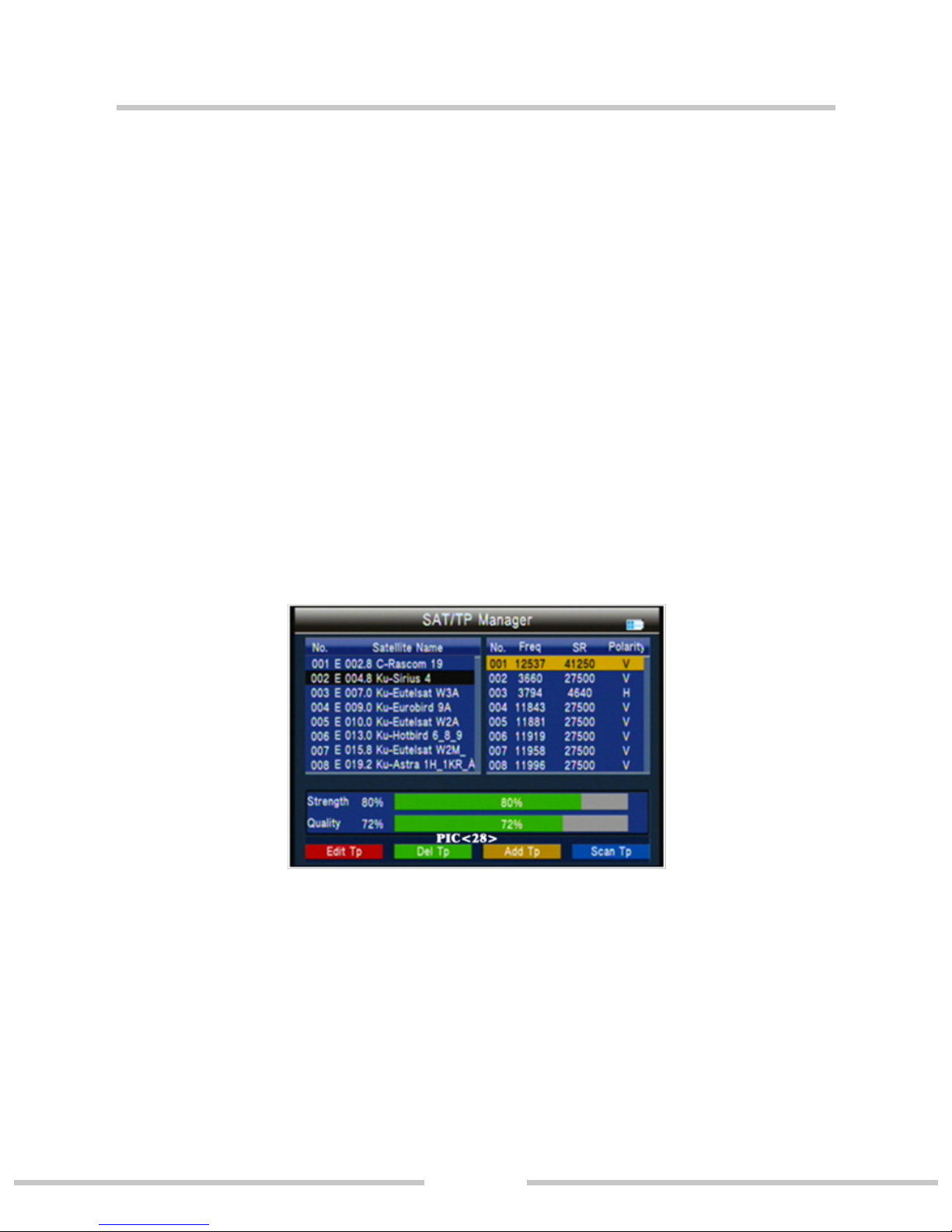

Press ◄►key to TP manager. (PIC 28)
○ Press red key to edit TP
NO.: TP number.
Frequency: use number key input value.
Symbol Rate: use number key input value.
Polarity: Press ◄► to change polarity
○ Press green key to delete TP, then press ok key to conrm
or press menu key to cancel.
○ Press orange key to add a TP；Please refer to TP edit
operations.
○ Press blue key into TP scan interface.

3.5 Multimedia

Will need to play the les in the USB stick and insert it into
the machine.(PIC 30)

Digital Satellite Finder

24

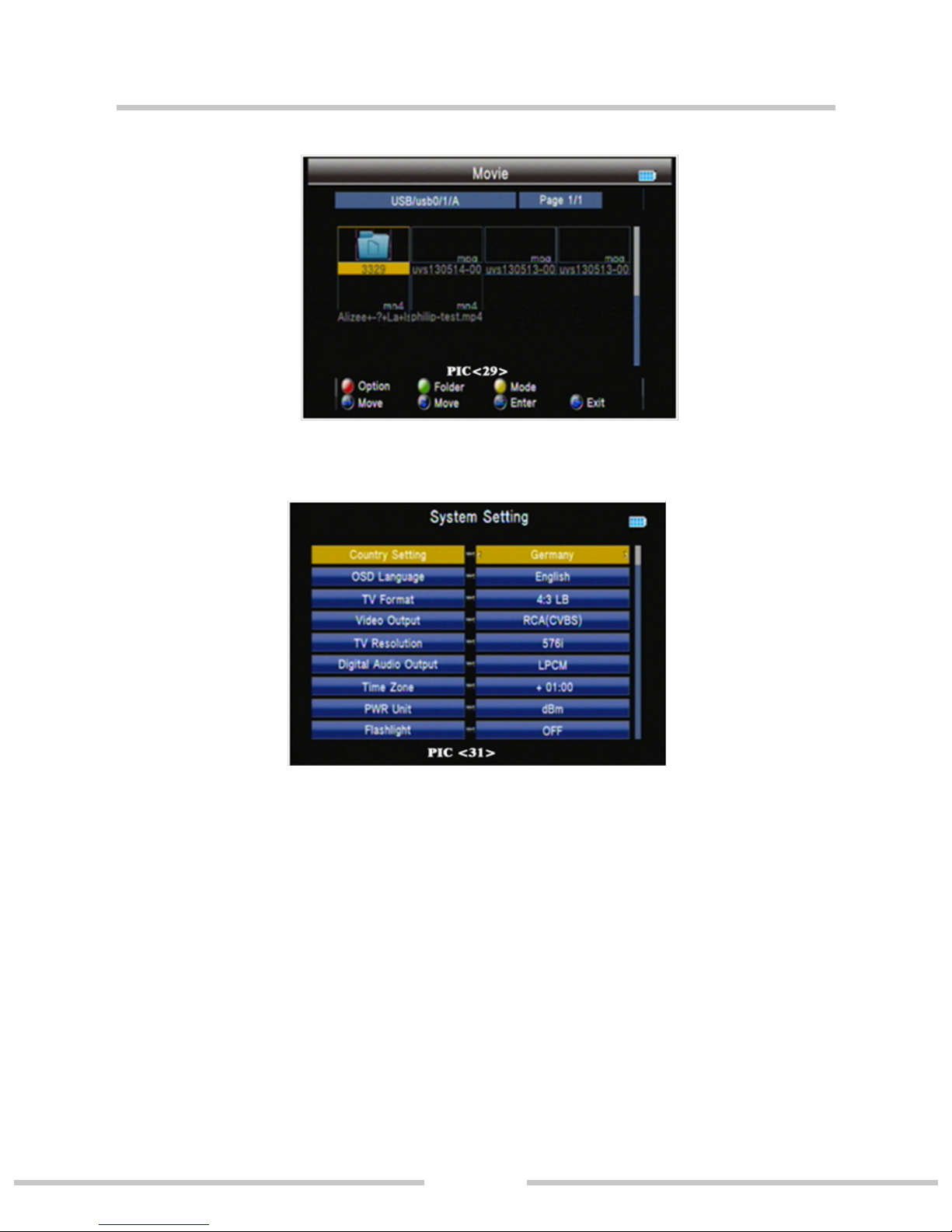

○ Movie (PIC 29)
Press red key to option the mode of play les and text encode;
then press menu key return.
Press green key to Change the folder File view to detailed list.
Press orange key to change mode to big Icon browsing.
Press the arrow keys to move the cursor, then press ok key to
enter the le.
In the pay interface:
F1 Key: normal play.
F2 Key: pause.
F3 Key: fast backward; press F1 key to return normal play.
F4 Key: fast forward; press F1 key to returnnormal play.
○ Music &Photo
Please refer to the Movie operating.

Digital Satellite Finder

25

3.6 System Setting (PIC 31)

○ Country Setting
Press ◄► key to change the country.
○ OSD Language
Press ◄► key to change the OSD Language.
○ TV Format
Press ◄► key to change the TV Format.
○ Video Output
If we connect HDMI interface, we can press ◄► key.

○ TV Resolution

Digital Satellite Finder

26

On the basis of the Video Output choice, we can press ◄►
key to change the TV resolution.
○ Digital Audio Output
Press ◄► key to change the LPCM or RAW format.
○ Time Zone
Press ◄► key to change the Time Zone.
○ PWR Unit
Press ◄► key to change the PWR unit.
○ Flashlight
Press ◄► key to switch Flashlight on/o󱐯.
○ KB-BackLight
Press ◄► key to switch delay time of back light.
○ Set Location (PIC 32)
Press ◄► or ok key to set location longitude or latitude
Location: we can press ◄► to change the city, then auto
select longitude and latitude.
Longitude: we can use number key input value then select
west or east.
Latitude: we can use number key input value then select south
or north.

Digital Satellite Finder

27

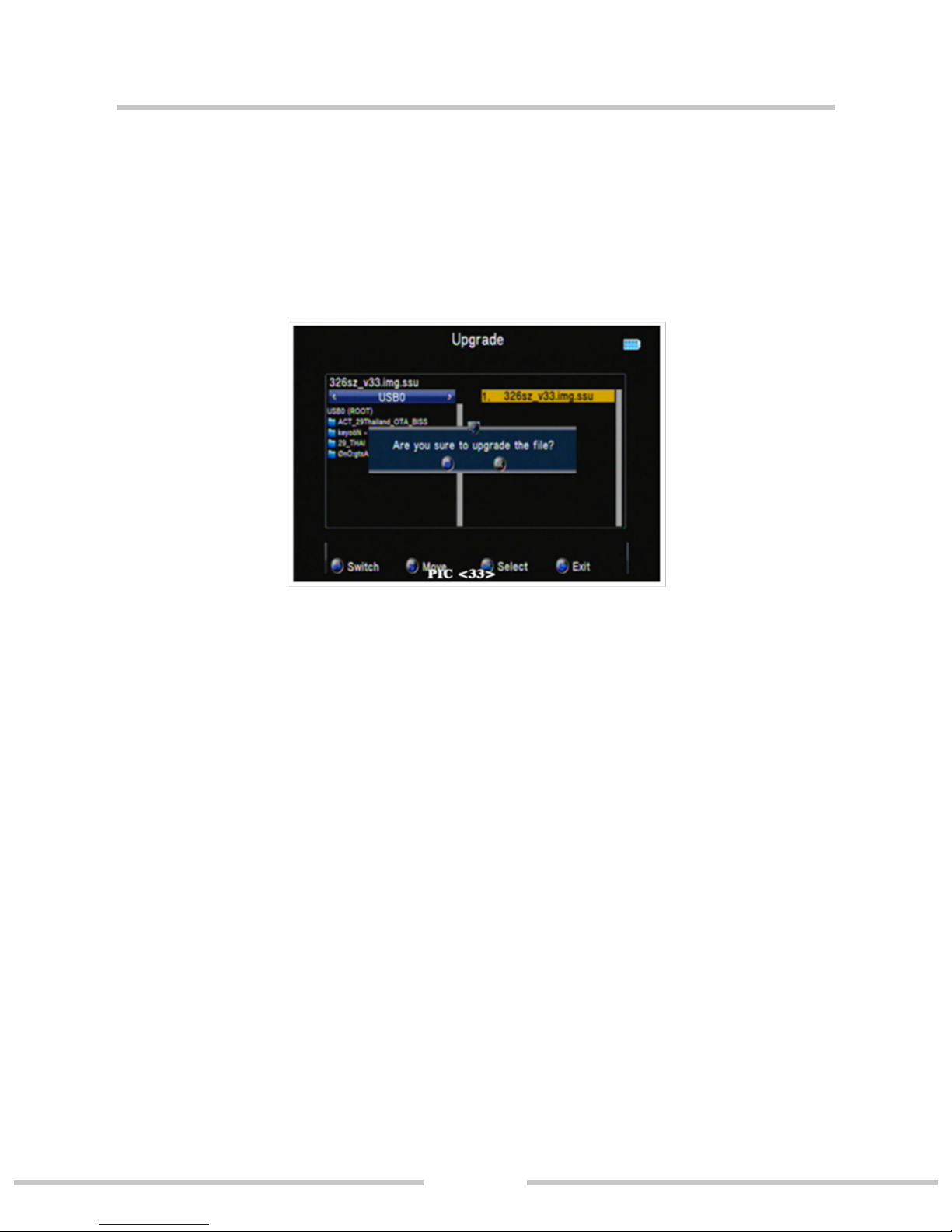

○Upgrade (PIC 33)
Will update the le into the U disk; then insert the machine;
press ok key to update interface, use the direction key to select
update le. Press ok key to update.

Warning: During the upgrade processing, do not power o󱐯
or pull out the U disk;otherwise it will damage the machine
software, can not boot.
○ Factory Setting
Press ◄► key, then press ok key to conrm factory.

NOTE: if you set factory, all the user settings and the
database will be reset.

Digital Satellite Finder

28

4.Technical Specication

TRANSMISSION STANDARDS
DVB-S2/S, MPEG-2,MPEG-4,H.264
SATELLITE INPUT/DEMODULATION
Connector Type F Type
Input Frequency 950 to 2150 MHz
Signal Input Level - 65 to -25 dBm
Band Switch Control 22KHz
LNB Supply 13V/18V, IMax 400mA
Demodulation Type QPSK,8PSK
Symbol Rate 2<Rs<45Mband(SCPC/MCPC)
LCD FEATURES
LCD Type TFT TRANSMISSIVE
Number of Dots 480(RGB) x272
Active area (WxH) 95.04x53.86 mm

2

AV output interface
Connector Type 3.5 mm jack
Video Output CVBS
Audio output Stereo Audio L/R output
HDMI output connecter
Format HDMI 1.3
AV input interface
Connector Type 3.5 mm jack
Video input CVBS,
Audio input Stereo Audio L/R input

AUDIO/VIDEO PROCESSING
Video decompression MPEG-2 MP@HL, MPEG-1

Decoding,MPEG-4 ASP@L5 HD
resolution,H.264 MP&HP@L4,HW JPEG
decoding

Digital Satellite Finder

29

Signal compatibility Support conversion for di󱐯erent video

formats

Video Format 4:3,16:9,By Pan & Scan and Letter Box

conversion
Audio decompression MPEG-1 Layer I/II ，MPEG-2 Layer I/II,
Audio output mode Stereo, Mono,R/L
DATA SERVICE PORT
Connector USB
Data protocol USB2.0 interface
File management system NTFS,FAT32,FAT16
le format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
MICROPROCESSOR
Microprocessor 78326SZ
Clock Frequency 500MHz
SDRAM Memory DDR2 512Mbit
Power SUPPLY
Li-Ion Battery 7.4V/2500mAh
Adapter OUTPUT :DC12V/1.5A,

INTUPT :100-240VAC 50/60Hz
Power consumption Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H) 12.2x15.5x3.5(cm3)
Net Weight 0.47kg

Resolving rate PAL-25 frame@720*576,NTSC-30

frame@720*480,

Digital Satellite Finder

30

5 .Trouble Shooting

Problem Possible Causes What To Do
No display light

up

Power switch is
not onRun out of
batteries

Check to make sure power on.
Even on adapter

No sound or
picture, but the
front panel power
light is ON.

AV IN jack insert,
but no
video input

Pull out AV IN cable

No sound or

The satellite dish
is not pointing at
the satellite.

Adjust the dish. Check the
Signal Level in the Antenna
Setup Menu

Bad picture/
Blocking Error

No signal or weak
signal

Check the cable connections.
LNB and other equipment
connected between the LNB and
the meter and adjust the dish.

The satellite dish
in not pointing at
the satellite

Adjust the dish.

Signal is too
strong

Connect a signal attenuator to
the LNB input

Satellite dish is
too small

Change to a larger dish

LNB noise factor

too high.

Change to an LNB with lower

noise factor

The LNB is faulty. Change the LNB

Digital Satellite Finder

31

AV out No
picture(Video)

The system is
connected by
SCART cable and
TV is not in AV
mode.

Check the UHF channel xed in
your system and tune the UHF
properly.

The key is not
working.

Out of battery Even on adapter
Key blocks make sure no blocks between

the front panel

Note: If you still cannot resolve the problem with above
reference. Please contact the local dealer or their after-sales
service center.

USER‘S MANUAL
