MANUAL

Chemnitzer Straße 11.09217 Burgstädt

Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH

SAT

Kabel

SPM 6PC

Devices as of version v2.01

RF level meter

The manual has been compiled in good faith. Mistakes and changes and

additions reserved

If you have questions about the device, or have suggestions for further improvements, please let us know.

Thank you for purchasing a product of the Company SAT-Kabel. This manual

is intended to provice you with the functions of the device

The displayed version of the device software in the images is illustrative and

does not have to represent the current state.

General

Preparation level test... .............................................................................

SCAN with LED-display SCAN with bar display

Evaluation... ..............................................................................................6

11.

Functional diagram....................................................................................9

12.

Cleaning and care ..... .............................................................................11

..................................................................................................4

2. Scope of delivery......................................................................................4

Functional elements.................................................................................4

Switch on the device.................................................................................5

Scan and evaluate forward .......................................................................5

6.1 .............................................................................5

6.2

..............................................................................6

6.3

Single channel display and evaluation......................................................6

7.1

Channel labels ........., ................................................................................7

7.2

Single channel selection and manual reading of level values...................7

Switch off the device

..................................................................................8

Charge device............................................................................................8

10.

Technical data and equipment ....... ...........................................................8

Warranty. ............................................................................................................11

Table of Contents

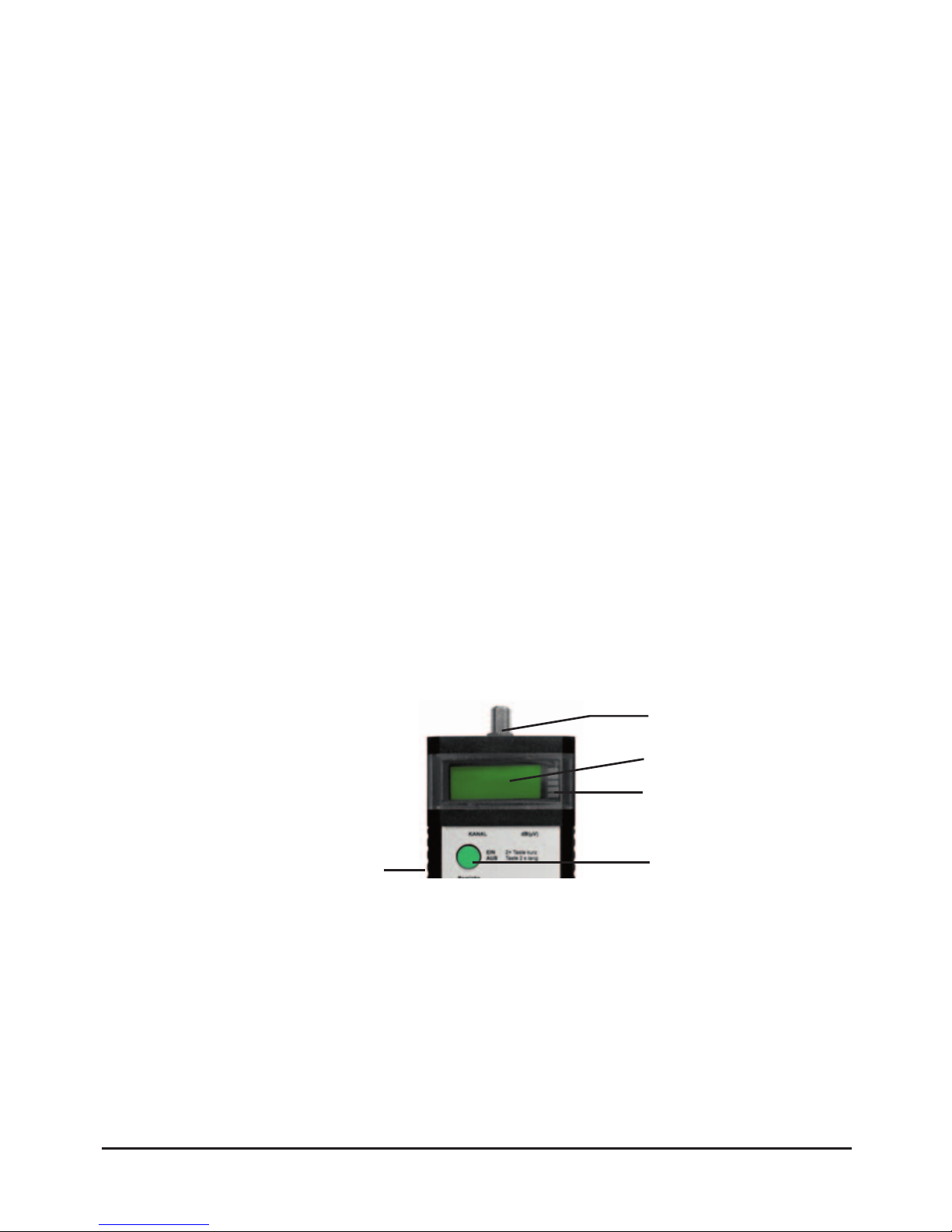

F-Female

Display

Control button

LEDs

charging socket

PC-Connection

(with special cable)

Functional elements

General

Scope of delivery

Preparation level test

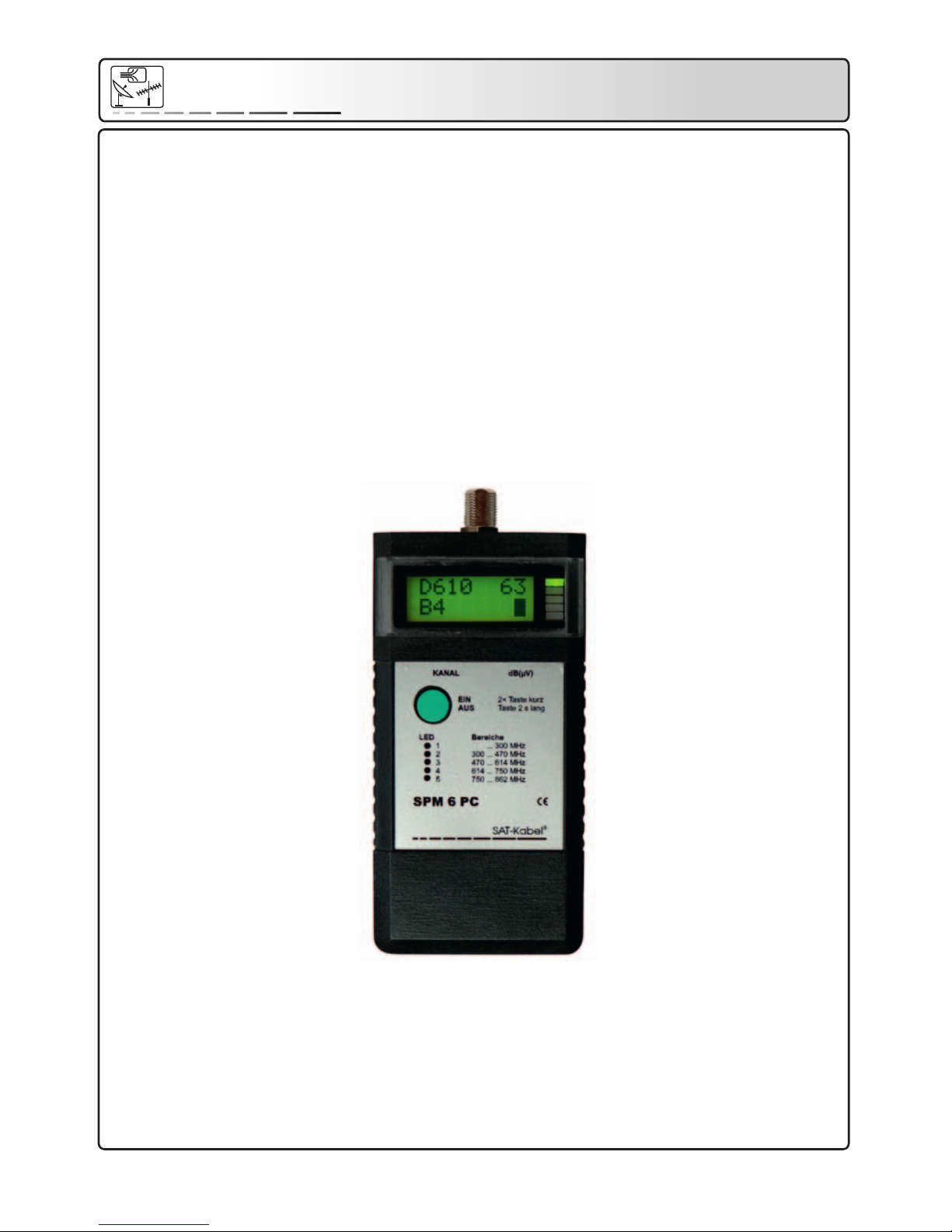

The processor-controlled level meter SPM 6 PC is a compact and handy designed

device ideal for fast level control of the local loop cans TAG. It is therefore

particularly useful for sales people (media consultant) of a cable operator to

easily check the cable connection at the subscriber.

The working principle is based on level measurement with a predetermined

channel lists of the respective cable TV network. For the test leve are bar graphs

and assigned appropriately colored LEDs. The level values of each channel can

be displayed directly after the test.

With the now existing PC interface and our software to the device, you can

easily create the required channel list even if the corresponding information for

the cable TV network are available or not.

1× SPM 6 PC incl. NiMH-accumulator (6 V/300 mAh) 1× Power supply 230 VAC/12VDC 1× Connecting cable with F-type connectors 1× Adapter (F-female to IEC female)

1x Manual

1| The included connection cable with F-type connectors is hand-tight to

unscrew by hand with one of the two identical F-plug to F-connector of the level tester. Use of any other cable connection is not recommended.

On the free F-cable connector of the enclosed adapter (F-female to IEC female) is then screwed firmly with his F-connector. Then the level meter is connected with the screwed cable connection by plugging the IEC socket on the TV socket on the junction box.

briefly

Scan and evaluate forward

6.1 SCAN with LED-display

Switch on the device

2 | In an immediately following short keypress SPM remains on 6 PC. The display

shows the channel list is displayed.

For multiple channel lists in the unit that may require s to be selected by

pressing the key for about 1. If the button is pressed after power a second time,

so the unit turns off again, just after 2 minutes without pressing a key.

In this mode, searches the "SPM 6 PC" continued for five consecutive sections by reference channels in CATV frequency range, which can be chosen freely marked in the channel list. The five frequency bands and the allocation of the LED printed sindaufdem meter. On the basis of the "SPM 6 PC" stored limit values for the minimum / maximum levels at outlets (TAD) associated with "SCAN" continually held an evaluation. The evaluation result for each frequency range is shown (yellow / green red /) by the corresponding LED. The display for the entire sub-region varies on the worst level value in the reference channels concerned.

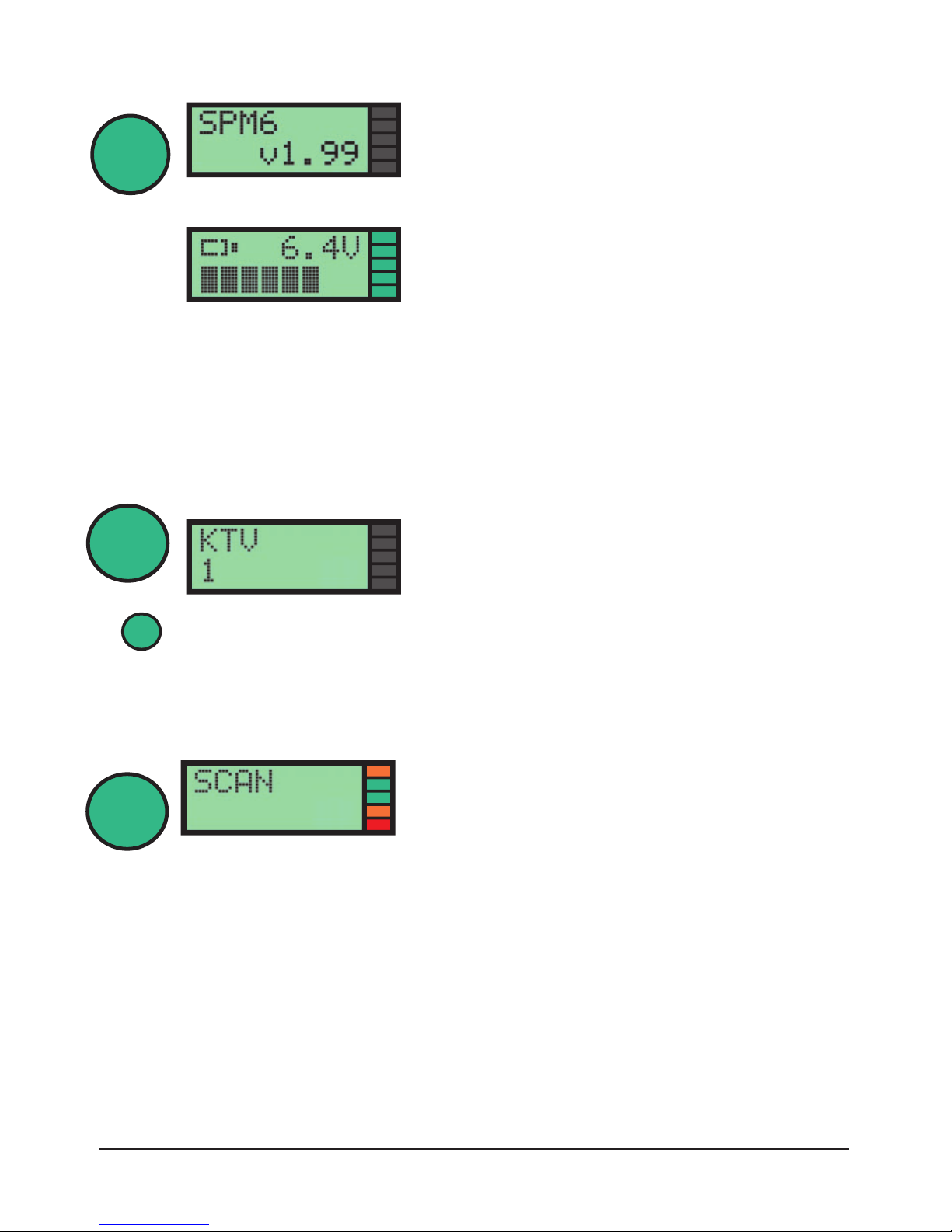

1 | The device is switched on by briefly pressing

the button once. It first appears for about 1 s, the

device type and the version number of the

implemented device software.

(v2.01 - 10.12.2013)

The display then changes to the state of charge of

the battery with the voltage output value and is

also visualized with a horizontal bar graph. Typical

display value is in the range

5.8 V-7, 2 V. At 5.5-5.7 V all LEDs, that are currently active for the level

measurement flash.

In return test flashes 3 LED red. The operating time is approximately 15

minutes. If the battery voltage falls below 5.5 V, the device automatically

switches off and is only after connecting the power charger to operate again.

By switching on an LED test takes place. In this case, all the LEDs light up

simultaneously for 1 s each red, then yellow and finally green.

Another short press now triggers the scan with the

selected channel list. The five LEDs are now ready

for automatic evaluation active.

briefly

Signal format and

modulation

Level dB(µV)

poor / unsuitable borderline all right

Balkenanzeige

LED-color

RED YELLOW

GREEN

PAL (Standard B/G)

<57 >80

57 ... 59 78 ... 80

60 ... 77

DVB-C 64 QAM

<47 >73

47 ... 49 68 ... 73

50 ... 67

DVB-C 256 QAM

<53 >79

53 ... 55 74 ... 79

56 ... 73

LED/

Area Frequency area (channels)

1B1

2B2

3B3

4B4

5B5

Bar

... 300 MHz ( D114, S11, S20) 300 ... 470 MHz ( D378, D442, D466) 470 ... 614 MHz ( D538, D610) 614 ... 750 MHz ( D746 ) 750 ... 862 MHz ( D818 )

A not existing channel assignment above 470 MHz and 614 MHz in the level 3

(lack of network expansion or lack of channel occupancy) leads to corresponding

red LED displays. In these cases, from the "bad not yet be concluded that the

expansion of state or a 862 MHz suitability of the house distribution system"

display.

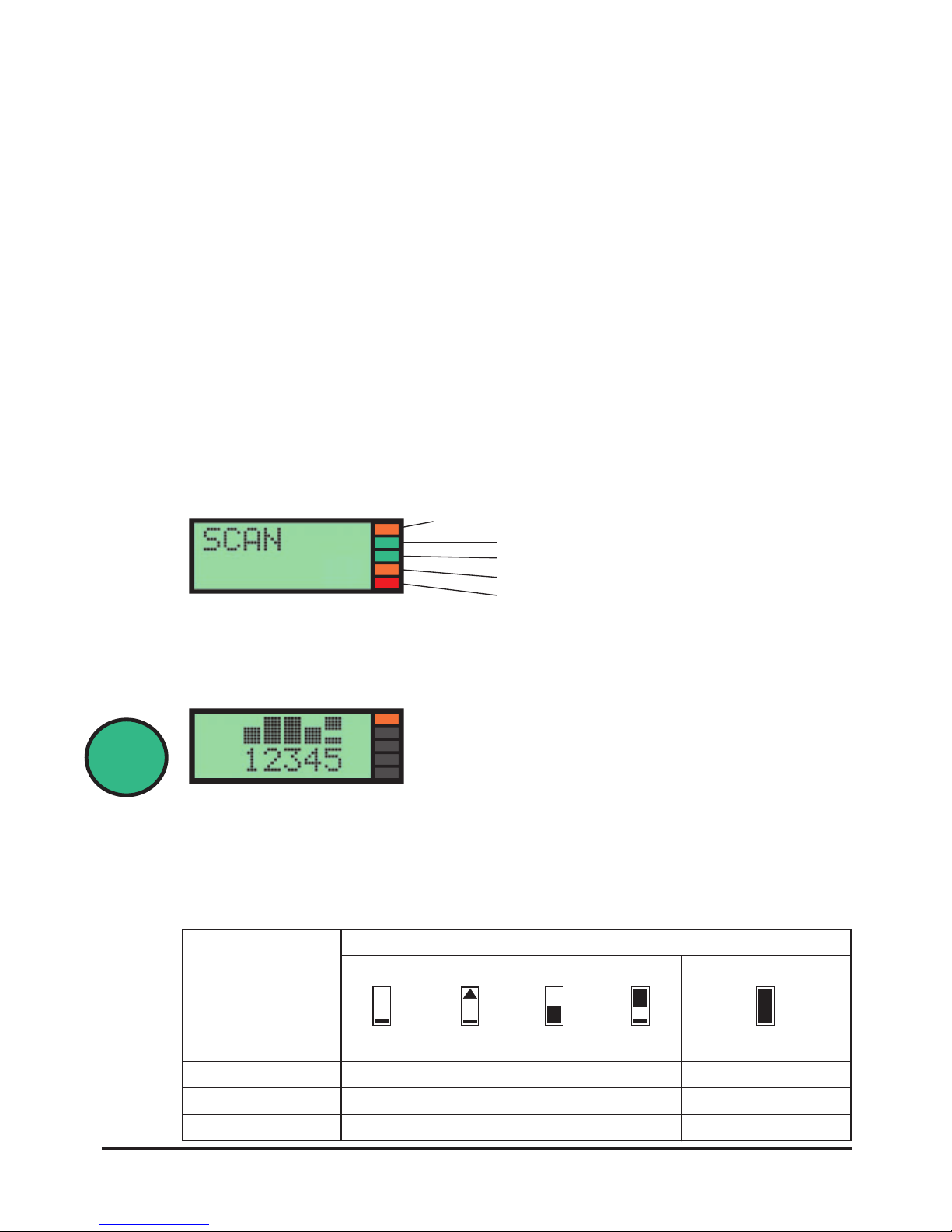

The following figure shows the evaluation of the scan by LED. The top LED

(LED1) shows the evaluation result of sub-area 1, the next LED indicates the

sub-region 2, etc. If the scanned reference channels of the subregions

were found to be "right," the area 1 relevantLED is green, otherwise

the display is determined by the

worst channel in each subarea.

After another short push button, the display shows

the evaluation of the scan by LED and a five-part

vertical bar graph. In this case, the height of a bar

represents the result of the particular

area (Pkt.6.3). The top LED indicates the overall result of each measurement

point: poor, borderline, in order.

2 3 4 5

6.3 Evaluation

6.2 SCAN with bar display

>1 s

briefly

The key for longer than 1 second. There will be a change in the mode "SCAN" (LED-evaluation).

By further short press switches the display always changes to the next higher

channel / reference channel. In addition, the top LED (LED1) the display result

visualized here in addition red, yellow or green (according to Section 6.3)

After the channels were durchgetastet, one arrives at the next short push

back into the mode "SCAN". You can also by a long press (> 1 s) change from

each individual measurement to the mode "SCAN".

= Special analog channel =

analog channel

= digital channel/

midfrequency

In the single-channel

representation of the channels

with the adjacent additives are

identified at the beginning.

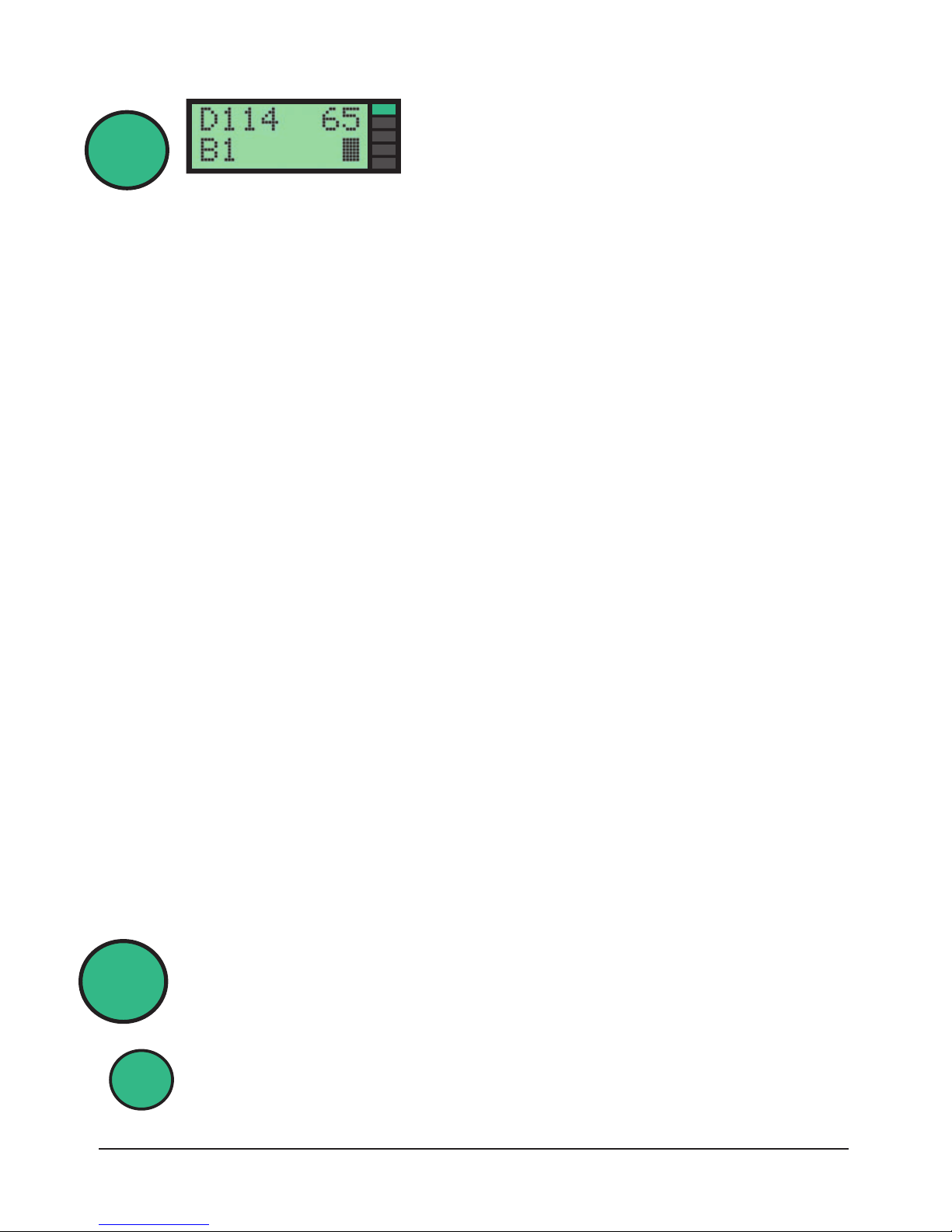

When you re short press the indication changes in

the single channel measurement and evaluation.

The display four pieces of information are visible:

» «

measured channel / channel

reference level in dB (µV)

» «

corresponding portion in the channel and reference channel is and is used for its evaluation of the level value level value as a bar graph.

» «

Zusätzlich gibt die oberste LED (LED1) das Anzeigeergebnis rot, gelb oder grün

wieder (siehe Abschnitt 6.3). Bei in der Kanalliste aktivierten, aber nicht

referenzierten Kanälen wird als Bereich » B0 « angezeigt. Dadurch ist eine

Einzelmessung auch dieser Kanäle möglich.

D114

rechts

top left:

top right:

bottom left:

unten:

All Right

» «

Next Turn next channel

Briefly press the button.

Zurück zum Modus SCAN schalten

7.2 Single channel selection and manual reading of level values

7.1 Channel labels

Single channel display and evaluation.

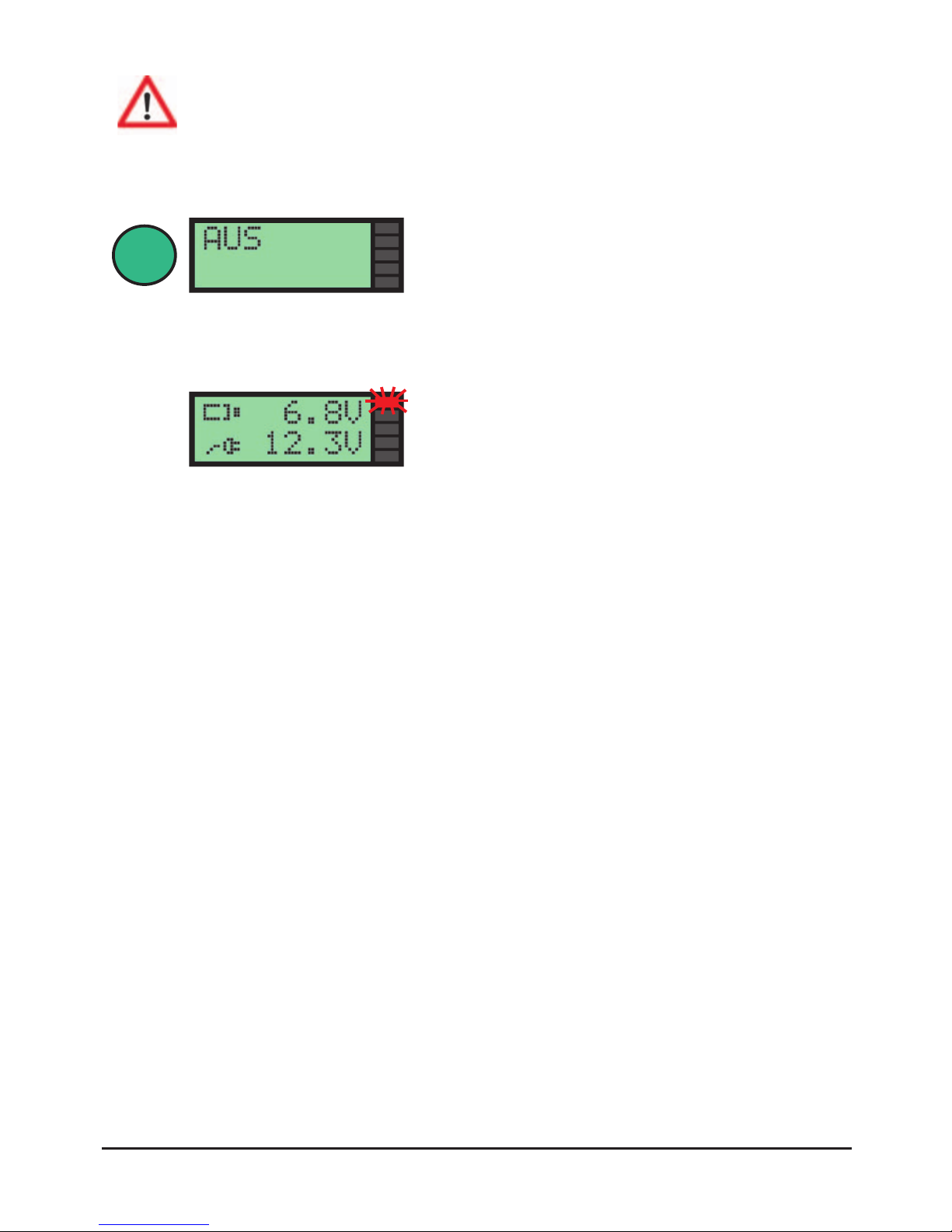

Hold the button for about 2 seconds, until next

stand-the image appears in the display. Then

release the button. The device can be switched off

at any time.

ATTENTION!

If the button is not pressed for more than two minutes, the SPM 6

PC automatically shuts off and must be repaired by re-pressing the

button briefly again in function. (see PKt. 5)

The level tester can either use the attached adapter

plug power adapter (Input 230 VAC, output 12

VDC/450 mA) or using the included car charger

cable in place of the cigarette lighter of a vehicle

(12 V) can be loaded.

After connecting the charge process starts, and the top-range LED flashes red.

20 s after the start of loading the backlight is switched off. In Full load-ladenem

battery the top LED (LED 1) lights green.

leveltester

frequency area

level area

measurement accuracy

RF input

operation

display

power supply

current draw

dimensions

weight

5–900

MHz 40–90 dB(µV) ±2,0 dB F-female, 75 Ohm button, menu assisted 5 color-LED LCD 2× 8 signs, 5 mm heigh, illuminated NiMH-Akku 6 V, rated capacity 300 mAh ca.

60 mA in LED operationca. 90 mA with

illuminateddDisplay

120

mm × 60 mm × 25 mm

130 g includubg accumulator

Switch of the device

Charge device

10.

Technical data and equipment

briefly

1s 1s

automatically after 1 s

current device software changes in the course of further developments

11.

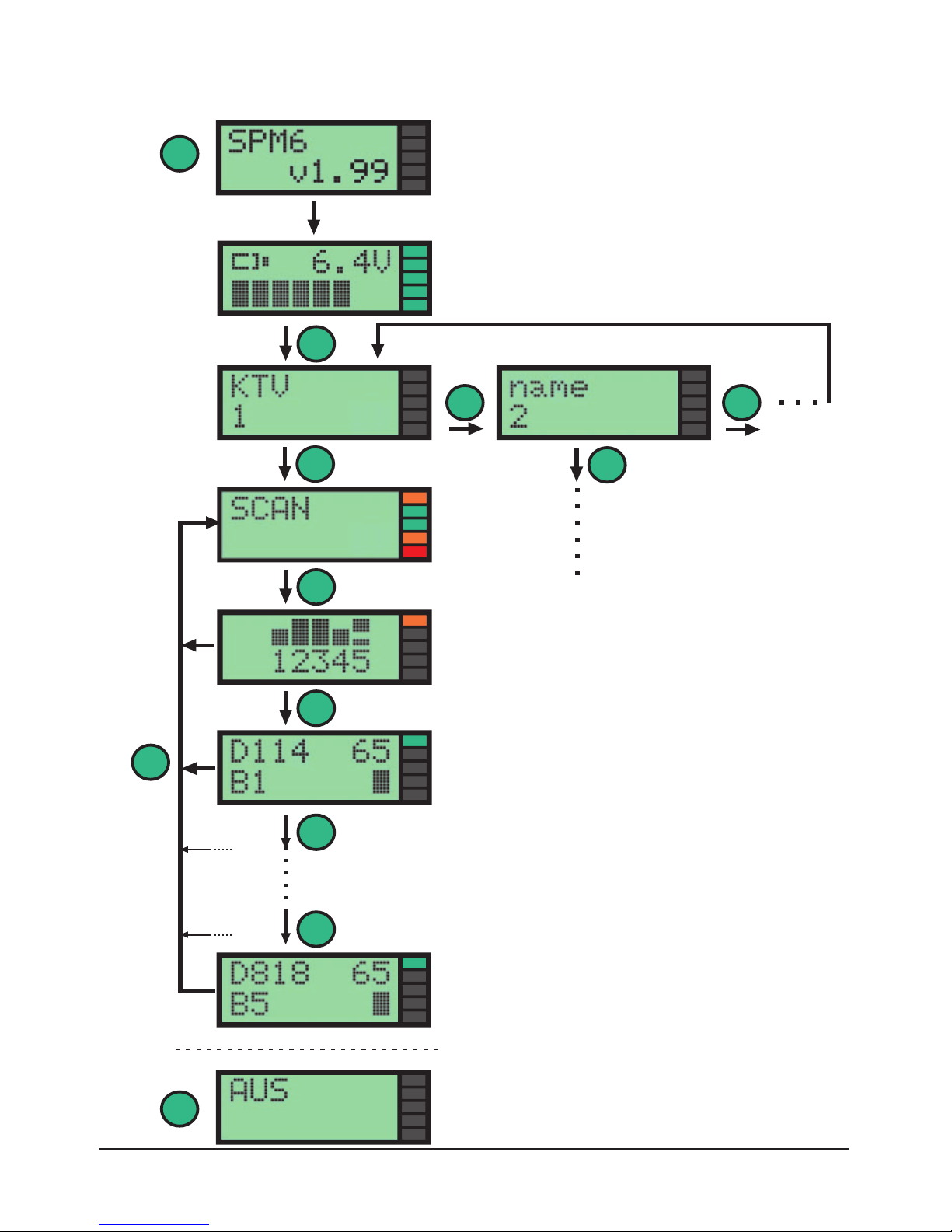

Functional diagram

briefly

Garantie

July 2006

For the device has a durability guarantee (hereinafter called warranty) admitted to

following terms and conditions:

This warranty applies to purchased in Germany New Device.

New devices and their components exhibiting defects within 24 months

of purchase due to manufacturing defects and / or material defects will

be repaired by SAT-Kabel ®.

For wear parts, such as batteries, keypads, housings, bags, power cable, warranty

for 6 months from the purchase applies.

The guarantee is void if tampered with by the purchaser or third parties.

Damage caused by improper handling or operation, incorrect positioning or

storing, improper connection or installation are not covered in the warranty.

We calculate the unjustified use our service with the usual for our services

payment for material, labor and shipping costs.

Repairs will be made only with a completed service request form.

Forms for service accompanying documents and other information in the terms and conditions below:

www.sat-kabel.de

The housing surfaces should be cleaned with a soft, dry, lint-free cloth. Any

aggressive cleaning agents or solvents may be used.

12.

Cleaning and care

Telefon: +49 (0)3724 6665-0

Telefax: +49 (0)3724 6665-44

info@sat-kabel.de • www.sat-kabel.de

Omissions and changes to technical improvements without notice!
