General
Status Active
Watts 20W
Volts 100V-27 7V
Sha pe AP23
Base Medium
ANSI Base E26
Finish White
CCT (Kelvin) 3000K/40 00K/5000 K
Temperature Warm to Cool White
CRI 80
Lumens 2400L /27 00L/2600L
Bea m Spread 290
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Type A
Technology LED
Min Compa rtment Size
Length: 6 in. Width: 6 in. Height:
8.5 in.
Electrical
Ope rating Frequen cy 50/60 Hz
Burning Position
Base Up, Base Down, or
Horizontal
Surge Protection Built-in surge protection - 1K V
Phys ica l
MOL 5.1 2
MOD 2.8 3
Housing Color Gray
Additional Information
Rated For Enclosed Fixture Yes
Spe cification Note
Lumen/Watt/CCT Ratio Chart in
Documents.
Warranty 5 Year Limited
Complianc e
Safety Listing cULus
Location Rating Damp
Ene rgy Star Pen ding
RoHS Compliant Yes
FCC Compliant Yes
Copy right 2020 Sat co Product s, Inc.
All R ights Reserv ed
For More Informat ion Vis it:
http://www.sat co. com /

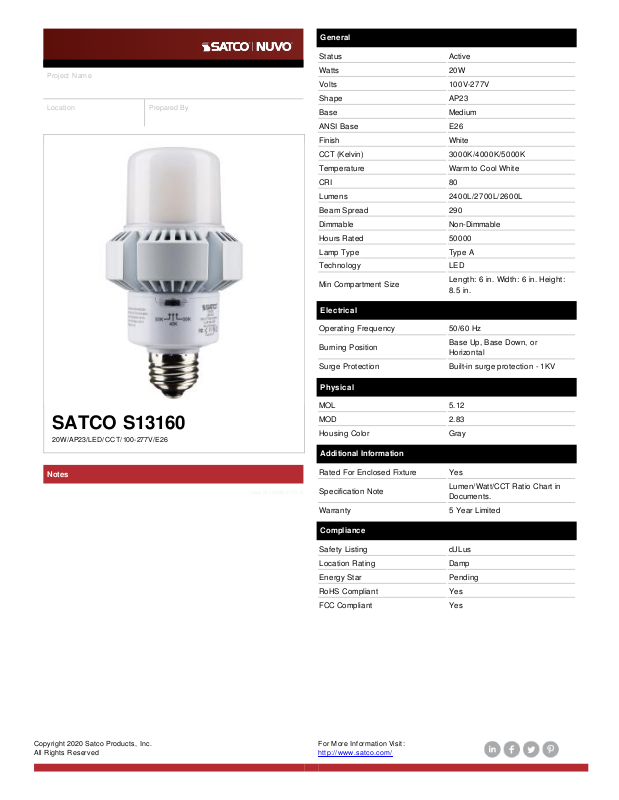

SATCO S13160
20W/ AP23/LED /C CT /100-277V/ E26
