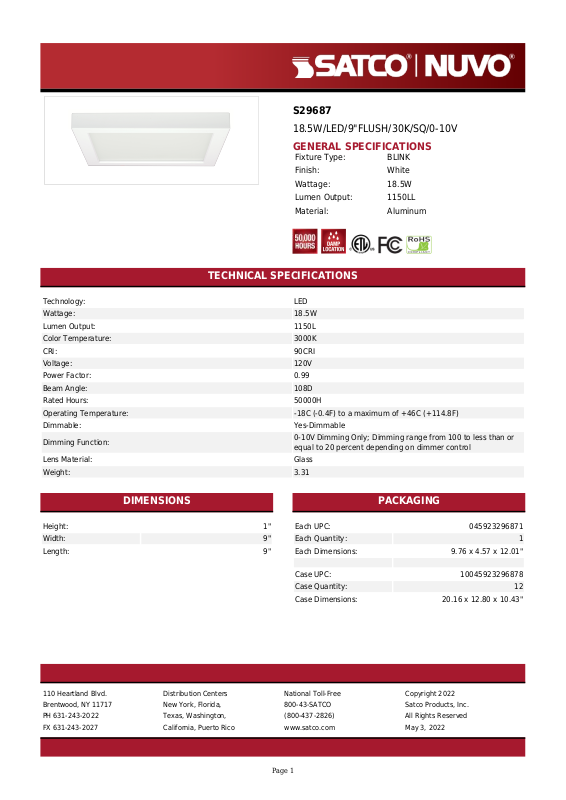

Page 1
S29687
18.5W/LED/9"FLUSH/30K/SQ/0-10V
GENERAL SPECIFICATIONS
Fixture Type: BLINK
Finish: White
Wattage: 18.5W
Lumen Output: 1150LL
Material: Aluminum
TECHNICAL SPECIFICATIONS
Technology: LED
Wattage: 18.5W
Lumen Output: 1150L
Color Temperature: 3000K
CRI: 90CRI
Voltage: 120V
Power Factor: 0.99
Beam Angle: 108D
Rated Hours: 50000H
Operating Temperature: -18C (-0.4F) to a maximum of +46C (+114.8F)
Dimmable: Yes-Dimmable
Dimming Function:
Lens Material: Glass
Weight: 3.31
0-10V Dimming Only; Dimming range from 100 to less than or
equal to 20 percent depending on dimmer control
DIMENSIONS
Height: 1"
Width: 9"
Length: 9"
110 Heartland Blvd. Distribution Centers National Toll-Free Copyright 2022
Brentwood, NY 11717 New York, Florida, 800-43-SATCO Satco Products, Inc.
PH 631-243-2022 Texas, Washington, (800-437-2826) All Rights Reserved
FX 631-243-2027 California, Puerto Rico www.satco.com May 3, 2022
Each UPC: 045923296871
Each Quantity: 1
Each Dimensions: 9.76 x 4.57 x 12.01"
Case UPC: 10045923296878
Case Quantity: 12
Case Dimensions: 20.16 x 12.80 x 10.43"
Page 1
PACKAGING
