General
Status Active
Watts 100W
HID Equivalent 400W
Volts 100V-27 7V
Base Extended Mogul
ANSI Base EX3 9
Finish White
CCT (Kelvin) 3000K/40 00K/5000 K
CRI 80
Lumens 8820L /11 200L/14000 L
Bea m Spread 360
Dimmable Yes-Dimmable
Hours Rated 50000
Lamp Type Corncob
Technology LED
Min Compa rtment Size
Length: 9 .85 in. Width: 9.8 5 in.
Height: 11.54 in.
Ballasting Requ irements Ballast Byp ass
Electrical
Ope rating Frequen cy 50-60 Hz
Dimming Note
Dimmable only via the
watta ge/lumen selectable dial
included on lamp
Power Factor >0.9
Burning Position Base Up or Base Down On ly
Surge Protection Built-in surge protection - 4K V
Ope rating Temperatu re
-30C (-22F) to a maximum of +45C
(+113F)
Phys ica l
MOL 10.55
MOD 5.1 1
Lens Material Plastic
Housing Color Dark Gray
Weight (lb.) 3.1 2
Additional Information
Add itional Info Power selectable
Rated For Enclosed Fixture Yes
IP Rating IP64
Warranty 5 Year Limited - 12 hr per day
Complianc e
Safety Listing cULus listed; cULus classified
Location Rating Damp
Ene rgy Star No
CA T20 / T24 Rationale Exempt - Ba se Not Reg ulated
RoHS Compliant Yes
FCC Compliant Yes
SDS S heet LED_Lamp

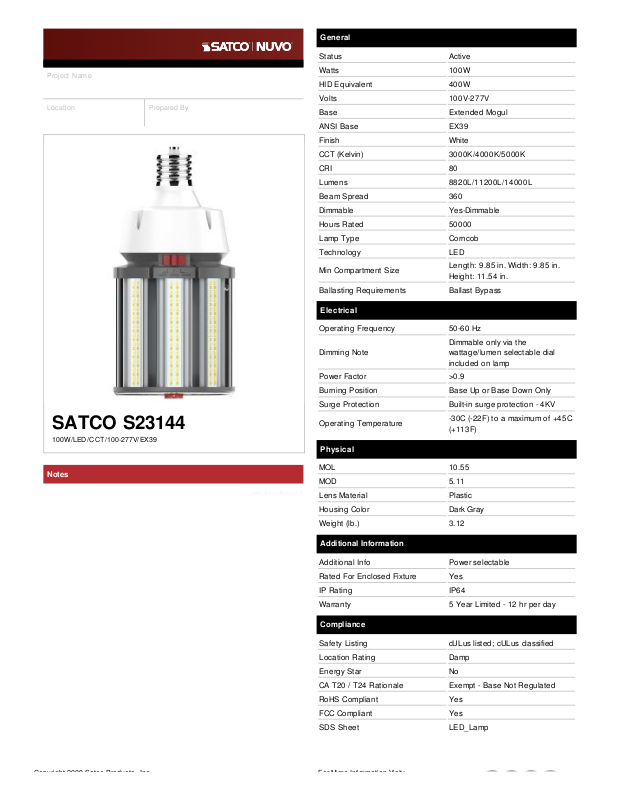

SATCO S23144
100W/ LED/ CC T/100-277V/EX39
