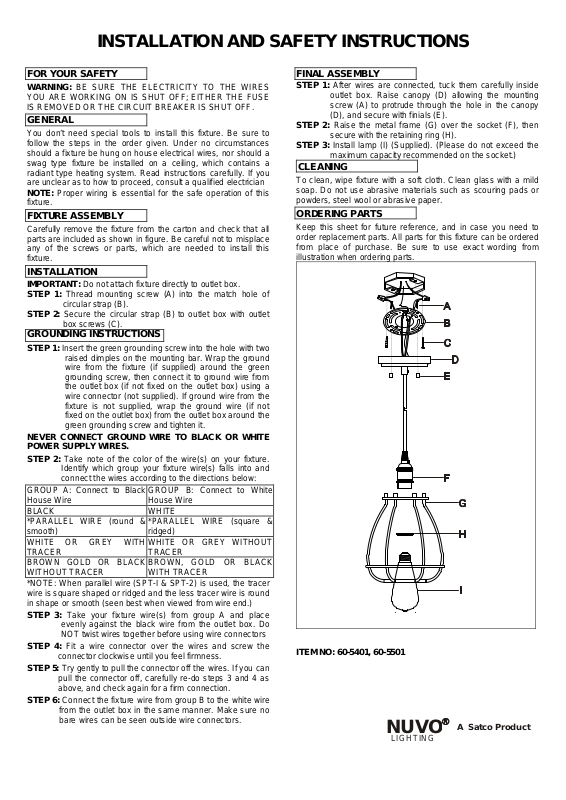

INSTALLATION AND SAFETY INSTRUCTIONS
O
FOR YOUR SAFETY
WARNING: BE SURE THE ELECTRICITY TO THE WIRES
YOU ARE WORKING ON IS SHUT OFF; EITHER THE FUSE
IS REMOVED OR THE CIRCUIT BREAKER IS SHUT OFF.
GENERAL
You don’t need special tools to install this fixture. Be sure to
follow the steps in the order given. Under no circumstances
should a fixture be hung on house electrical wires, nor should a
swag type fixture be installed on a ceiling, which contains a
radiant type heating system. Read instructions carefully. If you
are unclear as to how to proceed, consult a qualified electrician
NOTE: Proper wiring is essential for the safe operation of this
fixture.

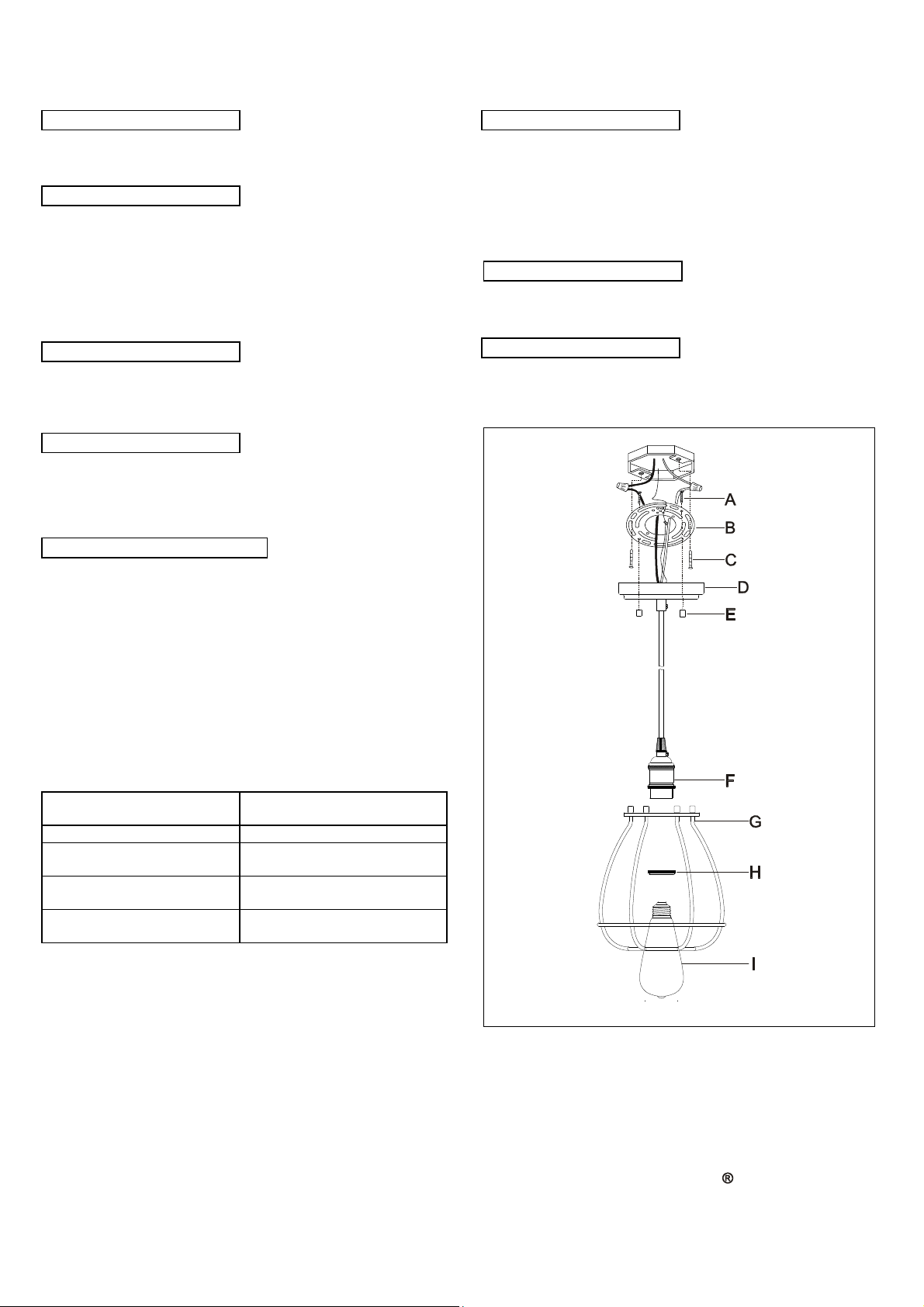

FIXTURE ASSEMBLY
Carefully remove the fixture from the carton and check that all
parts are included as shown in figure. Be careful not to misplace
any of the screws or parts, which are needed to install this
fixture.
INSTALLATION
IMPORTANT: Do not attach fixture directly to outlet box.
STEP 1: Thread mounting screw (A) into the match hole of
circular strap (B).
STEP 2: Secure the circular strap (B) to outlet box with outlet
box screws (C).
GROUNDING INSTRUCTIONS
STEP 1: Insert the green grounding screw into the hole with two
raised dimples on the mounting bar. Wrap the ground
wire from the fixture (if supplied) around the green
grounding screw, then connect it to ground wire from
the outlet box (if not fixed on the outlet box) using a
wire connector (not supplied). If ground wire from the
fixture is not supplied, wrap the ground wire (if not
fixed on the outlet box) from the outlet box around the
green grounding screw and tighten it.
NEVER CONNECT GROUND WIRE TO BLACK OR WHITE
POWER SUPPLY WIRES.
STEP 2: Take note of the color of the wire(s) on your fixture.
Identify which group your fixture wire(s) falls into and
connect the wires according to the directions below:
GROUP A: Connect to Black
House Wire
BLACK WHITE
*PARALLEL WIRE (round &
smooth)
WHITE OR GREY WITH
TRACER
BROWN GOLD OR BLACK
WITHOUT TRACER
*NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer
wire is square shaped or ridged and the less tracer wire is round
in shape or smooth (seen best when viewed from wire end.)
STEP 3: Take your fixture wire(s) from group A and place
evenly against the black wire from the outlet box. Do
NOT twist wires together before using wire connectors
STEP 4: Fit a wire connector over the wires and screw the
connector clockwise until you feel firmness.
STEP 5: Try gently to pull the connector off the wires. If you can
pull the connector off, carefully re-do steps 3 and 4 as
above, and check again for a firm connection.
STEP 6: Connect the fixture wire from group B to the white wire
from the outlet box in the same manner. Make sure no
bare wires can be seen outside wire connectors.
GROUP B: Connect to White
House Wire
*PARALLEL WIRE (square &
ridged)
WHITE OR GREY WITHOUT
TRACER
BROWN, GOLD OR BLACK
WITH TRACER
FINAL ASSEMBLY
STEP 1: After wires are connected, tuck them carefully inside
outlet box. Raise canopy (D) allowing the mounting
screw (A) to protrude through the hole in the canopy
(D), and secure with finials (E).
STEP 2: Raise the metal frame (G) over the socket (F), then
secure with the retaining ring (H).
STEP 3: Install lamp (I) (Supplied). (Please do not exceed the
maximum capacity recommended on the socket.)
CLEANING
To clean, wipe fixture with a soft cloth. Clean glass with a mild
soap. Do not use abrasive materials such as scouring pads or
powders, steel wool or abrasive paper.
ORDERING PARTS
Keep this sheet for future reference, and in case you need to
order replacement parts. All parts for this fixture can be ordered
from place of purchase. Be sure to use exact wording from
illustration when ordering parts.
ITEM NO: 60-5401, 60-5501
