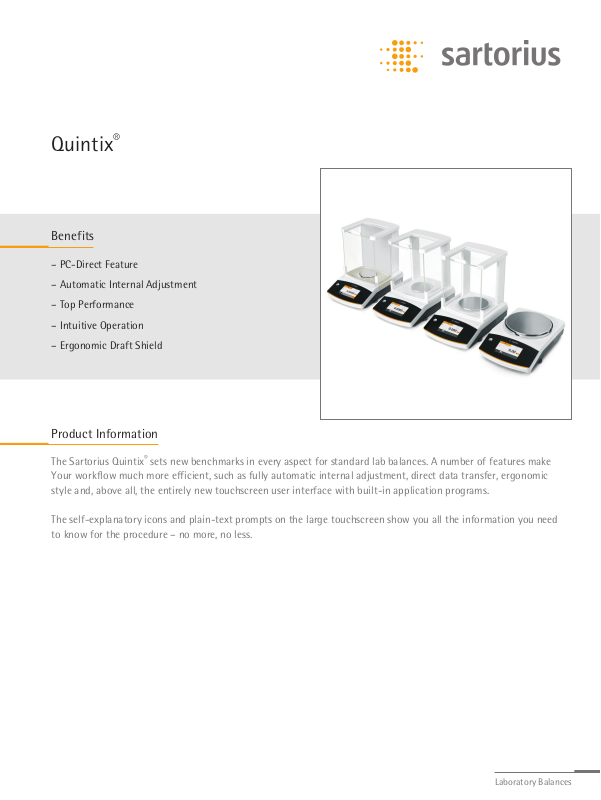

Sartorius Quintix64-1S, QUINTIX224-1S, QUINTIX124-1S Data Sheet
Quintix
®
Benefits
– PC-Direct Feature
– Automatic Internal Adjustment
– Top Performance
– Intuitive Operation
– Ergonomic Draft Shield
Product Information
The Sartorius Quintix® sets new benchmarks in every aspect for standard lab balances. A number of features make
Your workflow much more efficient, such as fully automatic internal adjustment, direct data transfer, ergonomic
style and, above all, the entirely new touchscreen user interface with built-in application programs.
The self-explanatory icons and plain-text prompts on the large touchscreen show you all the information you need
to know for the procedure – no more, no less.
Laboratory Balances
Technical Specifications
AC Adapter
Sartorius AC adaptor module 6971790 with interchangeable
country-specific plug-in AC
adaptors
Primary 100 – 240 V~, –10%|+10%,
50 – 60 Hz, 0.2 A
Secondary 15 V DC, ± 5%, 530 mA (max.) |
8 Watt (max.): 0 to +40 °C and
15 V DC, ± 5%, 330 mA (max.) |
5 Watt (max.): 0 to +50 °C
Other data protection class II, in accordance
with EN | IEC 60950-1 up to
3000 m above sea level;
IP40 as per EN | IEC 60529
Balance
Power supply only via Sartorius AC adaptor
module 6971790
Input voltage 12.0 – 15.0 V DC
Power consumption 2.0 W (typically)
4.5 W (typically), only for
125D-1×, 65-1× and 35-1×
Ambient Conditions
The specifications apply when the following ambient conditions
are in place:
Environment for indoor use only
Ambient temperature* +10 °C to +30 °C
Operational capacity guaranteed between
+5 °C and +45 °C
Storage and shipping –10 °C to +60 °C
Elevation up to 3000 m above sea level
Relative humidity** 15% to 80% for temperatures
up to 31 °C; non-condensing,
decreasing linearly to 50% relative
humidity at 40 °C and 20% at 50 °C
Safety of electrical
equipment
in accordance with EN 61010-1/
IEC 61010-1. Safety requirements
for electrical equipment for mea
surement, control, and laboratory
use – Part 1: General requirements
Electromagnetic
compatibility
in accordance with EN 61326-1/
IEC 61326-1. Electrical equipment
for measurement, control, and
laboratory use – EMC requirements
- Part 1: General requirements
Defined immunity to
Suitable for use in industrial areas
interference
Interference emission Class B (suitable for use in
residential areas and areas that
are connected to a low voltage
network that also supplies
residential buildings).
The device can therefore be
used in both areas.
Balances verified for use in legal metrology comply with the
requirements of Council Directive 2009/23/EC, EN 45501:1992,
and OIML R76:2006.
* For balances verified for use in legal metrology in accordance with EU
requirements, refer to the information on the balance.
** For balances verified for use in legal metrology in accordance with EU
requirements, the legal regulations apply.
Standard Equipment
Levelling Glass level indicator with air
bubble for centering
Calibration nternal calibration isoCAL,
External calibration
1)
Selectable weight units
Gram, kilogram, carat, pound,
ounce, troy ounce, Hong Kong tael,
Singapore tael, Taiwan tael, grain,
pennyweights, milligram, parts
per pound, China tael, mommes,
Austrian carat, tola, baht, mesghal
and Newton
Interface mini USB
– Automatic recognition of
Sartorius printer models YDP30
or YDP40
– Direct data transfer to
Microsoft
®
Windows programs
– Programmable interval for data
output
– Data transfer protocols SBI,
xBPI, table format, text format
Display Touch screen with Sartorius
graphical user interface
Standard built-in
applications
Weighing, Density, Percentage,
Checkweighing, Peak Hold,
Counting, Unstable Conditions |
Animal weighing
Standard Equipment
Special built-in lab
applications
Mixing, Components, Statistics,
Conversion
Languages English, French, German, Hungarian,
Italian, Polish, Portuguese, Russian,
Spanish, Turkish, Chinese, Japanese,
Korean
Protection – Chemical resistant finish of the
top housing
– Glass parts of the draft shield
are coated to reduce electrostatic
influences
– In-use cover
– Dust cover for balances with
draft shield
Password protection Supervisor lock for protection
against unintentional changes
Anti-theft lock Kensington lock and lockdown
capability for cable or chain
1)
Limited for verified models
Laboratory Balances 3
Standard Models
Model 125D-1x
1)
65-1x
1)
35-1x
Design 1 1 1
Weighing capacity g 40 | 60 | 120 40 | 60 30
Readability mg 0.01 | 0.01 | 0.1 0.01 | 0.01 0.01
Repeatability (standard deviation) mg 0.03 | 0.04 | 0.07 0.03 | 0.04 0.03
Repeatability (standard deviation), typical mg 0.02 | 0.04 | 0.07 0.02 | 0.04 0.03
Linearity deviation mg 0.1 | 0.1 | 0.2 0.1 | 0.1 0.1
Typical starting point of the operating range
Optimal starting point of the operating range
2)
2)
mg 25* 25* 25*
mg 8.2* 8.2* 8.2*
Sensitivity drift between +10 °C and +30 °C ± ppm/K 1 1 1
Typical stabilization time s 6 | 6 | 2 6 | 6 6
isoCAL:
– Temperature change
– Time interval
K
h
1.5
4
1.5
4
1.5
4
Display result (depending on the set filter level) s 0.2 | 0.4 0.2 | 0.4 0.2 | 0.4
Weighing pan size mm
d 80
(optional d 90)
d 80
(optional d 90)
d 80
(optional d 90)
Weighing chamber height** mm 218 218 218
Net weight, approx. kg 7.8 7.8 7.8
IP protection class IP43 IP43 IP43
Model 224-1x
1)
124-1x
1)
64-1x
Design 2 2 2
Weighing capacity g 220 120 60
Readability mg 0.1 0.1 0.1
Repeatability (standard deviation) mg 0.1 0.1 0.1
Linearity deviation mg 0.2 0.2 0.2
Typical starting point of the operating range
Optimal starting point of the operating range
2)
2)
mg 120 120 120
mg 82 82 82
Sensitivity drift between +10 °C and +30 °C ± ppm/K 1.5 1.5 1.5
Typical stabilization time s 2 2 2
isoCAL:
– Temperature change
– Time interval
K
h
1.5
4
1.5
4
1.5
4
Display result (depending on the set filter level) s 0.2 0.2 0.2
Weighing pan size mm
d 90 d 90 d 90
Weighing chamber height** mm 209 209 209
Net weight, approx. kg 4.9 4.9 4.9
1)
1)

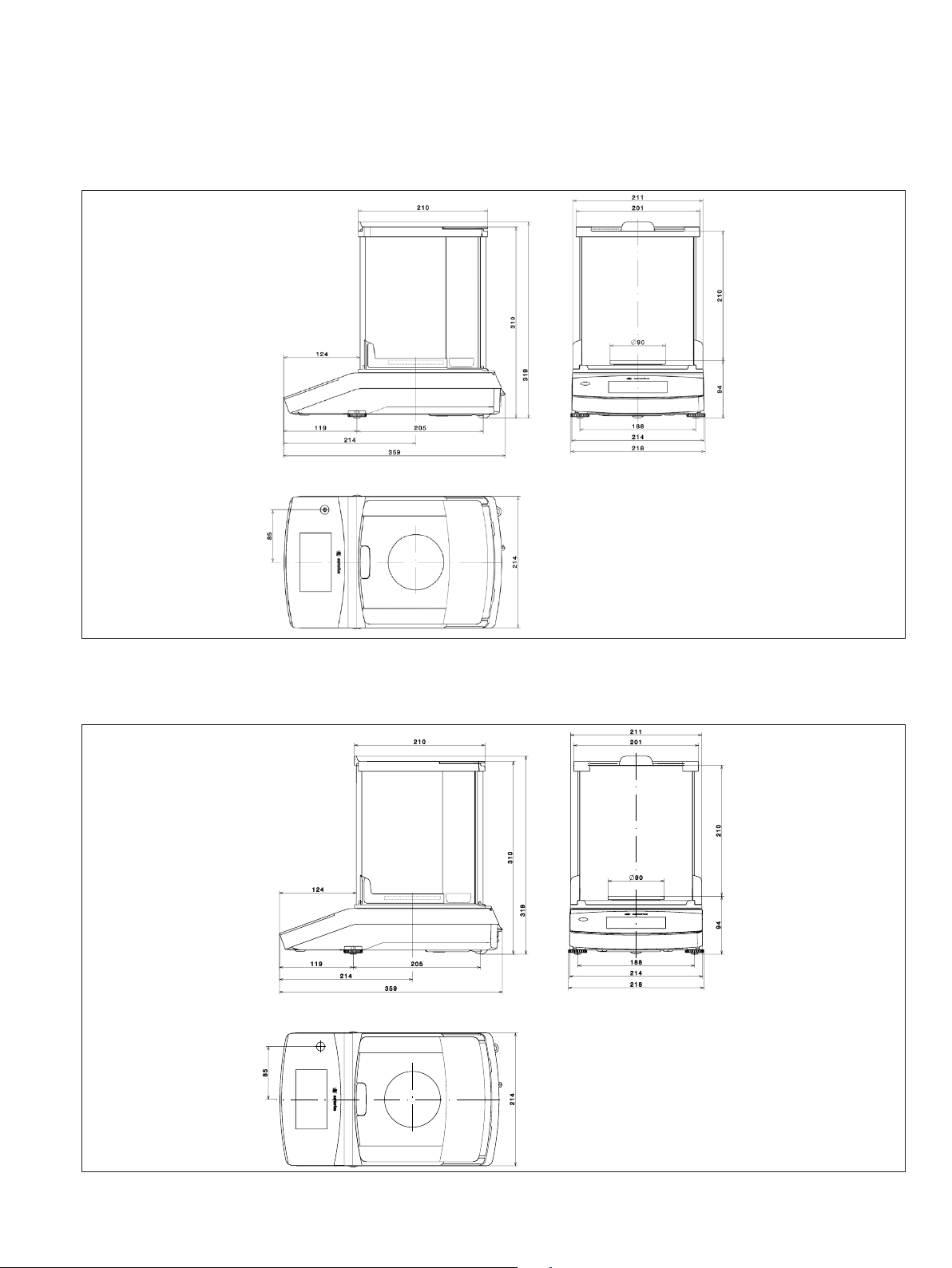

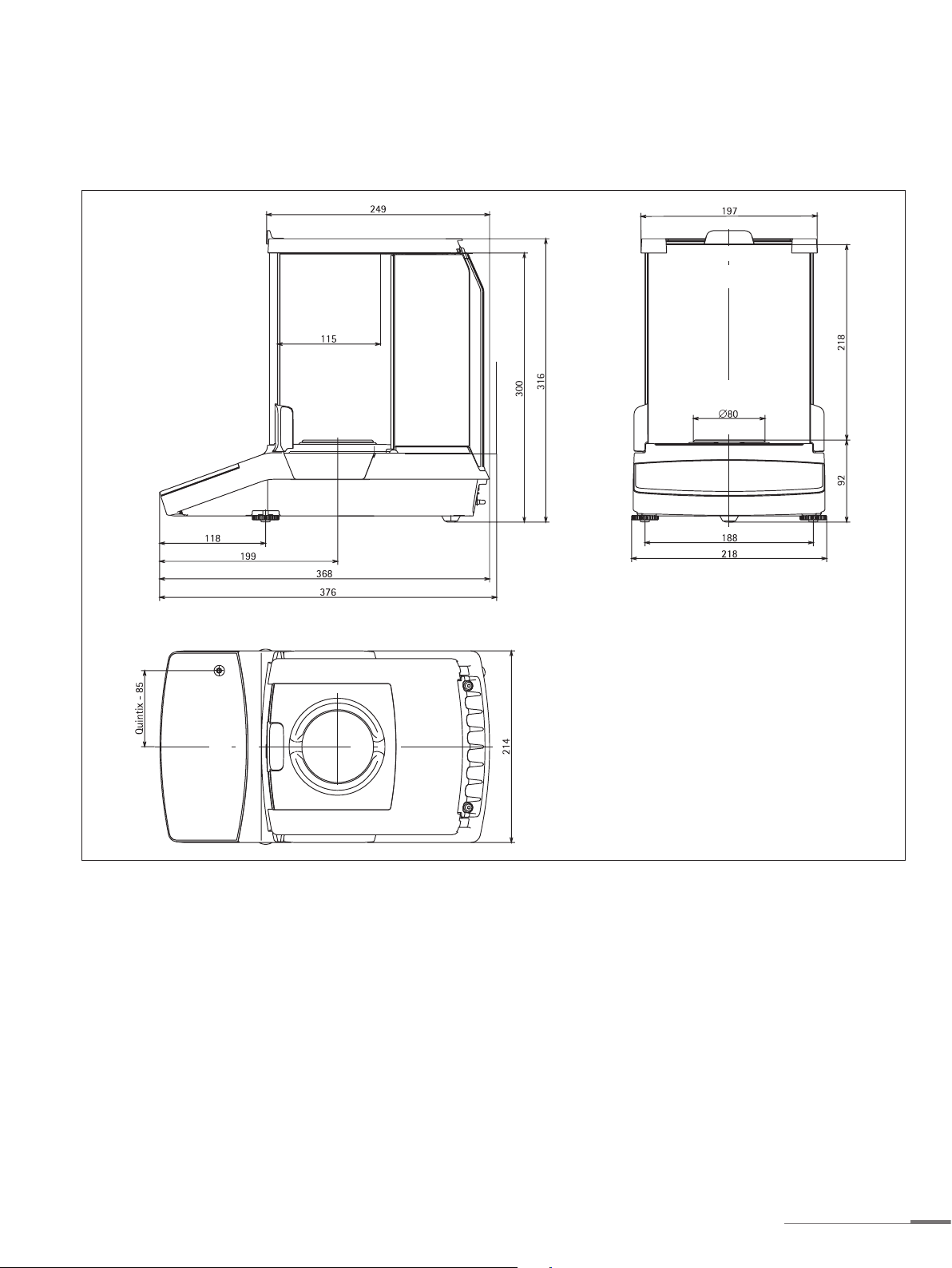

Design 3Design 1 Design 2 Design 4
