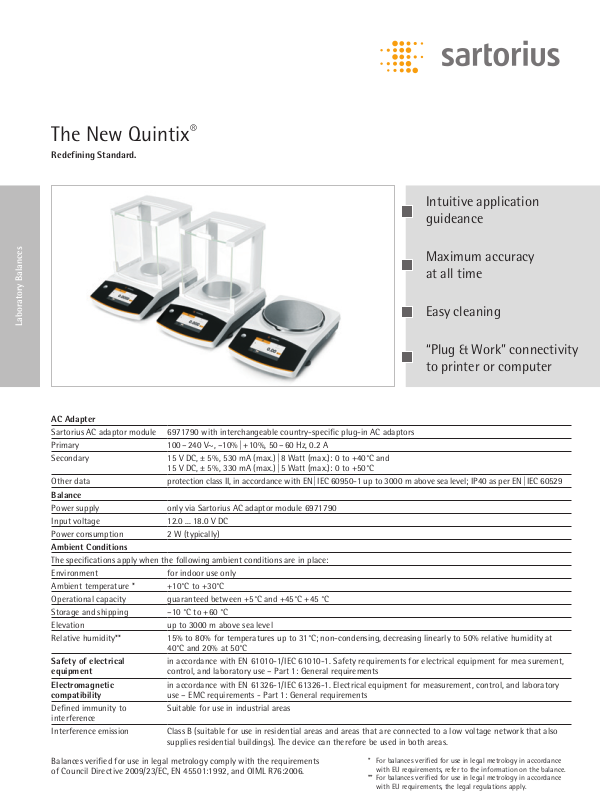

Sartorius Quintix613-1S, Quintix6102-1S, QUINTIX612-1S, QUINTIX2102-1S, Quintix2101-1S Data Sheet

The New Quintix

Redefining Standard.

®

Intuitive application
guideance

Maximum accuracy
at all time

Laboratory Balances

“Plug & Work” connectivity
to printer or computer

AC Adapter

Sartorius AC adaptor module 6971790 with interchangeable country-specific plug-in AC adaptors
Primary 100 – 240 V~, –10% | +10%, 50 – 60 Hz, 0.2 A

Easy cleaning

Secondary 15 V DC, ± 5%, 530 mA (max.) | 8 Watt (max.): 0 to +40°C and

Other data protection class II, in accordance with EN | IEC 60950-1 up to 3000 m above sea level; IP40 as per EN | IEC 60529

Balance

Power supply only via Sartorius AC adaptor module 6971790
Input voltage 12.0 ... 18.0 V DC
Power consumption 2 W (typically)

Ambient Conditions

The specifications apply when the following ambient conditions are in place:
Environment for indoor use only
Ambient temperature * +10°C to +30°C
Operational capacity guaranteed between +5°C and +45°C +45 °C
Storage and shipping –10 °C to +60 °C
Elevation up to 3000 m above sea level
Relative humidity** 15% to 80% for temperatures up to 31°C; non-condensing, decreasing linearly to 50% relative humidity at

Safety of electrical
equipment

Electromagnetic
compatibility

Defined immunity to
interference

Interference emission Class B (suitable for use in residential areas and areas that are connected to a low voltage network that also

15 V DC, ± 5%, 330 mA (max.) | 5 Watt (max.): 0 to +50°C

40°C and 20% at 50°C
in accordance with EN 61010-1/IEC 61010-1. Safety requirements for electrical equipment for mea surement,

control, and laboratory use – Part 1: General requirements
in accordance with EN 61326-1/IEC 61326-1. Electrical equipment for measurement, control, and laboratory

use – EMC requirements - Part 1: General requirements
Suitable for use in industrial areas

supplies residential buildings). The device can therefore be used in both areas.

Balances verified for use in legal metrology comply with the requirements
of Council Directive 2009/23/EC, EN 45501:1992, and OIML R76:2006.

* For balances verified for use in legal metrology in accordance

with EU requirements, refer to the information on the balance.

** For balances verified for use in legal metrology in accordance

with EU requirements, the legal regulations apply.

Technical Specifications

Standard Equipment

Levelling Glass level indicator with air bubble for centering
Calibration Internal calibration isoCAL, External calibration

1

Selectable weight units

Interface mini USB

Display Touch screen with Sartorius graphical user interface optimized

Standard built-in
applications

Special built-in lab
applications

Languages English, German, French, Spanish, Italian, Russian, Chinese,

Protection – Chemical resistant finish of the housing

Password protection Supervisor lock for protection against unintentional changes
Anti-theft lock Kensington lock and lockdown capability for cable or chain
Underfloor weighing Integrated

1

Limited for verified models

Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong
tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram,
parts per pound, China tael, mommes, Austrian carat, tola, baht,
mesghal and Newton

– Automatic recognition of Sartorius printer models YDP30

or YDP40

– Direct data transfer to Microsoft

®

Windows programs
– Programmable interval for data output
– Data transfer protocols SBI, xBPI, table format, text format

for users in pharmaceutical laboratories
Weighing, Density, Percentage, Checkweighing, Peak Hold,

Counting, Unstable Conditions
Mixing, Components, Statistics, Conversion

Polish, Japanese, Portuguese

– In-use cover
– Dust cover for analytical balances

Analytical Balances Quintix®

Model 224 124

Weighing capacity g 220 120
Readability mg 0.1 0.1
Repeatability (standard deviation) mg 0.1 0.1
Linearity deviation mg 0.2 0.2
Sensitivity drift between +10 and +30°C ± ppm/K 1.5 1.5
Typical stabilization time s 3 2
isoCAL:

– Temperature change
– Time interval

K
h

1.5
4

1.5

4
Display result (depending on the set filter level) s 0.2 0.2
Weighing pan size mm d 90 d 90
Weighing chamber height mm 209 209
Net weight, approx. kg 4.9 4.9
Dimensions, D + W + H mm

Inch

360 + 216 + 320

14.1 + 8.5 + 12.6

Precision Balances Quintix

®

Model 513 313 213 5102 3102 2102 1102 612 5101 5100

Weighing capacity g 510 310 210 5100 3100 2100 1100 610 5100 5100
Readability mg 1 1 1 10 10 10 10 10 100 1000
Repeatability (standard

mg 1 1 1 10 10 10 10 10 100 500

deviation)
Linearity deviation mg 2 2 2 20 20 30 30 30 300 1000
Sensitivity drift between

± ppm/K 3 3 3 3 3 5 5 5 10 10

+10 and +30°C
Typical stabilization time s 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2
isoCAL:

– Temperature change
– Time interval

Display result (depending

K
h

2
6

4
12

4
12

2
6

4
12

4
12

4
24

4
24

4
24

4
24

s 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2

on the set filter level)
Weighing pan size mm d 120 d 120 d 120 d 180 d 180 d 180 d 180 d 180 d 180 d 180
Weighing chamber height mm 209 209 209 – – – – – – –
Net weight, approx. kg 4.9 4.9 4.9 5.2 5.2 4.7 4.7 4.7 4.7 4.7
Dimensions, D + W + H mm

Inch

360 + 216 + 320

14.1 + 8.5 + 12.6

360 + 216 + 95

14.1 + 8.5 + 3.75

Verified Models with Country-specific Type Approval Certificate

®

Analytical Balances Quintix
Model

Accuracy class

2

Type

224-1x

1

124-1x

1

k k

SQP-A SQP-A
Max g 220 120
Scale interval d mg 0.1 0.1
Verification scale interval e mg 1 1
Min mg 10 10
Tare (subtractive) <100 % of the max. weighing capacity
Typical stabilization time s 3 2
isoCAL:

– Temperature change
– Time interval

K

h

1.5
4

1.5

4
Display result (depending on the set filter level) s 0.2 0.2
Weighing pan size mm d 90 d 90
Weighing chamber height mm 209 209
Net weight, approx. kg 4.9 4.9
Dimensions, D + W + H mm

Inch

®

Precision Balances Quintix

360 + 216 + 320

14.1 + 8.5 + 12.6

Model 513-1x1313-1x1213-1x15102-1x13102-1x12102-1x11102-1x2612-1x15101-1x1 5100-1x

Accuracy class

2

Type

� � � � � � � � � �

SQP-B SQP-B SQP-B SQP-C SQP-C SQP-D SQP-D SQP-D SQP-E SQP-E
Max g 510 310 210 5100 3100 2100 1100 610 5100 5100
Scale interval d mg 1 1 1 10 10 10 10 0.01 0.1 1
Verification scale

mg 10 10 10 100 100 100 100 0.1 1 1
interval e

Min mg 20 20 20 500 500 500 500 0.5 5 50
Tare (subtractive) < 100 % of the max. weighing capacity
Typical stabilization

s 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2
time

isoCAL:
– Temperature

change

– Time interval
Display result

K

2

h

4

2

6

2

6

2

6

2

6

2

6

2

6

2

6

2

6

s 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2 0.1 | 0.2

2

6

(depending on the
set filter level)

Weighing pan size mm d 120 d 120 d 120 d 180 d 180 d 180 d 180 d 180 d 180 d 180
Weighing

mm 209 209 209 – – – – – – –
chamber height

Net weight, approx. kg 4.9 4.9 4.9 5.2 5.2 4.7 4.7 4.7 4.7 4.7
Dimensions,

D + W + H

mm

360 + 216 + 320

Inch

14.1 + 8.5 + 12.6

360 + 216 + 95

14.1 + 8.5 + 3.75

1

1

Possible terms for country-specific
models:
x = CEU: Verified balances with EC Type

Approval Certificate D12-09-014
(for EU except France, Italy, and
Switzerland)

x = CFR: Verified balances with EC Type

Approval Certificate D12-09-014
for France only

x = CIT: Verified balances with EC Type

Approval Certificate D12-09-014
for Italy only

x = CCH: Verified balances with EC Type

Approval Certificate D12-09-014

for Switzerland only
x = NUS: NTEP Certificate for USA
x = CN: CMC Type Approval Certificate

for China

x = 0JP: Balance with Type Approval

Certificate for Japan

x = 0BR: Balance with Type Approval

Certificate for Brazil

x = 0AR: Balance with Type Approval

Certificate for Argentina

x = 0KR: Balance with Type Approval

Certificate for South Korea

x = 0RU: Balance with Type Approval

Certificate for Russia

x = 0IN: Balance with Type Approval

Certificate for India

x = 0CA: Balance with Type Approval

Certificate for Canada

2

All models with “...CN”: type “SQP”

Optional Accessories

Printers and Communications

Premium GLP Laboratory Printer
– Printer paper for GLP laboratory printer
– Endless labels for GLP laboratory printer

Standard Laboratory Printer
– Printer paper for standard laboratory printer

Data Cable Mini USB | USB A YCC04-D09
Date Cable Mini USB | RS232 9-pin YCC03-D09

General

Battery Pack for Standard Lab Balances YRB11Z
Draft ring for analytical balances YDS01SQP
In-use cover for analytical balances 6960SE01
In-use cover for precision balances 6960SE02
Dust cover for analytical balances with draft shield 6960SE03

Density Determination

Density kit for analytical balances YDK03
Density kit for precision balances

– for lab balance model 2102; 1102; 612

Calibration Weights

Calibration for lab balance model 124
– Proof Line knob weight 100 g, OIML class E2, with DAkkS certificate

Calibration for lab balance model 224; 313; 213
– Proof Line knob weight 200 g, OIML class E2, with DAkkS certificate

Calibration for lab balance model 513; 612
– Proof Line knob weight 500 g, OIML class E2, with DAkkS certificate

Calibration for lab balance model 1102
– Proof Line knob weight 1 kg, OIML class E2, with DAkkS certificate

Calibration for lab balance model 3102; 2102
– Proof Line knob weight 2 kg, OIML class E2, with DAkkS certificate

Calibration for lab balance model 5102; 5101; 5100
– Proof Line knob weight 5 kg, OIML class E2, with DAkkS certificate

YDP30
69Y03285
69Y03286

YDP40
69Y03287

YDK04

YCW512-AC-02

YCW522-AC-02

YCW552-AC-02

YCW612-AC-02

YCW622-AC-02

YCW652-AC-02

YDP40, Standard Laboratory Printer

Technical Drawings

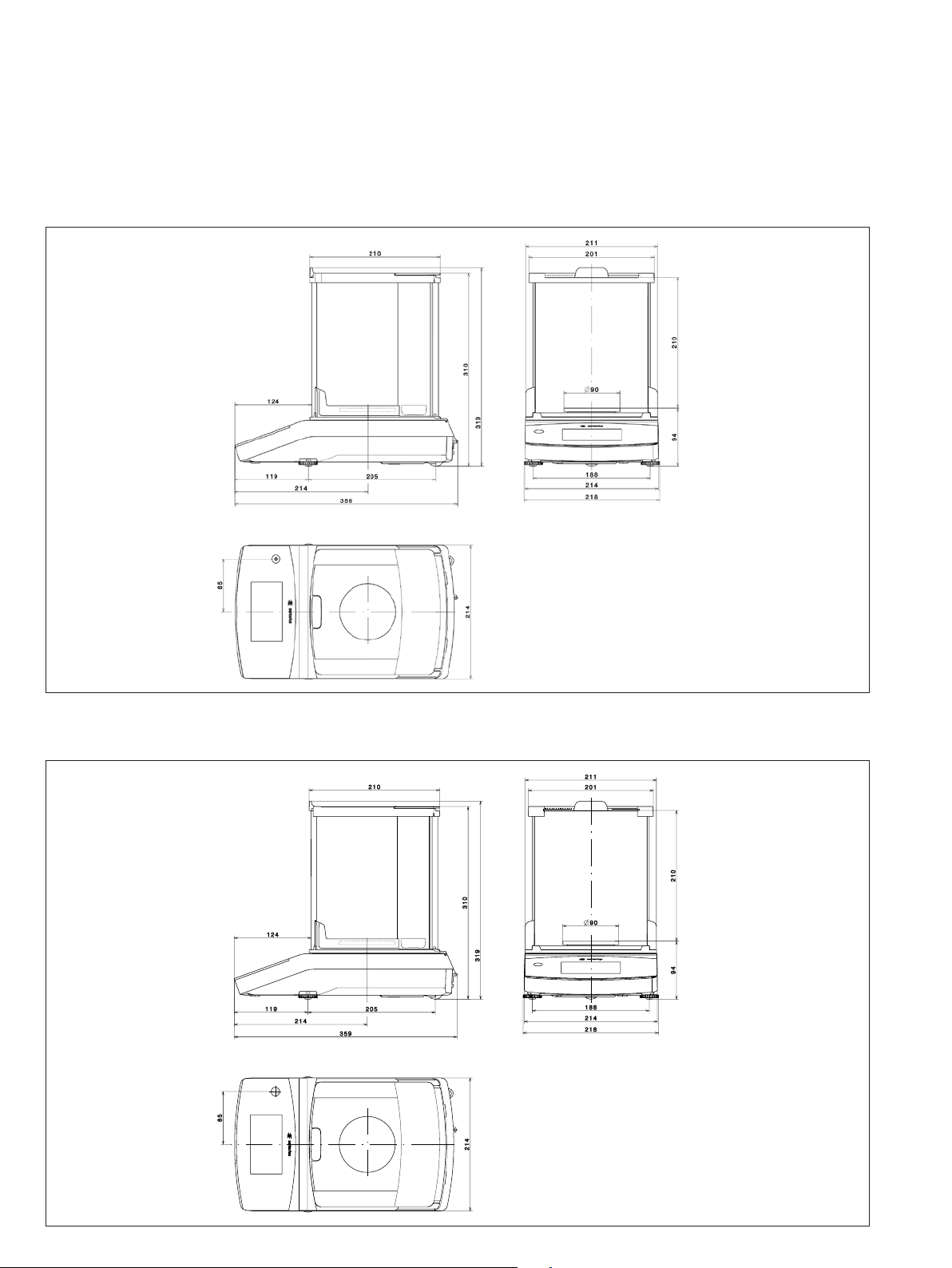

Models with a readability of 0.1 mg, in mm

Models with a readability of 1 mg, in mm

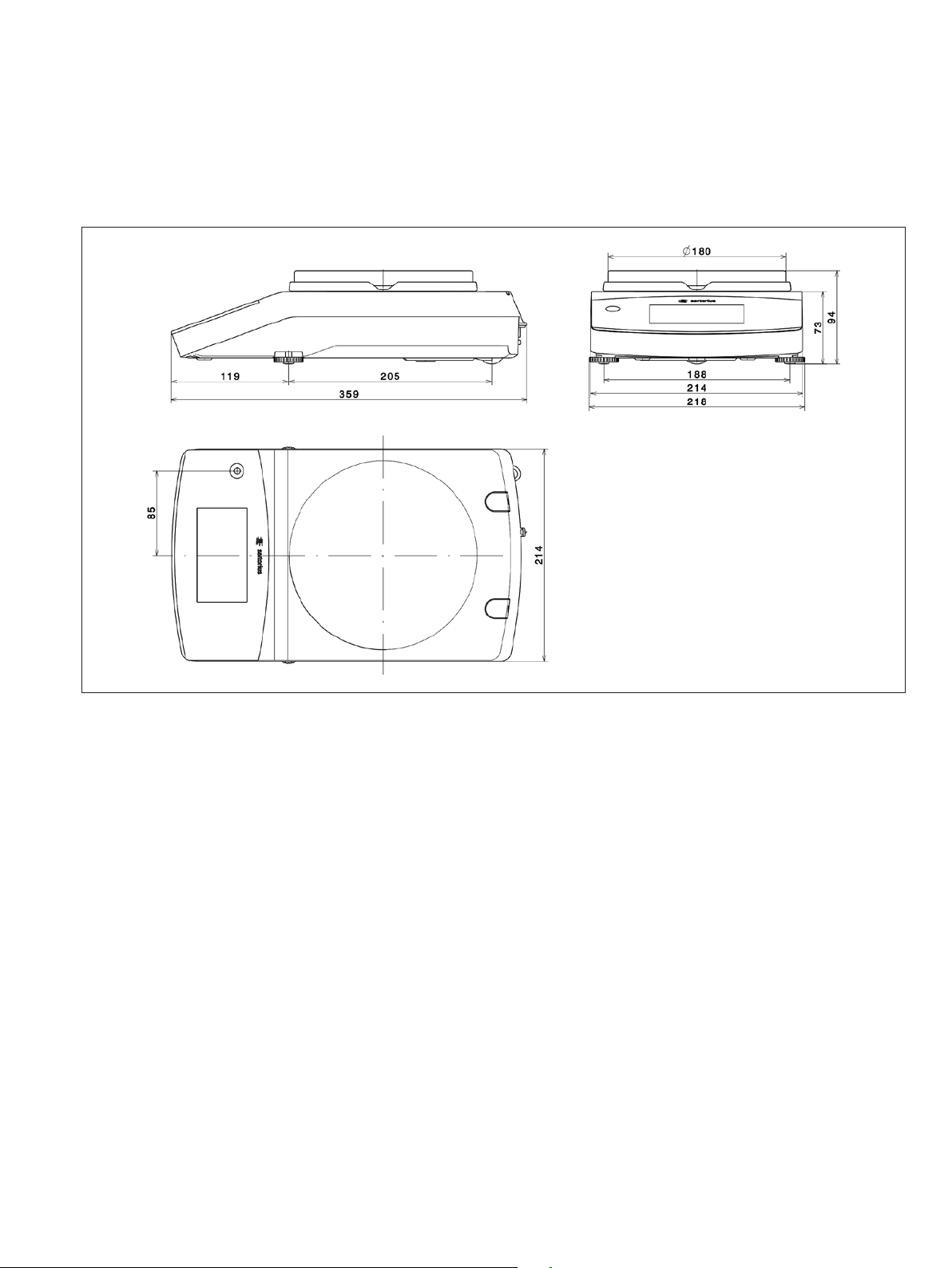

Models with a readability of > 10 mg, in mm

Europe

Germany

Sartorius Weighing Technology GmbH
Weender Landstrasse 94–108
37075 Goettingen

Phone [phone]
Fax [phone]

www.sartorius.com

France & Suisse Romande

Sartorius France S.A.S.
ZI Les Paluds
Avenue de Jouques – CS 31090
13781 Aubagne Cedex

Phone [phone]
Fax [phone]

Austria

Sartorius Austria GmbH
Franzosengraben 12
1030 Vienna

Phone [phone]
Fax [phone]

Belgium

Sartorius Belgium N.V.
Leuvensesteenweg, 248/B
1800 Vilvoorde

Phone [phone]
Fax [phone]

Finland & Baltics

Sartorius Biohit Liquid Handling Oy
Laippatie 1
00880 Helsinki

Phone [phone]
Fax [phone]

Hungary

Sartorius Hungária Kft.
Kagyló u. 5.
2092 Budakeszi

Phone [phone]
Fax [phone]

Ireland

Sartorius Ireland Ltd.
Unit 41, The Business Centre
Stadium Business Park
Ballycoolin Road
Dublin 11

Phone [phone]
Fax [phone]

Italy

Sartorius Italy S.r.l.
Via dell’Antella, 76/A
50012 Antella-Bagno a Ripoli (FI)

Phone [phone]
Fax [phone]

Netherlands

Sartorius Netherlands B.V.
Edisonbaan 24
3439 MN Nieuwegein

Phone [phone]
Fax [phone]

Poland

Sartorius Poland sp.z o.o.
ul. Wrzesinska 70
62-025 Kostrzyn

Phone [phone]
Fax [phone]

Russian Federation

LLC “Sartorius ICR”
and LLC “Biohit”
Uralskaya str. 4, Lit. B
199155, Saint-Petersburg

Phone [phone]
Fax [phone]

Scandinavia

Sartorius Nordic A/S
Hoerskaetten 6D
2630 Taastrup, Denmark

Phone [phone]
Fax [phone]

Spain & Portugal

Sartorius Spain S.A.
Offices in Madrid:
C/ Isabel Colbrand, 10–12, of. 70
28050 Madrid

Phone Spain +34.902.123.367
Phone Portugal +351.800.855.800
Fax Spain +34.91.358.84.85
Fax Portugal +351.800.855.799

Switzerland

Sartorius Mechatronics Switzerland AG
Ringstrasse 24a
8317 Tagelswangen (ZH)

Phone [phone]
Fax [phone]

U.K.

Sartorius UK Ltd.
Longmead Business Centre
Blenheim Road, Epsom
Surrey KT19 9QQ

Phone [phone]
Fax [phone]

America

USA

Sartorius Corporation
5 Orville Drive, Suite 200
Bohemia, NY 11716

Phone [phone]
Toll-free +1.800.635.2906
Fax [phone]

Argentina

Sartorius Argentina S.A.
Int. A. Ávalos 4251
B1605ECS Munro
Buenos Aires

Phone [phone]
Fax [phone]

Brazil

Sartorius do Brasil Ltda
Av. Dom Pedro I, 241
Bairro Vila Pires
Santo André
São Paulo
Cep 09110-001

Phone [phone]
Fax [phone]

Canada

Sartorius Canada Inc.
2179 Dunwin Drive #4
Mississauga, ON L5L 1X2

Phone [phone]
Toll-Free +1.800.668.4234
Fax [phone]

Mexico

Sartorius de México S.A. de C.V.
Circuito Circunvalación Poniente
No. 149
Ciudad Satélite
53100, Estado de México
México

Phone [phone]
Fax [phone]

Asia|Pacific

Australia

Sartorius Australia Pty. Ltd.
Unit 5, 7-11 Rodeo Drive
Dandenong South Vic 3175

Phone [phone]
Fax [phone]

China

Sartorius Scientific
Instruments (Beijing) Co., Ltd.
33 Yu An Road, Airport Industrial Park
Zone B,
Shunyi District, Beijing 101300 ,
P.R.China

Phone [phone]
Fax [phone]

Hong Kong

Sartorius Hong Kong Ltd.
Unit

1012, Lu Plaza
2 Wing Yip Street
Kwung Tong
Kowloon, Hong Kong

Phone [phone]
Fax [phone]

India

Sartorius Weighing India Pvt. Ltd.
#69/2-69/3, NH 48, Jakkasandra,
Nelamangala Tq
562 123 Bangalore, India

Phone [phone]
Fax [phone]

Japan

Sartorius Japan K.K.
4F Daiwa Shinagawa North Bldg.
8-11, Kita-Shinagawa 1-chome
Shinagawa-ku
Tokyo 140-0001

Phone [phone]
Fax [phone]

Malaysia

Sartorius Malaysia Sdn. Bhd
Lot L3-E-3B, Enterprise 4
Technology Park Malaysia
Bukit Jalil
57000 Kuala Lumpur, Malaysia

Phone [phone]
Fax [phone]

Singapore

Sartorius Singapore Pte. Ltd
1 Science Park Road,
The Capricorn, #05-08A,
Singapore Science Park II
Singapore 117528

Phone [phone]
Fax [phone]

South Korea

Sartorius Korea Ltd.
8th Floor, Solid Space B/D,
PanGyoYeok-Ro 220, BunDang-Gu
SeongNam-Si, GyeongGi-Do, 463-400

Phone [phone]
Fax [phone]

Thailand

Sartorius (Thailand) Co. Ltd.
129 Rama 9 Road,
Huaykwang
Bangkok 10310

Phone [phone]
Fax [phone]

For further contacts, visit www.sartorius.com

Sales and Service Contacts

For further contacts, visit www.sartorius.com

Europe

Germany

Sartorius Weighing Technology GmbH
Weender Landstrasse 94–108
37075 Goettingen

Phone [phone]
Fax [phone]

www.sartorius.com

France & Suisse Romande

Sartorius France S.A.S.
ZI Les Paluds
Avenue de Jouques – CS 31090
13781 Aubagne Cedex

Phone [phone]
Fax [phone]

Austria

Sartorius Austria GmbH
Franzosengraben 12
1030 Vienna

Phone [phone]
Fax [phone]

Belgium

Sartorius Belgium N.V.
Leuvensesteenweg, 248/B
1800 Vilvoorde

Phone [phone]
Fax [phone]

Finland & Baltics

Sartorius Biohit Liquid Handling Oy
Laippatie 1
00880 Helsinki

Phone [phone]
Fax [phone]

Hungary

Sartorius Hungária Kft.
Kagyló u. 5.
2092 Budakeszi

Phone [phone]
Fax [phone]

Ireland

Sartorius Ireland Ltd.
Unit 41, The Business Centre
Stadium Business Park
Ballycoolin Road
Dublin 11

Phone [phone]
Fax [phone]

Italy

Sartorius Italy S.r.l.
Via dell’Antella, 76/A
50012 Antella-Bagno a Ripoli (FI)

Phone [phone]
Fax [phone]

Netherlands

Sartorius Netherlands B.V.
Edisonbaan 24
3439 MN Nieuwegein

Phone [phone]
Fax [phone]

Poland

Sartorius Poland sp.z o.o.
ul. Wrzesinska 70
62-025 Kostrzyn

Phone [phone]
Fax [phone]

Russian Federation

LLC “Sartorius ICR”
and LLC “Biohit”
Uralskaya str. 4, Lit. B
199155, Saint-Petersburg

Phone [phone]
Fax [phone]

Scandinavia

Sartorius Nordic A/S
Hoerskaetten 6D
2630 Taastrup, Denmark

Phone [phone]
Fax [phone]

Spain & Portugal

Sartorius Spain S.A.
Offices in Madrid:
C/ Isabel Colbrand, 10–12, of. 70
28050 Madrid

Phone Spain +34.902.123.367
Phone Portugal +351.800.855.800
Fax Spain +34.91.358.84.85
Fax Portugal +351.800.855.799

Switzerland

Sartorius Mechatronics Switzerland AG
Ringstrasse 24a
8317 Tagelswangen (ZH)

Phone [phone]
Fax [phone]

U.K.

Sartorius UK Ltd.
Longmead Business Centre
Blenheim Road, Epsom
Surrey KT19 9QQ

Phone [phone]
Fax [phone]

America

USA

Sartorius Corporation
5 Orville Drive, Suite 200
Bohemia, NY 11716

Phone [phone]
Toll-free +1.800.635.2906
Fax [phone]

Argentina

Sartorius Argentina S.A.
Int. A. Ávalos 4251
B1605ECS Munro
Buenos Aires

Phone [phone]
Fax [phone]

Brazil

Sartorius do Brasil Ltda
Av. Dom Pedro I, 241
Bairro Vila Pires
Santo André
São Paulo
Cep 09110-001

Phone [phone]
Fax [phone]

Canada

Sartorius Canada Inc.
2179 Dunwin Drive #4
Mississauga, ON L5L 1X2

Phone [phone]
Toll-Free +1.800.668.4234
Fax [phone]

Mexico

Sartorius de México S.A. de C.V.
Circuito Circunvalación Poniente
No. 149
Ciudad Satélite
53100, Estado de México
México

Phone [phone]
Fax [phone]

Asia|Pacific

Australia

Sartorius Australia Pty. Ltd.
Unit 5, 7-11 Rodeo Drive
Dandenong South Vic 3175

Phone [phone]
Fax [phone]

China

Sartorius Scientific
Instruments (Beijing) Co., Ltd.
33 Yu An Road, Airport Industrial Park
Zone B,
Shunyi District, Beijing 101300 ,
P.R.China

Phone [phone]
Fax [phone]

Hong Kong

Sartorius Hong Kong Ltd.

1012, Lu Plaza

Unit
2 Wing Yip Street
Kwung Tong
Kowloon, Hong Kong

Phone [phone]
Fax [phone]

India

Sartorius Weighing India Pvt. Ltd.
#69/2-69/3, NH 48, Jakkasandra,
Nelamangala Tq
562 123 Bangalore, India

Phone [phone]
Fax [phone]

Japan

Sartorius Japan K.K.
4F Daiwa Shinagawa North Bldg.
8-11, Kita-Shinagawa 1-chome
Shinagawa-ku
Tokyo 140-0001

Phone [phone]
Fax [phone]

Malaysia

Sartorius Malaysia Sdn. Bhd
Lot L3-E-3B, Enterprise 4
Technology Park Malaysia
Bukit Jalil
57000 Kuala Lumpur, Malaysia

Phone [phone]
Fax [phone]

Singapore

Sartorius Singapore Pte. Ltd
1 Science Park Road,
The Capricorn, #05-08A,
Singapore Science Park II
Singapore 117528

Phone [phone]
Fax [phone]

South Korea

Sartorius Korea Ltd.
8th Floor, Solid Space B/D,
PanGyoYeok-Ro 220, BunDang-Gu
SeongNam-Si, GyeongGi-Do, 463-400

Phone [phone]
Fax [phone]

Thailand

Sartorius (Thailand) Co. Ltd.
129 Rama 9 Road,
Huaykwang
Bangkok 10310

Phone [phone]
Fax [phone]

www.sartorius.com

Technical specifications subject to change without notice. Printed in Germany. Printed on bleached, chlorine-free paper. | W

Publication No.: WL-2001-e13021 · Order No.: 98649-013-89 · Ver. 02 | 2013
