Sartorius Quintix64-1S, QUINTIX224-1S, QUINTIX124-1S Data Sheet

Quintix® and Secura® Standard Laboratory Balances:
Reliable Weighing for Faster and Better Results

2

We use Quintix® non-stop – it

gives us the greatest support like no other –

even for our most unusual applications.

More Efficient Workflows with
Quintix

... Based on Intuitive Operation:

The Start Assistant function and SmartTouch user interface will enable you to operate the
balance straight away and feel right at ease using all the functions available. Both the
convenient operating design with its easy-to-understand menu structure and the ergonomic
balance design have already won several awards. These features will significantly help

accelerate your workflows right from the start for error-free results.

... Using Integrated Applications:

Built-in standard applications let you instantly extend the options for using the balance,
turning special, often complicated, lab tasks into efficient routines. These applications are
set up for intuitive use, guiding you in simple steps throughout each of your workflows.

This will save you valuable time and increase the reliability of your results.

... Made to Deliver the Best Results:

Quickly and easily transfer, evaluate, further process or save and document weighing results
in perfect compliance with legal requirements – just by using Plug & Play technology,
without needing any extra software or complicated settings. In this way, you can unlock

the full potential of your lab data and reliably save it. As a result, you will have more
time for new, intriguing analytical procedures, while being on the safe side.

®

and Secura

®

“

”

3

Secura® makes it particularly easy
for me to ensure I reliably
comply with special requirements,
such as those in regulated areas.

Reliability and Data Security

isoCAL: internal calibration and adjustment function

CAL audit trail function

Menu protection

Password protection

SQmin: monitoring the minimum sample weight for
compliance with the USP* operating range

Individual security levels

Data Transfer and Documentation

Plug & Play functionality via mini USB port

PC-Direct feature for data transfer to a computer

Sample and batch identification

Monitored data transfer

Leveling

Leveling guided by the level indicator

Continuous real-time level monitoring

Models

Semi-micro balances

Micro balance

Higher weighing capacity levels**

Quintix

®

Secura

®

“

”

* USP - United States Pharmacopeia

** See Technical Specifications

4

Monitoring Functions and Security

isoCAL:
Reliability Guaranteed

Temperature fluctuations can distort the
accuracy of your weighing results. Quintix®
and Secura® rule out this risk right from
the start with their temperature- and
time-controlled calibration and adjustment
function, isoCAL. In addition, the internal
Cal Audit Trail function documents each
calibration and adjustment procedure,
generating a 100% traceable audit trail for
your quality assurance.

Menu Access Protection

Reliably protect the system settings of your
balance from any unintentional changes
by activating the tamper-proof supervisor
lock on Quintix®.

5

Secura

®

Password-Protected
Menu Settings

Secura® offers you customizable security:
Once entered, a password prevents any
changes to the menu settings that could
alter the metrological performance of the
balance. In this way, Secura® restricts
access to the menu to exclusively authorized
persons, ensuring fully controlled protec­tion of your weighing procedures.

Secure Weighing Data at
All Times

Benefit from the different safety level
settings that you can select on Secura® for
controlled data transfer. You can optimally
adapt the automatic monitoring systems of
Secura® to your security needs. Whichever
level you opt for – high, standard or low –
you can be sure that with Secura®, you will
be processing only data that is correct.

SQmin: USP-Compliant
Weighing Results

Compliance with USP guidelines along with
absolute process reliability? This is guaranteed
by Secura®: the SQmin function checks that
your sample quantity is within the operating
range of your balance. Secura® will alert you
whenever your sample is below the minimum
net weight and will temporarily block
transfer of data to a printer or a computer.
Secura® ensures that only permissible

weighing data will be

further processed.

6

Correct Leveling

Level Status at a Glance

Quintix® makes it so simple for you to
check on your own whether your balance
is correctly level – just one quick glance at
the ergonomically positioned level indicator
is all it takes. Plus, the two large and easy­to-adjust feet on the front enable you
to readily level Quintix®. Your weighing
results will always be “rock-steady” with
Quintix®.

Secura

®

Continuous Real-Time
Level Monitoring

The Secura® LevelControl function ensures
that your balance is perfectly level. It con­tinuously monitors the level status in real
time, instantly detecting any tilt. In this
case, it will respond immediately to ensure
data integrity: You will be alerted, and
data transfer to a printer or computer will
be temporarily blocked. Secura® will then
reliably guide you in real time through­out the leveling procedure. With Secura®
LevelControl, you will have total peace of
mind knowing that your measurements are
fully accurate.

7

8

Documentation and Data Transfer:
Easy, Fast and Reliable

Data Transfer:
Direct and Correct

Quickly and easily connect your Quintix® or Secura® to your
computer or lab printer using the mini USB interface port and
Plug & Play technology of the balance. Its PC-Direct feature
will transfer your measurement results, without the need for
additional software, to the desired Microsoft® Office program
– in the format of your choice and ready for calculation in
spreadsheets.

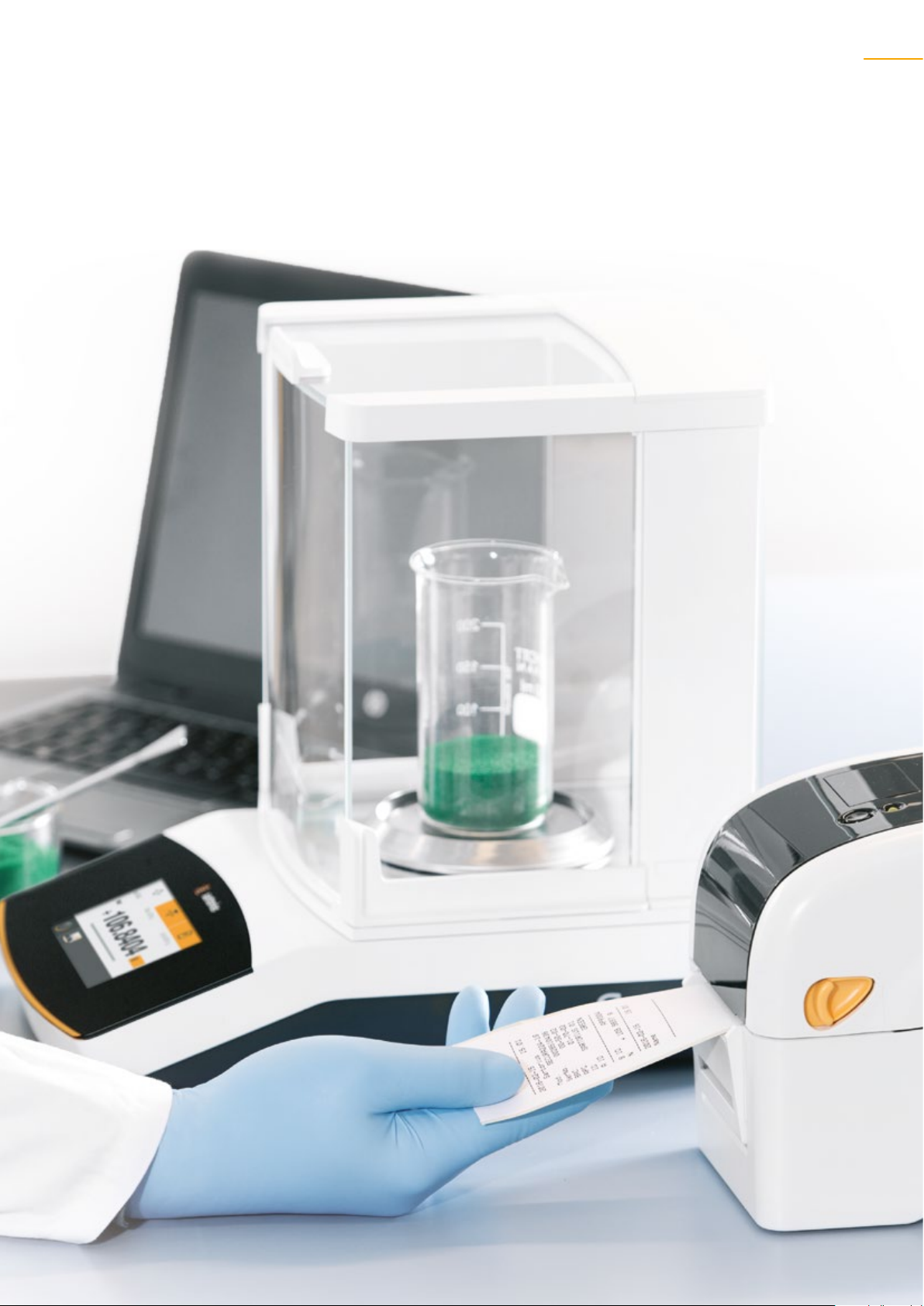

Data Documentation:
Fast and Easy

Directly connected to a Sartorius laboratory printer, Quintix®
and Secura® generate fast and accurate printouts of your
weighing results. You can use standard printer paper or practical,
continuous-length paper label rolls or even fade-resistant paper
for reliable records with unique identification of your samples.

Secura

®

Sample Identification: Even More
Reliable and Precise with Secura®

Do you work with samples requiring unique identification
in regulated environments? Then you will benefit from the
built-in sample identification feature on Secura®: this func­tion enables you to customize the printout information to
your specific needs. With an interactive touch-screen display
and an alphanumeric input capability, Secura® will make
it easy for you to enter complicated sample IDs. Generate
sample records reliably and precisely with Secura®.

9

10

Quintix® and Secura

®

Semi-Micro Balances

Unmatched Linearity and
Repeatability

Maximize the efficiency of your lab work:
the unique temperature management
system ensures stable climate conditions
within the weighing chamber.

Compensation of
Ambient Effects

The user-friendly draft shield featuring
One-Touch technology is convenient
to use and compensates for even the
slightest ambient effects.

Prevention of Cross-Contamination

Quintix® and Secura® semi-micro balances make it easy for
you to prevent cross-contamination: For fast, thorough and
effortless cleaning, just a few steps are all it takes to dismantle
the draft shield and completely remove the rimmed base
plate from the weighing chamber. Moreover, this base plate
is specially designed to catch all spills. Quintix® and Secura®
semi-micro balances enable you to successfully perform even
the most sensitive analyses reliably and accurately – to five
decimal places.

11

Applications

Filter Weighing

Quintix® and Secura® semi-micro balances are ideal
for high-precision filter weighing. Their ergonomic
draft shield and special weighing pan permit easy
and reliable operating sequences for weighing filters
to an accuracy of five decimal places.

Pipette Calibration

Calibrate your pipettes quickly and accurately at any
time with Quintix® and Secura® semi-micro balances.
They provide convenient access to the weighing
chamber, both from the front and from the side.
Used together with a specially matched pipette
calibration kit, these balances make calibration of
your pipettes as easy as 1-2-3.

12

®

Secura

Do you place extremely high requirements on accurate results for analytical weighing?
Obtain the highest quality of results in your analytical weight measurements with
perfectly reliable accuracy of six decimal places. Featuring a maximum capacity of 21 g
and a resolution of 2 µg over the entire weighing range, the Secura® micro balance
determines the exact weight of the smallest quantities – and therefore delivers
unsurpassed performance unique throughout the world.

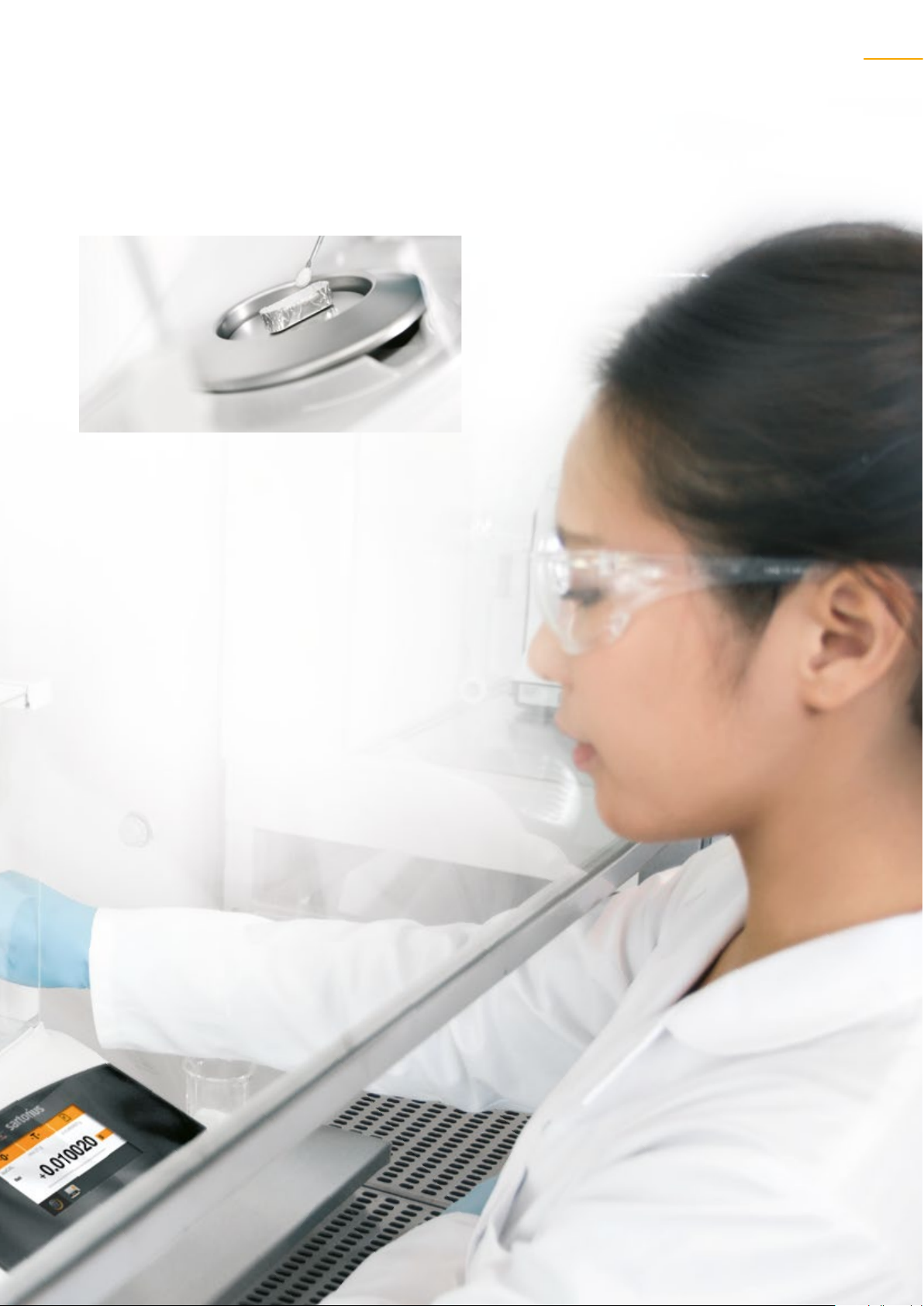

Micro Balance

With the Secura® micro balance, you will meet your high
standards on accurate results for analytical weighing, even
under difficult ambient conditions. The reason: Secura® combines
a number of ergonomic features specially designed for user­friendly weighing on high-resolution balances. These include
a built-in temperature management system, the proven One­Touch draft shield for convenient, yet well-protected weighing
procedures and an easy-to-remove weighing chamber base plate
for effortless cleaning. A Secura® micro balance will give you
security, speed and six-decimal-place accuracy down to the
lowest analytical weighing ranges.

Weighing Pan and Pan Draft Shield Rings
Made of High-Grade Titanium

The Secura® micro balance really shines with its unique titanium
weighing pan and its two titanium pan draft shield rings supplied
as standard equipment. The raised rim of the pan draft shield ring
enables you to perform high-precision measurements successfully,
even when the balance is exposed to interfering air flow under
a laboratory fume hood. Non-magnetic and absolutely inert in
contact with aggressive substances, the titanium components of
the Secura® micro balance ensure 100% protected weighing.

13

14

Integrated Applications

Whether you need to perform common weighing procedures or run dedicated laboratory
applications, Quintix® and Secura® will give you the best of both. They provide built-in
applications as standard features and offer the widest array of accessories and options to
choose from.

15

Weighing

Mixing

Components

Perform high-precision weight mea­surements fast and professionally.
Custom-configure the weight unit
and number of decimal places. Your
Quintix® or Secura® balance will do all
of the above in the Weighing app.

One formula. Several individual com­ponents. Objective: Weigh all into only
one container, while keeping an eye on
the total weight. Quintix® and Secura®
let you weigh in each component
sequentially with 100% traceability.

One formula. Several individual compo­nents. Objective: Weigh all components
independently of one another. At the
same time, check the entire amount
weighed in. Quintix® and Secura®
enable you to easily keep track of it
all for perfect weighing results.

Peak Hold

Does an oversized object on the balance
hide the display or is a reading displayed
only for a split second? The solution:
Quintix® and Secura® lock in the reading
so you can view it later, taking all the
time you need.

Checkweighing

Are your samples still within the allowable
tolerance range? Quintix® and Secura®
will give you the answer – on a straight­forward color-coded bar graph. You will
know at a glance whether your samples
get the “green light” so you can proceed.

Counting

A bag with an unknown number of
identical small parts: Forget counting by
hand. Quintix® and Secura® will show
you the exact count along with the total
weight of all parts – two easy weighing
steps are all it takes.

Statistics

Conversion

Density

Generate statistics on a relatively large
sample size at the touch of a button?
Yes, you can! Quintix® and Secura® have
an internal statistics memory that saves
all weighing results so you can retrieve a
well-organized list of your key statistics.

No time for complicated conversions?
Quintix® and Secura® will save you from
doing all the number-crunching. Just
enter a conversion factor, weigh and
instantly read off the weight or value
along with the converted result.

High-precision density determination of
liquids and solids – easy. Just select the
Density app and use the accessory density
determination kit. This winning combination
permits Quintix® and Secura® to accurately
determine the quality of precious metals
or plastic parts, for example.

Percentage

Need to compare different samples
and determine their difference from a
reference standard in percent? Quintix®
and Secura® along with their Percentage
app will take care of all this for you in
no time.

Unstable Conditions

Is your work environment extremely
hectic, with coworkers running in and
out? Or do you have to weigh a mouse
that just won‘t sit still? No problem with
Quintix® and Secura®. They will give you
absolutely rock-steady results even under
unstable ambient conditions.

16

A Full Range of Services:
Our Mission Is Your Productivity

From installation to a full range of services covering the entire lifecyle of our products – our global Services team focuses on
maximizing the reliability and availability of your lab balances, as well as on guaranteeing confidence in your weighing results at
all times. Our service specialists regularly complete in-depth training to make sure you obtain the best possible service on site
and to meet your specific requirements.

Optimum Equipment Performance

· Our installation service ensures that your lab balances will
will be up and runing perfectly right from the start and
deliver full performance - without any compromises.

· Reliably trained staff is essential for accurate and efficient
work. That‘s why our service technicians will see to it
that your lab personnel is optimally trained to work with
laboratory balances and related equipment.

Quality of Results

· Rely on the accuracy and precision of your weighing
results by having regular professional calibration performed
on your balances.

· Sartorius offers a number of ISO 17025 accredited USP and
manufacturer‘s certificates that ensure the traceability of
weighing results to your national standard and meet the
requirements of the widest variety of quality management
systems.

Compliance with the Standards of the
Regulated Industry

· Sartorius equipment qualification services (IQ|OQ) will provide
you with the quality documents you require to operate your
equipment in a highly regulated environment.

· Our calibration services include issuing documents that verify the
quality and traceability of measurement results in compliance
with ISO 17025, GLP | GMP and FDA standards.

Trouble-Free Operation

· Regular maintenance will ensure that your lab balances will
continue to operate reliably at peak performance throughout
their entire life time, giving you the best cost of ownership.

· Professional repair service, including the use of original spare
parts, will enable you to avoid unnecessary downtime.

Installation Service

For maximum equipment performance, rely on our
regularly trained service technicians.

17

Extended Warranty

Reliably protect your investment and obtain full
cost transparency with our extended warranty packages.

Equipment Qualification (IQ|OQ)

Our comprehensive and product-specific qualification
documents provide proof of the suitability of your equipment,
as required by GLP | GMP and FDA standards.

Preventive Maintenance and
Service Contracts

Sartorius maintenance service ensures that your equipment
will deliver dependable performance you can trust, as well as
the reliable quality of your measurement results.

Calibration Service

Our calibration certificates document the quality and traceability
of your measurement results in compliance with the requirements
of leading quality management systems.

User Training | Academies

Sign up for professional training programs and courses so you and
your staff can stay ahead of the curve to successfully meet the
fast-paced challenges of evolving technologies and work efficiently.

18

Accessories

Extend the performance capabilities of your Quintix® and Secura® with
accessories from our comprehensive range:

YDP30

Thermal transfer printer* for GxP printouts
on standard paper, continuous-length label
paper rolls or individual labels; for connec­tion to a USB port or an RS232 port.

VF4601

Density determination kit for solids and
liquids; for balances with a readability of

0.01 mg.

YDP40

Direct thermal printer for printouts on
standard paper or continuous-length paper
label rolls; for connection to a USB port or
an RS232 interface port.

YDK03

Density determination kit for solids and
liquids; for balances with a readability of

0.1 mg or 1 mg.

YRB11Z

External rechargeable battery pack for
standard laboratory balances.

YDK04

Density determination kit for solids and
liquids; for balances with a readability of
10 mg (supplied without a balance).

YCP06SQ

Pipette calibration kit (hardware) for
balances with a readability of 0.01 mg.
The kit consists of a moisture trap and all
required adapters.

* White Paper entitled “GxP-compliant Printing and Archiving of Initial Weights and Related Weighing Data” available free of charge on request

YDS01SQP

Draft shield for balances with a readability
of 10 mg.

YDS02SQP

Round glass draft shield for balances with
a readability of 1 mg (supplied without a
balance).

19

YFW01SQP

Special pan with a 130 mm diameter
for weighing filters; for balances with a
readability of 0.01 mg.

YHK01SQP

Interior glass draft shield for increasing the
weighing performance of balances with a
readability of 0.002 mg (supplied without
a balance).

Additional Accessories:

YSP01SQP

Weighing pan with an 80 mm diameter,
slotted; for increasing the weighing
performance of balances with a readability
of 0.01 mg.

VF4589

Stainless steel weighing pan with a 50 mm
diameter for balances with a readability of

0.002 mg. The set consists of a weighing pan,
a low-design and a high-design round pan
draft shield (supplied without a balance).

YWP01SQP

Weighing pan with a 90 mm diameter;
includes conversion kit; for balances with
a readability of 0.01 mg.

69Y03285 Standard paper and ink ribbon set for
YDP30 laboratory printer

69Y03286 Self-adhesive paper and ink ribbon set for
YDP30 laboratory printer

69Y03287 Standard paper for YDP 30 | YDP40 lab printers
69Y03288 Self-adhesive paper for direct thermal printing

for YDP30 | YDP40 laboratory printer

YCC04-D09 Data cable, mini USB|USB A
YCC03-D09 Data cable, mini USB|RS232, 9-pin
YCC03-D25 Data cable, mini USB|RS232, 25-pin

YDB-SECURA-5 Demo box for 0.01 mg or 0.002 mg balances
YDB-SECURA Demo box for 0.0001 g or 0.001 g balances
YDB-SECURA-P Demo box for 0.01 g balances

6960SE05 In-use covers for balances with a

readability of 0.01 mg or 0.002 mg
6960SE01 In-use covers for balances with a

readability of 0.1 mg or 1 mg
6960SE02 In-use covers for balances with a

readability of 0.01 g|0.1 g|1 g

6960SE04 Dust cover for balances with a
readability of 0.01 mg or 0.002 mg

6960SE03 Dust cover for balances with a
readability of 0.1 mg or 1 mg

YIB01-0UR Ionizing blower for eliminating electro-
static charges on sample containers and samples

YSTP01 Stat-Pen ionizing probe for neutralizing
electrostatic charges on samples and filters

YWT09 Wooden balance table with natural stone inset
for precise, reliable weighing

YWT03 Balance table made of natural stone,
with vibration dampeners

YWT04 Wall console for micro, analytical and
precision balances

641214 Weighing scoop made of chrome nickel steel,
90 mm × 32 mm × 8 mm

6565-250 Aluminum weighing scoops,

4.5 mg (pkg. of 250) for micro balances
6566-50 Aluminum weighing scoops,

52 mg (pkg. of 50) for micro balances

20

Quintix® Technical Specifications

Semi-Micro Balances

Model 125D-1x

1)

65-1x

1)

35-1x

1)

224-1x

Analytical Balances

1)

124-1x

Design 1 1 1 2 2 2 3 3 3 3 4

Weighing capacity | Capacity levels g 40 | 60 |120 40 | 60 30 220 120 60 610 510 310 210 6,100

Readability mg 0.01|0.01|0.1 0.01|0.01 0.01 0.1 0.1 0.1 1 1 1 1 10

Repeatability (standard deviation) mg 0.03|0.04|0.07 0.03|0.04 0.03 0.1 0.1 0.1 1 1 1 1 10

Repeatability (standard deviation), typical mg 0.02|0.04|0.07 0.02|0.04 0.03 0.1 0.1 0.1 1 1 1 1 10

Linearity mg 0.1|0.1|0.2 0.1|0.1 0.1 0.1 0.1 0.1 2 2 2 2 20

Optimal starting point of the operating range* g 0.0082** 0.0082** 0.0082** 0.082 0.082 0.082 0.82 0.82 0.82 0.82 8.2

Sensitivity drift between +10°C and +30°C ± ppm/K 1 1 1 1.5 1.5 1.5 3 3 3 3 3

Typical stabilization time s 6|6|2 6|6 6 2 2 2 1 1 1 1 1

isoCAL:
– Temperature change K 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2

– Time interval h 4 4 4 4 4 4 6 6 6 6 6

Weighing pan size mm Ø 80 Ø 80 Ø 80 Ø 90 Ø 90 Ø 90 Ø 120 Ø 120 Ø 120 Ø 120 Ø 180

Weighing chamber height

2)

mm 218 218 218 209 209 209 209 209 209 209 -

Net weight, approx. kg 7.8 7.8 7.8 4.9 4.9 4.9 4.9 4.9 4.9 4.9 5.2

Dimensions, D x W x H mm 376 x 214 x 316 359 x 214 x 319 359 x 214 x 94
inches 14.8 x 8.4 x 12.4 14.1 x 8.4 x 12.6 14.1 x 8.4 x 3.7

Version verified for legal metrology available - - - Yes Yes Yes Yes Yes Yes Yes Yes

Interface port Mini USB

Precision Balances

Model 5102-1x

1)

3102-1x

1)

2102-1x

1)

1102-1x

1)

612-1x

Design 4 4 4 4 4 4 4 4 4 4 4

Weighing capacity g 5,100 3,100 2,100 1,100 610 410 6,100 5,100 2,100 6,100 5,100

Readability mg 10 10 10 10 10 10 100 100 100 1,000 1,000

Repeatability (standard deviation) mg 10 10 10 10 10 10 100 100 100 500 500

Repeatability (standard deviation), typical mg 10 10 10 10 10 10 100 100 100 500 500

Linearity mg 20 20 30 30 30 30 300 300 300 1,000 1,000

Optimal starting point of the operating range* g 8.2 8.2 8.2 8.2 8.2 8.2 82 82 82 820 820

Sensitivity drift between +10°C and +30°C ± ppm/K 3 3 4 4 4 4 8 8 8 8 8

Typical stabilization time s 1 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1 1

isoCAL:
– Temperature change K 2 2 2 2 2 2 2 2 2 2 2

– Time interval h 6 6 6 6 6 6 6 6 6 6 6

Weighing pan size mm Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180

Weighing chamber height

2)

mm - - - - - - - - - - -

Net weight, approx. kg 5.2 5.2 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7

Dimensions, D x W x H mm 359 x 214 x 94 359 x 214 x 88
inches 14.1 x 8.4 x 3.7 14.1 x 8.4 x 3.5

Version verified for legal metrology available Yes Yes Yes Yes Yes - Yes Yes - Yes Yes

Interface port Mini USB

* The USP (United States Pharmacopeia) Chapter 41 defines the optimal operating range as being from 820 d to the maximum capacity;
This value can typically be greater, depending on the place where the balance is set up and on the ambient conditions

** Used together with the slotted 80 mm weighing pan, YSP01SQP

21

Design 1

1)

64-1x

Design 2

Milligram Balances Precision Balances

1)

613-1x

Design 3

1)

513-1x

Design 4

1)

313-1x

1)

213-1x

1)

6102-1x

1)

1)

412-1x

1)

6101-1x

1)

5101-1x

1)

2101-1x

1)

6100-1x

1)

5100-1x

1)

1)

Placeholder for possible names of country-specific model versions

2)

Top edge of the weighing pan to the bottom edge of the uppermost draft shield plate

22

Secura® Technical Specifications

Micro Balance

Model 26-1x

1)

225D-1x

Semi-Micro Balances

1)

125-1x

1)

324-1x

Design 1 2 2 2 3 3 4 4 4 4

Weighing capacity | Capacity levels g 21 60 |120|220 60|120 320 220 120 1,100 610 510 310

Readability mg 0.002 0.01|0.01|0.1 0.01|0.01 0.1 0.1 0.1 1 1 1 1

Repeatability (standard deviation) mg 0.004 0.03|0.04|0.07 0.03|0.07 0.1 0.1 0.1 1 1 1 1

Repeatability (standard deviation), typical mg 0.003 0.02|0.04|0.07 0.02|0.07 0.1 0.1 0.1 1 1 1 1

Linearity mg 0.01 0.1|0.1|0.2 0.1|0.1 0.3 0.2 0.2 2 2 2 2

Optimal starting point of the operating range* g 0.00164** 0.0082*** 0.0082*** 0.082 0.082 0.082 0.82 0.82 0.82 0.82

Sensitivity drift between +10°C and +30°C ± ppm/K 1 1 1 1 1.5 1.5 1,5 2 2 2

Typical stabilization time s 8 6|6|2 6|6 2 2 2 1,5 1 1 1

isoCAL:
– Temperature change K 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2

– Time interval h 4 4 4 4 4 4 4 6 6 6

Weighing pan size mm Ø 50 Ø 80 Ø 80 Ø 90 Ø 90 Ø 90 Ø 120 Ø 120 Ø 120 Ø 120

Weighing chamber height

2)

mm 218 218 218 218 209 209 209 209 209 209

Net weight, approx. kg 8.0 7.8 7.8 7.9 5.1 5.1 5.9 5.1 5.1 5.1

Dimensions, D x W x H mm 376 x 214 x 316 359 x 214 x 319
inches 14.8 x 8.4 x 12.4 14.1 x 8.4 x 12.6

Version verified for legal metrology available Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Interface port Mini USB

Milligram Balances

Model 213-1x

1)

6102-1x

Precision Balances

1)

5102-1x

1)

3102-1x

Design 4 5 5 5 5 5 5 5 5

Weighing capacity g 210 6,100 5,100 3,100 2,100 1,100 610 6,100 3,100

Readability mg 1 10 10 10 10 10 10 100 100

Repeatability (standard deviation) mg 1 10 10 10 10 10 10 50 50

Repeatability (standard deviation), typical mg 1 10 10 10 10 10 10 50 50

Linearity mg 2 20 20 20 20 20 20 100 100

Optimal starting point of the operating range* g 0.82 8.2 8.2 8.2 8.2 8.2 8.2 82 82

Sensitivity drift between +10°C and +30°C ± ppm/K 2 2 2 2 2 2 2 2 2

Typical stabilization time s 1 1 1 1 1 1 1 1 1

isoCAL:
– Temperature change K 2 2 2 2 2 2 2 2 2

– Time interval h 6 6 6 6 6 6 6 6 6

Weighing pan size mm Ø 120 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180 Ø 180

Weighing chamber height

2)

mm 209 - - - - - - - -

Net weight, approx. kg 5.1 5.2 5.2 5.2 5.2 5.2 4.7 5.2 5.2

Dimensions, D x W x H mm 359 x 214 x 319 359 x 214 x 94
inches 14.1 x 8.4 x 12.6 14.1 x 8.4 x 3.7

Version verified for legal metrology available Yes Yes Yes Yes Yes Yes Yes Yes Yes

Interface port Mini USB

*** The USP (United States Pharmacopeia) Chapter 41 defines the optimal operating range as being from 820 d to the maximum capacity;

This value can typically be greater, depending on the place where the balance is set up and the ambient conditions

*** Used together with the interior glass draft shield, YHK01QP

*** Used together with the slotted 80 mm weighing pan, YSP01SQP

23

Design 1

1)

224-1x

Design 2

1)

124-1x

Design 3

1)

1103-1x

Design 4

Milligram BalancesAnalytical Balances

Design 5

1)

613-1x

1)

513-1x

1)

313-1x

1)

1)

2102-1x

1)

1102-1x

1)

612-1x

1)

6101-1x

1)

3101-1x

1)

1)

Placeholder for possible names of country-specific model versions

2)

Top edge of the weighing pan to the bottom edge of the uppermost draft shield plate

Sales and Service Contacts

For further contacts, visit www.sartorius.com

Europe

Germany

Sartorius Lab Instruments
GmbH & Co. KG
Otto-Brenner-Strasse 20
37079 Goettingen

Phone [phone]
Fax [phone]

France & Suisse Romande

Sartorius France
2, rue Antoine Laurent de Lavoisier
ZA de la Gaudrée
91410 Dourdan

Phone [phone]
Fax [phone]

Austria

Sartorius Austria GmbH
Modecenterstrasse 22
1030 Vienna

Phone [phone]
Fax [phone]

Belgium

Sartorius Belgium N.V.
Rue Colonel Bourg 105
1030 Bruxelles

Phone [phone]
Fax [phone]

Finland & Baltics

Sartorius Biohit Liquid Handling Oy
Laippatie 1
00880 Helsinki

Phone [phone]
Fax [phone]

Hungary

Sartorius Hungária Kft.
Kagyló u. 5.
2092 Budakeszi

Phone [phone]
Fax [phone]

Ireland

Sartorius Ireland Ltd.
Unit 41, The Business Centre
Stadium Business Park
Ballycoolin Road
Dublin 11

Phone [phone]
Fax [phone]

Italy

Sartorius Italy S.r.l.
Viale A. Casati, 4
20835 Muggiò (MB)

Phone [phone]
Fax [phone]

Netherlands

Sartorius Netherlands B.V.
Phone [phone]

Fax [phone]
[email protected]

Poland

Sartorius Poland sp.z o.o.
ul. Wrzesinska 70
62-025 Kostrzyn

Phone [phone]
Fax [phone]

Russian Federation

LLC “Sartorius RUS”
Uralskaya str. 4, Lit. B
199155 St. Petersburg

Phone [phone]
Fax [phone]

Spain & Portugal

Sartorius Spain, S.A.
Avda. de la Industria, 32
Edificio PAYMA
28108 Alcobendas (Madrid)

Phone Spain +34.913.586.095
Phone Portugal +351.800.855.800
Fax Spain +34.913.589.623
Fax Portugal +351.800.855.799

Switzerland

Sartorius Mechatronics Switzerland AG
Ringstrasse 24a
8317 Tagelswangen (ZH)

Phone [phone]
Fax [phone]

U.K.

Sartorius UK Ltd.
Longmead Business Centre
Blenheim Road, Epsom
Surrey KT19 9QQ

Phone [phone]
Fax [phone]

Ukraine

LLS “Sartorius RUS”
Post Box 440 “B”
01001 Kiev, Ukraine

Phone [phone]
Fax [phone]

Americas

USA

Sartorius Corporation
5 Orville Drive, Suite 200
Bohemia, NY 11716

Phone [phone]
Toll-free +1.800.635.2906
Fax [phone]

Argentina

Sartorius Argentina S.A.
Int. A. Ávalos 4251
B1605ECS Munro
Buenos Aires

Phone [phone]
Fax [phone]

Brazil

Sartorius do Brasil Ltda
Avenida Senador Vergueiro 2962
São Bernardo do Campo
CEP 09600-000 - SP- Brasil

Phone [phone]
Fax [phone]

Canada

Sartorius Canada Inc.
2179 Dunwin Drive #4
Mississauga, ON L5L 1X2

Phone [phone]
Toll-Free +1.800.668.4234
Fax [phone]

Mexico

Sartorius de México, S.A. de C.V.
Libramiento Norte de Tepotzotlan s/n,
Colonia Barrio Tlacateco,
Municipio de Tepotzotlan,
Estado de México,
C.P. 54605

Phone [phone]
Fax [phone]

[email protected]

Peru

Sartorius Peru S.A.C.
Av. Emilio Cavenecia 264 San Isidro
15073 Lima, Perú

Phone [phone]
Fax [phone]

Asia|Pacific

Australia

Sartorius Australia Pty. Ltd.
Unit 5, 7-11 Rodeo Drive
Dandenong South Vic 3175

Phone [phone]
Fax [phone]

Hong Kong

Sartorius Hong Kong Ltd.
Unit 1012, Lu Plaza
2 Wing Yip Street
Kwun Tong
Kowloon, Hong Kong

Phone [phone]
Fax [phone]

India

Sartorius Weighing India Pvt. Ltd.
#69/2-69/3, NH 48, Jakkasandra,
Nelamangala Tq
562 123 Bangalore, India

Phone [phone]
Fax [phone]

Japan

Sartorius Japan K.K.
4th Fl., Daiwa Shinagawa North Bldg.
8-11, Kita-Shinagawa 1-chome
Shinagawa-ku, Tokyo, 140-0001 Japan

Phone [phone]
Fax [phone]

Malaysia

Sartorius Malaysia Sdn. Bhd
Lot L3-E-3B, Enterprise 4
Technology Park Malaysia
Bukit Jalil
57000 Kuala Lumpur, Malaysia

Phone [phone]
Fax [phone]

Singapore

Sartorius Singapore Pte. Ltd
1 Science Park Road,
The Capricorn, #05-08A,
Singapore Science Park II
Singapore 117528

Phone [phone]
Fax [phone]

South Korea

Sartorius Korea Ltd.
8th Floor, Solid Space B/D,
PanGyoYeok-Ro 220, BunDang-Gu
SeongNam-Si, GyeongGi-Do, 463-400

Phone [phone]
Fax [phone]

Thailand

Sartorius (Thailand) Co. Ltd.
129 Rama 9 Road,
Huaykwang
Bangkok 10310

Phone [phone]
Fax [phone]

www.sartorius.com

China

Sartorius (Shanghai) Trading Co., Ltd.
3rd Floor, North Wing, Tower 1
No. 4560 Jinke Road
Zhangjiang Hi-Tech Park
Pudong District
Shanghai 201210, P.R. China

Phone [phone]
Fax [phone]

Specifications subject to change without notice. Printed in the EU on paper bleached without chlorine. | W

Publication No.: WL-1040-e160601 · Order No.: 98649-020-76 · Ver. 06 | 2016
