98648-020-40
Operating Manual
PMA.Evolution | PMA.HD
EVO1S1 | SPO1S1
Paint-mixing Scale
EVO1S1 | SPO1S1 Operating Instructions 3
Contents
Contents
1 About This Document.......................................4
1.1 Scope....................................................4
1.2 Symbols Used ...........................................4
1.3 User Information........................................4
2 Safety
........................................................5
2.1 General Safety Instructions.............................5
2.2 Installation Instructions ................................5
2.3 Intended Use............................................6
3 Device Overview
.............................................7
3.1 Front View ..............................................7
3.2 Rear View ...............................................8
3.3 Operating and Display Elements........................9
3.4 Menu List ..............................................11
4 Installation
.................................................15
4.1 Unpacking and Equipment Supplied...................15
4.2 Selecting a Setup Location ............................15
4.3 Installing the Scale.....................................16
4.4 Supply Voltage.........................................16
4.4.1 Power Supply Assembly .......................16
4.4.2 Connecting the Scale..........................18
4.5 Anti-theft Locking Device .............................18
5 Commissioning
.............................................19
5.1 Leveling ................................................19
5.2 Warm-up Time.........................................19
6 Operation
...................................................20
6.1 Switching the Device On/Off ..........................20
6.2 Locking the Keypad/Weight Display ...................20
6.3 Zeroing/Taring .........................................20
6.4 Calibration/Adjustment................................20
6.4.1 Calibration.....................................21
6.5 Weighing...............................................21
6.5.1 Weighing with One Decimal Place ............21
6.5.2 Weighing with Two Decimal Places
(Not for Verified Models)......................22
6.6 Applications............................................22
6.6.1 Calculation by a Factor........................23
6.6.2 Weighing Using the Recalculation Function ..23
6.7 Menu Settings .........................................25
6.7.1 Accessing the SETUP Menu....................25
6.7.2 Configuring the Main Menu Settings . . . . . . . . .25
6.7.2.1 Accessing the Setup Menu..........25
6.7.2.2 Language Setting . . . . . . . . . . . . . . . . . . .26
6.7.2.3 Standard Default Settings (0.1 g)/
Polyrange (0.05 g/0.1 g) and
Grams/Parts per Pound (Not for
Verified Models) ....................26
6.7.2.4 Activating the Toggle Key (Not for
Verified Models) ....................26
6.7.2.5 Activating the “LOCK” Function ..27
6.7.2.6 Password Prompt ...................27
6.7.2.7 Resetting the Scale: “RESET”........28
7 Care and Maintenance
....................................29
7.1 Cleaning................................................29
7.2 Maintenance ...........................................29
8 Malfunctions
...............................................30
9 Storage
.....................................................31
10 Recycling
....................................................31
11 Technical Data
..............................................32
11.1 General Data ...........................................32
11.2 Model-specific Data ...................................33
11.3 Verified Models with EC Type Approval Certificate:
Model-specific Specifications..........................33
11.4 Geräteabmessungen ...................................34
11.4.1 Modell EVO1S1 ................................34
11.4.2 Modell SPO1S1 ................................34
11.5 USB Interface (PC Port) ................................34
11.5.1 Purpose ........................................34
11.5.2 Installing the Software Driver (Windows
Update) ........................................35
11.5.3 Installing the Software Driver (via CD)........35
11.5.4 Installation Instructions for Windows XP®
and Above .....................................35
12 Accessories
..................................................36
13 Sartorius Service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
14 Conformity & Licenses
.....................................37
14.1 EU Declaration of Conformity .........................37
4 EVO1S1 | SPO1S1 Operating Instructions
About This Document
1 About This Document
1.1 Scope
These operating instructions apply to color-mixing scale models:
− EVO1S1
− SPO1S1
1.2 Symbols Used
Denoting instructions and direct hazard warnings, all especially important
statements to be observed in these installation instructions will be marked as
follows:
This symbol denotes a possible danger with medium risk of death or (severe) injury
if not avoided.
This symbol denotes a possible danger with a low risk of moderate or minor injury
if not avoided.
This symbol denotes a danger with low risk that could result in property damage
if it is not avoided.
This symbol
− is an indication of a function or setting on the device
− indicates that caution should be exercised while working
− identifies useful information.
This symbol provides information for the sale of scales verified for use in legal
metrology.
In the following, the term “verified” is used to mean “verified for use in legal
metrology” or “conformity-assessed.”
The following symbols are also used:
− Text that follows this symbol is a list.
t Text that follows this symbol describes activities which are to be performed in
the specified order.
y Text that follows this symbol describes the result of an action.
1.3 User Information
The illustrations in these instructions are based on the PMA.Evolution (EVO1S1)
model.
EVO1S1 | SPO1S1 Operating Instructions 5
Safety
2 Safety
2.1 General Safety Instructions
− This scale corresponds to the relevant EU Directives and standards (see
Chapter “11 Technical Data,” page 32). Incorrect use can lead to injury to
persons and material damage. Any installation work or scale operation that
does not conform to the instructions will result in forfeiture of all claims under
the manufacturer's warranty.
− Read the instructions carefully and completely before operating the device for
the first time. Observe the safety instructions in particular.
− In the event of use in systems and ambient conditions which have greater safety
requirements, you must observe the requirements and provisions applicable in
your country.
− Always keep the equipment and scale freely accessible.
Danger of explosion!
Do not use this equipment in hazardous areas in which explosive materials are
present.
Ensure that the voltage rating printed on the AC adapter is identical to your local
mains voltage.
2.2 Installation Instructions
Do not operate the scale if its housing, AC adapter, or any connections are damaged.
Immediately disconnect the damaged device from the power by pulling the plug.
Do not expose the scale, the AC adapter or the accessories supplied by Sartorius to
extreme temperatures, aggressive chemical vapors, moisture, shocks, vibrations, or
strong electromagnetic fields. Observe the conditions of operation described in the
Specifications.
Installation Information
The operator shall be solely responsible for any modifications to the equipment and
for connecting any cables or equipment not supplied by Sartorius.
Information on operational quality is available upon request from Sartorius.
Only use original Sartorius accessories!
Note the IP protection class of the scale and the AC adapter. Do not allow liquid
penetration. The protection class specifies the suitability of equipment for various
environmental conditions (moisture, foreign bodies).
Before cleaning the AC adapter or the scale: Unplug from the mains power.
The scale may only be opened by specialized personnel trained by Sartorius.
Do not open the AC adapter.
6 EVO1S1 | SPO1S1 Operating Instructions
Safety
Warning regarding installation and during operation:
Lay the cables where they pose no risk of causing someone to trip.
Danger of Scale Damage!
Never close a paint can using a hammer while it is still on the weighing pan.
When closing, place the paint can on a firm, stable surface.
Observe the additional safety precautions and hazard warnings in subsequent
chapters.
2.3 Intended Use
This scale is only intended for mixing colors and paints outside of potentially
explosive atmospheres. Appropriate containers must be used for loading each type
of material.
The scale can be operated via the keypad as a stand-alone device or using
application software (e.g., a paint-mixing program from a paint manufacturer)
installed on a connected PC.
EVO1S1 | SPO1S1 Operating Instructions 7
Device Overview
3 Device Overview
3.1 Front View
3
2
1
Item Name
1 Operating and display elements (see also Chapter 3.3, page 9)
2 Support column
3 Weighing pan
8 EVO1S1 | SPO1S1 Operating Instructions
Device Overview
3.2 Rear View
Item Name
1 USB port
2 Cable holders
3 Support column
4 AC adapter with country-specific mains adapter (optional)
(Figure may deviate from product)
5 Leveling feet (PMA.HD and verified models only)
6 Leveling (PMA.HD and verified models only)
7 USB connection cable
8 Anti-theft locking device
9 Menu access switch
7
3
2
4
2
9
8
1
5
5
6
EVO1S1 | SPO1S1 Operating Instructions 9
Device Overview
3.3 Operating and Display Elements
Sharp or pointed instruments (such as ballpoint pens) can damage the device!
− The touch screen should only be operated by lightly pressing it using the tips of
your fingers.
Button Function
$
Factor key for paint-mixing applications
&
Zeroing/taring
Z
Toggle key: Toggles the decimal places and/or unit
Depends on the menu setting
j
On/standby
§
Clear key/display of correction factor for paint-mixing applications
O
Up
P
Down
!
ENTER key/MEM key for paint-mixing applications
10 EVO1S1 | SPO1S1 Operating Instructions
Device Overview
Item Function
1 Activated function in the menu list (see Chapter 3.4, page 11)
Symbols for zero range (verified models only)
2 Maximum weighing range
3 Minimum load Min (verified models only)
4 Verification scale interval e (verified models only)
5 Readability of the scale (scale interval d)
6 Weight unit and stability indicator
7 Communication with the PC
8 Activate “LOCK” function, or function activated
9
l symbol: Indicates that an internal process is in progress
For verified models: indicates an invalid weight value
10 Tolerance range has been exceeded
11 Target value for bar graph
12 Tolerance range
13 Bar graph: scaled display showing capacity usage (in percent)
14 Fourteen segment display
15 Trend display
16 Info on weight entry via application keypad (preset tare)
17 Net value
18 Plus (or minus) sign of the weight
19 Display:
− SETUP level
− Component/factor for paint-mixing applications
20
In verified mode for devices where e ≠ d: The frame indicates a scale interval
(standard scale interval d is smaller than verification scale interval e)
19
18
17
16 15 14 13 12 10
7
8
9
11
1 2 3 4 5 20 6
EVO1S1 | SPO1S1 Operating Instructions 11
Device Overview
3.4 Menu List
The “o” in the active column indicates the activated function in the respective menu.
Level 1 Level 2 Level 3 Active Level 4 Function CODE
SETUP
1.
| - - - -
SCALE
1.1
| | - - -
AMBIEN.
Installation site 1.1.1
| | |- - - -
V.STABL.
Very stable ambient conditions 1.1.1.1
| | |- - - - o
STABLE
Stable ambient conditions 1.1.1.2
| | |- - - -
UNSTAB.
Unstable ambient conditions 1.1.1.3
| | |- - - -
V.UNSTB.
Very unstable ambient conditions 1.1.1.4
| | - - -
FILTER
Application filter 1.1.2
| | |- - - -
FIN.RD.
Final readout 1.1.2.1
| | |- - - - o
FILL.WT.
Filling weight 1.1.2.2
| | - - -
STAB.RG.
Stability range/stability 1.1.3
| | |- - - -
1/2-DIG.
1/2 digit/good 1.1.3.2
| | |- - - -
1-DIG.
1 digit/normal 1.1.3.3
| | |- - - - o
2-DIG.
2 digits/sufficient 1.1.3.4
| | |- - - -
4-DIG.
4 digits/low 1.1.3.5
| | - - -
AUTOZ.
Automatic zero/drift correction 1.1.6
| | |- - - -
ON
On 1.1.6.1
| | |- - - - o
OFF
Off 1.1.6.2
| | - - -
WT.UNIT
Weight units 1.1.7
| | |- - - - o
GRAMS
Grams 1.1.7.2
| | |- - - -
PT.P.LB
Parts per pound
1
) 1.1.7.14
| | - - -
DSP.DEC.
Accuracy
1
) 1.1.8
| | |- - - - o
ALL
Show all decimal places 1.1.8.1
| | |- - - -
POLYR.
Multi-interval lab 1.1.8.13
| | - - -
CAL.ADJ.
Calibration/adjustment 1.1.9
| | |- - - - o
CAL.EXT.
External calibration/adjustment with default weight 1.1.9.1
| | |- - - -
LIN.EXT.
External linearization with default weight 1.1.9.6
| | |- - - -
LOCKED
CAL key/command locked 1.1.9.10
|
APP.PRG.
1.3
| | - - -
UNIT 2
2nd unit
1
) 1.3.1
| | |- - - - o
GRAMS
Grams 1.3.1.2
| | |- - - -
PT.P.LB
Parts per pound 1.3.1.14
| | - - -
DEC 2
Accuracy 2nd unit
1
) 1.3.2
| | |- - - -
ALL
Show all decimal places 1.3.2.1
| | |- - - - o
POLYR.
Multi-interval lab 1.3.2.13
| | - - -
TOGGLE
Toggle key on/off
1
) 1.3.3
| |- - - -
ON
Toggle key on 1.3.3.1
| |- - - - o
OFF
Toggle key off 1.3.3.2
Continued on next page
1
) Not available on scales verified for use in legal metrology
12 EVO1S1 | SPO1S1 Operating Instructions
Device Overview
Level 1 Level 2 Level 3 Active Level 4 Function CODE
(SETUP)
| - - -
REC.MOD.
Recalculation 1.3.4
| | |- - - -
TOTAL
Gross weight 1.3.4.1
| | |- - - - o
INDIV.
Individual 1.3.4.2
|
GEN.SRV.
1.9
| | - - -
MEN.RES.
Menu reset 1.9.1
| | |- - - -
DEFAUL.
Load default menu 1.9.1.1
| | |- - - - o
NO
Stand-by 1.9.1.2
| |
DEVICE
2.
| - - - -
EXTRAS
2.1
| | - - -
MENU
Menu 2.1.1
| | | - - - - o
ENABLE
Menu can be edited 2.1.1.1
| | | - - - -
RD.ONLY.
Menu read only 2.1.1.2
| | - - -
KEYS
Key function enabled/locked 2.1.3
| | | - - - - o
ENABLE
Keypad enabled 2.1.3.1
| | | - - - -
LOCKED
Keypad locked 2.1.3.2
| | - - -
BACKLT.
Background light 2.1.4
| | | - - - -
10 PCT.
2.1.4.1
| | | - - - -
20 PCT.
2.1.4.2
| | | - - - -
30 PCT.
2.1.4.3
| | | - - - -
40 PCT.
2.1.4.4
| | | - - - -
50 PCT.
2.1.4.5
| | | - - - -
60 PCT.
2.1.4.6
| | | - - - - o
70 PCT.
2.1.4.7
| | |- - - -
80 PCT.
2.1.4.8
| | | - - - -
90 PCT.
2.1.4.9
| | | - - - -
100 PCT.
2.1.4.10
| | - - -
BARGR.
Bar graph on/off 2.1.5
| | |- - - -
OFF
Display without bar graph 2.1.5.1
| | |- - - - o
ON
Display with bar graph 2.1.5.2
| | - - -
ON.MODE
Switch-on behavior 2.1.6
| | |- - - - o
ON/STB.
On/standby 2.1.6.3
| | |- - - -
AUTO.ON
Automatic on 2.1.6.4
| | - - -
LOCK
Lock weight display 2.1.9
| | |- - - - o
OFF
Display on 2.1.9.1
| | |- - - -
ON
Display off 2.1.9.2
| | - - -
BAR.MOD
Bar graph mode 2.1.10
| | | - - - - o
NORMAL
Normal width 2.1.10.1
| | | - - - -
WIDE
Extra wide 2.1.10.2
| |
Continued on next page
EVO1S1 | SPO1S1 Operating Instructions 13
Device Overview
Level 1 Level 2 Level 3 Active Level 4 Function CODE
(DEVICE) INTERF.
2.2
| | - - -
PROT.
Data transfer protocol 2.2.1
| | |- - - - o
SBI
SBI protocol 2.2.1.1
| | |- - - -
xBPI
XBPI protocol 2.2.1.2
| | - - -
BAUD
Baud rate 2.2.2
| | |- - - -
600
600 baud 2.2.2.3
| | |- - - -
1200
1200 baud 2.2.2.4
| | |- - - - o
2400
2400 baud 2.2.2.5
| | |- - - -
4800
4800 baud 2.2.2.6
| | |- - - -
9600
9600 baud 2.2.2.7
| | |- - - -
19200
19200 baud 2.2.2.8
| | |- - - -
38400
38400 baud 2.2.2.9
| | |- - - -
57600
57600 baud 2.2.2.10
| | - - -
PARITY
Parity bit 2.2.3
| | |- - - - o
ODD
Odd 2.2.3.3
| | |- - - -
EVEN
Even 2.2.3.4
| | |- - - -
NONE
No parity check 2.2.3.5
| | - - -
STOPBT.
Number of stop bits 2.2.4
| | |- - - - o
1 BIT
2.2.4.1
| | |- - - -
2 BITS
2.2.4.2
| | - - -
HANDSH.
Type of handshake 2.2.5
| | |- - - -
SOFTW.
Software handshake (X-On/X-Off) 2.2.5.1
| | |- - - -
HARDW.
Hardware handshake (RTS/CTS) 2.2.5.2
| | |- - - - o
NONE
No handshake 2.2.5.3
| | - - -
DATABT.
Number of data bits 2.2.6
| |- - - - o
7 BITS
7 data bits 2.2.6.1
| |- - - -
8 BITS
8 data bits 2.2.6.2
COMMUN.
Communication parameters 3.
| - - - -
SBI
SBI communication parameter 3.1
| | - - -
MAN.AUT.
Output 3.1.1
| | | - - - -
MAN.W/O
Print individual value without stability 3.1.1.1
| | | - - - -
MAN.W/
Print individual value after stability 3.1.1.2
| | | - - - - o
AUT.W/O
Print automatically without stability 3.1.1.4
| | | - - - -
AUT.W/
Print automatically after stability 3.1.1.5
| |
| | - - -
CANCEL
Cancel automatic output 3.1.2
| | | - - - - o
OFF
Cancellation not possible 3.1.2.1
| | | - - - -
ON
Cancel by pressing Print key 3.1.2.2
| | - - -
FORMAT
3.1.3
| | | - - - - o
16 CHR.
3.1.3.1
| | | - - - -
22 CHR.
3.1.3.2
Continued on next page
14 EVO1S1 | SPO1S1 Operating Instructions
Device Overview
Level 1 Level 2 Level 3 Active Level 4 Function CODE
INPUT
4.
| - - - -
PASSWD.
Password 4.1.
| | - - -
NEW PW
Change/enter password 4.1.1
|
INFO
Information 5.
| - - - -
VER.NO.
Version number (firmware) 5.1
| - - - -
SER.NO.
Serial number 5.2
| - - - -
Model
Model designation 5.3
| - - - -
TYPE
Name/type information 5.4
| - - - -
INTRO
Intro text (if available) 5.5
|
LANG.
Language selection 6.
| - - - -
D
German 6.1
| - - - -
UK/US
o English 6.2
| - - - -
F
French 6.4
| - - - -
I
Italian 6.5
| - - - -
E
Spanish 6.6
| - - - -
NL
Dutch 6.7
| - - - -
P/BR
Portuguese 6.8
| - - - -
PL
Polish 6.9
| - - - -
TR
Turkish 6.10
| - - - -
PYC
Russian/Cyrillic 6.11
| - - - -
SLO
Slovenian 6.12
| - - - -
SRB
Serbian 6.13
| - - - -
CODES
Number codes 6.25
EVO1S1 | SPO1S1 Operating Instructions 15
Installation
4 Installation
The scale must be disconnected from the power supply for all assembly work.
4.1 Unpacking and Equipment Supplied
t Open the packaging, making sure to remove all parts carefully.
t After unpacking the device, check it immediately for any external damage.
t If you detect any damage, proceed as directed in Chapter “7 Care and
Maintenance,” page 29.
t Save the box and all parts of the packaging for any future transport. All cables
should be unplugged when transporting.
The following parts are included in the equipment supplied:
Model name PMA.Evolution PMA.HD
Large weighing pan: d 233 mm
x –
Small weighing pan: d 180 mm
– x
USB connection cable x x
AC adapter with country-specific mains adapter Optional Optional
Installation instructions x x
4.2 Selecting a Setup Location
Select the right setup location:
− Set up the device on a stable, even surface that is not exposed to vibrations.
− Maintain free access to the device at all times.
Choose a location that is not subject to the following negative influences:
− Heat (heater or direct sunlight)
− Drafts from open windows, AC systems and doors
− Extreme vibrations during weighing
− Heavy “traffic areas” (personnel)
− Extremely high humidity
− Electromagnetic fields
− Extremely dry air
Acclimatization
Condensation from humidity can form on the surfaces of a cold device when it
is brought into a warm area. You should therefore let a device acclimatize for
approximately two hours disconnected from its power source before reconnecting
it to the supply voltage.
Seal on Scales Verified for Use in Legal Metrology:
Legislation requires that a seal be affixed to verified scales. On Sartorius devices, this
seal takes the form of a sticker with the “Sartorius” logo. If the seal is removed, the
validity of verification will become void and you must have your scale re-verified.
The verification supplied here is for verified weighing instruments for use in the EEA.
Please keep it in a safe place.
16 EVO1S1 | SPO1S1 Operating Instructions
Installation
4.3 Installing the Scale
Inserting the Weighing Pan
t Place the weighing pan onto the scale from above.
4.4 Supply Voltage
The scale is normally powered via the USB connection of your PC, which also supplies
data for the scale. If this USB connection is not available, you can use AC adapter
YEPS01-USB (see Chapter “12 Accessories,” page 36) for the power supply, which
comes with different,
country-specific mains adapters. The assembly is described in
the following.
4.4.1 Power Supply Assembly
If using a power supply, it will need to be assembled.
Using the wrong mains adapter may cause a fatal electric shock and damage
the equipment.
Never plug the mains adapter into the socket when it is disconnected from the AC
adapter (danger of electrical shock).
t Select the correct mains adapter for your mains power supply. The mains adapter
must be suitable for use with the wall outlet at the installation site.
Mains adapter sets
Bag Region/country
YEPS01-PS1 − USA and Japan (US+JP)
− Europe (EU)
− United Kingdom (GB)
YEPS01-PS6 − Argentina (AR)
− Brazil (BR)
− Australia (AU)
− South Africa (ZA)
YEPS01-PS7 − China (CN)
− India (IN)
− Korea (KR)
EVO1S1 | SPO1S1 Operating Instructions 17
Installation
t Insert the power plug adapter into the power supply. The grooved button must
be facing upwards.
t Push the power plug adapter as far as you can until it clicks into place.
t Check whether the power plug adapter is securely locked in place by pulling it
gently.
y If the power plug adapter does not move, it is locked in place.
Removing/Replacing the Mains Adapter
t Press the grooved button from above and pull back on the mains adapter.
t Push the power plug adapter out of the power supply and remove it.
Power Connection/Safety Precautions
− Only use original Sartorius AC adapters.
The AC adapter has an IP rating of IP40 in accordance with EN60529 / IEC60529.
− Make sure that the voltage rating printed on this unit matches the voltage at the
place of installation.
− If the stated supply voltage or the plug design of the AC adapter does not
comply with your country's standard then please inform your nearest Sartorius
representative.
− The power must be connected in accordance with the regulations applicable in
your country.
18 EVO1S1 | SPO1S1 Operating Instructions
Installation
4.4.2 Connecting the Scale
Connecting the Scale
t Insert the USB cable into the USB socket on the back of the display.
Laying the USB Cable
t Lay the USB cable through the cable holders on the back of the scale.
Connection to the Power Supply
t Insert the USB cable into a USB socket of a PC or laptop.
Connecting an AC Adapter (Option)
t Insert the USB cable into the YEPS01-USB AC adapter.
t Plug the AC adapter into the wall outlet (supply voltage).
4.5 Anti-theft Locking Device
t If required, secure the scale at the back.
EVO1S1 | SPO1S1 Operating Instructions 19
Commissioning
5 Commissioning
5.1 Leveling
Leveling for PMA.HD and Verified Models
Leveling the scale compensates for slant or unevenness at the place of installation.
The scale must be perfectly horizontal to ensure consistent, reproducible weighing
results.
The scale needs to be re-leveled and then adjusted each time its setup location is
changed.
t Turn the two leveling feet as shown in the illustration until the air bubble is
centered within the circle of the level indicator.
− Air bubble at “12 o'clock:” Turn both feet clockwise.
− Air bubble at “3 o'clock:” Turn the left foot clockwise and the right foot
counterclockwise.
− Air bubble at “6 o'clock:” Turn both feet counterclockwise.
− Air bubble at “9 o'clock:” Turn the left foot counterclockwise and the right
foot clockwise.
5.2 Warm-up Time
To ensure accurate results are delivered, the scale must warm up for at least
30 minutes after initial connection to the power supply. Only then will the device
have reached the required operating temperature.
Using a Scale Verified for Use in Legal Metrology:
− Ensure that there is a warm-up time of at least 24 hours after initial connection
to the power supply.
12*
9*
6*
* Clock
0
30
20 EVO1S1 | SPO1S1 Operating Instructions
Operation
6 Operation
6.1 Switching the Device On/Off
Switching On
t Briefly press the j key (on/standby).
y An automatic self-test runs. This ends when the display shows 0.0 g.
t If another value is displayed: Set the scale to zero via the 0 key.
Switching Off
t Press and hold the j key for several seconds (on/standby).
y The scale switches to standby mode.
6.2 Locking the Keypad/Weight Display
Locking
t Briefly press the j key (on/standby) to lock the keypad and turn off the weight
display.
y The padlock symbol H flashes for several seconds.
t Press the padlock symbol H while flashing to activate the lock.
y The keypad/weight display is locked and the padlock symbol lights up continually.
Unlocking
t Press the padlock symbol H to deactivate the lock.
t Enter the password (if set) (see Chapter 6.7.2.6, page 27).
y The lock is deactivated.
6.3 Zeroing/Taring
t Briefly press the 0 key.
6.4 Calibration/Adjustment
The scale needs to be re-leveled and then adjusted each time its setup location is
changed.
Warm-up Time
To ensure accurate results are delivered, the scale must warm up for at least
30 minutes after initial connection to the power supply.
Only then will the device have reached the required operating temperature.
t Wait approx. 30 minutes after connecting the scale to the power supply before
adjusting the scale and weighing.
Using a Scale Verified for Use in Legal Metrology:
− Ensure that there is a warm-up time of at least 24 hours after initial connection
to the power supply.
0
30
EVO1S1 | SPO1S1 Operating Instructions 21
Operation
6.4.1 Calibration
External Calibration/Adjustment for Verified Scales
Scale for use in legal metrology must be externally calibrated before being verified
at the location of use.
− When the scale is used in legal metrology, external calibration is locked as
follows:
− The menu access switch is locked
− The menu access switch cap is sealed
t Press the 0 key for approx. two seconds.
y The pre-set calibration weight appears in the display
(e.g., 5000 g, accuracy: + 0.075 g)
t If required, select a different calibration weight via the O / P keys.
t Confirm the displayed calibration weight via the ! key.
y CAL.EXT. appears on the display and the negative calibration weight.
t Center the calibration weight on the weighing pan.
y The calibration is performed. The calibration is complete when CAL.DON appears
in the display.
t Remove the calibration weight from the weighing pan.
6.5 Weighing
Using a Verified Balance in Legal Metrology:
The Type-Approval Certificate for verified scales is only valid for non-automatic
weighing instruments. For automatic operation with or without additional integrated
equipment, please follow the applicable national regulations for the installation
location.
− The temperature range (°C) listed on the ID label should not be exceeded during
operation.
Example:
K +10…+30°C

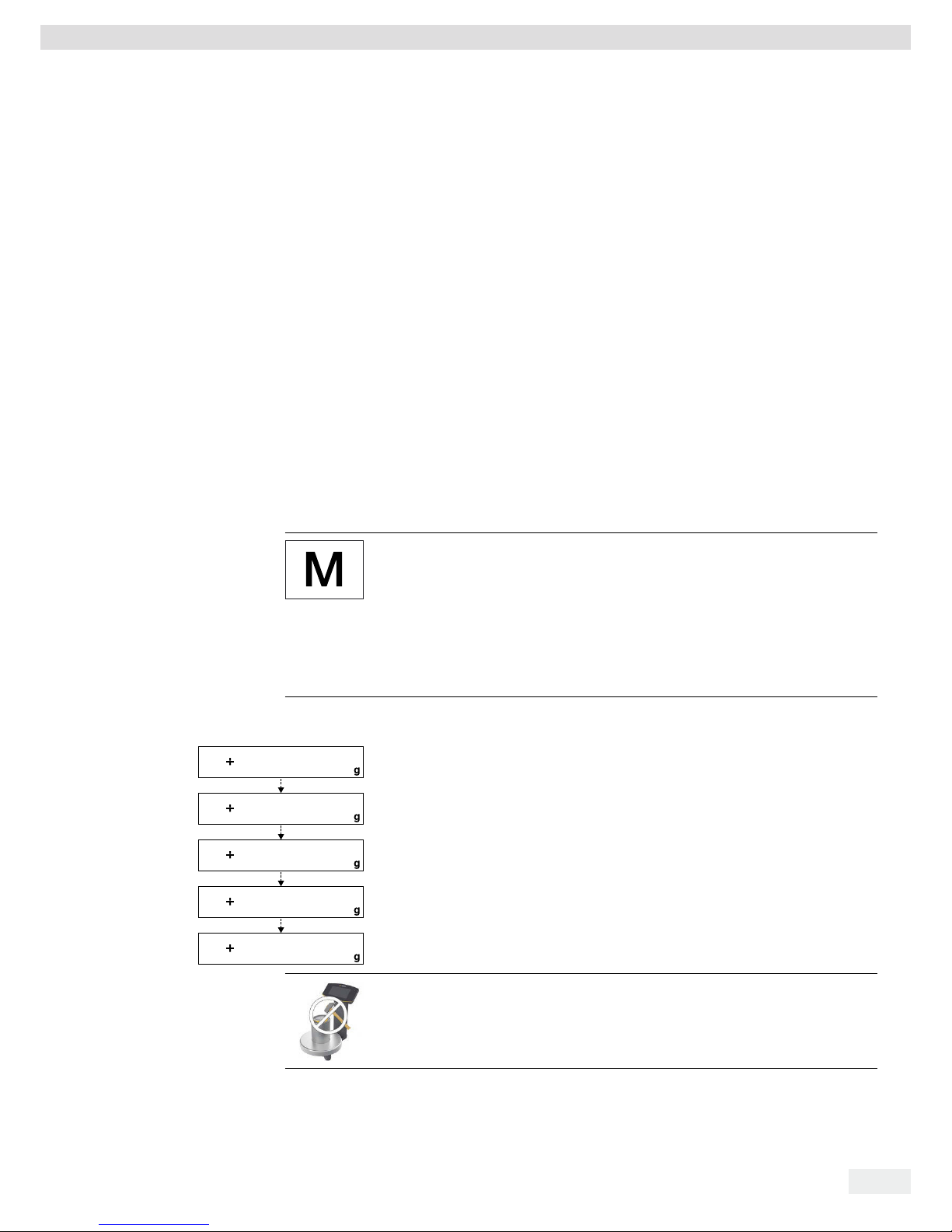

6.5.1 Weighing with One Decimal Place
t Place the empty paint can on the weighing pan.
t Briefly press the 0 key to zero.
y The display shows “0.0 g.”
t Add the first component “484.8 g.”
t Read off the weight when the stability symbol (in this example) “g” is displayed.
t Add the other components until the desired weight (formula) is reached.
t Remove the filled paint can from the weighing pan.
Danger of Scale Damage!
Never close a paint can using a hammer while it is still on the weighing pan.
t When closing the paint can, place it on a firm, stable surface.
0.0
484.8
840.2
1218.8
1230.0
22 EVO1S1 | SPO1S1 Operating Instructions
Operation
6.5.2 Weighing with Two Decimal Places (Not for Verified Models)
A menu setting is required for weighing with two decimal places (see
Chapter “6.7.2.4 Activating the Toggle Key (Not for Verified Models),” page 26).
t Place the empty paint can on the weighing pan.
t Briefly press the 0 key to zero.
y The display shows “0.0 g.”
t Press the toggle key Z.
y The display shows “0.00 g.”
t Add the first component “205.50 g.”
t Read off the weight when the stability symbol (in this example) “g” is displayed.
t Add the other components until the desired weight (formula) is reached.
t Remove the filled paint can from the weighing pan.
When the scale is tared and the second decimal place with a resolution of 0.05 g is
activated via the toggle key Z, weighing up to 999.95 g with two decimal places
can be performed.
Values over 999.95 g can only be weighed using one decimal place.
Danger of Scale Damage!
Never close a paint can using a hammer while it is still on the weighing pan.
t When closing the paint can, place it on a firm, stable surface.
6.6 Applications
Note for Scales for Use in Legal Metrology:
All application programs can be selected on scales verified for use in legal metrology.
Calculated values can be marked using the following characters:
− Percent = %
− Computed values = o, l symbol
0.0
0.00
205.50
213.50
593.85
1414.2
EVO1S1 | SPO1S1 Operating Instructions 23
Operation
6.6.1 Calculation by a Factor
This function enables you to weigh in amounts that are smaller or larger than that of
your basic formula for a specific paint color (e.g., 250 ml of a 1 l formula).
The factors (amounts) can be set via the factor key $ and O / P in a range of 0.1
to 6.0.
The following factors can be set directly via the factor key $:
0.25 0.5 0.75 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0.
Using the keys O (up) and P (down), the factor can be changed
− in the range 0.10 to 1.0 in increments of 0.01
− in the range 1.0 to 6.0 in increments of 0.1
Factor Calculation Example
As you add the components of your formula, the weight is displayed in “g.”
For legal metrology models, the displayed value is marked with an l symbol to
indicate computed values.
Suppose you want to weigh 250 ml for a basic formula that has a total of 1 l, and
you don't want to have to manually recalculate the individual components of the
formula.
The basic formula for 1 liter:
250 g 1st component
+ 250 g 2nd component
+ 500 g 3rd component
Total: 1000 g
t Place the empty container on the weighing pan.
t Briefly press the 0 key to tare.
t Press the factor key $ several times until the factor “.25” is displayed below the
factor key.
t Slowly add the first component “250 g” until the display shows “250 g.”
t Add the second color component “250 g” until the display shows “500 g.”
t Add the third component “500 g” until the display shows “1000 g.”
This concludes the calculation example. According to the display, exactly 1000 g was
poured in, but the paint can actually contains 250 g by weight in accordance with
the factor you selected.
The procedure is the same for any other conversion factor.
6.6.2 Weighing Using the Recalculation Function
Suppose that you poured in too much of one color component for a given formula
(in this example, a four-component recipe).
This example further assumes that you previously poured in all of the other amounts
exactly according to each of the values you entered and saved them by pressing the
MEM key !.
t Press the P key to start the recalculation program.
y “C” flashes on the display.
t Correct the value using the O / P keys to match the specified formula value.
t Press the MEM key !.
0.0
250.0
500.0
1000.0
.25
.25
.25
.25
24 EVO1S1 | SPO1S1 Operating Instructions
Operation
y The scale calculates the amount to be added for each of the components that
were already poured. The display shows the amounts required to correct the
formula up to the point at which the overpour occurred.
t After the correction has been completed, you can continue filling the remaining
components.
You can correct overpours as often as needed.
Keep in mind that the total quantity of paint (liter) at the conclusion of filling
increases each time you correct a component. Press the § key to display the
correction factor of the fill quantity. “C” = correction factor
Recalculation Example (Gross Weight)
For legal metrology models, the displayed value is marked with an l symbol to
indicate computed values.
t Place the empty container on the weighing pan.
y The scale shows the weight of the empty paint can.
t Briefly press the 0 key to tare.
t Slowly add the first component (50 g) of the formula until the display shows
“50 g.”
t Briefly press the ! key to save the value.
y “STO 01” appears on the display, the first value is saved.
y ”02” appears in the top left of the display (second color component).
t Add the second color component “110 g” until the display shows “110 g.”
t Briefly press the ! key to save the value.
y “STO 02” appears on the display, the second value is saved.
y “03” appears in the top left of the display (third color component).
t Add the third color component (200 g) until the display shows “200 g.”
Oops! You poured in too much (203 g). The correct value for the formula is
200.0 g.
t Press the P key.
y The recalculation is started. “C” flashes in the top left of the display.
t Press the P key until the correct weight value “200 g” is displayed.
t Briefly press the ! key to confirm the corrected value.
y ”C0R 01” flashes briefly on the display (correction of the first color component).
y ”C1” appears in the top left and the weight value to be corrected “- 1.7 g.”
t Add 1.7 g of the first color component until the display shows “0.0 g” or the bar
graph stops below the green arrow.
t Confirm the correction for the first color component by pressing the ! key.
y ”C0R 02” flashes briefly on the display (correction of the second color
component).
y ”C2” appears in the top left and the weight value to be corrected “- 2.0 g.”
t Add 2.0 g of the second color component until the display shows “0.0 g” or the
bar graph stops below the green arrow.
118.0
0.0
50.0
STO 01
02
110.0
STO 02
03
203.0
200.0
C
COR 01
C1
1.7
C1
0.0
COR 02
C2
2.0
C2
0.0
EVO1S1 | SPO1S1 Operating Instructions 25
Operation
y ”STO 02” appears on the display, the second (corrected) value is saved.
y You are automatically returned to the formulation program.
y ”04” appears in the top left of the display (fourth color component).
t Press the § key to check the amount of the total weight.
y The correction factor “C 1.03” appears on the display for several seconds.
Total weight = weight of specified formula x correction factor.
y ”04” appears again in the top left of the display after the correction factor is
displayed (fourth color component).
t Add additional color components of the formula as described above.
This concludes the calculation example.
6.7 Menu Settings
6.7.1 Accessing the SETUP Menu
Accessing the SETUP menu and settings is described in the following using “Adapting
the scale to ambient conditions” as an example (SETUP -> SCALE -> AMBIEN.):
t Press the ! key for approx. two seconds.
y Level 1 of the SETUP menu is displayed.
t Select the SETUP menu item of the first level using the O / P keys.
t Press the ! key.
y Level 2 of the SETUP menu is displayed.
t Select the SCALE menu item of the second level using the O / P keys.
t Press the ! key.
y Level 3 of the SETUP menu is displayed.
t Select the AMBIEN. menu item of the third level using the O / P keys.
t Press the ! key.
y Level 4 of the SETUP menu is displayed.
t Select the desired setting using the O / P keys.
t Press the ! key.
y The setting is applied; “o” appears on the display.
(This concludes the example.)
t Press the § key several times to exit the menu.
A detailed list of possible settings can be found in Chapter “3.4 Menu List,”
page 11.
6.7.2 Configuring the Main Menu Settings
6.7.2.1 Accessing the Setup Menu
t Press and hold the ! key for approx. 2 sec.
y SETUP (level 1) appears on the display.
STO 02
04
1000.0
C 1.03
04
1000.0
26 EVO1S1 | SPO1S1 Operating Instructions
Operation
6.7.2.2 Language Setting
Level 1 Level 2
LANG.
t Press O, select LANG.
t Press !
D
o German
t Press O / P, select language
UK/US
English
t Press !, “o” appears
F
French y The desired setting is applied
I
Italian
t Press § several times to exit the menu
etc.
6.7.2.3 Standard Default Settings (0.1 g)/Polyrange (0.05 g/0.1 g) and Grams/Parts per Pound (Not for Verified Models)
The default settings which are active when the scale is switched on can be found under “SETUP > SCALE > WT.UNIT” and “SETUP >
SCALE > DSP.DEC.:”
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
Level 1 Level 2 Level 3 Level 4
SETUP
t Press !
| - - -
SCALE
t Press !
| - - -
WT.UNIT
Units
t Press O / P, e.g., select DSP.DEC.
| |- - - o
GRAMS
t Press !
| |- - -
PT.P.LB
t Press O / P, e.g., select ALL
| - - -
DSP.DEC.
Accuracy
t Press !, “o” appears
|- - - o
ALL
y The new code is set
|- - -
POLYR.
t Press § several times to exit the menu
6.7.2.4 Activating the Toggle Key (Not for Verified Models)
When the toggle key Z is active, you can use it to toggle the unit between, e.g., grams, parts per pound or the decimal place.
The unit and/or decimal place is toggled when the key is pressed:
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
Level 1 Level 2 Level 3 Level 4
SETUP
t Press !
| - - -
APP.PRG.
t Press O / P, select APP.PRG.
| - - -
TOGGLE
t Press !
|- - - o
ON
t Press O / P, select ON
|- - -
OFF
t Press !, “o” appears
y Toggle key Z is activated
t Press § several times to exit the menu
Configuring the Toggle Key Z Function
Pressing the toggle key Z toggles the scale between the default settings (see Chapter 6.7.2.3, page 26) and settings defined in
“SETUP > APP.PRG. > UNIT” and “SETUP > APP.PRG. > DSP.DEC.”
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
EVO1S1 | SPO1S1 Operating Instructions 27
Operation
Level 1 Level 2 Level 3 Level 4
SETUP
t Press !
| - - -
APP.PRG.
t Press O / P, select APP.PRG.
| - - -
UNIT 2
t Press !, press O / P, select UNIT 2
| |- - - o
GRAMS
t Press !, press O / P, select setting (e.g., GRAMS)
| |- - -
PT.P.LB
t Press !, “o” appears indicating the desired setting is applied
| - - -
DEC 2
t Press §
|- - -
ALL
t Press O / P, select DEC 2
|- - - o
POLYR.
t Press !, press O / P, select setting
t Press !, “o” appears indicating the desired setting is applied
t Press § several times to exit the menu
6.7.2.5 Activating the “LOCK” Function
The “LOCK” function protects the scale from unauthorized use. When this function is active, the scale readout shows weight values
only when there is active communication between the scale and a PC. If communication is interrupted, the readout goes blank
and the display shows a padlock symbol. Activation of the LOCK function is configured under “EXTRAS.”
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
Level 1 Level 2 Level 3 Level 4
DEVICE
t Press O / P, select DEVICE, press !
| - - -
EXTRAS
t Press O / P, select EXTRAS, press !
| - - -
LOCK
t Press O / P, select LOCK, press !
|- - - o
ON
t Press O / P, select ON
|- - -
OFF
t Press !, “o” appears
y The “LOCK” function
is activated
t Press § several times to exit the menu
6.7.2.6 Password Prompt
In addition to the “LOCK” function, you can also configure password protection for additional security.
With this feature, the “LOCK” function can only be deactivated “OFF” by entering the password you configure.
Entering the Password
When the password prompt appears, the numbers 1 2 3 4 5 6 appear on the display.
You can switch to the numbers 7 8 9 0 and back again via the O / P keys.
t Enter the password by entering the individual numbers on the display.
y When you enter the correct password, the “LOCK” function will be disabled.
28 EVO1S1 | SPO1S1 Operating Instructions
Operation
Changing the Password
The password is numeric and can have up to six digits. Entering six spaces deletes the password, which deactivates the password
function. This restores the device to its original setting (scale is not password-protected).
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
Level 1 Level 2 Level 3
INPUT
t Press O / P, select INPUT, press !
| - - -
PASSWD.
t Press O / P, select PASSWD., press !
| - - -
OLD PW
| - - | - - | - - | - - | - - | - - | - - -
y When an old password is active, OLD PW appears briefly so that you can enter the old password.
y This appears “_ _ _ _ _ _ .”
y The first line flashes.
t Make the following inputs:
− O / P keys: Selects numbers 0 to 9.
− §: Go back to the previous number.
− !: Confirm entry or go to the next number.
t Repeat to enter the remaining numbers.
y If you make an incorrect entry, NOT OK appears. Press ! and reenter the old password.
NEW PW y When you make a correct entry, NEW PW appears briefly so that you can enter the new
password.
y This appears “_ _ _ _ _ _ .”
y The first line flashes.
t Make the following inputs:
− O / P keys: Selects numbers 0 to 9.
− §: Go back to the previous number.
− You can enter spaces to delete the number/password.
− !: Confirm entry or go to the next number.
t Repeat to enter the remaining numbers.
y The password has been changed.
t Press § several times to exit the menu.
6.7.2.7 Resetting the Scale: “RESET”
If required, you can restore the scale to its factory settings.
Note:
If you have activated the password function, this feature is password-protected.
t Access the Setup menu (see Chapter 6.7.2.1, page 25).
Level 1 Level 2 Level 3 Level 4
SETUP
t Press O / P, select SETUP, press !
| - - -
GEN.SRV.
t Press O / P, select GEN.SRV., press !
| - - -
MEN.RES.
t Press O / P, select MEN.RES., press !
|- - -
DEFAUL.
t Press O / P, select DEFAUL.
|- - - o
NO
t Press !, “o” appears
y The factory settings are loaded
t Press § several times to exit the menu
EVO1S1 | SPO1S1 Operating Instructions 29
Care and Maintenance
7 Care and Maintenance
7.1 Cleaning
Electrical Hazard from Voltage or Current
Disconnect the AC adapter from the power supply. If necessary, disconnect the data
cable if connected to the scale. Never open the scale or the AC adapter.
The parts contained in these cannot be cleaned, repaired or replaced by the operator.
− Make sure that no liquid or dust gets into the scale or the AC adapter.
− Only use soft brushes and cloths for cleaning.
− Never use cleaning agents that contain solvents or abrasive ingredients
(e.g., scouring cream, steel wool), which can ultimately damage the equipment.
Do not clean the following parts with acetone or aggressive cleaning agents:
mains socket, data interface, labels, and all other plastic parts.
Cleaning the Control Panel
t Turn off the device before cleaning the control panel since touching the screen
could trigger unwanted inputs.
Cleaning the Device Housing
t Clean the device.
t Use a soft cloth to dry the device.
7.2 Maintenance
Electrical Hazard from Voltage or Current
Repair work on the (optional) AC adapter must only be carried out by trained service
technicians. Contact Sartorius Service for professional repairs (see Chapter 13,
page 36).
To ensure the continued accuracy of your balance, we recommend scheduling
regular servicing at least once a year.
The Sartorius Service Center offers different service contracts with maintenance
intervals that are tailored to your needs.
A calibration certificate should always be issued as part of every maintenance
session.
Safety inspections of the AC adapter and its connections must be performed at
appropriate intervals by a qualified electrician (e.g., every two years).
30 EVO1S1 | SPO1S1 Operating Instructions
Malfunctions
8 Malfunctions
Problem Cause Remedy
No segments appear on
the weight display
− No AC power is available − Check power supply
The weight readout
shows “LOW”
− No weighing pan on
the scale
− Position the weighing
pan
The weight readout
shows “HIGH”
− Weighing capacity
exceeded
− Unload the scale
The weight readout
changes constantly
− Unstable ambient
conditions
− Excessive vibration or
draft
− Weighing pan is being
affected at some point
by outside influences
− Set up scale in
another area
− Adjust the scale
settings (see
Chapter “3.4 Menu
List,” page 11)
Is the weight readout
obviously incorrect?
− The sample is not stable
− Scale not tared before
weighing
− Tare before weighing
No weight value is shown
and the padlock symbol
H is displayed
− PC connection to the
scale has been
interrupted activating
the “LOCK” function
− Manual “LOCK” function
is active
− Access the menu to
make the necessary
adjustment and switch
off the “LOCK”
function
− Check the connection
− Switch off the manual
“LOCK” function
EVO1S1 | SPO1S1 Operating Instructions 31
Storage
9 Storage
If the device is not set up immediately after delivery, or will not be used temporarily,
the ambient conditions listed in Chapter “11 Technical Data,” page 32 must be
observed for storage.
Only store the device in dry buildings and do not leave the device outdoors.
In case of improper storage, no liability will be assumed for resulting damage.
10 Recycling
Packaging
The packaging consists of environmentally friendly materials that can be used as
secondary raw materials. The packaging is to be taken to a local waste disposal site
if no longer required.
Device
The equipment, including accessories and empty non-rechargeable and rechargeable
batteries, should not be disposed of in your regular household waste; this equipment
is manufactured from high-grade materials which can be recycled and reused. The
European Council Directive 2002/96/EC (WEEE) requires that electrical and electronic
equipment be separated from normal household waste in order to recycle it. The
crossed-out waste bin symbol indicates that separate collection is required.
In Germany and several other countries, Sartorius itself assumes responsibility for
the return and legally compliant disposal of its electronic and electrical products.
These products may not be placed with household waste or be brought to collection
centers run by local public disposal operations – not even by small commercial
operators. Please contact the Sartorius Service Center.
In countries that are not members of the European Economic Area (EEA) or where no
Sartorius subsidiaries or dealerships are located, please contact your local authorities
or a commercial disposal operator.
Prior to disposal and/or scrapping of the equipment, any batteries should be removed
and disposed of at local collection points.
Sartorius will not take back equipment contaminated with hazardous materials
(ABC contamination) – either for repair or disposal.
Addresses for Disposal
Detailed information with service addresses for the disposal of your device can be
found on our website (www.sartorius.com).
32 EVO1S1 | SPO1S1 Operating Instructions
Technical Data
11 Technical Data
11.1 General Data
SCALE Unit Value
Supply voltage only via USB interface or Sartorius AC adapter YEPS01-USB
Input voltage V
DC
+5.0
Power consumption W 2.0
Further data IP40 in accordance with EN 60529 / IEC 60529
Ambient conditions
The specifications apply under the following ambient conditions:
Environment For indoor use only
Ambient temperature* °C +10 to +30
Operational capability °C Guaranteed between +5 and +45
Storage and shipping °C -10 to +60
Relative humidity** % 15 to 80 for temperatures up to 30°C non-condensing, decreasing linearly
to 50% relative humidity at 40°C
Interface connection USB, type B (virtual serial interface)
Format 7-bit ASCII, 1 start bit, 1 or 2 stop bits
Parity Even, odd, no parity
Transmission rates 600 to 57,600 bps
Handshake Software or hardware
Electromagnetic compatibility In accordance with EN 61326-1/IEC 61326-1 Electrical equipment for
measurement, control and laboratory use – EMC requirements – Part 1:
General Requirements
Interference resistance Basic requirements
Transient emissions Class B
Suitable for use in residential areas and areas that are connected to a low
voltage network that also supplies residential buildings.
Verified scales in accordance with EU requirements comply with the
requirements of Council Directive 2014/31/EC with EN 45501:2015 and
OIML R76:2006.
* For verified scales in accordance with EU requirements, refer to the
information on the scale.
** For verified scales in accordance with EU requirements, the legal
regulations apply.
Available application programs Recalculation, formula
Power supply YEPS01-USB (optional)
USB power plug Type FSP007-P01P (manufacturer’s designation)
Primary
100 – 240 V~, ±10%, 50 – 60 Hz, ±5%, ≤ 0.2 A
Secondary 5.2 V
DC
, ± 5%, 1.4 A (max.)
Further data Protection class II
IP40 in accordance with EN 60529/IEC 60529
EVO1S1 | SPO1S1 Operating Instructions 33
Technical Data
11.2 Model-specific Data
Specification Unit Value Value
Model name PMA.Evolution, EVO1S1 PMA.HD, SPO1S1
Weighing range g 7500/999.95 2200
Readability g 0.1/0.05 0.01/0.1
Tare range (subtractive) g -7500 -2200
External adjustment weight /
accuracy class
kg 1, 2, 5 /
F2 or better
1, 2 /
F1 or better
Size of weighing pan
d mm
233 180
Net weight kg 2.4 2.3
11.3 Verified Models with EC Type Approval Certificate:
Model-specific Specifications
Specification Unit Value
Model name
PMA.Evolution EVO1S1
Accuracy class
�
Type PMA-EV
Weighing capacity max. g 7500
Scale interval d g 0.1
Verification scale interval e g 1
Temperature range +10°C – +30°C
Tare equalization range (subtractive)
< 100% from max. weighing capacity
Specification Unit Value
Model name
PMA.HD, SPO1S1
Accuracy class
l
Type PMA-HD
Weighing capacity max. g 2200
Scale interval d g 1
Verification scale interval e g 1
Temperature range +10°C – +40°C
Tare equalization range (subtractive)
< 100% from max. weighing capacity
34 EVO1S1 | SPO1S1 Operating Instructions
Technical Data
11.4 Geräteabmessungen
11.4.1 Modell EVO1S1
11.4.2 Modell SPO1S1
11.5 USB Interface (PC Port)
11.5.1 Purpose
This device can be connected to a PC via the USB interface.
A virtual serial interface (virtual COM port) is set up on the PC as a device type
via the USB port. This virtual serial interface is identified and operated by the
application program.
The xBPI and SBI protocols can be transmitted via the virtual serial interface.
EVO1S1 | SPO1S1 Operating Instructions 35
Technical Data
11.5.2 Installing the Software Driver (Windows Update)
t Connect the scale to the USB port of the computer (see Chapter “4.4.2
Connecting the Scale,” page 18).
y Windows will detect the scale connected to the USB port as a device.
If the device is being connected for the first time, the Windows Installation
Wizard will run automatically.
t Follow the instructions that appear.
t To complete the installation, click on Finish.
y The virtual interface is now ready for operation.
11.5.3 Installing the Software Driver (via CD)
t Ensure that the scale is not connected to the PC.
t Insert the supplied CD into the PC.
t If the Installation Wizard does not start automatically after you insert the CD,
then manually start driver installation via Setup.bat located on the CD.
t Follow the instructions that appear.
t To complete the installation, click on Finish.
y The virtual interface is now ready for operation.
t Connect the scale to the USB port of the computer (see Chapter “4.4.2
Connecting the Scale,” page 18).
Windows
®
usually adds the virtual port in the position following your highestnumbered COM port.
Example:
For a PC with up to 4 COM ports, the new virtual port would then be COM5
(see Device Manager).
11.5.4 Installation Instructions for Windows XP
®
and Above
Changing the Port Number
If you use the USB interface with programs that limit the number of COM port
designations (e.g., only COM1, 2, 3, 4), you may have to assign one of these port
numbers to the new virtual port.
t Open the setting for the USB serial port in the Windows
®
Control Panel:
− START > My Computer > Control Panel
− System > Hardware > Device Manager
t Open the Connections submenu.
t Double-click on USB Serial Port.
t Select Port Settings > Advanced.
Use the “COM Port Number” button to change the port number.
Uninstalling the Driver
You can uninstall the software driver for the USB port via the Device Manager
(only if the scale is connected):
t Use the right mouse button to click on the respective port.
t Then select “uninstall” from the context menu that appears.
36 EVO1S1 | SPO1S1 Operating Instructions
Accessories
12 Accessories
Accessories Order Number
USB connection cable YCC01-0040M5
Power supply (5.2 V/1.4 A) YEPS01-USB
Mains adapter set for YEPS01-USB YEPS01-PS1
− USA and Japan (US+JP)
− Europe (EU)
− United Kingdom (GB)
Mains adapter set for YEPS01-USB YEPS01-PS6
− Argentina (AR)
− Brazil (BR)
− Australia (AU)
− South Africa (ZA)
Mains adapter set for YEPS01-USB YEPS01-PS7
− China (CN)
− India (IN)
− Korea (KR)
In-use cover for control panel, pack of 10 YDC03PMA10
In-use cover for support arm, PMA.Evolution, pack of 10 YDC03PMA-CO10
In-use cover for weighing pan, PMA.Evolution, pack of 10 YDC03PMA-WP10
Calibration weights
for PMA.Evolution:
− 5 kg, accuracy class F2 YCW654-AC-00
− 2 kg, accuracy class F2 YCW624-AC-00
− 1 kg, accuracy class F2 YCW614-AC-00
for PMA.HD:
− 2 kg, accuracy class F1 YCW623-AC-00
− 1 kg, accuracy class F1 YCW613-AC-00
13 Sartorius Service
Sartorius Service is at your disposal for queries regarding the device. For information
about the service addresses, services provided or to contact a local representative,
please visit the Sartorius website (www.sartorius.com).
EVO1S1 | SPO1S1 Operating Instructions 37
Conformity & Licenses
14 Conformity & Licenses
14.1 EU Declaration of Conformity
The attached Declaration of Conformity hereby confirms compliance of the device
with the directives cited. The declaration of conformity supplied here is for verified
balances for use in the EEA. Please keep it in a safe place.
38 EVO1S1 | SPO1S1 Operating Instructions
Conformity & Licenses
EVO1S1 | SPO1S1 Operating Instructions 39
Conformity & Licenses
S
upplier’s Declaration of Conformity
___________________________________________________________________________________________
Doc: 2399148-00 SLI18FCC005-00.en 1 / 1 PMF: 2025573 OP-113_fo1_2015.10.12
D
evice type Paint mixing scale
T
ype series EVO1S1... , SPO1S1...
Party issuing Supplier’s Declaration of Conformity /
R
esponsible Party – U.S. Contact Information
Sartorius Corporation
5 Orville Dr Suite 200
11716 Bohemia, NY
USA
Telephone: +1.631.254.4249
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
I
nformation to the user
Note: This equipment has been tested and found to comply with the limits for a c
lass B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Connections between the device and peripherals must be made using shielded cables in order
to maintain compliance with FCC radio frequency emission limits.
Any modifications made to this device that are not approved by Sartorius may void the
authority granted to the user by the FCC to operate this equipment.
FCC
40 EVO1S1 | SPO1S1 Operating Instructions
Conformity & Licenses
EVO1S1 | SPO1S1 Operating Instructions 41
Conformity & Licenses
S
S
S
MD
MD
K
Schilder und Marken / Plates and Markings / Plaques et
marques / Placas y Marcas / Etichette e Sigilli
Typ Waage / Type weighing instrument / Type d’instrument de pesage / Tipo del instrumento de
pesaje / Tipo di strumento per pesare: PMA-EV, PMA-HD
EG Baumusterprüfbescheinigung / EC type-examination certificate / Certificat d’examen UE de
type / Certificado de examen UE de tipo / Certificato di esame UE del tipo : UK3066
42 EVO1S1 | SPO1S1 Operating Instructions
Conformity & Licenses
Schale / Pan / Plateau de pesée / Plato de pesaje / Piatto di pesata
Unterschale / Subpan / Plateau inférieur / Plato inferior / Piatto inferiore
Libelle / Bubble level / Nivelle sphérique / Nivel de burbuja / Livella
Segmentiertes LCD-Display / Segmented LCD display / Afficheur à segments (LCD) / Visualizador de
segmentos (LCD) / Visualizzatore a segmenti (LCD)
LCD Graphik-Display / LCD graphic display / Afficheur graphique (LCD) / Visualizador gráfica (LCD) /
Visualizzatore grafico (LCD)
Grundplatte / Base plate / Plaque de montage / Placa base / Piastra di base
Wägesystem / Weighing system / Système de pesée / Sistema pesador / Sistema di pesatura
Auswerteelektronik / Evaluation electronics / Dispositif de détection électronique / Electrónica de
evaluación / Elettronica per la valutazione
Anzeigeeinrichtung / Indicating device / Dispositif indicateur / Dispositivo indicador / Dispositivo di
visualizzazione
Metrologische Daten Max, Min, e und wenn vorhanden d / Metrological data Max, Min, e and if
existent d / Données métrologiques : Max, Min, e et, si disponible, d / Datos metrológicos: Máx, Mín,
e y d, si está disponible / Dati metrologici: Max, Min, e, e d se disponibile
Sicherungsstempel (selbstklebende Marke oder Plombe) / Protective mark (self-adhesive mark or
seal) / Marque de protection (marque ou sceau autocollant) / Sello de seguridad (marca
autoadhesiva o precinto) / Sigillo di protezione (bollino autoadesivo o piombo)
Kennzeichnungsschild mit CE-Zeichen / Descriptive plate with CE-sign / Plaque d’identification avec
marque CE de conformité / Placa de características con la marca CE / Etichetta d'identificazione con
marchio CE
Programmverriegelungsschalter / Menu access switch / Commutateur d’accès au menu / Interruptor
de bloqueo de programa / Commutatore di accesso al menu
gesperrt / locked / verrouillé / bloqueado / bloccato
offen / open / ouvert / abierto / aperto
1
2
3
4
5
6
7
8
9
MD
S
K
Sartorius Lab Instruments GmbH & Co. KG
Otto-Brenner-Strasse 20
37079 Goettingen, Germany
Phone: +49.551.308.0
www.sartorius.com
The information and figures contained in these
instructions correspond to the version date
specified below.
Sartorius reserves the right to make changes
to the technology, features, specifications and
design of the equipment without notice.
Masculine or feminine forms are used to
facilitate legibility in these instructions and
always simultaneously denote the other
gender as well.
Copyright notice:
This instruction manual, including all of its
components, is protected by copyright.
Any use beyond the limits of the copyright law
is not permitted without our approval.
This applies in particular to reprinting,
translation and editing irrespective of the type
of media used.
© Sartorius Germany
Last updated:
08
| 2018
Printed in the EU on paper bleached
without chlorine. | UB
Publication No.: WEV6006-e180806
Loading...
