Sartorius
PMA 35D, PMA 35D-000C
Electronic Paint-Mixing Scales
Installation and Operating Instructions
98648-008-36
PMA 35D, PMA 35D-000C
1 Load plate
2 e key (ON/OFF)
3 y Correction key: decrease
(only on the PMA 35D-000C)
4 = Tare key
5 Display
6 w key (TOGGLE)
On the PMA 35D/35D-000C, you can
toggle to two decimal places – from 0.5 g
to 1.0 g – within the entire weighing range of
– 0.5 g to 35 kg –
or
– 1 g to 35 kg –
7 v key (FORMULATION)
8 [REC] key (for displaying the final
quantity in the recalculation mode
(only on PMA 35D-000C)
9 [MEM] key (MEMORY)
(only on PMA 35D-000C)
10 Y Correction key: increase
(only on PMA 35D-000C)
11 Display and control unit
12 Column
13 Data interface port (25 pin)
14 DC jack
15 Leveling foot
Important Note to Users
G Make sure to carefully read and follow
sections marked with this symbol.
They contain important safety instructions
and information.
G Use only the adapter that is included in
delivery (part no. 6965619) to connect a 9-pin
connecting cable to the 25-pin data interface
2
Getting Started
Remove the scale, load plate
and AC adapter from the
package.
Immediately after unpacking the
equipment, check it for any
visible damage.
Equipment Supplied:
Scale, load plate,
AC adapter, data cable
(25– pin to 9-pin)
Choose a suitable place to set up the scale. Avoid exposure to
drafts, heat, moisture and vibration.
G Do not operate the equipment in a hazardous area/location.
Check that the voltage rating of the AC adapter matches that of your
local line voltage (mains supply).
G If it does not match your local line voltage, contact your Sartorius
office or dealer.
Use only original Sartorius AC adapters.
Do not miss out on the benefits of
our full warranty. Please contact
your local Sartorius office or
dealer for further information. If
available, complete the warranty
registration card, indicating the
date of installation, and return the
card to your Sartorius office or
dealer.
DC jack on the scale. Remove the load plate.
Use a 13-mm open-end wrench
to loosen the leveling foot (1).
Turn the leveling foot (2) until
the scale is level. Tighten the
lock nut (1) with the wrench.
Replace the load plate.
Always allow approximately
30 minutes warm-up time after
connecting the scale to AC
power.
3
Operating the Scale
Press the e key (2) to turn the
scale on.
A self-test is run automatically.
At the end of this test, 0.0 g is
displayed.
Weighing with One Decimal Place
Place an empty paint can on the load plate (1).
Press the = key (4). The display shows “0.0 g“.
Pour in the first component, and read off the weight as soon as the
stability symbol, in this case “g,“ is displayed.
Pour in additional components
until the desired weight (formulation) is reached.
Remove the filled paint can from the load plate.
G Never close the lid of a paint can
while it is still on the load plate, as
this will damage the weighing
system.
If a different readout is
displayed, press the = key
(4) to tare the scale.
Calibration/Adjustment
If the scale is not being used in legal metrology, you can calibrate/adjust the scale by pressing the
= key (4). Calibration weight: 10 kg; accuracy: M1.
Always allow approximately
30 minutes for the scale to
warm up after connecting it to
AC power and before
performing calibration/
adjustment.
4
Press the = key (4) for 2
seconds; “10000“ is
displayed. Release the key.
Center the calibration weight
on the load plate (1).
Calibration/adjustment is
performed automatically. After
calibration/adjustment, remove
the calibration weight.
Formulation Mode (Calculation by a Factor)
This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula
for a specific paint color (e.g., 250 ml of a 1-l formula), without having to do any manual
recalculation.
You can select from among the following factors (amounts) by
pressing the v key (7):
0.5 1.0 2.0 5.0 10 15 20 25
As you pour in the components of your formula, the weight is displayed in “g.”
Note:
The flashing arrow n on the display means that the weight shown is not valid for use in legal
metrology (not legal for trade).
Example:
Let’s suppose you want to weigh only 250 ml of a basic formula that is for a total amount of 1 l. With
the recalculation mode, you do not need to manually recalculate the individual components.
The basic formula for 1 liter is:
Total: 1000 g
250 g green paint
+ 250 g red paint
+ 500 g blue paint
1. Place the empty paint can
on the load plate and
press the = key (4).
4. Slowly pour in the first
component, “250 g“ of
green paint, until the
display shows
“250 g“.
We have come to the end of our example. According to the display, exactly 1000 g was poured in,
but the paint can actually contains only 250 g by weight according to the factor you selected, 0.25.
Follow the same procedure for any other conversion factor.
2. Press the v key (7)
once.
5. Pour in the second
component, “250 g“ of
red paint, until
“500 g“ is displayed.
3. “ 25 “ is displayed next
to the weight.
6. Pour in the last
component, “500 g“ of
blue paint, until “1000 g“
is displayed.
5
Weighing Using the Recalculation Mode (Model PMA35D-000C Only)
Let’s suppose that you poured in too much of one color component for a given formula (e.g., 4
components). In addition, let’s assume that you previously poured in all of the other amounts exactly
according to each of the values you entered and saved by pressing the [MEM] key (9). Use the
correction keys, y (3) and Y (10), to correct the weight displayed to the same value you entered.
Since you overpoured in this case, press the y key (3) to decrease the readout. This starts the
recalculation mode; “C” flashes on the display. The scale automatically calculates and displays the
amounts in “g” to add for each of the other components that you already poured in, so that the total result
of your formula for these components will be correct. After adding each component, press the [MEM] key
(9) to display the next . After pouring in these amounts, you can continue to add the remaining
components of your formula.
Important Note:
You can correct an incorrect amount any number of times. However, the total (liter) quantity in the paint
can will increase each time you correct a component. Press the [REC] key (8) to check how much the
total quantity (in liters) will be. The arrow n on the display means that the weight shown is not valid for
use in legal metrology (not legal for trade). Example:

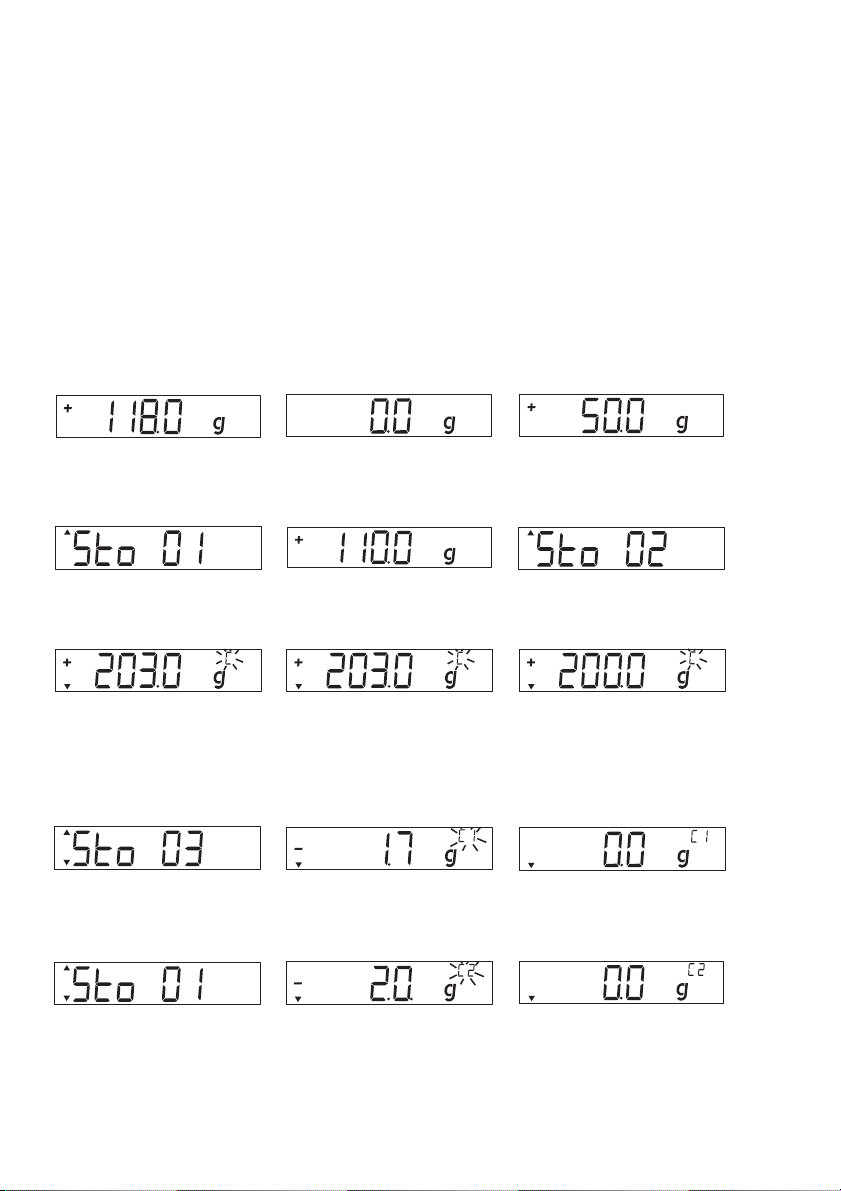

1. Place an empty paint can
on the load plate (1).
+ 118.0 g
4. Press the [MEM] key (9).
ST 01
7. Pour in the 3rd component.
+ 203.0 g
Oops! You poured in too much.
The correct weight for the
formula is 200.0 g.
10.Press the [MEM] key (9)
ST 03
13. Press the [MEM] key (9)
ST 01
2. Press the = key (4).
0.0g
5. Pour in the 2nd component.
+ 110.0 g
8. Press the y key (3) to
start the recalculation mode.
A“C” (= correct)
flashes on the display.
11. Add the 1st component;
„ C1“ flashes on the display.
– 1.7 g
14. Pour in the 2nd component;
“C2” flashes on the display.
– 2.0 g
3. Pour in the 1st component.
+ 50.0 g
6. Press the [MEM] key (9)
ST 02
9. Press the y key (3) to
correct the value to:
+ 200.0 g
12. Fill to 0.0 g.
0.0 g
15. Fill to 0.0 g.
0.0 g
6

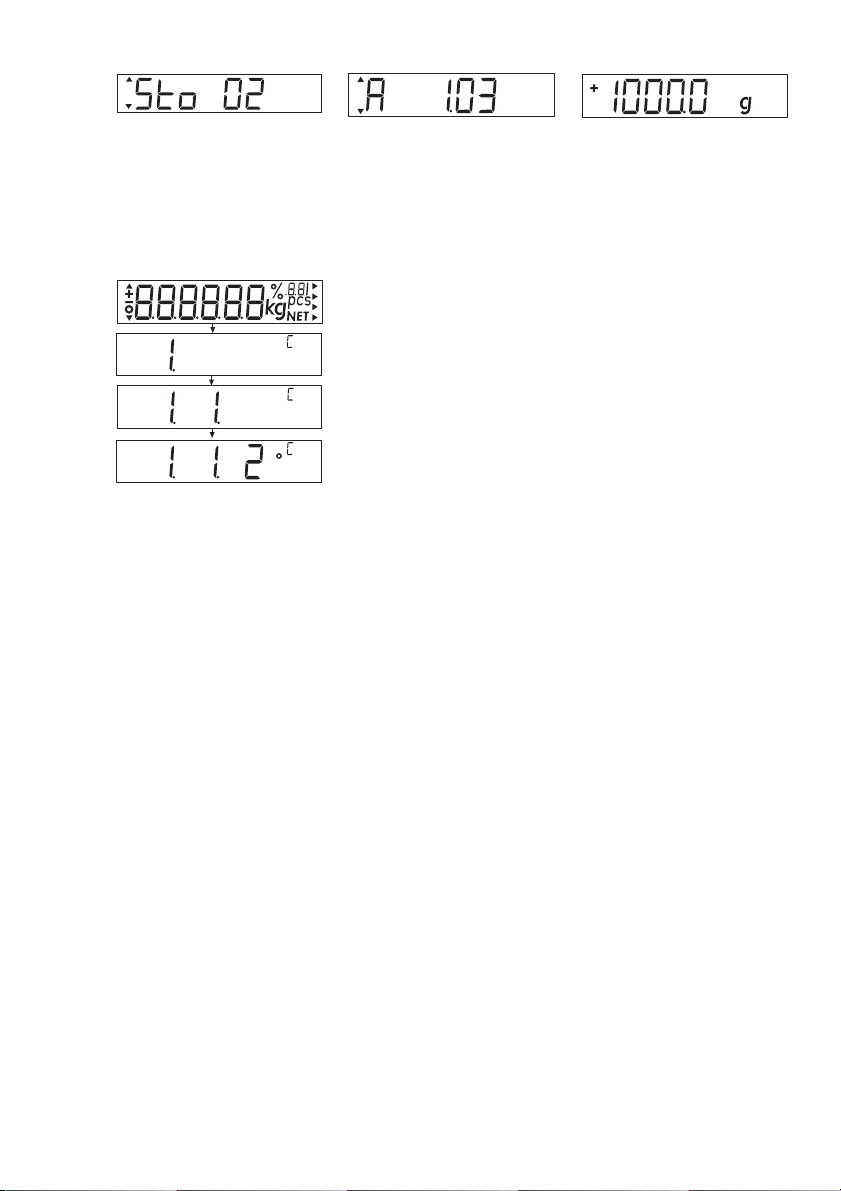

16. Press the [MEM] key (9);
the scale now automatically
returns to the formula weighing
mode.
+ 200.0 g
17. Press the [REC] key (8) to
check what the total
weight will be
“ A“ = Amount
(displayed in liters)
A 1.03
Accessing the Menu
Press e (2) to turn off the scale. Press e again to turn the scale
back on; briefly press the = key (4) during the automatic self-test.
“ I“ is now displayed. Set the desired code as follows:
§ Press = (4) until the desired number is displayed.
§ Press w (6); the middle number appears.
§ Press = (4) until the desired number is displayed.
§ Press w (6); the third digit appears.
§ Press (= (4) until the desired number is displayed.
§ Then press w (6) for 2 seconds until “ o“ appears. This symbol
indicates that the new code has been set.
§ Hold down = (4) for 2 seconds until an automatic self-test is run.
§ Then release this key. The new code is now saved.
Important Codes:
Adaptation to the ambient conditions
You can adapt the scale to the ambient conditions that prevail at the
place of installation.
Very stable conditions 1 1 1
Stable conditions (factory setting) 1 1 2°
Unstable conditions 1 1 3
Very unstable conditions 1 1 4
18. Pour in the 4th component.
+1000.0 g
We have come to the end of
our example.
Code
Toggling between two weight units
For example, toggling from grams to parts/pound using the
w key (6) 2 1 2
To obtain a detailed list of the menu codes, please ask your nearest
Sartorius office, dealer or paint supplier.
7
Care and Maintenance
Cleaning
Use only naphtha or alcohol to clean the scale.
G Do not wash down the scale with water or dry it with compressed air.
Safety Inspection
G If there is any indication that safe operation of the scale with the AC adapter is no longer warranted,
turn off the power and disconnect the equipment from AC power immediately. Lock the equipment in a
secure place to ensure that it cannot be used for the time being. In this case, notify your Sartorius office,
dealer or paint supplier. Only service technicians who are authorized by Sartorius and have access to
the required maintenance manuals are allowed to perform maintenance and repair work on the
equipment.
Safe operation of the equipment is no longer ensured when:
- there is visible damage to the equipment
- the equipment no longer functions properly
Always unplug the scale before connecting peripheral equipment. You can choose the 9-pin or 25-pin
data output port.
Troubleshooting Guide
Problem Causes Solution
No segments appear – No AC power available – Check the AC power supplyon
the weight display
The display shows “L“ – The load plate is – Position the load plate
The display shows – The load on the pan – Unload the scale
“H“ exceeds the scale’s capacity
The weight readout – Unstable ambient conditions – Set up the scale in another area
changes constantly – Too much vibration – Adapt the scale to the particular
The weight readout – Scale not adjusted –- Adjust scale
is obviously wrong – The scale was not tared –- Tare/zero before weighing
Storage and Shipping Conditions
Storage temperature: – 40 to + 70°C/ – 40 to +158°F
Read and follow the instructions given in the section entitled “Safety Inspection.“
If you need to return this equipment, disconnect all connected cables before shipping, to prevent
damage. Remove any splashes or spillage of paint. Please enclose a description of the equipment
failures/faults.
not in place
or the scale is exposed to weighing environment
a draft
(zeroed) before weighing
8
C Marking
Note:
G The seal marking affixed to the equipment indicates that the equipment may be opened and serviced
only by technicians authorized by Sartorius to ensure proper functioning and safe operation of this
equipment. Otherwise, you will invalidate the warranty.
The equipment meets the requirements of the following Council Directive:
Applicable European Standards:
Limitation of emissions: EN 50081-1 Residential, commercial and light industry
Defined immunity to interference: EN 50082-1 Residential, commercial and light industry
Note:
The operator shall be responsible for any modifications to Sartorius equipment and for any connections of
cables or equipment not supplied by Sartorius and must check and, if necessary, correct these
modifications and connections. On request, Sartorius will provide information on the minimum operating
specifications (in accordance with the Standards listed above for defined immunity to interference).
89/336/EEC “Electromagnetic Compatibility (EMC)“
EN 50081-2 Industrial environment
EN 50082-2 Industrial environment
9
Specifications
Model PMA 35D PMA35D-000C
Weight range kg 35 35
Readability g 0,5/1 0,5/1
Tare range (subtractive) kg – 35 – 35
Max. overload capacity kg 70 70
Max. linearity g < 2 < 2
Repeatability < g 1 1
Sensitivity drift 1/K < + 10 ppm
at + 10° C to 30° C
Integration time,
can be selected externally s 1.6 to 6.4
Stability range
can be selected externally digit 0.25 to 4
Allowable ambient
operating temperature °C 0 to + 40
Moisture-proof rating Class F Non-condensing
Scale housing (WxDxH) mm 400x 425 x approx. 90
Load plate (WxDxH) mm 400 x 300 x 53
Net weight kg 8
Calibration weight kg 10, class F2 or better
Dust and water protection rating
of the weighing platform IP 54
Dust and water protection rating
of the display and control unit IP 40
Power consumption VA average: 8; maximum: 16
Interface RS-232C
– Format 7-bit ASCII, 1 start bit, 1 or 2 stop bits
– Parity odd, even, mark, or space
– Transmission rates 150 to 9600 baud
– Handshake Software or hardware
Power supply
AC adapter, type STNG6:
– 6971412 EC 230 V, 50-60 Hz
– 6971413 USA/CDN 120 V, 50-60 Hz
– 6971414 GB 240 V, 50-60 Hz
– 6971410 ZA 240 V, 50-60 Hz
TNG 6-type AC adapter, model:
– 6971942 GB 240 V, 50-60 Hz
– 6971173 USA/CDN 120 V, 50-60 Hz
– 6971411 AUS 230 V, 50-60 Hz
– 6971172 Universal 115–230 V, 50-60 Hz
Data output, 25-pin:
Pin 1: shield, pin 2: transmit data (TXD), Pin 3: receive data (RXD),
Pin 5: clear to send (CTS), pin 20: data terminal ready (DTR), pins 7, 14: (SGN GND)
Accessories
Calibration weight (F2) YCW714–00 1 x 10,000 g
Note:
If you require additional instruction manuals for your scale, you can order them directly from your local
Sartorius office.
10
11
Sartorius AG
37070 Goettingen, Germany
Weender Landstrasse 94 - 108, 37075 Goettingen, Germany
(+49/551) 308-0, (+49/551) 308-3289
Internet: http://www.sartorius.com
Copyright by Sartorius AG, Goettingen, Germany.
All rights reserved. No part of this publication
may be reprinted or translated in any form or by any means
without the prior written permission of Sartorius AG.
The status of the information, specifications and
illustrations in this manual is indicated by the date
given below. Sartorius AG reserves the right to
make changes to the technology, features,
specifications and design of the equipment
without notice.
Status: May 1999 Sartorius AG, Goettingen, Germany
Printed in Germany on paper that has been bleached without any use of chlorine · MJ · KT ·
Publication No.: WPM6025-e99051
12
Loading...
