Operating Instructions

Sartorius Factory Series

FC and FCA Models Electronic Precision Scales for Hazardous Areas/Locations

98648-007-35

Contents

2 Contents

3 Operating Design

7 Configuration 7 Setting the Language 8 Navigating in the Setup Menu

9 Entering the Time and Date 10 Setting the Scale Functions 13 Setting the Device Parameters 13 Entering a Password 17 Setting the Application Parameters 23 Selecting the Printout Function 25 Printout Configuration 28 Displaying Info 29 MP8 Interface Emulation 29 Factory Settings

31 Operation 31 Basic Weighing Function 34 Device Parameters 36 Calibration/Adjustment 45 ReproTEST 46 Application Programs 46 Toggle between Two Weight Units 48 Counting 51 Weighing in Percent 54 Animal Weighing 58 Recalculation 63 Calculation 65 Checkweighing 70 Time-Controlled Functions 72 Totalizing 76 Formulation 80 Statistics 84 Extra Functions

(in the Application Menu) 84 Second Tare Memory (Preset Tare) 86 Individual Identification Codes (ID) 90 Manual Storage (M+) 91 Product Data Memory 93 “FlexPrint” Printout Function 94 Combining Applications 95 Examples of Application

Combinations 97 Data Output Functions 99 Printouts

101 Interface Description 106 Pin Assignment Chart 107 Cabling Diagram

115 Error Codes

117 Overview 117 General Views of the Scales 121 Specifications 127 Dimensions (Scale Drawings) 131 Accessories (Options) 136 Declarations of Conformity 138 EC Type Examination Certificates 162 Certificates of Compliance 168 EC Type-approval Certificate 170 Plates and Markings 172 Index

Appendix

Entering the General Password

Symbols

The following symbols are used in these instructions:

§ indicates steps you must perform

$ indicates steps required only under

certain conditions

> describes what happens after you

have performed a certain step

– indicates an item in a list

! indicates a hazard

Important Note to Users

Make sure to carefully read and follow sections marked with this symbol – they contain important safety instructions.

Hotline

For advice on the use of these applications, just call or fax Telephone: +49.551.308.4440 Telefax: +49.551.308.4449

Operating Design

The scales in the Factory Series consist of a weighing cell and a display and control unit. Besides an AC adapter, your scale also has an interface port for connecting a printer, computer, universal remote control switch, etc.

The display and control unit and the weighing cell can be set up separately.

Where not expressly indicated otherwise, the uses described in this manual apply to verified and verifiable scale versions* (indicated by the suffix “...CE” in the model number), as well as the standard version.

Combining Applications

You can combine the use of various application programs to meet your more complicated requirements.

Press the D key to select the desired application programs.

Keys

You can operate the scale either using the keys on the terminal or from a connected PC. This manual describes operation using the keys on the terminal.

Labeled Keys

These keys always have the function indicated by their label, but are not available at all times. Availability of their functions depends on the current operating status of the scale and the menu settings.

Meaning

a Alphabetic keys

Please see section on “Text Input”

e On/off/standby key

Turns the scale on and off or switches it to the standby mode

H Menu settings

Accesses and exits the Setup

D Toggles to the next application

program

c Clear Function

Deletes keypad input Interrupts a calibration and adjustment routine in progress Quits application programs

* For the use in legal metrology in the

EU and European Economic Area

p Print key

Outputs displayed values or data logs to the interface port

. Enters a decimal point

1 … 90keys

See the section on “Numeric Input”

t Tares the scale

Numeric Input To enter numbers: press 1 … 90.

To store numbers entered: press the corresponding function key directly below the soft key label

To delete an entire numeric input digit by digit: press the c key

Text Input

§ To enter numbers:

see the section on “Numeric Input”

§ To enter letters or characters:

press the a key

> Letters are displayed in the bottom

line for selection

§ To select a different letter:

press the corresponding soft key to change the letter shown

§ To select the letter/character shown:

press the corresponding function key below the soft key label

> The selected letter is shown on

the display

$ Enter the next letter/character,

if desired, as described above

$ To exit the letter input mode e.g.,

if the last character entered is a letter): press the a key

§ To store a word: press the

corresponding function key (soft key), such as

§ To delete an input character by

character: press the c key

§ To delete user data:

enter . or a space “m” and save

FC Models:

FCA Models:

Operating Design

Keys

Your Factory scale is operated either through the keys on the display and control unit or via a connected PC. Operation through the scale keys is described in the following.

Function Keys (Soft Keys)

The current function of a soft key is indicated in the bottom line of the display.

The bottom line shows symbols and/or abbreviations to indicate soft key functions. The abbreviations are usually self-explanatory.

Example

isoTST: start calibration/adjustment S ID: save ID

The function keys are numbered F1 through F6, from right to left.

The arrows shown in the footer indicate the following functions:

oo Return to Setup menu

(in the Setup menu: save settings

and exit the Setup program)

o Go back to the higher selection level

O Show sub-items under the

active item

Q Move upward in the input/output

window

q Move downward in the input/output

window

l Set the selected menu parameter

F6 F5 F4 F3 F2 F1

Display

There are two fundamentally different types of display:

– display of measured and calculated

values

– display for menu parameter settings

(setup)

Display of Measured and Calculated Values

This display is divided into nine sections.

Line for Metrological Data: If the scale is verified for use in legal metrology, the following metrological specifications are shown here:

Max Maximum capacity of the scale

Min Minimum capacity of the scale;

i.e., the minimum weight allowed when the scale is used in legal metrology

e Verification scale interval

of the scale

d Readability: indicates the scale

interval of the scale

R1 Displayed when e = d

through

R4 e = d

On standard scales, only

Max and d

are shown.

Line for metrological data Bar graph

Measured value line

Text line Soft key labels

Plus/minus sign

Unit/Stability indicator

Tare memory

Calculated value

Application pictograms

Bar Graph: The bar graph indicates how much of the scale’s capacity is “used up” by the current load; during checkweighing, t indicates the control limits.

The following symbols may be displayed here:

0% Lower load limit

100% Upper load limit

Bar graph showing 10% intervals

- Minimum for checkweighing

= Target for checkweighing

+ Maximum for checkweighing

Plus/Minus Sign, Stability Symbol: A plus or minus sign (F or H) is shown here for a weight value (e.g., a calculated value when weighing in percent) or the S symbol, indicating that the verified or verifiable scale has been zeroed or tared.

Measured Value Line: This section shows the weighed or calculated value or alphanumeric input. Note Concerning Verified Scales Approved for Use as Legal Measuring Instruments in the EU*:

For verified scales that have a verification scale interval

e not equal to the scale

interval

d, the last digit on the display

is bordered

Unit and Stability: When the scale reaches stability, the weight unit or calculation unit is displayed here.

The a symbol may be displayed for readouts on a scale verified for legal metrology. However, these readouts can be used only for standard applications (not in legal metrology/not legal for trade).

* including the Signatories of the Agree-

ment on the European Economic Area

Tare Memory, Calculated Values: The symbols displayed here indicate when there is a value in one of the tare memory modules or when the value shown is a result of calculation rather than direct measurement.

These symbols are as follows:

a Calculated value

1 Tare memory used by an

2 Application program

(e.g., formulation, second tare)

Application Pictograms: The pictograms displayed here indicate the application(s) selected. The pictogram is displayed inversely when the corresponding application is active.

For example, the following symbols may be displayed simultaneously:

A The counting application is

active

H Checkweighing is also active

S Print

T Data record

Text Line: Additional information is displayed here (e.g., operator guidance prompts, name of the active program, etc.).

Soft Key Labels: The current functions of the soft keys are indicated here; during calibration/ adjustment, this line shows up- and down-arrows (

Q and q) for selecting

calibration and adjustment functions.

Display for Menu Parameter Settings (Setup)

This display is divided into three sections.

Header The header indicates the function of the current screen page. In the Setup program, the current menu path is shown here.

Example in the path “Setup/Menu”:

Input and Output Window This window contains either detailed information (e.g., on the active application) or a pick list. A selected item is displayed inversely. You can also enter information in an active field in this window using the alphanumeric keys.

Example in the path “Setup/Menu”:

The

o symbol in this window indicates

the current menu setting.

Soft Key ID Labels: see “Function Keys (Soft Keys)” on the previous page.

1 Minimum vibration

o 2 Normal vibration

3 Strong vibration 4 Extreme vibration

SETUP MENU [ ]

Header

Input and Output Window

Footer

To select a parameter:

§ Press

Q or q repeatedly until the

desired setting is selected (displayed inversely)

§ Confirm your selection by pressing

the

l soft key

To change the alphanumeric value of a parameter:

§ Press

Q or q repeatedly until the

desired setting is selected (displayed inversely)

§ Enter the desired character using the

0 1 … 9 . keys or press the a key and enter letters or characters

§ Confirm your selection by pressing

the

l soft key

To return to the Setup/Menu level:

§ Press the

oo soft key

Operating Design

Input

Numeric Input

To enter numbers: Press the 1 2 … 0 . keys

To store numbers entered: Press the corresponding soft key (i.e., the arrow key under the appropriate abbreviation in the bottom line of the display)

To interrupt/cancel numeric input: Press c

Alphabetic Input

(see also the example given on page 33)

§ To enter letters or characters:

first press the a key

> Letters are displayed in the bottom line

§ To select a different letter:

press the corresponding soft key to change the letter shown (i.e., the arrow key under the letter displayed)

§ To select the letter/character shown:

press the corresponding soft key

> The selected letter is shown in

the display

$ Enter the next letter/character,

if desired, as above.

§ To store a word: press the

corresponding soft key (e.g.,

S ID)

§ To delete a word: press c

Parameter Settings

The parameters for configuration are in the application menu and the scale operating menu. These menus have several levels.

§ To set parameters: press H and

then the appropriate soft key (e.g.,

App for the application menu)

§ To move within a menu level:

use the

Q and q soft keys

To select a parameter:

§ Press

Q or q repeatedly until the

desired setting is selected (displayed inversely)

§ Confirm your selection by pressing

the

l soft key

To change the numeric value of a parameter:

§ Press

Q or q repeatedly until the desired

setting is selected (displayed inversely)

§ Enter the desired number using the

1 2 … 0 . keys

§ Confirm your selection by pressing

the

l soft key

To return to the Setup/Select level:

§ Press the

oo soft key

See the chapter entitled “Configuration” for a complete description of all parameters.

To save the parameter settings and exit the Setup menu: press H or the

oo soft key

To cancel the parameter setting operation: press e

Data Output

Your Factory scale is equipped with an interface port for connecting your

choice of the following: – Printer* – Peripheral device (e.g., computer)* – Universal remote control switch

Printer

You can configure the print functions

to meet your individual requirements by

selecting the corresponding menu code.

You can have printouts generated auto-

matically, or by pressing p; dependent

on or independent of the stability or

time parameters; with or without IDs;

and as standard or ISO/GMP-compliant

printouts.

ISO: International Organization

for Standardization

GMP: Good Manufacturing Practice

See the section on “Data Output

Functions” in the chapter entitled

“Operation” for a detailed description

of data output options.

* using a Zener barrier (see also page 131)

Interface Port

Instead of a printer, you may choose to connect a different peripheral device, e.g. a computer (PC)*. With an on-line PC you can control both the weighing cell and the display unit of the Factory scale.

Request messages are sent via the interface to initiate functions in the weighing cell and in the display unit. Some of the functions generate response messages.

See the chapter entitled “Operation” under the section on “Data Output” for a detailed description of the interface port.

Error Codes

If you press a key that has no function, or which is blocked at a certain point in an application program, this error is indicated as follows:

– a double-beep is sounded as an acoustic

signal if the key has no function

– a double-beep is sounded and a

message is displayed for 2 seconds in the text line if the key function is not available at that time

The response to an operator error is identical in all models of the Factory series. See the chapter entitled “Error Codes” for a detailed description.

Storing Settings

Storing Parameter Settings

The settings configured are stored in the scale’s non-volatile memory. Additionally, the factory settings can be reloaded.

Saving Parameter Settings

You can assign passwords in order to block access to:

– printing function

Config

– the application menu App

– the scale operating menu Menu and

– user data input functions

Input

Configuration

Purpose

You can configure the scale terminal to meet individual requirements by entering user data and setting parameters in the Setup program.

The Setup menu contains the

following submenus: – Balance/scale functions – Device parameters – Application parameters – Printout – Device information – Language – Factory settings

Setting the Language

You can choose from 5 languages for

the information display: – German – English (factory setting) – English with U.S. date/time format – French – Italian – Spanish

Configuring the Scale for Use in Legal Metrology

Set the menu access switch as described below to configure the following functions for use of the scale in legal metrology:

– Display: Verification scale interval

lower limit of the weighing capacity

Min

– External calibration blocked

Preparation FCA...IGG:

§ Remove the load plate from the

weighing platform

§ Remove the cap from the back of

the scale housing

§ Move the switch upwards

> When the switch is in the upper posi-

tion, the Setup menu is locked and the scale can be used in legal metrology

> When the switch is in the lower

position, the menu is accessible

Preparation FC…, FCA...EDE:

– Switch located see sections entitled

“Overview” and “Plates and Markings”

Example:

Settting the Language to “U.S. Mode”

Step Press key Display/Output

(or follow instructions)

1. Select “Setup” menu H

2. Select “Language” repeatedly press

q soft key,

and confirm then

O soft key

3. Select “U.S. mode”

Q soft key

4. Save language

l soft key

5. Exit the Setup menu

oo soft key

Configuration

Navigating in the Setup Menu (Examples):

Example: Adapting the scale to “Extreme vibration”

Step Press key(s) Display/Output

(or follow instructions)

1. Select Setup menu H

2. Confirm “Scale functions”

O soft key

3. Select menu item “Adapt filter”

q, then

and confirm

O soft key

4. Select menu item “Extreme vibration”

q soft key

5. Confirm menu item “Extreme vibration”

l soft key

6. If required, select further menu items

oqQO soft keys

7. Save setting and exit Setup Menu

oo soft key

Example: Entering the time and date

Step Press key(s) Display/Output

(or follow instructions)

1. Select Setup menu; H, then

select “Device parameters“

q soft key and O soft key

2. Set clock press

q repeatedly,

then press

3. Enter the time 11.12

.30

4. Set the time according to

l soft key

your local clock

5. Enter the date 13.03

.00

6. Store the date l soft key

7. Enter other data, if desired

oqQO soft keys

8. Exit Setup menu

oo soft key

Purpose

This menu item enables you to configure the scale functions, i.e., to meet individual requirements by selecting predefined parameters in the Setup menu. You can block access to the menu by assigning a password.

Features

The scale functions are combined in the following groups (1st menu level):

– Calibration/adjustment

– Adapt filter

– Application filter

– Stability range

– Taring

– Auto zero

– Weight unit 1

– Zero range

– Zero range at power on

– Tare/zero at power on

– Factory settings: only wgh. param.

(only the scale functions)

Factory Settings

Parameters: The factory settings are

identified by the symbol “ο” in the list

starting on the next page.

Preparation

Show available balance/scale functions:

§ Select Setup menu: press the H key > SETUP is displayed

§ Select "Scale functions":

press the

O soft key

If you already assigned a password:

> The password prompt is displayed

$ If access is blocked by a password:

enter the password using the numeric/ alphabetic keys.

$ If the last character of the password is a

letter: conclude input by pressing a

§ Confirm your password and have

the scale functions displayed: Press the

l soft key

> Scale functions are displayed:

$ To select the next group:

press the q soft key (down arrow)

$ To select the previous item of a group:

press the

Q soft key (up arrow)

$ To select the next sub-item within

a group: press the

O soft key

(right arrow)

$ To select the previous group:

press the

o soft key (left arrow)

$ To confirm: press the

l soft key

Extra Functions

§ Exit the Setup menu:

press the

oo soft key

> Restart your application

§ Print parameter settings: – When the balance/scale functions are

displayed, press p

> Printout (example)

Texts with more than 20 characters are cut off

SETUP

BAL.FUNC.

--------------------Calibration/adjustm

CAL/iso TST key fun Internal cal./adju

Cal/adjustm seq Cal. with adjustm au .

isoCAL-function

Off

Start autom. adjus

isoCAL

Print GLP/GMP adju Automatic if GLP is selected

Parameter for exte

Wt. ID (W ID):

Cal./adjust.-wt:

5000.00 g

Adapt filter

Normal vibration

Application filter

Filling mode

Stability range

2 digits

Taring

After stability

Auto zero

Off

Weight unit 1

Grams /g

etc.

Setting the Scale Functions (BAL.FUNC.)

Setting the Scale Functions (Overview)

ο factory setting √ user-defined setting

Setup - Calibration / Cal/isoTST key function External calibration/adjustment**; Scale - adjustment with factory-defined calibration weight functions External calibration/adjustment**; user-defined weight

ο Internal calibration/adjustment

Cal key blocked reproTEST Selection mode for cal./adjustment)

Calibration/ Calibrate, then auto adjust

adjustment sequence ο Calibrate, then manual adjust isoCAL function ο Off

Only adjustment prompt On; delete application On; do not delete application

Start autom. User def. times* Time 1: (hh.mm) calibration/adjustment Time 2: (hh.mm)

Time 3: (hh.mm)

ο isoCAL

Print GLP/GMP ο Automatic if GLP is selected

adjustment record On request,

from record memory

Parameter for Weight set ID (W ID): Enter 14 characters max. external weight Calibration/ Enter exact weight

adjustment-weight:

Adapt filter Minimum vibration (ambient conditions)

ο Normal vibration

Strong vibration Extreme vibration

Application filter ο Final readout

Filling mode Low filtering Without filtering

Stability range 4 digit

1 digit 1 digit

ο 2 digits

4 digits 8 digits*

Taring* Without stability

ο After stability

Auto zero ο On

Off

** = not applicable to verified scales used in legal metrology in the European Economic Area ** = verified scales can only be externally calibrated, not adjusted (you can only check the external weight)

Factory setting

Setting the Scale Functions (Bal Func.)

Setup – Weight unit 1* ο Grams /g**

Scale Kilograms /kg** functions Carats /ct*

Pounds /lb* Ounces /oz* Troy ounces /ozt* Hong Kong taels /tlh* Singapore taels /tls* Taiwanese taels /tlt* Grains /GN* Pennyweights /dwt* Milligrams /mg* Parts per pound //lb* Chinese taels /tlc* Momme /mom* Austrian carats /K* Tola /tol* Baht /bat* Mesghal /MS*

Zero range 1 percent/max. capacity

ο 2 percent/max. capacity

Zero range at ο Factory setting (depends on model)

power on 2 percent/max. capacity

5 percent/max. capacity

Tare/zero at ο On

power on* Off

Factory settings: No only weighing Yes parameters

** = not applicable to verified scales used in legal metrology in the European Economic Area ** = factory setting depends on weighing range: – < 33 kg: grams

– > 34 kg: kilograms

Factory setting

Setting the Device Parameters (DEVICE)

Purpose

This menu item enables you to configure the scale to meet individual requirements by selecting predefined menu parameters in the Setup menu. You can block access to the menu by assigning a password.

Features

The device parameters are combined in the following groups (1st menu level):

– Password

– User ID

– Clock

– Interfaces

– Display

– Keys

– Extra functions

– Factory settings: only device parameters

Factory Settings

Parameters: The factory settings are

identified by the symbol “ο" in the list

starting on the page after next.

Preparation

Display available device parameters

§ Select the Setup menu: press H

> SETUP is displayed:

§ Select “Device parameters”:

use the

q and O soft keys

If no password has been assigned, anyone can access the Setup menu device parameters.

If a password has already been assigned:

> The password prompt is displayed

$ If access is blocked by a password:

enter the password using the numeric and/or alphabetic keys

$ If the last character of the password

is a letter: conclude input by pressing the a key

§ Press

l to confirm the password

> Device parameters are now displayed:

$ To select the next group:

press the

q soft key (down arrow)

$ To select the previous menu item of

a group: press

Q soft key (up arrow)

$ To select the next sub-item within

a group: press the

O soft key

(right arrow)

$ To select the previous group:

press the

o soft key (left arrow)

$ Press

l soft key to confirm the

selected menu item

Entering or Changing a Password

– Let’s assume that a password with

8 characters max. has already been assigned to access the Setup device parameters

§ Select the Setup menu: press H

> SETUP is displayed

§ Select parameters:

Use the

q and O soft keys

> The password prompt is displayed:

$ Enter the password

$ Press the

l soft key to confirm

your password and view the device parameters

§ Write down your password here for

easy reference:

Password =..............................

If you assign a password and then forget what the word is:

$ Enter the General Password

(see Appendix)

$ Press the

l soft key to confirm and

display the password

> The parameters are displayed

§ Select the device parameter “Password”:

If necessary, repeatedly press

q or Q ,

until you see

Password: and any existing

password

Setting the Device Parameters (DEVICE)

§ New password: Enter the numbers

and/or letters for the new password (8 characters max.) If “none" is displayed, this means no password has been assigned to delete the user password: Press . and confirm

§ To confirm: press the

l soft key

§ Exit the Setup menu:

press the

oo soft key

> Restart the application

Extra Functions

§ Exit the Setup menu:

press the

oo soft key

> Restart the application

§ Print the parameter settings: – If the device parameters are displayed:

press p

> Printout (example)

SETUP

DEVICE

-------------------User ID

User ID:

Interfaces

Serial communicati

SBI

Baud rate

1200 baud

Number of data b

7 data bits

Parity

Odd

Number of stop b

1 stop bit

Handshake-mode Hardware handshake after 1 char

Function external

Print key

Function control

Output

Display

Contrast

Background

White

Digit size

10mm + bar graph +text display

Application symbo

Keys

CF function in ap

Clear all applicati

CF function for i

Delete last charact

Block key functio All keys unblocke

etc.

Device Parameters (Overview)

o factory setting

√ user-defined setting

Setup – Device parameters

Password: None Enter 8 characters max.

User ID: None Enter 20 characters max.

Clock Time: Enter hh.mm.ss

Date: Enter dd.mm.yy or mm.dd.yy

(01.01.97)

Interfaces Serial ο SBI Baud rate 150 baud

communication 300 baud (PERIPHERALS) 600 baud

ο 1,200 baud

2,400 baud 4,800 baud 9,600 baud 19,200 baud

Number of ο 7 bit

data bits 8 bit

Parity Space

ο Odd

Even None

Number of ο 1 stop bit

stop bits 2 stop bits

Handshake Software handshake

mode ο Hardware handshake,

1 character after CTS

xBPI (RS232) Network address: ο Enter any number from 0 to 31

YDP01IS

YDP02 see YDP03 (without 19200 baud)

YDP03 Baud rate ο 1,200 baud

2,400 baud 4,800 baud 9,600 baud 19,200 baud

Parity Space

ο Odd

Even

Handshake Software handshake mode

mode ο Hardware-handshake,

1 character after CTS

YDP01IS Label (label printer)

xBPI-RS485 Network address: 0 Enter any number from 0 to 31 (FCA models only)

YDP02IS

YDP02IS Label (label printer)

Universal see “SBI” above for submenu items

YDP04IS

YDP04IS Label (label printer)

For the display, keys and extra functions, see next pages

not if “None" parity is selected

only if 8 data bits selected

only if 7 data bits selected

Factory setting

Setting the Device Parameters (DEVICE)

Setup – Device parameters

Interfaces Function: Print key

external switch ο Tare key

Calibration key F1 function key (Right soft key) Clear function key c F2 function key (2nd soft key from the right)

Function: Input

control ports ο Output

Display Contrast Select contrast (0 to 4): 0

ο 2

3 4

Background ο White

Black

Backlighting ο On

Auto. off after 4 min. (of non-use)

Digit size ο 10mm + bar graph + text display

13mm + bar graph 13mm + text display 13mm

Application Off

symbols ο On

Keys CF function ο Clear all applications

in application Clear only selected applications

CF function Delete entire input

for input ο Delete last character Block key ο All keys unblocked

functions All blocked except for H, a

Alphanumeric keys blocked

Extra functions Acoustic signal ο On

Off

Power-on ο Off/on/standby

mode On/off Automatic After 4 min. (of non-use)

shutoff ο Off

Auto on

Factory settings: No only Yes device parameters

Factory setting

Setting the Application Parameters (Application)

Purpose

This menu item enables you to configure the scale, i.e., adapt the scale to your individual requirements by selecting from a list of parameter options in a menu. You can block access to this menu by assigning a password.

Features

The simple weighing function is available at all times. You can select one from each of the following application groups. This means a number of combinations are possible.

Application 1 (basic settings) – Toggle weight units – Counting – Weighing in percent – Animal weighing (averaging) – Recalculation – Calculation – Density determination – Differential weighing

Application 2 (control functions) – Checkweighing – Time-controlled functions

Application 3 (data records) – Totalizing – Formulation – Statistics

In addition, you can assign 2 extra

functions to each of the soft keys, in

some cases (depending on the Setup

configuration): – Second tare memory – Identification codes – Manual storage M+ key – Product data memory

Auto-start application the scale

is switched on

Factory settings:

only application parameters

Factory Settings

The factory settings are identified by

the symbol "ο" in the list starting on

the next page.

Preparation

Display available application parameters:

§ Select the Setup menu:

press the H key

> SETUP is displayed

§ Select parameters: repeatedly press

the

q and O soft keys

If you have already assigned a password:

> The password prompt is displayed:

$ If access is blocked by a password:

enter the password using the numeric/ alphabetic keys

$ If the last character of the password is a

letter: conclude input by pressing a

§ Confirm your password and have the

application parameters displayed: press the

l soft key

> The application menu is displayed:

$ To select the next group:

press the q soft key (down arrow)

$ To select the previous item of a group:

press the

Q soft key (up arrow)

$ To select the next sub-item within

a group: press the

O soft key

(right arrow)

$ To select the previous group:

press the

o soft key (left arrow)

$ To confirm: press the

l soft key

Extra Functions

§ Exit the Setup menu:

press the

oo soft key

> Restart your application

§ Print parameter settings: – When the scale functions are displayed,

press p

> Printout (example)

Texts with more than 20 characters are truncated

SETUP

APPLICATION

-------------------Application 1 (basi

Off

Application 2 (cont

Off

Application 3 (data

Off

Extra function (F4)

2nd tare memory

Container tare we

Automatic printou

Off

Extra function (F5)

Off

Auto-start app. whe

Off

--------------------

Setting the Application Parameters (Application)

Application Parameters (Overview)

ο factory settings √ user-defined setting

Setup – Application 1 ο Off (weighing only) Application (Basic settings) Toggle wt. units Weight unit 1 ο Grams /g**

parameters Kilograms /kg**

Carats /ct* Pounds /lb* Ounces /oz* Troy ounces /ozt* Hong Kong taels /tlh* Singapore taels /tls* Taiwanese taels /tlt* Grains /GN* Pennyweights /dwt* Milligrams /mg* Parts per pound //lb* Chinese taels /tlc* Momme /mom* Austrian carats /K* Tola /tol* Baht /bat* Mesghal /MS*

Weight unit 2 ο Grams /g**

Kilograms /kg** Carat s/ct* Pounds /lb* Ounces /oz* Troy ounces /ozt* Hong Kong taels /tlh* Singapore taels /tls* Taiwanese taels /tlt* Grains /GN* Pennyweights /dwt* Milligrams /mg* Parts per pound //lb* Chinese taels /tlc* Momme /mom* Austrian carats /K* Tola /tol* Baht /bat* Mesghal /MS*

For counting through see the following pages differential weighing

Applications 2 and 3 see following pages

** = not applicable to verified scales used in the European Economic Area ** = factory setting depends on weighing range: – < 33 kg: grams

– > 34 kg: kilograms

Factory setting

Setup – Application 1 Counting Accuracy – Average ο Display accuracy

Application (Basic settings) piece weight calcu- + 1 decimal place parameters lation (resolution) + 2 decimal places

Average piece Off weight updating Manual

ο Automatic

Percent weighing Weight storage ο Display accuracy

(resolution) accuracy + 1 decimal place

+ 2 decimal places

Decimal places for None readout in percent 1 decimal place

ο 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

Display calculated ο Residue

value Loss

Ratio 1 (DR) Ratio 2 (OR)

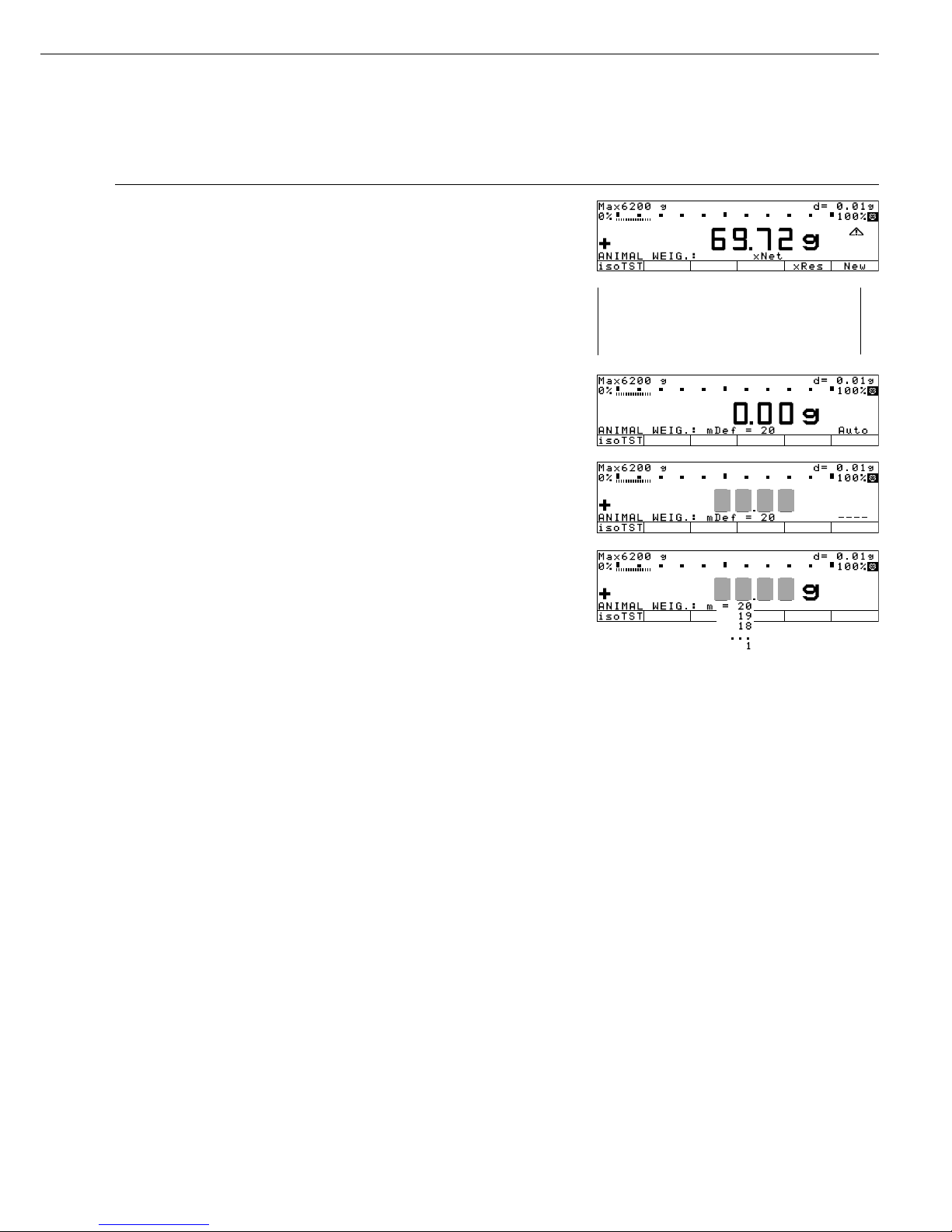

Animal weighing Animal activity Calm (averaging) Normal

Active

0.1% of the animal/object

0.2% of the animal/object

0.5% of the animal/object 1% of the animal/object 2% of the animal/object

ο 5% of the animal/object

10% of the animal/object 20% of the animal/object 50% of the animal/object 100% of the animal/object

Start Manual mode

ο Automatic mode

Minimum load for None automatic storage 10 digits

20 digits 50 digits

ο 100 digits

200 digits 500 digits 1000 digits

Decimal places in None result display 1 decimal place

ο 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

Printout None

ο Average weight only

Average and calculated value

Recalculation

For calculation to differential weighing, see following pages

Applications 2 and 3 see following pages

Factory setting

Setting the Application Parameters (Application)

Setup – Application 1 Calculation Decimal places in None Application (Basic settings) calculated result 1 decimal place

parameters ο 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

Density

Differential weighing

Application 2 ο Off

(Control functions)

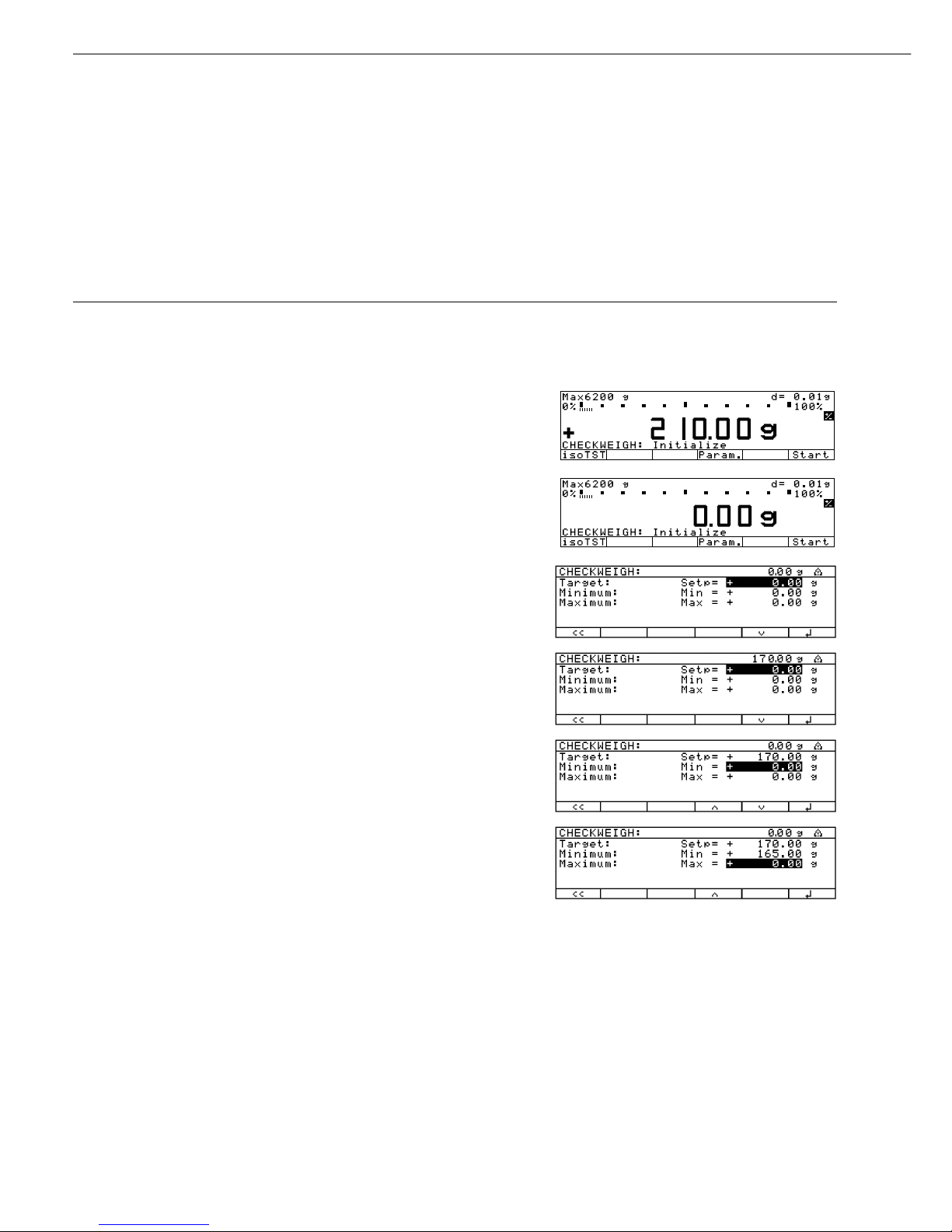

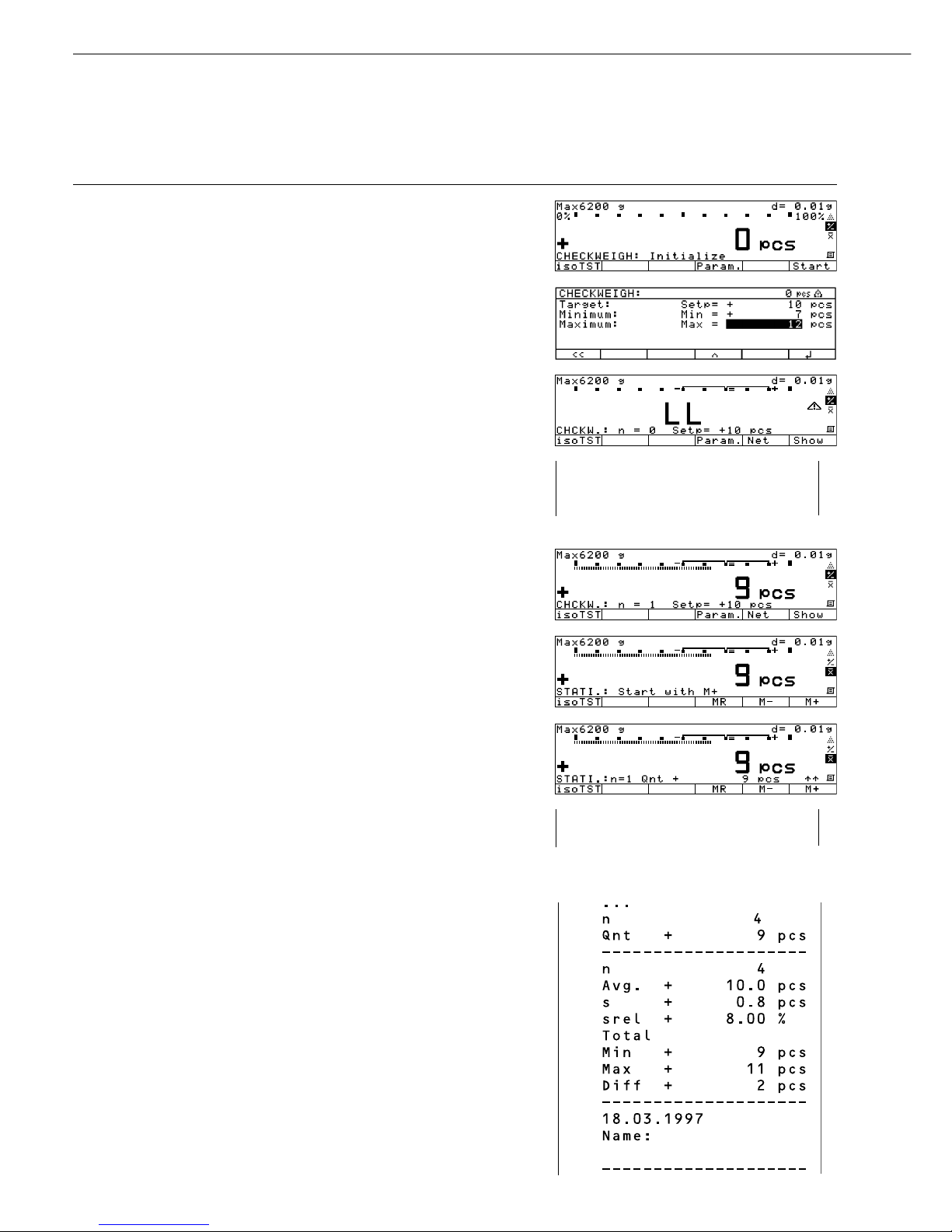

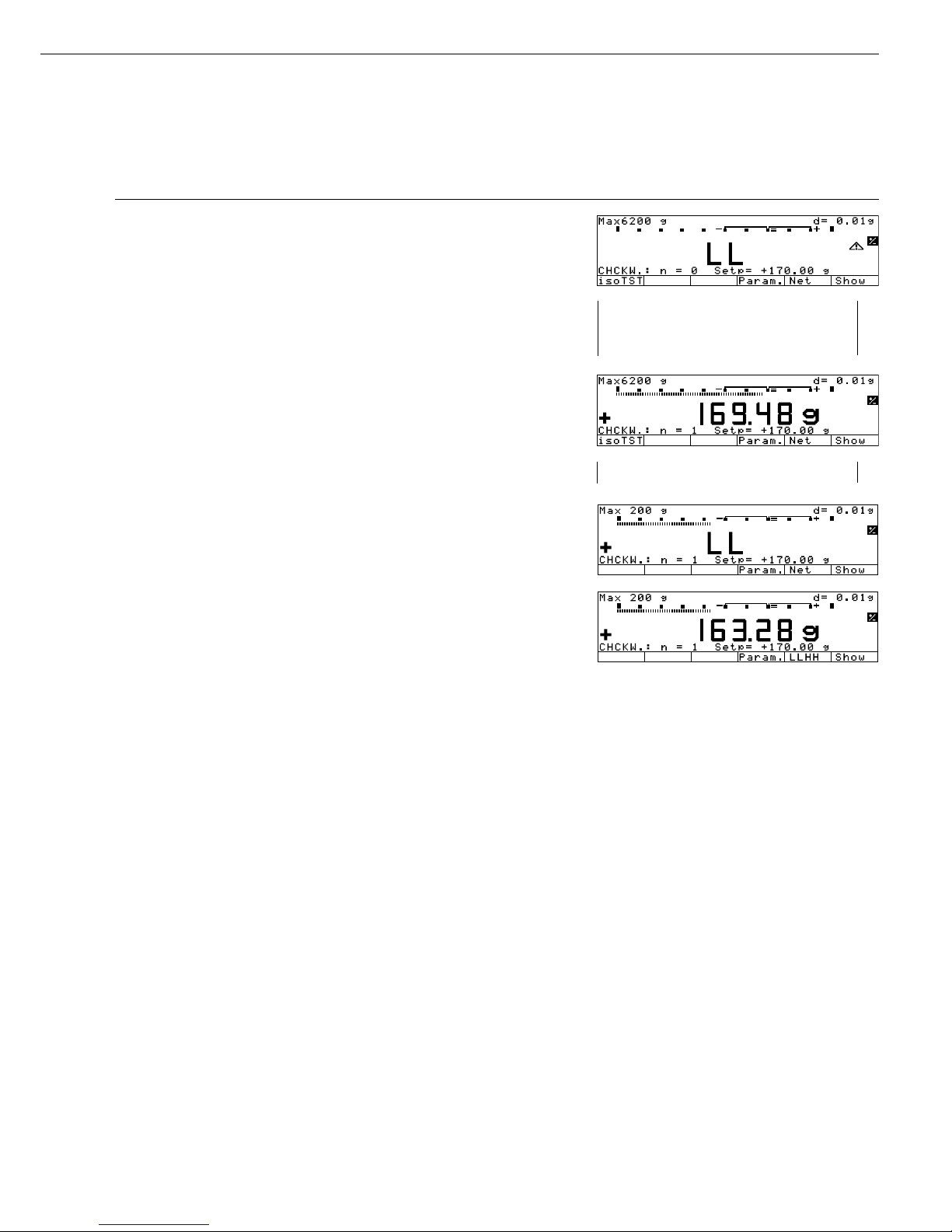

Checkweighing Activation of ο Within checkweighing range

port lines Always on

Stability and checkweighing range At stability Stability + checkweigh. range on (only once)

Type of check- ο Target, min., max. weight

weighing input Minimum, maximum weight

Target, min. in %, max. in %

Weight display ο Absolute value

mode Difference from the target

Automatic printout Yes

of OK values ο No

Time-controlled Function after Beep functions time interval Lock in readout

ο Automatic printout of values

Store value in applicat. 3 memory (totalizing, formulation, statistics)

Automatic function ο On

restart Off

Storage mode ο Without stability

After stability After higher stability

Print then tare Off

ο On

Application 3 see following pages

)=For details on using the “Differential Weighing” application, please refer to the operating instructions for Master

pro

LA balances, available

on request from Sartorius or by Internet download (www.sartorius.com → Laboratory Mechatronics → Downloads; file name: “LA.pdf”).

Factory setting

Setup – Application 3 ο Off

Application (Data records)

Totalizing Automatic storage o Off

parameters

On, first value at stability On, last value at stability On, value bet. 70% – 130% at stability

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data for ο Application 1

auto storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluation mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Intermediate evaluation, display+print Final evaluation, display+print

M+/M– function, ο Off

then tare On

Printout of indi- No

vidual components ο Yes

Formulation Automatic storage ο Off

On, first value at stability

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data for ο Application 1

automatic storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluation mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Printout of indi- No

vidual components ο Yes

Statistics see next page

Factory setting

Setting the Application Parameters (Application)

Setup – Application 3 Statistics Automatic storage ο Off

Application (Data records) On, first value at stability parameters

On, last value at stability On, value 70% – 130% at stability

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data for ο Application 1

automatic storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluation mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Intermediate evaluation, display + print Final evaluation, display + print

M+/M– function, ο Off

then tare On

Printout of indi- No

vidual components ο Yes

Extra Functions Off (F4 key)

ο 2nd tare memory Container tare ο No

Extra Functions

weight Yes

(F5 key) Automatic printout Net value

Tare/preset tare

ο Off

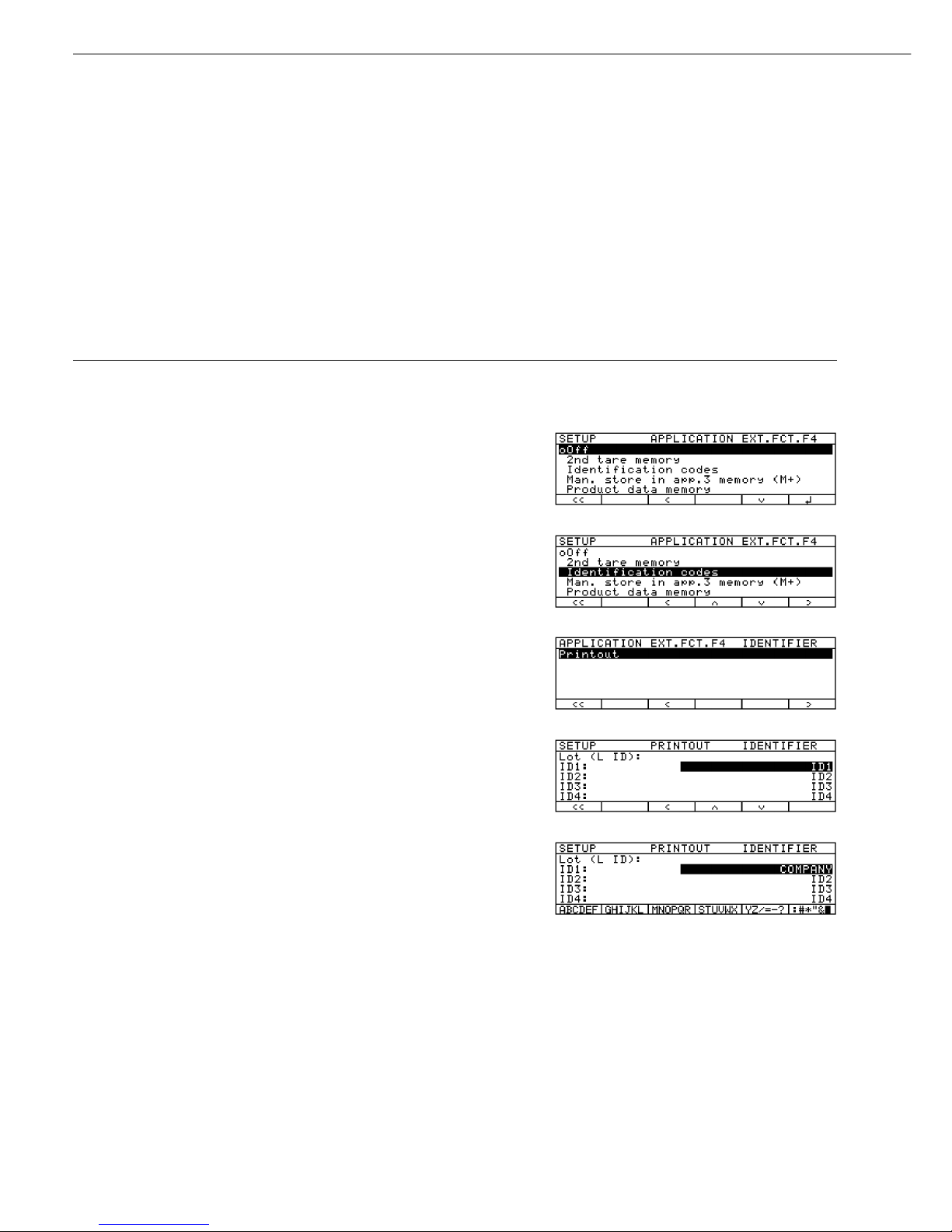

Identification Printout Automatic, if configured codes (IDs) Once after pressing

print, if configured

ο Each time the print key is pressed

Once for

M+ function

(application 3 memory)

Manual storage in app. 3 memory M+ (totalizing, formulation, statistics)

Product data memory

Auto-start On

application when ο Off

power goes on

Factory settings No only for application Yes parameters

Factory setting

Selecting the Printout Function (PRINTOUT)

Purpose

This menu item enables you to configure the printout to meet your individual requirements by selecting predefined menu parameters in the Setup menu. Printouts of weights and other measured or calculated values and IDs enable you to document your data. You can select the particular data you wish to print. To prevent changes to your settings, you can block access to the menu by assigning a password.

Features

The device parameters are combined in the following groups (1st menu level):

– Application-defined output

– Configured Printout – FlexPrint

– Automatic output of displayed values

– Output to interface port

– Line format

– ISO/GLP/GMP printout

– Identification (identifier)

– Factory settings – printout only

Factory Settings

Parameters: The factory settings are

identified by the symbol “ο” in the list

on the next page.

Preparation

Display available printout parameters

§ Select the Setup menu: press H > SETUP is displayed:

§ Select “Printout”: use the

q and O

soft keys

If no password has been assigned, anyone can access the printout parameters in the Setup menu

If a password has already been assigned:

> The password prompt is displayed

$ If access is blocked by a password: enter

the password using the numeric and/or alphabetic keys

$ If the last character of the password is

a letter: conclude input by pressing the a key

§ Press

l to confirm the password

> Printout parameters are now displayed:

$ To select the next group:

press the

q soft key (down arrow)

$ To select the previous item of a group:

press the

Q soft key (up arrow)

$ To select the next sub-item within

a group: press the

O soft key

(right arrow)

$ To select the previous group:

press the

o soft key (left arrow)

$ To confirm: press the

l soft key

Extra Functions

§ Exit the Setup menu:

press the

oo soft key

> Restart your application

§ Print parameter settings: – When the printout parameters

are displayed, press p

> Printout (Example)

SETUP

PRINTOUT

-------------------Application defined

Stability paramete

With Stability

Print on request t

Off

Auto print upon in

All values

Configured printou

Indiv.: Printout Comp.: Printout Total: Printout

FlexPrint

Off

Automatic Output of

Stability paramet

Without stabili

Stop auto print

Not possible

Time-dependent aut

1 display update

Output to interface

Serial communicat: Application-defined output

Line format

For other apps/GLP

(22 characters) ISO/GLP/GMP printou

Off

Identification

Lot (L ID):

ID1:

ID1

etc

Selecting the Printout Function (PRINTOUT)

Printout Parameters (Overview)

o factory setting

√ user-defined setting

Setup Application- Stability parameter Without stability

Print- defined ο With stability

output

Print on request, ο Off

then tare On

Auto print upon ο Off

initialization All values (of the application) Only main values

Configured printout See own chapter starting on the next page

FlexPrint ο Off

Automatic Stability parameter ο Without stability

output of At stability displayed value

Automatic after weight change

Stop auto print Use print key p

ο Not possible

Time-dependent ο 1 display update

auto print 2 display updates

10 display updates

100 display updates

Output to Serial communication ο Application-defined output

interface port (PERIPHERALS) Automatic output of displayed value

Line format For raw data (16 characters)

ο For other apps/GLP (22 characters)

ISO/GLP/GMP ο Off

printout Only for calibration/adjustment

Always on

Identification Lot ID (L ID): Enter 20 characters max

ID1: ID1 ID2: ID2 ID3: ID3 ID4: ID4

Factory settings: No only printout Yes

) = When the scale is used in legal metrology, this setting may be configured for control purposes only; printout of values is not permitted

) = Autoprint when load change is >10 d and stability is reached: no printout until residual difference in load value >5 d

) = To enable automatic output of the displayed value, the corresponding option (“Automatic output of displayed value”) must be activated

under the next menu item at this level, “Output to interface port”

) = These settings may not be changed on verified scales

Factory setting

Printout Configuration

Purpose

This menu item enables you to configure individual printout formats. With the formulation, totalizing and statistics applications, you can also define the values to be included on the total printout when the MR key is pressed.

Under “Setup: Printout: Applicationdefined output: Configured printout”, you can configure individual, component or total data records that contain the items available for printouts in each application. Configure these printouts after you have configured the applications, because some entries in the data record depend on the particular application.

Features

– Maximum items in a data record: 60

– Separate configuration of printout

formats for individual weights, components, total, backweighing and statistics

– Individual printout generation:

press the p key

Automatic printout of application data: results from animal weighing or density application (Setup menu: Application 1: Density: Printout: All data) OK values from checkweighing application, timecontrolled printouts, 2nd tare memory

– Component printout:

For results from totalizing, formulation or statistics applications, press

M+ or

M- (Setup: Application 3: ..., Printout

of individual components: On)

– Total printout:

For totalizing, formulation or statistics applications, press

– Backweighing printouts or records:

automatically generated after backweighing or manually by pressing the p key when the result is displayed at the end of backweighing

– Statistics printout or output:

To generate, press the p key when the statistics are displayed

Printouts for Differential Weighing: These printouts can be generated as standard or configured (user-defined) reports.

You can configure the following

printouts: – Individual printout – Backweighing printout – Statistics printouts

Printouts are generated in one

of two ways: – at the request of the user by pressing

the p key (print on request) – automatically, if configured in the

Setup menu [Application parameters:

Application 1: Differential weighing:

Generate printout: Auto]

You can turn off automatic printout generation in the Setup menu [Application parameters: Application 1: Differential weighing: Generate printout: None]

Data records are deleted after you have switched to a different application or activated or de-activated an extra function in the application parameters of the Setup menu

– A new pick list for a data record is

created based on the currently active application programs and extra functions

– Printout items can be deleted

individually

– No printout is generated when the

following setting is configured:

Setup: Printout: Line format: For raw data (16 characters)

– Print item “Form feed” for footer:

Advance to beginning of next label in the "YDP01IS-Label" and “YDP02IS-Label” interface mode

Extra Functions

§ Exit printout configuration:

press

oo soft key

> Restart application

Printing “Select” and “List” Settings

–

LIST: print the currently selected

list

Select: printout items that

can still be selected

§ When the select bar is on

LIST

or Select: press the p key

> Printout (Example)

BACKW. PRINT.LIST ==================== Sample date Net initial wt. Backweighed res Loss in % ====================

etc.

Printout Configuration

Practical Example:

Configure an Individual Printout for Counting Application to Include Dotted Line, Date/Time, Piece Count and Net Weight

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Counting Exit the Setup menu: press the

oo soft key

Then call Setup again and select: Printout: Application-defined output: Configured printout

Step Press key(s) Display/Output

(or follow instructions)

1. Select Setup menu, H, then

“Printout”

q repeatedly and O soft key

2. Confirm “Application-defined

O soft key

output”

3. Select and confirm

q soft key 3+

“Configured printout”

O soft key

4. Confirm “Indiv. printout”

O soft key

5. Select “Dotted line”

O, q, l soft keys

6. Select “Date/time”

q soft key twice,

then l soft key

7. Select “Piece count”

q repeatedly,

then l soft key

8. Select “Net weight”

Q soft key repeatedly,

then l soft key

9. Exit “Printout configuration”

oo soft key

10. Perform weighing operations, p

--------------------

then print 14.01.2000 09:19

Qnt + 598 pcs N + 2003.13 g

Data Items for the Printout:

Parameter Display text Indiv. Comp. Total

Blank line** Blank line xxx

Dotted line** -------- xxx

Form feed* Form feed xxx

Date/Time* Date/Time xxx

Time with seconds* Time xxx

GLP header* GLP header xxx

GLP footer* GLP footer xxx

Sample ID* S ID xxx

ID 1* ID1 xxx

ID 2* ID2 xxx

ID 3* ID3 xxx

ID 4* ID4 xxx

Net weight* Net (N) x

Gross weight* Gross (G#) xxx

Preset tare/ Tare 1 weight* Tare1 (T1/PT1) xxx

With “Counting” application:

Reference quantity Ref. quantity xxx Reference weight Ref. weight xxx Piece count Piece Count x

With “Weighing in percent” application:

Reference percentage Ref. percent xxx Reference weight Ref. weight xxx Percentage Percent x

With “Animal Weighing” application:

Number of weighing operations No. of weights xxx Calculation factor Factor xxx Average animal weight Mean value x Average Animal weight calculated Mean factor x

With “Calculation” application:

Equation Equation xxx Calculated result Calc. result x

* = Items are available independently of the applications selected ** = Items are available independently of the applications selected and

can be selected more than once

Data Items for the Printout:

Parameter Display text Indiv. Comp. Total

With the “Checkweighing” application:

Target value Target xxx Minimum value Minimum xxx Maximum value Maximum xxx

With “Time-controlled Functions” application:

Time/interval Time/interval x

With the “Totalizing” application:

No. of weights No. of wts. xx Weight of transaction Trans. wt. x Weight total Wt. total x Number of calculated values No.of calc.val. xx Calculated value transactions Calc.val.trans. x Total of calculated values Total calc. x Nominal no. of weighing operations Nom.no.wghs. xx

With “Formulation” application:

Number of components Number xx Net component Net component x Components calculated Net transact. x Total net components Net/comp.calc. x Total calc. components Tot.comp.calc. x Preset tare/ Tare 2 weight Tare2 xxx Nominal no. of weighing operations Nom.no.wghs. xx

With the “Statistics” application:

No. of weights No. of wts. xx Weigth of trans. Trans. wt. x Mean weight Average wt. x Standard deviation – weight

Std.dev.wt. x

Variation coefficient –weight Var.coeff.wt. x Weight total Wt.total x Minimum weight Min. wt. x Maximum weight Max. wt. x Difference – weight Diff. wt. x No. of calc. values No. of calc. val. xx Calc. value – transactions Calc.val.trans. x Mean calc. value Mean calc. val x Standard derivation calculated values Std.dev.calc. x Variation coefficient – calc. values Var.coeff.calc. x Total – calc. values Total calc. x Minimum – calc. values Min. calc. x Maximum – calc. values Max. calc. x Difference – calc. values Diff. calc. x Nominal no. of weighing operations Nom.no.wghs xx

Purpose

This menu item enables you to have information displayed about the specific scale (“device”), as well as “FlexPrint” information.

Displaying Device Information

§ Select the Setup menu:

press the H key

> “SETUP” is displayed:

§ Select “Device information”:

Repeatedly press the

q soft key,

then press the

O soft key

§ Press

O soft key to confirm “Device

information”

> Device information is displayed:

§ Print device information:

Press the p key

> Printout (Example)

--------------------

23.02.2000 13:02 Model FCA64EDE-HX Ser. no. 91205355 Vers. no. 01-45-01

(Version of the operating program)

ID BECKER123

(User-ID)

-------------------SETUP

INFO

DEVICE

-------------------Version-no.:

01-45-01

(Version of the operating program)

Wgh. sys. vers:

00-20-11

(Version no. of the weighing cell)

Model:

FCA64EDE-HX

Serial no.:

91205355

--------------------

§ Return to SETUP overview:

press the

o soft key

§ Exit Setup menu:

press the

oo soft key

> Original settings are restored

Display Flexprint Information

§ Select the Setup menu:

press the H key

> “SETUP” is displayed:

§ Select “Info”: press the

q soft key

repeatedly and then the

O soft key

§ Select “FlexInfo”: press the

q soft key

and then the

O soft key

> The FlexPrint information is displayed,

with print instruction file name, software ID and version number:

$ To select a particular print file name

with software ID (for example, ID403), if desired: press key

q or Q as required

> If the display shows

ID--- :

The weight block for legal metrology is not printed by this print file.

> Display of version number:

V.xx.xx.xx

Created by Sartorius:

V.S.xx.xx.xx

§ Return to SETUP overview:

press the

o soft key

§ Exit Setup menu:

press the

oo soft key

> The device returns to the previous

mode

Date of Manufacture

The month and year of manufacture are encoded in the serial number as follows:

YMMxxxxx

Y Year

1 2000–2006 2 2007–2013 3 2014–2020 4 2021–2027 5 2028–2034 6 2035–2041 7 2042–2048 8 2049–2055 9 2056–2062

The first digit represents a 7-year period as indicated in the table above. The next 2 digits represent the month. The months are numbered consecutively, starting with 13, over the entire 7-year period. Thus the number representing the month also indicates the specific year of manufacture.

2000 13–24 2001 25–36 … etc.

Example: 113xxxxx —> January 2000

The individual devices are numbered consecutively in the last 5 digits, starting from 00000 again at the beginning of each month.

Displaying Info

MP8 Interface Emulation

Purpose

With the MP8 interface emulation function, you can connect peripheral devices of the MP8 generation that have separate AC power supplies (such as the 73822... Data Control terminal, a YFC..., or a YDI 50 Z Data Input dedicated keyboard, for example) to your scale.

Features

– The scale can be used only to determine

weights.

– The interface communicates exclusively

in the MP8 binary protocol.

– Select the application program and

the program index for MP8, as well as individual application parameters, in the Setup menu.

– See next page for menu setting options

Preparation

– Activate the MP8 emulation mode*:

§ Press H

§ Select the

factory settings

and confirm: press the q soft key repeatedly and then the

O soft key

§ Select

Reset to MP8:

press

q soft key and O soft key

§ Select

Yes and press l to confirm

> The terminal is restarted

* follow the same procedure to return

from MP8 emulation back to factory setting

Factory Settings

Each parameter category has a factory setting. To restore the factory settings, select this item in the Setup menu and select

YES to confirm.

The following parameters are not restored to factory settings when you

activate this function: – Language – Password – Display contrast – Time (clock)

MP8 Interface Emulation Parameters (Overview)

ο factory setting √ user-defined setting

Setup Scale operating see page 11 MP8 menu Interface

Device parameters Password, see page 15

User ID, Date/time

Interfaces Function: external switch see page 15

Function: control ports see page 16

Display, Keys, see page 16 Extra functions

Application Program selection ο

MP8: 3-1-1

parameters ...

MP8: 3-1-9 MP8: 3-2-1

...

MP8: 3-2-9 MP8: 3-3-1

...

MP8: 3-3-9

Program index Index ο Ind. 2.1

Ind. 2.2 Ind. 2.3 Ind. 2.4

Interface Baud rate 150 baud

300 baud 600 baud

ο 1,200 baud

2,400 baud 4,800 baud 9,600 baud

Parity Mark

Space

ο Odd

Even

Print in weighing Manual without stability

mode ο Manual with stability

Automatic without stability Automatic at stability

Device information see page 28

Language see page 7

Factory settings Reset all parameters No

Yes

Switch to MP8 mode No

Yes

Factory setting

Operation

Basic Weighing Function

Purpose

The basic weighing function is always accessible and can be used alone or in combination with an application program (Toggle between Weight Units, Counting, Weighing in Percent, etc.).

Features

– Taring the scale – Assigning IDs to weights – Printing weights – Printing ID codes for weights

Factory Settings

Tare:

After stability

Manual/auto print mode:

Manual with stability

Line format:

For other apps/GLP (22 characters)

Soft Key Functions

isoTST Initiate calibration/

adjustment routine

isoCAL Press to start isoCAL

routine

S ID Store ID entered

* including the Signatories of the

Agreement on the European Economic Area

Under-Scale Weighing

A port for an under-scale weighing hanger is located on the bottom of the scale.

FC… BBE, FC… CCE:

§ Open cover plate (1) on the bottom

of the scale

§ Attach the sample (e.g., using a

suspension wire) to the hook (2).

FCG… EDE:

§ Use a suitable screwdriver to remove

the cover plate from the bottom of

the scale.

§ Fasten the hook to the cross-bar

(see ”Accessories“).

$ If necessary, install a shield for

protection against drafts

!Important Note Concerning Verified

Scales Approved for Use as Legal

Measuring Instruments in the EU*:

The under-scale weighing port may not

be opened or used when an approved

scaleis being operated as a legal

measuring instrument

Preparation

§ Turn on the scale: press e > The Sartorius logo is displayed

$ To tare the scale, if desired: press t

> The

S symbol is displayed when

a verified scale is tared or zeroed

(± 0.25 digits).

! Important Note Concerning Verified

Scales Approved for Use as Legal

Measuring Instruments in the EU*:

The type-approval certificate for

verification applies only to non-

automatic weighing instruments; for

automatic operation with or without

auxiliary measuring devices, you must

comply with the regulations of your

country applicable to the place of

installation of your scale.

§ You must calibrate the scale at the

place of installation before using it as

a legal measuring instrument (see the

section entitled “Calibration and

Adjustment” in this chapter)

$ The temperature range indicated on

the verification ID label must not be

exceeded during operation

Additional Functions

In addition to the functions:

– alphanumeric input

– taring (not during alphanumeric input)

– printing

you can also access the following functions from the weighing application:

Calibration

§ Press

isoTST

> See the section on “Calibration/

Adjustment” for further instructions.

Setup

§ Press H > See the chapter entitled “Configuration”

for further instructions.

Turning Off the Scale

§ Press e > The scale shuts off > The display goes blank

Practical Examples

Example W1: Simple weighing

Step Key (or instruction) Display/Output

1. If necessary, tare the scale t

2. Enter sample ID see Example W2

3. Determine sample weight Place load on scale (Example)

4. Print weight value p

S-ID ABC123 N + 2231.56 g

Example W2

Enter “ABC123” as sample ID

! Note:

– The sample ID generally applies to one weighing operation only – The ID is deleted after data output

Step Key (or instruction) Display/Output

Initial status (scale unloaded) (ID can also be entered while scale is loaded)

1. Select alphabetic input a

2. Select the required letter group

ABCDEF soft key

3. Enter the letter “A”

A soft key

(To delete a letter: c)

4. Select the letter group and

ABCDEF soft key

enter “B”

B soft key

5. Select the letter group and

ABCDEF soft key

enter “C”

C soft key

(If only letters are entered, conclude input: a)

6. Enter the numbers 1, 2 and 3 123

7. Store the ID

S ID soft key

(max. 20 characters)

– The next printout will include

the sample ID

Password

You can enter a password to block access to the operating menu and to the functions for ID code input and exact calibration weight input.

For details, see “Setting the Device Parameters” in the chapter entitled “Configuration”.

User ID

You can enter your own personal password (20 characters max.)

Clock

ISO/GMP printouts in particular must be generated with the date and time stamp of the specific measurement. This date and time stamp is optional on other printouts.

For details, see “Setting the Device Parameters” in the chapter entitled “Configuration.”

Control Port Function

You can connect either a checkweighing display or an external universal switch to the serial communications port on the balance (factory setting).

To do so, you need to configure the interface for

input or output

in the operating menu under “Device parameters: Interfaces.”

Pin Assignment Chart of the Female Interface Connector

Pin Function: Input

0 p key; see “Universal switch” F t key E Soft key 6 (Cal) G Soft key (F1) D c key F t key

Pin Function: Output

0 “External switch” (see above) F Control port 1: lighter F Control port 2: equal F Control port 3: heavier F Control port 4: “set”

For further information on the pin assignment chart, see the section on “Pin Assignment Charts” in the chapter entitled “Overview”.

Device Parameters

Interface

Purpose

This item enables you to set the parameters for the following interfaces:

– Serial interface port

– External switch function

Serial communications port You can set the serial communications port to use for the following modes:

–

SBI

– XBPI – YDPO1IS – YDP02 – YDP03 – YDPO1IS-Label – XBPI-RS485* –

YDPO2IS

– YDPO2IS-Label – Universal – YDPO4IS – YDPO4IS-Label

Universal Remote Switch

You can connect an external universal remote switch (foot switch) to one of the two serial ports. Then you can assign one of the following functions to be performed when the switch is activated:

–

Print key

– Tare key – Cal key – F1 function key – CF key – F2 function key

For further information on the pin assignment chart, see “Pin Assignment Charts” in the chapter entitled “Data Output Functions”.

* FCA models only

Display

You can configure the display for your individual needs.

The contrast can be adjusted in 5 levels:

Contrast

Characters can be displayed in black on white or vice versa:

Background

You can blank out either the bar graph or the text line or both

Digit size

10mm + bar graph + text display

13mm + bar graph

13mm + text display

13mm

You can blank out the display of application symbols

Application

symbols

isoTST

Keys

You can assign different functions to the c key for deleting input and applications.

When you delete applications, you can delete either the data stored for all applications or just selected data.

CF function in application

When you delete input, you can either delete all the data input in a field, or only the last character entered.

CF function for inputs

You can block key functions; you can choose whether to block all keys (except e and H) or just the alphanumeric keys.

Block key functions

Extra Functions

Acoustic Signal

An acoustic signal is emitted when you press a key. When the key pressed is allowed, the signal is a single beep-tone; when it is not allowed, this is signaled by a double-beep (key does not initiate a function). In the Setup menu, you can configure whether

– the acoustic signal should sound (

On)

– the acoustic signal should not sound

(

Off)

Power-On Mode

You can configure the scale so that when a power supply is connected,

– the scale is off

(

Off/on/standby), or

– the scale switches on automatically

(

Auto on)

You can also configure the scale to go into the standby mode (

Off/on/standby) when

it is turned off.

After you turn on the scale, a self-test of the functions is run (

TEST is

displayed in the text line and the bar graph is shown)

Calibration/Adjustment “isoTEST”*

Purpose

Calibration is the determination of the difference between the weight readout and the true weight (mass) of a sample. Calibration does not entail making any changes within the scale.

Adjustment is the correction of this difference between the measured value displayed and the true weight (mass) of the sample, or the reduction of the difference to an allowable level within maximum permissible error limits.

Using Verified Scales as Legal Measuring Instruments in the EU**:

Before using your scale as a legal measuring instrument, you must perform “internal calibration” at the place of installation after the warmup period.

* isoTEST = TEST in the U.S. and Canada ** including the Signatories of the

Agreement on the European Economic Area

Available Features

You can start the isoTEST function at the press of a key to check a scale used as measuring, inspection and test equipment at any time. The scale is calibrated and any deviation is displayed. Press the

Start soft key

to start adjustment. If you do not wish to have the scale adjusted, press the

End soft key to cancel the isoTEST.

Your scale can be calibrated externally (Scale menu: CAL/isoTST key function; menu item

Ext. cal./adj.;

factory-def. wt. or Ext. cal./adj.; user-defined wt.) or

internally (

Internal

cal./adjustment).

External calibration can be performed

– using a pre-set weight value

Ext. cal./adj.; factory-def. wt., or

– with a user-defined weight

Ext. cal./adj.; user-defined wt.

The adjustment can be performed

– automatically following calibration:

Cal., then auto adjust. or

– if desired, the adjustment operation can

be started manually after calibration:

Cal., then manual adjust

You can also configure whether the calibration mode

– will be activated according to the

specific setting (external/internal) or

– can be selected by the user after

pressing the

isoTST soft key:

Selection mode.

You can have the scale automatically display an adjustment prompt after a certain time interval has elapsed since the last calibration/adjustment or when the ambient temperature changes by a defined amount.

You can configure the scale to perform calibration and adjustment automatically (isoCAL) when the pre-set time(s) and/or temperature limit is reached:

On and reset application and On without resetting application.

You can have the calibration/ adjustment results documented on an ISO/GMP-compliant printout or on a block printout with up to 50 adjustment sequences; see page 100.

Factory Settings

Calibration/adjustment mode:

Selection mode

Calibration/adjustment sequence:

Calibrate, then auto adjust

Automatic calibration/adjustment function:

On without

resetting app.

Start automatic adjustment: isoCAL

Generate GLP/GMP-compliant record:

Automatic if GLP is selected

External Calibration in Verified Scales of Accuracy Class K

– External calibration is blocked when

the scale is used in legal metrology

> External calibration can only be

released after removing the verification control seal, in which case the validity of the verification becomes void and the scale must be re-verified

– External calibration can now be

performed

Preparation

● Select the balance function for “calibration/adjustment”: press H

● To select the Balance/scale functions: press the O soft key

● Select

Calibration/adjustment: press the O soft key

Calibration/ CAL key function Ext. cal./adj.: default wt. adjustment Ext. cal./adj.: user-defined wt.

Internal cal./adjustment Key blocked reproTEST

ο Selection mode

Cal/adjustment ο Calibrate, then auto adjust

sequence Calibrate, then manual adjust

isoCAL function Off

Only adjustment prompt On and reset application

ο On without resetting app.

Start automatic User-def. Adj. time1 adjustment adjustment times Adj. time2

Adj. time3

ο isoCAL

Print GLP/GMP ο Automatic if GLP is selected

adjustment record On request, from record memory

Parameter for Weight ID (Wt. ID) external weight Cal./adj. wt.:

ο = factory setting

● Save settings and exit Setup menu: press the

oo soft key

Calibration/Adjustment

Preparation

Set the parameters for calibration and adjustment; e.g., with manual calibration/adjustment, isoCAL off

Step Press key(s) Display/Output

(or follow instructions)

1. Switch on the scale, e Sartorius logo and self-test

if not already on

2. Select the Setup menu H

3. Select “Balance/scale functions”

O soft key

4. Select “Calibration/adjustment”

O soft key

5. Select CAL/isoTST key function

O soft key

o = last setting selected

6. Select desired function and

Q soft key, repeatedly,

confirm (e.g., “Ext. cal./adj.; if necessary

l soft key

factory-def. wt.”)

7. Exit CAL/isoTST key function

o soft key

8. Select “Cal./adjustment sequence”

q soft key

Step Press key(s) Display/Output

(or follow instructions)

9. Confirm calibration and

O soft key

adjustment sequence

o = last setting selected

10. Select other settings, if desired

q and l soft keys

and confirm (e.g., Calibration with manual adjustment)

11. Exit Cal./adjustment sequence

o soft key

12. Save settings and

oo soft key

exit the Setup menu

Calibration/Adjustment

Internal Calibration/Adjustment

First set either

Internal

cal./adjustment or Selection mode (factory

setting) in the Setup: Scale menu.

Inside the scale housing is a built-in motorized calibration weight.

The internal calibration/adjustment sequence is as follows:

§ Select the calibration function:

Press the

isoTST soft key twice

> The internal calibration weight

is applied automatically

> The scale is calibrated

> If the setting

Calibrate,

then auto adjust is selected

in the Scale menu, the scale is now automatically adjusted

> If the setting

Calibrate,

then manual adjust

is selected in the Scale menu, the internal calibration routine is now ended without adjusting the scale (see “Calibration and Adjustment Sequence”, next column)

> The internal calibration weight is

removed

> (ISO/GMP printout: see page 100)

Calibration and Adjustment Sequence

In the Setup menu, you can configure the scale so that:

– calibration is always followed

automatically by adjustment

Calibrate, then auto adjust (factory setting) or

– you have the choice of ending the

sequence or starting adjustment after calibration

Calibrate,

then manual adjust

If no deviation is determined in calibration, or the deviation is within the tolerance limits dictated by the degree of accuracy you require, it is not necessary to adjust the scale. In this case, you can end the calibration/ adjustment sequence after calibration.

There are 2 soft keys active at this point:

–

Start to start adjustment

–

End to end the sequence

Selecting the Calibration/Adjustment Parameter

The setting

Selection mode

must be selected in the Setup menu (factory setting).

After pressing the

isoTST soft key,

you can choose from among the following settings by pressing the

Select

soft key:

– External calibration/adjustment

with the preset calibration weight:

Ext. cal./adj.; factory-def. wt.

– External calibration/adjustment with a

calibration weight determined by the user:

Ext. cal./adj.;

user-defined wt.

– Internal calibration/adjustment

Internal cal./ adjustment

– Reproducibility test reproTEST

§ Start the desired routine:

Press the isoTST soft key again

In the selection mode: Perform external calibration followed by automatic adjustment with the factory-set weight

Configuration: factory settings

Step Key(s) (or instruction) Display/Output

1. Select Calibration

isoTST soft key

2. Select external calibration/adjust-

Select soft key repeatedly

ment with factory-defined weight (for scales of accuracy class K, only “external adjustment” is possible)

3. Start external calibration/

Start soft key

adjustment

4. Place the weight on the Place weight on scale scale (e.g., 2,000.00 g) Minus sign –: Weight too low Plus sign + Weight too high no plus/minus sign: Weight o.k.

This is displayed after calibration, for approx.10 seconds: (on verified scales, the difference between the displayed weight and the true weight (mass) is displayed)

5. Unload the scale (ISO/GMP printout: see page 100)

Calibration/Adjustment

External Calibration/Adjustment* with a User-Defined Calibration Weight

First set either

Ext. cal./

adj.;user-defined wt. or Selection mode (factory setting)

in the Setup: Scale menu.

You can define a weight for calibration/ adjustment. External calibration/ adjustment must be performed with weights that are traceable to a national standard and that have error limits which are at least 1/3 of the required tolerance of the display accuracy. The defined weight must equal at least 10% of the maximum scale capacity.

See page 41 for the external calibration/ adjustment sequence. For this example, select external calibration/adjustment with a user-defined weight.

The scale has a factory-set weight value (see “Specifications”).

To reset a user-defined calibration weight to the original factory setting:

$ Enter the factory-defined value

manually (see “Specifications”)

Define the Calibration Weight

Step Press key(s) Display/Output

(or follow instructions)

1. Select Setup menu H

2. Select “Balance/scale functions”

O soft key

3. Select “Calibration/adjustment”

O soft key

4. Select parameter for external

q soft key 5 x

weight

O soft key

5. Select “Cal./adj. wt.”

q soft key

3000 = last setting selected

6. Enter calibration weight 5 0 0 0

(e.g., 5000 g)

and save

7. Save the calibration weight

l soft key

8. Exit the Setup menu

oo soft key

isoCAL: Automatic Calibration and Adjustment after a Change in Temperature

First set either

On and reset

the application or On without resetting the app. (factory setting) in the Setup:

Scale menu.

The “isoCAL” display automatically begins flashing if the ambient temperature changes in relation to the temperature at the time of the last calibration/adjustment, or after a defined time interval has elapsed. The scale is telling you that it wants to adjust itself.

This automatic calibration prompt is triggered when:

– The change in temperature is greater

than 10 Kelvin

– The scale status does not correspond

to Setup configurations

– No number or letter input is active

– The load has not been changed within

the last 2 minutes

– The scale has not been operated within

the last 2 minutes

– The load on the scale does not exceed

2% of the maximum capacity

When these requirements are met,

C is

displayed in the measured value line.

If the scale is not operated and the load is not changed, internal calibration and adjustment starts after 15 seconds have elapsed.

* including the Signatories of the

Agreement on the European Economic Area

Automatic Calibration and Adjustment at Specific Time Settings

Select either

On and reset

application or On without resetting app.

(factory setting) in the Setup menu.

In the Setup: Input menu, you can now enter up to three different times of day for automatic calibration/adjustment. The scale will display the flashing calibration prompt (“isoCAL”). Calibration/adjustment is not performed if the scale is off or in the Setup mode at the time set for calibration.

If the scale is being operated at the time set for automatic calibration/ adjustment, the calibration/adjustment sequence is prompted afterward.

If time settings are selected for automatic calibration/adjustment, the time and temperature criteria for the isoCAL function are switched off.

Automatic calibration/adjustment is prompted at fixed times when:

– The user-defined time is reached

– The scale status does not correspond

to Setup configurations

– No alphanumeric input is active

(e.g., equation for calculation)

– The load has not been changed within

the last 2 minutes

– The scale has not been operated within

the last 2 minutes

– The load on the scale does not exceed

2% of the maximum capacity

When these requirements are met,

C is

displayed in the measured value line.

If the scale is not operated and the load is not changed, internal calibration and adjustment starts after 15 seconds have elapsed.

In the Setup menu, you can configure the scale so that after calibration and adjustment

– the application program is restarted

On and reset the application

– the application program remains at its

previous status

On without

resetting the app.

Also in Setup, you can configure the scale so that it displays a calibration prompt, but does not perform the calibration/adjustment functions automatically

Only adjustment prompt

Calibration/Adjustment

Printout of Calibration/Adjustment Data

You can have the results of a calibration/ adjustment procedure printed out. You can configure whether the printout is generated as soon as the procedure is completed, or whether a number of calibration/ adjustment procedures (up to 50) are collected for a block printout.

Block Printout of Calibration/ Adjustment Results With the following menu configuration under Setup: Balance/scale functions: Calibration/adjustment, you can store the data from up to 50 calibration/ adjustment procedures and have them printed on request:

– isoCAL printout

On request, from record memory

When the memory contains 50 data records:

– additional records are output

automatically

If at least one block printout data record has been configured, the following soft keys are available after you press the

Cal soft key:

Info The number of records is

displayed in the text line

PrtPro Print accumulated records DelPro

Delete accumulated records; records can only be deleted after a printout has been generated. If a password has been assigned in the Setup: Input menu, you must enter either the configured password or the General Password before you can delete the records.

For internal calibration/adjustment, the initialization mode of the procedure is displayed in the

Start line.

--------------------

13.05.1997 09:17 SARTORIUS

Mod. FC6CCE-HX Ser. no. 60419914 Ver. no. 01-35-18 ID

--------------------

24.04.1997 12:03

Start: manual Diff. + 0.01 g External calibration

completed

25.04.1997 12:10

Start: isoCAL/temp Diff. + 0.01 g Internal adjustment

completed

Diff. + 0.00 g

25.04.1997 18:30

Start: Adj.time Diff. + 0.01 g Internal adjustment

completed

Diff. + 0.00 g

26.04.1997 9:37

Start: manual Diff. + 0.01 g Internal adjustment

completed

Diff. + 0.00 g

27.04.1997 11:53

Start: Ext.cal. WID Nom. + 2000.00 g Diff. + 0.01 g External calibration

completed

Diff. + 0.00 g

--------------------

13.05.1997 09:17

Name:

--------------------

GLP header

List of Calibration/Adjustment Procedures:

Example 1: External calibration

Example 2: isoCAL triggered by difference in temperature

Example 3: isoCAL at defined time

Example 4: Internal calibration/adjustment triggered manually

Example 5: External calibration/adjustment

GLP footer

Determination of the Repeatability (reproTEST)

Definition

Repeatability is the ability of the scale to display identical readouts when it is loaded several times with the same weight under constant ambient conditions (also called “reproducibility”).

The standard deviation for a given number of measurements is used to quantify the repeatability.

Purpose

The “reproTEST” function automatically determines the repeatability of results (based on 6 individual measurements). In this way, the scale determines one of the most important quantities in relation to the place of installation. The results are displayed with the scale’s accuracy.

Preparation

§ Turn on the scale: press e > The Sartorius logo is displayed > The scale performs a self-test

§ Select reproTEST in the Setup menu:

Press H

§ Select Calibration/adjustment:

CAL-key function: press the

O q keys

§ Select either

reproTEST or

Selection mode (factory

setting): see “Configuration”

§ Exit the Setup menu:

Press the

oo soft key

Check the Reproducibility of the Scale

Step Key(s) (or instruction) Display/Output

1. If

reproTEST is set: isoTST soft key

and proceed with step 4.

Selection mode is set: isoTST soft key

2. Select reproTEST

Select soft key

3. Start reproTEST

Start soft key

4. Number of measurements is displayed; 6 measurements will now be performed

The standard deviation is displayed

5. End reproTEST

End soft key

or restart reproTEST

Start soft key

Soft Key Functions

Start Start application program

Weigh. Toggle to basic weighing

functions

Auto-Start Application When the Power Goes On

In the Setup menu, you can select whether the application that is active before you turn off the power will automatically start when the power is turned on again (Setup: Application parameters: Auto-start app. when power goes on: On).

Using Verified Scales as Legal Measuring Instruments in the EU*: All application programs can be selected on scales verified for use in legal metrology. Non-metric values

can be indicated as follows: – Percent = % – Piece counting

(Counting) = pcs – Computed value = o,

Toggle between Two

Weight Units

Purpose

With this application program you can

switch the display of a weight value

back and forth between two weight

units by pressing a soft key.

You can use this application program

in combination with a program chosen

from Application 2 (checkweighing,

time-controlled functions) and one

from Application 3 (totalizing, formula-

tion, statistics).

Available Features

– Toggling the displayed weight

– Other features as for the basic

weighing function

Factory Settings

Weight unit 1:

Grams /g

Weight unit 2: Kilograms /Kg

* including the Signatories of

the Agreement on the European

Economic Area

Preparation

Scales used as legal measuring instruments: grams and kilograms are the only weight units available.

Standard scales: The following weight units are available in both ranges:

Line for

Display/ metrological

Unit Conversion factor Printout data Grams 1.00000000000 g g Kilograms 0.00100000000 kg kg Carats 5.00000000000 ct ct Pounds 0.00220462260 lb lb Ounces 0.03527396200 oz oz Troy ounces 0.03215074700 ozt ozt Hong Kong taels 0.02671725000 tlh tlh Singapore taels 0.02645544638 tls tls Taiwanese taels 0.02666666000 tlt tlt Grains 15.43235835000 GN GN Pennyweights 0.64301493100 dwt dwt Milligrams 1000.00000000000 mg mg Parts per pound 1.12876677120 /lb lb Chinese taels 0.02645547175 tlc tlc Mommes 0.26670000000 mom M Austrian carats 5.00000000000 K K Tola 0.08573333810 tol tol Baht 0.06578947437 bat bat Mesghal 0.21700000000 MS MS

§ Turn on the scale: Press e > Sartorius logo is displayed

§ Select the “Toggle weight units” program in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

Application 1 (basic settings): press the O soft key

§ Select

Toggle wt. units: Q or q soft key (repeatedly)

§ Confirm

Toggle wt. units: O soft key

§ Select and confirm: –

Weight unit 1: see above

–

Weight unit 2: see above

see also the “Application Menu (Overview)” in the chapter entitled “Configuration”

§ Save settings and exit the Setup menu: Press the

oo soft key

Application Programs

Additional Functions

In addition to the functions for: – alphanumeric input, – taring (not during alphanumeric input), – printing (NUM print; S ID),

you can also access the following

functions from this application:

Calibration/Adjustment

§ Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to the Next Application

§ Press D > See the section on the corresponding

application program for further instructions

Setup (setting parameters)

§ Press H > See “Configuration” for further

instructions

Turning Off the Scale

§ Press e > The scale shuts off

Practical Example

Toggle the Display From Grams [g] (1st Unit) to Pounds [lb] (2nd Unit)

Settings (changes in the factory settings required for this example):

Setup: App: Application 1: Toggle wt. units: Weight unit 2: Pounds/lb

Step Key (or instruction) Display/Output

1. Delete previous setting if necessary c

(

(: Weight unit 1)

2. Change weight unit to Pounds [lb]

lb soft key

(

): Weight unit 2)

3. Change weight unit to Grams [g]

g soft key

Purpose

With the Counting application, you can determine the number of pieces of approximately equal weight.

You can use this application program in combination with a program chosen from Application 2 (checkweighing, time-controlled functions) and one from Application 3 (totalizing, formulation, statistics).

Features

– Optional scale configuration in Setup

for automatically initializing this application and loading the most recent reference sample quantity “nRef” and average piece weight “wRef” when you switch on the scale (this is the automatic setting when the scale is initialized; Setup menu: Application parameters: Auto-start app. when power goes on: On).

– Reference sample quantity “nRef”

entered manually

– Average piece weight “wRef” entered

manually

– Storage of the current weight value

for the preset reference sample quantity “nRef”, to be loaded when the Counting program is initialized

– Setting the accuracy when the

reference sample weight “wRef” is stored for calculating a piece count

– Automatic output of the quantity and

sample weight via the data interface port after initialization or reference sample updating while running the Counting program (Printout: Application-defined printout: Auto print upon initialization: All values)

– Toggling between piece count

and weight value by pressing the

Count. or Weigh. soft key

– Toggling between counting and

other applications using the D key (for example, checkweighing)

Factory Settings

Accuracy when calculating piece weight:

Display accuracy

Reference sample updating:

Automatic

Soft Key Functions

nRef Store value input as reference

sample quantity

wRef Store input value as reference

sample weight

Update Reference updating criteria

met; reference updating can be performed to optimize the accuracy

Count. Toggle to the Counting

application

Weigh. Toggle to the Weighing mode

Start Storage of the current weight

value for the preset reference sample quantity

Counting A

Additional Functions

In addition to the functions for: – alphanumeric input, – taring (not during

alphanumeric input), – printing,

you can also access the following

functions from this application:

Calibration/Adjustment

§ Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to the Next Application

§ Press D > See the section on the corresponding

application program for further

instructions

Setup (setting parameters)

§ Press H > See “Configuration” for further

instructions

Turning Off the Scale

§ Press e > The scale shuts off

Preparation

To calculate a piece count, the average weight of one piece must be known. This average piece weight can be entered into the Counting program in one of three ways:

– Enter the average piece weight using the numeric keys and store it;

– The last reference sample quantity entered is loaded and displayed when you turn on the

scale. Place the same number of parts on the scale and initialize the Counting program;

– When the automatic initialization parameter (see previous page) is on

(Setup: Printout: Application-defined output: Auto print upon initialization: All values), the scale goes into the “Counting” mode when you turn it on and loads the last average piece weight and corresponding reference sample quantity that were entered or calculated.

Reference Sample Updating You can have the average piece weight updated during counting (with the piece count displayed) if “AWP update” is set to “manual” or “automatic” in the Setup menu. Manual updating can only be performed when the

Update soft key is displayed.

Reference sample updating must be completed before using an application program from Application 3.

The

Update soft key is displayed when:

– the scale has reached stability (stability symbol displayed)

– the current piece count is less than double the original piece count

– the current piece count is less than 100

– the internally calculated piece count (e.g., 17.24) differs from the nearest whole number

(here: 17) by less than 0.3

Reference updating can be repeated several times with an approximately doubled piece count.

§ To perform reference updating: Press the

Update soft key

§ Turn on the scale: Press e > Sartorius logo is displayed, self-test is performed

§ Select the “Counting” program in the Setup menu: Press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

§ Select

Application 1 (basic settings): press the O soft key

§ Select

Counting: Q or q soft key, repeatedly

§ Confirm

Counting: O soft key

Counting Average – average o Display accuracy

piece weight calculation +1 decimal place

+2 decimal places

Average piece Off weight updating Manual

o Automatic

o = factory setting

see also the “Application Menu (Overview)” in the chapter entitled “Configuration”

§ Save settings and exit the Setup menu: Press the

oo soft key

Counting A

Practical Example

Determining an Unknown Piece Count; Weighing in the Preset Reference Sample Quantity

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Counting: Average piece weight updating: Manual Setup: Printout: Application-defined output: Autoprint upon initialization: All values

Step Key (or instruction) Display/Output

1. Delete previous setting if necessary c

2. Prepare a container for the Place the empty container parts to be counted on the scale

3. Tare the scale t

4. Place the reference sample quantity Place the displayed number on the scale (example: 10 pcs) of parts in the container

5. Determine the average piece

Start soft key

weight (number of decimal places displayed depends on the scale model)

6. If necessary, increase the number Place additional parts of parts and perform reference in the container sample updating (example:

Update soft key

7 additional pieces)

7. Weigh uncounted parts Place parts to be counted

in the container

8. If desired, print total piece count p (here: 153 pcs)

nRef + 10 pcs wRef + 2.14800 g

nRef + 17 pcs wRef + 2.14800 g

Qnt + 153 pcs

Weighing in Percent

Purpose

This application program allows you to obtain weight readouts in percent which are in proportion to a reference weight. Alternatively, you can have the value displayed as a difference in percent between the weight on the scale and the reference weight, or as a special ratio 1 or ratio 2.

Available Features

– Reference percentage “pRef” loaded

from long-term memory when you turn on the scale

– Optional scale configuration in Setup

for automatically initializing this application and loading the most recent reference percentage “pRef” entered with reference weight “Wxx%” when you turn on the scale

– Value displayed as:

– Residual quantity (portion) – Difference (deviation) – Ratio1 – Ratio2 depending on the Setup menu code selected.

– Reference percentage “nRef” entered

manually

– Store the current weight as the

reference percentage weight “Wxx%” for initializing the weighing-in-percent application program

– Reference weight “Wxx%” entered

manually

– Storage parameter (rounding-off factor)

for storing the reference weight “W100%” in percentage calculation can be configured

– Configuration of decimal places

displayed with a percentage

– Optional configuration for having the

reference weight “Wxx%” and reference percentage automatically output via the data interface port after initialization of the weighing-in-percent program (print application parameters)

– Toggle the display between percentage

and weight readout by pressing the

Weigh. soft key

– Toggle between the weighing-in-

percent program and other applications (e.g., checkweighing) by pressing D

Factory Settings

Storage parameter:

Display accuracy

Digits displayed with percentage:

2 digits

Display calculated value:

Residue

Soft Key Functions

pRef Store value input as

reference percentage

Wxx% Store input value as

reference sample weight

Perc. Toggle to the Weighing-

in-percent application

New Store next value

Weigh. Toggle to the Weighing

mode

Start Store the current weight

value for the preset reference sample quantity

Additional Functions

In addition to the functions for:

– alphanumeric input, – taring (not during alphanumeric input), – printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to the Next Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (setting parameters )

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Preparation

To calculate a value in percent, the reference percentage must be known. This value can be entered into the weighing-in-percent program in one of three ways:

– The last reference percentage entered is loaded and displayed when you turn on the scale.

Place the corresponding weight on the scale and initialize the weighing-in-percent program;

– With automatic initialization switched on (see previous page), the scale goes into the

“weighing in percent” mode when you turn on the power and loads the last reference percentage entered as well as the corresponding reference weight (Setup: Printout: Application-defined output: Auto print upon initialization: All values);

– Enter the reference weight using the numeric keys and store it (

Wxx% soft key).

§ Turn on the scale: press e

> Sartorius logo is displayed, self-test is performed

§ Select the “Weighing in percent” application in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

§ Select

Application 1 (basic settings): press the O soft key

§ Select

Percent weigh.: Q or q soft key repeatedly

§ Confirm

Percent weigh.: O soft key

§ Select and confirm:

Weighing in Accuracy weight o Display accuracy percent storage +1 decimal place

(resolution) +2 decimal places

Decimal places for None readout in percent 1 decimal place

o 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

Display calculated o Residue qty. value Loss

Ratio1 (DR) Ratio2 (OR)

o = factory setting

see also the “Application Menu (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: Press soft key

Equations

The following equations are used for the corresponding calculations: Residue = Current weight ÷ 100% weight x 100% Loss = (Current weight – 100% weight) ÷ 100% weight x 100% Ratio1 = (100% weight – current weight) ÷ current weight x 100% Ratio2 = 100% weight ÷ current weight x 100%

Examples

Practical Example: Weighing in Percent with Reference Weight Taken from Weight on Scale

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Weighing in percent Setup: Printout: Application-defined output: Autoprint upon initialization: All values

Step Key (or instruction) Display/Output

1. Delete previous setting if necessary c

2. Prepare a container Place the empty container for the parts on the scale

3. Tare the scale t

4. Place the reference weight Place weight equal on the scale to reference weight in (here: 1821.48 g = 100%) the container

5. Initialize the scale

Start soft key

6. Unload the scale Remove reference

sample from the container

7. Determine the percentage Place sample to be of an unknown weight measured in the container

8. If desired, print percentage p (here: 98.37%)

pRef + 100 % Wxx% + 1821.48 g

Prc + 98.37 %

Purpose

Use this program to determine the weights of unstable samples (e.g., live animals) or to determine weights under unstable ambient conditions. In this program, the scale calculates the weight as the average of a defined number of individual weighing operations. These weighing operations are also known as “subweighing operations.”

Available Features

– Animal weighing started manually or

automatically

– Automatic start:

– when a defined threshold has been

exceeded (Minimum load threshold: None; 10; 20; ...; 500; 1,000 display increments)

– when three successive subweights lie

within a user-defined tolerance range (calm; normal; active; 0.1%; 0.2%; ...; 50%; 100% of the animal/object)

– Manual start:

– also possible when the load is under

the minimum load threshold

– when three successive subweights lie

within a user-defined tolerance range (calm; normal; active; 0.1.%; 0.2%; ...; 50%; 100% of the animal/object)

– Optional scale configuration in

the Setup menu for automatically initializing this application when you turn on the scale (Setup: Printout: Auto-start application when power goes on: On)

– Number of weighing operations for

calculation of an average (

mDef) can

be set before the beginning of each animal weighing operation

– The factor for calculation of the result

can be set before the beginning of each animal weighing operation

– The number of subweighs remaining

to be performed is indicated in the text display during weighing

– Arithmetic average displayed as

a result in the pre-set weight unit (identified by the a symbol).

– Optional multiplication of the

arithmetic average by a user-defined factor

Mul.

A circle “o” is displayed as weight unit and

Mul = xxx is shown in the

text line

– Toggling between the weight and the

calculated value by pressing the

xNet

soft key and the xRes soft key

– Automatic output of results via the

interface port: – Number of weighing operations

mDef

– Multiplication factor Mul

– Automatic output of results (printout)

via the interface port: – Weighing result

xNet

– Calculated result xRes The following options have to be set: Printout: Application-defined output: Auto print upon initialization: All values

– The unload threshold is equal to

one-half the minimum scale capacity

– Return to weighing mode by unloading

the scale; i.e., when the load is below the unload threshold

Factory Settings

Animal activity:

5% of the animal/object

Start: Automatic

Minimum load for automatic storage:

100 display increments

Decimal places in result display:

2 decimal places

Printout:

Average weight only

Soft Key Functions

New Automatic start:

– Unload scale and weigh

next animal, if desired

– Press key to start next

subweigh Manual start: Start next subweigh

mDef Store user-defined number

of subweighs for averaging

Mul Store user-defined factor

as multiplication factor for calculated the arithmetic mean

xNet Toggle to the animal weighing

application

xRes Toggle to the calculated

animal weighing result

Start Activate Animal weighing

Printout for Animal Weighing

Upon completion of the averaging process, you can have the results printed out automatically. You can also have both the weight and the calculated result printed.

mDef 10 Mul 0.00347 xNet + 153.00 g xRes + 5.30 o

mDef: Number of subweighing

operations for averaging

Mul: Multiplication factor

xNet: Result of averaging

xRes: Calculated result

Animal Weighing

Additional Functions

In addition to the functions for:

– alphanumeric input,

– taring (not during alphanumeric input),

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to the Next Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (setting parameters)

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Preparation

● Turn on the scale: press e

> Sartorius logo is displayed

● Select the “Animal weighing” application in the Setup menu: press H

● Select

Application parameters: press the q soft key 2+,

then the

O soft key once

● Select

Application 1 (basic settings): press the O soft key

● Select

Animal weigh.: Q or q soft key repeatedly

● Confirm

Animal weigh.: O soft key

Animal weighing Animal activity Calm (Averaging) Normal

Active

0.1% of animal/object

0.2% of animal/object

0.5% of animal/object 1% of animal/object 2% of animal/object

o 5% of animal/object

10% of animal/object 20% of animal/object 50% of animal/object 100% of animal/object

Start Manual mode

o Automatic mode

Minimum load for None automatic storage 10 display increments

20 display increments 50 display increments

o 100 display increments

200 display increments 500 display increments 1,000 display increments

Decimal places in None calculated result 1 decimal place

o 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

Printout None

o Average weight only

Average and calculated

o = factory setting

see also the “Application Menu (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Animal Weighing

Practical Example

Determining Animal Weight With Automatic Start of 20 Subweighing Operations for Averaging; Automatic Printout of the Number of Subweighing Operations and of the Animal Weight

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Animal weighing: Animal activity: Active Setup: Application parameters: Application 1: Animal weighing: Decimal places in calculated result display: 2 decimal places Setup: Application parameters: Application 1: Animal weighing: Printout: Average and calculated values Setup: Printout: Application-defined output: Auto print upon initialization: All values

Step Key (or instruction) Display/Output

1. Delete previous setting if necessary c

2. Prepare a container (cage) Place empty cage on the scale

3. Tare the scale t

4. Enter number of subweighing 2 0

operations for averaging

5. Save number

mDef soft key

6. Weigh the first animal Place 1st animal in cage weight value fluctuates due to animal activity

7. Start automatic animal weighing

Start soft key

The scale delays starting the When this criterion is met, the subweighing operation until subweighing series begins three successive subweights lie within the range defined for an “active” animal

Step Key (or instruction) Display/Output

After 20 subweighing operations the arithmetic average (xNet) is displayed

(

mDef: no. of subweighs Mul: calculation factor xNet: arithm. average, net value)

8. Unload the scale Remove animal from cage

9. If desired, weigh next animal Place animal in cage

Next weighing series begins automatically

mDef 20 Mul 1 xNet + 69.72 g xRes + 69.72 o

Purpose

With this application program you can compensate for over-poured components in formulation.

If a component is over-poured when weighing in the individual formulation components, the mixture already poured cannot be used in its current composition. To avoid having to discard the materials weighed, you can adjust the proportions of the formulation to compensate for the over-pour.

When you use this application, the recalculation procedure is mainly performed by the scale.

Available Features

– Individual components (up to 99)

weighed in with a readout showing from “0” to the desired component weight

– Transaction counter shows the next

component expected

– Weighed components are stored,

followed by automatic printout and taring

– Additive weighing of components

with printout

– Toggle the display between component

weight and total formulation weight (additive mode) after first component is stored

– Stored component weight displayed

as true net weight for 2 seconds

– Enter a divisor before or during

component weighing. For example, if the formulation has a total weight of 100 g, enter the divisor 10 to weigh in a total formulation of 1,000 g

– If a component is over-poured, you

can use the recalculation function to change the amount of this component indicated in the formulation by using plus or minus keys or numeric input. A factor is then calculated by which all components amounts will then adjusted

– Recalculation factor displayed in the

text line, with a warning symbol if the factor is not equal to 1

– All components displayed with number

and the amount (by weight) to be added in follow-on filling. Components displayed in sequence by the scale

– Display of actual net weight during

follow-on filling

– After the amounts of the components

already weighed have been corrected, weighing continues according to the adjusted formulation amount. The readout is recalculated (updated) according to the divisor

– You can repeat the over-pour correction

procedure as often as necessary, in case other components are over-poured

– After follow-on (corrective) filling, the

total amount differs from that given for the formulation, but the proportion of components in relation to each other is the same

– You can have the weight printed after

each measurement

– Choose whether the current component

weight or tare value is printed after each measurement

– Individual component weights are

printed as “Compxx.”

– Press c to exit the application

program. The component memory is cleared and the sum of components printed as “S-Comp.”

– Toggle between the recalculation

program and other applications (e.g., checkweighing) by pressing D.

Recalculation

Factory Settings of the Parameters

Print application parameters (automatic output of application parameters):

All values

Line format:

for other apps/GLP

(22 characters)

Soft Key Functions

Comp.xx Store component

Add.xx Store component in

additive weighing mode

Div. Store divisor before

or during component weighing

Recalc Start correction procedure

for recalculation

UAdd./ Toggle display between UComp. component weight and

total weight (additive mode)

Comp. Store numeric input for

recalculation

Minus Set value given for the

formulation

Plus Set value given for the

formulation

Additional Functions

In addition to the functions for:

– alphanumeric input,

– taring (not during alphanumeric input),

and

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

§ Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Taggling to the Next Application

§ Press D > See the section on the corresponding

apllication program for further instructions

Setup (setting parameters)

§ Press H > See “Configuration” for further

instructions

Turning Off the Scale

§ Press e > The scale shuts off

Preparation

§ Turn on the scale: press e > The Sartorius logo is displayed

§ Select the “Recalculation” application in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

§ Select

Application 1 (basic settings): press the O soft key

§ Select

Recalculation: Q or q soft key repeatedly

§ Confirm

Recalculation: o soft key

§ Save settings and exit the Setup menu: press the

oo soft key

Recalculation

Practical Example

When weighing in formulation components, the second component is over-poured.

Settings (changes in the factory settings required for this example): Setup: App(lication parameters): Application 1: Recalculation

Step Key (or instruction) Display/Output

1. Delete previously stored values, c

if necessary

2. Place container for filling Place empty container components on the scale on the scale

3. Tare t

4. Add the first component Weigh the first component

into the container

5. Store component Press the

Comp.1 Comp1 + 25.08 g

6. Add the second component Weigh the second component

into the container

7. Start recalculation, because

Recalc soft key

10.73 g were poured rather than 10.60 g

8. Either press the minus

Minus soft key repeatedly

key to correct the value …

Step Key (or instruction) Display/Output

… or enter the desired value 10.60

9. Confirm the new value

Comp. soft key

Follow-on filling amount for first component is displayed

10. Follow-on filling of 1st component Weigh the first component up to 0

and store

Comp.1 soft key

The true net value is displayed for 2 seconds

11. Weigh in further components, Repeat steps 4 and 5

if called for in the formulation as needed

12. Toggle to the additive mode,

UAdd. soft key

if required

13. Add further components, Add components to container

as required ... (here, e.g., up to the total weight of the formulation:1,000 g)

Comp1 + 25.08 g Comp2 + 10.73 g R.div.+ 1.01226 RCom1 + 25.39 g

Comp1 + 25.08 g Comp2 + 10.73 g R.div.+ 1.01226

Recalculation

Step Key (or instruction) Display/Output

14. ... and store

Add.6 soft key

(here, e.g., the 6th component)

The true net value (of the 6th component) is displayed for 2 seconds

Then the total weight is displayed

15. End the weighing procedure c

Total weight is printed

Total weight is displayed Component memory is cleared

Comp1 + 25.08 g Comp2 + 10.73 g R.div.+ 1.01226 RCom1 + 25.39 g Comp3 + 22.03 g Comp4 + 31.49 g Comp5 + 107.50 g Comp6 + 812.61 g

Comp1 + 25.08 g Comp2 + 10.73 g R.div.+ 1.01226 RCom1 + 25.39 g Comp3 + 22.03 g Comp4 + 31.49 g Comp5 + 107.50 g Comp6 + 812.61 g Tot.cp+ 1009.75 g

Calculation D

Purpose

With this application program you can calculate a weight value using an algebraic equation. This can be used, for example, to determine the gsm weight (grams per square meter) of paper.

Available Features

– You can store an equation and

configure the Setup menu to initialize this program automatically with the stored equation (Setup: ... Auto-start application when power goes on: On)

– The o symbol is displayed to indicate

a calculated value. The equation used is displayed in the text line

– If no equation was entered, the weight

value is displayed

– Toggle between the weight readout,

equation input and display of the calculated result by pressing the

Start or Weigh soft key

(or press c to toggle between weight and calculated value)

– There are four operators (+, –, *, /) and

one factor (weight value) available when you enter an equation

– Max. equation length: 28 characters

– Pressing c will delete either the

equation or the last character entered, depending on the configuration in the Setup menu (Setup: ... Keyboard: CF function for input: Delete last character; see also “Configuration”)

– The calculated result is displayed

with the number of decimal places configured in the Setup menu. Not all decimal places are displayed if the result is longer than the display allows. If there are more digits before the decimal point than the display can show, an error message is displayed.

– The equation is stored in non-volatile

memory

Factory Settings

Decimal places in calculated result:

2 decimal places

Soft Key Functions

Equat. Toggle to equation

+ Enter an addition operator

in the equation

- Enter a subtraction

operator in the equation

* Enter a multiplication

operator in the equation

/ Enter a division operator

in the equation

Start Start calculation

Weigh. Toggle to the weighing

mode

Weight Enter a weight operand

in the equation

Printout for Calculation

The calculation result is printed.

Res + 693.88 o

Res: Result of calculation with equation

Additional Functions

In addition to the functions for: – alphanumeric input, – taring (not during alphanumeric input), – printing,

you can also access the following

functions from this application:

Calibration/Adjustment

§ Press the

isoTST soft key

> See “Calibration/Adjustment”

for further instructions

Toggling to the Next Application

§ Press D > See the section on the corresponding

application program for further

instructions

Setup (setting parameters)

§ Press H > See “Configuring the Scale”

for further instructions

Turning Off the Scale

§ Press e > The scale shuts off

Preparation

● Turn on the scale: press e

> Sartorius logo is displayed

§ Select the “Calculation” application program in the Setup menu: press H

● Select

Application parameters: press the q soft key 2+,

then the

O soft key once

● Select

Application 1 (basic settings): press the O soft key

● Select

Calculation: Q or q soft key repeatedly

● Confirm

Calculation: O soft key

Calculation Decimal places in None

calculated result 1 decimal place

o 2 decimal places

3 decimal places 4 decimal places 5 decimal places 6 decimal places

o = factory setting

see also the “Application Menu (Overview)” in the chapter entitled “Configuration”

§ Save settings and exit the Setup menu: press

oo soft key

Calculation D

Practical Example

Calculate the gsm weight of paper: determine the gsm of a sheet of A4 paper with the dimensions

0.210 m + 0.297 m = 0.06237 m

. The gsm weight is a product of the division of the weight by the surface area.

Settings (changes in the factory settings required for this example): Setup: App: Application 1: Calculation

Step Key (or instruction) Display/Output

1. Turn on the scale and configure e

the settings as indicated above

2. Delete previous setting if necessary c

3. Tare the scale t

4. Select equation input

Equat. soft key

5. Enter weight value

Weight soft key

Enter division sign

/ soft key

Enter the surface area . 0 6 2 3 7 of a sheet of A4 paper

6. Turn on the calculated result display

Start soft key

7. Determine the gsm weight Place A4 sheet on the scale

Checkweighing

Purpose

This program is used to check whether a sample corresponds to a pre-set target value or is within a specific tolerance range. In addition to the display in the measured value line, the results are shown on the bar graph and can be routed through the interface port via control lines for further electronic processing.

You can use this application in combination with any program chosen from Application 1 (such as counting, weighing in percent) and one from Application 3 (totalizing, formulation, statistics).

Available Features

– Optional configuration in the Setup

menu for long-term storage of target value and tolerance limits

– Optional scale configuration in

the Setup menu for automatically initializing this application and loading the values stored in long-term memory for the target value and the upper and lower tolerance limits when you turn on the scale

– You can perform checkweighing

– without entering a target value,

but only upper and lower tolerance

limits; – as differential checkweighing; – with symmetric or asymmetric limits

which can be entered as percentages

– Enter the target value and limits by

placing a load on the scale or using the numeric keys

– Control parameter in entering target

and tolerance values, so that the upper

limit ≥ the target ≥ the lower limit ≥1

display increment

– Accuracy of a weight readout or

keyboard input as target/tolerance values corresponds to the display accuracy

– Optional scale configuration in the

Setup menu for automatic output to the interface port (print application parameters) of the target value and tolerance limits when initialization is completed (... Auto print upon initialization: All values).

– Control range for the scale’s data

output port lines is 30% to 170% of the target value

– Optional configuration in the Setup

menu for activation of control lines dependent on weight value (weight value within checkweighing range, stability reached)

– Toggling the display between weight

readout and checkweighing display by pressing the corresponding soft key. If the weight value exceeds tolerances, the line for measured values shows the weight while the checkweighing display shows »LL« for »too low« or »HH« for »too high.«

– Press the

Show soft key to display

target value and tolerance limits in the text line after initializing the application.

– Weight value in bar graph displayed in

relation to upper and lower limits and target value

– »OK« transaction counter displayed in

the text line (e.g.,

n = 4), if selected

(Checkweighing: Automatic printout of OK values: Yes). This counter shows the number of measured values that lie within the tolerance range.

– Optional automatic printout of

the weight value when it is within the control range at stability

After an automatic printout, the printing of OK values is blocked. Before you can generate the next printout, you must unblock the scale by unloading it (weight must be under 30% of the target) or by placing a load on the scale (bringing the weight up to at least 170% of the target).

– Initialization parameters are overwritten

after the

Param. soft key has been

pressed

– Press c to delete the initialization

parameters and end the Checkweighing program

Factory Settings

Activation of port lines:

Within checkweighing range

Type of checkweighing input:

Target, minimum, maximum weight

Weight display mode:

Absolute value

Automatic printout of OK values: No

Soft Key Functions

Param. Begin input of target and

tolerance values

Show Display target and toler-

ance values in succession during checkweighing

LLHH Toggle to checkweighing

display (»LL« for too light and »HH« for too heavy)

Diff. Display difference between

current value and target

Net Display net weight

Start Start checkweighing

Auto Print Checkweighing

With the over/under checkweighing application, you can have the result printed automatically as soon as the weight lies within a defined range.

N + 153.00 g Setp + 180.03 g Min + 160.05 g Max + 200.06 g N + 165.14 g

N: Net weight Setp: Target weight Min: Lower limit Max: Upper limit N: Printout of “OK” values

Checkweighing

Preparation

The checkweighing program often requires a target value for comparison with the current value. This target has a tolerance range, which is defined by absolute weight values. The tolerance range is defined as either an absolute value or a percentage with upper and lower limits. The values defining the limits can be symmetric or asymmetric to the target value. These values can be entered either by storing weights on the scale or by key input.

There are four control lines, called data output port lines, which are activated as follows: (see also the diagram at the right):

– lighter

– equal

– heavier

– set

The control range spans 30% to 170% of the target value. You can configure this parameter in the Setup menu (... Application 2: Checkweighing: Activation of port lines:) to select whether the control lines are:

– activated within the checkweighing

range

– always on

– activated at stability within the

checkweighing range

– activated at stability

– activated at stability within the

checkweighing range –> once

This makes it possible, for example, to connect a simple indicator for the weighing results (e.g., three different colors, one each for the weighing results: too light, O.K., too heavy).

Response of Control Lines During Checkweighing

Configurations: – always on – activated at stability

12-pin via Zener barrier

Configurations: – activated within checkweighing range – activated at stability within checkweighing range – activated at stability within checkweighing range

12-pin via Zener barrier

For further information about the pin assignment, see “Pin Assignment Charts.”

Output port specifications – When not in use, the voltage level is high: >2.4 V/+2mA. – When activated, the voltage level is low: <0.4 V/-2mA. !The output ports are not protected against short circuits!

30% of the

target

Lower

limit

Target

Upper

limit

170% of the

target

Pin J: equal

Pin A: heavier

Pin G: lighter

Pin L: set

30% of the

target

Lower

limit

Target

Upper

limit

170% of the

target

Pin J: equal

Pin A: heavier

Pin G: lighter

Pin L: set

Preparation

● Turn on the scale: press e

> The Sartorius logo is displayed; a self-test is performed

● Select the “Checkweighing” application in the Setup menu: press H

● Select the

Application parameters: press the q soft key 2+,

then the

O soft key

● Select

Application 2 (control functions):

Press the

q soft key, then the O soft key

● Select

Checkweighing: press the Q or q soft key, repeatedly, if necessary

● Confirm

Checkweighing: press the O soft key

Checkweighing Activation of port lines o Within checkweighing range

Always on Stability and checkweighing range At stability Stability + checkweighing range –> once

Type of o Target, min, max weight checkweighing input Min, max weight

Target, min in %, max in %

Weight display mode o Absolute value

Difference from the target

Automatic printout Yes of OK values o No

o = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Additional Functions

In addition to the functions for:

– alphanumeric input, (not during

initialization),

– taring (not during alphanumeric input)

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to Another Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (Setting Parameters)

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Checkweighing

Practical Example

Checkweighing samples of 170 g, with an allowable tolerance of –5 g and +10 g. Printout of upper and lower tolerance limits. Weighed values are printed out automatically when stability is reached and the weight value is within the checkweighing range.

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 2: Checkweighing: Automatic printout of OK values: On

Step Press key(s) Display/Output

(or follow instructions)

1. Turn on the scale and configure e

the settings as indicated above

2. Delete previous values, if necessary c

3. Prepare a container Place empty container for the samples on the scale

4. Tare the scale t

5. Enter initialization values

Param. soft key

6. Accept target value Place ideal sample (in this example: 170 g) in container

7. Save target and unload

l soft key

the scale Remove ideal sample

from the scale

8. Enter value for lower limit 165 (170 g – 5 g) and save

l soft key

Step Press key(s) Display/Output

(or follow instructions)

9. Enter value for upper limit 180

(170 g + 10 g) and save

10. Weigh sample Place sample (in this case: 169.48 g) in container

If the weight value is too low:

11. In this case, switch to net value Net soft key (for ex., a weight of 163.28 g)

12. Weigh next sample (if any) Place sample in container

Setp + 170.00 g Min + 165.00 g Max + 180.00 g

N + 169.48 g

isoTST

Preparation

● Turn on the scale: press e

> The Sartorius logo is displayed

● Select the “Time-controlled functions” application in the Setup menu: press H

● Select the

Application parameters: press the q key 2+,

then the

O soft key

● Select

Application 2 (control functions): press the q soft key,

then the

O soft key

● Select

Time-controlled functions: press the Q or q soft key

● Confirm

Time-controlled functions: press the O soft key

Time-controlled Function after Beep functions time interval Lock in readout

o Automatic printout of values

Store value in applicat. 3 memory

Automatic function o On restart Off

Storage mode o Without stability

After stability After higher stability

Print then tare On

o Off

o = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Print Net Values without Printout of Time

Select the Setup menu: Setup: Printout: Application-defined output: Auto print upon initialization: Off

Purpose

With this application program, you can configure the scale to perform certain functions (such as automatic printout of values, store value in totalization memory) at a given time or after a set interval.

You can use this application in combination with any program chosen from Application 1 (such as counting, weighing in percent) and one from Application 3 (such as totalizing, formulation).

Features

– Time-controlled activation of scale

functions: – one time only, at a given time

(

Setting= is displayed in

the text line)

– repeatedly, at given intervals

(

Interval= is displayed in

the text line before the function is started, and

Repeat = is displayed after

the function has been started)

– Functions that can be time-controlled

include: – Acoustic signal (beep) – Lock in readout – Automatic printout of values – Store values for totalizing,

formulation or statistics

– Print time in addition to weight value

– Store value depending on the stability

parameter

– Tare the scale after printout of

weight values

– Press the corresponding soft key to

cancel time-controlled functions

Factory Settings

Function after time interval:

Automatic printout of values

Automatic function restart: On

Storage mode:

Without stability

Print then tare: On

Soft Key Functions

Stop Stop the application

Quit Confirm performed

function (e.g., »Lock in readout« or »Beep«)

Interv Store input interval

for time-controlled functions

Set. Store input time for

one-time performance of function

Start Start timer function

Printout for Time-Controlled Functions

If the “Automatic printout of values” parameter is set, the time and weight (or other value) are printed out.

Time: 10:15:00 N + 150.00 g

Time: Time that the values were

stored

N: Net weight

Time-Controlled Functions K

Practical Example

Document the evaporated amount of a sample with defined surface, temperature and air pressure at preset intervals of 1 minute, 30 seconds.

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 2: Time-controlled functions Setup: Balance/scale functions: Taring: Without stability Setup: Printout: Application-defined output: Stability parameter: Without stability

Step Press key(s) Display/Output

(or follow instructions)

1. Turn on the scale and configure e

the settings as indicated above

2. Delete stored values, if necessary c

3. Place container with sample t

on the scale and tare

4. Enter time interval: 1 minute, 1 . 3 0

30 seconds

5. Store time interval

Interv soft key

6. Begin documentation

Start soft key

(Time remaining until the next printout is displayed in the text line)

Printout of evaporated amount every 1 minutes

7. Stop the documentation procedure

Stop soft key

Totalizing

Purpose

This application program runs as a cumulative memory function.

You can use this application in combination with any program chosen from Application 1 (such as counting, weighing in percent) and one from Application 2 (checkweighing, time-controlled functions).

Features

– Totalization of weight values and

calculated values

– Optional configuration in the Setup

menu for simultaneous storage of net and calculated values

– Optional configuration in the Setup

menu for loading weight values and calculated values either from Application 1 (e.g., counting, weighing in percent) or from Application 2 (checkweighing, time-controlled functions)

– Totalization memory for up to

65,535 values

– Simultaneous display in the text line

of transaction counter and, e.g., the current total

– Optional configuration in the Setup

menu for having the scale tare automatically after a value is stored in the totalization memory, if no preset tare has been entered

– Manual input of the number of

individual weighing operations and confirmation using the

nDef soft key

(target no. of operation nDef). Result printed and memory cleared after printout of nDef.

– Optional configuration in the Setup

menu to add the current weight, with display accuracy, to the current total by pressing the

M+ soft key

and generate a printout of the result

– Optional configuration in the Setup

menu for stability-dependent storage of the measured value: Balance/

scale functions, Stability range

– Optional automatic storage of

measured values Storage of measured value is indicated by

Uu; zz indicates that you can

place a load on the scale.

– Minimum load threshold for automatic

storage

– Press the

M- soft key to delete the last

value added to the totalizing memory. The transaction counter value is reduced by one and a printout is generated.

– Press the

MR soft key for information

about number of transactions and the current total. In the Setup menu, you can define whether the information is displayed and printed, or only printed, and whether the information comprises an intermediate or final evaluation

– In the Info window you can choose

which value is displayed in the text line during weighing

– Printout of the end result independent

of which program is configured for Application 1 or Application 2. Configure the Setup menu to define which values are included on the printout (printout of individual components)

– Press the key identified by

MR (soft key

label) for a printout of an intermediate evaluation after each addition or a final evaluation

– If you end the totalization process by

pressing c without having first pressed the

MR soft key for a printout,

a final evaluation is printed when you press c

– Optional configuration in the Setup

menu to clear the totalizing memory and reset the transaction counter by pressing c or after an evaluation is printed out

– Totalization data and transaction

counter data are stored in non-volatile memory

– Continue totalization after turning the

scale off and back on

Factory Settings of Parameters

Automatic storage:

Off

Minimum load for automatic storage:

10 digits

Source of data for auto storage:

Application 1

Evaluated values: Net

Evaluation mode, MR key function:

Intermediate evaluation, print

M+/M– function, then tare: Off

Printout of individual components: Yes

Stability range: 2 digits

Application-defined output: Print then tare:

Off

Soft Key Functions

M+ Add weight values or

application values to the total in the totalization memory. The component or transaction counter value increases by one each time you press this key.

M- Delete the last value added

to memory. The transaction counter value decreases by 1. You cannot delete previous values by repeatedly pressing this key.

MR Print or display an inter-

mediate or final evaluation

nDef Store the input number

of components

Printout for Totalizing

The transaction or component counter is printed in front of each measured value (weight). When an intermediate or final evaluation is printed out, all results up to this point are included.

Total +151.67 g

Preparation

● Turn on the scale: press e

> The Sartorius logo is displayed; a self-test is performed

● Select the “Totalizing” application program in the Setup menu: press H

● Select the

Application parameters: press the q soft key 2+,

then the

O soft key

● Select

Application 3 (data records): press the q soft key 2+,

then the

O soft key once

● Select

Totalizing: press the Q or q soft key

● Confirm

Totalizing: press the O soft key

Totalizing Automatic storage ο Off

On, first value at stability On, last value at stability On, value bet. 70 - 130% at stabil.

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data ο Application 1

for automatic storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluation mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Intermediate evaluation, display + print Final evaluation, display + print

M+/M– function, ο Off

then tare On

Printout of individual No

components ο Yes

ο = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Additional Functions

In addition to the functions for:

– alphanumeric input,

– taring (not during alphanumeric input),

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to Another Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (Setting Parameters)

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Totalizing

Practical Example

Totalize counted pieces

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Counting Setup: Application parameters: Application 2: Off Setup: Application parameters: Application 3: Totalizing: Evaluated values: Net + calculated Setup: Application parameters: Application 3: Totalizing: Evaluation mode, MR function: Final evaluation, display + print

Step Press key(s) Display/Output

(or follow instructions)

1. Turn on the scale and configure e

the settings as indicated above

2. Delete old totalization data, if necessary c

3. Tare the scale t

4. Toggle to Application 1: Counting D

5. Place the displayed number of Place parts to be counted parts on the scale (here: 10 pcs) on the scale

6. Initialize the Counting application

Start soft key

7. Remove the reference sample Unload the scale quantity and toggle to Totalizing D

8. Place a number of parts on the Place parts on the scale scale (here: 50 pcs)

isoTST

nRef 10 pcs wRef 35.28900 g

isoTST

Step Press key(s) Display/Output

(or follow instructions)

9. Store piece count

M+ soft key

10. Unload the scale Remove parts from the scale

11. Place another load of parts Place parts on the scale on the scale (e.g., 60 pcs)

12. Add piece count to stored total

M+ soft key

13. Repeat steps 10 and 11 as required

14. Display final evaluation

MR soft key

(“Info” window) (here: 5 weighing operations; total weight: 8751.67 g; total quantity: 248) The

o indicates which value

is displayed in the text line; you can change this selection

15. Print final evaluation p

isoTST

--------------------

16.01.1997 11:06 n + 1 N + 1764.45 g Qnt + 50 pcs

isoTST

n 2 N + 2117.34 g Qnt + 60 pcs

-------------------n 5 Total + 8751.67 g Total + 248 pcs

16.01.1997 11:16

--------------------

Formulation

Purpose

With this application program you can add weight values and calculated values as components of a formula to a totalizing memory.

You can use this application in combination with any program chosen from Application 1* (such as counting, weighing in percent) and one from Application 2 (checkweighing, time-controlled functions) as well as with the extra functions.

*= not with recalculation or 2

tare memory; cannot be activated during formulation

Available Features

– Totalization of weight values and

calculated values

– Weigh in different components toward

zero to a total amount defined by pressing the

Nom soft key and entering

the value through the numeric keys

– Simultaneous storage of net and

calculated values, if available

– Optional configuration in the Setup

menu for loading weight values and calculated values either from Application 1 (e.g., counting, weighing in percent) or from Application 2 (checkweighing, time-controlled functions)

– Totalizing memory for up to 65,535

values

– Transaction counter and current total

displayed in the text line

– Scale tared after a value has been

stored

– Manual input of the number of

individual weighing operations and confirmation using the

nDef soft key

(target no. of operations nDef). Result printed and memory cleared after printout of nDef.

– Optional configuration in the Setup

menu to add the current weight, with display accuracy, to the current total by pressing the

M+ soft key and

generating a printout of the result

– Optional configuration in the

Setup menu for stability-dependent storage of the measured value: Balance/scale functions, Stability range

– Optional automatic storage of

measured values Storage of measured value is indicated by

Uu; zz indicates that you can

place a load on the scale.

– Minimum load threshold for automatic

storage

– Press the

M- soft key to delete the last

value added to the totalizing memory. The transaction counter value is reduced by one and a printout is generated.

– Printout of an evaluation of results,

depending on the Application 1 or Application 2 parameters. Configure the Setup menu to define the information included on this printout.

– Press the key identified by

MR (soft

key) for a printout of an intermediate evaluation after each addition or a final evaluation

– A final evaluation is printed when the

formulation routine is ended by pressing c, if no final evaluation was generated by pressing

– Optional configuration in the Setup

menu to clear the totalizing memory and reset the transaction counter by pressing c or after an evaluation is printed out

– Totalization data and transaction

counter data are stored in the non-volatile memory

– Continue formulation after turning

the scale off and back on

Factory Settings of the Paramters

Automatic storage:

Off

Minimum load for automatic storage:

10 digits

Source of data for auto storage:

Application 1

Evaluated values: Net

Evaluation mode, MR key function:

Intermediate evaluation, print

Printout of individual components: Yes

Stability range: 2 digits Printout: Application-defined output: Print on request then tare:

Off

Soft Key Functions

M+ Add weight values or

application values to the total in the totalizing memory. The component or transaction counter value increases by one each time you press this key.

M- Delete the last value added

to memory. The transaction counter value decreases by 1. You cannot delete previous values by repeatedly pressing this key.

MR Print or display an inter-

mediate or final evaluation

nDef Store the input number of

components

Nom Press to enter target

component weight using the numeric keys

Printout of Formulation Report

When an intermediate or final evaluation is printed out, all results up to this point are included.

Comp2 + 42.38 g Tot.cp+184.89 g

Comp2: Weight of the 2nd component Tot.cp: Total of all components

Additional Functions

In addition to the functions for:

– alphanumeric input,

– taring (not during alphanumeric input),

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to Another Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (Setting Parameters)

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Preparation

§ Turn on the scale: press e > The Sartorius logo is displayed; a self-test is performed

§ Select the “Formulation” application in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

§ Select

Application 3 (data records): press the q soft key

2+, then the

O soft key once

§ Select

Formulation: press the Q or q soft key

§ Confirm

Formulation: press the O soft key

Formulation Automatic storage ο Off

On, first value at stability

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data ο Application 1

for automatic storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluation mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Printout od individual No

components ο Yes

ο = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Practical Example

Weighing in Components

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 3: Formulation: Automatic storage: On, first value at stability Setup: Application parameters: Application 3: Formulation: Minimum load for automatic storage: 100 digits Setup: Application parameters: Application 3: Formulation: Evaluation mode, MR function: Final evaluation, print

Step Press key(s) Display/Output

(or follow instructions)

1. Turn on the scale and configure e

the settings as indicated above

2. Delete old formulation data c

3. Tare the scale t

4. Place the empty container Place load on the scale on the scale (here: 180.59 g)

5. Tare the scale t

6. Weigh in the first component Place components (here: 42.88 g) in container

7. Store components in the

M+ soft key

formulation memory Scale is tared automatically

Component are printed out automatically

isoTST

--------------------

16.01.1997 14:04 Comp1 + 42.88 g

Step Press key(s) Display/Output

(or follow instructions)

8. Weigh in next component Place components (here: 50.80 g) in container

Components are stored in the Totalization memory at stability and printed out

Scale is tared automatically

9. Repeat step 7 as required

10. Print final evaluation

MR soft key

(here: with total weight of all components: 212.43 g)

11. Delete old formulation data, c if necessary

Comp2 + 50.80 g

isoTST

-------------------n 2 Tot.cp+ 212.43 g

16.01.1997 14:10

--------------------

Statistics

Purpose

With this application program, you can have weight values and calculated values totalized and statistically evaluated.

The values determined for the evaluation are:

– average (mean value)

– standard deviation

– variation coefficient

– sum of all values

– lowest value (minimum)

– highest value (maximum)

– difference between the minimum and

the maximum

You can use the statistics application in combination with any program chosen from Application 1 (such as counting, weighing in percent) and one from Application 2 (checkweighing, timecontrolled functions) as well as with the extra functions.

Features

– Storage of weight values and calculated

values

– Simultaneous storage of net and

calculated values

– Optional configuration in the Setup

menu for loading weight values and calculated values either from Application 1 (such as counting, weighing in percent) or from Application 2 (checkweighing, time-controlled functions)

– Totalizing memory for up to

65,535 values

– Simultaneous display in the text

line of the transaction counter and, e.g., the current total

– Optional configuration in the Setup

menu for having the scale tare automatically after a value has been stored in the totalizing memory

– Manual input of the number of

individual weighing operations and confirmation using the

nDef soft

key (target no. of operations nDef). Result printed and memory cleared after printout of nDef.

– Optional configuration in the Setup

menu to add the current weight, with display accuracy, to the current total by pressing the

M+ soft key and generate

a printout of the result

– Optional configuration in the Setup

menu for stability-dependent storage of the measured value: Balance/scale functions, Stability range

– Optional automatic storage of

measured values Storage of measured value is indicated by

Uu; zz indicates that you can

place a load on the scale.

– Minimum load threshold for automatic

storage

– Press the

M- soft key to delete the last

value added to the totalizing memory. The transaction counter value is reduced by one and a printout is generated.

– Press the

MR: soft key for information

about number of transactions and the current total. By configuring the Setup menu, you can define whether the information is displayed and printed, or only printed, and whether the information comprises an intermediate or final evaluation

– In the Info window you can use the

l (o) soft keys to choose which value

will be displayed in the text line during weighing

– Printout of the final result depending

on the Application 1 or Application 2 parameters. Configure the Setup menu to define which values are included on the printout (printout of individual components)

– Press

MR for a printout of an

intermediate evaluation after each addition or a final evaluation

– A final evaluation is printed when

the statistics routine is ended by pressing c, if no final evaluation was generated by pressing

– Optional configuration in the Setup

menu to clear the totalizing memory and reset the transaction counter by pressing c or after an evaluation is printed out

– Totalization data and transaction

counter data is stored in the non-volatile memory

– Continue totalization after turning

the scale off and back on

Factory Settings

Automatic storage:

Off

Minimum load for automatic storage:

10 digits

Source of data for auto storage:

Application 1

Evaluated values: Net

Evaluation mode, MR key function:

Intermediate evaluation, print

M+/M– function, then tare: Off

Printout of individual components: Yes

Stability range: 2 digits

Application-defined output: Print on request then tare:

Off

Soft Key Functions

M+ Add weight values or application

values to the total in the totalizing memory. The component or transaction counter value increases by one each time you press this key.

M- Delete the last value added to

memory. The transaction counter value decreases by 1. You cannot delete previous values by repeatedly pressing this key.

MR Print or display an intermediate

or final evaluation

nDef Store the input number of

components

Printout of Statistics

The transaction or component counter is printed in front of each measured value (weight). When an intermediate or final evaluation is printed out, all results up to this point are included.

n 5 Total + 151.67 g Avg. + 33.0 pcs s + 3.2 pcs srel + 9.70 % Total + 165 pcs Min + 29 pcs Max + 37 pcs Diff + 8 pcs

n: Transaction counter Total: Sum of all values Mean: Average s: Standard deviation srel: Variation coefficient Total: Sum of all values Min: Minimum Max: Maximum Diff: Difference between minimum

and maximum

Additinal Functions

In addition to the functions for:

– alphanumeric input,

– taring (not during alphanumeric input),

– printing,

you can also access the following functions from this application:

Calibration/Adjustment

● Press the

isoTST soft key

> See “Calibration/Adjustment” for

further instructions

Toggling to Another Application

● Press D

> See the section on the corresponding

application program for further instructions

Setup (Setting Parameters)

● Press H

> See “Configuration” for further

instructions

Turning Off the Scale

● Press e

> The scale shuts off

Preparation

§ Turn on the scale: press e

> The Sartorius logo is displayed

§ Select the “Statistics” application in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key once

§ Select

Application 3 (data records): press the q soft key 2+,

then the

O soft key once

§ Select

Statistics: press the Q or the q soft key

§ Select

Statistics: press the O soft key

Statistics Automatic storage ο Off

On, first value at stability On, last value at stability On, value bet. 70 - 130% at stabil.

Minimum load for None

automatic storage ο 10 digits

20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Source of data for ο Application 1

auto storage Application 2

Evaluated values ο Net

Calculated Net + calculated

Evaluated mode, ο Intermediate evaluation, print

MR function Final evaluation, print

Intermediate evaluation, display + print Final evaluation, display + print

M+/M– function, ο Off

then tare On

Printout of individual No

components ο Yes

ο = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Statistics

Practical Example

Totalize counted pieces and print out statistics

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Counting: Average piece weight updating: Manual Setup: Application parameters: Application 3: Statistics: Evaluated values:Calculated Setup: Application parameters: Application 3: Statistics: Evaluation mode, MR function: Final evaluation, display + print

Step Press key(s) Display/Output

(or follow instructions)

1. Turn on the scale and configure e

the settings as indicated above

2. Delete old statistics data, if necessary c

3. Tare the scale t

4. Toggle to Application 1: Counting D

5. Place the displayed number of parts Place parts to be counted on the scale (here: 10 pcs) on the scale

6. Initialize the Counting application

Start soft key

7. Remove the reference sample Unload the scale quantity and toggle to Statistics D

8. Place a number of parts on the Place parts on the scale scale (here: 35 pcs)

isoTST

nRef 10 pcs wRef 10.62600 g

isoTST

Step Press key(s) Display/Output

(or follow instructions)

9. Store piece count

M+ soft key

10. Unload the scale Remove parts from the scale

11. Place another load of parts Place parts on the scale on the scale (e.g., 29 pcs)

12. Add piece count to stored total

M+ soft key

13. Repeat steps 11 and 12 as required

14. Display final evaluation

MR soft key

(»Info« window) (here: 5 weighing operations; total quantity: 165) The

o indicates which value is

displayed in the text line; you can change this selection

15. Print final evaluation p

isoTST

--------------------

16.01.1997 11:06 n + 1 Qnt + 35 pcs

isoTST

n + 2 Qnt + 29 pcs

Extra Functions (in the Application Menu)

Second Tare Memory (Preset Tare)

Purpose

With this function, you can store the weight currently on the scale as a tare weight, or use the numeric keys to enter a number for a preset tare weight.

You can use this function in combination with a program from Application 1 (such as counting, weighing in percent), one from Application 2 (checkweighing, timecontrolled functions) and one from Application 3 (totalizing, formulation, statistics) as well as with the extra functions.

Features

– Store a weight on the scale in the

second tare memory (without numeric input)

– Store a numeric value in the second

tare memory (input using the numeric keys)

– Identify a net value as s when there

is a value stored in the second tare memory

– You can assign this function to the

fourth or fifth soft key (from the right); i.e., F4 or F5. The soft key designation for this function is:

PT1/T1

– Optional configuration in the Setup

menu for storing the current weight readout as the container tare weight. Any load subsequently placed on the scale that is more than 70% of the tare weight is automatically recognized as a container and the scale is tared automatically.

– Automatic printout when a value is

stored or input (see “Configuration”)

– Press c to delete the (preset) tare

value

Factory Settings

Container tare weight:

Automatic printout: Off

Soft Key Functions

PT1/T1 Store weight as tare value

PT1 Store input value

Printout of the Data in the 2nd Tare Memory

The printout shows either:

– Net value N1,

– Tare weight T1, or

– Manually entered tare value PT1

N1 63.48 g T1 138.73 g PT1 150.00 g

N1: Net weight (value) when a weight

is stored in the tare memory T1: Tare weight PT1: Preset tare value entered using

the numeric keys

Preparation

● Turn on the scale: press e

> The Sartorius logo is displayed; a self-test is performed

● Select Extra function (F4) or Extra function (F5) in the Setup menu: press H

● Select

Application parameters: press the q soft key 2+,

then the

O soft key once

● Select

Extra function (F4) or Extra function (F5):

press the

q soft key 3+ (or 4 +), then press the O soft key once

● Select

2nd tare memory

● Confirm 2nd tare memory

2nd Container tare ο No

tare memory weight Yes

Automatic printout Net value

Tare/preset

ο Off

ο = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Second Tare Memory in Legal Metrology

– Press the

(i)PT1 soft key to enter information about the tare value using the

number keys.

– The PT1 tare value is printed out with the net value.

Practical Example

Determine the Contents of Bottles: Bottle weight = 400 g.

Settings (changes in the factory settings required for this example): Setup: Application parameters: Extra function (F4): 2nd tare memory: Automatic printout: Tare/preset tare

Step Press key(s) Display/Output

(or follow instructions)

1. If necessary: turn on the scale e

and enter the settings given above

2. Enter bottle weight 4 0 0

(example 400 g)

3. Store tare value

PT1 soft key

4. Determine net weight of bottles Place filled bottles (in this case: net contents = 650 g) on the scale

PT1 + 400.00 g

isoTST

Individual Identification Codes (ID)

Purpose

With this function, you can assign IDs to values for documentation and printouts.

You can use this function in combination with any program from Application 1 (such as counting, weighing in percent), one from Application 2 (checkweighing, timecontrolled functions) and one from Application 3 (totalizing, formulation, statistics) as well as with the other extra functions.

Features

– Store up to 4 IDs; these can be stored,

changed or deleted individually.

– Each ID consists of a name and a value;

both can be defined by the user.

– ID designations are configured as

follows: Setup: Printout: Identification codes

– Each ID code can have up to

20 characters; when you enter the value later, however, no more than 15 characters of this ID are displayed.

– The ID values are entered while the

application program is active; press the

ID soft key to toggle to the ID input

mode.

– Each ID value can have up to

20 characters.

– Access 1 of the 4 IDs directly using the

numeric keys. The other three can only be accessed by pressing the

ID soft key

to toggle to the ID input mode.

– You can assign this function to the

fourth or fifth soft key (from the right); i.e., F4 or F5.

– You can configure when the ID will

be included on the printout (see “Preparation” on the next page).

– You can configure the position of IDs

on the individual or total printout.

– The ID code is printed flush left; the

value flush right. If the name and value together are too long for one line, the data is printed on two lines.

– Optional configuration in the Setup

menu to delete a single character when entering an identification code by pressing c. Setup: Device parameters: Keys: CF function for input: Delete last character

– Press the

Delete soft key to delete

an ID

Factory Settings of the ID Names

ID1:

ID1

ID2: ID2 ID3: ID3 ID4: ID4

Factory Settings for ID Codes

No values set

Factory Settings

Printout:

Each time the print key is pressed

Soft Key Functions

ID Toggle to “Identification

codes” menu

Delete Delete input of selected ID

Printout of ID Codes

Up to 4 (stored) identification codes are printed out.

ID1 Lot no. 1234 ID2 Daimler/Chrysler ID3 Screws M4x6 ID4 Jack Smith

ID1: Identification 1 (ID 1) ID2: Identification 2 (ID 2) ID3: Identification 3 (ID 3) ID4: Identification 4 (ID 4)

Preparation

● Turn on the scale: press e

> The Sartorius logo is displayed

● Select Extra function (F4) or Extra function (F5) in the Setup menu: press H

● Select

Application parameters: press the q soft key 2+,

then the

O soft key once

● Select

Extra function(F4) or Extra function(F5):

press the

q soft key 3+ (or 4 +), then the O soft key once

● Select

Identification codes

● Confirm Identification codes

Identification Printout Automatic, if configured

Once after pressing print, if configured

ο Each time the print key is pressed

Once for M+ function (app. 3 memory)

ο = factory setting

see also the “Application Parameters (Overview)” in the chapter entitled “Configuration”

● Save settings for the printout: press the

o soft key 4+

● Enter ID name: Select “Printout”: press the

q soft key, then the O soft key

● Select “Identification #”: press the

q soft key 5+, then the O soft key once

● Select

ID1

● Enter name for ID1 and confirm: use the numeric keys for numbers and/or the

soft keys to enter letters

$ Enter names for

ID2, ID3 and ID4, if desired

● Save settings and exit the Setup menu: press the

oo soft key

Example

See next page

Practical Example

Include company address and sample lot number on the printout. Each ID line begins with the name. Print this ID for each net value.

Settings (changes in the factory settings required for this example): Setup: Application parameters: Extra function (F4): Identification codes Setup: Input: ID1: Company Setup: Input: ID2: Location Setup: Input: ID3: Street Setup: Input: ID4: Lot

Step Press key(s) Display/Output

(or follow instructions)

1. If necessary, turn on the scale e

2. Select “Extra Function (F4)” H

in the Setup menu

q soft key 2+,

then

O soft key once

q soft key 3+,

then

O soft key once

3. Select “Identification codes”

q or Q soft key;

repeatedly, if necessary

4. Confirm “Identification codes”

O soft key;

and exit this menu item then

o soft key 3 times

5. Select ID1

q or O soft key

(Printout: Identifier)

q soft key 5+, then O soft key, then q soft key

6. Enter name for ID 1 a ... see also page 33 (in this case: COMPANY) a,

l soft key

and confirm

Step Press key(s) Display/Output

(or follow instructions)

7. Repeat steps 6 and 7 for: ID2: LOCATION ID3: STREET ID4: LOT

8. Save settings, exit the Setup menu

oo soft key

and select input mode for IDs

ID soft key

9. Enter name of company a ... (such as Sartorius) see also page 33

10. Confirm input

l soft key

11. Repeat steps 10 and 11 for LOCATION: GOETTINGEN STREET: WEENDER LANDSTRASSE LOT: 15

12. Place the first sample on the scale Place load on scale (ex.: weight of 110.53214 g)

13. Print weight p (if desired, perform further weighing operations and print results)

14. When the weighing is completed

ID soft key

delete each ID individually

Delete soft key 4 times

Max6200 g 0%

d= 0.01g

100%

21053

F S

a d

isoTST ID

D K T

COMPANY SARTORIUS LOCATION GOETTINGEN STREET WEENDER LANDSTRASSE LOT 15 N +110.53214 g

Manual Storage (M+)

Purpose

With this function you can load weight values and calculation results directly from Application 1 (e.g., counting, weighing in percent) or Application 2 (checkweighing, timecontrolled functions) into Application 3 (totalizing, formulation, statistics).

Available Features

– You can assign this function to the

fourth or fifth soft key (from the right), i.e. F4 or F5. The soft key designation for this function is:

M+

– An Application 3 program (totalizing,

formulation or statistics) must be running so you can display and print the result

Factory Settings

There are no optional parameters

Preparation

● Turn on the scale: press e

> Sartorius logo is displayed

● Select Extra function (F4) or Extra function (F5) in the Setup menu: press H

§ Select

Application parameters: press the q soft key 2+,

then the

O soft key

● Select

Extra func. (F4) or Extra func. (F5):

press the

q soft key 3+ (or 4 +), then the O soft key once

● Select

Man. store in app.3 memory (M+)

● Confirm Man. store in app.3 memory (M+) see also the

“Application Menu (Overview)” in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Purpose

With this function you can enter, store and load data records for initialization of applications, including user-defined data.

You can use this function in combination with a program from Application 1 (e.g., counting, weighing in percent), one from Application 2 (checkweighing, time-controlled functions) and extra functions F4 and F5 (identifiers, second tare memory).

Available Features

– Store up to 300 data records.

– Data records can be created, stored or

deleted individually.

– Press the

ProDat soft key to display

data records.

– Define a name for each data record

of up to 15 alphanumeric characters; the desired location is displayed in the product data memory.

– Optional configuration in the Setup

menu to delete a single character when entering a data record name by pressing c. Setup: ... Keypad: CF function for input: Delete last character.

– Data records are displayed in

alphabetical order.

– Initialization data set for an application

(e.g., wRef, nRef) is saved when you select the Store option. This data is loaded from the product data memory when you access this memory from the corresponding application.

– Use alphanumeric input to search for

and display individual data records.

– You can assign this function to the

fourth or fifth soft key (from the right), i.e. F4 or F5.

– Error messages are displayed in the text

line in plain English.

– Press the

Delete soft key to delete

a data record.

Loading Stored Data: Data for the block printout is stored in battery-backed memory. The first time you put the scale into operation, it must remain connected to power for a full day. This data remains in memory for approx. 3 months after the equipment is disconnected from AC power.

Factory Settings

No user-definable parameters.

Soft Key Functions

ProDat Toggle to data record display

Delete Delete selected data record

Load Overwrite the initialization

data with the selected data record

Change Change the data in the stored

data record

New Create a new data record

(after entering a data record name).

Store Store the current application

data under the selected data record name. If data already exist for this data record, a prompt asks whether this data should be overwritten.

No Answer no to cancel a “delete”

or “overwrite” operation

Yes Answer yes to perform

the “delete” or “overwrite” operation

Product Data Memory

Preparation

● Turn on the scale: press e

> Sartorius logo is displayed

● Select Extra function (F4) or Extra function (F5) in the Setup menu: press H

● Select

Application parameters: press the q soft key 2 +,

then the

O soft key once

● Select

Extra function (F4) or Extra function (F5):

press the

q soft key 3+ (or 4 +), then the O soft key once

● Select

Product data memory

● Confirm Product data memory see also the “Application Menu (Overview)”

in the chapter entitled “Configuration”

● Save settings and exit the Setup menu: press the

oo soft key

Product Data Memory

Practical Example

Create a New Data Record for Initializing the Checkweighing Program, Including: Target Value, Minimum, Maximum

Settings (changes in the factory settings required for this example): Setup: Application parameters: Extra function (F4): Product data memory Setup: Application parameters: Application 2: Checkweighing

Step Key (or instruction) Display/Output

1. If necessary: turn on the scale e

and enter the settings given above

2. In the Checkweighing application,

Param. soft key

toggle to the input mode for target, minimum and maximum values

3. Enter target: 170 g; see the Practical Example minimum: 165 g; for Checkweighing, maximum: 180 g steps 5 through 9

4. Toggle to display of product data

ProDat soft key

(existing data records are displayed; in this example, 3 data records have been stored)

5. Enter a name for the new data a record (here: CHW01)

ABCDEF soft key, C soft key GHIJKL soft key, H soft key STUVWX soft key, W soft key

0 1

6. Store current Checkweighing

New soft key

parameters as a data record

7. Confirm

Store soft key

8. Exit data record display

oo soft key

“FlexPrint” Printout Function

Purpose

The YAD02IS “Nice Label Express” software from Sartorius lets you load user-defined label printing formats and the corresponding print instruction files in your scale. This software lets you connect any of a number of printers, equipped with a variety of printer fonts, to the RS-232 interface on your scale.

Features

With the “FlexPrint” option activated:

– Print command generates configured

printout (if print instruction file exists; see table, next page). Print command generates default printout (if print instruction file does not exist).

– The function that generates an

automatic printout upon initialization of an application cannot be used. Initialization data can be output only to a print instruction file.

The following items are output only

as standard printouts: – Calibration/adjustment – SETUP printouts – p key in “Identifier:” display page – p key on “Product data memory:”

display page

– p on “Parameter” display page

for “Checkweighing” application: print function carried out

– MR function carried out when p is

pressed during evaluation (info window) in Totalizing and Statistics applications.

– To recall the file names, software ID

and version numbers, for FlexPrint, see the section on “Basic Settings,” Info Display.”

– Printout for legal metrology:

Weight blocks (special weight value formats that are acceptable in legal metrology) are designated by the following line, which is printed in both header and footer and cannot be edited: “------ CE [M] ------”

Examples of Weight Block Printouts

Without tare:

------ CE [M] ------N + 348.65 kg

------ CE [M] -------

With tare:

------ CE [M] ------G + 459.70 kg N + 348.65 kg T1 + 111.05 kg

------ CE [M] -------

Scale tare (2nd tare memory):

------ CE [M] -----G + 124.45 kg N + 100.00 kg T1 + 24.00 kg T2 + 0.45 kg

------ CE [M] ------

Preparation

§ Turn on the scale: press the e key

§ Configure FlexPrint in Setup:

press the H key

§ Select

Printout: press q soft key

3 times, and then

O soft key

§ Confirm

Application-

defined output:

press

O soft key

§ Select

FlexPrint: press q soft

key 3 times and then

O soft key

§ Select

On: press q soft key and

then

O soft key

§ Save settings and exit Setup:

press

oo soft key

Print events

Printouts generated using the “Nice Label Express” software are divided into the following groups:

Event Explanation File name for event group:

1. p key with individual values Print key PPRINT

2. p key with text input Input and p key PDIRECT

3. GLP /GMP header GLP header PGMPHEAD

4. GLP /GMP footer GLP footer PGMPFOOT

5. Results, Application 1 Animal weighing, MR-CF PA1RES

6. Results, Application 2 OK values, time-controlled print PA2RES

7. Results, Application 3 MR, MR-CF PA3RES

8. Components, Application 1 M+ printout PA1COMP

9. Components, Application 3 M+/M– printout PA3COMP

Combining Applications

The following table summarizes the possibilities for combination of the application programs described here. Each line stands for one combination. The weighing function is generally available, and does not have to be combined with a calculating function.

Application 1 Application 2 Application 3 (basic function) (control function) (documenting function)

Counting – Totalizing Counting – Formulation Counting – Statistics

Weighing in percent – Totalizing Weighing in percent – Formulation Weighing in percent – Statistics

Animal weighing – Totalizing Animal weighing – Statistics

Recalculation – Totalizing Recalculation – Statistics

Calculating – Totalizing Calculating – Formulation Calculating – Statistics

Density determination – Statistics Density determination Time-controlled functions Statistics

Differential Weighing – –

– Checkweighing Totalizing – Checkweighing Formulation – Checkweighing Statistics

Counting Checkweighing Totalizing Counting Checkweighing Formulation Counting Checkweighing Statistics

Weighing in percent Checkweighing Totalizing Weighing in percent Checkweighing Formulation Weighing in percent Checkweighing Statistics

Recalculation Checkweighing Totalizing Recalculation Checkweighing Statistics

Calculating Checkweighing Totalizing Calculating Checkweighing Formulation Calculating Checkweighing Statistics

– Time-controlled functions Totalizing – Time-controlled functions Formulation – Time-controlled functions Statistics

Counting Time-controlled functions Totalizing Counting Time-controlled functions Formulation Counting Time-controlled functions Statistics

Weighing in percent Time-controlled functions Totalizing Weighing in percent Time-controlled functions Formulation Weighing in percent Time-controlled functions Statistics

Animal weighing Time-controlled functions Totalizing Animal weighing Time-controlled functions Statistics

Recalculation Checkweighing Totalizing Recalculation Checkweighing Statistics

Calculating Time-controlled functions Totalizing Calculating Time-controlled functions Formulation Calculating Time-controlled functions Statistics

Examples of Application Combinations

Example: Counting and checkweighing with statistical evaluation

You want to check a piece count, and have the results that lie within the tolerance range statistically evaluated and printed as a ISO/GMP-compliant record.

Settings (changes in the factory settings required for this example): Setup: Application parameters: Application 1: Counting Setup: Application parameters: Application 2: Checkweighing Setup: Application parameters: Application 3: Statistics: Automatic storage: On, first value at stability Setup: Application parameters: Application 3: Statistics: Source of data for auto storage: Application 2 Setup: Application parameters: Application 3: Statistics: Evaluated value: Calculated Setup: Application parameters: Application 3: Statistics: Evaluation mode, MR function: Intermediate evaluation, display+print Setup: Application parameters: Basic application: Printout configuration: ISO/GLP/GMP printout: Always

Step Key (or instruction) Display/Output

1. If necessary: turn on the scale e

and enter the settings given above

2. Place reference sample quantity Place parts on the scale

on the scale

3. Initialize the scale

Start soft key

4. Remove reference sample quantity Unload the scale

Step Key (or instruction) Display/Output

5. Initialize Checkweighing

Toggle to Checkweighing D

6. Enter target, minimum and

Param. soft key

maximum values (here: target: 1 0,

l soft key

10 pcs; minimum: 7 pcs; 7,

l soft key

maximum: 12 pcs) 1 2

7. Store input

l soft key

8. Determine first unknown quantity Place uncounted parts on the scale

9. Toggle to Statistics D

10. Initialize automatic storage

M+ soft key

11. Determine further unknown Place parts to be counted

quantities on the scale

Printout is generated automatically

12. End weighing series c

Statistics are evaluated Final GMP printout is generated

13. Delete initialization of the c

last application

Setp + 10 pcs Min + 7 pcs Max + 12 pcs

n 1 Qnt + 9 pcs

10:26

40 pcs

There are 3 options for data output:

– Output to the display and control unit

– Output to a printer (generate a printout)

– Output to a peripheral device (e.g., computer) via the interface port

Output to the Display and Control Unit

The display is divided into 9 sections. Information about the scale, the application being used and the sample weighed is output in the following sections:

– Line for metrological data

– Bar graph

– Plus/minus sign

– Measured value line

– Weight unit display, stability symbol display

– Data in tare memory; calculated value

– Application symbol display

– Text line

– Soft key labels

Line for Metrological Data (on scales verified for legal metrology)

This line shows:

– Maximum scale capacity (e.g., 6,200 g)

– Minimum scale capacity; the weight must not go below this limit when the scale is

used in legal metrology

– Verification interval of the scale; irrelevant if the scale is not used in legal metrology

(e.g., 0.1 g)

– Readability: Indicates the actual scale interval (display increment of the scale)

(e.g., 0.01 g)

Bar Graph (overview display)

In the bar graph, weighing results are displayed either

– as a percentage of the maximum scale capacity, or – in relation to a target value, with tolerance limits indicated.

You can turn off (blank) the bar graph display (Setup: App: Basic settings: Display: Digit size)

Plus/Minus Sign

This section shows:

– “Busy” symbol

– Plus or minus sign

– Zero symbol (indicating the scale has been zeroed)

Max6200 g

Min 0.5 g

e= 0.1 g

d=0.01 g

F H

Data Output Functions

Line for metrological data Bar graph

Measured value line

Text line Soft key labels

Plus/minus sign

Unit/Stability indicator

Tare memory

Calculated value

Application pictograms

1250é

=W*18.3*0.9

pcs

1 s2 h

( A B C D

H K

L M N

COUNTING: nRef = 10 pcs

Ref.wt. too light

isoTST PT1/T1 S-ID M+

oo o Q q O l

Measured Value Line

This line shows:

– The current weight value (bordered values are invalid in legal metrology)

– Calculated values (e.g., piece count)

– User input (e.g., lot number, equation)

Weight Unit Display, Stability Symbol

This section shows:

– The current weight unit (e.g., kg)

– Designation of other values (e.g., “pcs”)

Tare Memory, Calculated Value

This section shows:

– Indication that value is calculated (not valid in legal metrology)

– Indication that the tare memory contains application data

Application Symbols

This column shows:

– Symbol for Application 1 (toggling between weight units, counting, weighing in percent,

animal weighing, calculation)

– Symbol for Application 2 (checkweighing, time-controlled functions)

– Symbol for Application 3 (totalizing, formulation, statistics)

– Symbol for current print job

– Symbol for ISO/GMP printout

Text Line

This line contains:

– Explanatory text about the application program (e.g., about “Counting”)

– Explanation of error codes

Soft Key Labels

This line shows:

– Texts (abbreviations) to indicate the function assigned to each key

– Symbol for selecting and confirming parameter settings (see also “Operating Design”)

Scale Information

In the Setup menu, you can select

Setup: ... Info for a display of scale

information. The display includes:

– Software version number

– Scale version number

– Scale model

– Scale serial number

Printouts

Purpose

This function enables you to print out weights, other measured values and IDs. You can format the printout to meet different requirements.

Features

Line format: You can configure a data

ID code with up to 6 characters at the beginning of each of the values to be printed

Weight ID: You can configure an extra line for identification of each weighed or calculated value using the code

S ID

Print application parameters: You can generate a printout of the values configured for initialization of an application before printing the measured results

ISO/GMP-compliant printout: You can print out parameters relating to the weighing conditions

Print animal weights: Applicationdefined, automatic printout of animal weights or of animal weights plus calculated weights after averaging

Configuring Printout Formats

For a number of application programs, you need to set initialization values. All values upon initialization or only the main values can be automatically printed as soon as you have configured this in the Setup menu:

Auto print upon

initialization

Weights and calculated values can be printed as numeric values either with a preceding data ID code (numeric value with 22 characters) or without one (numeric value only 16 characters). See also the section on

Line format in

the chapter entitled “Data Output Functions.”

You can generate an ISO/GMP print-out always or only for calibration/ adjustment or turn off this option. See also page 100.

Generating an ISO/GLP/GMP Printout In the Setup menu, you have a choice of three settings:

– No ISO/GLP/GMP printout generated

(

Off)

– ISO/GLP/GMP printout generated only

for calibration/adjustment (

Only for

calibration/adjustment)

– Every printout is an ISO/GLP/GMP-

compliant report (

Always on)

Auto print checkweighing results: automatic printout of a weight when it lies within the preset limits at stability

Auto print with time-controlled functions: automatic printout of weights after a preset time has elapsed or at a defined time Printout of intermediate or final evaluation from the application 3 memory (totalizing, formulation and statistics); generate by pressing the

MR soft key

Generating Printouts Acceptable for Legal Metrology: You can configure the Setup menu of the scale to generate data records that are acceptable for legal metrology on a Sartorius printer:

– YDP02 – YDP03 – YDP01IS – YDP01IS Label – YDP02IS – YDP02IS Label – YDP04IS – YDP04IS Label

ISO/GMP-compliant Printout/Record

You can have the parameters pertaining to weighing conditions printed before (GMP header) and after (GMP footer) the values from the weighing series. These parameters include:

– Date – Time at the beginning of a weighing

series – Scale manufacturer – Scale model – Model serial number – Software version – Lot number (weighing series no.) – Time at the conclusion of the weighing

series – Field for operator signature

Operating the Scale with an ISO/GMP-

capable Documentation Device (Printer)

ISO/GMP-compliant documentation

requires a computer with special

software. Contact Sartorius for a

detailed description for creating this

software.

Setting:

Setup: Printout: ISO/GMP printout:

Always on

The record is output to a Sartorius

YDP03-0CE Data Printer or a computer.

End GMP printout:

● Press c

End GMP printout while application

is active:

This requires the following settings:

Setup: Device: Keys: CF function in

application: Clear only selected

applications

● Press c

> Text line: CF selected: clear application

● Press the

GLP soft key

--------------------

17.01.1997 16:12 SARTORIUS

Mod. FC6CCE-HX Ser. no. 60419914 Ver. no. 01-35-18 ID 12345678901234

--------------------

L ID 12345678901234 nRef 10 pcs wRef 1.35274 g Qnt + 235 pcs Qnt + 4721 pcs S ID 12345678901234 Qnt + 567 pcs

--------------------

17.01.1997 16:13

Name:

--------------------

17.01.1997 16:24

SARTORIUS Mod. FC6CCE-HX Ser. no. 60419914 Ver. no. 01-35-18 ID

-------------------L ID 12345678901234 Internal calibration Start: manual Diff. + 0.006 g Internal calibration

completed Diff. + 0.000 g

--------------------

17.01.1997 16:25 Name:

--------------------

Dotted line Date/time Scale manufacturer Scale model Scale serial number Software vers. (display and control unit) Scale ID no. Dotted line Weighing series no. Application initialization value Application initialization value Counting result Counting result ID for counting result Counting result Dotted line Date/time Field for operator signature Blank line Dotted line

Record of Internal Calibration/Adjustment:

Dotted line Date/time Scale manufacturer Scale model Scale serial number Software vers. (display and control unit) Scale ID no. Dotted line Weighing series no. Calibration adjustment mode Beginning mode for calibration/adjustment Difference after calibration/adjustment Confirmation of completed calibration/adjustment routine Difference between current and target values after calibration Dotted line Date/time Field for operator signature Blank line Dotted line

100

Sartorius FC06BBE-SX, FC6CCE-HX, FC2CCE-SX, FC12CCE-SX, FC6CCE-SX Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
