Operating Instructions

Entris

Laboratory Balances

98648-019-79

Page 2

Warning | danger symbols used in these instructions:

These notes identify hazards which have a high probability of resulting in death or serious physical injury if not avoided.

These notes identify hazards that can result in moderate or mild injuries if not avoided.

These notes identify hazards associated with the risk of material damage.

User Information

Explanation of Symbols

The following symbols are used in these

instructions:

t Indicates a required action y Describes what happens after you have

performed a particular step

Perform steps in the specified order:

1. First action

2. Second action

3. ...

– Indicates an item in a list

Conventions for this User Manual: – The illustrations in these instructions

are based on “Standard" balances.

Applications Advice | Technical

Support

Addresses for applications advice and

technical support can be found on the website at:

http://www.sartorius.com

Page 3

Contents

User Information. . . . . . . . . . . . . . . . . . 2

Explanation of Symbols . . . . . . . . . . . . . 2

Applications Advice | Technical Support . 2

Contents . . . . . . . . . . . . . . . . . . . . . . . . 3

Intended Use . . . . . . . . . . . . . . . . . . . . . 3

Safety Instructions . . . . . . . . . . . . . . . . 4

Getting Started . . . . . . . . . . . . . . . . . . . 5

Operation . . . . . . . . . . . . . . . . . . . . . . 10

Display and Controls. . . . . . . . . . . . . . . 10

Basic Weighing Function . . . . . . . . . . . 11

Calibration . . . . . . . . . . . . . . . . . . . . . 12

Configuration (Operating Menu). . . . . 15

Functions of the Keys in the Menu . . . . 15

Menu Navigation;

Example: Setting the Language . . . . . . 16

Menu: Structure. . . . . . . . . . . . . . . . . . 17

Menu Settings: Overview . . . . . . . . . . . 18

Application Programs . . . . . . . . . . . . . 23

Counting . . . . . . . . . . . . . . . . . . . . . . . 23

Weighing in Percent . . . . . . . . . . . . . . . 25

Animal Weighing | Averaging . . . . . . . . 27

Toggling Between Weight Units . . . . . . 29

Density Determination . . . . . . . . . . . . . 31

Data Interface. . . . . . . . . . . . . . . . . . . 34

Error Codes . . . . . . . . . . . . . . . . . . . . . 35

Care and Maintenance . . . . . . . . . . . . 36

Disposal. . . . . . . . . . . . . . . . . . . . . . . . 37

Overview . . . . . . . . . . . . . . . . . . . . . . . 38

Specifications. . . . . . . . . . . . . . . . . . . . 38

Accessories. . . . . . . . . . . . . . . . . . . . . . 42

EC Declaration of Conformity . . . . . . . . 45

Intended Use

This high-precision balance is designed to be used exclusively indoors under normal atmospheric conditions.

It was developed specifically for the exact determination of the mass of materials in liquid, paste, powder, or solid form. Appropriate containers must be used for each type of sample material.

Page 4

Safety Instructions

Guidelines and General Information

– The balance complies with EU Directives and

standards for electrical safety and electromagnetic compatibility*. Improper use or handling can, however, result in damage and | or injury. Any improper use or operation of the balance, i.e., that is not consistent with the instructions, will result in forfeiture of all claims under the manufacturer's warranty.

– Personnel need to have read and understood

these installation instructions, including the safety instructions.

– In the event of use in systems and ambient

conditions which have greater safety requirements, you must observe the requirements and provisions applicable in your country.

– Always keep the equipment and balance

freely accessible. Any installation work or balance operation that does not conform to the instructions will result in forfeiture of all claims under the manufacturer's warranty.

* = see “Specifications"

Danger of explosion

Do not use this equipment in

hazardous areas in which explosive materials are present.

Make sure that the voltage rating

printed on the AC adaptor is identical to your local mains voltage.

Installation Instructions

Do not operate the device if the

housing or AC adaptor is damaged. Immediately disconnect the damaged device from the power by pulling the plug.

Do not expose the balance, its power

supply or accessories supplied by Sartorius to extreme temperatures, aggressive chemical vapors, moisture, shock, vibrations or strong electromagnetic fields. Observe the conditions of operation described in the “Technical Data"!

Note on Installation:

The operator shall be solely responsible for any modifications to the equipment and for connecting any cables or equipment not supplied by Sartorius. Information on operational quality is available upon request from Sartorius. Only use original Sartorius accessories!

Note the IP protection class of

the balance and its power supply! Do not allow liquid penetration. The protection class specifies the suitability of equipment for various environmental conditions (moisture, foreign bodies).

Before cleaning the AC adapter or the

balance: Unplug the power cord.

The balance may only be opened

by specialized personnel trained by Sartorius. Do not open the AC adaptor.

If glass breaks, there is a risk of injury

posed by cuts on glass edges.

Lay the cables where they pose no risk

of causing someone to trip.

Observe the additional safety and danger information in the following chapters.

Page 5

Getting Started

Storage and Shipping Conditions

– Do not expose the balance to extreme

temperatures, moisture, shocks, blows, or vibration.

Unpacking the Equipment

t After unpacking the device, check it

immediately for any external damage.

y If you detect any damage, proceed as

directed in the “Care and Maintenance" chapter, “Safety Inspection" section.

y Save all parts of the original packaging

for any future transportation. During shipment, please do not leave cables plugged in!

Equipment Supplied

– Balance – Weighing pan – Pan support only for models with

a round weighing pan

– Mains power supply unit

Additional equipment on the following

models: Entris64-1S, Entris124-1S, Entris224-1S, Entris64i-1S,

Entris124i-1S, Entris224i-1S – Sliding panel draft shield – Shield disk – Shield plate – Dust cover

Additional equipment on the following

models: Entris153-1S, Entris323-1S, Entris423-1S, Entris623-1S,

Entris153i-1S, Entris323i-1S,

Entris423i-1S, Entris623i-1S

– Round glass draft shield

(with shield plate and cover)

Setup

Choose a location that is not subject

to the following negative influences: – Heat (heater or direct sunlight) – Drafts from open windows and doors – Extreme vibrations during weighing – Extreme humidity

Conditioning the Balance

Moisture in the air can condense on

cold surfaces whenever the equipment is

moved to a substantially warmer place.

Allow the device to acclimatize for about 2 hours at room temperature,

leaving it unplugged from the power

supply.

Page 6

Installation

Setting up the Balance

Balances with Sliding Panel Draft Shield

t Place the components listed below inside the

weighing chamber in the order given: – Shield plate – Shield disk – Pan support – Weighing pan

Balances with Round Glass Draft Shield

t Position the components listed below in the order

given: – Place lid on top of the balance with the rim facing

upwards and rotate until it is securely in place – Pan support – Weighing pan – Glass cover – Cover with the rim facing downwards

Balances with a Round Weighing Pan

t Position the components listed below in the order

given: – Pan support – Weighing pan

Balances with a Rectangular Weighing Pan

t Place the weighing pan on the balance

Page 7

Power Connection | Safety Precautions

– Use only an original AC adapter 6971991

t Insert the right-angle plug into the jack

t Select a country-specific power cable and attach to

the AC adapter

t Connect the device to the power

Mains connecting lead: Item No. Region | Country 6971953 Europa | EU

(except United Kingdom) 6971954 USA | Canada | China | Japan 6971955 United Kingdom 6971956 Australia, New Zealand 6971957 South Africa

6971964 India 6971998 Brazil 6971999 Argentina 6900931 South Korea

Safety Precautions

Desktop power supply 6971991:

An adaptor rated to Class 2 can be plugged into any

wall outlet with no additional safety precautions

required.

A ground or earth terminal is connected to the

balance housing. The balance housing can be

additionally grounded, if required for certain

functions.

The data port is also galvanically linked to the

balance housing (mass).

Connecting Electronic Peripheral Devices

t Make sure that the balance is unplugged from the

power supply before connecting | disconnecting

a peripheral device (printer or PC) to or from the

interface port.

Page 8

Warm-up Time

In order to provide accurate results, the instrument must warm up for 30 minutes. Only after this time will the required operating temperature have been reached.

Anti-theft Locking Device

To fasten an anti-theft locking device, use the lug

located on the back of the balance.

t Secure the balance at the place of location,

e.g., with a chain or a lock.

Page 9

Levelling the Balance

Purpose: – To compensate for unevenness at the place of

installation

Always level the balance again any time after it has

been moved to a different location. Only the 2 front

feet are used for leveling.

t Screw in both rear support feet (only on models with

a rectangular weighing pan).

t Turn the front levelingfeet as shown in the

illustration until the air bubble is centered within

the circle of the level indicator.

> Normally, several leveling steps are required.

t On models with a rectangular weighing pan:

Screw out both back leveling feet until they touch

the setup surface.

Below-Cell Weighing

A port for a below-cell weighing hook is located on

the bottom of the balance.

y Not permitted for applications in legal metrology.

t Lift cover plate out of the bottom of the balance.

Attention: Place the balance on its side, do not turn

over completely!

t Secure hook 1: Use a wire, for example, to suspend

the sample on the hook.

y Install a draft shield if necessary.

Page 10

Operation

Item Description 1 Weight units

2 Displays the menu level 3 Taring 4 Symbol for “GLP printing mode

active"

Symbol for “Printing mode active" 6 Application program active 7 Data output:

Press this key to send readout

values to the built-in data

interface. 8 Calculated-value indicator:

not a weight value 9 Start the application program 10 Symbol: Gross or net 11 Select an application program |

open the operating menu 12 Symbols for active application

(W, Z, L, V, R, A, C)

Item Description 13 Delete (Clear Function)

This key is generally used to

cancel functions: – Quit application program

– Cancel calibration | adjustment

routine | Exit menu

14 Start calibration | adjustment

routine 15 On | Off 16 Symbol: Calibration | adjustment

function 17 Symbols for “zero range« (verified models only) 18 Level indicator 19 Weight value displayed in selected

weight unit Symbol: << Exit the operating menu < One menu level higher V Scroll throughmenu items > Next item on current menu level

↵ Select a parameter setting

Overview of Display and Control Panel

Page 11

Basic Weighing Function

Features

– Tare the balance – Printing weights

Preparation

t Switch on the balance:

Press the e key

t Tare the balance, if necessary:

Press the w key

y If necessary, change the configuration

settings:

see the chapter entitled “Configuration"

y If desired, load the factory settings:

see the chapter entitled “Configuration"

Additional Functions: y Switching off the balance:

Press e

Example

Simple Weighing

Step Press key Display | Printout

1. Switch on the balance

e 0.0 g

Self-test is performed,

followed by automatic initial tare function.

2. Place container on weighing pan

+ 11.5 g

(in this example 11.5 g).

3. Tare the balance

e 0.0 g

4. Place sample in container + 132.0 g (in this example: 132 g)

5. Print weight r N + 132.0 g

Page 12

Calibration and Adjustment

Purpose

Calibration is the determination of any

difference between the measured value displayed and the true weight (mass) of a sample. Adjustment is the correction of this difference, or its reduction to an allowable level within maximum permissible error limits.

Features

Calibration | adjustment can be

performed only when – there is no load on the balance – the balance is tared – the internal signal is stable – the weight displayed for the sample on

the balance must not differ from the

nominal weight by more than 2%.

If these conditions are not met, an error

message is displayed “Err 02".

Following calibration | adjustment, the application program is cleared.

Internal Calibration | Adjustment

Note:

Only for models with the label Entris...i-1S !

In the operating menu, select

Cal.Just. - cal.int. before beginning.

The built-in motorized calibration

weight located in the housing is applied and removed automatically for internal calibration.

t Select calibration | adjustment:

Press Q

> The internal calibration weight is

applied automatically > The balance is adjusted | calibrated > The built-in calibration weight is

removed

Page 13

Internal Calibration | Adjustment

Note:

Only for models with the label Entris..i-1S !

Set the following parameters:

SETUP - BAL.SCAL.- CAL.Just. - Cal.Int. (Code 1.1. 9. 4)

The built-in motorized calibration weight located in the balance housing is applied and

removed automatically for internal calibration.

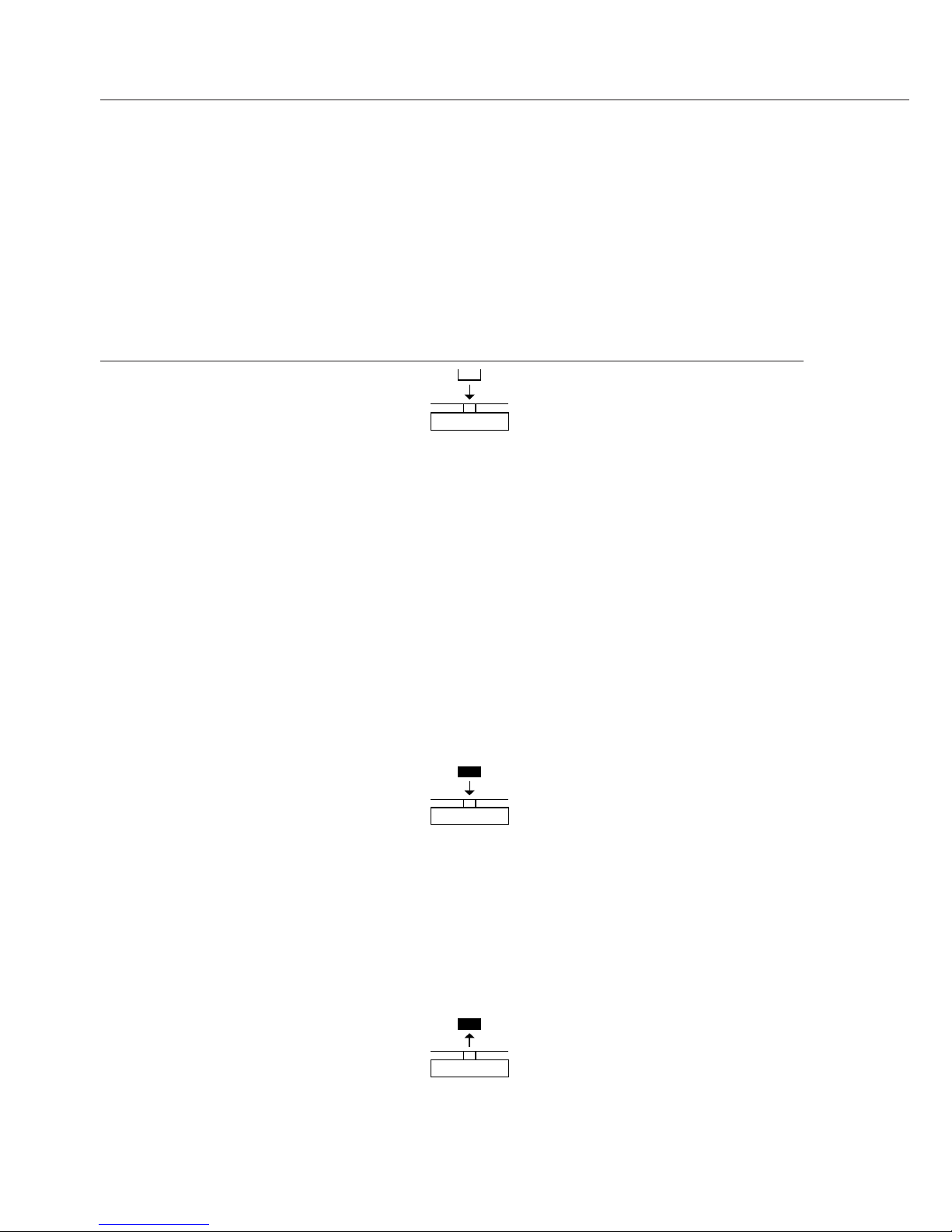

Step Key (or instruction) Display

1. Tare the balance

w 0.0 g

2. Start calibration

Q CAL.Int.

The internal calibration weight

is applied automatically.

CAL.RUN.

3. Adjustment carried out

CAL.end

4. The internal weight is defined automatically

0.0 g

Page 14

External Calibration

Set the following parameters: SETUP - BAL.SCAL.- CAL.Just. - Cal.Ext. (Code 1.1. 9. 1) The required calibration weight is configured at the factory (see “Specifications").

Step Key (or instruction) Display

1. Tare balance

w 0.0 g

2. Start adjustment routine

Q Cal.Ext.

Once you store the zero point

- 5000.0 g

the display prompts for the required calibration weight (flashing display)

3. Apply the prompted calibration

5000.0 g

weight (in this example 5000 g).

Weight too low:

a minus sign “-" is shown Weight too high: a plus sign “+" is shown

The display stops flashing as soon as the weight value is within the defined limit.

4. Calibration/adjustment executed;

Cal.end

then the calibration weight is displayed

+ 5000.0 g

5. Remove the calibration weight

0.0 g

Page 15

Configuration (Operating Menu)

You can configure the balance; i.e., adapt it to individual requirements.

Functions of the Keys during Configuration:

Symbol Key Function

V b Scroll through menu items

u One menu level lower

(use right cursor to scroll through up to

4 menu levels)

↵ u Confirm menu item c (Press and hold) Save settings and exit menu

from any position <<

c At the top level:

Save settings and exit menu: <

c One menu level higher (left cursor)

Indicates menu level

Page 16

Menu Navigation

Example: Setting the Language

Step Key (or instruction) Display

1. Open the menu:

b hold Applic.

Open the menu in weighing mode

2. Scroll upward within themenu level; Repeatedly

Input

b ...

After the last menu code, the first code is displayed again

languag.

3. Select the next menu level Repeatedly

English

(scrolls to the right)

5. Change setting: b German

Scroll until the desired setting is shown

6. Confirm the menu code;

u German

"o" indicates the active setting

7. Return to the next higher

c languag.

menulevel

y Set other menu items as desired

b, u

8. Save settings Repeatedly:

and exit menu

y Exit menu without

saving changes e

> Restart your application

0.0 g

Page 17

Parameter Settings (Overview)

Level 1 Level 2 Level 3 Menu code

Setup Bal.Scal. Ambient conditions 1. 1. 1. Balance | scale parameters app.filt. Application filter 1. 1. 2. Stab.rng.Stability range 1. 1. 3. Taring

Taring 1) 1. 1. 5 Autzer. Auto zero 1. 1. 6 Wt.Unit Basic weight unit 1. 1. 7. Display Display accuracy 1. 1. 8. Cal./adj. Function of the Q key 1. 1. 9. Cal.Unit. weight unit for calibration 1. 1.11. Interf. Interface Baudrate 1. 5. 1. Parity Parity 1. 5. 2. StopBit Number of stop bits 1. 5. 3. Handshk. Handshake mode 1. 5. 4. Databit Number of data bits 1. 5. 5. Dat.Rec. Output: SBI (ASCII) or printout 1. 5. 6. Prnt.OutSettings for print (manual | automatic) 1. 6. 1. print function StopAut. Stop automatic printing 1. 6. 2.

Aut.Cycl. Time-dependent autom. printing

1. 6. 3. Tar./prt. Tare bal./balance after ind. print 1. 6. 4. Prt.Init. Printout of appl. parameters 1. 6. 5. Format Line format for printout 1. 6. 6. extras menu Menu read only | can edit 1. 8. 1. (Additional functions) Signal Acoustic signal (beep) 1. 8. 2. Keys (Keypad) 1. 8. 3. Ext.Key External switch function 1. 8. 4. On Mode Power-on mode 1. 8. 5. Backlit Display backlighting 1. 8. 6. reset menu Factory settings 1. 9. 1.

Applic.ation weigh 2. 1. programs unit Toggle wt. unit Disp.Dig. Display accuracy 2. 2. 2. Count.ing Resolut. Resolution 2. 3. 1. Ref.Updt. Autom. ref. sample updating 2. 3. 2. Percent Weighing in percent Dec.Plcs Decimal places 2. 4. 1.

AnimalW.eighing Activty. Animal activity 2. 7. 1. Start 2. 7. 2. Calc.ulation Method (Operator) 2. 8. 1. Dec.Plcs Decimal places 2. 8. 2. Density determination Dec.Plcs Decimal places 2. 9. 1.

Input Input ID no. ID input; max. 7 characters, e.g. as 3. 1. Inventory no.

Information Version , Ser. No., Model Display software ver., serial no., model 4. 1.|.2.|.3. Languag. English (factory setting) 5. 1.

(Languag.) Deutsch (German) 5. 2. Franc.çais (French) 5. 3. ital.iano (Italian) 5. 4. Espanol (Spanish) 5. 5. pycckV|V| (Russian) 5. 6. Polski (Polish) 5. 7. Codes Menu shows codes (not texts) 5. 8.

Page 18

Parameter settings: Overview

ο = Factory setting; √ = User-defined setting

Level 1 Level 2 Level 3 Level 4 Menu code

Setup Bal.Scal. Ambient Very stable 1. 1. 1. 1 Balance conditions ο Stable 1. 1. 1. 2 parameters (Filter Unstabl 1. 1. 1. 3 adaptation) Very unstable 1. 1. 1. 4

App.filt. ο Final.Rd 1. 1. 2. 1 Application filter  Filling 1. 1. 2. 2

Stability 1/4 Dig. (digit) 1. 1. 3. 1 range 1/2 Dig. (digit) 1. 1. 3. 2 1 - Digit (digit) 1. 1. 3. 3 ο 2 - Digit (digit) 1. 1. 3. 4  4 - Digit (digit) 1. 1. 3. 5 8 - Digit (digit) 1. 1. 3. 6

Taring w/o stb (W/o stability) 1. 1. 5. 1 Taring ο w/ stab (After stability) 1. 1. 5. 2

Aut.zero Off 1. 1. 6. 1 Auto zero ο On 1. 1. 6. 2

WT.UNIT For list of units, see Chapter 1. 1. 7. 1 Basic weight Toggling between through unit weight units” 1. 1. 7.23

Disp.Dig. ο all 1. 1. 8. 1 Display Minus 1 1. 1. 8. 2 accuracy  divis. 1 1 interval 1. 1. 8. 6

Cal./adj. Cal. ext. External cal./adj. 1. 1. 9. 1 Function of the ο Cal. int Internal cal./adj. 1. 1. 9. 2 of the Q key Blocked Q blocked 1. 1. 3. 3

Cal.Unit Unit ο Grams 1. 1.11. 1 for calibration Kilogr.ams 1. 1.11. 2 weight Pounds 1. 1.11. 3

Page 19

Level 1 Level 2 Level 3 Level 4 Menu code

Setup Interf. Baudrate 600 1. 5. 1. 3 Interface ο 1200 1. 5. 1. 4 2400 1. 5. 1. 5 4800 1. 5. 1. 6 9600 1. 5. 1. 7 19200 1. 5. 1. 8

Parity ο Odd 1. 5. 2. 3 Parity Even 1. 5. 2. 4 None 1. 5. 2. 5

StopBit ο 1 stop bit 1. 5. 3. 1 No. of stop bits 2 Bits 1. 5. 3. 2

Handshk. Sftware 1. 5. 4. 1 Handshake ο Hrdware. 1. 5. 4. 2 mode None 1. 5. 4. 3

DataBit ο 7 Bits 1. 5. 5. 1 No. of data bits 8 Bits 1. 5. 5. 2

Dat.Rec. Com- SBI (ASCII) 1. 5. 6. 1 munication mode ο Printer 1. 5. 6. 2

Prnt.Out Print Man. W/o stability 1. 6. 1. 1 Printing fct. (manual | ο Man.With, stability 1. 6. 1. 2 automatic) Aut. W/o stability 1. 6. 1. 3 Aut.With. stability 1. 6. 1. 4

StopAut. Stop ο off Not possible 1. 6. 2. 1

automatic printing

on Use print key r 1. 6. 2. 2

Aut.Cycl. ο EachVal (1 display update) 1. 6. 3. 1 Time-dependent After 2 (2 display updates) 1. 6. 3. 2 autom. printing

Tar./prt. ο off 1. 6. 4. 1 Tare the balance on 1. 6. 4. 2 after individual printout

Page 20

Level 1 Level 2 Level 3 Level 4 Menu code

Setup Prnt.Out Prt.Init. Off 1. 6. 5. 1 Printing fct. Printing applica- ο all parameters 1. 6. 5. 2 tion parameters mainpar.ameters 1. 6. 5. 2

Format Line for-

16. char.(digit not identified) 1. 6. 6. 1

mat for printout ο 22. char.acters (w/ ID) 1. 6. 6. 2 extras menu CanEdit.le 1. 8. 1. 1

(Additional rd.only read only 1. 8. 1. 2 functions) Signal off 1. 8. 2. 1 Acoustic signal ο on 1. 8. 2. 2

keys ο free 1. 8. 3. 1 (keypad) locked 1. 8. 3. 2

Ext.Key ο Print Key r 1. 8. 4. 1 External Z | Tare Key w 1. 8. 4. 2 switch function cal. Key Q 1. 8. 4. 3 select Key b 1. 8. 4. 4 cf Key c 1. 8. 4. 5 enter Key u 1. 8. 4. 6

on-mode ο off/on Off | on | stand-by 1. 8. 5. 1 Power-on standby On | Stand-by 1. 8. 5. 2 mode Auto-On Automatic on mode 1. 8. 5. 3

Backlit off 1. 8. 6. 1 Display ο on 1. 8. 6. 2 backlighting

reset menu yes restore factory settings 1. 9. 1. 1 Menu reset factory settings ο No Do not restore 1. 9. 1. 2

factory settings

Page 21

Level 1 Level 2 Level 3 Level 4 Menu code

Appl. weighing 2. 1. ication toggling config. ο all 2. 2. 2. 1 programs between weight display accuracy Minus 1 2. 2. 2. 2 units  div.1 1 interval 2. 2. 2. 6

Counting resolut. ο disp.dig. Display accuracy 2. 3. 1. 1 10 fold 10 times > display 2. 3. 1. 2

Ref.Updt. ο off 2. 3. 2. 1 Auto Reference- autom.atic 2. 3. 2. 2 updating

percent dec.plcs.  none no decimal places 2. 4. 1. 1 Weighing Decimal ο 1 dec.pl. 1 decimal place 2. 4. 1. å2 in percent places 2 dec.pl. 2 decimal places 2. 4. 1. 3 3 dec.pl. 3 decimal places 2. 4. 1. 4

AnimalW. Activity  calm (fluct.: 2% of test obj.) 2. 7. 1. 1 Animal Animal ο

active (fluct.: 5% of test obj.)

2. 7. 1. 2

weighing activity v.active (fluct.: 20% of

test obj.) 2. 7. 1. 3

start manual 2. 7. 2. 1 ο autom.atic 2. 7. 2. 2

Density dec.plcs none no decimal places 2. 9. 1. 1 determination decimal places ο 1 dec.pl. 1 decimal place 2. 9. 1. 2 2 dec.pl. 2 decimal places 2. 9. 1. 3 3 dec.pl. 3 decimal places 2. 9. 1. 4

Page 22

Device-specific information

Level 1 Level 2 Level 3 Example Code

InFo Ver. no. Show software version rel.32.09 4. 1. rmation

Ser. nr. Show serial number, e.g.: 29712345 4. 2.

(To toggle focus between

upper and lower display sections: Press

model Show model designation ENTris124-1s 4. 3. (to change focus from upper

to middle to lower display section and back: Press

Display of Menu Items: Selecting Languages or Codes

Languag. English (factory setting) 5. 1. (Languag.) Deutsch (German) 5. 2. franc.çais (French) 5. 3. ital.iano (Italian) 5. 4. Espanol (Spanish) 5. 5. PyCCK (Russian) 5. 6. Polski (Polish) 5. 7. codes Menu shows codes (not texts) 5. 8.

Page 23

Preparation

t Select the Counting application in the

menu: see “Configuration"

t Set the following parameters:

Applic.ation programs Count. Resolut.ion o Disp.Acc. Display accuracy

10-fold 10-fold higher

Ref.Updt. Autom. ref. sample

updating

o Off Off

autom. Automatic

o = Factory setting

Printout: Counting

n R e f 1 0 :

Ref. sample quantity

wRef 21.14 g : Reference weight

for 1 unit

Qnt + 500 pcs : Calculated quantity

Application Programs

Counting

Display symbol: Z

Purpose

With the Counting application, you can determine the number of parts that each have approximately equal weight. To do this, a known number of parts (the reference sample quantity) is weighed first, and the individual piece weight (reference weight) is calculated from this result. Thus the number of parts subsequently placed on the balance can be determined from their weight.

Changing the Reference Sample Quantity

Activate function: Press the b key Select the desired reference sample quantity (1 to 100): In increments of 1: Press the b key briefly In increments of 10: Press and hold the b key. The quantity is stored in battery-backed

memory.

Reference Sample Updating

Automatic reference sample updating optimizes the counting accuracy. You can activate or deactivate this function in the menu.

Automatic reference sample updating is performed when the requirements, including the specified stability criterion, have been met.

The abbreviation opt for “optimizing”, is displayed briefly with the new reference sample quantity.

Page 24

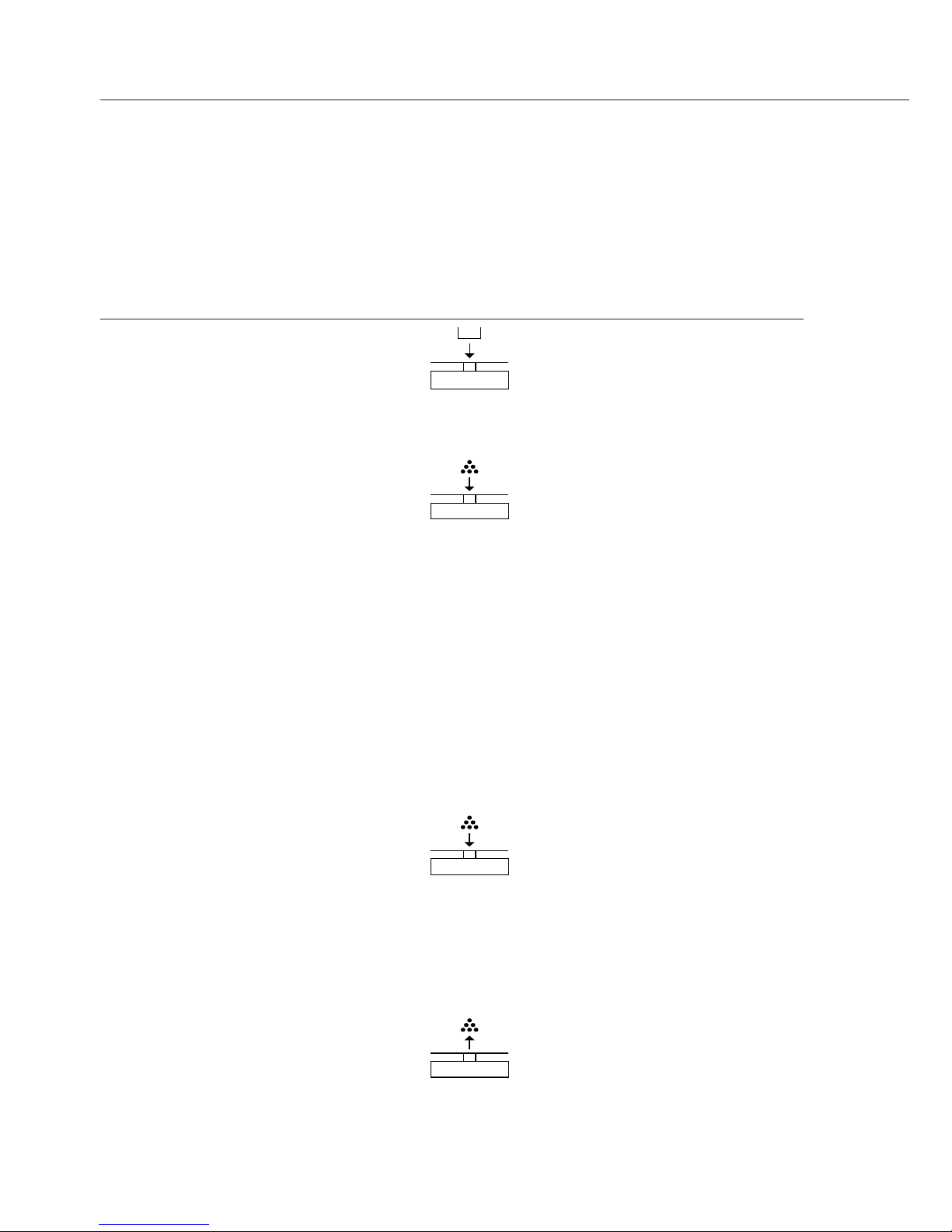

Example: Counting parts of equal weight Parameter settings: Applic. - Count. (menu code 2. 3.)

Step Key (or instruction) Display/Data output

1. Place empty container +

22.6 g

on the balance

2. Tare the balance w 0.0 g

3. Add reference sample quantity to container (in this example: 20 pcs)

4. Changing the reference sample quantity b ref 10

pcs

5. Select reference sample quantity: Repeatedly: b

In increments of 1 (1, 2, 3, ..., 100) Press briefly

In increments of 10 (10, 20, ..., 100) press and hold

ref 20

pcs

6. Confirm selected reference

u + 20

pcs

sample quantity and start nRef 20 pcs the application. The current wRef 1.07 g reference weight remains saved until a new reference is set or the power supply is interrupted.

7. Add desired number of pieces +

500

pcs

8. If desired, print quantity r Q nt + 500 pc s

9. Toggle display between mean + 1.07 g

piece weight, weight, quantity + 535.0 g *

Repeatedly:

b + 500

pcs

10. Unload the balance – 21

pcs

11. Repeat as needed, starting from Step 7

12. End “Counting"

c 0.0 g

Page 25

Preparation

t Select the Weighing in percent application

in the menu: see “Configuration"

t Set the following parameters:

Applic.ation programs Percent Weighing in percent DEC.PLCS Decimal places none Decimal places

o 1 dec.pl. 1 decimal place 2 dec.pl. 2 decimal places 3 dec.pl. 3 decimal places

o = Factory setting

Printout: Weighing in percent

p R e f 1 0 0 : Reference percentage Wxx% 111.6 g : Reference weight for

selected reference percentage xx%

Prc + 94.9 % : Calculated reference

percentage

Weighing in Percent

Display symbol: %

Purpose

This application allows you to obtain weight readouts in percent which are in proportion to a reference weight.

Changing the Reference Percentage

Activate function: Press the b key Select the desired reference (1 to 100): In increments of 1: Press the b key briefly Increments of 10: Press and hold the b key.

The percentage is stored in batterybacked memory.

Page 26

Example: Determining residual weight in percent Parameter settings: Applic. - percent (menu code 2. 4.) Reference percentage: Ref 100%

Step Key (or instruction) Display/Data output

1. Tare the balance

w 0.0 g

2. Changing the reference: (see the previous page)

b ref 100

3. Place sample equal to 100% on the balance (in this example: 111.6 g)

4. Start the application. u + 100.0

The current reference weight pRef 1 00 % remains stored until a new Wxx% + 111.6 g reference is set or power to the power supply is interrupted.

5. Remove sample (e.g. for drying)

6. Place weight on the balance + 94.9

(in this example 322.5 g)

7. If desired, print percentage r Prc + 94 .9 %

8. Toggle display between + 105.9 g

weight and percentage Repeatedly: b + 94.9

9. Clear display of residual weight c + 105.9 g

and reference percentage

Exit application

10. If desired, print net residual weight

r N + 10 5.9 g

Page 27

Preparation

t Select the Animal weighing application

in the menu: see “Configuration"

t Set the following parameters:

Applic.ation programs Animalw. Animal weighing Activty. Animal activity calm Stable readout

o active Unstable v.active Very unstable

Start manual

o Autom.atic

o = Factory setting

Printout: Animal weighing

m D e f 2 0 : Number of

subweighing operations

x-Net + 410.1 g : Calculated average

Animal Weighing/Averaging

Display symbol: V

Purpose

This application is used to determine the weights of unstable samples (e.g., live animals) or to determine weights under very unstable ambient conditions. With this program, the balance calculates the weight as the average of a defined number of individual weighing operations (also referred to as “subweighing operations”).

Changing the Number of Subweighing Operations

Activate function: Press the b key Select the desired number of measurements (1 to 100): In increments of 1: Press the b key briefly Increments of 10: Press and hold the b key.

The selected number of measurements is stored in battery-backed memory.

Page 28

Example: Determining animal weight with automatic start and 20 subweighing operations

(measurements)

Parameter settings: Applic. - Animalw. (menu code 2. 7.)

Step Key (or instruction) Display/Data output

1. Place animal weighing

22.6 g

bowl on the balance

2. Tare the balance w 0.0 g

3. Change the number of

b ref 30

subweighing operations:

4. Select number of measurements: Repeatedly:

In increments of 1 (1, 2, 3, ..., 100) Press briefly

In increments of 10 (10, 20, ..., 100) press and hold

ref 20

5. Confirm number of measurements

u + 0.0 g *

and start automatic animal weighing. The number of measurements remains stored in battery-backed memory until the setting is changed.

6. Place first animal in bowl.

888

The balance delays the start

of measurements until the

difference between 2 measure-

....

ments meets the criterion.

7. Read off the result. + 410.1 g

The result is displayed with the “*” symbol (= calculated value)

m D e f 2 0

and remains displayed until the

x-Net + 410.1 g

sample (animal) is removed from the load plate (bowl).

8. Unload the balance +

0.0 g

9. Weigh next animal (if des.)

Next weighing series begins automatically.

Page 29

Toggling between Weight Units

Purpose

With this application program you can change the weight value displayed from the basic

weight unit to any of 4 application weight units (see table on next page).

Features

– Set the basic unit and display accuracy in the Setup menu:

see “Configuration". – Set the application weight units and display accuracies in the Application menu. – These settings are stored in battery-backed memory. – The basic unit is active when the balance is powered up.

Example: Change display from the basic unit (in this example, grams [g]) to pounds [lb]

and Troy ounces [ozt].

Set the following parameters: Applic. - unit (code 2. 2.)

Step Press key Display | Printout

Preparation:

1. Begin selection of an

b NONE

application weight unit

2. Select an application unit, in this example “pounds" Repeatedly: (see table on next page)

b pounds

3. Confirm the weight unit (pounds)

u pounds

4. Select the next application weight u, NONE

unit, in this example: Troy ounces Repeatedly:

(see table on next page)

b troy.oz.

5. Confirm weight unit (Troy ounces)

u troy.oz.

6. Select other application units if desired (max. 4 total)

(otherwise, confirm “NO" by pressing

7. Store selection

c 0.00 g

Conversion:

8. Place sample on balance +

100.00 g

9. Toggle unit for weight value Repeatedly: + 0.22046 lb

u + 3.5275 ozt

Page 30

The following weight units are available in your balance: :

Menu item Unit Conversion factor Display

symbol

1) USERDEF.

) Grams 1.00000000000 o

2) Grams (Factory setting) Grams 1.00000000000 g

3) Kilogr. Kilograms 0.00100000000 kg

4) carats Carats 5,00000000000 o

5) Pounds Pounds 0.00220462260 lb

6) ounces Ounces 0.03527396200 oz

7) troy.oz. Troy ounces 0.03215074700 ozt

8) hktael Hong Kong taels 0.02671725000 tl

9) sing.tael. Singapore taels 0.02645544638 tl

10) twn.tael. Taiwanese taels 0.02666666000 tl

11) grains Grains 15.4323583500 GN

12) peny.wt. Pennyweights 0.64301493100 dwt

13) milligr. Milligrams 1000.00000000 mg

14) Pt.P.Lb. Parts per pound 1.12876677120 o

15) china.tael Chinese taels 0.02645547175 tl

16) mommes Mommes 0.26670000000 m

17) Aust.ct. Austrian carats 5.00000000000 Kt

18) tola Tola 0.08573333810 o

19) baht Baht 0.06578947436 b

20) mesghal Mesghal 0.21700000000 o

21) tons Tons 0.00000100000 t

22) Lb / Oz

) Pounds : ounces 0.03527396200 lb oz

23) newton Newton 0.00980665000 N

) = User-defined weight unit; can be loaded in the balance over an optional RS-232 or

USB interface using a computer program.

) = The format for display of pounds: ounces is xx:yy.yyy; x=lb, y=oz

Page 31

Density Determination

Display symbol: W

Purpose

This application program lets you determine the density of solid substances using the

buoyancy method.

Features

To enter the density of the buoyancy liquid(g/cm

) at the corresponding temperature,

press b. See the next page for a table of density values for water. The factory setting

is 1 g/cm

The following formula is applied:

Density of sample =

Weight in air

———————————————————— + density of liquid

(Weight in air – weight in water)

When you start the density determination routine, the density of the liquid is displayed

briefly.

Positive and negative values can be stored for weight in air and weight in water.

The weight in water must be less than the weight in air; otherwise, an error message is

displayed.

The results can be displayed with 0 to 3 decimal places: see “Configuration". Not part of

the scope of delivery: sample holder and suspension wire.

Preparation

t Select the Density Determination application in the menu:

see “Configuration"

t Set the following parameters:

Applic. ation programs density determination DEC.PLCS Decimal places none No decimal places

o 1 dec.pl. 1 decimal place 2 dec.pl. 2 decimal places 3 dec.pl. 3 decimal places

o = Factory setting

Note on using 3 decimal places: Using three decimal places for density can result in a high measurement error rate because corrections to the air density and the density calculation sets are not taken into account, for example.

Page 32

Printout for Density Determination

RhoFl 0.99823 o : Density of liquid (g/cm

)

W a + 2 0 . 0 g : Weight in air Wfl + 15.0 g : Weight in liquid R h o 4 . 0 o : Result: density of the sample

Table: Density of H

O at Temperature T (in °C)

T/°C 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

10. 0.99973 0.99972 0.99971 0.99970 0.99969 0.99968 0.99967 0.99966 0.99965 0.99964

11. 0.99963 0.99962 0.99961 0.99960 0.99959 0.99958 0.99957 0.99956 0.99955 0.99954

12. 0.99953 0.99951 0.99950 0.99949 0.99948 0.99947 0.99946 0.99944 0.99943 0.99942

13. 0.99941 0.99939 0.99938 0.99937 0.99935 0.99934 0.99933 0.99931 0.99930 0.99929

14. 0.99927 0.99926 0.99924 0.99923 0.99922 0.99920 0.99919 0.99917 0.99916 0.99914

15. 0.99913 0.99911 0.99910 0.99908 0.99907 0.99905 0.99904 0.99902 0.99900 0.99899

16. 0.99897 0.99896 0.99894 0.99892 0.99891 0.99889 0.99887 0.99885 0.99884 0.99882

17. 0.99880 0.99879 0.99877 0.99875 0.99873 0.99871 0.99870 0.99868 0.99866 0.99864

18. 0.99862 0.99860 0.99859 0.99857 0.99855 0.99853 0.99851 0.99849 0.99847 0.99845

19. 0.99843 0.99841 0.99839 0.99837 0.99835 0.99833 0.99831 0.99829 0.99827 0.99825

20. 0.99823 0.99821 0.99819 0.99817 0.99815 0.99813 0.99811 0.99808 0.99806 0.99804

21. 0.99802 0.99800 0.99798 0.99795 0.99793 0.99791 0.99789 0.99786 0.99784 0.99782

22. 0.99780 0.99777 0.99775 0.99773 0.99771 0.99768 0.99766 0.99764 0.99761 0.99759

23. 0.99756 0.99754 0.99752 0.99749 0.99747 0.99744 0.99742 0.99740 0.99737 0.99735

24. 0.99732 0.99730 0.99727 0.99725 0.99722 0.99720 0.99717 0.99715 0.99712 0.99710

25. 0.99707 0.99704 0.99702 0.99699 0.99697 0.99694 0.99691 0.99689 0.99686 0.99684

26. 0.99681 0.99678 0.99676 0.99673 0.99670 0.99668 0.99665 0.99662 0.99659 0.99657

27. 0.99654 0.99651 0.99648 0.99646 0.99643 0.99640 0.99637 0.99634 0.99632 0.99629

28. 0.99626 0.99623 0.99620 0.99617 0.99614 0.99612 0.99609 0.99606 0.99603 0.99600

29. 0.99597 0.99594 0.99591 0.99588 0.99585 0.99582 0.99579 0.99576 0.99573 0.99570

30. 0.99567 0.99564 0.99561 0.99558 0.99555 0.99552 0.99549 0.99546 0.99543 0.99540

Page 33

Parameter settings: Applic. - Density - dec.plcs. -1 dec.pl. (menu code 2. 9. 1. 2)

Example: Determining the density of a solid using water as the buoyancy liquid.

The density of water at 20°C is 0.99823 g/cm

Step Key (or instruction) Display/Data output

1. Attach sample holder and suspension wire

2. Tare the balance

w 0.0 g

3. Edit the stored density value b _1.00000

4. Enter the density of the liquid Repeatedly: b,

(in this example: 0.99823): Enter briefly or press and numerals in increments of 1 hold ;

u, etc. _0.99823

5. Save density value and start

application. The density value

is stored in battery-backed memory until the setting is changed.

6. Confirm “air" display

u air

7. Determine the weight of

sample in the air: Place sample on the balance

+ 20.0 g

8. Store value for weight in air u

9. Remove sample from the balance water

10. Determine weight in liquid:

Place sample in holder.

11. Confirm “water" display u 0.0 g

12. Immerse sample in liquid + 15.0 g

13. Store value for weight in u

liquid, view and print result + 4.0

RhoFl 0.6237 o Wa + 20.0 g Wfl + 15.0 g

14. Delete result c Rho 4.0 o

15. Repeat as needed, starting from Step 5.

Page 34

Purpose

Your balance comes equipped with an interface port for connection to a computer or other peripheral device. You can use an on-line computer to change, start and/or monitor the functions of the balance and the application programs.

Female interface connector

Pin Assignment Chart, 25-pin, RS-232: Pin 1: Shield Pin 2: Data output (TxD) Pin 3: Data input (RxD) Pin 4: Internal ground (GND) Pin 5: Clear to Send (CTS) Pin 6: Not connected Pin 7: Internal ground (GND) Pin 8: Internal ground (GND) Pin 9: Not connected Pin 10: Not assigned Pin 11: + 12 V (operating voltage

for Sartorius printer) Pin 12: Reset _ Out Pin 13: + 5 V Pin 14: Internal ground (GND) Pin 15: Universal remote switch Pin 16: Not connected Pin 17: Not connected Pin 18: Not connected Pin 19: Not connected Pin 20: Data Terminal Ready (DTR) Pin 21: Not connected Pin 22: Not connected Pin 23: Not connected Pin 24: Not connected Pin 25: + 5 V

*) = Hardware restart

Data Interface

Preparation

You can set these parameters for other devices in the Setup menu: see “Configuration".

You will also find a detailed description

of the available data interface commands in the file “Data Interface Descriptions for Entris Models", which you can download from the Sartorius website: (www.sartorius.com "Download Center".)

For remote switch*)

Page 35

Error codes are shown on the main display for approx. 2 seconds. The program then returns automatically to the previous mode.

Display Cause Solution

No segments appear on No AC power is available Check the AC power supply the display The power supply is not Plug in the power supply plugged in

high The load exceeds the Unload the balance balance capacity

low or Err 54 Something is touching the Move the object that is touching weighing pan the weighing pan

App.err. Cannot store data: Increase load Load on weighing pan too light or no sample on pan while application is active

dis.err. Display error: Change the configuration in the Data output not compatible operating menu with output format

prt.err. Interface port for printer Reset the menu factory settings output is blocked or Contact your local

Sartorius Service Center

err 02 Calibration parameter not met, Calibrate only when zero is displayed e.g.: – Press w to tare the balance – load on weighing pan Unload the balance

err 10 The w key is blocked After the tare memory has been for active application programs; deleted using the c key, Only 1 tare function can be the w key can be used again used at a time

err 11 Tara memory not allowed Press w The weight readout Unstable ambient conditions Set up balance in another area

changes constantly (excessive vibration or draft) Adjust Setup configuration A foreign object is caught Remove the foreign object between weighing pan and housing

The weight readout The balance was not Calibrated/adjust the balance is obviously wrong calibrated/adjusted Balance not tared before weighing

If any other errors occur, contact your local Sartorius Service Center. Web address: http://www.sartorius.com

Troubleshooting Guide

Page 36

Service

On request, Sartorius can offer you an individual service contract.

Repairs

Repair work must only be carried out by trained service technicians. Repairs

performed by untrained persons may result in considerable hazards for the user.

Cleaning

Unplug the AC adapter from the wall outlet (mains supply). If you have an interface

cable connected to the balance port, unplug it from the port.

Make sure that no liquid enters the balance housing.

t Clean the balance with a cloth lightly moistened with soap solution.

y The plastic top and bottom parts of the balance housing have a special coating

that allows acetone to be used to clean these parts.

Do not clean the following parts with acetone or aggressive cleaning agents:

foil-covered keypad, power connector port, data interface, or any other plastic

parts.

t Wipe the balance with a soft, dry cloth.

On analytical balances remove and clean the weighing pan

as follows:

Reach beneath the shield disk and lift it up carefully together with the weighing pan to avoid damaging the weighing system. Make sure that no liquid enters the balance housing.

Cleaning Stainless Steel Surfaces

Clean all stainless steel parts regularly. Remove the

stainless steel weighing pan and thoroughly clean it separately. Use a damp cloth or sponge to clean stainless steel parts on the balance. You can use any household cleaning agent that is suitable for use on stainless steel. Clean stainless steel surfaces only by wiping them down. Then rinse the equipment thoroughly, making sure to remove all residues. Afterwards, allow the equipment to dry. If desired, you can apply oil to the cleaned surfaces as additional protection.

Care and Maintenance

Page 37

Recycling

Safety Inspections

If there is any indication that safe opera-

tion of the balance is no longer warranted:

Disconnect the equipment from the

AC power: Unplug the power cord.

> Lock the balance in a secure place to

ensure that it cannot be used for the time

being

Inform Sartorius Service Center.

Maintenance and repair work may only be

carried out by trained service technicians.

We recommend that the device be

inspected by a certified electrician

at regular intervals, according to the

following checklist:

– Insulating resistance > 7 megaohms

measured with a constant voltage of at

least 500 V at a 500 kohm load

– Leakage current: < 0.05 mA measured

with a properly calibrated multimeter

Recycling

The packaging is made of environ mentally

friendly materials that can be used as

secondary raw materials. If you no longer

need this packaging, bring it to your

local recycling and waste disposal facility

according to the regulations applicable in

your country .

(Contract number D-59101-2009-1129).

Otherwise you should dispose of the

material in accordance with the waste

disposal regulations that are applicable

in your area.

The equipment, including accessories and batteries, does not belong in your regular household waste. The EU legislation requires its Member

States to collect electrical and electronic equipment and disposed of it separately from other unsorted municipal waste with the aim of recycling it.

For more information regarding disposal

and recycling, please contact our local service representatives. Our partners listed on the following website will also be able to provide assistance within the EU:

1) Go to http://www.sartorius.com.

2) Select the “Services" tab.

3) Then select “Disposal Information".

4) Addresses for the local Sartorius disposal contacts can be found in the PDF files available for download on this page.

Sartorius will not take back equipment contaminated with hazardous materials (ABC contamination) – either for repair or disposal.

Service address disposal:

Please refer to our website (www.sartorius. com) or contact the Sartorius Service Center for more detailed information regarding repair service addresses or the disposal of your device.

Page 38

Overview

Specifications

General Specifications Int. weight circuit All models with the designation Entris ... i-1S are

equipped with an internal calibration weight.

Mains connection, via Desktop power supply 697199, 100 – 240 Vac, ±10%, voltage, frequency 50–60 Hz; 200 mA (max.)

Power consumption VA maximum 16; average 8 (including power supply) Operating time with

external battery YRB11Z (display backlighting on), approx. h 35

Ambient conditions

The Technical Data are valid for the following ambient conditions: Operating temperature range +10 … +30 °C (+50 ° F ... +86 °F) Permissible ambient operating temperature +5 … +40 °C

Functionality is guaranteed up to an ambient temperature +5 °C to 40 °C.

Electromagnetic Compatibility (EMC) EN61326-1 Interference emission Class B Defined immunity to interference for industrial environments

Page 39

Model-specific Specifications Modele: Entris 224-1S 124-1S 64-1S 224i-1S 124i-1S 64i-1S

Weighing capacity 220 g 120 g 60 g Readability 0.0001 g 0.0001 g 0.0001 g Tare range (subtractive) 220 g 120 g 60 g Repeatability < ± 0.0001 g 0.0001 g 0.0001 g

(standard deviation) Linearity <± 0.0002 g 0.0002 g 0.0002 g Response time (average) s 2,5 2,5 2,5 Sensitivity drift within <±/K 3 · 10

–6

3 · 10–6 3 · 10–6

+10 ... +30 °C Adaptation to ambient conditions By selection of 1 of 4 optimized filter levels;

display update: 0.1–0.4 (depends on filter level selected)

External calibration weight g 200 (E2) 100 (E2) 50 (E2) (of at least accuracy class...)

Net weight, approx. kg 4.4 | 4.8 4.4 |4.8 4.4 | 4.8 Weighing pan size mm 90 d 90 d 90 d Whg. chamber height mm 230 230 230 Dimensions (W + D + H) mm 230 + 303 + 330

Modele: Entris 623-1S 423-1S 323-1S 623i-1S 423i-1S 323i-1S

Weighing capacity 620 g 420 g 320 g Readability 0.001 g 0.001 g 0.001 g Tare range (subtractive) 620 g 420 g 320 g Repeatability < ± 0.001 g 0.001 g 0.001 g

(standard deviation) Linearity <± 0.002 g 0.002 g 0.002 g Response time (average) s 1 1 1.1 Sensitivity drift within <±/K 3 · 10

–6

3 · 10

–6

3 · 10–6

+10 ... +30 °C Adaptation to ambient conditions By selection of 1 of 4 optimized filter levels;

display update: 0.1 – 0.4 (depending on the

set filter level)

External calibration weight g 500 (F1) 200 (F1) 200 (F1) (of at least accuracy class...)

Net weight, approx. kg 3.2|3.6 3.2|3.6 3.2|3.6 Weighing pan size mm 115 d 115 d 115 d Dimensions (W + D + H) mm 230 + 303 + 136

Page 40

Modele: Entris 153-1S 822-1S 153i-1S 822i-1S

Weighing capacity 150 g 820 g Readability 0.001 g 0.01 g Tare range (subtractive) 150 g 820 g Repeatability < ± 0.001 g 0.01 g

(standard deviation) Linearity <± 0.002 g 0.03 g Response time (average) s 1.3 1.5 Sensitivity drift within <±/K 3 · 10

–6

4 · 10–6

+10 ... +30 °C Adaptation to ambient conditions By selection of 1 of 4 optimized filter levels;

display update: 0.1–0.4 (depends on filter level selected) External calibration weight g 100 (F1) 500 (F2)

(of at least accuracy class...) Net weight, approx. kg 2.6|3.0 2.0|2.6 Weighing pan size mm 115 d 150 d Deviations (W + D + H) mm 230 + 303 + 136 230 + 303 + 87

Modele: Entris 6202-1S 4202-1S 3202-1S 2202-1S 6202i-1S 4202i-1S 3202i-1S 2202i-1S

Weighing capacity 6200 g 4200 g 3200 g 2200 g Readability 0.01 g 0.01 g 0.01 g 0.01 g Tare range (subtractive) 6200 g 4200 g 3200 g 2200 g Repeatability < ± 0.01 g 0.01 g 0.01 g 0.01 g

(standard deviation) Linearity <± 0.03 g 0.03 g 0.03 g 0.03 g Response time (average) s 1.5 1.5 1.5 1.5 Sensitivity drift within <±/K 4 · 10

–6

4 · 10–6 4 · 10–6 4 · 10–6

+10 ... +30 °C Adaptation to ambient conditions By selection of 1 of 4 optimized filter levels;

display update: 0.1–0.4 (depends on filter level selected) External calibration weight g 5000 (F1) 2000 (F1) 2000 (F1) 2000 (F1)

(of at least accuracy class...) Net weight, approx. kg 3.1|3.5 3.1|3.5 3.1|3.5 3.1|3.5 Weighing pan size mm 180 + 180 180 + 180 180 + 180 180 + 180 Dimensions (W + D + H) mm 230 + 303 + 91

Page 41

Modele: Entris 8201-1S 5201-1S 2201-1S 8201i-1S 5201i-1S 2201i-1S

Weighing capacity 8200 g 5200 g 2200 g Readability 0.1 g 0.1 g 0.1 g Tare range (subtractive) 8200 g 5200 g 2200 g Repeatability < ± 0.1 g 0.1 g 0.1 g

(standard deviation) Linearity <± 0.3 g 0.3 g 0.3 g Response time (average) s 1.5 1.5 1.5 Sensitivity drift within <±/K 8 · 10

–6

8 · 10–6 8 · 10–6

+10 ... +30 °C Adaptation to ambient conditions By selection of 1 of 4 optimized filter levels;

display update: 0.1–0.4 (depends on filter level selected)

External calibration weight g 5000 (F2) 5000 (F2) 2000 (F2) (of at least accuracy class...)

Net weight, approx. kg 2,7|3,5 2,7|3,5 2,7|3,5 Weighing pan size mm 180 + 180 180 + 180 180 + 180 Dimensions (W + D + H) mm 230 + 303 + 91

Page 42

External calibration weights:

For Entris balance models Accuracy class Weight in grams Order no.: 224 E2 200 YCW522-AC-02

124 E2 100 YCW512-AC-02 64 E2 50 YCW512-AC-02 423 F1 200 YCW523-AC-02 323 F1 200 YCW523-AC-02 153 F1 100 YCW513-AC-02 623 F1 500 YCW553-AC-02 4202 F1 2000 YCW623-AC-02 6202 F1 5000 YCW653-AC-02 3202 F1 2000 YCW623-AC-02 2202 F1 2000 YCW623-AC-02 822 F2 500 YCW554-AC-02 8201 F2 5000 YCW654-AC-02 5201 F2 5000 YCW654-AC-02 2201 F2 2000 YCW624-AC-02

Accessories

Product Order No.

Data printer YDP20-0CE

with date, time, statistics evaluation, transaction counter functions and LCD display

Remote display, reflective YRD03Z (for connection to data interface port)

External rechargeable battery pack YRB11Z

With battery-level indicator (LED); can be recharged using the AC adapter (charge time for completely discharged battery pack: 15 hours); see “Specifications” for hours of operation. To recharge the battery pack: Unplug the AC adapter from the balance and plug it into the battery pack

Product Order No.

Density

determination kit YDK01LP

– for Entris 224 – for Entris 124 – for Entris 64

Data cable

– for connection to a

YCC01-USBM2

PC mit USB port

– for PC connection,

25-pin 7357312

– for PC connection,

9-pin 7357314

Adapter cable 6965619

from D-Sub 25-pin male connector to D-Sub 9-contact female connector; length: 0.25 m

Page 43

Product Order No.

Ionizing blower for eliminating static electricity

– 220 V YIB01-0DR – 110 V YIB01-0UR

Stat-Pen antistatic device for eliminating electrostatic charges on samples and containers (100 V bis 230 V, 50/60 Hz) YSTP01

Weighing Table

– made from wood with synthetic stone YWT09 – weighing table made from synthetic stone, with vibration dampening YWT03

Wall console YWT04

Weighing pans

– 1000 ml, EG 240 g, stainless steel 641211 – 500 ml 641212 – 110 ml, 90 mm d, aluminum 69GP0003 – 270 ml, EG 62 g, 137 mm d, stainless steel YWP03G – 62 mm d, stainless steel 6910848 – 85 ml, 70 mm d, aluminum YWP06G – 180 ml, 90 mm d, aluminum YWP05G – 174 mm d, stainless steel YWP04G

Page 44

Page 45

Page 46

Sartorius Lab Instruments GmbH & Co. KG Weender Landstrasse 94–108 37075 Goettingen, Germany Telephone 0551.308.0 Fax 0551.308-3289

www.sartorius.com

Copyright by Sartorius, Goettingen, Germany. No part of this publication may be reprinted or translated in any form or by any means without prior written from Sartorius. All rights reserved by Sartorius in accordance with copyright law. The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications, and design of the equipment without notice.

Date: February 2014, Sartorius Lab Instruments GmbH & Co. KG

Printed in the EU on paper bleached without chlorine. | W Specifications subject to change without notice. Publication No.: WEN6001-e140203
