98648-018-29
Operating Instructions
Sartorius Combics 3
Models CAISL3 | CAIS3
Indicators
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Notes on Using this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Symbols and Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
IP Protection Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Use in Legal Metrology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Device Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General View of the Equipment . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Storage and Shipping Conditions . . . . . . . . . . . . . . . . . . . . . . . 7
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checking Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Acclimatizing the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Equipment Downtime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting a Weighing Platform . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting a Weighing Platform to WP 1 . . . . . . . . . . . . . . . . . 8
Connecting a Weighing Platform to WP 2 . . . . . . . . . . . . . . . . . 9
Interface Pin Assignments COM1, COM2
and PS2 with Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Interface Pin Assignment Chart COM1 . . . . . . . . . . . . . . . . . . . 11
Connecting a PC via Interface COM1 . . . . . . . . . . . . . . . . . . . . 12
Interface Pin Assignment Chart COM2 . . . . . . . . . . . . . . . . . . . 13
Connecting a PC via Interface COM2 . . . . . . . . . . . . . . . . . . . . 14
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Interface Pin Assignment Chart PS2 . . . . . . . . . . . . . . . . . . . . . 15
Connecting a Barcode Scanner via the PS2 Interface . . . . . . . . 15
Closing the Combics Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warm-up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using a Verified Device in Legal Metrology . . . . . . . . . . . . . . . 16
Configuring Weighing Platforms . . . . . . . . . . . . . . . . . . . . . . 17
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Overview of the Setup Menu in Service Mode . . . . . . . . . . . . . . 18
Setup Menu for ADC Configuration . . . . . . . . . . . . . . . . . . . . . 20
Analog/Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting Parameters for ADC Configuration . . . . . . . . . . . . . . . . 21
Analog/Digital Converter (ADC) Configuration . . . . . . . . . . . . . 23
Entering Geographical Data for Use in Legal Metrology . . . . . . 27
Entering Adjustment and Linearization Weights . . . . . . . . . . . . 32
Function Allocation of the J Key for Calibration/Adjustment 33
External Calibration/Adjustment with Factory-Defined Weight
(Default Weight) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
External Calibration/Adjustment with a User-Defined Weight . . 36
Internal Calibration/Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjustment Without Weights . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Function Allocation of the J Key for Linearization and
Setting/Deleting the Preload . . . . . . . . . . . . . . . . . . . . . . . . . . 40
External Linearization with Factory-Defined Weights
(Default Weights) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
External Linearization with User-Defined Weights . . . . . . . . . . 42
Setting the Preload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Deleting the Preload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Operating Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Weighing Mode Operating Design . . . . . . . . . . . . . . . . . . . . . 46
Saving Settings in Weighing Mode . . . . . . . . . . . . . . . . . . . . . 48
Applying the Tare Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Input Through the Digital Control Port . . . . . . . . . . . . . . . . . 48
Display in Weighing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Menu Operating Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Menu Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Saving Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Setup Overview (Parameters) . . . . . . . . . . . . . . . . . . . . . . . . . 56
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Adjustment/Configuration Counter for Standard Scales . . . . . 72
Device Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Calibration and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Configuration for Use in Legal Metrology . . . . . . . . . . . . . . . 79
External Calibration and Manual Adjustment with Default
Weights (Weighing Parameters: Factory Settings) . . . . . . . . . . 81
SQmin Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
SQmin Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Data ID Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Using individual ID codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Data Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Connection Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Configuring the Data Interface as a COM Port . . . . . . . . . . . . 91
Setting the SBI Data Output . . . . . . . . . . . . . . . . . . . . . . . . . 92
Data Input Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Data Output Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
External Keyboard Functions (PC Keyboard) . . . . . . . . . . . . . . 97
Configuring the Data Interface as a Printer Port . . . . . . . . . . . 98
Printout Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
GMP-compliant Printouts . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Sample Printouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Cleaning Stainless Steel Surfaces . . . . . . . . . . . . . . . . . . . . . . .106
Replacing the Dust Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Safety Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
ADC Scale Interface 2*3000e (Option A8) . . . . . . . . . . . . . . . . 108
ADC Scale Interface 10,000e (Option A10) . . . . . . . . . . . . . . . 109
Device Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Documents and Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Documents List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Sartorius Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Declaration of Conformities . . . . . . . . . . . . . . . . . . . . . . . . . 115
EC type-approval Certificate . . . . . . . . . . . . . . . . . . . . . . . . 118
Test Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Plates and Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Appendix: Guide to Verification of Weighing Instruments . . 124
Appendix: General Password . . . . . . . . . . . . . . . . . . . . . . . . 127
2
Contents
3
Notes on Using this Manual
t Please read this entire manual carefully and completely before using the device.
t Read the safety precautions carefully.
t This manual is part of the product. Keep it in a safe and easily accessible location.
t If the manual should be lost or misplaced, please contact Sartorius for a replacement or
download the latest manual from our website: www.sartorius.com
Symbols and Signs
The following symbols are used in this manual:
Warning symbol for various types of dangers.
2
These symbols are explained in more detail in the “Safety Instructions" section.
h
This symbol indicates useful information and tips.
This symbol indicates notes on use in legal metrology within the scope of validity of Council
Directive No. 90/384/EEC, replaced by 2009/23/EC
(models MS...-.CE...).
e, 1, This and similar symbols mean that the respective key should be pressed.
T T ..., This means that this key must be pressed more than once.
t Indicates a required action
y Describes the result of an action
1.
If a procedure has multiple steps...
2. ... the steps are numbered consecutively.
– Indicates an item in a list
h
Technical advice/hotline:
Phone: +49.551.308.4440
Fax: +49.551.308.4440
Safety
Combics indicators comply with the
European Council Directives as well
as international regulations and
standards for electrical equipment,
electro magnetic compatibility, and
the stipulated safety requirements.
Improper use or handling can, however,
result in damage and/or injury.
t Read these operating instructions
carefully before use.
This will prevent damage to the
equipment.
! Do not use this device in hazardous
areas.
! The device may only be opened by
trained service technicians.
! Disconnect the device from power
before connecting or disconnecting
peripheral devices.
! If you operate the device under
ambient conditions subject to higher
safety standards, you must comply
with any applicable installation
regulations.
Installation
! Caution when using pre-wired
RS-232 connecting cables:
RS-232 cables purchased from other
manufacturers often have pin
assignments that are incompatible with
Sartorius products. Be sure to check
the pin assignments against the chart
in this manual before connecting the
cable, and disconnect any lines
identified differently from those
specified by Sartorius.
! Use only standard cables that have
protective grounding conductors. The
protective conductor must not be
disconnected for any reason.
! If there is visible damage to the device
or power cord: unplug the device and
secure it against further use.
! Connect only Sartorius accessories
and options, as these are optimally
designed for use with your device.
Therefore, do not use any proprietary
solutions. The operator shall be solely
responsible for installation and testing
of any modifications to Sartorius
equipment, including connection of
cables or equipment not supplied by
Sartorius. Information on operational
quality (in line with norms pertaining
to immunity) is available on request.
t If you have any problems with your
device, contact your local Sartorius
office, dealer or service center.
IP Protection Rating
– CAISL models are rated to IP44 (with
option L1: IP65)
– CAIS models are rated to IP69K.
– The IP65/IP69K protection rating is
ensured only if the rubber gasket is
installed and all connections are
fastened securely (including the caps
on unused sockets).
Weighing platforms must be installed
and tested by a certified technician.
– If you install an interface port or
battery connection after setting up
your indicator, keep the protective
cap in a safe place for future use.
The cap protects the interface
connector from vapors, moisture
and dust or dirt.
Use in Legal Metrology
– When the indicator is connected to a
weighing platform and this equipment
is to be verified, ensure that the
applicable regulations regarding
verification are observed. Please read
and observe the “Guide to Verification”
on the enclosed CD.
– When connecting Sartorius platforms,
observe the permitted weighing range
as listed in the “Guide to Verification
of Weighing Instruments" and the
Declaration of Conformity.
– A sticker with the “Sartorius" logo was
affixed to the indicator as a control
seal following verification.
This seal will be irreparably damaged
if you attempt to remove it. This will
nullify the verification's validity. In this
case, re-verification would be required
in compliance with all relevant national
regulations and laws.
4
Warnings and Safety Instructions
5
Device Description
Description
Combics 3:
– Is robust and durable, thanks to its stainless steel housing.
– Is easy to clean and disinfect.
– Is easy to operate, thanks to the following features:
– Large, backlit, fully graphical dot-matrix display
– Large keys with positive click action
– Alphanumeric character entry
– Plain-text user guidance
– Can be operated independently of the weighing platform location.
– Has a range of interfaces for flexible use.
– Has optional password protection for operating parameters.
Combics 3 speeds up your routine procedures with:
– Automatic initialization when the scale is switched on.
– Fast response times.
– Automatic taring when a load is placed on the weighing platform.
– Independence from location of platform installation.
– Designation of weight values with up to 4 lines of alphanumeric text.
– Flexibility afforded by diversity of interfaces.
– Security through password protection.
– Can be controlled via two external computers using various protocols.
– Barcode scanner connection option for entering tare value or IDs (6 units).
– Ability to input tare values via the number keys.
– LED for measurement range identification.
– Connection option for a second weighing platform.
– Alibi memory.
– Configurable printout.
– Flex print
Intended Use
The Combics 3 indicator is a robust indicator for daily quality control in industrial
applications. It was designed for suitable scales or weighing platforms that correspond to
the described technical specifications. Any other use beyond this is considered improper.
Display and Keypad
1 Alphanumeric keypad
2 LEDs
(for checkweighing and classifica-
tion)
3 Toggle key for alphabetic input
4 Configuration:
Access to the product data memory
5 Delete key
6 Configuration:
Access to Setup
7 Toggles the display between gross
value (net value plus tare) and net
value (gross value minus tare)
8 Toggles between application
program and application-specific
information
9 Toggles the display between normal
and 10-fold higher resolution
10 Start data output
11 Start calibration or adjustment
12 Display of 2nd weight unit or SQmin
(depending on the setup)
13 Tare
14 Zeroing
15 Toggle between weighing platforms
16 On/Off
17 Function keys
18 Graphic-capable dot-matrix display
Back panel
19 “UNICOM"
Optional:
– RS-232|RS-485 or 422 interface,
e.g. for:
– PC connection
– Printer connection
– Digital I/O
– 4 to 20 mA
– Profibus DP
– Ethernet TCP/IP|ModBus TCP
20 RS-232 interface “COM1" e.g. for:
– PC connection
– Printer connection
– Digital input
– Stop light output
21 “PS2" e.g. for:
– Keyboard connection
– Barcode scanner connection
22 Power cord with country-specific
plug
23 Input for menu access switch
(standard or legal-for-trade mode)
for WP 1
24 Weighing platform WP 1 connection
for analog scales, optional for
“xBPI"|"SBI" scales
25 Weighing platform WP 2 connection,
optional for analog scales or
“xBPI"|“SBI" scales
26 Input for menu access switch
(standard or legal-for-trade mode)
for WP 2
27 RS-232 interface “COM2" e.g. for:
– PC connection
– Printer connection
28 Vent valve: 1.5 Nm
6
General View of the Equipment
Display and keypad
Rear view: Model type CAISL
Rear view: Model type CAIS
19
20
21
20
22
17
16
11
25
23
19
27
25
23
15
14
13
1
10
6
7
8
9
2
18
12
5
4
3
27
26
24
22
24
26
28
PS
2
7
Installation
When an indicator is ordered with special equipment, the desired options come pre-installed
from the factory.
Storage and Shipping Conditions
3
Unpacked devices can lose their precision if subject to extreme vibrations.
Excessive vibrations may compromise the safety of the equipment.
– Do not expose the equipment to unnecessarily extreme temperatures, moisture, shocks,
blows or vibration.
– Permissible storage temperature: –10 ... +40 °C
Installation Location
Avoid adverse influences at the place of installation:
– Extreme temperatures (operating temperature: –10 ... +40 °C)
– Aggressive chemical vapors
– Extreme moisture
(according to IP protection class)
Unpacking
t After unpacking the device, check it for any visible damage as a result of rough handling
during shipment.
y If you detect any damage, proceed as directed in the chapter entitled “Care and
Maintenance" under “Safety Inspection."
t Save the original packaging for any future transport.
Unplug all connected cables before packing the equipment.
Checking Package Contents
– Indicator
– Operating instructions
– Options (special accessories) as listed on the bill of delivery
Acclimatizing the Device
Condensation can form on the surfaces of a cold device when it is brought into a
substantially warmer area.
t Allow the device to acclimatize for about 2 hours at room temperature, leaving it
unplugged from AC power.
Equipment Downtime
Switch off the equipment when not in use.
Connecting a Weighing Platform
See the chapter entitled “Getting Started."
3
Make absolutely sure that the device is unplugged from the power supply before connecting/disconnecting any peripheral device (e.g. printer, PC) to or from the data interface.
Steps
1.) Connect weighing platform to the indicator.
2.) Configure the analog/digital converter (ADC): see chapter “Configuring Weighing
Platforms, section “Setting Parameters for ADC Configuration."
3.) Carry out a calibration/adjustment: Adjustment/Calibration, see chapter “Configuring
Weighing Platforms", section “Eternal Calibration/Adjustment" and linearization,
see chapter “Configuring Weighing Platforms", section “External Linearization".
4.) Connect peripheral devices, e .g. printer to the COM1 or UNICOM interface:
see the chapter entitled “Data Interfaces."
Connecting Weighing Platforms to WP1
An analog Sartorius platform (CAPP, CAPS, IU or IF) or a commercially-available DMS load
cell can be connected to the Combics indicator WP1 input.
3
The load cell should be connected by a certified technician who has received specialized
training from Sartorius. Any installation work that does not conform to the instructions in
this manual results in forfeiture of all claims under the manufacturer’s warranty.
3
Peripheral devices should be connected by a certified technician who has received specialized
training from Sartorius. Any installation work that does not conform to the instructions in
this manual results in forfeiture of all claims under the manufacturer’s warranty.
3
Disconnect the equipment from the power supply before starting connection work.
t Set up the weighing platform (see Operating instructions for the weighing platform).
t Place the cable from the weighing platform next to the indicator.
t Open the Combics indicator:
Loosen the 10 cap nuts on the front panel. Remove the front panel.
Installing Connection and Interface Cables
3
The cable gland (IP69K protection) is pre-mounted on the indicator.
Please use extreme caution when performing any work on the equipment that affects this
cable gland. You must use a torque wrench.
The torque for this cable gland is 5 Nm.
Preparing the Cable
t Strip approx. 14 cm from the end of the cable.
t Shorten the shielding to approx. 2 cm and pull back over the insulation.
t Strip approximately 5 mm of the insulation from the wires of the connecting cable and
affix ferrules to the wire ends.
8
Getting Started
Attaching the Cable Entry
3
Please use extreme caution when performing any work on the equipment that affects this
cable gland. You must use a torque wrench.
The torque for this cable gland is 5 Nm.
t Remove the protective cap from the bore hole on the indicator.
t Insert the included cable gland through the bore hole and secure from the inside using
the locknut (1).
t Insert the cable through the cable gland until the shielding (2) comes into contact with
the clamps (3). Tighten the screw-down nut (4) until the gasket (5) inserted between the
screw-down nut and cable forms a small beaded rim.
t Check the shielding and clamps.
t Securely connect the wires of the connecting cable in accordance with the terminal
assignments.
t After you close the housing again, use a pressure gauge to check the integrity of the
IP69K protection. For details, contact the Sartorius Service Center.
Connecting Cables
t Insert all cable wires through the ferrite case, wind them around the ferrite case and then
reinsert back through the ferrite case.
t Screw the wires tightly into the clamps.
See the following pages for pin assignment
t Refer to the data sheet or operating instructions of the weighing platform for details
on the assignment of wire colors/signals. Ensure any lines that are not assigned are
insulated correctly.
t When connecting a load receptor that uses 4-conductor technology (the cable of the
weighing platform to be connected only has 4 lines), connect clamp pairs 1 and 2 (EXC+
und SENSE+), and 5 and 6 (SENSE- und EXC-) with a wire jumper.
Connecting Weighing Platforms to WP2
An IS platform can be connected to the WP2 connection of the Combics indicator.
Features
– IS weighing platforms process weighing data independently of the indicator.
– Internal calibration/adjustment option
– IS...-0CE models: have a separate approval number, printed on a tag that is affixed to
the cable.
– Please observe the conditions described in the manual for the weighing platform you
connect.
4
1
5
2
3
9
Getting Started
Interface Pin Assignments COM1, COM2 and PS2 with Options
Digital PCB CAIS3 (IP69K)
COM1, COM2 and PS2 terminal assignments (applies to all PCBs)
PS2
1 LOAD_PRINTER 11 Clear to Send (CTS) 21 5 V switched
2 RESET_OUT 12 Data Terminal Ready (DTR) 22 PS2_Daten
3 GND 13 Data Input (RXD) 23 PS2_Timer
4 GND 14 Data Output (TXD) 24 GND
5 5V_OUT 15 GND COM2
6 5V switched 16 Universal In 31 CTS_COM2
7 GND 17 Control Output: “lighter" 32 DTR_COM2
8 GND 18 Control Output: “equal" 33 RXD_COM2
9 Schirm 19 Control Output: “heavier" 34 TXD_COM2
10 LINE_OUT 20 Control Output: “set" 35 GND
36 GND
A8 terminal assignments
1 EXC+ Bridge supply voltage (+)
2 SENSE+ Sense (+) for bridge supply voltage
3 OUT+ Measuring voltage positive
4 OUT- Measuring voltage negative
5 SENSE- Sense (-) for bridge supply voltage
6 EXC- Bridge supply voltage (–)
Keypad
LED + Display
Interface PCB for RS-232/RS-485 for IS platforms (option A6/A7)
A6/A7 terminal assignments
1 CTS 11 TxD/RxD+
2 DTR 12 TxD/RxD3 RxD 13 LINE_OUT
4 TxD 14 LINE_OUT
5 GND 15 GND
6 Calibration Lock 16 GND
Keypad
LED + Display
Interface PCB for ADC 10.000e (option A20)
A20 terminal assignments
1 EXC+
2 SENSE+
3 OUT+
4 OUT5 SENSE6 EXC-
Keypad
LED + Display
10
Getting Started
PS2 COM1 COM2 A8
Keys
LED + Display
A6/7
Keys
LED + Display
A20
Keys
LED + Display
PS2 COM1 COM2
PS2 COM1 COM2
Weighing platform
Interface 2
Weighing platform
Interface 1
Weighing platform
Interface 2
11
Getting Started
Interface PCB for RS-232/RS-485 for IS platforms (option A62/A72)
A62/A72 terminal assignments
1 CTS 11 TxD/RxD+
2 DTR 12 TxD/RxD3 RxD 13 LINE_OUT
4 TxD 14 LINE_OUT
5 GND 15 GND
6 Calibration Lock 16 GND
Keypad
LED + Display
Interface Pin Assignment Chart COM1
Model type CAISL (IP44 protection)
COM1 female connectors:
25-pin D-Submini female connector (DB25S) with screw lock hardware for cable gland
Recommended interface connector:
25-pin D-Submini (DB25) with shielded cable clamp assembly and shield plate (Amp type
826 985-1C) and fastening screws (Amp type 164868-1)
Pin assignment:
Pin 1 Shield
Pin 2 Data output (TxD)
Pin 3 Data input (RxD)
Pin 4 Internal ground (GND)
Pin 5 Clear to Send (CTS)
Pin 6 Not assigned
Pin 7 Internal ground (GND)
Pin 8 Internal ground (GND)
Pin 9 Not assigned
Pin 10 Not assigned
Pin 11 +12 V for printer
Pin 12 \RES_OUT
Pin 13 +5 V Switch
Pin 14 Internal ground (GND)
Pin 15 Universal switch
Pin 16 Control output: “lighter"
Pin 17 Control output: “equal"
Pin 18 Control output: “heavier"
Pin 19 Control output: “set”
Pin 20 Data Terminal Ready (DTR)
Pin 21 Ground power supply (GND)
Pin 22 Not assigned
Pin 23 Not assigned
Pin 24 Power supply +15...25 V (peripherals)
Pin 25 +5 V
A62/72
Keys
LED + Display
PS2 COM1 COM2
Weighing platform
Interface 1
Connecting a PC via Interface COM1
Use the following cables to connect a PC to the indicator in accordance with the RS-232C/V24 standard
(max. cable length 15 m):
Model type CAISL: connecting cable 7357312
Model type CAIS: connecting cable YCC02-D9F6
Pin Assignment
Pin assignments for the cable from the indicator to an RS-232 PC interface (COM1).
Indicator side PC side
Model type CAISL D-Sub plug D-Sub socket
25-pin D-Sub male connector 9-pin or 25-pin
>1
Sgn GND >7 5 GND >7 GND
TxD >2 2 RxD >3 RxD
RxD >3 3 TxD >2 TxD
DTR 20 8 CTS >5 CTS
CTS >5 4 DTR 20 DTR
Model type CAIS D-Sub plug D-Sub socket
Open cable end 9-pin or 25-pin
Sgn GND 15 5 GND >7 GND
TxD 14 2 RxD >3 RxD
RxD 13 3 TxD >2 TxD
DTR 12 8 CTS >5 CTS
CTS 11 4 DTR 20 DTR
12
Getting Started
RS232
13
Getting Started
Interface Pin Assignment Chart COM2
Model type CAISL (IP-44 protection)
COM2 female connectors:
9-pin D-Submini female connector (DB9S) with screw lock hardware for cable gland
Recommended interface connector:
9-pin D-Submini (DB9) with shielded cable clamp assembly and shield plate and
fastening screws (Amp type 164868-1)
Pin assignment:
Pin 1 +5 V out
Pin 2 Data output (TxD)
Pin 3 Data input (RxD)
Pin 4 Clear to Send (CTS)
Pin 5 Internal ground (GND)
Pin 6 Reset
Pin 7 Not assigned
Pin 8 Data Terminal Ready (DTR)
Pin 9 Load Printer
5
9
1
6
Connecting a PC via Interface COM2
Use the following cables to connect a PC to the indicator in accordance with the RS-232C/V24 standard
(max. cable length 15 m):
Model type CAISL: connecting cable 7357312
Model type CAIS: connecting cable YCC02-D9F6
Pin Assignment
Pin assignments for the cable from the indicator to an RS-232 PC interface (COM2).
Indicator side PC side
Model type CAISL D-Sub plug D-Sub socket
9-pin D-Sub male connector 9-pin or 25-pin
Sgn GND 5 5 GND 7 GND
TxD 2 2 RxD 3 RxD
RxD 3 3 TxD 2 TxD
DTR 8 8 CTS 5 CTS
CTS 4 4 DTR 20 DTR
Model type CAIS D-Sub plug D-Sub socket
Open cable end 9-pin or 25-pin
Sgn GND 35 5 GND 7 GND
TxD 34 2 RxD 3 RxD
RxD 33 3 TxD 2 TxD
DTR 32 8 CTS 5 CTS
CTS 31 4 DTR 20 DTR
14
Getting Started
RS232
15
Getting Started
Interface Pin Assignment Chart PS2
Model type CAISL (IP-44 protection)
PS2 female connector:
6-pin miniature socket PS2 (Mini-DIN)
Recommended interface connector:
6-pin miniature socket PS2 with integrated shielded cable clamp assembly
Pin Assignments:
Pin 1 Keyboard data (data interface cable)
Pin 2 Not assigned
Pin 3 Internal ground (GND)
Pin 4 +5 V switched
Pin 5 Keyboard clock
Pin 6 Not assigned
Connecting a Barcode Scanner via the PS2 Interface
Accessory YBR02CISL
t Disconnect the indicator from AC power (unplug the AC adapter).
For model type CAISL:
t Connect the barcode scanner via PS/2.
For model type CAIS:
t Pin assignment, see “Interface Connection Assignments COM1, COM2 and PS2"
(implemented via the YCC02-BR02 connecting cable or as option M8).
3
1
4
2
6
5
Closing the Combics Indicator
t Re-attach the front panel and secure it with the 10 cap nuts.
Connecting the Device to AC Power
The indicator is powered through the pre-installed power cord.
The power supply is integrated into the indicator.
The device can be operated with a supply voltage of 100 to 240 V.
3
The power connection must be made in accordance with the regulations applicable in your
country.
Make sure that the voltage rating printed on the manufacturer's ID label is identical to that
of your local line voltage. If the voltage specified on the label or the plug design of the AC
adapter do not match the rating or standard you use, please contact your Sartorius office or
dealer.
t Check the voltage rating and plug design.
t The device must be plugged into a properly installed wall outlet.
Protection Class 1 Device
t The device must be plugged into a properly installed wall outlet which has a protective
grounding conductor (PE).
Safety Precautions
3
If you use an electrical outlet that does not have a protective grounding conductor, ensure
that an equivalent protective conductor is installed by a certified electrician (as specified in
the applicable regulations for installation in your country). The protective effect must not be
negated by using an extension cord without a protective grounding conductor.
Before using for the first time, any superstructure parts must be completely installed.
Avoid connecting the equipment to lines that have a heavy electrical load, e.g. compressors,
large machinery, etc.
Warm-up Time
To deliver exact results, the device must warm up for at least 30 minutes after connection
to AC power. Only after this time will the device have reached the required operating
temperature.
Using a Verified Device in Legal Metrology
Ensure that there is a warm-up time of at least 24 hours after connection to the power
supply.
16
Getting Started
17
Configuring Weighing Platforms
Service Mode
Purpose
The Service mode enables access to additional menu items in the Setup menu which are
not displayed when the Service mode is not active. The most important calibration and
adjustment work for the indicator and for the connected weighing platform can be
carried out in the Service menu, e.g. ADC configuration.
When the Service mode is active, an “S” is shown in the top right-hand corner of the
display. To deactivate the Service mode, restart the indicator (turn the indicator off and
back on again).

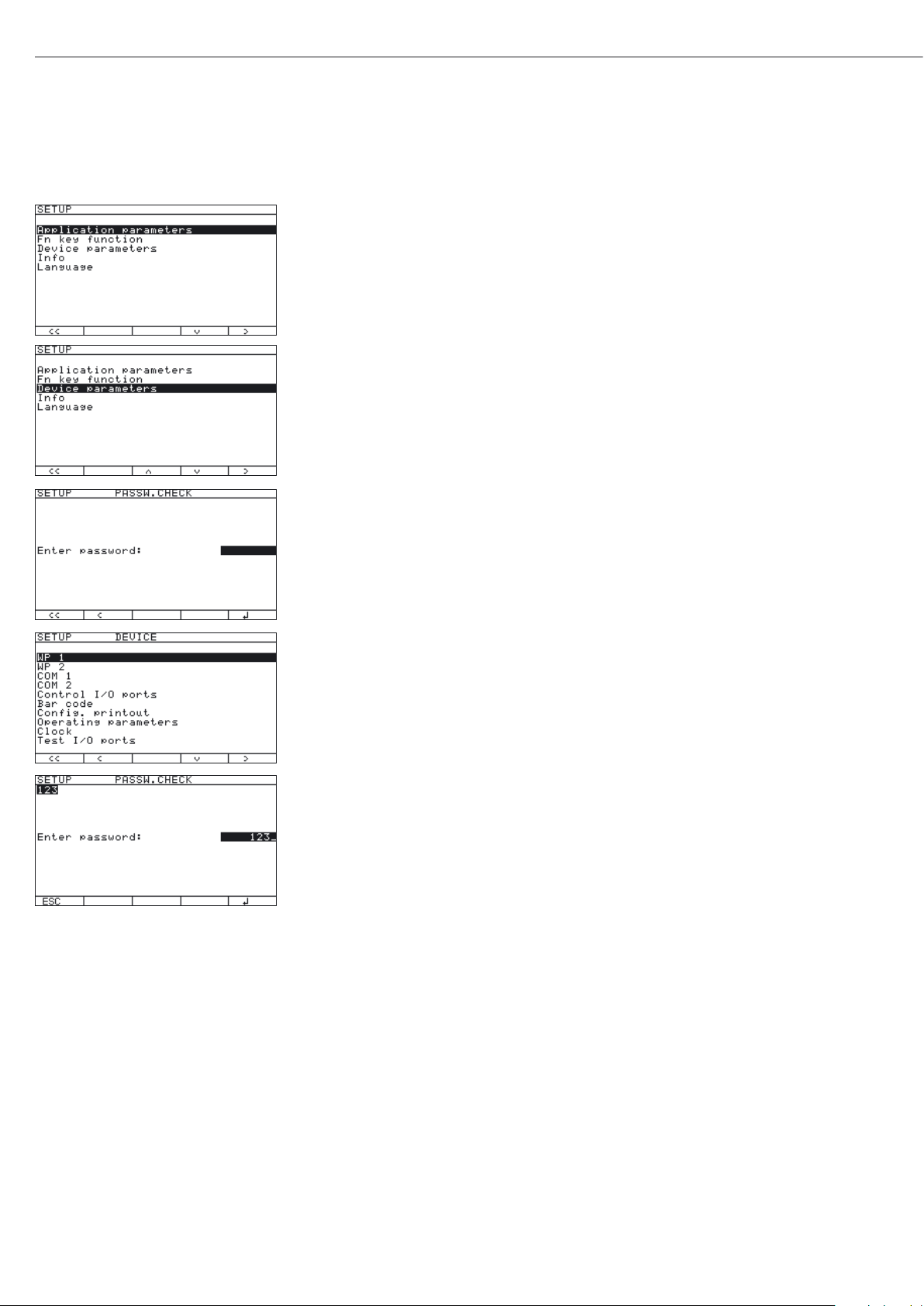

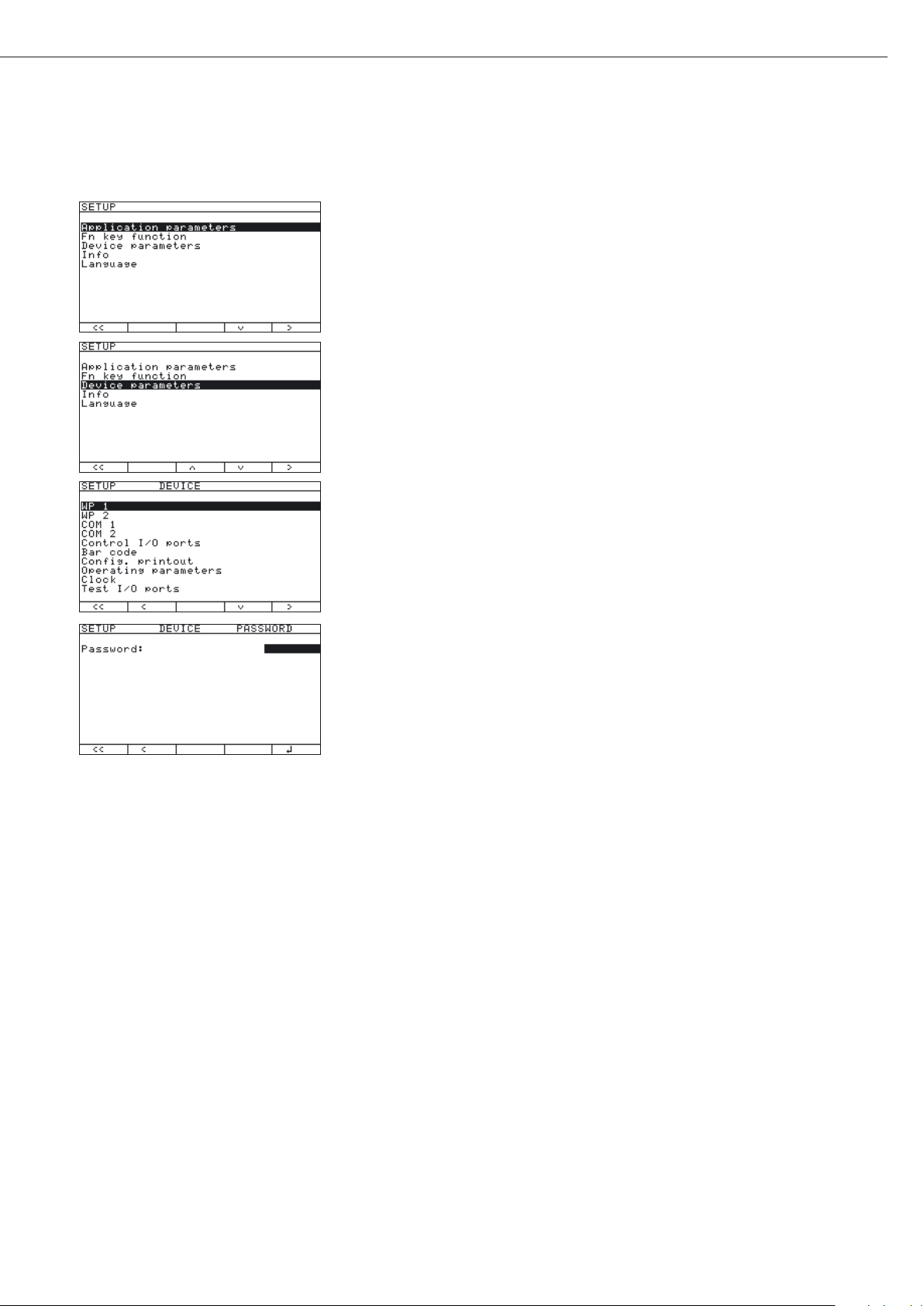

Activating the Service Mode
t Press e to turn on the device.
y When turned on the scale is in an application program.
t Enter the service password (see Appendix General User Password) and press M to
confirm.
y The device in now is Service mode. An “S" appears in the top right-hand corner of the
display.
t Press the “q" soft key several times to select the “Device parameters" line.
t Press the “O" soft key.
y The “Device" submenu will open.
t Select and open the corresponding submenu. Repeat this procedure until the desired
menu item in the lowest menu level can be opened.
t View or change the menu item (confirm with “l") and use “o" to return to the previous
menu.
t Press M or “oo" to exit the Setup menu.
Exiting Service Mode
Turn the device off and then on again to return to the normal application mode. If you
exit the Setup menu without changing settings by confirming with M or the “
oo"
soft key, the Service mode will remain active. Press the M key to re-open the Setup
menu.

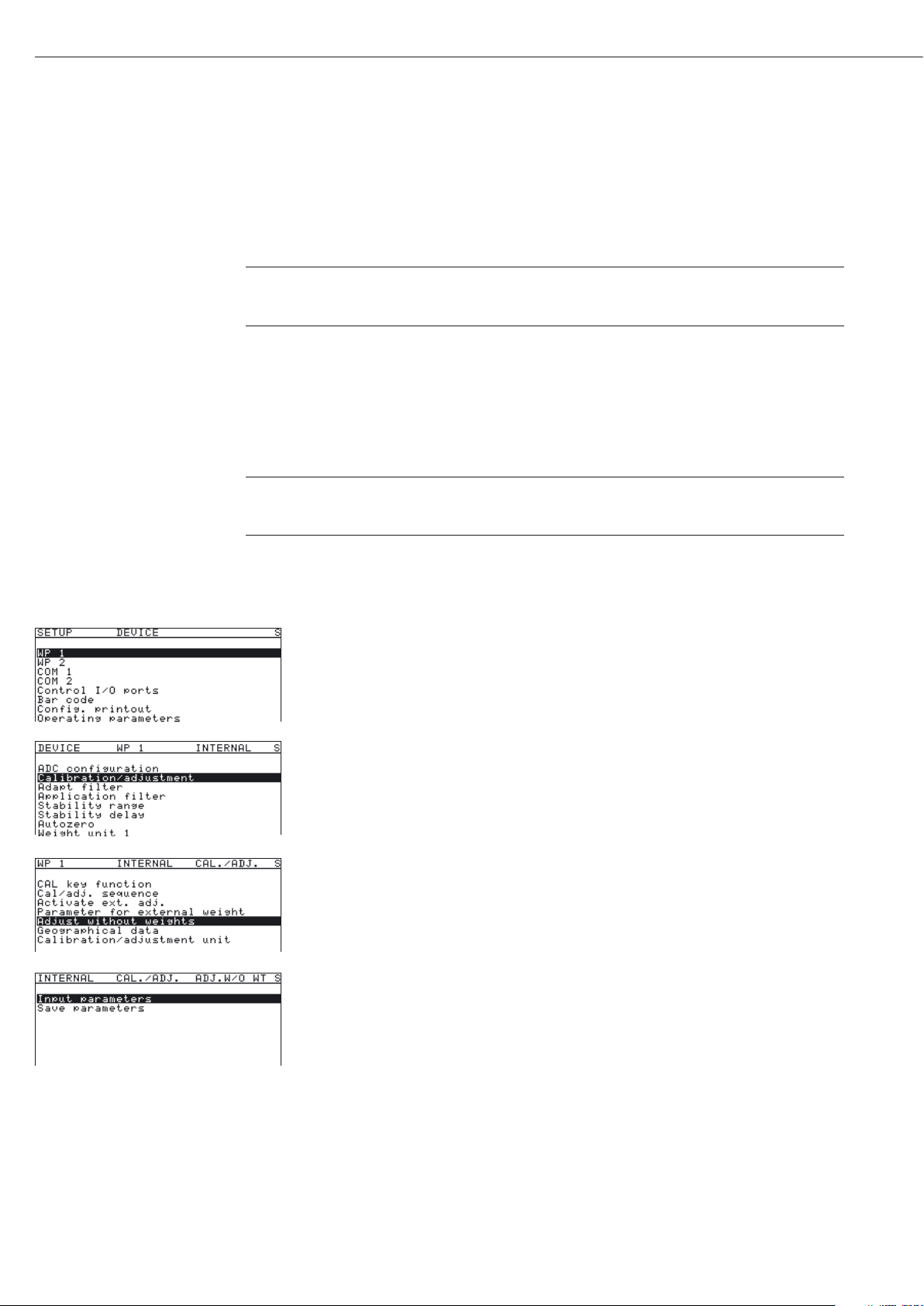

Overview of the Setup Menu in Service Mode
o = Factory setting
x = User-defined setting
Service password entry Setup Application parameters, please refer to the “Basic Application Programs” manual
Fn key “Setup Overview (Parameters)"
Device parameters
Info, see the “Setup Overview (Parameters)" section
Language, see the “Setup Overview (Parameters)" section
Setup access with service password
Device parameters
WP1
RS-232
1
)
SBI standard
SBI verifiable
o IS-232
ADC-232
RS-485 1)
o IS-485
ADC-485
Internal
ADC configuration (see the “Setup Menu for ADC Configuration" section)

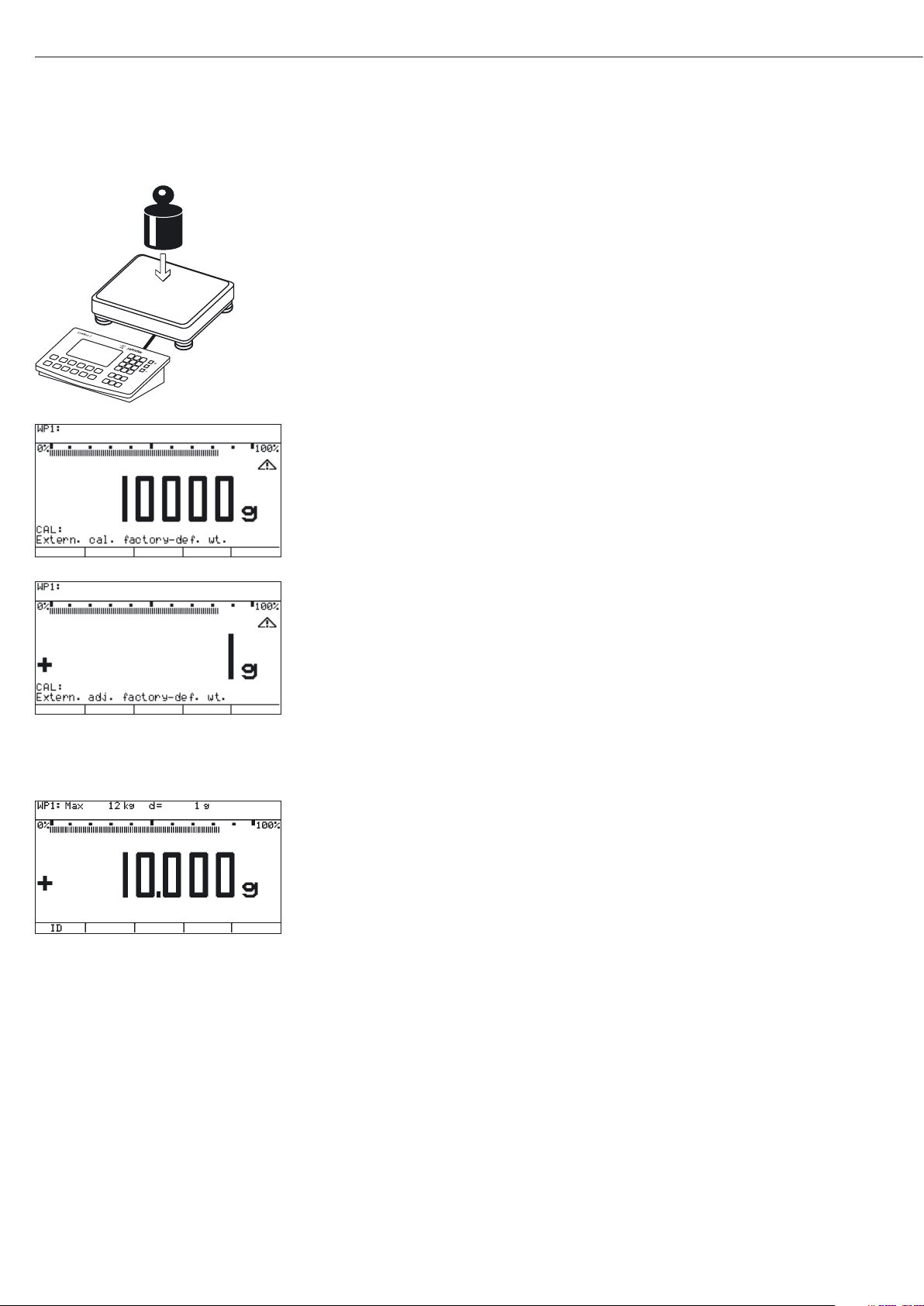

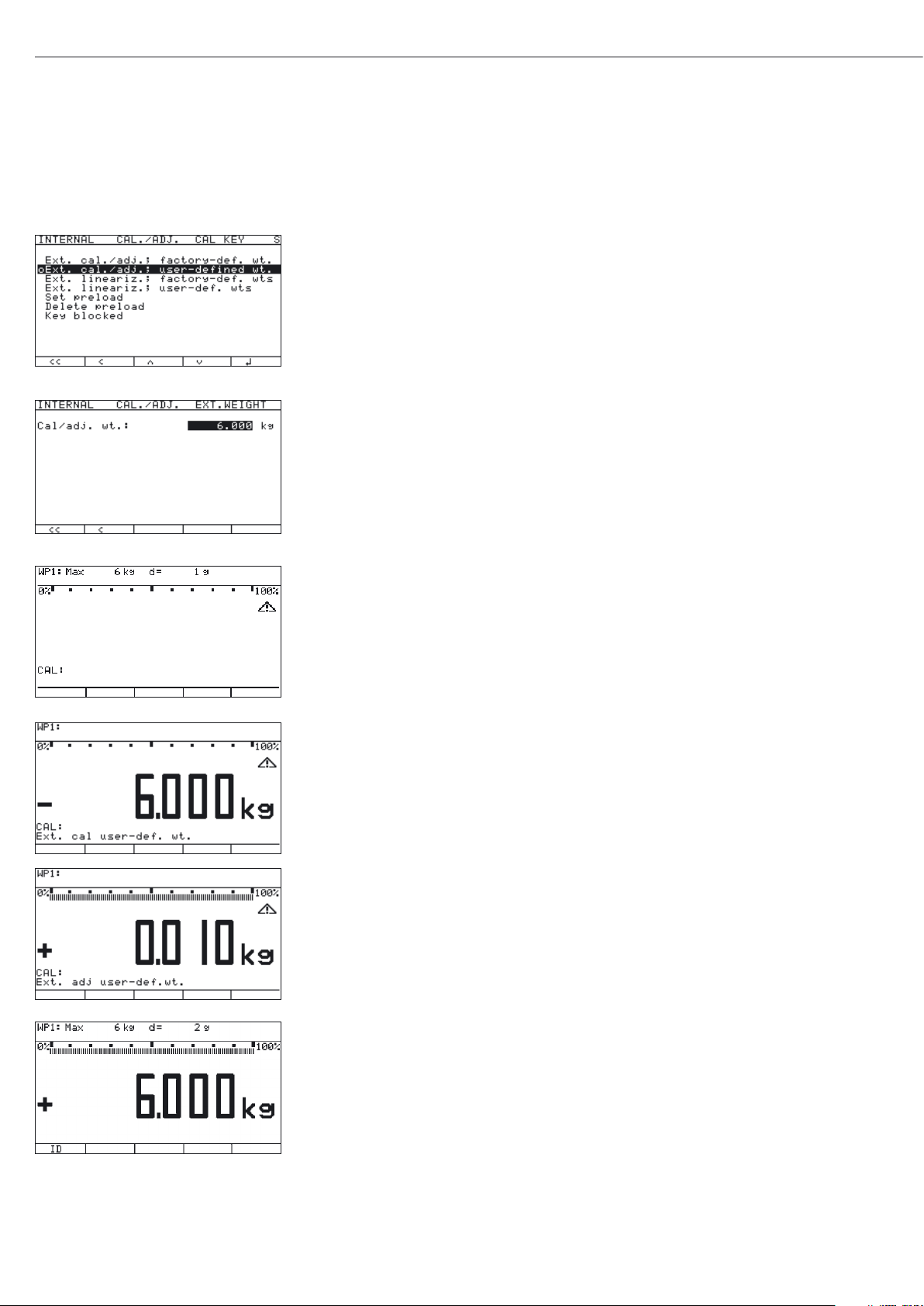

Calibration/Adjustment
CAL key function
o Ext. cal./adj.; factory-def. wt.
Ext. cal./adjust.; user-defined weight
Ext. lineariz.; factory-def. wts
Ext. lineariz.; user-def. wts
Set preload
Delete preload
Key blocked
Cal./adj. sequence
Cal. then auto adjust
o Cal. then manual adjust
isoCAL function
3
)
o Off
Adjustment prompt
Activate external adjustment 2)
o Activated
Deactivated
Parameter for external weight
Cal./adj. weight:
Lin. weight 1...4:
Adjust without weights
2
)
Input parameters
Nominal load:
Resolution:
Sensitivity 1…4:
Save parameters
Yes
o No
Geographical data 2)
Input parameters
Geographical latitude
Altitude
Gravitational
acceleration
Save parameters
Yes
o No
1
) Equipment version: – then blocked internally
2
) = Not available on devices verified for use in legal metrology
3
) only when operated with Sartorius IS weighing platforms or an external ADC
18
Configuring Weighing Platforms
19
Configuring Weighing Platforms
Device Parameters
WP1
Internal
Calibration/Adjustment unit
Grams /g
Kilograms /kg
Tons /t
o Pounds /lb
Menu items “Adapt filter" - “Factory settings: only bal. func,"
see the “Setup Overview (Parameters)" section
Off
COM-1 (when the WP is assigned to this interface)
COM-2 (when the WP is assigned to this interface)
UNICOM (only if available)
WP2, see the “Setup Overview (Parameters)" section
RS-232
1
) similar to “Internal" menu for WP1
RS-485
1
) similar to “Internal" menu for WP1
o Off
COM-1 similar to WP 1
COM-2 similar to WP 1
COM-1, see the “Setup Overview (Parameters)" section
COM-2, see the “Setup Overview (Parameters)" section
"Control I/O ports" - “Terminal data," see the “Setup Overview (Parameters)" section

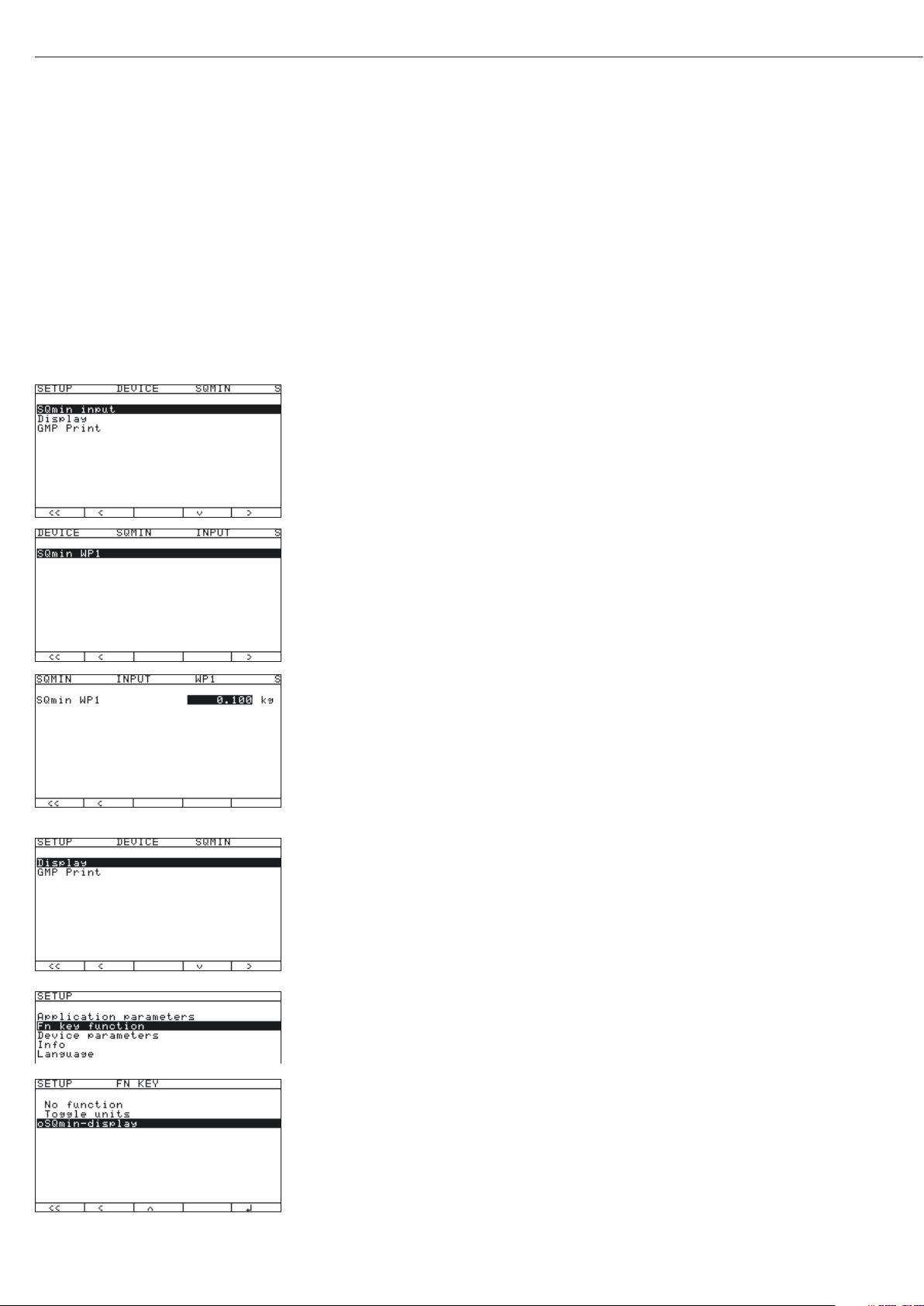

SQmin
SQmin input
SQmin WP1
SQmin WP1 0.000 kg
SQmin WP2
SQmin WP2 0.000 kg
SQmin WP3
SQmin WP3 0.000 kg
Display
No
o Yes
GMP print
o No
Yes
Alibi memory
2
)
Clear alibi memory
Yes
o No
Alibi memory period
In days 90
1
) Equipment version: – then saved internally
2
) Only if alibi memory is available (option)
Setup Menu for A/D Converter Configuration
Setup access in Service mode
WP1 - Internal ADC configuration Standard configuration Ranges Single-range mode Scale interval d
Max. cap.
Multi-interval mode Scale interval d
Range 1
Range 2
Range 3
Max. cap.
Multiple-range mode Scale interval d
Range 1
Range 2
Range 3
Max. cap.
Available units User-definable /o
Grams /g
Kilograms /kg
Carats /ct
...
Save parameters Yes
oNo
oVerifiable Accuracy Class III/IIII
configuration class
Ranges Single-range mode
D:
E:
Min. capacity:
Max. cap.:
Multi-interval mode
D:
E:
Min. capacity:
Range 1:
Range 2
Range 3:
Max. cap.:
Multi-interval mode
D:
E:
Min. capacity:
Range 1:
Range 2
Range 3:
Max. cap.:
Available units User-definable /o
oGrams /g
oKilograms /kg
...
Save parameters
Yes
oNo
20
Configuring Weighing Platforms
21
Configuring Weighing Platforms
Analog/Digital Converter (ADC)
Purpose
Adjust the parameters of the analog/digital converter to the connected load cell or weighing
platform. After ADC configuration, the ADC in connection with the load sensor is defined as
a scale.
3
Once the ADC configuration has been locked, the indicator can no longer be used to
influence weighing results. The scope of functions available in the weighing instrument is
defined by the A/D converter. Weighing functions that can be activated include reading
weight values, taring, adjustment, reading the tare value, saving/deleting the tare entry.
Setup information
– ADC configuration is only possible when the menu access switch is open. Re-close the menu
access switch after ADC configuration.
– Before ADC configuration, you must first set whether or not the weighing platform will be
used as a standard or verifiable weighing platform.
– ADC configuration is carried out in the Service mode in the Setup menu under “
WP 1" for
the first weighing platform and “
WP 2" for the second.
– Entries made in ADC configuration will not be affected by a menu reset (returning the setup
parameters to their factory settings).
See also the overview in the “Setup Menu for A/D Converter Configuration" section.
Setting Parameters for ADC Configuration
Standard or Verifiable Configurations
In ADC configuration, you must first select whether the weighing platform should be
configured as a standard or verifiable (for use in legal metrology) weighing platform.
– Standard configuration “
Standard"
– Verifiable configuration “
Verifiable"
Select using the “
Q"or “q" soft key. Press the “O" soft key to confirm the setting and open
the Configuration menu.
Accuracy class
This menu item is not shown when the Standard configuration is active. When the Verifiable
configuration is active (for weighing platforms verified or verifiable for use in legal
metrology), only Class l/m can be selected. Activate the “
Accuracy class"
menu item, select “
Class III/IIII" and confirm your selection using the “l"
soft key.
Ranges
The capacity of the weighing platform can be divided into multiple ranges:
–“
Single-range mode":
The entire weighing range is divided into scale intervals on the basis of the lowest interval d
and the maximum load.
–“
Multi-interval mode":
The “Multi-interval mode” function divides the weighing capacity into as many as four
ranges, each with a different readability. Corresponding changes take place automatically.
Once the scale has been tared, the highest possible resolution is available even if the
weighing platform is loaded with a higher weight. This is only permitted in the accuracy
classes l/m for the verifiable configuration.
–“
Multiple-range mode":
Multiple-range mode has two or three weighing ranges. When the range limit is exceeded,
the scale switches into the next highest weighing range (lower resolution) and remains there.
The scale can be returned to the lower weighing range (higher resolution) only by pressing
the ( key and then unloading the scale.
Select the desired configuration using the “
Q" or “q" soft key. Confirm your selection using
the “
O" key. Make additional settings in the submenu: scale interval d/verification scale
interval e, minimum load (Verifiable configuration only), range limits (Multi-interval or
Multiple range mode only) and maximum capacity. Confirm using the “l" soft key or cancel
using “
Esc."
Scale interval d
Scale interval d indicates the resolution of the weighing instrument.
The scale interval d can be entered only in increments of 1, 2, 5, 10, 20, etc.
When using verifiable or verified weighing platforms, the scale interval d is the same as
the verification scale interval e.
Verification scale interval e
The verification scale interval e indicates the resolution of the weighing instrument in
legal metrology. The verification scale interval e can be entered only in increments of 1, 2,
5, 10, 20, etc. For weighing instruments of accuracy class l or m, e = d. This is why
the scale interval d does not need to be entered separately.
When “Standard configuration” is used, this menu item is not displayed.
Minimum capacity (min. cap.)
When “Standard configuration” is used, this menu item is not displayed. The minimum
load of the connected weighing platform is entered under this menu item.
The minimum load for scales of accuracy class l is 20 e and 10 e for class m.
Important Note: The function of the minimum load setting is to warn operators that
below this limit, the summation of tolerances might lead to significant measurement
errors. In Germany, for example, initial weights below the minimum load are not allowed.
Maximum capacity (Max. cap.)
The maximum capacity is the maximum load that may be placed on the weighing
instrument. When heavier weights are used the weighing instrument displays overload
“H.” The scale intervals of the weighing instrument are calculated using the maximum
load and the scale interval d (e.g. max. capacity = 15.000 kg, smallest scale interval
d = 0.005 kg yields 3000 scale intervals).
In legal metrology the total number of intervals must be no more than 3000 e, and when
using multi-interval scales there must not be more than 3000 e intervals per range.
In standard operation, as opposed to legal metrology, you can define a “Super Range”
weighing instrument of over 3000 intervals. These parameters, however, may be
influenced by physical restrictions.
Range 1, Range 2, Range 3
The range limits are entered for the individual ranges. The accuracy changes when these
limits are exceeded. The following applies when entering limits: range 1 < range 2
< range 3 < maximum capacity.
This means that the weighing range can be divided into a maximum of 4 ranges. The
resolution changes at intervals of 1, 2, 5, 10, 20 etc., where the lowest resolution is the
smallest scale interval entered. Set ranges that are not required for use to zero.
Available units
With this function, you can make particular weight units (weight unit x, x=1, 2)
inaccessible during weighing. Available units are indicated by a * on the display (more
than one can be selected).
To enable or disable a unit, select the unit by pressing the “
Q" or “q" soft key, and then
press the “l" soft key (toggle function).
Saving parameters
To save the ADC configuration, use the “
O" soft key to select “Yes" and confirm with
the “l" soft key. The device software is reset, and the scale returns to the normal
weighing mode. To exit the menu without saving configuration changes, press the “
o"
soft key.
Once these parameters have been configured, the A/D converter in conjunction with the
load cell(s) is defined as a weighing instrument. The A/D converter, in conjunction with
the weighing platform, can now be used like any standard weighing platform. In addition,
the weight unit must be defined and the weighing platform adjusted (calibration,
adjustment and linearization must be performed). For a detailed description of these
procedures, see the “Adjustment in Service Mode" section.
22
Configuring Weighing Platforms
23
Configuring Weighing Platforms
Analog/Digital Converter (ADC) Configuration
The weighing platform must already be connected.
Open the menu access switch
The menu access switch is located on the back of the indicator right next to the weighing
platform connection.
t Remove the cap.
t Slide the switch to the left (= “open" position).
Activating the Service Mode
t See “Service Mode" on page 17.
Configuration
t Select weighing platform “WP 1."
t If the “Internal" setting is not already activated (marked by “o"), select the setting
using the “
Q" or “q" soft key and confirm with “O."
y The message “Function active" appears briefly. The “WP 1 internal" menu
will then open.
t Open the ADC Configuration menu.
t Select the desired configuration data record using the “Q" or “q" soft key:
“
Standard" or “Verifiable" (verifiable configuration). The default setting
depends on the data record.
t Open the menu for configuring A/D converter parameters. In this example, the menu for
ADC configuration of a weighing platform for use in legal metrology is opened.
If “
Standard" was selected previously, then the “Accuracy class" is not
displayed.
t Open the first menu item.
For a standard configuration, the “
Ranges" menu item, for a verifiable configuration,
the “
Accuracy class" menu item.
When the “Verifiable” configuration is active, always select the “
Accuracy
class" menu item first.
t Set accuracy class l/m. The “o" symbol should mark the setting, if required confirm
using the “l" soft key.
t Press the “o" soft key to exit the menu item.
Open the “
Ranges" menu item.
In the example shown here, “
Single range mode" has been selected (marked
by “
o").
t To select a different weighing range configuration, use the “Q" or “q" soft key to select
the corresponding line and open the selected menu using the “
O" soft key.
y The selected weighing range configuration is now active. When you return from the
input menu for entering the weighing range parameters, the new range configuration is
marked by a “
o."
For more information about range configuration, please see “Setting Parameters for ADC
Configuration."
The default values displayed depend on the data record loaded and might have to be
changed. In the example shown here, the A/D configuration is set with a “Verifiable”
data record in single-range mode.
Single-range mode
t Select the individual input fields using the “Q" or “q" soft key.
t For numeric input: use the 0 ... 9 keys and the . key (decimal point). Make
corrections using c.
t Confirm using the “l" soft key.
If other parameters follow the one just entered, the highlight bar is automatically
positioned on the next input field.
To cancel numbers entered: press the “
ESC" soft key.
t Use the “o" soft key to go to the next menu level.
y This will apply all parameters.
t Press M or “oo" to exit the Setup menu.
In the example shown here, a single-range scale in “Verifiable” configuration with a
maximum capacity of 6.000 kg is modified; the verification scale interval e is changed
from 0.001 kg to 0.002 kg, in accordance with the maximum permitted value of 3000
verification scale intervals. Press the “l" soft key to confirm the changed value.
The highlight bar is automatically positioned on the “
Min. cap." field.
The following values apply for the minimum load for verifiable scales:
– For class l: Min. cap. = 20 e
– For class m: Min. cap. = 10 e
A verification scale interval that is changed, therefore, also affects the minimum load.
Changing the verification scale interval “e" is automatically applied to the “Min. cap."
You can also change this value manually:
In the example, the minimum capacity must be increased to 0.04 kg for class l.
t Press the following keys in sequence: 0.040and confirm using the “l."
y The highlight bar is automatically positioned on the “Max. cap." field.
t The value for the maximum capacity is not changed. For this example, the input of
parameters for single-range mode in the “Verifiable” configuration is now concluded.
t Use the “o" soft key to go to the next menu level.
24
Configuring Weighing Platforms
0.002
25
Configuring Weighing Platforms
Multi-interval mode
The illustration shows an example of the input menu opened for multi-interval mode
range configuration. This example shows the parameters for a scale in “Verifiable”
configuration, with 2 weighing ranges and a maximum capacity of 6.000 kg.
– Range 1: 0…3.000 kg with e1 = 0.001 kg
– Range 2: 3.002…6.000 kg with e2 = 0.002 kg
t Enter the verification scale interval for Range 1 in the “E" input field. The minimum
capacity for a class l scale must be set to 0.02 kg.
t Use the “o" soft key to go to the next menu level.
y The active range configuration is marked with “o."
t Use the “o" soft key to go back to the “Verifiable" menu.
Selecting units
t Use the “q" and “O" soft key to open the “Available units" menu item.
This menu lets you enable or disable the weight units available under “
Weight
unit 1," “Weight unit 2" and “Weight unit 3."
t Select the respective unit using the “Q" or “q" soft key and confirm using the “l"
soft key.
In most cases, you will not need to change defined values.
Available weight units are marked by a *.
The weight unit used for configuration of weighing ranges cannot be blocked.
t Use the “o" soft key to go back to the “Internal" menu.
t Use the “q" and “O" soft key to open the “Calibration/adjustment"
menu.
t Use the “q" and “O" soft key to open the “Calibration/adjustment
unit" menu item to define the weight unit for calibration and adjustment. In most
cases, you will not need to change defined values.
y All units are displayed in the menu that are activated in “Available units."
The current setting is marked by a “
o."
t To change the calibration/adjustment unit, select the unit using the “Q" or “q" soft key
and confirm using the “l" soft key.
t Use the “o" soft key to go back to the “Internal" menu.
t Use the “Q" soft key to select the “ADC configuration" menu item.
t Use the “O" and “q" soft key to select the “Save configuration data"
menu item.
t To save the configuration, use the “Q" soft key to select “Yes" and confirm using the
“l" soft key.
y The message “Function activated" appears briefly. The program then
returns automatically to the regular weighing mode.
To not save the configuration:
t Press the “o" soft key to exit the menu.
y The program returns to the next higher menu level.
To not save data: Press the “
o" soft key. The program returns to the
WP1:Internal.
t Slide the menu access switch to the right (= “closed" position) and reattach the cap.
y The device is now in normal weighing mode.
h
Once ADC configuration has been completed, an adjustment of the weighing
platform (calibration/adjustment and linearization) must be carried out (see
“Calibration/Adjustment without Weights" and “External Linearization").
The displays depicted in the next two illustrations on the left show data from a multiinterval scale configured as described above, or a similarly configured multiple-range
scale.
If the A/D converter was configured with a “Verifiable” data record, the lines for display
of metrological data (lines 1 and 2) show the data valid for use in legal metrology.
The current range (e.g. R1) is displayed top left under the weighing point for multiplerange scales.
ADC Configuration with Load Cell(s) Connected
Procedure:
1. Open the menu access switch, see “Analog/Digital Converter (ADC) Configuration."
2. Activate the Service mode, see “Service Mode."
3. Configure WP 1, see “Analog/Digital Converter (ADC) Configuration."
4. Set single-range mode, for example, see “Analog/Digital Converter (ADC) Configuration."
5. Select the units, see “Analog/Digital Converter (ADC) Configuration."
6. Adjust without weights, see “Adjust without weights."
7. Set/Delete the preload, see “Setting the Preload" and “Deleting the Preload."
26
Configuring Weighing Platforms
27
Configuring Weighing Platforms
Entering Geographical Data for Use in Legal Metrology
Purpose
Entering geographical data allows the external adjustment of weighing equipment at a place
(e.g. at the manufacturer or vendor's place of business) that is not the same as the place of
installation. If the weighing equipment is adjusted at the place of installation, it is not
necessary to enter geographical data.
The sensitivity of weighing equipment changes depending on the place of installation as
it is dependent on the on-site gravitational force – or, more precisely, on gravitational
acceleration. Saving geographical data makes it possible to change the place of installation
of the weighing equipment after external adjustment has been carried out.
The adjustment of weighing equipment is valid at the place of installation and within a
specific tolerance zone. At 3000 e this zone extends ±100 km from the set geographical
latitude and ±200 m from the set elevation above sea level.
Installation Location in Germany
An exception to this is the setting for “Germany (Zone D):” If during external adjustment of
weighing equipment within Germany the geographical data
– Geographical latitude: 51.00 degrees
– 513 m elevation above sea level
are entered, the weighing equipment can be used throughout Germany. Gravitational
acceleration for “Germany (Zone D)” is 9.810 m/s
2
. On delivery the geographical data for
“Germany (Zone D)” are entered in the output device.
It is recommended to use the geographical data settings for “Germany (Zone D)” when
adjusting and delivering the weighing equipment within Germany.
Entering exact geographical data will lead to a higher level of accuracy but will also restrict
the tolerance zone.
Setup information
– It is only possible to enter geographical data when the menu access switch is open.
– When the Service mode is active, geographical data can be entered in the Setup menu under
“
WP 1" for the first weighing platform and “WP 2" for the second. Settings are made in
the “
Calibration/adjustment: Geographical data: Input
parameters" menu.
– You can enter either the “
latitude" (geographical latitude in degrees) and
“
altitude" (elevation in m above sea level) or the value for gravitational acceleration
“
gravity"
Gravitational acceleration takes precedence over the geographical latitude and elevation of
the location: If it has been entered, input fields for latitude and elevation show the values
“
99999.99" and “9999999" respectively. If only elevation and latitude have been
entered, “
0000000" is displayed for gravitational acceleration.
h
Then make sure that the geographical data for the adjustment location has been entered
correctly. If no external adjustment is carried out, enter the data for the installation location.
The data can be obtained from the relevant land registry or Ordnance Survey.
Procedure
t Remove the cap.
t Slide the menu access switch to the left (= “open" position).
If the device is part of a verified weighing facility, this will only be possible if the
verification seal is broken. The weighing equipment must then be verified again.
t Activate the Service mode, see “Service Mode."
t Select weighing platform “WP 1" in the “Device Parameters" menu item.
t If the “Internal" setting is not already activated (marked by “o"), select the setting
using the “
Q" or “q" soft key and confirm with “O."
y The menu for the “WP-1 INTERNAL" device parameters is displayed.
t Use the “Q" or “q" soft key to select and open the
“
Calibration/adjustment" menu using “O."
t Use the “Q" or “q" soft key to select and use “O" to open the “Geographical
data" menu.
t Use the “O" soft key to confirm “Input parameters."
Entering Geographical Latitude and Elevation
t Use the “Q" or “q" soft key to select the corresponding input field.
t Enter the number via the keypad and confirm using the “l" soft key.
y The next input field is selected.
In this example, the geographical data are entered for the respective platform as a value
pair “Latitude" and “Altitude." After this data was saved and the scale
returned to weighing mode, this pair of values is displayed again the next time the
display menu is opened. The input field for gravitational acceleration is empty.
In this example, the value for gravitational acceleration is entered for the place of
installation. The fields “
Latitude" and “Altitude" are invalid. The set value is
then re-displayed after it is saved and the input menu is re-opened. If you exit the Setup
menu and then open the Service mode, the set value for gravity is no longer displayed.
28
Configuring Weighing Platforms
29
Configuring Weighing Platforms
Entering Gravity
t Use the “Q" or “q" soft key to select the corresponding input field.
t Enter gravity in m/s
2
via the keypad and confirm using the “l" soft key.
Permissible value range:
9.700000 d < gravity 2 d < 9.900000
In the example shown here, the value for gravity has been changed.
The new value,
9.810000 m/s2 applies to the setting “Germany (Zone D).”
t Press the “o" soft key to exit the Input menu.
t Use the “Q" soft key to select the “Save parameters" menu item.
t Use the “Q" soft key to select “Yes" and use the “l" soft key to confirm.
y The message “Data stored" appears briefly.
The program then returns to the “
No" display status.
t Press M or “oo" to exit the Setup menu.
t Slide the menu access switch to the right (= “closed" position) and reattach the cap.
y The display goes out and the device restarts. Then weighing mode is active.
Adjusting Scales in Operating Mode
See also “Calibration and Adjustment" in the chapter called “Operation"
t Open the Device parameters menu for the respective weighing platform,
(e.g. “
WP 1:INTERNAL").
– Open the “
Calibration/adjustment" submenu.
–"
CAL key function" menu item:
Setting “
Ext. cal./adj.: factory-def. wt."
(factory setting).
–"
Cal/adj. sequence" menu item:
Setting “
Cal. then manual adj." (factory setting).
–"
Activate ext. adj." menu item
(not for a verifiable configuration):
Setting “
Activated" (factory setting).
To display geographical data in the Device parameters menu, open the
“
Operating parameters" submenu.
Menu item “
Display geogr. data > On".
t Press ( to unload the scale.
t Press J to start an external adjustment.
y The display “C.EXT.D" appears briefly.
In the example, the altitude and latitude of the installation location are being entered.
y The display “Altitud" appears briefly.
y The altitude at the place of installation is displayed in meters above sea level - here, the
altitude for “Germany (Zone D).”
t Press J to confirm the displayed value or press ( to cancel the adjustment.
y The display “Latitud" appears briefly.
y The geographical latitude of the place of installation is shown in degrees north or
degrees south - here the latitude setting for “Germany (Zone D).”
t Press J to confirm the displayed value or press ( to cancel the adjustment.
y You are prompted to place the required weight on the platform (e.g.: 5.0 kg).
The subsequent steps for completing the calibration/adjustment are described in the
chapter entitled “Operation” under “Calibration and Adjustment.”
30
Configuring Weighing Platforms
C.EXT.D
C.EXT.DEF.
Altitud
C.EXT.DEF.
Latitud
C.EXT.DEF.
Loading...
