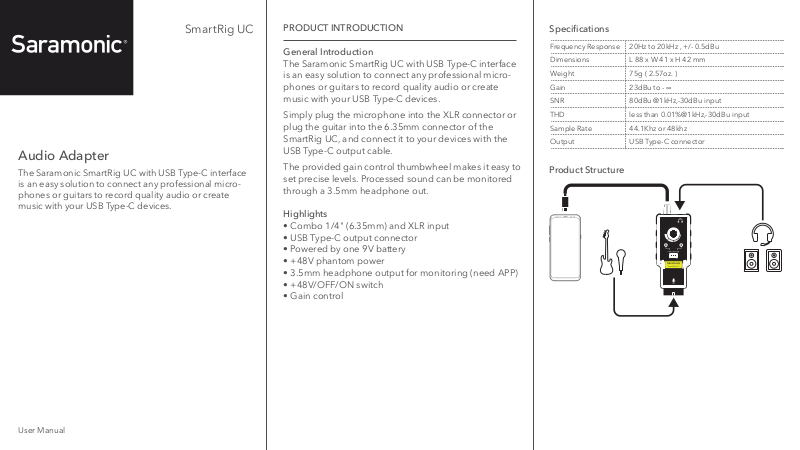

SmartRig UC
Audio Adapter
The Saramonic SmartRig UC with USB Type-C interface
is an easy solution to connect any professional microphones or guitars to record quality audio or create
music with your USB Type-C devices.
PRODUCT INTRODUCTION
General Introduction
The Saramonic SmartRig UC with USB Type-C interface
is an easy solution to connect any professional microphones or guitars to record quality audio or create
music with your USB Type-C devices.
Simply plug the microphone into the XLR connector or
plug the guitar into the 6.35mm connector of the
SmartRig UC, and connect it to your devices with the
USB Type-C output cable.
The provided gain control thumbwheel makes it easy to
set precise levels. Processed sound can be monitored
through a 3.5mm headphone out.
Highlights
• Combo 1/4" (6.35mm) and XLR input
• USB Type-C output connector
• Powered by one 9V battery
• +48V phantom power
• 3.5mm headphone output for monitoring (need APP)
• +48V/OFF/ON switch
• Gain control
Specifications
Frequency Response
Dimensions
Weight
Gain
SNR
THD
Sample Rate
Output
Product Structure
20Hz to 20kHz , +/- 0.5dBu
L 88 x W 41 x H 42 mm
75g ( 2.57oz. )
23dBu to - ∞
80dBu @1kHz,-30dBu input
less than 0.01%@1kHz,-30dBu input
44.1Khz or 48khz
USB Type-C connector
User Manual
QUICK START GUIDE
1. Install a 9V battery. Gently slide out the battery
cover in the direction of the arrow at the back of
unit. Insert the battery with the “+” positive terminal
lined up with the “+” indicator on the battery
compartment.
2. Connect your microphone to the XLR jack or connect
your guitar to the 1/4’’ (6.35mm) jack of SmartRig UC.
3. Connect the SmartRig UC to your device’s USB
Type-C interface.
4. Download a recording application.
5. Turn on the SmartRig UC. Slide the power switch to
the ON position. The green LED will light.
6. If your microphone needs phantom power, please
slide the power switch to the +48V position. The red
and green LEDs will light at the same time.
7. You are now ready to record by the microphone or
guitar on your USB Type-C device. Adjust the GAIN
control flexibly to get the the optimum signal levels.
Check the input level meter on the app.
8. Connect your headphone to the headphone jack to
monitor the recording.
Note: Headphone monitor function depends on the
application you are using.
Tips
• Be careful not to turn the phantom power ON when
recording with microphones that do not operate on
phantom power, as the current may damage it.
• Please set the GAIN properly during recording.
Audio recording will be distorted if the GAIN is too
high or too low.
• If you hear echoes when using high GAIN settings,
please lower the device volume with the volume
button.
Compatibility
Compatible with USB Type-C devices (Except GoPro
USB Type-C).
Any type of microphones: Dynamic, Ribbon, or
Condenser.
Any musical instruments with a 6.35mm connector.
Packing List
SmartRig UC ×1
Velcro Strip ×1
User Manual ×1
Warranty Card ×1
