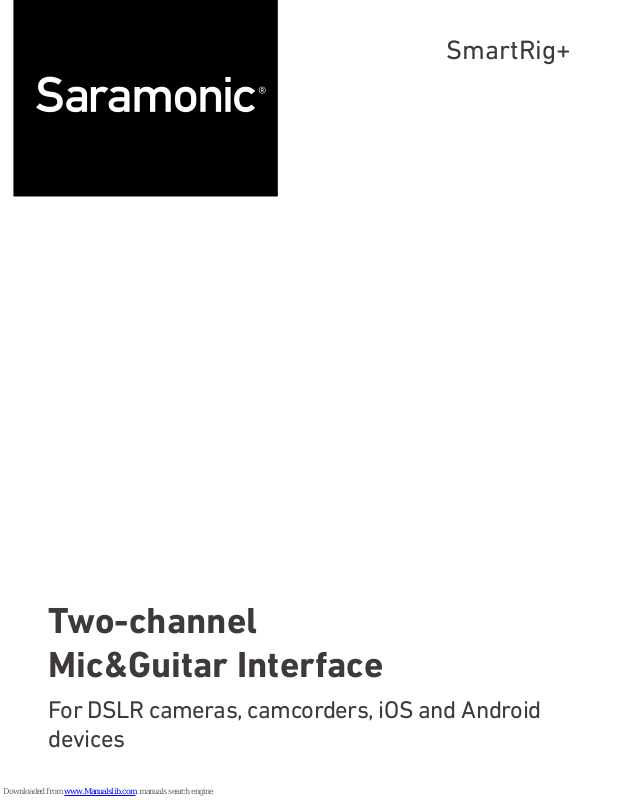

Saramonic SmartRig Plus User Manual

SmartRig+

Two-channel
Mic&Guitar Interface

For DSLR cameras, camcorders, iOS and Android
devices

Product Introduction

1 General Introductions

The Saramonic SmartRig+ is a microphone/guitar interface
for recording sound.

It allows you to connect professional microphones/guitars to
create music with your iPhone, iPad, iPod touch and Android
devices, or record quality audio to your DSLR cameras and
camcorders.

The SmartRig+ makes your recording work much easier. It
provides 48V phantom power for microphones and 3.5mm
headphone output for real-time monitoring. The two gain
control thumbwheels make it easy to set precise levels.

2 Highlights

• Two XLR mic inputs

• Two 1/4" (6.35mm) guitar inputs

• Two 1/8" (3.5mm) inputs

• Mono/Stereo switch (M/S)

• Camera/Phone switch

• +48V phantom power

• 3.5mm headphone output for monitoring

• Gain control

3 Specifications

Frequency Response 20 Hz to 20 Khz, +/-0.5 dB

THD less than 0.01% @ 1 kHz, -30 dBu input

SNR 80 dB @ 1 kHz, -30 dBu input

Input1

1x XLR mic input

1 x 1/4" (6.35mm) guitar input

1 x 1/8" (3.5mm) input"

Input2

1 x XLR mic input

1 x 1/4" (6.35mm) guitar input

1 x 1/8" (3.5mm) input"

Output 1 x 1/8" (3.5mm) CAB LINE

Phone OUT 1 x 1/8" (3.5mm) jack

Gain +20 dB to -∞

Phantom Power 48V power supplies

Power Requirements 9V alkaline or lithium battery

Dimensions L 120 x W 40 x H 40 mm

Weight 130g (excluding battery)
